3-20 — AIR TANK (#70492) — 206 parça

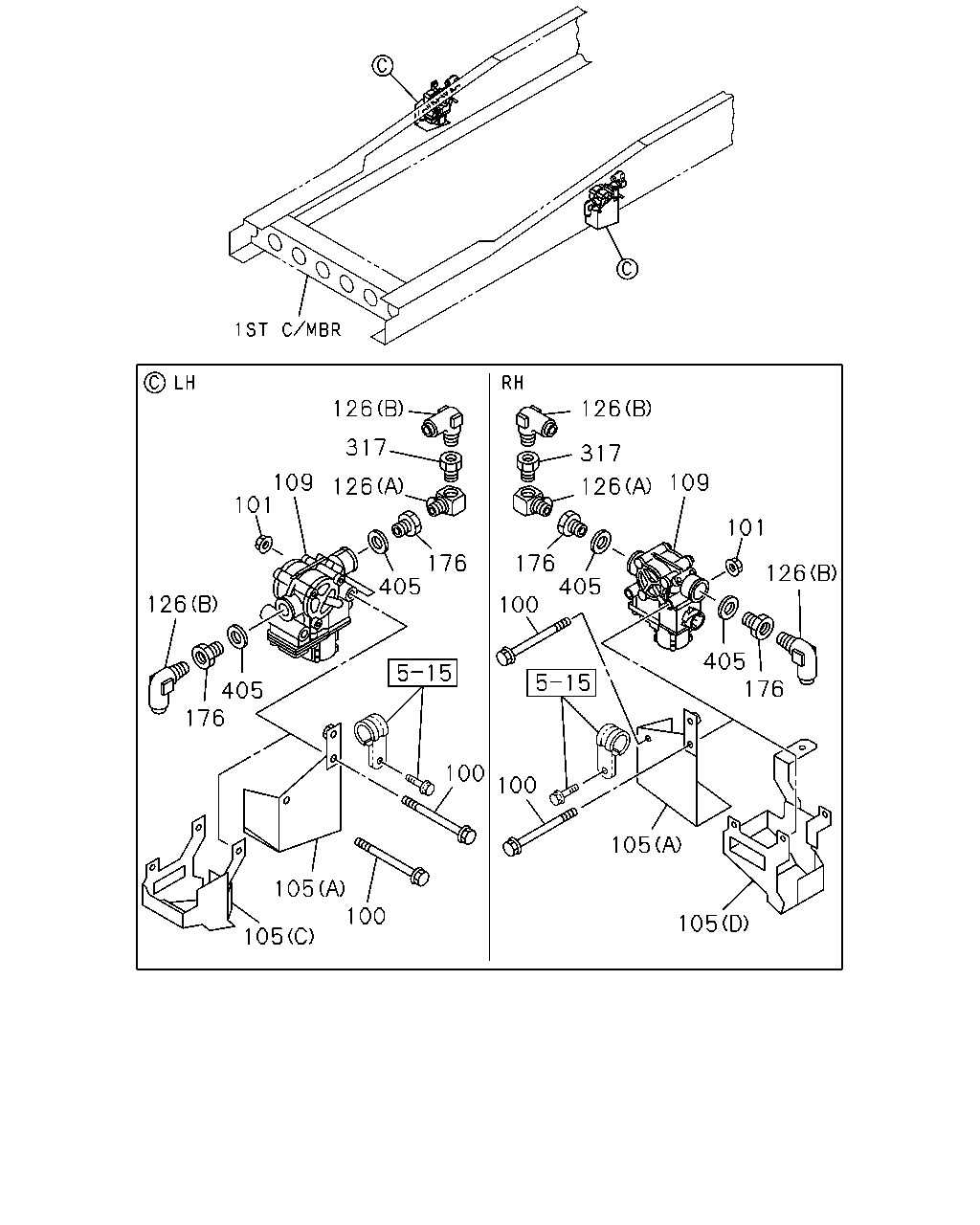

126 317 126 109 405 101 176 126 405 176 100 105 100 105 126 317 109 126 101 176 126 405 405 176 100 100 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28050-880-0	04	1	1009-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE	0-28055-814-0	02	1	1009-
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1009-
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47479-792-0	01	1	1009-1504
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98272-749-0	01	1	1505-
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98061-815-0	01	1	1009-1504
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98300-152-0	01	1	1505-
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98164-196-0	01	1	1009-1504
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98300-155-0	01	1	1505-
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	1-48240-115-0	02	1	1009-1504
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	8-98215-454-0	02	1	1505-
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) PT3/8	1-09664-210-0	01	1	1009-
405	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	04	1	1009-

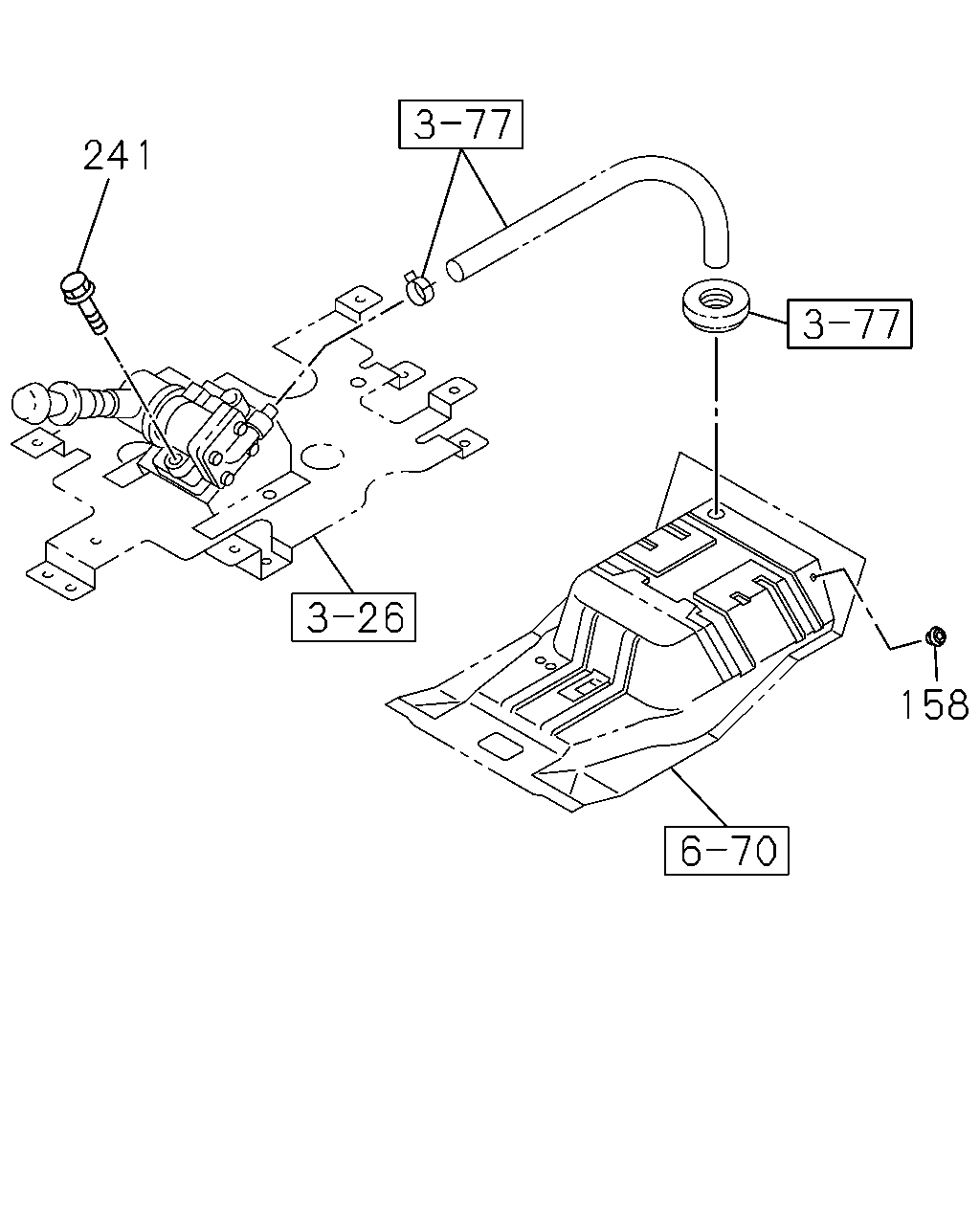

241 158

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	158	GROMMET; PIPE OD=35	8-94122-971-0	01	1	1009-
	241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1009-

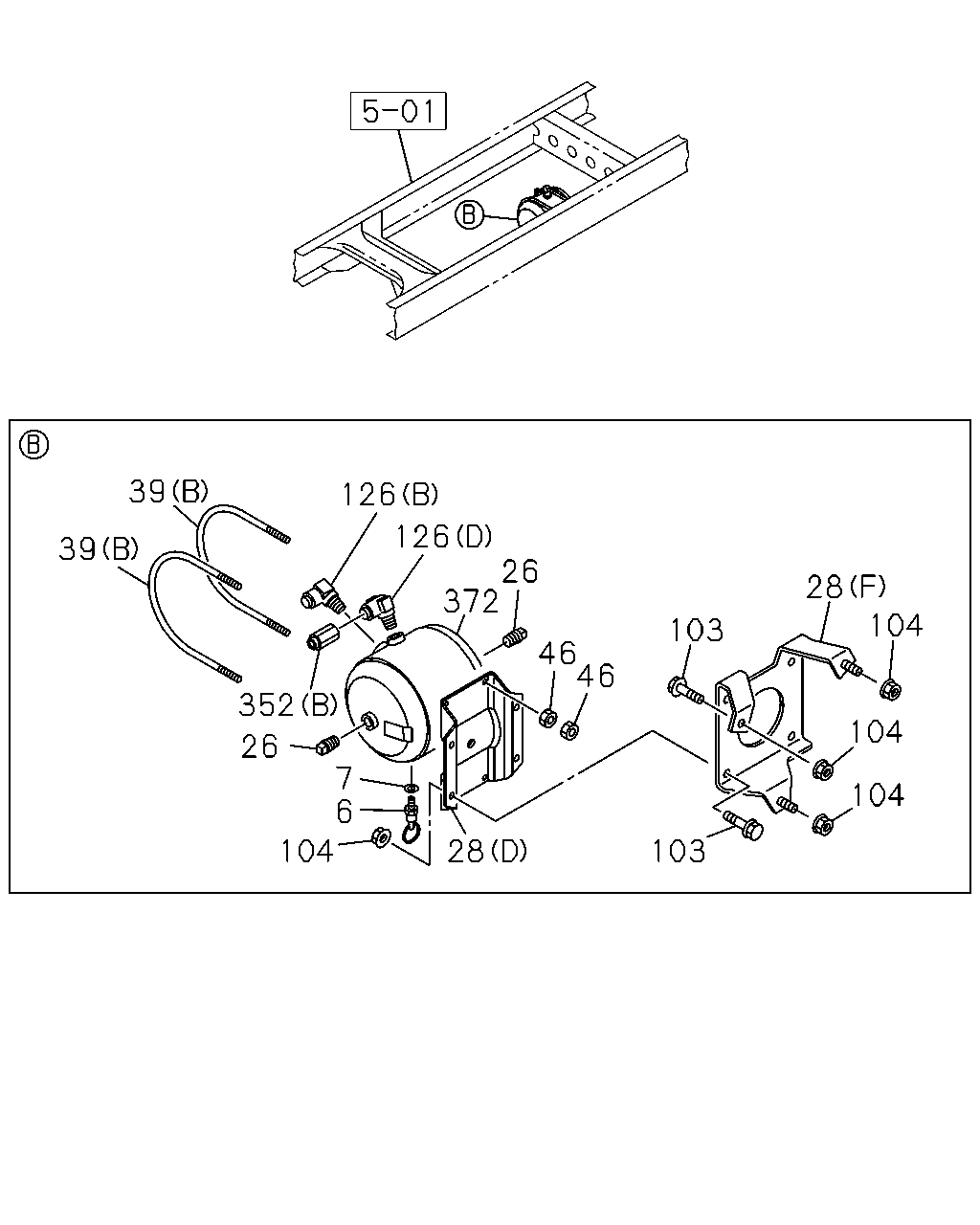

39 126 126 26 372 39 28 104 103 46 46 352 104 26 7 6 104 104 28 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	1009-
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	03	1	1009-
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-
28	BRACKET; AIR TANK (C)	8-97621-120-1	01	1	1009-
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	1009-
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-
103	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1009-
103	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1009-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	01	1	1009-
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	1009-
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-
352	CONNECTOR; STRAIGHT (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT	1-09661-050-0	04	1	1009-
372	TANK; AIR,ACCESORY	8-98090-803-1	01	1	1009-

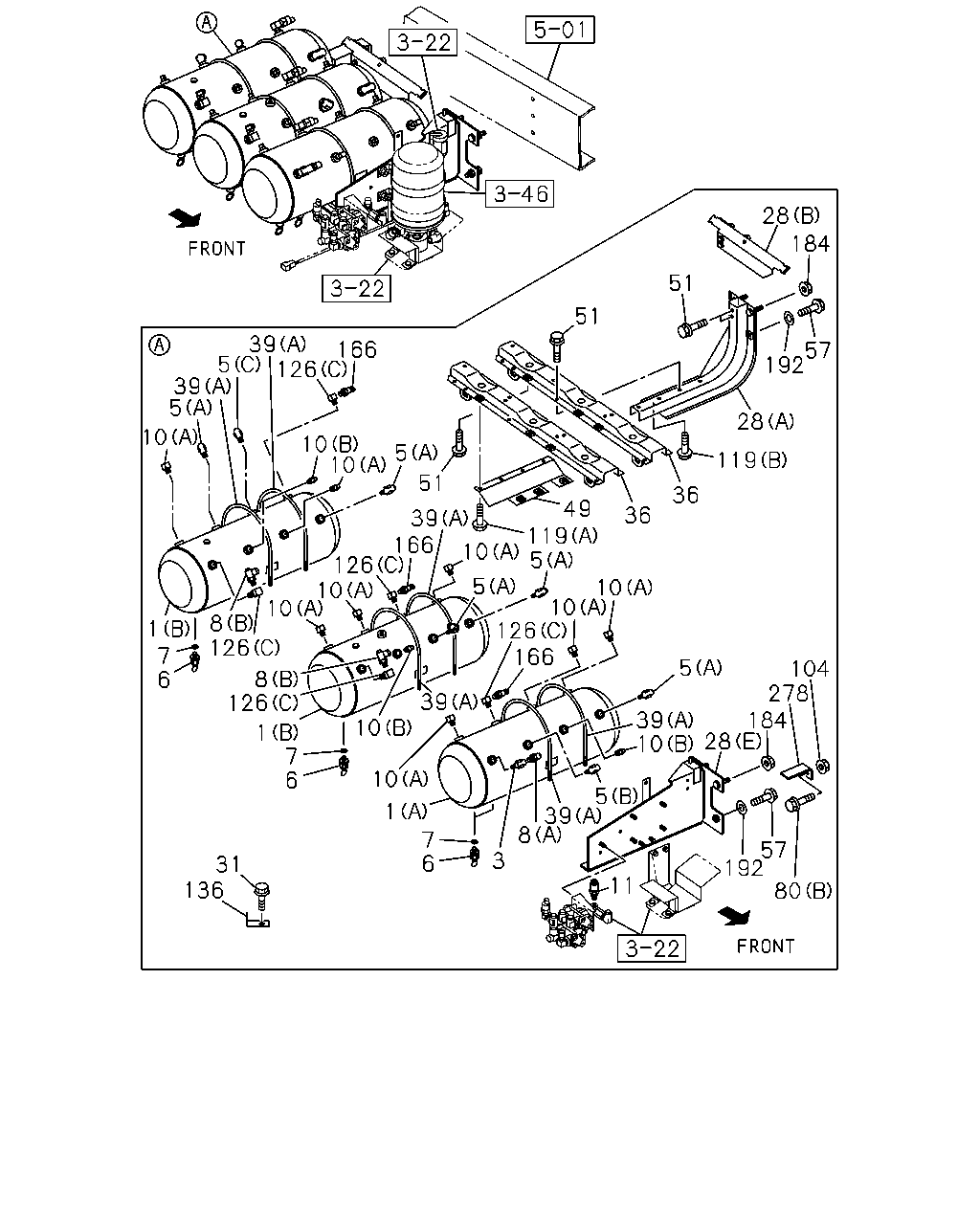

28 184 51 51 39 166 5 126 39 5 57 192 28 10 10 10 5 119 51 36 49 11 5 36 39 166 126 10 10 5 10 10 126 166 10 8 126 1 7 6 5 104 278 184 28 8 126 39 10 39 10 1 7 6 10 5 1 39 8 7 6 57 192 3 31 136 11 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	8-97617-854-0	01	1	1009-1106
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1107-
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	1009-1106
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	1009-1106
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1009-
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1009-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1009-
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-
28	BRACKET; AIR TANK (C)	8-97621-120-1	01	1	1009-
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	1009-
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1009-
36	STAY; MAIN TANK	8-97618-091-1	02	1	1009-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-
49	BRACKET; AIR TANK	8-98110-683-0	01	1	1009-
51	BOLT; STAY TO BRKT M8X20 FLANGE	0-28650-820-0	10	1	1009-
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	1009-
80	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
80	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	1009-
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-
119	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-
119	BOLT; STAY (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-
136	BRACKET; CLIP L=55 B=25	1-47478-439-0	01	1	1009-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1009-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1009-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1009-
184	NUT; BRKT M14	1-09440-072-0	04	1	1009-
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1009-
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1009-

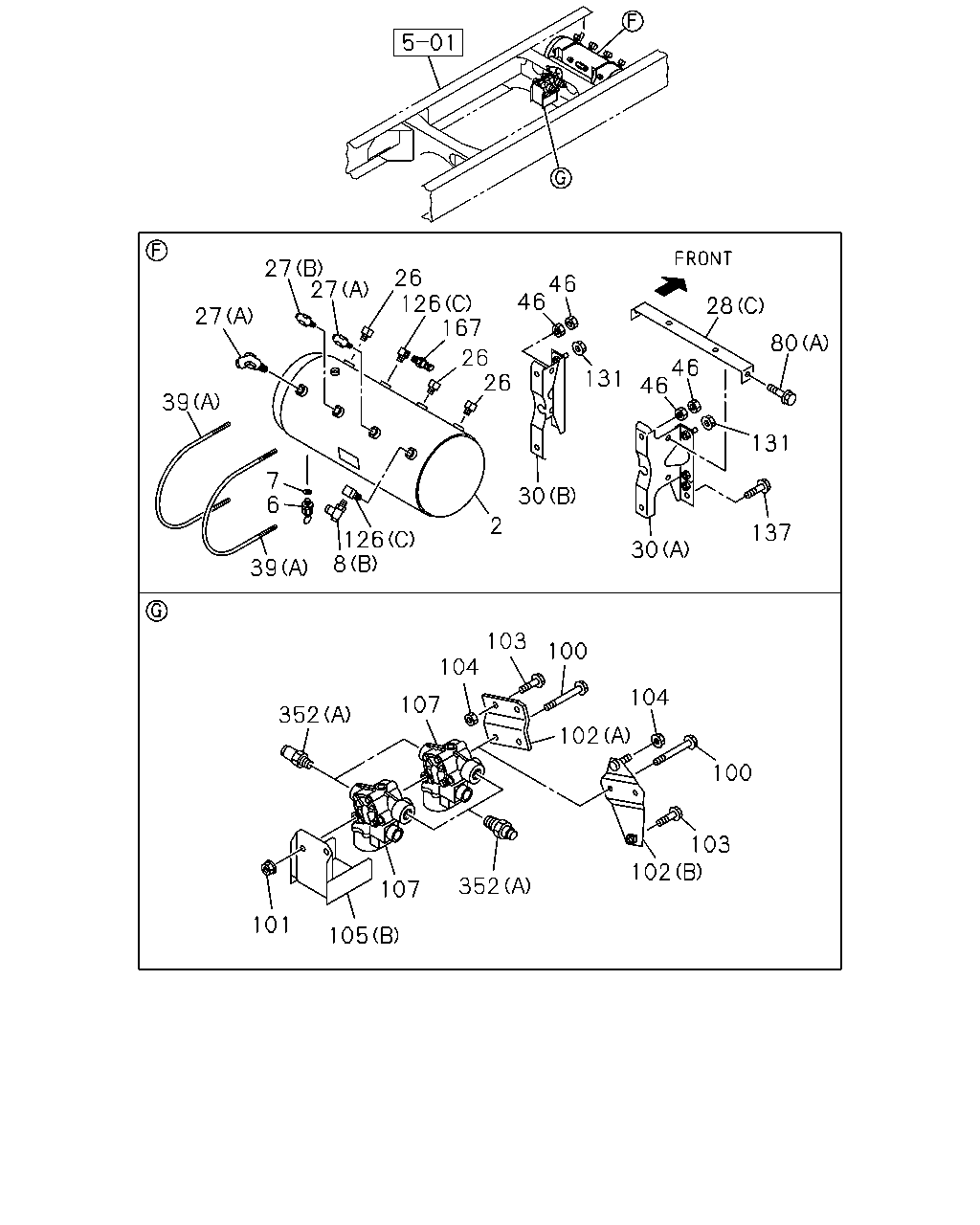

27 27 27 26 167 126 46 46 28 39 126 30 30 46 46 80 131 137 131 26 2 26 7 39 6 104 100 104 102 107 103 100 102 352 107 105 101 352 03

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR	8-97617-855-1	01	1	1009-1106
2	TANK; AIR	8-98187-713-0	01	1	1107-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	1009-
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	03	1	1009-
27	UNION; ELBOW,AIR TANK (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-
28	BRACKET; AIR TANK (C)	8-97621-120-1	01	1	1009-
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	1009-
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-
30	BRACKET; AIR TANK,SUB (A)	8-97618-390-1	01	1	1009-
30	BRACKET; AIR TANK,SUB (B)	8-97618-391-1	01	1	1009-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-
80	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
80	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28050-880-0	04	1	1009-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE	0-28055-814-0	02	1	1009-
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1009-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98059-827-0	01	1	1009-1504
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98300-524-0	01	1	1505-
103	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1009-
103	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1009-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	01	1	1009-
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	1009-
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47479-792-0	01	1	1009-1504
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98272-749-0	01	1	1505-
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98061-815-0	01	1	1009-1504
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98300-152-0	01	1	1505-
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98164-196-0	01	1	1009-1504
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98300-155-0	01	1	1505-
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	1-48240-115-0	02	1	1009-1504
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	8-98215-454-0	02	1	1505-
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	02	1	1009-
137	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	1009-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	1009-
352	CONNECTOR; STRAIGHT (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT	1-09661-050-0	04	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
