1-41 — FUEL PIPING; CHASSIS (#70472) — 67 parça

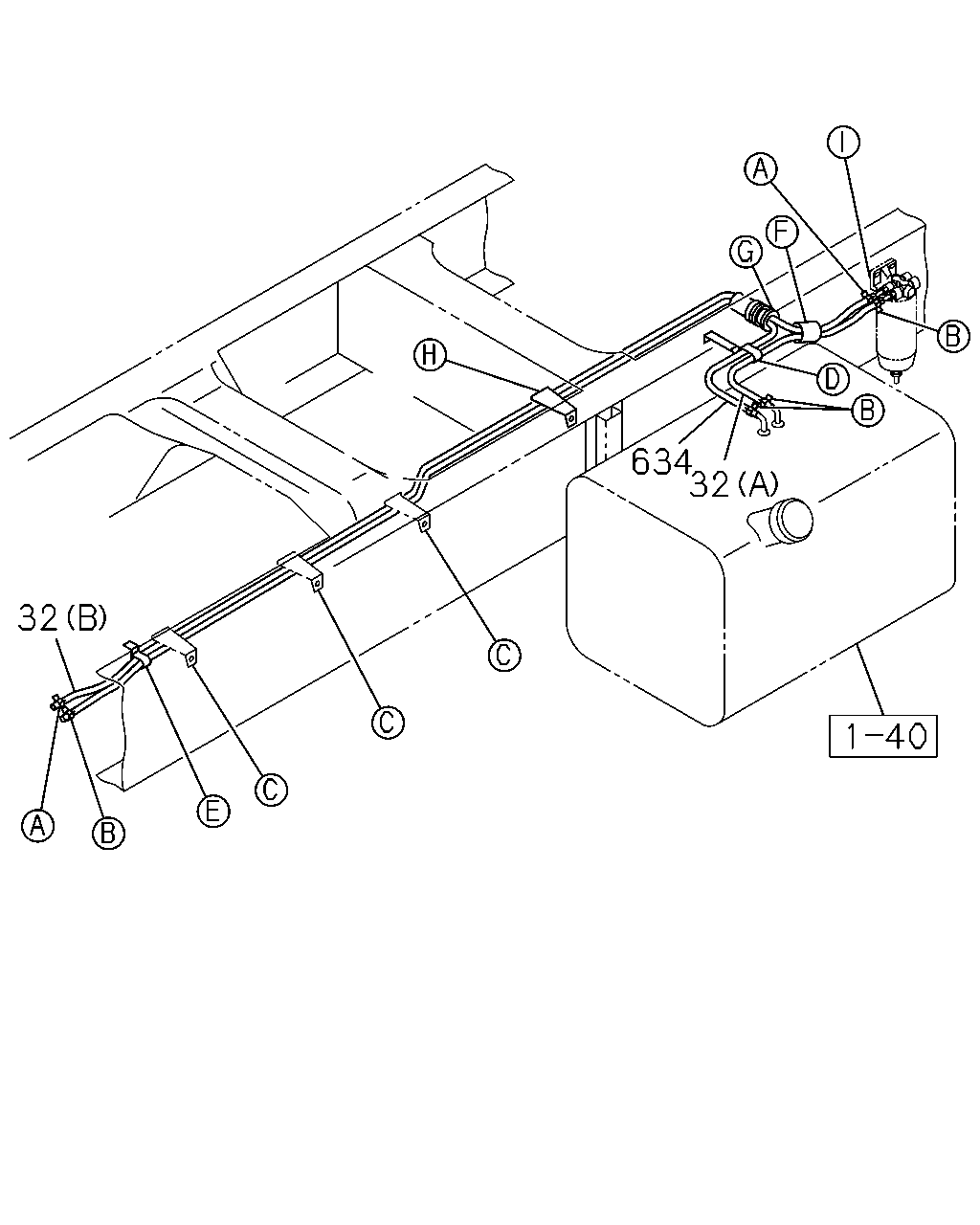

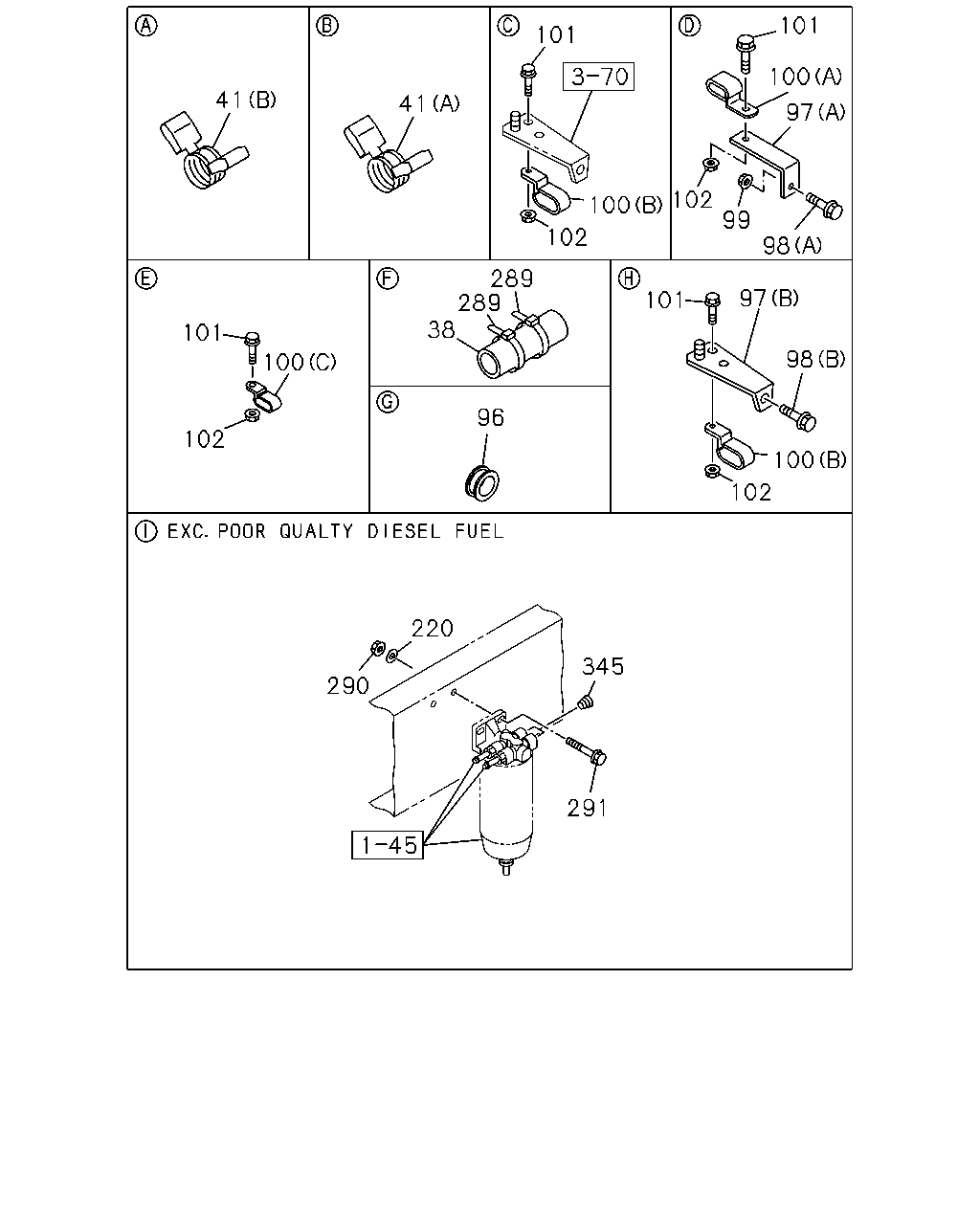

101 101 100 41 41 97 102 100 99 102 98 289 289 38 97 101 101 98 100 96 102 100 102 220 345 290 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SLEEVE; RUBBER,RUBBER HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1009-1102
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1009-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1009-
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	01	1	1009-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (C)	8-98186-645-0	01	1	1103-
97	BRACKET; CLIP (A)	1-47475-927-0	01	1	1009-1010
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1011-
97	BRACKET; CLIP (B)	8-97609-096-0	01	1	1009-
98	BOLT; BRKT,FUEL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-
98	BOLT; BRKT,FUEL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1009-
100	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1009-
100	CLIP; FUEL PIPE (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1009-
100	CLIP; FUEL PIPE (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1009-
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	1009-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	06	1	1009-
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-
289	CLIP; BAND,HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1103-
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	1009-1102
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	02	1	1103-
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1103-
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1009-1102
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1103-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1009-1102
345	PLUG EXC. POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18	8-97329-623-0	02	1	1103-

634 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1103-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (B) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1103-
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-
32	PIPE; DELIVERY,FUEL TANK (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1103-
634	HOSE; RUBBER RETURN L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1009-

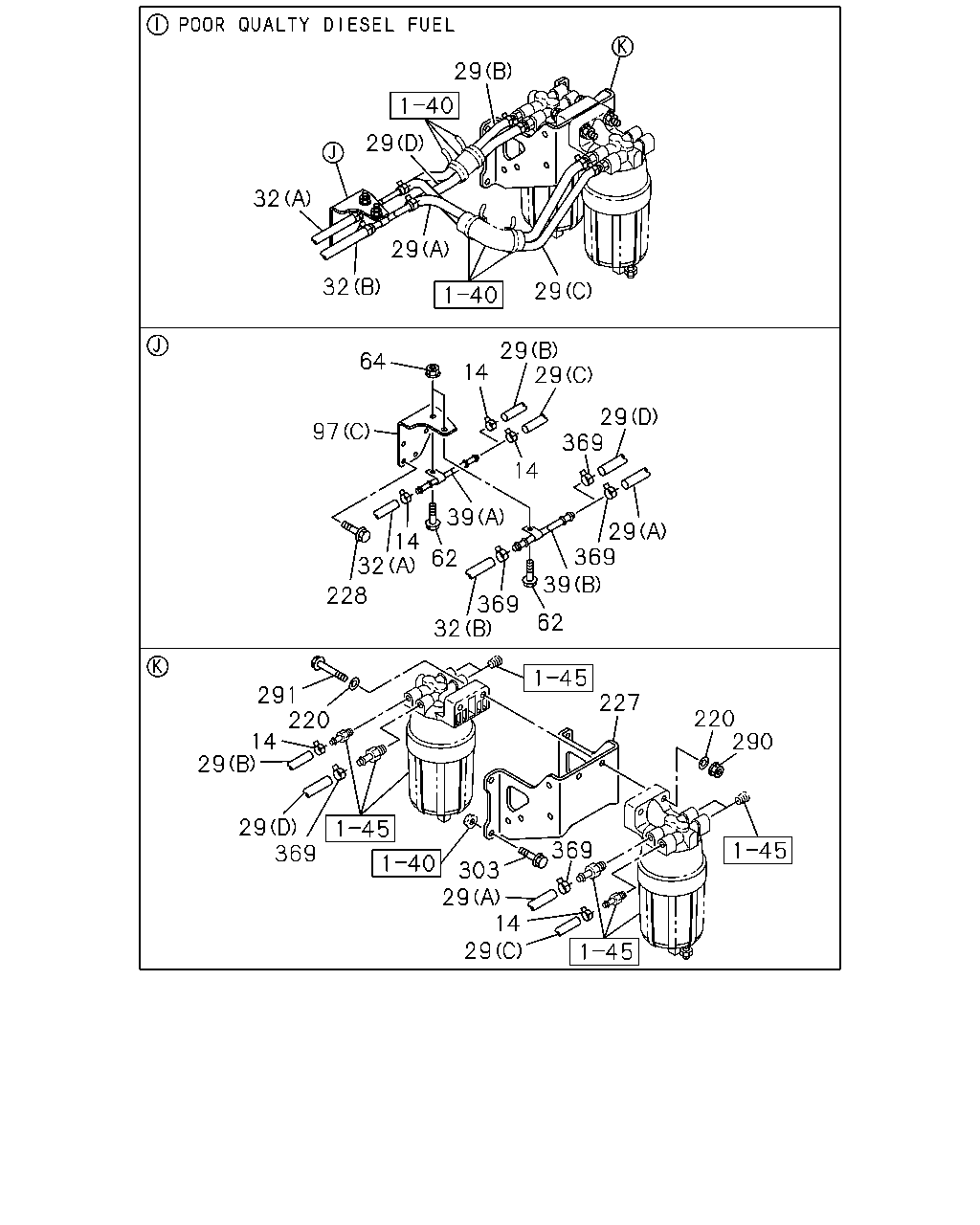

29 29 32 29 32 29 29 29 64 14 29 369 97 14 39 29 369 39 14 32 62 228 369 32 62 291 220 227 220 290 14 29 29 369 369 303 29 14 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=14	1-09704-102-0	04	1	1103-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-638-1	01	1	1103-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98188-442-0	01	1	1103-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (C) L=400 OD=14.5	8-98188-447-0	01	1	1103-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (D)	8-98188-458-0	01	1	1103-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1103-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (B) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1103-
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-
32	PIPE; DELIVERY,FUEL TANK (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1103-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-862-1	01	1	1103-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-864-1	01	1	1103-
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	02	1	1103-
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1103-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (C)	8-98186-645-0	01	1	1103-
97	BRACKET; CLIP (A)	1-47475-927-0	01	1	1009-1010
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1011-
97	BRACKET; CLIP (B)	8-97609-096-0	01	1	1009-
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0>	8-98184-813-0	01	1	1103-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE	0-28650-830-0	02	1	1103-
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1103-
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1009-1102
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1103-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE	0-28051-040-0	04	1	1103-
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> ID=19	8-94238-569-0	04	1	1103-
