0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#70462) — 45 parça

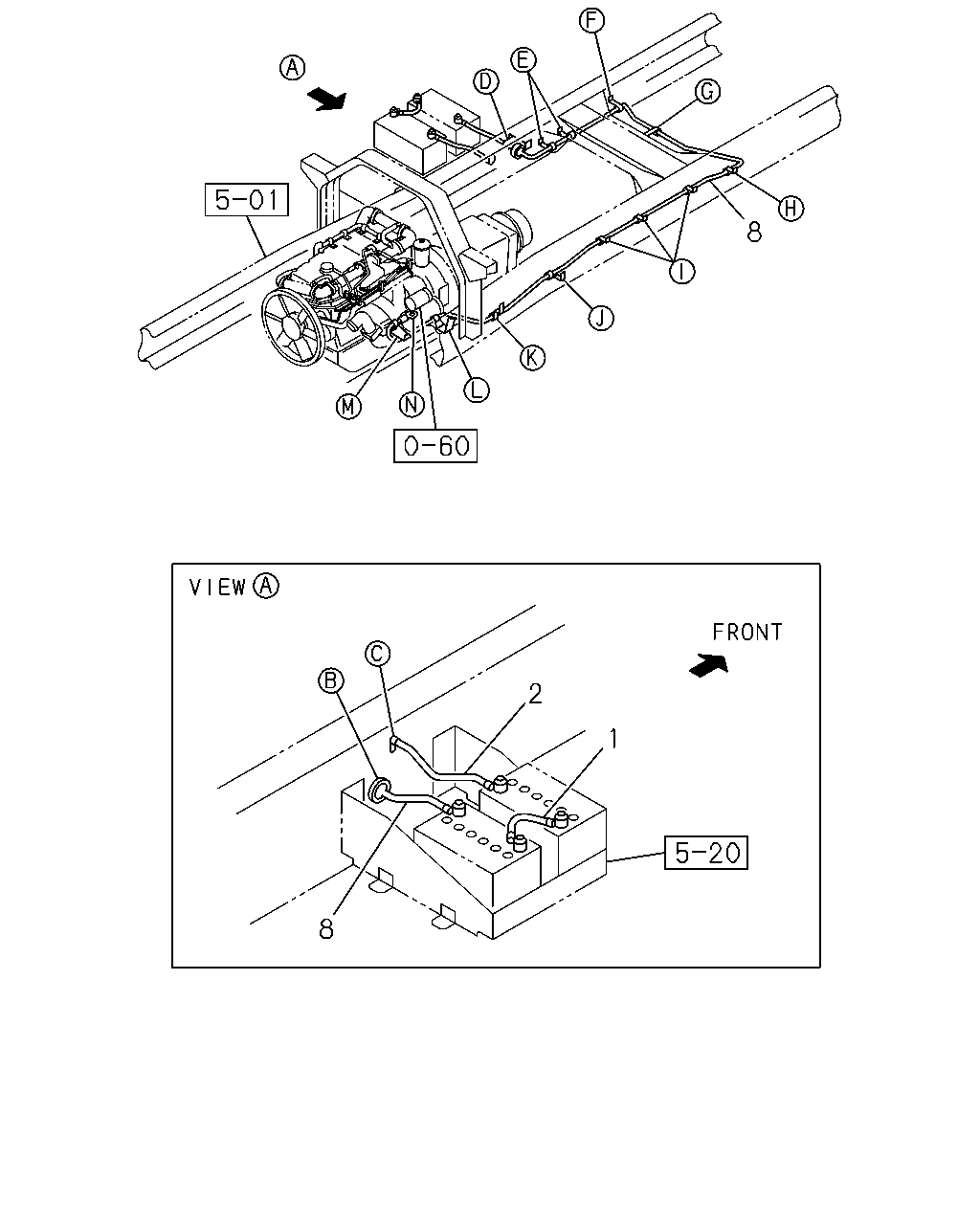

çizim 187460
8 2 1 8
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
BATTERY 115E41L<8MA> L=265 		1-82650-388-1 01 1 1009-
1 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=265 		8-98168-288-0 01 1 1009-
2 CABLE; BATTERY
L=250 		8-98105-795-0 01 1 1009-
8 CABLE; BATTERY,STARTER
L=4630 		8-98075-618-3 01 1 1009-

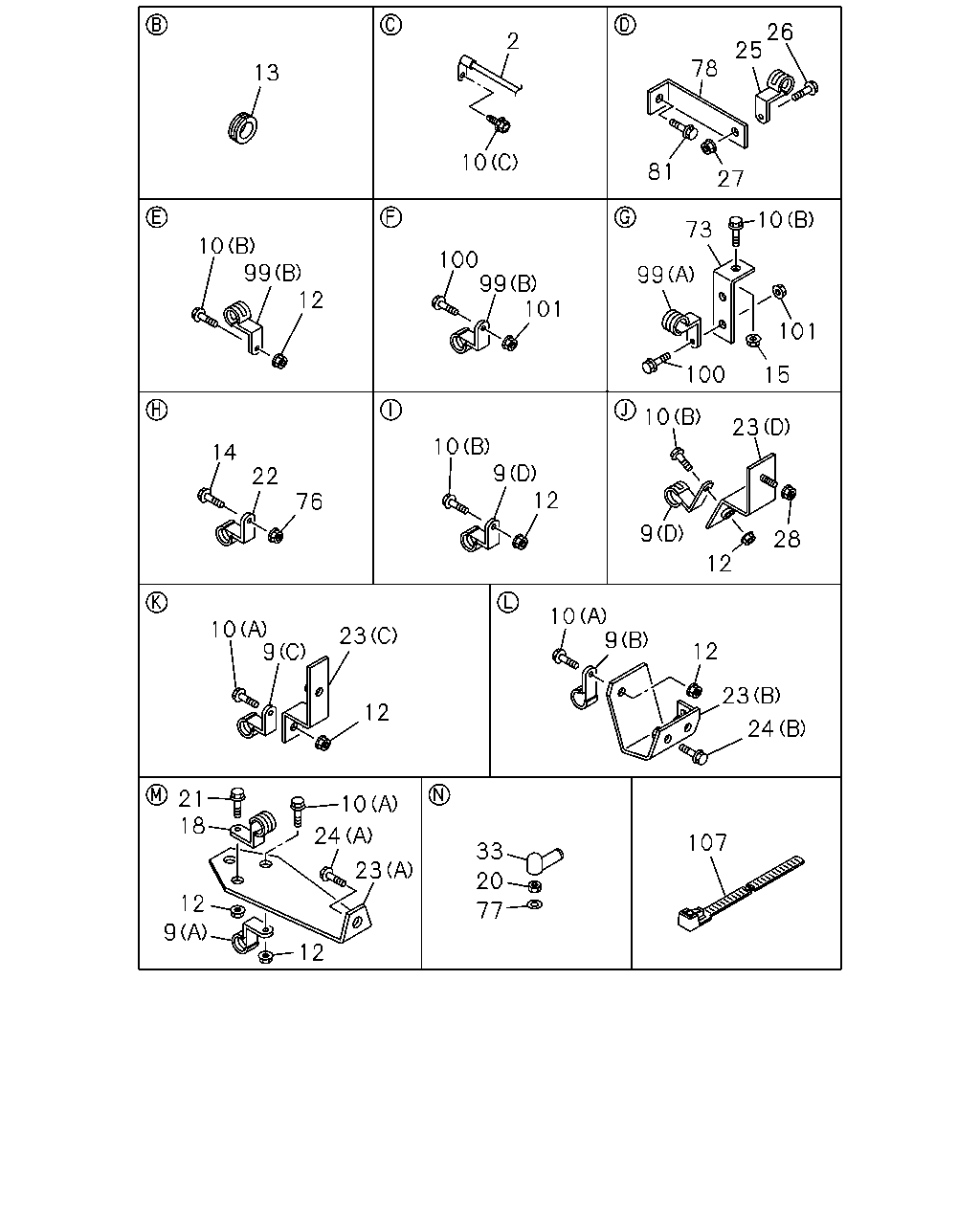

çizim 187461
26 25 2 78 13 10 81 27 10 73 10 99 12 100 99 101 99 101 100 15 10 23 10 9 12 14 22 76 9 28 12 10 9 10 9 23 12 23 12 24 21 18 10 24 107 33 23 20 12 77 9 12
BalonParca AdiParca NoAdetTipApplied Date
2 CABLE; BATTERY
L=250 		8-98105-795-0 01 1 1009-
9 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 03 1 1009-
9 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-
9 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 01 1 1009-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 02 1 1009-
10 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1009-
10 BOLT; BATTERY CABLE CLIP
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 1009-1201
10 BOLT; BATTERY CABLE CLIP
(C) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009-
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1009-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1009-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1009-
14 BOLT; BRKT CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1009-
15 NUT; BRKT CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-
15 NUT; BRKT CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-
18 CLIP; BATTERY CABLE
ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 1009-
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
22 CLIP; BATTERY CABLE
ID=18 L=28 H=30 		1-09701-110-0 01 1 1009-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-47471-215-1 01 1 1009-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=85 H=40 		1-47476-676-0 01 1 1009-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		1-47479-779-0 01 1 1009-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-82698-614-0 01 1 1009-
24 BOLT; BRKT TO FRAME
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
25 CLIP; BATTERY CABLE TO BRKT
ID=18 L=25 H=50 		1-09701-096-0 02 1 1009-
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1009-
33 CAP; INSULATOR 1-82699-431-0 01 1 1009-
73 BRACKET; BATTERY CABLE 1-47478-901-0 01 1 1009-1404
73 BRACKET; BATTERY CABLE 8-98259-391-0 01 1 1405-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 01 1 1009-
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-810-0 01 1 1009-
78 BRACKET; CLIP BATTERY
L=95 		1-82699-085-0 01 1 1009-
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
99 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 		1-09701-096-0 02 1 1009-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1009-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1009-
107 CLIP; BAND
L=350 		1-09707-183-0 01 1 1009-
