Isuzu WW
▶
TRUCKS
▶
FXR
▶
11313 - FXR(RHD)EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶
0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#70452) — 50 parça
◀

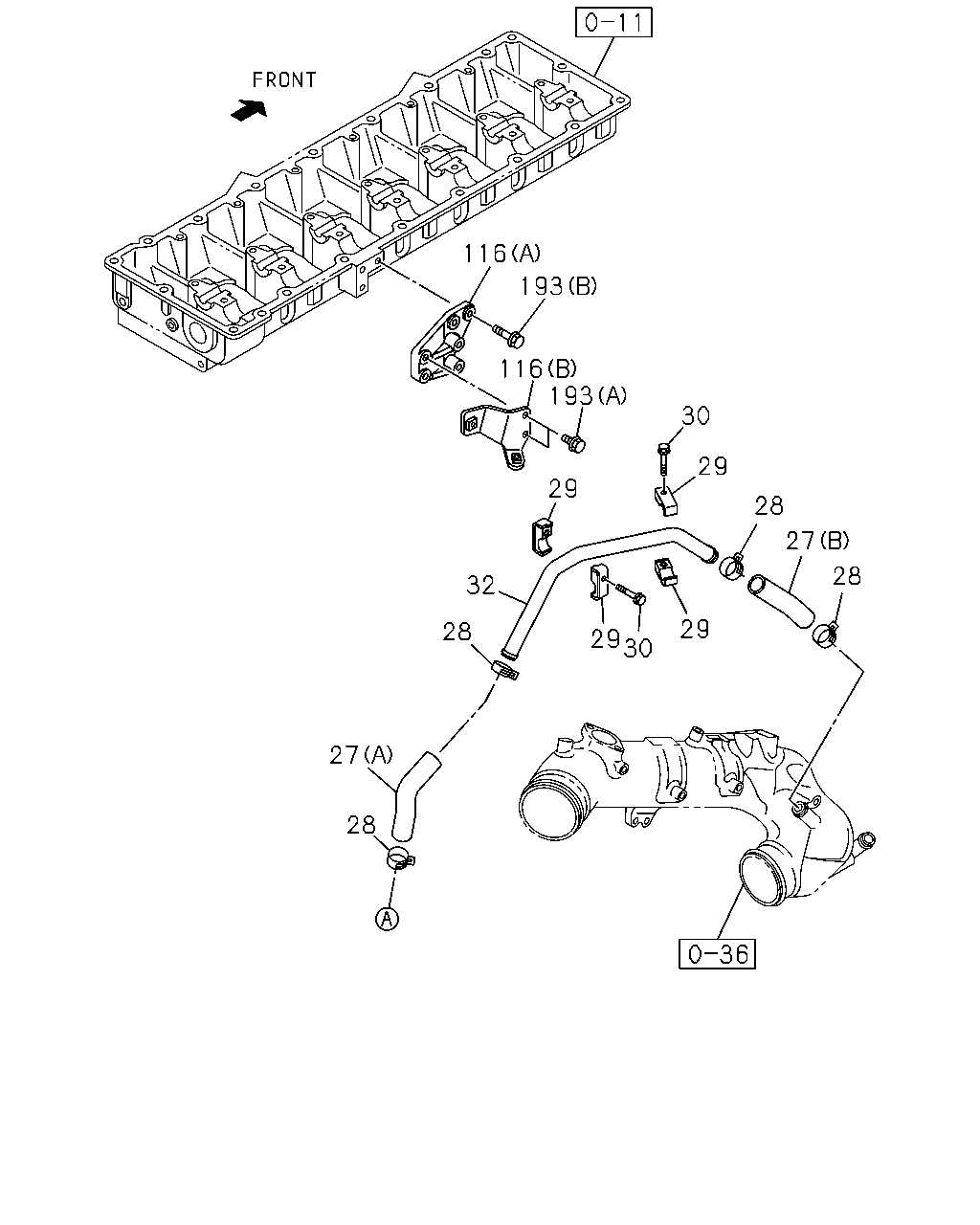

[038A] NO.2 (10 parça)
[038A] NO.1 (40 parça)
▶
116
193
116
193
30
29
29
28
27
28
32
29
28
29
30
27
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; AIR CMPR,SUCTION
(A)
8-97613-972-1
01
1
1009-
27
HOSE; AIR CMPR,SUCTION
(B) ID=25 L=160
8-98152-600-0
01
1
1009-
28
CLIP; HOSE,AIR CMPR
ID=31.2
8-97237-146-0
04
1
1009-
29
CLIP; AIR PIPE
ID=24.5 L=22
8-97603-362-1
04
1
1009-
30
BOLT; PIPE CLIP
M8X50 FLANGE
0-28050-850-0
02
1
1009-
32
PIPE; AIR,AIR CMPR
8-98140-717-0
01
1
1009-
116
BRACKET; AIR PIPE
(A)
8-97605-948-0
01
1
1009-
116
BRACKET; AIR PIPE
(B)
8-98140-718-0
01
1
1009-
193
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
02
1
1009-
193
BOLT; BRKT
(B) M10X35 FLANGE
0-28751-035-0
03
1
1009-
110
51
49
52
110
113
52
54
55
44
57
78
56
53
1
5
2
80
110
13
77
221
202
21
79
110
41
174
5
78
128
92
6
289
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98021-309-5
01
1
1009-1201
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98207-921-0
01
1
1202-1209
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98227-940-0
01
1
1210-1301
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98224-245-0
01
1
1302-1310
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98249-115-0
01
1
1311-1401
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98271-053-1
01
1
1402-1508
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98302-838-0
01
1
1509-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6
1-09623-449-0
01
1
1009-
5
BOLT; AIR CMPR FIX
(A) M12X50 FLANGE
0-28151-250-0
02
1
1009-
5
BOLT; AIR CMPR FIX
(B) M12X140 FLANGE
0-28156-214-0
01
1
1009-
6
NUT; AIR CMPR
M12 FLANGE
0-91180-112-0
01
1
1009-
13
GEAR; AIR CMPR DRIVE
Z=46
8-97603-053-2
01
1
1009-
21
NUT; PUMP GEAR
M24
0-91110-524-0
01
1
1009-
41
BOLT; CLIP
M6X30 FLANGE
0-28050-630-0
01
1
1009-
44
NUT
M10 FLANGE
0-91180-110-0
01
1
1009-
49
PIPE; AIR,CHARGE
8-97611-175-3
01
1
1009-1205
49
PIPE; AIR,CHARGE
8-98216-696-0
01
1
1206-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-2
01
1
1009-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
1009-
53
UNION; CHARGE PIPE
M22 & M26 ELBOW
8-98008-887-2
01
1
1009-
54
NUT; PIPE UNION
M26
8-98049-390-0
01
1
1009-
55
WASHER; LK,PIPE UNION
ID=27.5
0-91510-527-0
01
1
1009-
56
BRACKET; AIR PIPE FIX
8-97603-937-2
01
1
1009-
57
BOLT; BRKT,AIR PIPE
M10X20 FLANGE
0-28151-020-0
01
1
1009-
77
PIPE; AIR,GOV
8-98145-567-0
01
1
1009-
78
BRACKET; PIPE,AIR GOV
(A)
8-97605-218-1
01
1
1009-
78
BRACKET; PIPE,AIR GOV
(B)
8-97613-275-1
01
1
1009-
79
BOLT; EYE,AIR PIPE TO CMPR
M10X25
9-09906-173-1
01
1
1009-
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.6
8-97240-975-0
01
1
1009-1301
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.6
8-98231-393-0
01
1
1302-
92
NUT; UNION
M12
9-09840-280-0
01
1
1009-
110
CLIP; AIR PIPE
(A) ID=17 L=17
1-09701-284-0
02
1
1009-
110
CLIP; AIR PIPE
(B) ID=11 & 11 L=19
8-98039-293-0
02
1
1009-1405
110
CLIP; AIR PIPE
(B) ID=11 & 11 L=19
8-98148-996-2
02
1
1406-
113
BOLT; CLIP,AIR PIPE
M8X40 FLANGE
0-28050-840-0
01
1
1009-
128
WASHER; LK,UNION
ID=12.2
0-91510-512-0
01
1
1009-
174
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
1009-
202
UNION; AIR PIPE
M12 L=62.5
0-92113-206-0
01
1
1009-
221
WASHER; PL,GEAR
ID=25
0-91614-624-0
01
1
1009-
289
BRACKET; CABLE
8-98055-448-3
01
1
1009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
