8-90 — RADIO AND TV (#70432) — 38 parça

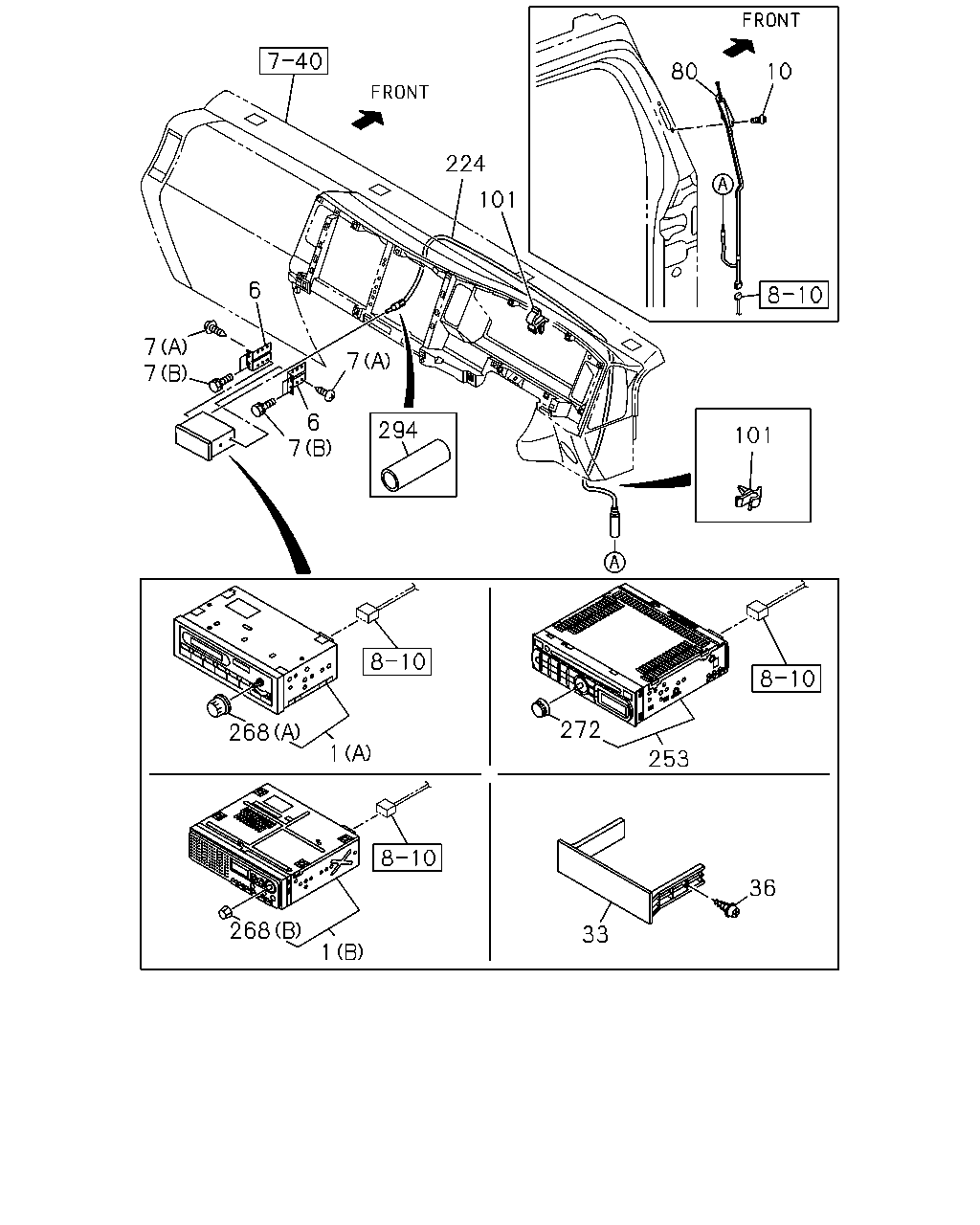

çizim 158396
80 10 101 253 272 36 33 1 268 1 268 7 6 7 6 7 7 101 224 294
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
RADIO AM/FM(U69) (A) 		8-98032-643-0 01 1 1009-1303 ●
1 RADIO
RADIO AM/FM(U69) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> (A) 		8-98032-643-0 01 1 1304- ● ●
1 RADIO
RADIO CLARION(SK2) (B) CLARION 		8-98029-932-0 01 1 1009-1303 ●
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1009-1303 ●
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1304- ● ●
7 SCREW; RADIO
(A) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1009-1303 ●
7 SCREW; RADIO
(A) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1304- ● ●
7 SCREW; RADIO
RADIO CLARION(SK2),RADIO AM/FM STEREO CD(UT3), RADIO AM/FM(U69) (B) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1009-1303 ●
7 SCREW; RADIO
RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> (B) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1304- ● ●
10 SCREW; ANTENNA CABLE
M5X11 		1-09981-536-1 02 1 1009-1303 ●
10 SCREW; ANTENNA CABLE
M5X11 		1-09981-536-1 02 1 1304- ● ●
33 COVER; RADIO
NEW ZEALAND EQUIPMENT(PK5) BLACK 		8-97407-896-1 01 1 1009-1303 ●
33 COVER; RADIO
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIO CLARION(SK2) ,RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) BLACK 		8-97407-896-1 01 1 1009-1303 ●
33 COVER; RADIO
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) BLACK 		8-97407-896-2 01 1 1304- ● ●
36 SCREW; COVER
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO CD(UT3) ,RADIO AM/FM(U69) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1009-1303 ●
36 SCREW; COVER
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1304- ● ●
80 ANTENNA 8-98139-014-0 01 1 1009-1303 ●
80 ANTENNA 8-98139-014-0 01 1 1304- ● ●
101 CLIP; FEEDER TO BRKT
ID=4.8 		8-94128-483-0 03 1 1009-1303 ●
101 CLIP; FEEDER TO BRKT
ID=4.8 		8-94128-483-0 03 1 1304- ● ●
224 CABLE; EXT,FEEDER 8-98063-002-1 01 1 1009-1303 ●
224 CABLE; EXT,FEEDER 8-98063-002-1 01 1 1304- ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 1304- ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3) 		8-98017-752-0 01 1 1009-1303 ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3) TUNER BAND ASIA<7DN> 		8-98017-752-0 01 1 1304- ● ●
268 KNOB; VOL
RADIO AM/FM(U69) (A) CLARION 		8-97375-820-0 01 1 1009-1303 ●
268 KNOB; VOL
RADIO AM/FM(U69) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> (A) CLARION 		8-97375-820-0 01 1 1304- ● ●
268 KNOB; VOL
RADIO CLARION(SK2) (B) CLARION 		8-97331-589-0 01 1 1009-1303 ●
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD(UT3) CLARION 		8-98048-329-0 01 1 1009-1303 ●
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD(UT3) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION 		8-98048-329-0 01 1 1304- ● ●
294 CAP; ANTENNA CABLE
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO CD(UT3) ,RADIO AM/FM(U69) 		8-98095-617-1 01 1 1009-1303 ●
294 CAP; ANTENNA CABLE
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) 		8-98095-617-1 01 1 1304- ● ●

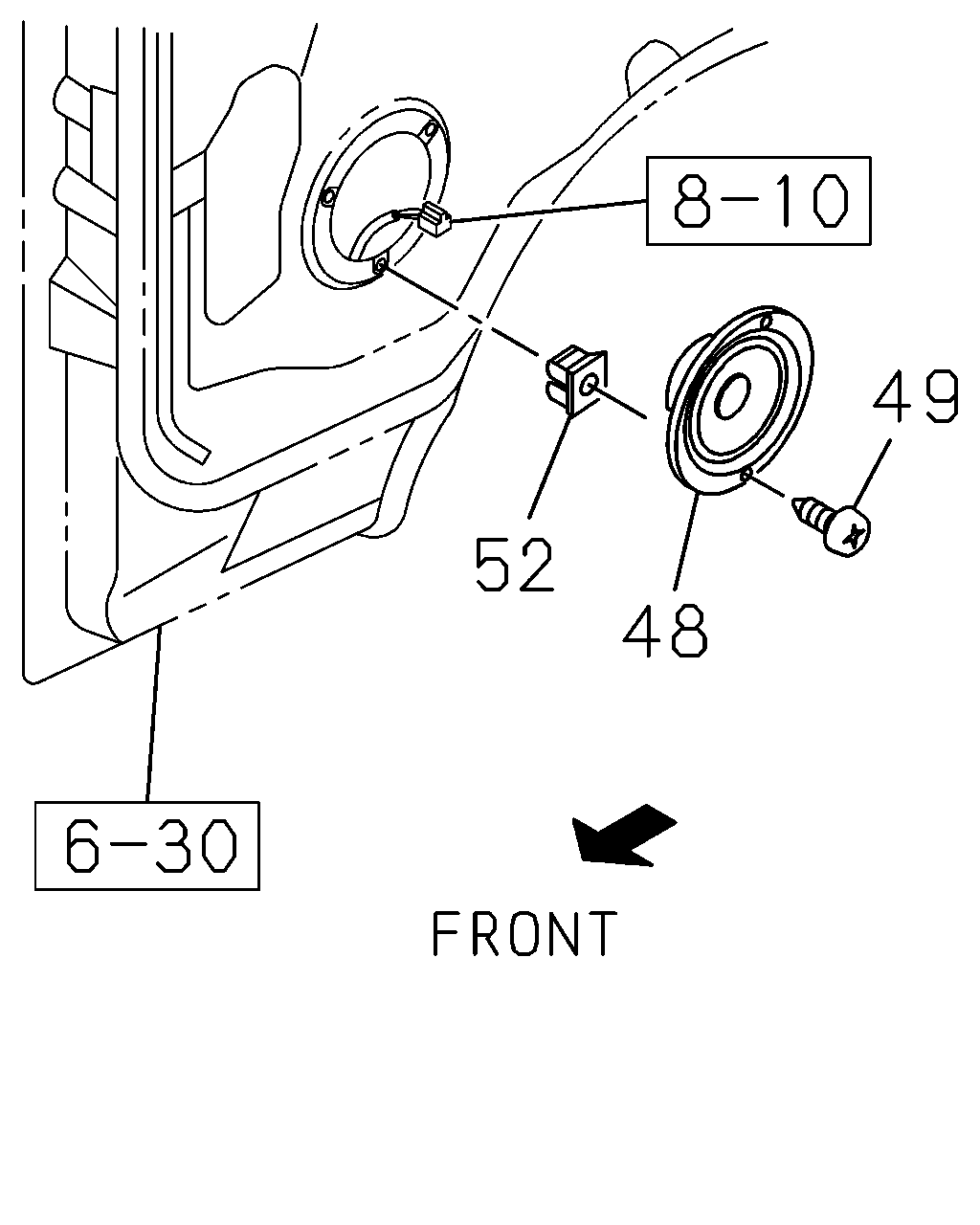

çizim 189610
52 49 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO 8-97317-001-1 02 1 1009-1303 ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		8-97317-001-1 02 1 1304- ● ●
49 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1009-1303 ●
49 SCREW; SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1304- ● ●
52 GROMMET; SCREW,SPEAKER
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1009-1303 ●
52 GROMMET; SCREW,SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1304- ● ●
