8-80 — WINDSHIELD WIPER AND WASHER (#70431) — 95 parça

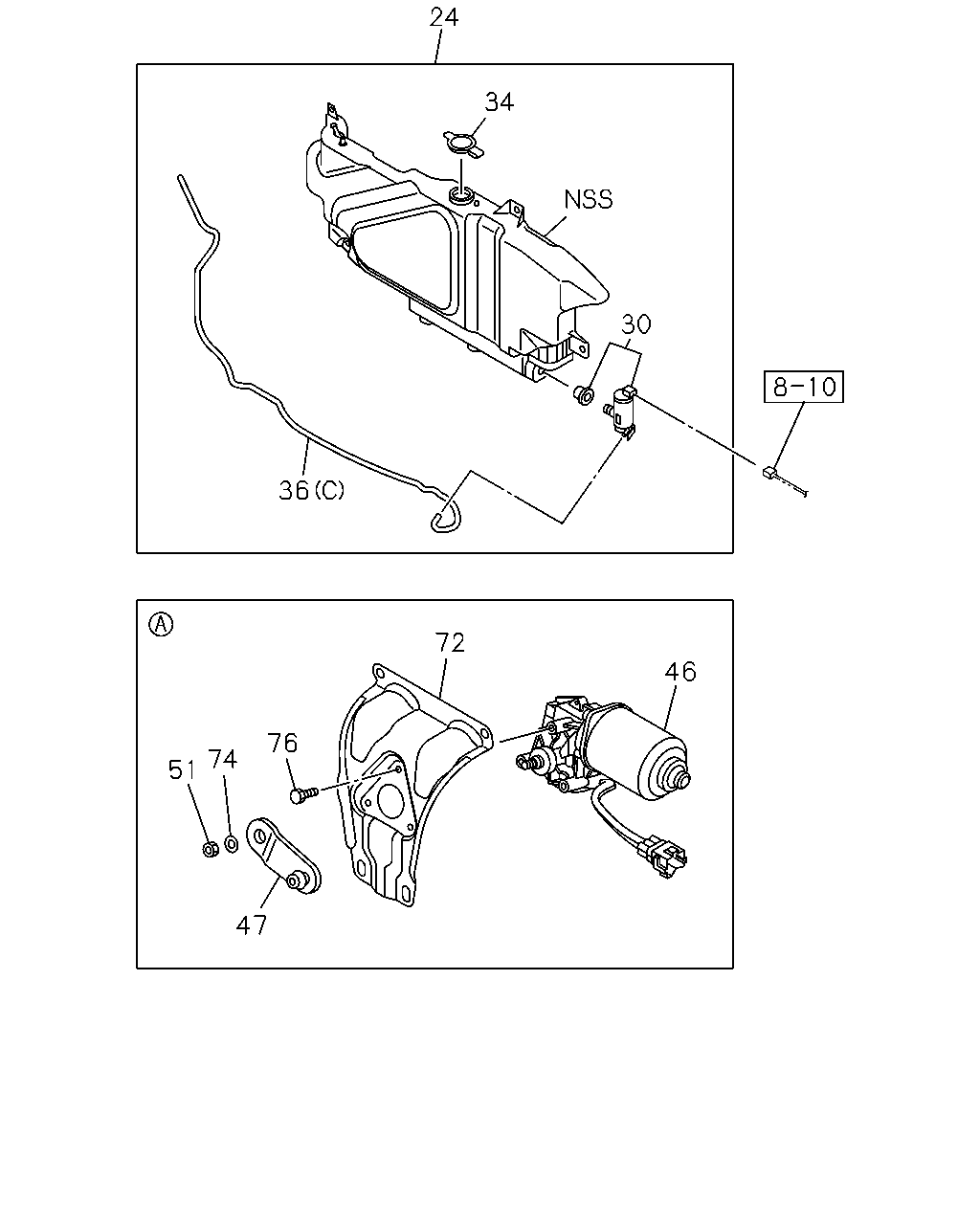

24 34 30 36 51 72 74 47 76 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	TANK ASM; WASHER	8-98039-661-4	01	1	1009-1303	●
24	TANK ASM; WASHER	8-98039-661-4	01	1	1304-	●	●
30	MOTOR ASM; FRT WASHER TANK	8-98070-170-0	01	1	1009-1303	●
30	MOTOR ASM; FRT WASHER TANK	8-98070-170-0	01	1	1304-	●	●
34	CAP; WASHER TANK	8-97855-140-0	01	1	1009-1303	●
34	CAP; WASHER TANK	8-97855-140-0	01	1	1304-	●	●
36	HOSE; WASHER (B)	1-86810-098-0	01	1	1009-1303	●
36	HOSE; WASHER (B)	1-86810-098-0	01	1	1304-	●	●
36	HOSE; WASHER (C)	8-98070-173-0	01	1	1009-1303	●
36	HOSE; WASHER (C)	8-98070-173-0	01	1	1304-	●	●
36	HOSE; WASHER (D)	8-98078-825-0	01	1	1009-1303	●
36	HOSE; WASHER (D)	8-98078-825-0	01	1	1304-	●	●
36	HOSE; WASHER (A)	8-98078-826-0	01	1	1009-1303	●
36	HOSE; WASHER (A)	8-98078-826-0	01	1	1304-	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER	8-98078-808-1	01	1	1009-1303	●
46	MOTOR ASM; FRT WINDSHIELD WIPER	8-98078-808-1	01	1	1304-	●	●
47	ARM; CRANK,WIPER MOTOR	8-98078-805-0	01	1	1009-1303	●
47	ARM; CRANK,WIPER MOTOR	8-98078-805-0	01	1	1304-	●	●
51	NUT; WIPER MOTOR LINK M8	1-83319-012-0	01	1	1009-1303	●
51	NUT; WIPER MOTOR LINK M8	1-83319-012-0	01	1	1304-	●	●
72	BRACKET; WIPER MOTOR	8-98078-807-0	01	1	1009-1303	●
72	BRACKET; WIPER MOTOR	8-98078-807-0	01	1	1304-	●	●
74	WASHER; ARM TO MOTOR ID=8.4 OD=22	1-83319-011-0	01	1	1009-1303	●
74	WASHER; ARM TO MOTOR ID=8.4 OD=22	1-83319-011-0	01	1	1304-	●	●
76	SCREW; BRKT TO WIPER MOTOR M6X14 W/WASHER	1-86810-062-0	03	1	1009-1303	●
76	SCREW; BRKT TO WIPER MOTOR M6X14 W/WASHER	1-86810-062-0	03	1	1304-	●	●

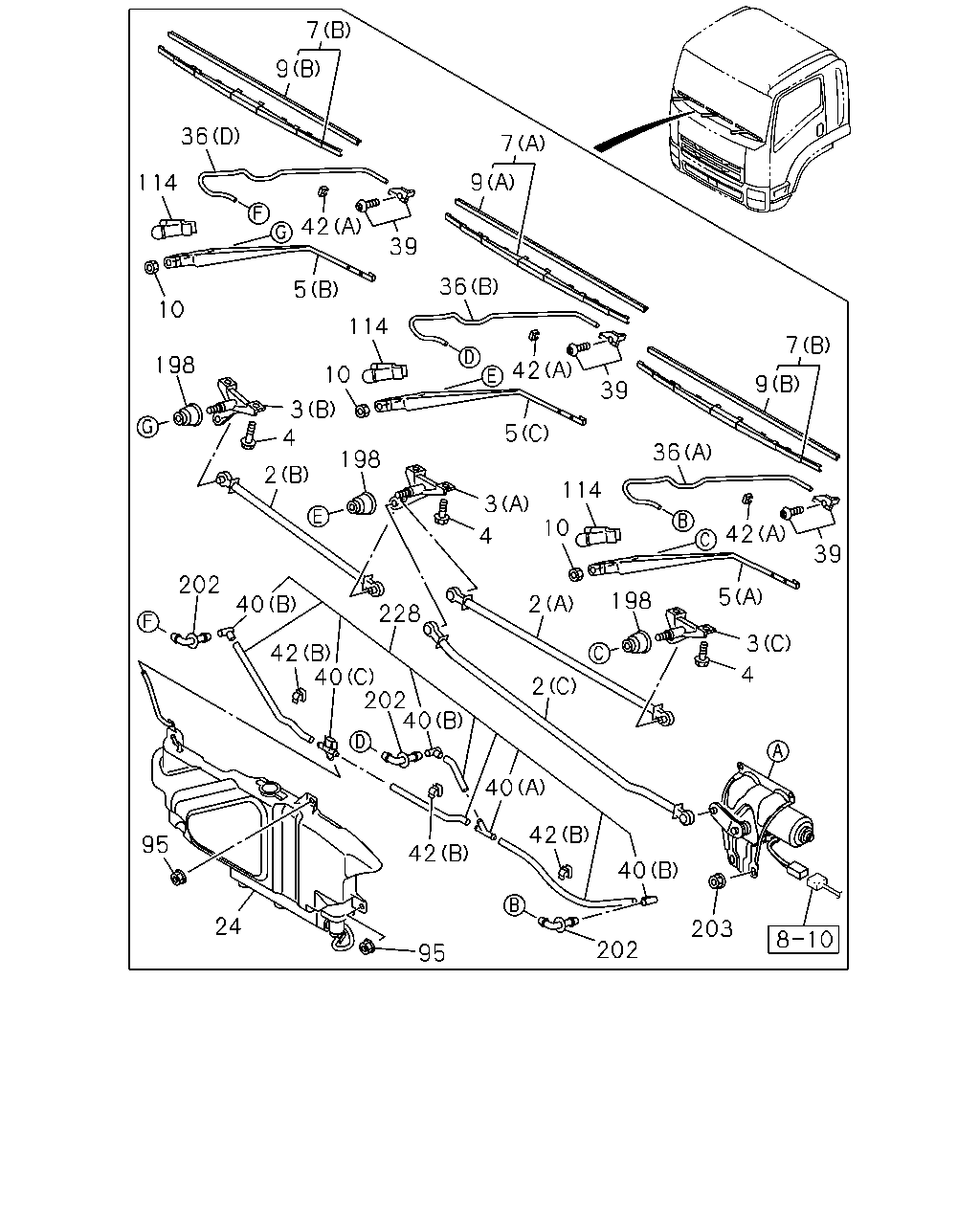

7 9 36 114 42 9 7 7 9 36 39 42 36 39 5 10 10 114 5 114 42 39 5 3 4 2 10 198 3 4 198 4 3 198 2 228 42 202 40 40 202 40 40 42 40 203 202 5 42 24 95 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINK; FRT WIPER (A)	8-98078-812-0	01	1	1009-1303	●
2	LINK; FRT WIPER (A)	8-98078-812-0	01	1	1304-	●	●
2	LINK; FRT WIPER (B)	8-98078-813-0	01	1	1009-1303	●
2	LINK; FRT WIPER (B)	8-98078-813-0	01	1	1304-	●	●
2	LINK; FRT WIPER CAUTIONS CHINESE<SL7> (C)	8-98170-187-0	01	1	1009-1303	●
2	LINK; FRT WIPER CAUTIONS CHINESE<SL7> (C)	8-98170-187-0	01	1	1304-	●	●
2	LINK; FRT WIPER EXC. CAUTIONS CHINESE<SL7> (C)	8-98078-814-0	01	1	1009-1303	●
2	LINK; FRT WIPER EXC. CAUTIONS CHINESE<SL7> (C)	8-98078-814-1	01	1	1304-	●	●
3	PIVOT ASM; FRT WIPER (C)	8-98068-140-0	01	1	1009-1303	●
3	PIVOT ASM; FRT WIPER (C)	8-98068-140-1	01	1	1304-	●	●
3	PIVOT ASM; FRT WIPER (A)	8-98078-817-0	01	1	1009-1303	●
3	PIVOT ASM; FRT WIPER (A)	8-98078-817-1	01	1	1304-	●	●
3	PIVOT ASM; FRT WIPER (B)	8-98078-818-0	01	1	1009-1303	●
3	PIVOT ASM; FRT WIPER (B)	8-98078-818-1	01	1	1304-	●	●
4	BOLT; WIPER LINK TO BODY M8X20 FLANGE	0-28650-820-0	06	1	1009-1303	●
4	BOLT; WIPER LINK TO BODY M8X20 FLANGE	0-28650-820-0	06	1	1304-	●	●
5	ARM; WIPER (B)	8-98078-821-1	01	1	1009-1303	●
5	ARM; WIPER (B)	8-98078-821-1	01	1	1304-	●	●
5	ARM; WIPER (C)	8-98078-822-1	01	1	1009-1303	●
5	ARM; WIPER (C)	8-98078-822-1	01	1	1304-	●	●
5	ARM; WIPER (A)	8-98078-823-1	01	1	1009-1303	●
5	ARM; WIPER (A)	8-98078-823-1	01	1	1304-	●	●
7	BLADE; WIPER (B)	1-83315-047-2	02	1	1009-1303	●
7	BLADE; WIPER (B)	1-83315-047-2	02	1	1304-	●	●
7	BLADE; WIPER (A)	1-83315-048-2	01	1	1009-1303	●
7	BLADE; WIPER (A)	1-83315-048-2	01	1	1304-	●	●
7	BLADE; WIPER (B) BEST VALUE PARTS	5-87610-034-0	02	1	1009-1303	●
7	BLADE; WIPER (B) BEST VALUE PARTS	5-87610-034-0	02	1	1304-	●	●
9	RUBBER; FRT WIPER BLADE (B) L=500	1-83355-015-0	02	1	1009-1303	●
9	RUBBER; FRT WIPER BLADE (B) L=500	1-83355-015-0	02	1	1304-	●	●
9	RUBBER; FRT WIPER BLADE (A) L=475	1-83355-016-0	01	1	1009-1303	●
9	RUBBER; FRT WIPER BLADE (A) L=475	1-83355-016-0	01	1	1304-	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M10	1-09984-120-0	03	1	1009-1303	●
10	NUT; WIPER ARM TO WIPER PIVOT M10	1-09984-120-0	03	1	1304-	●	●
24	TANK ASM; WASHER	8-98039-661-4	01	1	1009-1303	●
24	TANK ASM; WASHER	8-98039-661-4	01	1	1304-	●	●
36	HOSE; WASHER (B)	1-86810-098-0	01	1	1009-1303	●
36	HOSE; WASHER (B)	1-86810-098-0	01	1	1304-	●	●
36	HOSE; WASHER (C)	8-98070-173-0	01	1	1009-1303	●
36	HOSE; WASHER (C)	8-98070-173-0	01	1	1304-	●	●
36	HOSE; WASHER (D)	8-98078-825-0	01	1	1009-1303	●
36	HOSE; WASHER (D)	8-98078-825-0	01	1	1304-	●	●
36	HOSE; WASHER (A)	8-98078-826-0	01	1	1009-1303	●
36	HOSE; WASHER (A)	8-98078-826-0	01	1	1304-	●	●
39	NOZZLE; WINDSHIELD WASHER	1-83315-085-0	03	1	1009-1303	●
39	NOZZLE; WINDSHIELD WASHER	1-83315-085-0	03	1	1304-	●	●
40	JOINT; WASHER HOSE (C)	8-97167-258-0	01	1	1009-1303	●
40	JOINT; WASHER HOSE (C)	8-97167-258-0	01	1	1304-	●	●
40	JOINT; WASHER HOSE (B)	8-97307-026-0	03	1	1009-1303	●
40	JOINT; WASHER HOSE (B)	8-97307-026-0	03	1	1304-	●	●
40	JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	1009-1303	●
40	JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	1304-	●	●
42	CLIP; WASHER HOSE (A)	1-86810-044-0	03	1	1009-1303	●
42	CLIP; WASHER HOSE (A)	1-86810-044-0	03	1	1304-	●	●
42	CLIP; WASHER HOSE (B)	8-98039-708-0	03	1	1009-1303	●
42	CLIP; WASHER HOSE (B)	8-98039-708-0	03	1	1304-1511	●	●
42	CLIP; WASHER HOSE (B)	8-98039-708-0	02	1	1512-	●	●
95	NUT; WASHER TANK M6 FLANGE	0-91180-106-0	04	1	1009-1303	●
95	NUT; WASHER TANK M6 FLANGE	0-91180-106-0	04	1	1304-	●	●
114	COVER; FRT WIPER ARM	1-83318-126-0	03	1	1009-1303	●
114	COVER; FRT WIPER ARM	1-83318-126-0	03	1	1304-	●	●
198	COVER; PIVOT,WIPER	8-98038-892-0	03	1	1009-1303	●
198	COVER; PIVOT,WIPER	8-98038-892-1	03	1	1304-	●	●
202	GROMMET; WIPER	1-86815-003-2	03	1	1009-1303	●
202	GROMMET; WIPER	1-86815-003-2	03	1	1304-	●	●
203	NUT; WIPER MOTOR M8 FLANGE	0-91180-208-0	04	1	1009-1303	●
203	NUT; WIPER MOTOR M8 FLANGE	0-91180-208-0	04	1	1304-	●	●
228	HOSE ASM; WASHER	8-98039-703-1	01	1	1009-1303	●
228	HOSE ASM; WASHER	8-98039-703-2	01	1	1304-	●	●
