8-75 — CONDENSER (#70430) — 96 parça

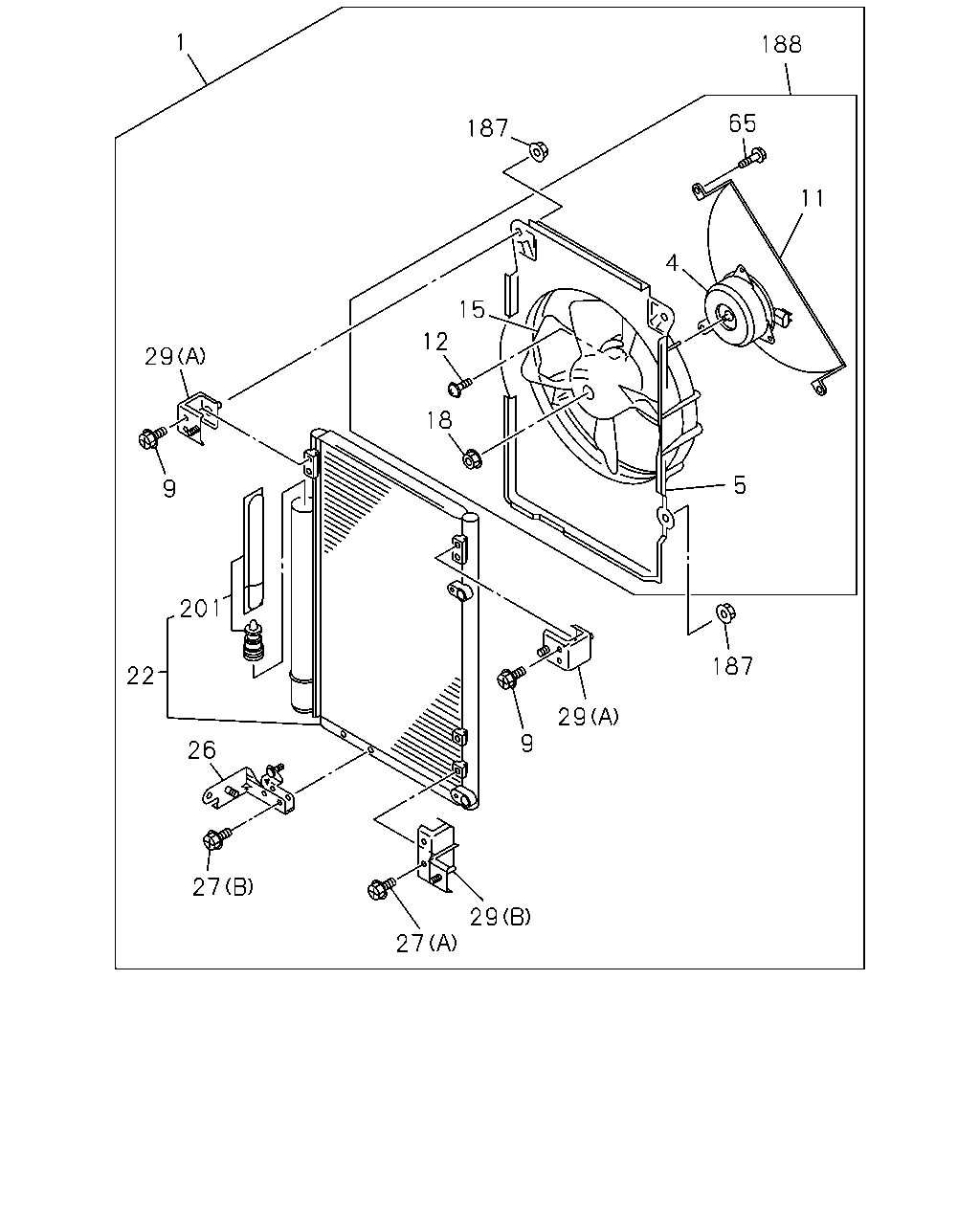

187 1 188 65 11 4 5 187 29 9 18 12 15 29 9 201 22 26 27 27 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98041-320-0	01	1	1009-1301	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98235-911-0	01	1	1302-1303	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-98164-844-0	01	1	1009-1303	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-98164-844-1	01	1	1304-	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98076-091-0	01	1	1009-1303	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	8-98076-091-0	01	1	1304-	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98076-093-0	01	1	1009-1303	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	8-98076-093-0	01	1	1304-	●	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X14	1-83539-382-0	04	1	1009-1303	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X14	1-83539-382-0	04	1	1304-	●	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98068-234-0	01	1	1009-1303	●
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97180-269-0	03	1	1009-1303	●
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	8-97180-269-0	03	1	1304-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98076-092-0	01	1	1009-1301	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98152-860-0	01	1	1302-1303	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-98152-861-0	01	1	1009-1303	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	8-98152-861-0	01	1	1304-	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5 FLANGE	8-94157-075-0	01	1	1009-1303	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) M5 FLANGE	8-94157-075-0	01	1	1304-	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83534-261-0	01	1	1009-1303	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-261-0	01	1	1304-1409	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-98275-189-0	01	1	1410-	●	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83573-281-0	01	1	1009-1303	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-281-0	01	1	1304-	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X14	1-83539-382-0	02	1	1009-1303	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X14	1-83539-382-0	02	1	1304-	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X25	8-97178-770-0	02	1	1009-1303	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25	8-97178-770-0	02	1	1304-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98065-914-0	02	1	1009-1303	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98065-914-0	02	1	1304-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98065-915-0	01	1	1009-1303	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98065-915-0	01	1	1304-	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5) M6X16	8-97096-525-0	03	1	1009-1303	●
187	NUT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	1-83539-354-0	04	1	1009-1303	●
187	NUT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) M6	1-83539-354-0	04	1	1304-	●	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98065-913-0	01	1	1009-1301	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98235-916-0	01	1	1302-1303	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-98166-696-0	01	1	1009-1303	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-98166-696-0	01	1	1304-	●	●
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83535-097-0	01	1	1009-1303	●
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-097-0	01	1	1304-1409	●	●
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-98282-482-0	01	1	1410-	●	●

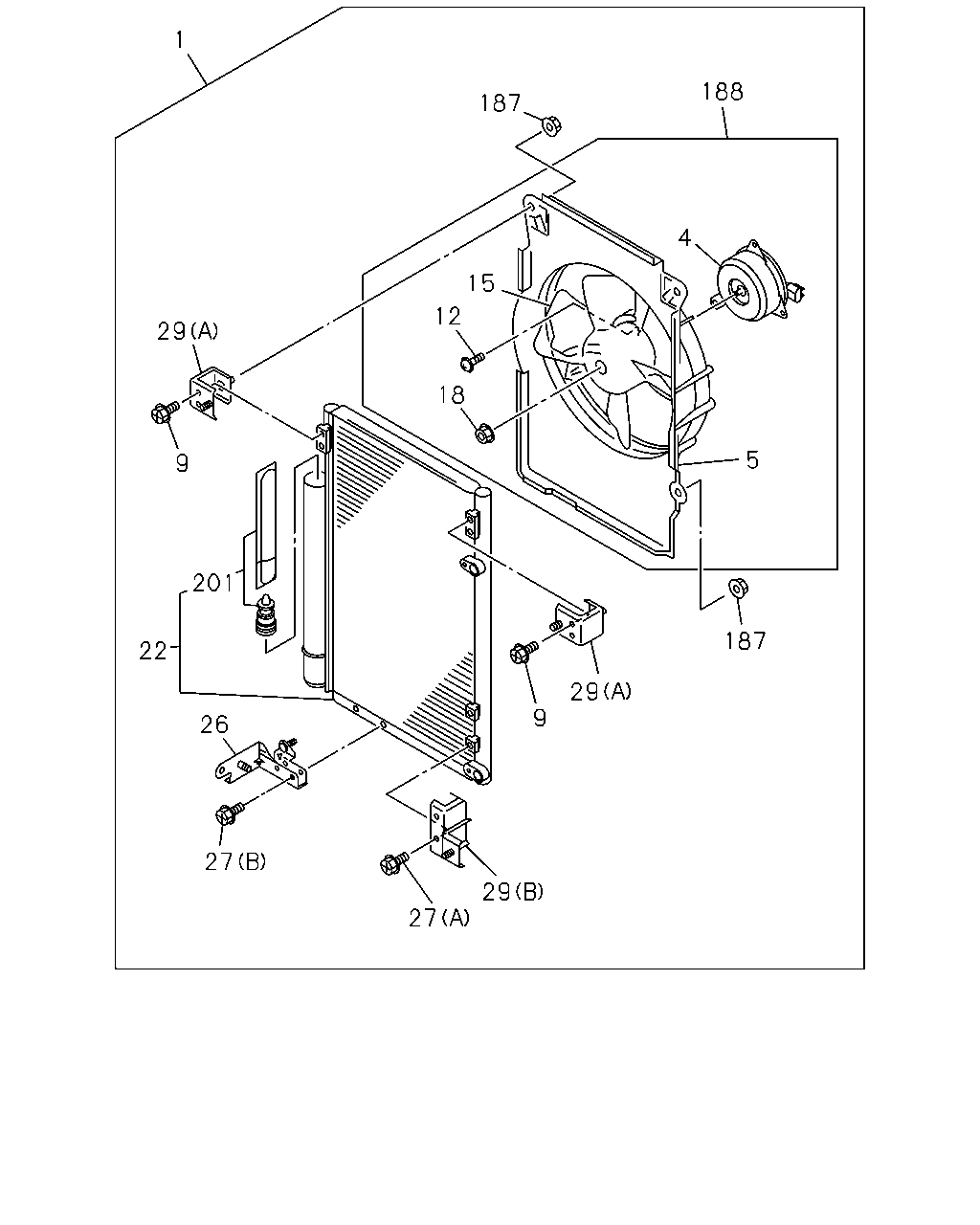

1 29 9 201 22 26 27 27 29 9 29 187 5 18 12 15 187 188 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98041-320-0	01	1	1009-1301	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98235-911-0	01	1	1302-1303	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-98164-844-0	01	1	1009-1303	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-98164-844-1	01	1	1304-	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98076-091-0	01	1	1009-1303	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	8-98076-091-0	01	1	1304-	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98076-093-0	01	1	1009-1303	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	8-98076-093-0	01	1	1304-	●	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X14	1-83539-382-0	04	1	1009-1303	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X14	1-83539-382-0	04	1	1304-	●	●
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97180-269-0	03	1	1009-1303	●
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	8-97180-269-0	03	1	1304-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98076-092-0	01	1	1009-1301	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98152-860-0	01	1	1302-1303	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-98152-861-0	01	1	1009-1303	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	8-98152-861-0	01	1	1304-	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5 FLANGE	8-94157-075-0	01	1	1009-1303	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) M5 FLANGE	8-94157-075-0	01	1	1304-	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83534-261-0	01	1	1009-1303	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-261-0	01	1	1304-1409	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-98275-189-0	01	1	1410-	●	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83573-281-0	01	1	1009-1303	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-281-0	01	1	1304-	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X14	1-83539-382-0	02	1	1009-1303	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X14	1-83539-382-0	02	1	1304-	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X25	8-97178-770-0	02	1	1009-1303	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25	8-97178-770-0	02	1	1304-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98065-914-0	02	1	1009-1303	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98065-914-0	02	1	1304-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98065-915-0	01	1	1009-1303	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98065-915-0	01	1	1304-	●	●
187	NUT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	1-83539-354-0	04	1	1009-1303	●
187	NUT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) M6	1-83539-354-0	04	1	1304-	●	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98065-913-0	01	1	1009-1301	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98235-916-0	01	1	1302-1303	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-98166-696-0	01	1	1009-1303	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-98166-696-0	01	1	1304-	●	●
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83535-097-0	01	1	1009-1303	●
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-097-0	01	1	1304-1409	●	●
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-98282-482-0	01	1	1410-	●	●

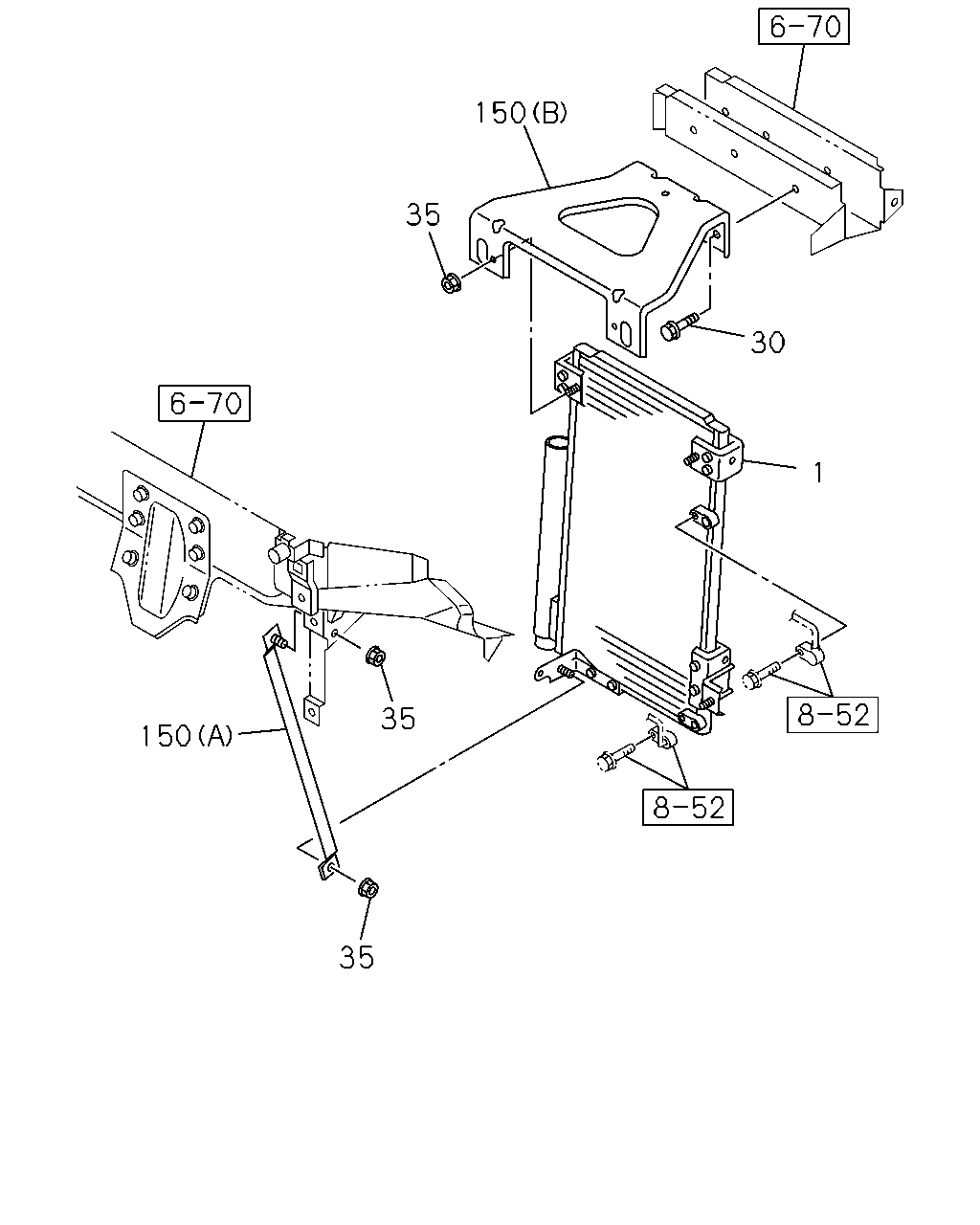

150 35 30 1 35 35 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98041-320-0	01	1	1009-1301	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98235-911-0	01	1	1302-1303	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-98164-844-0	01	1	1009-1303	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-98164-844-1	01	1	1304-	●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE	0-28650-820-0	02	1	1009-1303	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	05	1	1009-1303	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	05	1	1304-	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98041-321-0	01	1	1009-1303	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98041-321-0	01	1	1304-1405	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98270-947-0	01	1	1406-	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98041-322-0	01	1	1009-1303	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98041-322-0	01	1	1304-1409	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98242-412-0	01	1	1410-	●	●
