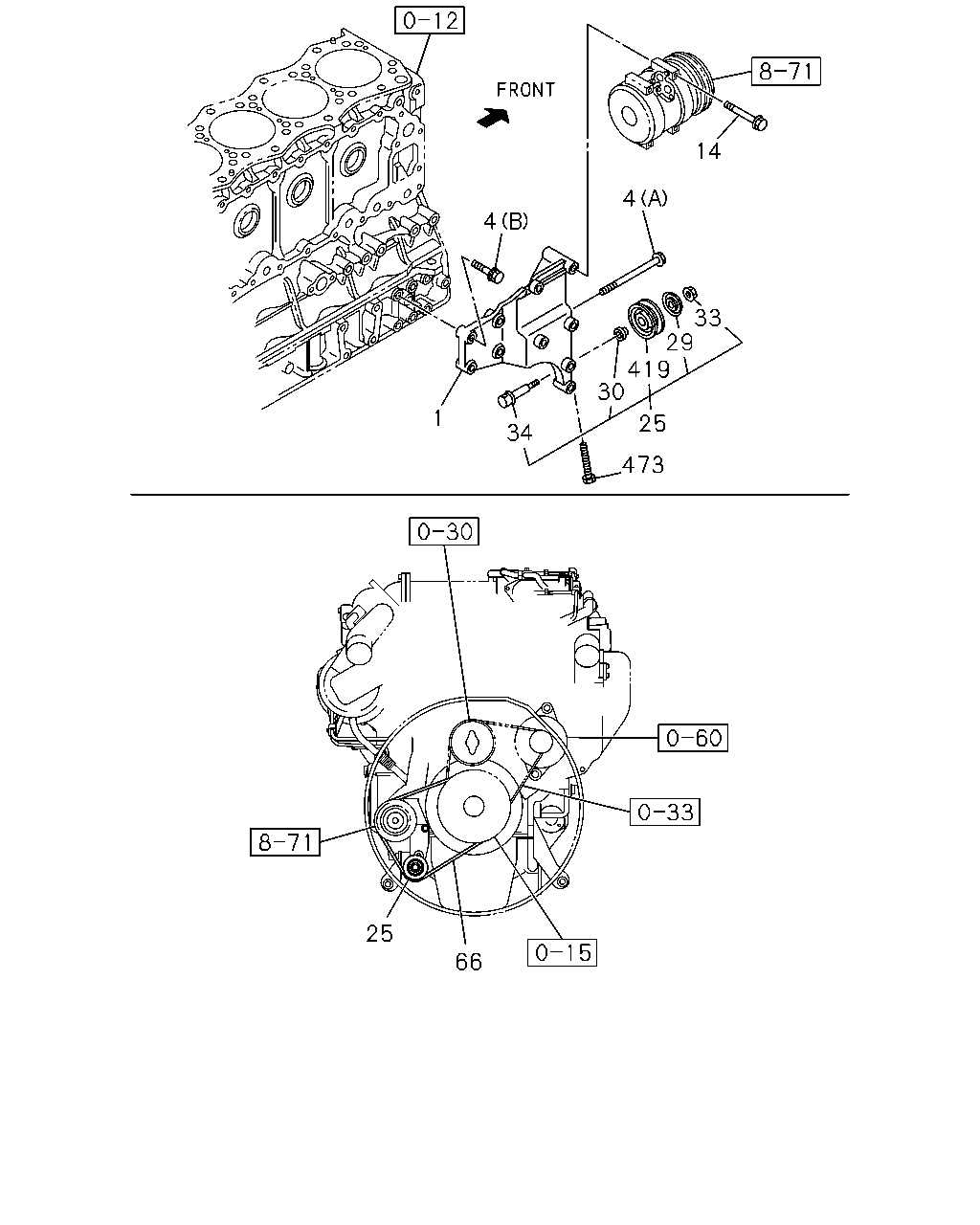

8-50 — AIR CONDITIONING SYSTEM; FRONT (#70424) — 39 parça

14 4 33 29 419 25 473 30 34 4 1 66 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97632-242-1	01	1	1009-1303	●
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97632-242-1	01	1	1304-	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X45 FLANGE	0-28151-045-0	04	1	1009-1303	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X45 FLANGE	0-28151-045-0	04	1	1304-	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M10X150 FLANGE	0-28156-015-0	01	1	1009-1303	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X150 FLANGE	0-28156-015-0	01	1	1304-	●	●
14	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X80 FLANGE	0-28050-880-0	04	1	1009-1303	●
14	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60) M8X80 FLANGE	0-28050-880-0	04	1	1304-	●	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97603-949-0	01	1	1009-1303	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97603-949-0	01	1	1304-	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83578-100-0	01	1	1009-1303	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-100-0	01	1	1304-	●	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-87540-319-0	01	1	1009-1303	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-87540-319-0	01	1	1304-	●	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83579-985-0	01	1	1009-1303	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-985-0	01	1	1304-	●	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83579-982-0	01	1	1009-1303	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-982-0	01	1	1304-	●	●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1274	8-97607-491-0	01	1	1009-1109	●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1274	8-98204-691-0	01	1	1110-1303	●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1274	8-98204-691-0	01	1	1304-	●	●
419	PULLEY; IDLE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-87540-322-0	01	1	1009-1303	●
419	PULLEY; IDLE AIR CONDITIONER MANUAL CONTROL(C60)	1-87540-322-0	01	1	1304-	●	●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X80 FLANGE	1-09044-091-0	01	1	1009-1303	●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60) M8X80 FLANGE	1-09044-091-0	01	1	1304-	●	●

378 378

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98053-746-1	01	1	1009-1110	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98204-844-0	01	1	1111-1303	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98204-844-0	01	1	1304-	●	●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98041-428-0	01	1	1009-1302	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98041-428-0	01	1	1303-1303	●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98041-428-0	01	1	1304-	●	●

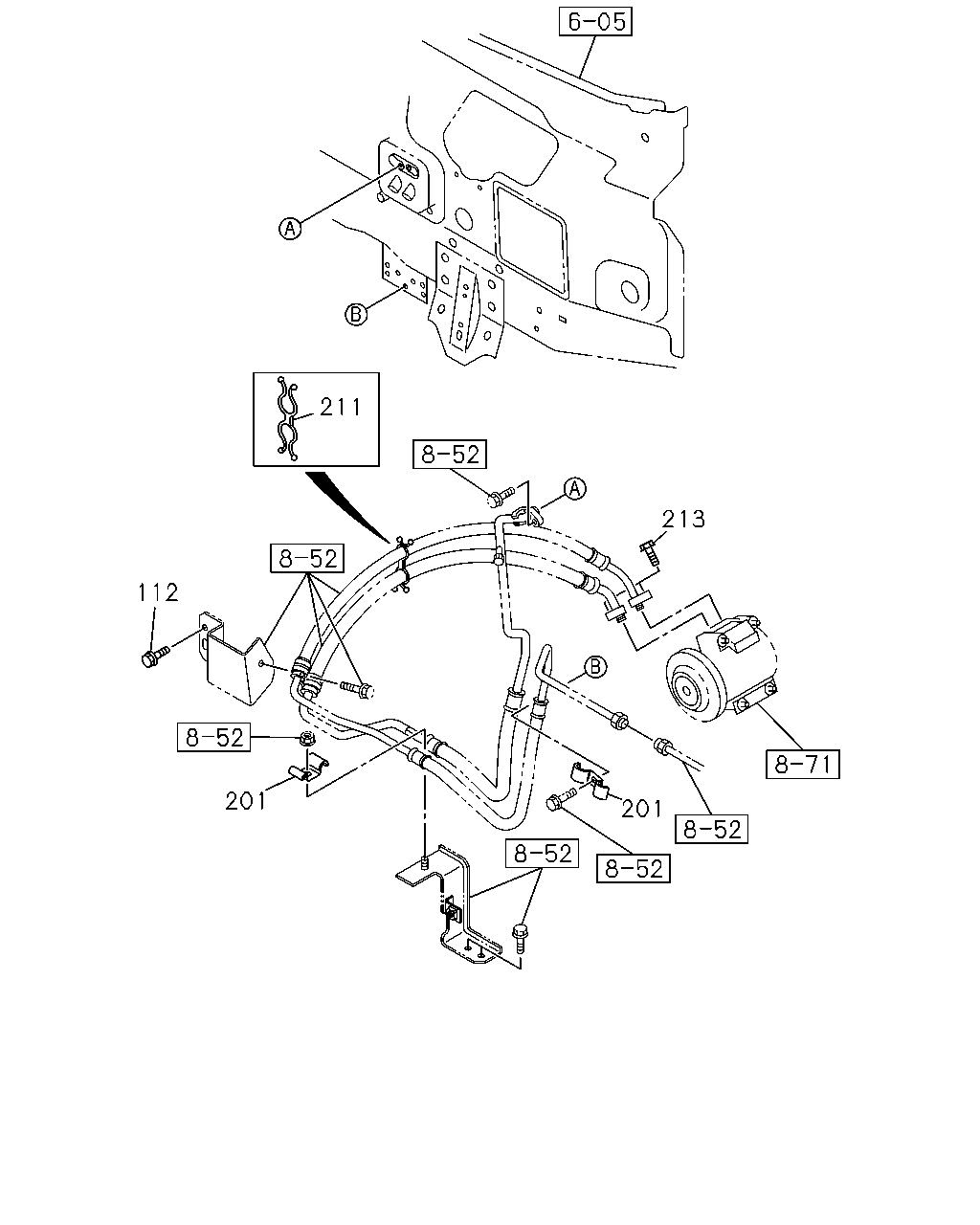

213 201 201 112 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE	0-28650-820-0	02	1	1009-1303	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98043-673-0	02	1	1009-1303	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-98043-673-0	02	1	1304-	●	●
211	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-94423-042-0	02	1	1009-1303	●
211	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-94423-042-0	02	1	1304-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	02	1	1009-1303	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	1304-	●	●
