8-28 — CHASSIS ELECTRICAL (#70421) — 122 parça

51 45 50 44 51 51 51 51 44 50 45 51

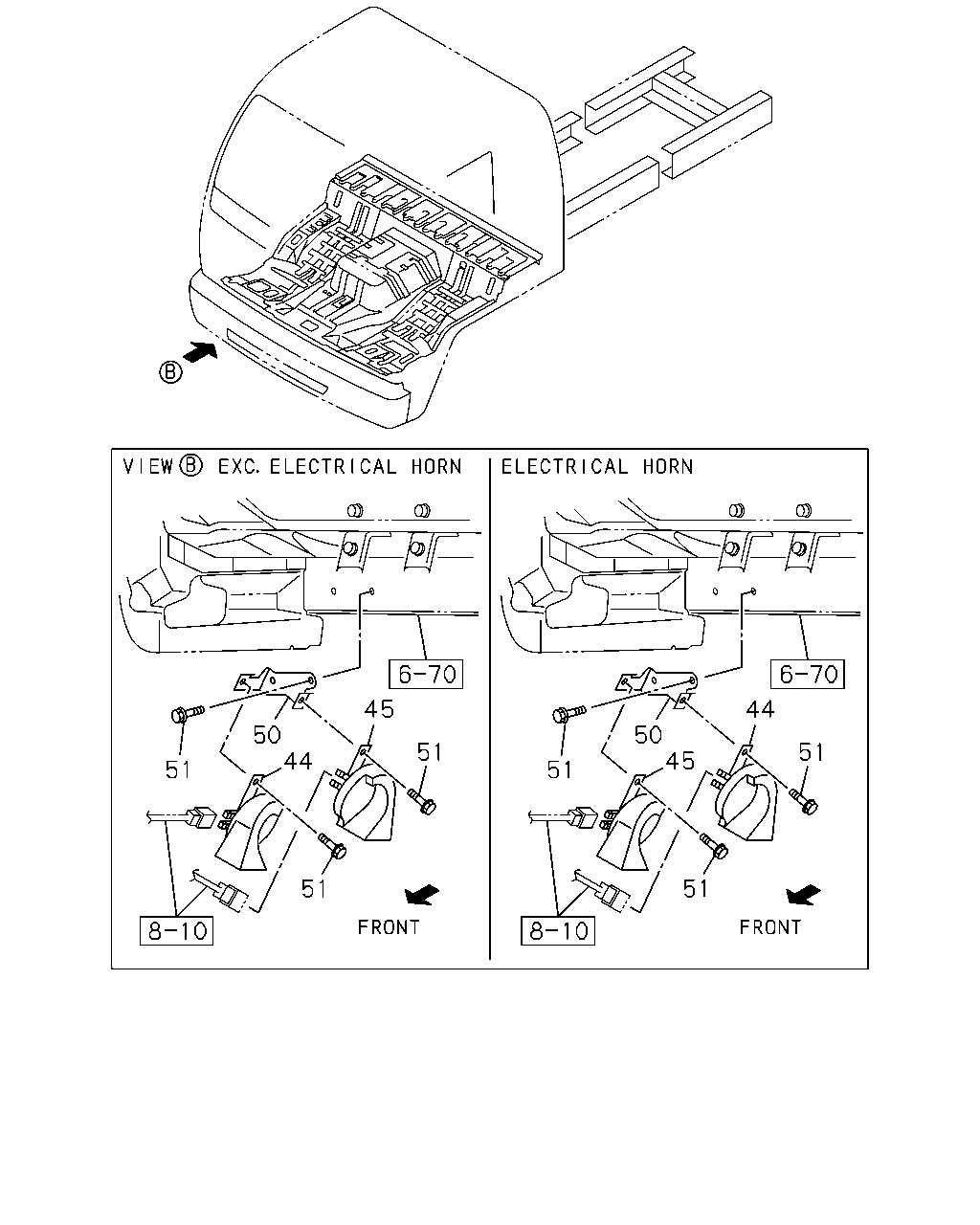

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE ELECTRICAL HORN<WB7>	8-97611-677-2	01	1	1009-1303	●
44	HORN; HIGH NOTE ELECTRICAL HORN<WB7>	8-97611-677-2	01	1	1304-	●	●
44	HORN; HIGH NOTE EXC. ELECTRICAL HORN<WB7>	8-98022-022-0	01	1	1009-1303	●
44	HORN; HIGH NOTE EXC. ELECTRICAL HORN<WB7>	8-98022-022-0	01	1	1304-	●	●
45	HORN; LOW NOTE ELECTRICAL HORN<WB7>	8-97611-676-2	01	1	1009-1303	●
45	HORN; LOW NOTE ELECTRICAL HORN<WB7>	8-97611-676-2	01	1	1304-	●	●
45	HORN; LOW NOTE EXC. ELECTRICAL HORN<WB7>	8-98022-023-0	01	1	1009-1303	●
45	HORN; LOW NOTE EXC. ELECTRICAL HORN<WB7>	8-98022-023-0	01	1	1304-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1009-1303	●
50	BRACKET; HORN	8-97613-300-2	01	1	1304-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	1009-1303	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	1304-	●	●

66 64 65 65 64 84 85 86 117 116 115

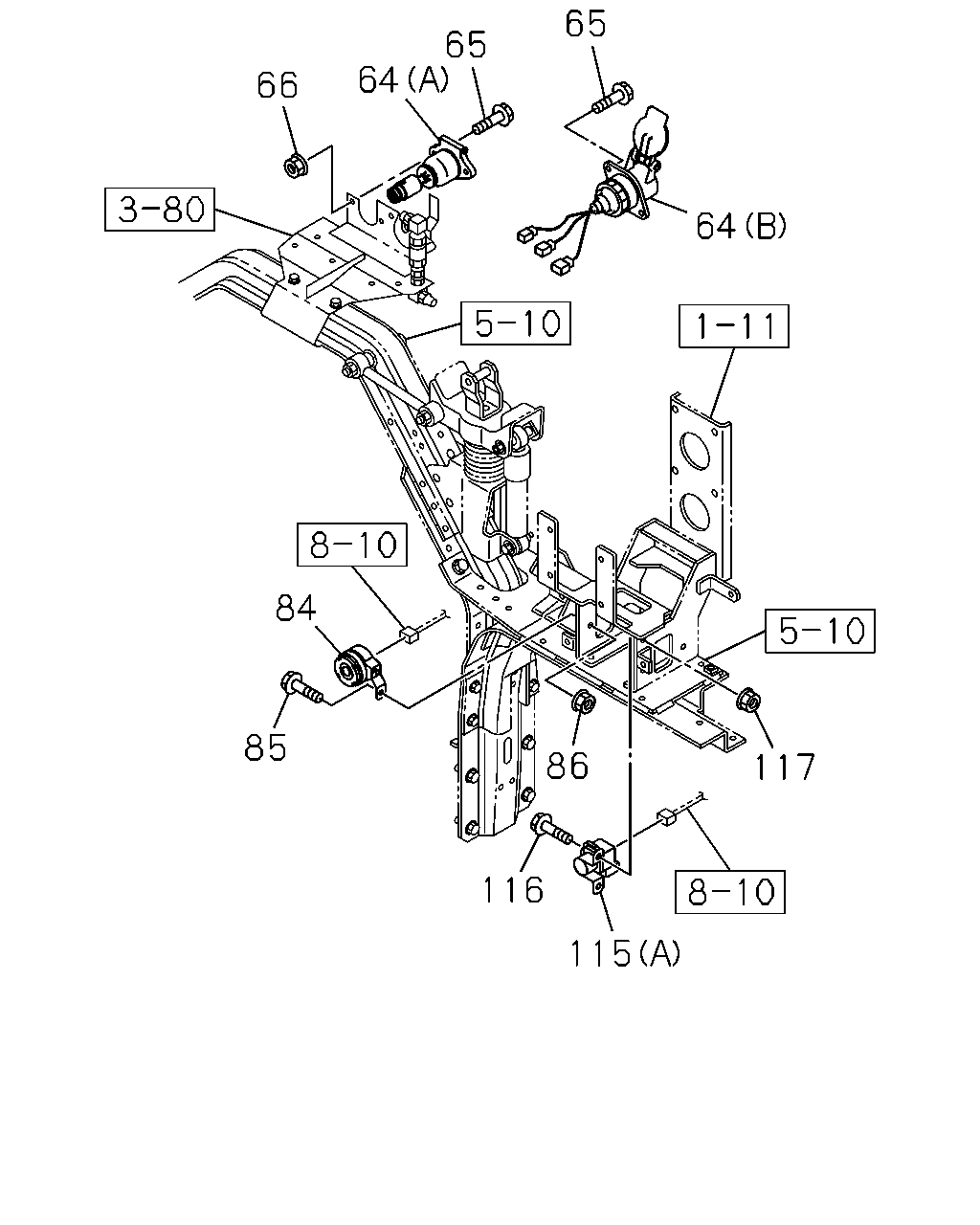

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (B) L=860	8-98172-008-0	01	1	1304-		●
64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	1304-		●
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	02	1	1304-		●
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28650-825-0	02	1	1304-		●
66	NUT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1304-		●
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	1304-		●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1009-1303	●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1304-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1304-	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1303	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-0	01	1	1009-1303	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	1304-	●	●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	1009-1303	●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	1304-1308	●	●
116	BOLT; RELAY FIX M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1304-	●	●

89 261 34 34 90 285 210 89 261 602 210 34 284 34 34 34 89 90 34 34 33 39 282 41 284 603 261

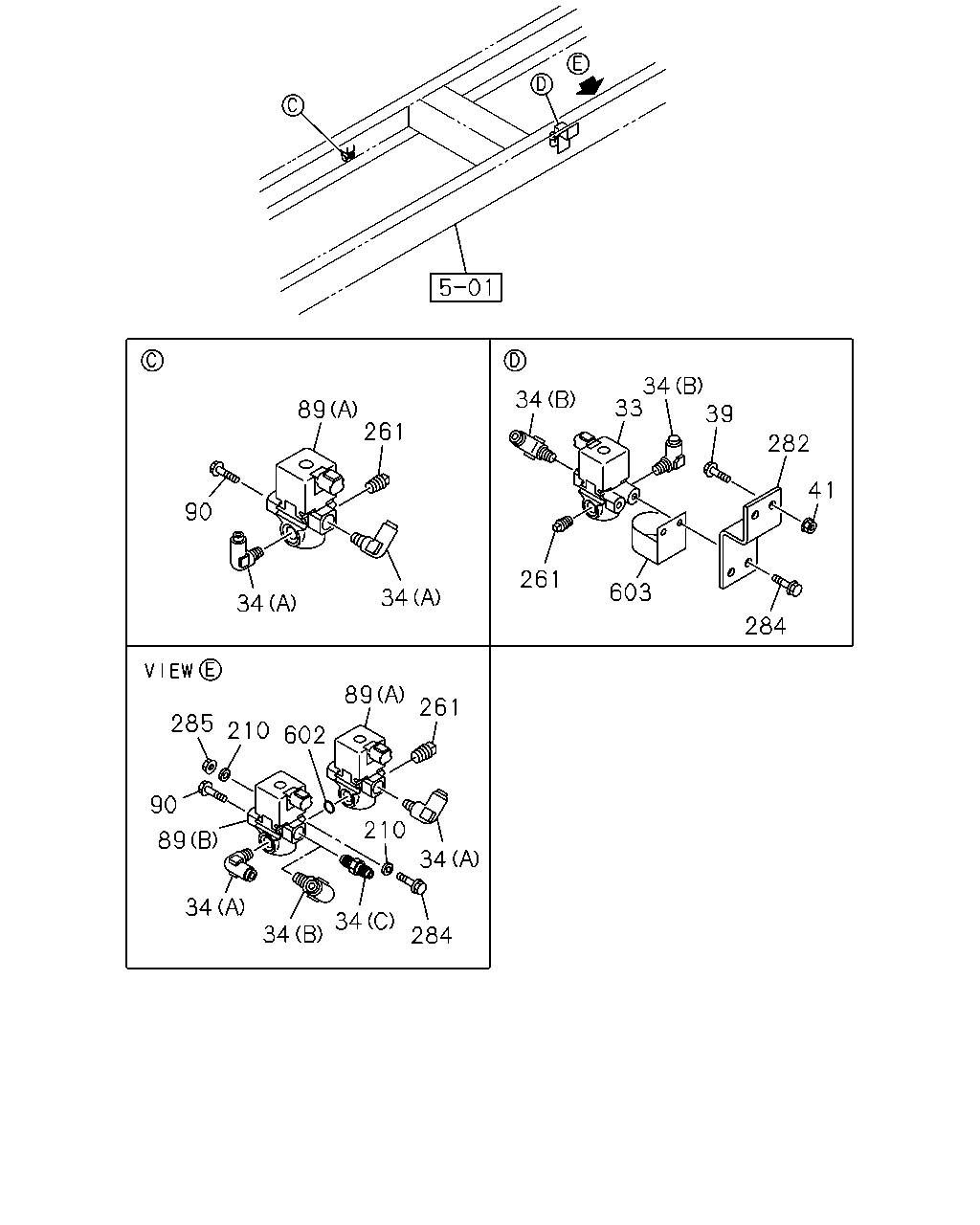

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1009-1303	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1304-	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-1303	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1304-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1009-1303	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-		●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE	0-28650-830-0	02	1	1009-1303	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	1304-	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR(BDM) (B)	1-82563-871-2	01	1	1304-		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	1009-1205	●
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1206-1303	●
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1304-	●	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	1304-	●
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	1304-		●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1009-1303	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1009-1303	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1304-	●	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47471-175-0	01	1	1009-1303	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	1009-1303	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M6X50 FLANGE	0-28050-650-0	01	1	1304-	●
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM) M6X50 FLANGE	0-28050-650-0	01	1	1304-		●
285	NUT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M6 FLANGE	0-91180-106-0	01	1	1304-	●
285	NUT; MAG VLV PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	1304-		●
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	1304-	●
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	1304-		●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47471-046-0	01	1	1009-1303	●

440 540 468 2 1 4 573 2

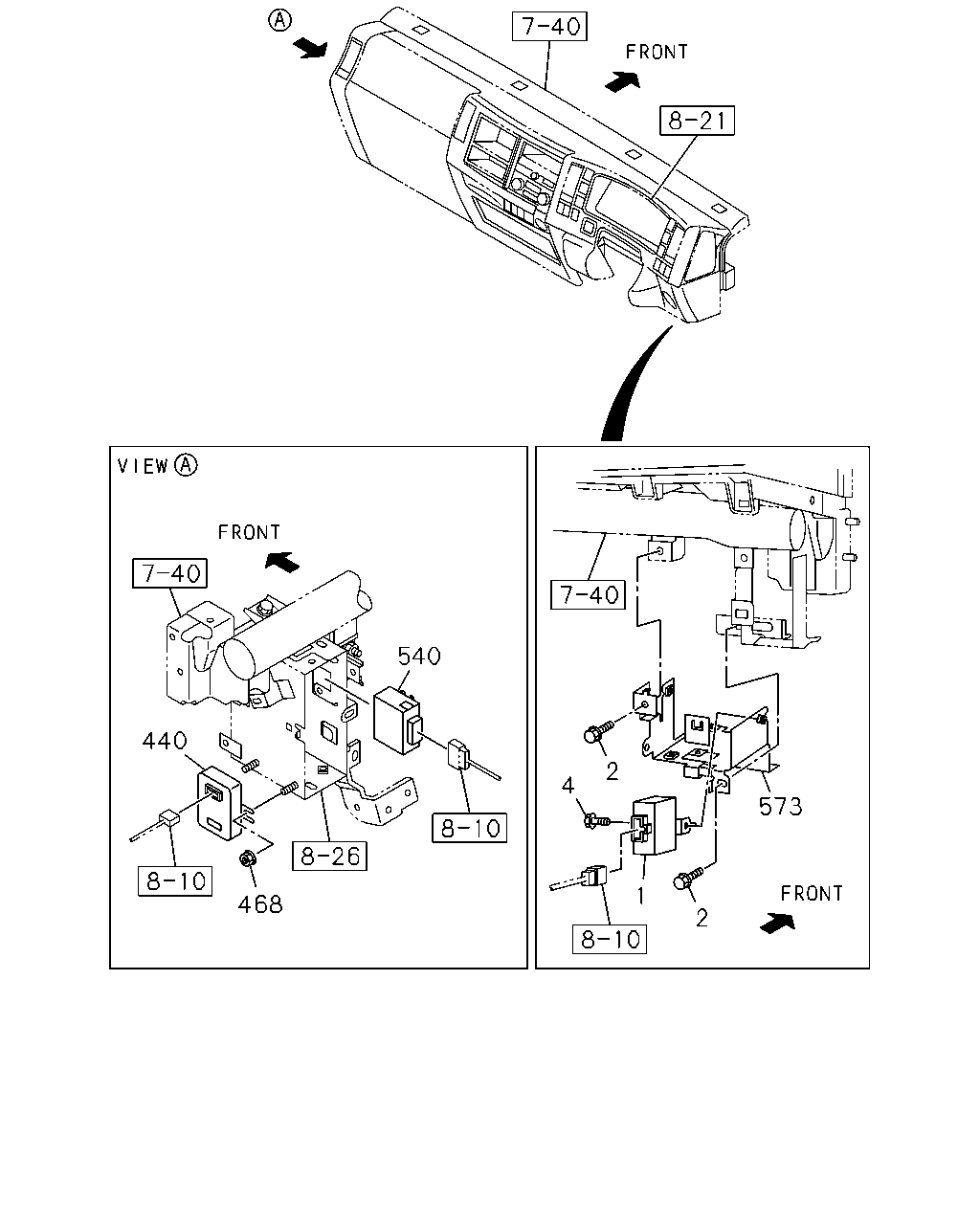

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-97613-970-1	01	1	1304-		●
1	UNIT; FLASHER	8-98025-533-1	01	1	1009-	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1009-1303	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1009-1303	●
4	SCREW; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
440	MODULE; INFORMATION,ABS ANTILOCK BRAKE SYSTEM(BFA)	1-81510-701-0	01	1	1305-		●
468	NUT; MODULE ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91180-106-0	02	1	1305-		●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1009-1303	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1304-1308	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1009-1303	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1304-	●	●

684 753 684 462 22 753 367 754 770 367 22 754

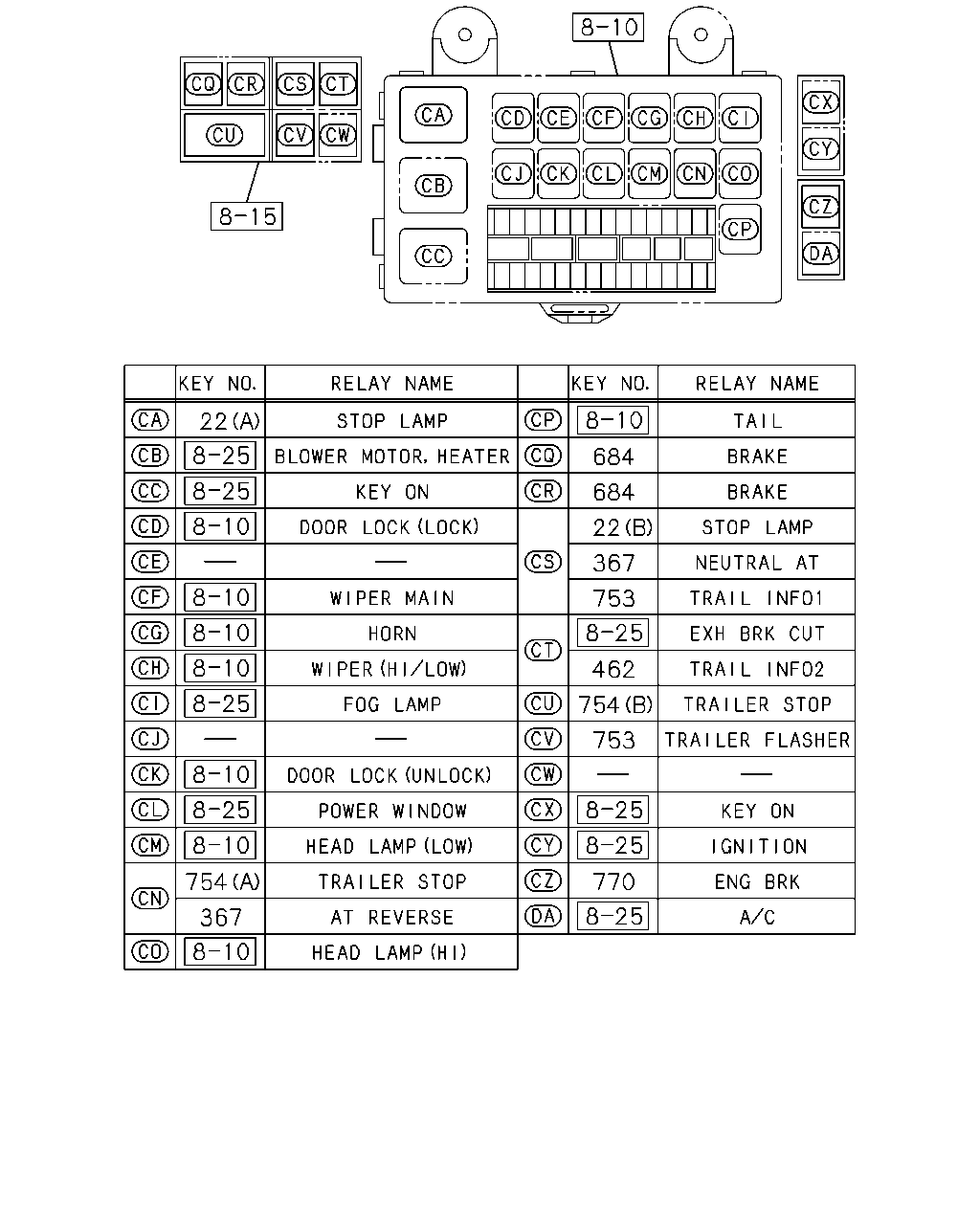

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-1303	●
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1304-	●	●
22	RELAY; STOP LAMP HONG KONG EQUIPMENT(PQ1) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1303	●
22	RELAY; STOP LAMP HONG KONG EQUIPMENT(PQ1) ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●
22	RELAY; STOP LAMP HONG KONG EQUIPMENT(PQ1) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1304-		●
367	RELAY; NEUTRAL A/T<X9D> 24V 10A PANASONIC	8-97173-035-1	02	1	1304-	●
462	RELAY; INFORMATION,ABS ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	01	1	1304-		●
684	RELAY; BRAKE ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	02	1	1009-1303	●
684	RELAY; BRAKE ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	02	1	1304-	●	●
753	RELAY; TRAILER FLASHER ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	02	1	1304-		●
754	RELAY; TRAILER STOP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1304-		●
754	RELAY; TRAILER STOP EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1304-		●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1303	●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●	●

584 744 422 385 352 676 265 711 762 761 265

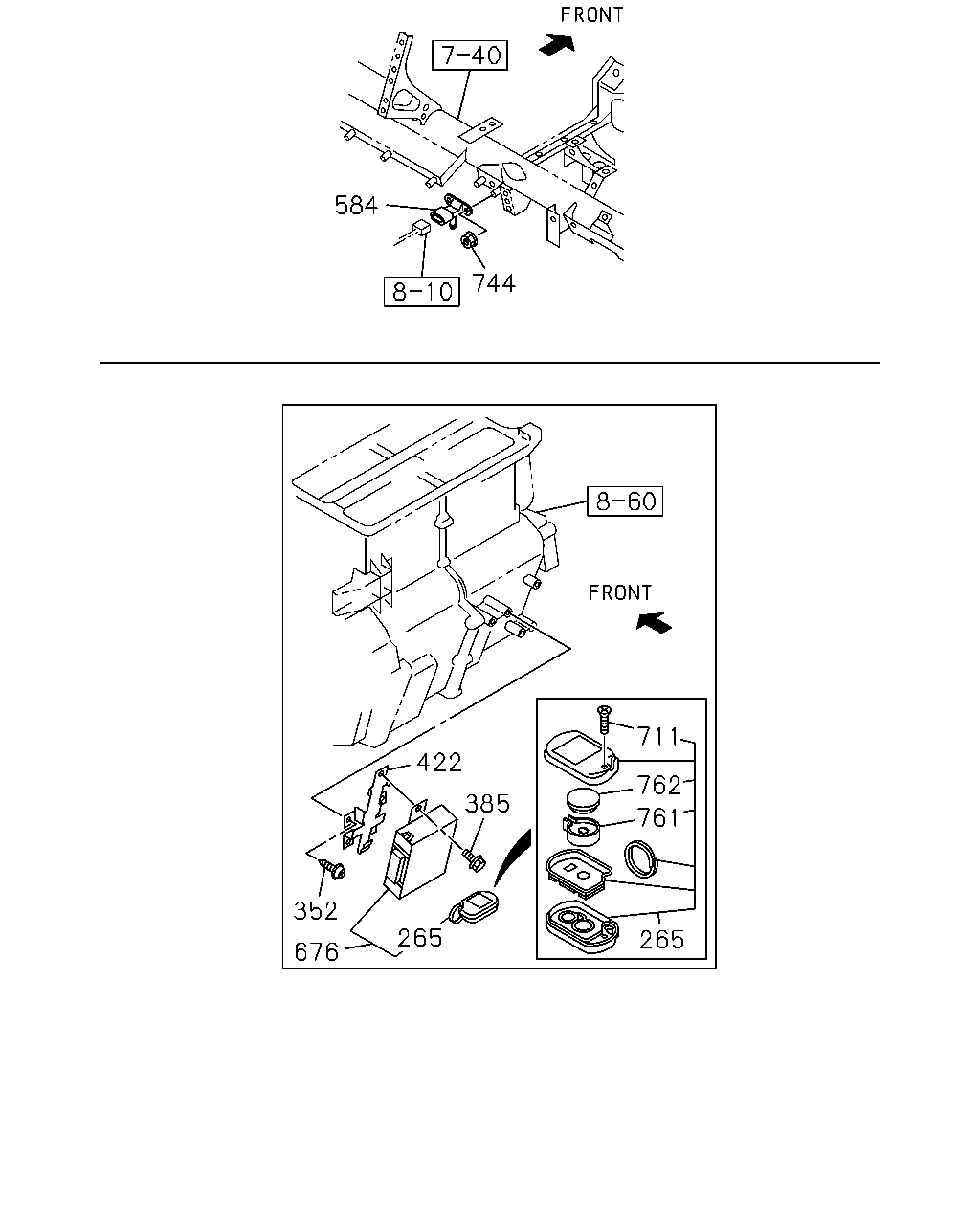

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98048-459-1	02	1	1009-1012	●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98180-751-0	02	1	1101-1205	●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98218-236-0	02	1	1206-1303	●
352	SCREW; BRKT REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1009-1303	●
385	BOLT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	1009-1303	●
422	BRACKET; CONT UNIT REMOTE CONT DOOR LOCK<6NF>	8-98055-281-1	01	1	1009-1303	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1009-1303	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1304-	●	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98017-258-1	01	1	1009-1012	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98181-809-0	01	1	1101-1205	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98218-231-0	01	1	1206-1303	●
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	1009-1205	●
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1206-1303	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1009-1303	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1304-	●	●
761	HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	1009-1012	●
762	BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	1009-1303	●

22 22 770 684 684

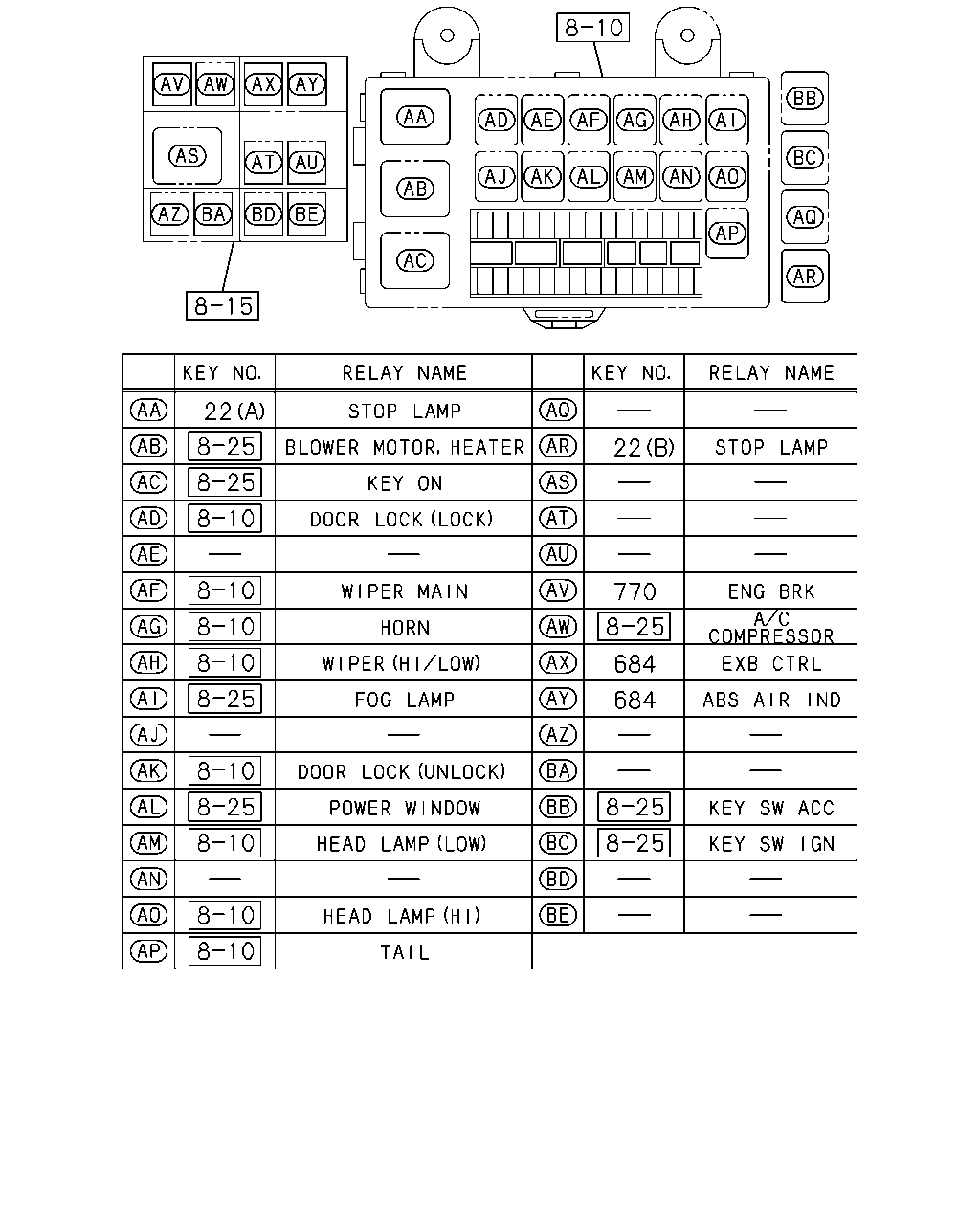

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-1303	●
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1304-	●	●
22	RELAY; STOP LAMP HONG KONG EQUIPMENT(PQ1) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1303	●
22	RELAY; STOP LAMP HONG KONG EQUIPMENT(PQ1) ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●
22	RELAY; STOP LAMP HONG KONG EQUIPMENT(PQ1) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1304-		●
684	RELAY; BRAKE ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	02	1	1009-1303	●
684	RELAY; BRAKE ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	02	1	1304-	●	●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1303	●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●	●

531 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1303	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-0	01	1	1009-1303	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	1304-	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1009-1303	●
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1304-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●
