◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#70419) — 135 parça

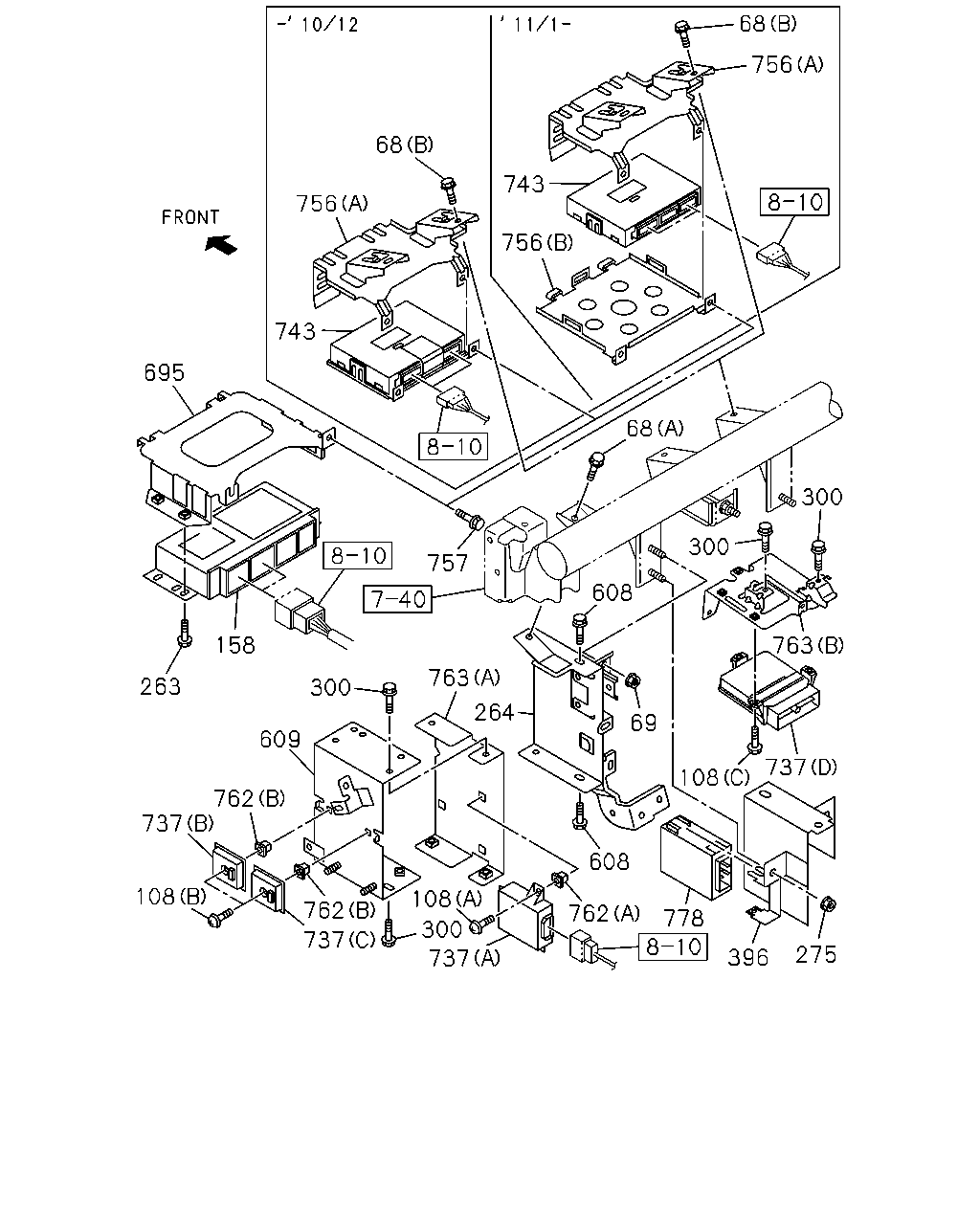

çizim 138058
68 756 743 756 743 756 68 68 757 300 609 762 737 108 762 737 108 300 737 608 762 778 396 737 275 763 300 300 608 69 108 763 264 158 263 695
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1009-1303 ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1304- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1009-1303 ●
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1009-1303 ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1304- ● ●
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1304- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1009-1303 ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1304- ● ●
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) (C) M6X16 FLANGE 		0-28650-616-0 03 1 1304- ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009-1303 ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1304- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) M4X25 TAPPING 		0-74160-425-0 02 1 1009-1303 ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) M4X25 TAPPING 		0-74160-425-0 02 1 1304- ● ●
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 12R22.5-16 RIB(75N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-261-0 01 1 1009-1201 ●
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 12R22.5-16 RIB(75N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-648-0 01 1 1202-1303 ●
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98220-159-0 01 1 1304- ● ●
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-229-2 01 1 1009-1201 ●
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-647-0 01 1 1202-1303 ●
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 04 1 1009-1303 ●
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 04 1 1304- ● ●
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1009-1303 ●
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1304- ● ●
275 NUT; BRKT
AUTO CRUISE<K30> M6 FLANGE 		0-91180-106-0 02 1 1009-1303 ●
300 BOLT; CONT UNIT BRKT
A/T ALLISON 4430(Y5V) M6X16 FLANGE 		0-28650-616-0 02 1 1304- ●
300 BOLT; CONT UNIT BRKT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 04 1 1009-1303 ●
300 BOLT; CONT UNIT BRKT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 04 1 1304- ● ●
396 BRACKET
AUTO CRUISE<K30> 		8-98084-467-4 01 1 1009-1303 ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1009-1303 ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1304- ● ●
608 BOLT; CONT UNIT,AIR SUS
MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 1009-1303 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1310 M/T(Y5K) AUTO DOOR LOCK<AU4> EXC. SHIFT PATTERN SINGLE-H<EDY>,REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 1009-1303 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 1009-1303 ●
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA),SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 1304-1401 ● ●
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 05 1 1304-1401 ●
608 BOLT; CONT UNIT,AIR SUS
MAL6R M/T(Y2J),MJT7U M/T(Y4X),A/T ALLISON 4430(Y5V) AUTO DOOR LOCK<AU4> SHIFT PATTERN SINGLE-H<EDY> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 05 1 1304-1401 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28650-616-0 05 1 1304-1401 ●
608 BOLT; CONT UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 05 1 1304-1401 ●
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 1402- ●
608 BOLT; CONT UNIT,AIR SUS
SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 1402- ●
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> SHIFT PATTERN DOUBLE-H<EDZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 05 1 1402- ●
608 BOLT; CONT UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY>,SHIFT PATTERN DOUBLE-H<EDZ> M6X16 FLANGE 		0-28650-616-0 05 1 1402- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 1009-1303 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) AUTO DOOR LOCK<AU4> EXC. SHIFT PATTERN SINGLE-H<EDY>,REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 1009-1303 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98095-337-0 01 1 1009-1303 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA),SHIFT PATTERN SINGLE-H<EDY> 		8-98095-337-0 01 1 1304-1308 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> ANTILOCK BRAKE SYSTEM(BFA) 		8-98095-337-0 01 1 1304-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MAL6R M/T(Y2J),MJT7U M/T(Y4X),A/T ALLISON 4430(Y5V) AUTO DOOR LOCK<AU4> SHIFT PATTERN SINGLE-H<EDY> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		8-98095-337-0 01 1 1304-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> EXC. AUTO DOOR LOCK<AU4> 		8-98095-337-0 01 1 1304-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98095-337-0 01 1 1304-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA),SHIFT PATTERN SINGLE-H<EDY> 		8-98169-737-0 01 1 1309-1401 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> ANTILOCK BRAKE SYSTEM(BFA) 		8-98169-737-0 01 1 1309-1401 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MAL6R M/T(Y2J),MJT7U M/T(Y4X),A/T ALLISON 4430(Y5V) AUTO DOOR LOCK<AU4> SHIFT PATTERN SINGLE-H<EDY> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		8-98169-737-0 01 1 1309-1401 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> EXC. AUTO DOOR LOCK<AU4> 		8-98169-737-0 01 1 1309-1401 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98169-737-0 01 1 1309-1401 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98169-737-1 01 1 1402- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
SHIFT PATTERN SINGLE-H<EDY> 		8-98169-737-1 01 1 1402- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> SHIFT PATTERN DOUBLE-H<EDZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		8-98169-737-1 01 1 1402- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY>,SHIFT PATTERN DOUBLE-H<EDZ> 		8-98169-737-1 01 1 1402- ●
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98045-016-1 01 1 1009-1303 ●
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98045-016-1 01 1 1304- ● ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) SINGAPORE EQUIPMENT(WQ3) (D) 		8-98233-830-0 01 1 1304- ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) EXC. SINGAPORE EQUIPMENT(WQ3) (D) 		8-98215-411-1 01 1 1304- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) 		1-80111-271-0 01 1 1009-1303 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) 		1-80111-271-0 01 1 1304- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) 		8-98095-040-0 01 1 1009-1303 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) 		8-98095-040-0 01 1 1304- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (C) 		8-98095-041-0 01 1 1009-1303 ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (C) 		8-98095-041-0 01 1 1304- ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1009-1012 ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-1 01 1 1101-1303 ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1304- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101-1303 ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1304- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1009-1303 ●
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1009-1303 ●
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1304- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1009-1303 ●
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1009-1303 ●
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1304- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1009-1303 ●
762 GROMMET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1304- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1009-1303 ●
762 GROMMET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1304- ● ●
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) (B) 		8-98064-901-0 01 1 1304- ●
763 BRACKET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) 		8-98085-587-0 01 1 1009-1303 ●
763 BRACKET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) 		8-98085-587-0 01 1 1304- ● ●
778 MODULE; CRUISE CONT
AUTO CRUISE<K30> 		8-97620-055-0 01 1 1009-1303 ●

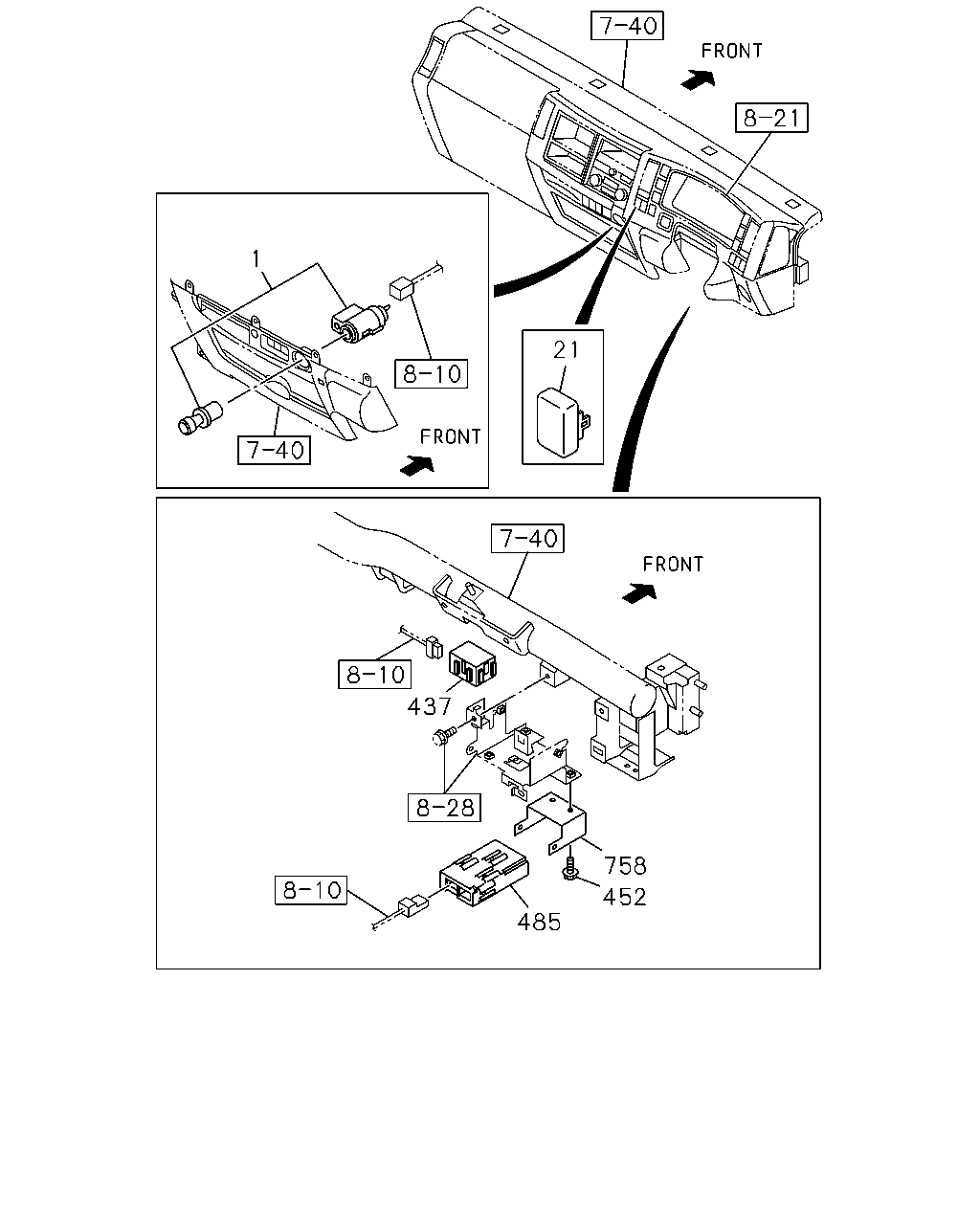

çizim 138164
1 21 437 758 452 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1009-1303 ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1304- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1009-1303 ●
21 COVER; HOLE 8-98025-954-1 01 1 1304- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1009-1303 ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1304- ● ●
452 BOLT; BRKT
ZF9S1310 M/T(Y5K) M6X16 FLANGE 		0-28650-616-0 02 1 1009-1303 ●
452 BOLT; BRKT
ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) M6X16 FLANGE 		0-28650-616-0 02 1 1304- ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1304- ●
485 CONTROL UNIT; SPEED SENSOR
A/T ALLISON 4430(Y5V) 		1-80190-061-0 01 1 1304- ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1310 M/T(Y5K) 		1-80190-063-0 01 1 1009-1303 ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1310 M/T(Y5K) 		1-80190-063-0 01 1 1304- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1009-1303 ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1304- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1310 M/T(Y5K) 		8-98048-743-1 01 1 1009-1303 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) 		8-98048-743-1 01 1 1304- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1304- ●

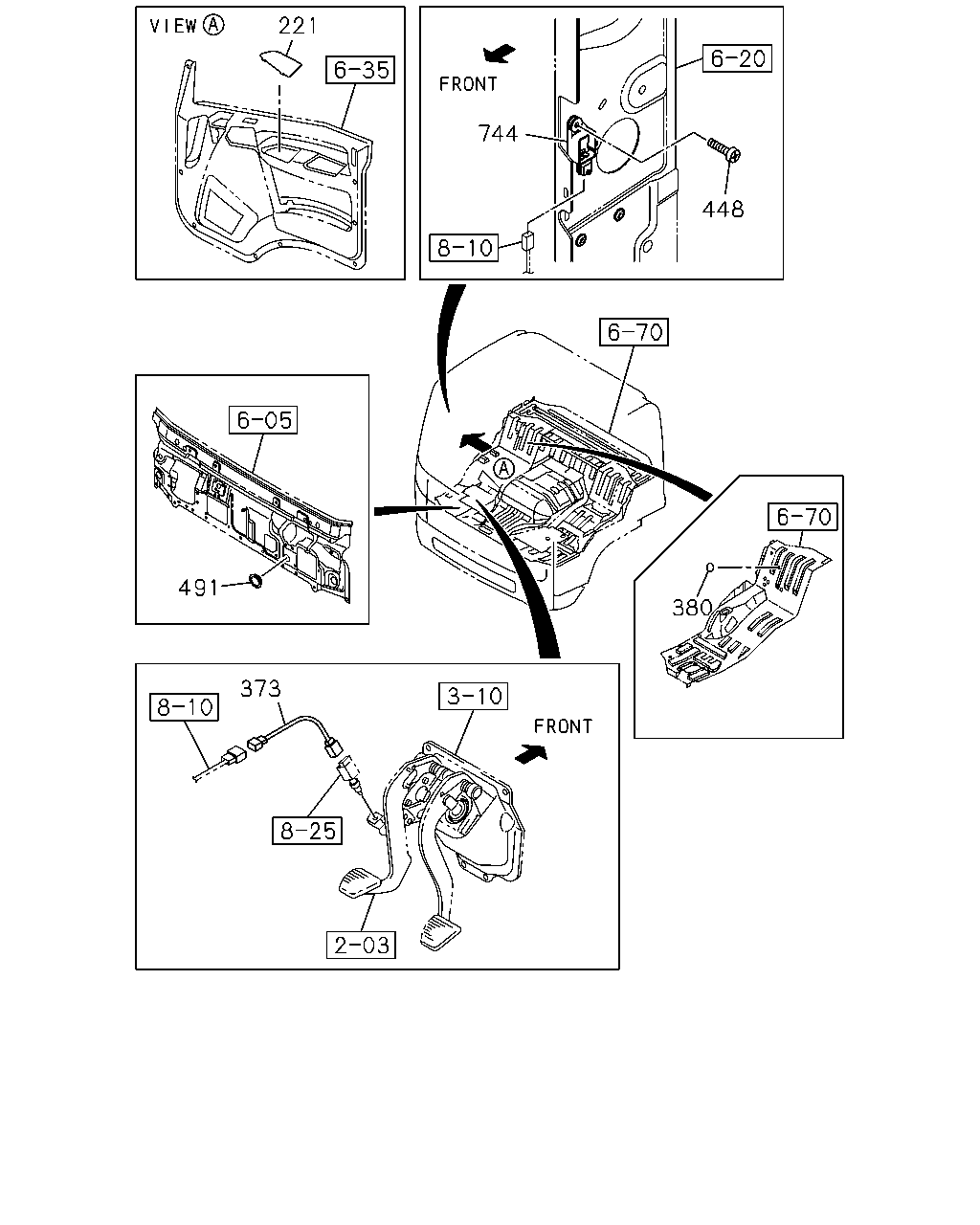

çizim 138301
221 744 448 791 373 380
BalonParca AdiParca NoAdetTipApplied Date A B
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1009-1303 ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1304- ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1009-1303 ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1304- ● ●
373 HARNESS; CLU SWITCH 8-98059-419-1 01 1 1009-1303 ●
373 HARNESS; CLU SWITCH
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) 		8-98059-419-2 01 1 1304- ●
373 HARNESS; CLU SWITCH 8-98059-419-2 01 1 1304- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1009-1303 ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1304- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1009-1303 ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1304- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1009-1303 ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1304- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3) 		8-97386-841-2 01 1 1009-1303 ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3) 		8-97386-841-2 01 1 1304- ● ●
çizim 189528
497 726 726 497 747
BalonParca AdiParca NoAdetTipApplied Date A B
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1009-1303 ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1304- ● ●
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1009-1303 ●
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1304- ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1009-1303 ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1304- ● ●
747 CONTROL UNIT; TURBOCHARGER 8-98118-472-0 01 1 1009-1303 ●
747 CONTROL UNIT; TURBOCHARGER 8-98118-472-0 01 1 1304- ● ●

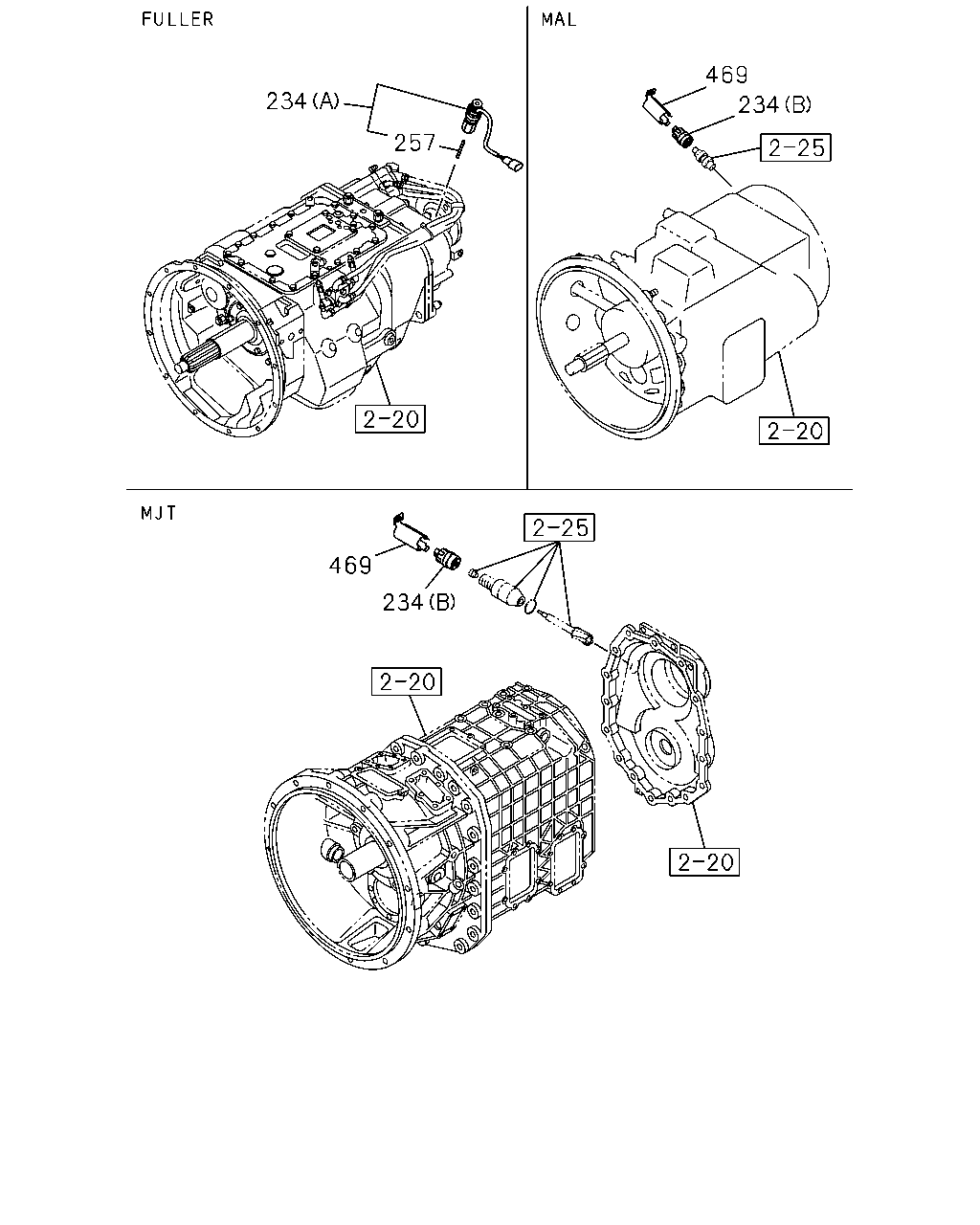

çizim 189606
234 257 469 234 469 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
MJT7U M/T(Y4X) (B) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1009-1303 ●
234 SENSOR; VEHICLE SPD
MAL6R M/T(Y2J),MJT7U M/T(Y4X) (B) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1304- ●
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTO11908(Y5L) (A) 25 PULSE 		1-83127-414-1 01 1 1009-1303 ●
257 KEY; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) 		1-83129-073-0 01 1 1009-1303 ●
469 PROTECTOR; SPEED SENSOR
MJT7U M/T(Y4X) 		8-98119-901-0 01 1 1009-1303 ●
469 PROTECTOR; SPEED SENSOR
MAL6R M/T(Y2J),MJT7U M/T(Y4X) 		8-98119-901-0 01 1 1304- ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1009-1303 ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
