◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#70418) — 147 parça

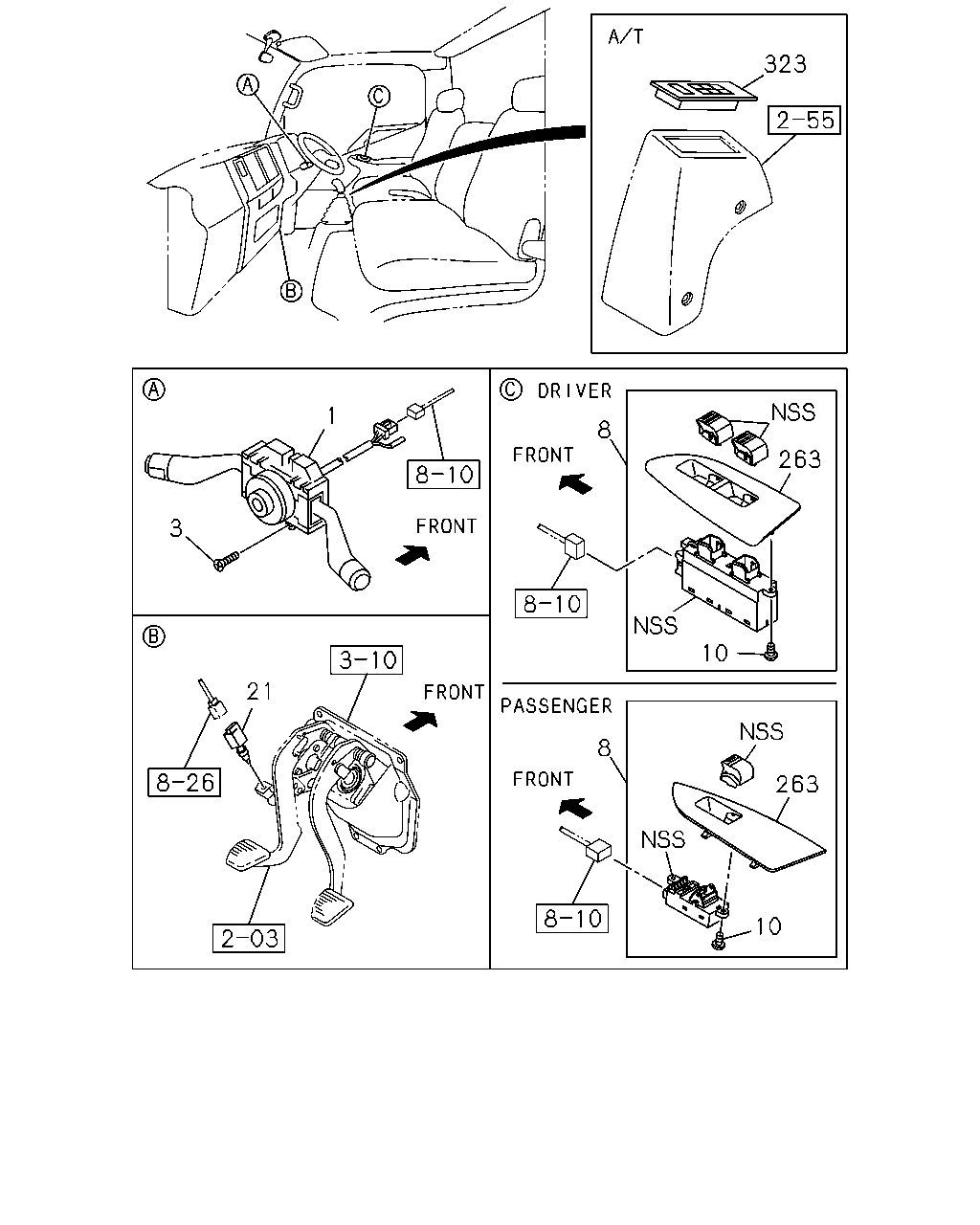

çizim 137281
323 1 3 21 8 263 10 263 8 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) AUTO CRUISE<K30> 		8-98146-619-0 01 1 1009-1210 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) AUTO CRUISE<K30> 		8-98217-821-0 01 1 1211-1303 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. AUTO CRUISE<K30> 		8-98146-618-0 01 1 1009-1210 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. AUTO CRUISE<K30> 		8-98217-820-0 01 1 1211-1303 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) 		8-98217-820-0 01 1 1304-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) 		8-98243-691-0 01 1 1311- ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AUTO CRUISE<K30> 		8-98060-302-1 01 1 1009-1303 ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3) 		8-98060-302-1 01 1 1304-1310 ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3) 		8-98243-704-0 01 1 1311- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1009-1303 ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1304- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97387-034-2 01 1 1009-1303 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97387-034-2 01 1 1304-1509 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98298-750-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98159-543-0 01 1 1009-1303 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98159-543-0 01 1 1304-1509 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98316-415-0 01 1 1510- ● ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 1009-1303 ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 1304- ● ●
21 SWITCH; CLU 8-97358-248-0 01 1 1009-1303 ●
21 SWITCH; CLU
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97358-248-0 01 1 1304- ●
21 SWITCH; CLU 8-97358-248-0 01 1 1304- ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98153-836-0 01 1 1009-1303 ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98153-836-0 01 1 1304- ● ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98153-841-0 01 1 1009-1303 ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98153-841-0 01 1 1304- ● ●
323 SWITCH ASM; SELECTOR
A/T ALLISON 4430(Y5V) 		8-98143-058-0 01 1 1304- ●

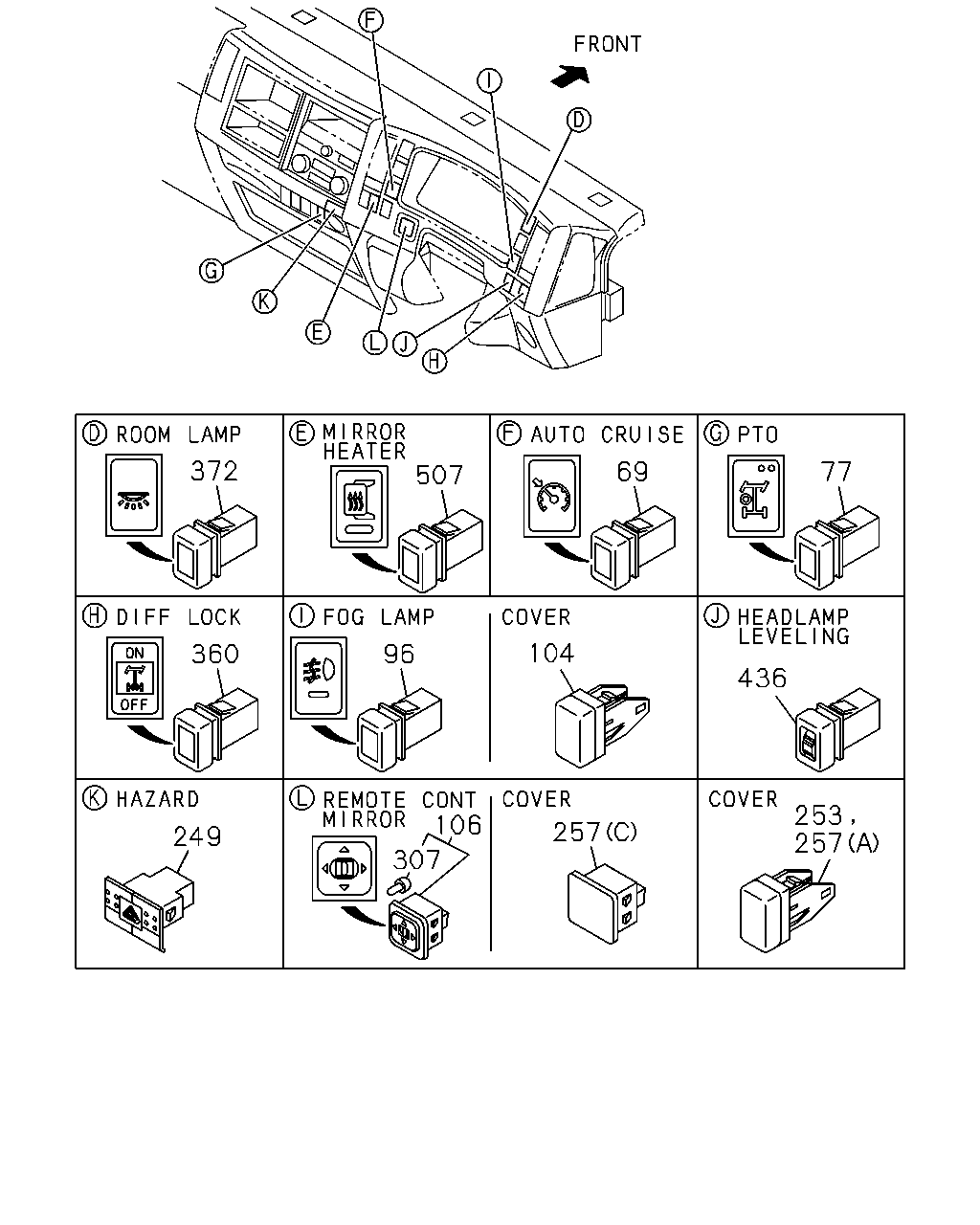

çizim 137774
77 69 507 372 360 96 104 436 253 257 257 106 307 249
BalonParca AdiParca NoAdetTipApplied Date A B
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-0 01 1 1009-1303 ●
77 SWITCH; PTO
MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K), TRANSMISSION-FULLER RTO11908(Y5L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97615-488-1 01 1 1009-1303 ●
77 SWITCH; PTO
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97386-993-4 01 1 1304- ●
77 SWITCH; PTO
ZF9S1310 M/T(Y5K) PTO ZF TRANS RR(BDM) 		8-97386-993-4 01 1 1304- ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 1009-1303 ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1304- ● ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1009-1303 ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1304- ● ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1009-1303 ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1009-1303 ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1304- ● ●
253 COVER; SW HOLE 8-98025-954-1 02 1 1009-1303 ●
253 COVER; SW HOLE 8-98025-954-1 03 1 1304- ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 1009-1303 ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 04 1 1009-1303 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1304- ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A) 		8-98025-954-1 01 1 1304- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		8-98025-954-1 01 1 1304- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009-1303 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A) 		8-98025-954-1 01 1 1009-1303 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-98025-954-1 01 1 1009-1303 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1009-1303 ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		8-98025-954-1 01 1 1009-1303 ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 06 1 1304-1401 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 05 1 1402- ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98029-914-1 01 1 1009-1303 ●
257 COVER; HOLE,SW
(C) 		8-98029-914-1 01 1 1304- ● ●
257 COVER; HOLE,SW
EXC. REMOTE CONT DOOR LOCK<6NF> (B) 		8-98029-917-0 01 1 1009-1303 ●
257 COVER; HOLE,SW
(B) 		8-98029-917-0 01 1 1304- ● ●
307 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1009-1303 ●
360 SWITCH ASM; DIFF LK 8-97613-964-0 01 1 1009-1303 ●
360 SWITCH ASM; DIFF LK 8-97613-964-1 01 1 1304- ● ●
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-1 01 1 1009-1303 ●
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 1304- ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1009-1303 ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1304- ● ●
507 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> HEATER 		8-97386-924-2 01 1 1009-1303 ●

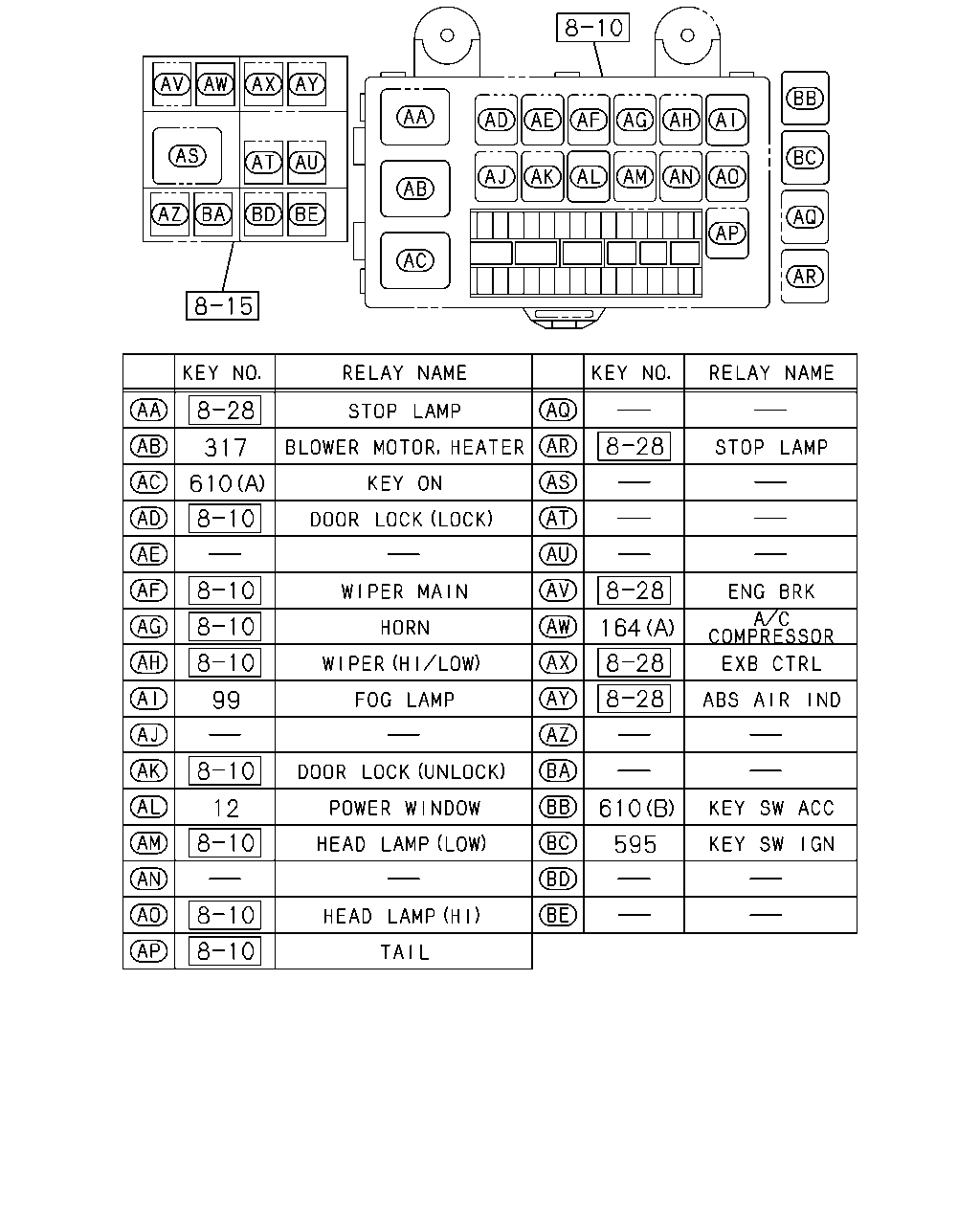

çizim 138153
317 610 99 12 595 610 164
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1303 ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1303 ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1303 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1303 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1304- ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1302 ●
317 RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1303-1303 ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1304- ● ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1208-1303 ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1208-1303 ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1303 ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1304- ● ●
çizim 138321
237 482 236 666 667 397
BalonParca AdiParca NoAdetTipApplied Date A B
236 BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-47476-200-0 02 1 1009-1303 ●
236 BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-47476-200-0 02 1 1304- ● ●
237 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
237 NUT
M8 FLANGE 		0-91180-108-0 04 1 1009-1303 ●
237 NUT
M8 FLANGE 		0-91180-108-0 04 1 1304- ● ●
397 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
397 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
482 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1303 ●
482 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 02 1 1304- ● ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20 		1-09700-871-0 04 1 1009-1303 ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20 		1-09700-871-0 02 1 1304- ● ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20 		1-09700-871-0 02 1 1304- ● ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 04 1 1009-1303 ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 02 1 1304- ● ●

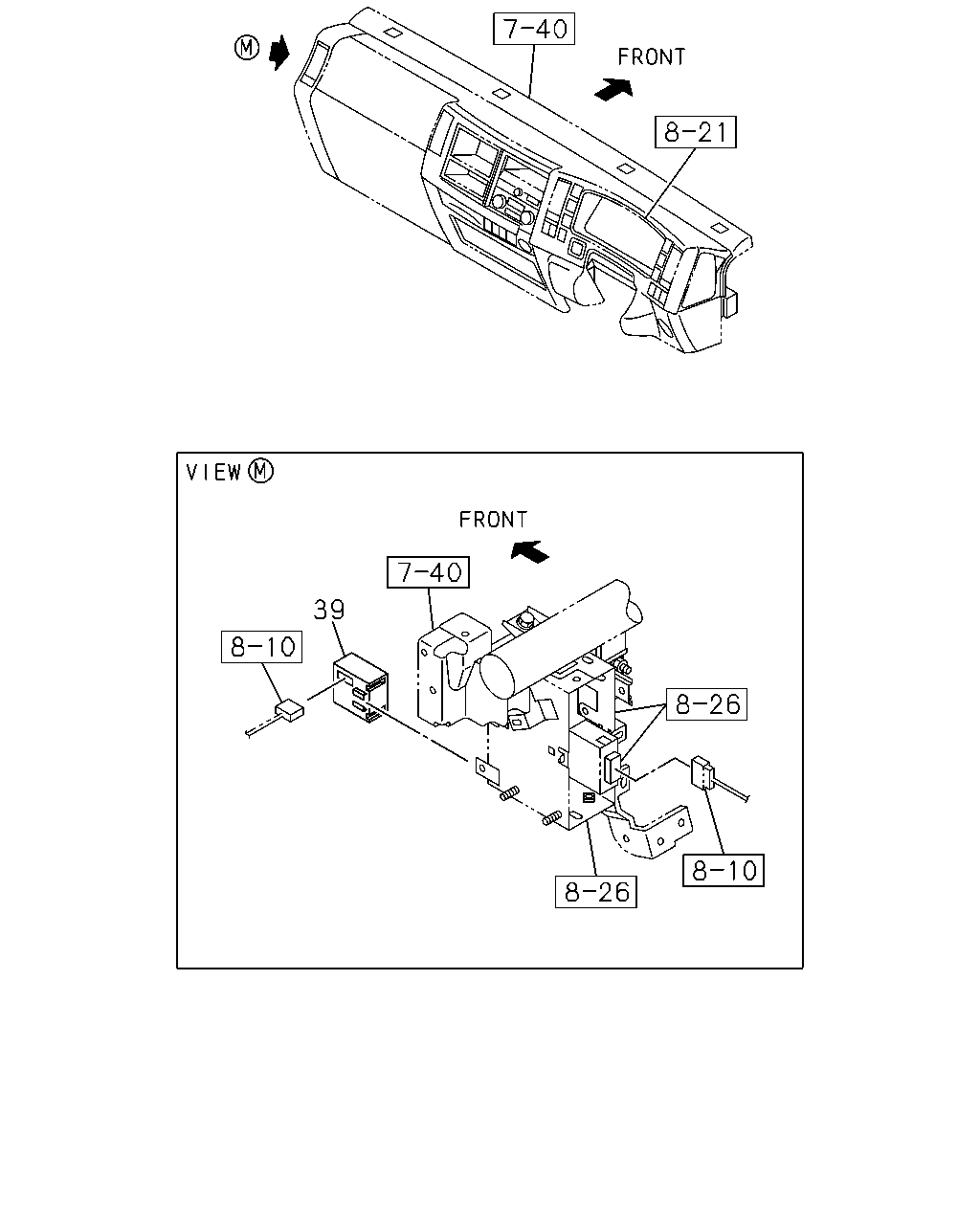

çizim 189521
39
BalonParca AdiParca NoAdetTipApplied Date A B
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 1009-1303 ●
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 1304- ● ●

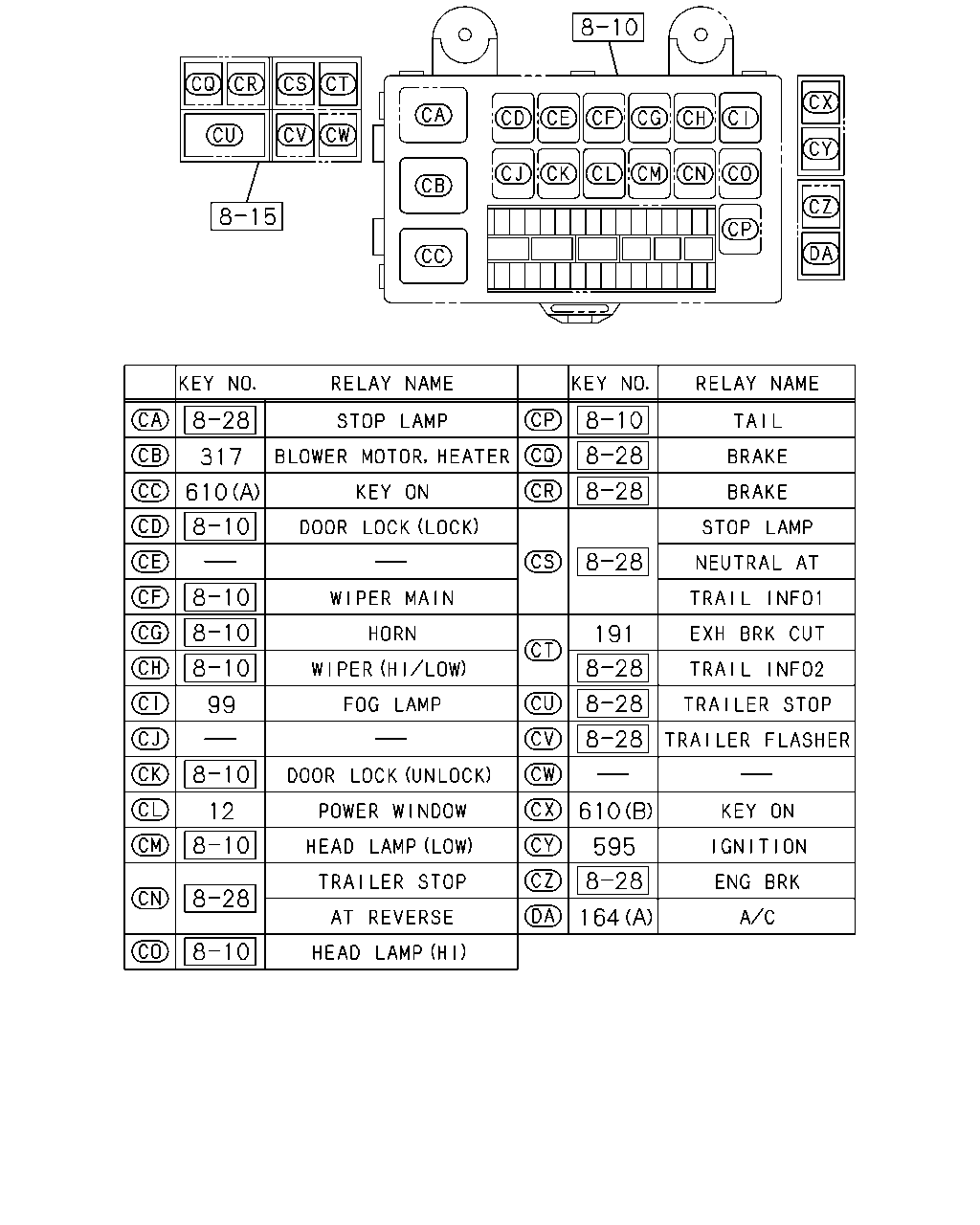

çizim 189525
317 610 99 12 164 595 610 191
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1303 ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1303 ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1303 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1303 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1304- ● ●
191 RELAY; EXH BRK CUT
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1302 ●
317 RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1303-1303 ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1304- ● ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1208-1303 ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1208-1303 ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1303 ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1304- ● ●

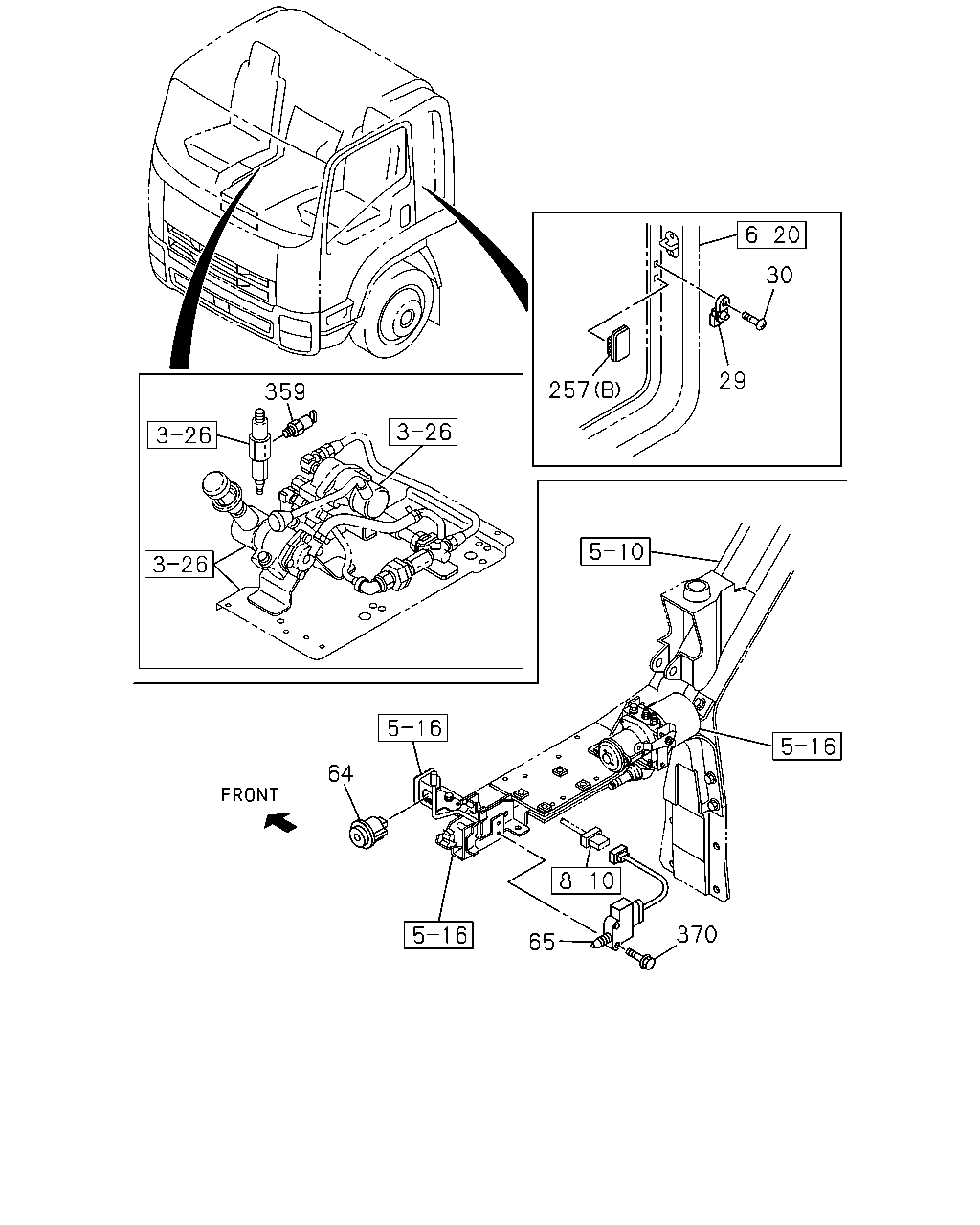

çizim 189527
257 29 30 359 370 65 64
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1009-1303 ●
29 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> BLACK 		8-98022-211-0 01 1 1009-1303 ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1304- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1009-1303 ●
30 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> M5X18 		8-98047-201-0 01 1 1009-1303 ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1304- ● ●
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1009-1303 ●
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1304- ● ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 1009-1303 ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 1304- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 04 1 1009-1303 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1304- ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A) 		8-98025-954-1 01 1 1304- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		8-98025-954-1 01 1 1304- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009-1303 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A) 		8-98025-954-1 01 1 1009-1303 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-98025-954-1 01 1 1009-1303 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1009-1303 ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		8-98025-954-1 01 1 1009-1303 ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 06 1 1304-1401 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 05 1 1402- ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98029-914-1 01 1 1009-1303 ●
257 COVER; HOLE,SW
(C) 		8-98029-914-1 01 1 1304- ● ●
257 COVER; HOLE,SW
EXC. REMOTE CONT DOOR LOCK<6NF> (B) 		8-98029-917-0 01 1 1009-1303 ●
257 COVER; HOLE,SW
(B) 		8-98029-917-0 01 1 1304- ● ●
359 SWITCH; TRAILER BRAKE
STAMP 0.3 		8-98010-857-0 01 1 1306- ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1009-1303 ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1304- ● ●
çizim 344380
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1303 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1303 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
