◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#70417) — 32 parça

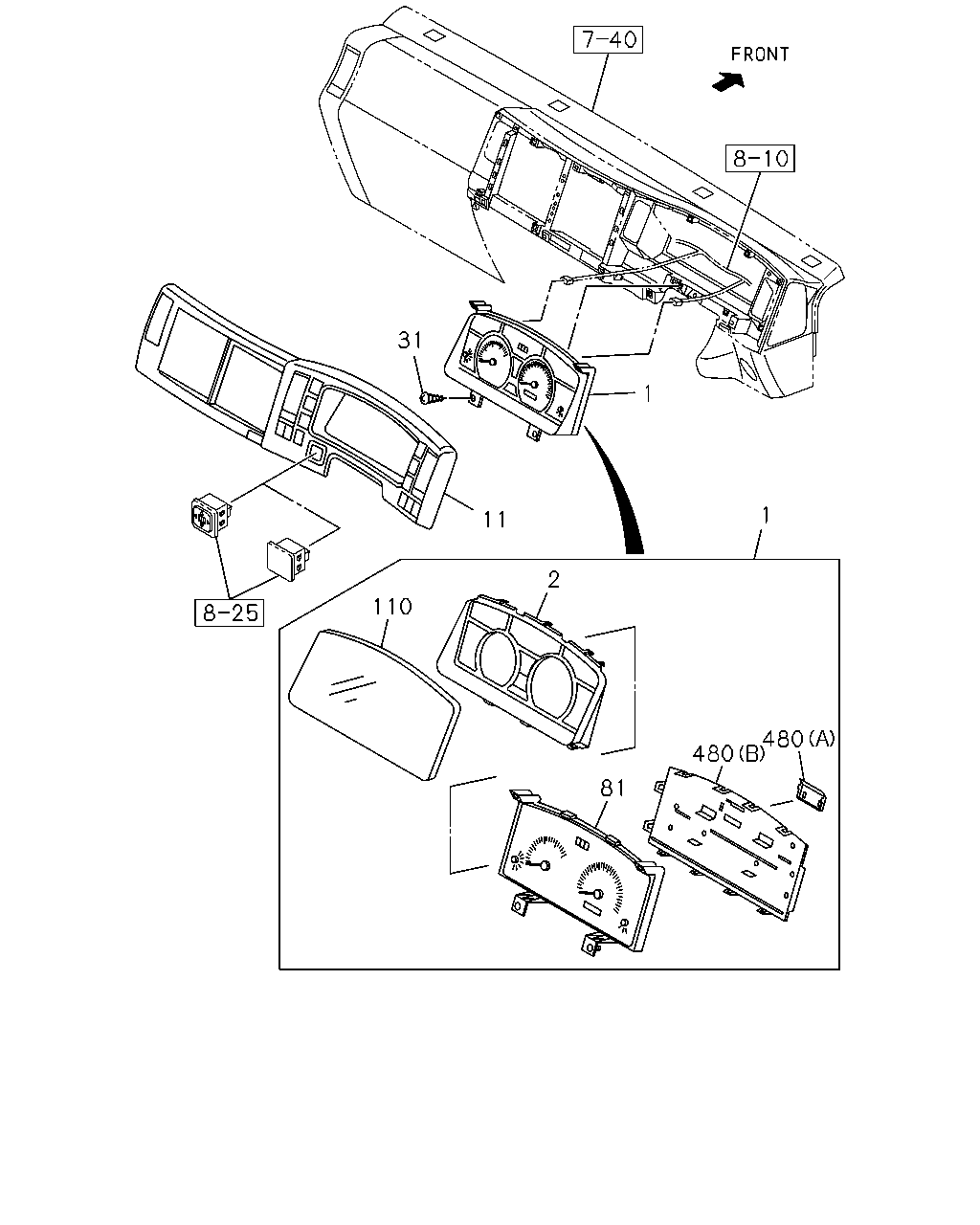

çizim 137847
31 11 110 2 1 1 480 480 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
ENGINE OVERRUN BUZZER<SK4> 		8-98121-013-0 01 1 1009-1101 ●
1 METER COMPL; CLUSTER
ENGINE OVERRUN BUZZER<SK4> 		8-98179-477-1 01 1 1102-1303 ●
1 METER COMPL; CLUSTER
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-473-2 01 1 1304- ●
1 METER COMPL; CLUSTER
ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-473-2 01 1 1304- ●
1 METER COMPL; CLUSTER
EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98117-586-0 01 1 1009-1101 ●
1 METER COMPL; CLUSTER
EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98179-476-2 01 1 1102-1303 ●
1 METER COMPL; CLUSTER
ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98232-913-0 01 1 1304- ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 1009-1303 ●
2 PANEL; CLUSTER
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-432-0 01 1 1304- ●
2 PANEL; CLUSTER
ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98054-432-0 01 1 1304- ●
2 PANEL; CLUSTER
ENGINE OVERRUN BUZZER<SK4> 		8-98054-432-0 01 1 1304- ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1009-1303 ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1304- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009-1303 ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1304- ● ●
81 METER SUB ASM
ENGINE OVERRUN BUZZER<SK4> 		8-98155-164-0 01 1 1009-1101 ●
81 METER SUB ASM
ENGINE OVERRUN BUZZER<SK4> 		8-98179-485-0 01 1 1102-1303 ●
81 METER SUB ASM
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-481-0 01 1 1304- ●
81 METER SUB ASM
ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-481-0 01 1 1304- ●
81 METER SUB ASM
EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98155-163-0 01 1 1009-1101 ●
81 METER SUB ASM
EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98179-484-0 01 1 1102-1303 ●
81 METER SUB ASM
ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98232-914-0 01 1 1304- ● ●
110 GLASS; CLUSTER METER
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 1304- ●
110 GLASS; CLUSTER METER
ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 1304- ●
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 1009-1303 ●
110 GLASS; CLUSTER METER
ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 1304- ● ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 1009-1303 ●
480 COVER; METER
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> (B) BLACK 		8-98054-433-0 01 1 1304- ●
480 COVER; METER
ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> (B) BLACK 		8-98054-433-0 01 1 1304- ●
480 COVER; METER
ENGINE OVERRUN BUZZER<SK4> (B) BLACK 		8-98054-433-0 01 1 1304- ●
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1009-1303 ●
480 COVER; METER
ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1304- ● ●
