◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#70415) — 1169 parça

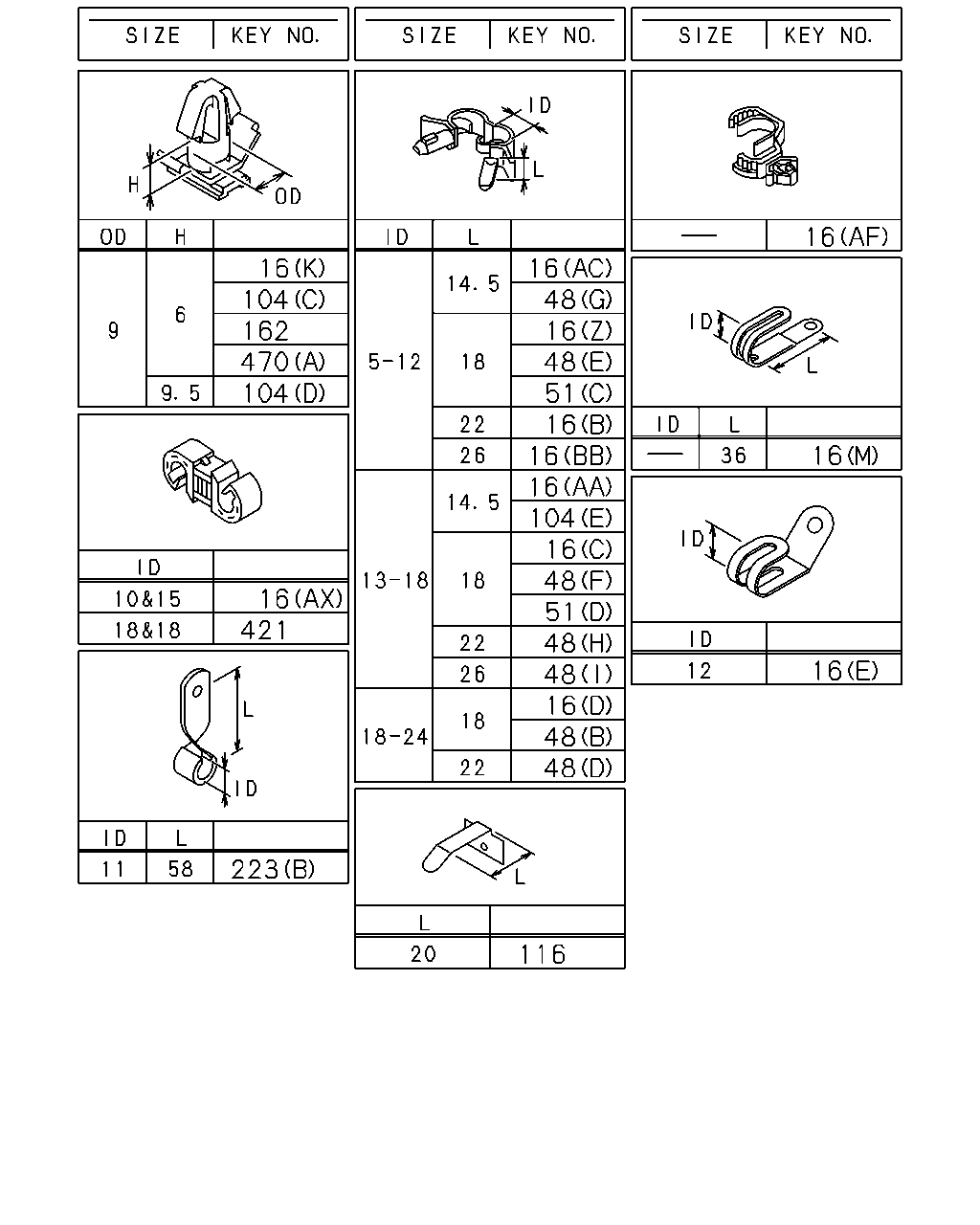

çizim 136664
16 104 470 162 104 16 16 16 48 116 48 48 51 16 16 104 48 16 16 16 16 51 48 48 16 421 223 16 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1009-1303 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20 		0-95235-035-0 01 1 1304- ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1304- ●
16 CLIP; HARNESS
(F) ID=11 L=24 		0-95235-045-0 01 1 1304- ● ●
16 CLIP; HARNESS
(T) VINYLCHROLIDE COATING ID=18 H=23 L=28 		1-09700-860-0 01 1 1304- ● ●
16 CLIP; HARNESS
EXC. FUEL TANK 200L RECTANGULAR<NH6> (V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304- ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AU) L=175 		1-09707-176-1 01 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 03 1 1304- ●
16 CLIP; HARNESS
(AV) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304- ●
16 CLIP; HARNESS
(AX) ID=10 & 15 		1-09709-279-1 01 1 1304- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 02 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 04 1 1304- ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 04 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (X) L=350 		1-09707-183-0 01 1 1103-1303 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 05 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (BB) ID=5-12 L=26 		1-09709-289-0 01 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (S) L=250 		1-09707-126-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (S) L=250 		1-09707-126-0 01 1 1304- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 1009-1303 ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (K) OD=9 H=6 		1-09709-178-0 02 1 1304- ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1009-1102 ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1103-1303 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AD) L=250 		5-09707-030-1 02 1 1103-1303 ●
16 CLIP; HARNESS
FUEL TANK 200L RECTANGULAR<NH6> (AW) ID=25 H=30 L=35 		1-09700-875-0 01 1 1304- ●
16 CLIP; HARNESS
(F) ID=11 L=24 		0-95235-045-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (T) SYNTHETIC RUBBER ID=18 H=23 L=28 		1-09701-070-0 02 1 1304- ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1009-1303 ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1304- ● ●
16 CLIP; HARNESS
(T) VINYLCHROLIDE COATING ID=18 H=23 L=28 		1-09700-860-0 01 1 1009-1303 ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AY) ID=19 L=32 		0-95235-866-0 02 1 1304- ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1009-1303 ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (BA) ID=11 H=20 L=25 		1-09700-848-0 02 1 1304- ●
16 CLIP; HARNESS
(L) ID=35 L=33 		1-09700-945-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(L) ID=35 L=33 		1-09700-945-0 01 1 1304- ● ●
16 CLIP; HARNESS
(N) ID=28 H=45 L=30 		1-09700-948-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(N) ID=28 H=45 L=30 		1-09700-948-0 01 1 1304- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304- ● ●
16 CLIP; HARNESS
(P) ID=18 L=40 		1-09701-111-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(P) ID=18 L=40 		1-09701-111-0 01 1 1304- ● ●
16 CLIP; HARNESS
(Q) ID=16 L=50 		1-09701-158-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(Q) ID=16 L=50 		1-09701-158-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1009-1102 ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1303 ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1303 ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1304- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 07 1 1304- ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1009-1303 ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1304- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1304- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1009-1105 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106-1303 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1304- ● ●
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1009-1303 ●
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1304- ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1009-1303 ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1304- ● ●
16 CLIP; HARNESS
(R) ID=18 L=48 		9-09917-429-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(R) ID=18 L=48 		9-09917-429-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1009-1303 ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1304- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1304- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) ID=11 L=16 		0-95235-025-0 02 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 09 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 02 1 1009-1303 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 02 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) L=350 		1-09707-183-0 02 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W) (X) L=350 		1-09707-183-0 02 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=13-18 L=18 		1-09709-291-0 02 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 08 1 1304- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1303 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1303 ●
16 CLIP; HARNESS
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155 		8-97173-307-0 18 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AK) L=40.6 		8-97229-357-0 02 1 1009-1303 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AK) L=40.6 		8-97229-357-0 02 1 1009-1303 ●
16 CLIP; HARNESS
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AK) L=40.6 		8-97229-357-0 02 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AK) L=40.6 		8-97229-357-0 02 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1303 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1303 ●
16 CLIP; HARNESS
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG) 		8-98052-679-0 02 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1304- ● ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1009- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (Y) D=11 H=40 L=20 		8-94246-610-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1009-1303 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1304- ●
16 CLIP; HARNESS
(J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1303 ●
16 CLIP; HARNESS
FUEL TANK 200L AL<THF> (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1303 ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM(47W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (AD) L=250 		5-09707-030-1 01 1 1009-1303 ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) (AD) L=250 		5-09707-030-1 02 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AL) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AP) ID=13 L=28 		0-95235-255-0 01 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AN) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AZ) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AO) ID=14.5 L=28 		1-09701-013-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (AZ) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) (AP) ID=13 L=28 		0-95235-255-0 01 1 1009-1303 ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AY) ID=19 L=32 		0-95235-866-0 01 1 1304- ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20 		0-95235-035-0 01 1 1009-1303 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20 		0-95235-035-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) ID=11 L=16 		0-95235-025-0 02 1 1304- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (AR) ID=16 L=40 		0-95235-576-0 01 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 16 1 1304- ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6 		1-09709-178-0 02 1 1009-1112 ●
16 CLIP; HARNESS
MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6 		1-09709-178-0 02 1 1201-1303 ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1304- ● ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (M) L=36 		8-94224-891-1 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1304- ● ●
16 CLIP; HARNESS

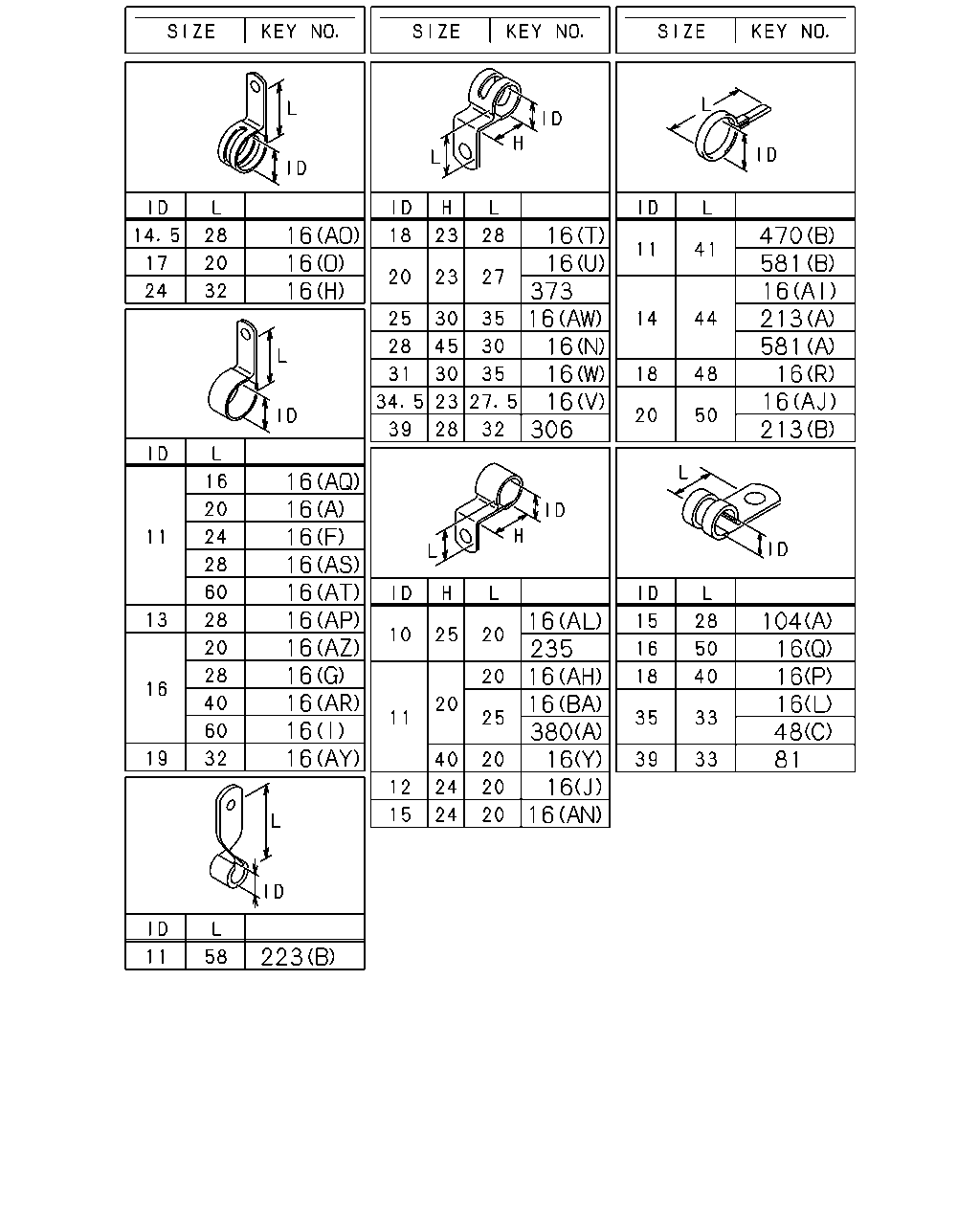

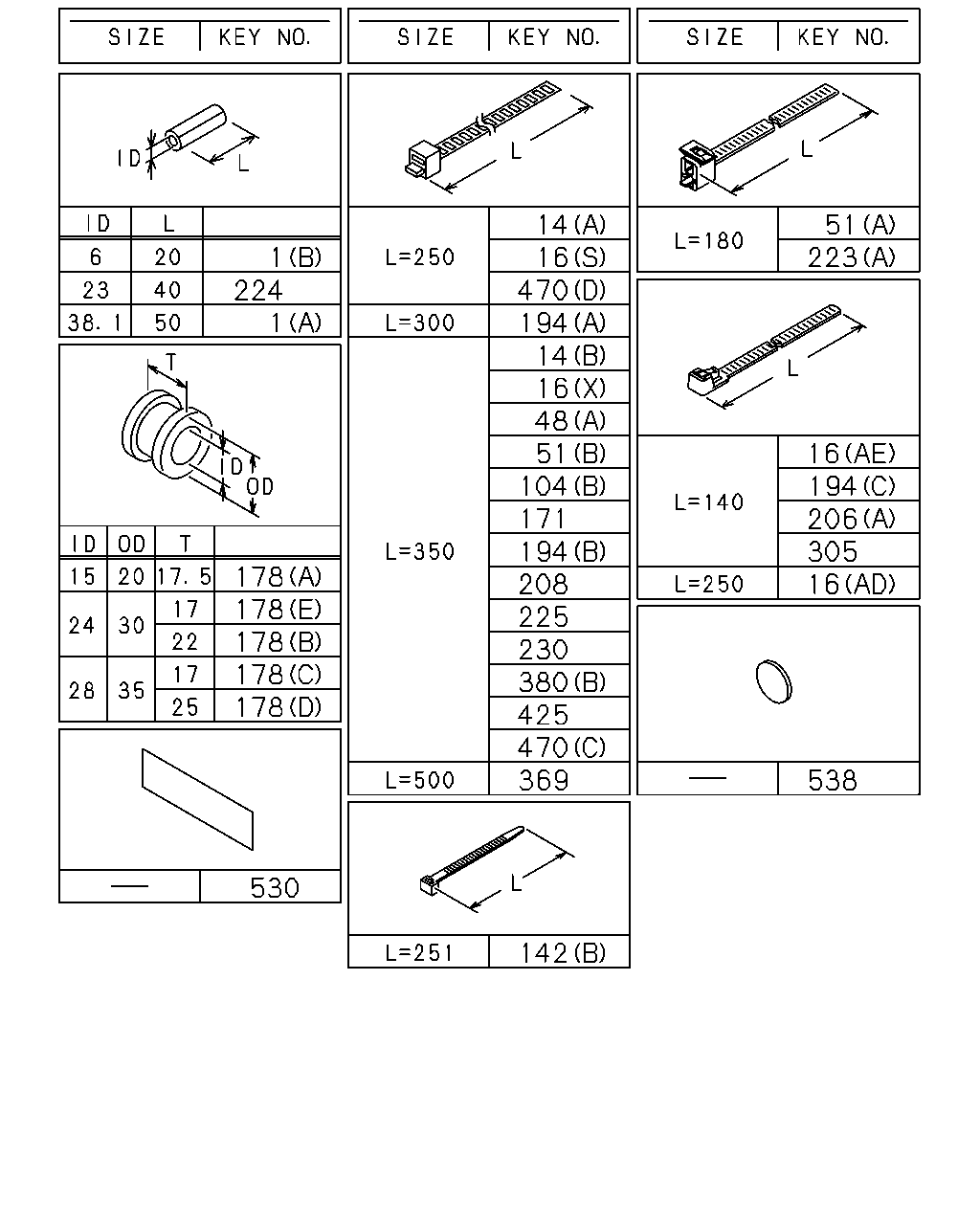

WHEEL BASE 4900MM(49W) (X) L=350 		1-09707-183-0 01 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1304- ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (D) ID=18-24 L=18 		1-09709-294-0 10 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18 		1-09709-291-0 11 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1309-1309 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1310- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1310- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 01 1 1103-1303 ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 04 1 1304-1311 ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 01 1 1312- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (C) ID=13-18 L=18 		1-09709-291-0 07 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (C) ID=13-18 L=18 		1-09709-291-0 12 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (D) ID=18-24 L=18 		1-09709-294-0 09 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (Z) ID=5-12 L=18 		1-09709-287-0 04 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1102 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1303 ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18 		1-09709-291-0 05 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22 		1-09709-288-0 02 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22 		1-09709-288-0 03 1 1309-1311 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22 		1-09709-288-0 03 1 1312- ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 03 1 1312- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18 		1-09709-294-0 16 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (D) ID=18-24 L=18 		1-09709-294-0 16 1 1304- ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (G) ID=16 L=28 		0-95235-556-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (G) ID=16 L=28 		0-95235-556-0 01 1 1304- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (I) ID=16 L=60 		0-95235-596-0 02 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (I) ID=16 L=60 		0-95235-596-0 02 1 1304- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) EXC. SHIFT PATTERN SINGLE-H<EDY> (AS) ID=11 L=28 		0-95235-055-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (AS) ID=11 L=28 		0-95235-055-0 01 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 05 1 1304- ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) EXC. SHIFT PATTERN SINGLE-H<EDY> (AT) ID=11 L=60 		0-95235-096-0 02 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (AT) ID=11 L=60 		0-95235-096-0 02 1 1304- ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1009-1303 ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1304- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1009-1303 ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1304- ● ●
48 CLIP; FRAME HARNESS
HONG KONG EQUIPMENT(PQ1) (E) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (F) ID=13-18 L=18 		1-09709-291-0 01 1 1304-1309 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (F) ID=13-18 L=18 		1-09709-291-0 01 1 1310- ●
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 01 1 1310- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 08 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 6600MM(66W) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 1304- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) ID=18-24 L=18 		1-09709-294-0 01 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (H) ID=13-18 L=22 		1-09709-292-0 02 1 1304- ●
48 CLIP; FRAME HARNESS
(H) ID=13-18 L=22 		1-09709-292-0 02 1 1304- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (D) ID=18-24 L=22 		1-09709-295-0 02 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (H) ID=13-18 L=22 		1-09709-292-0 03 1 1304- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 12 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W) (I) ID=13-18 L=26 		1-09709-293-0 03 1 1304- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (B) ID=18-24 L=18 		1-09709-294-0 03 1 1009-1303 ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1304- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180 		1-09707-162-1 01 1 1009-1303 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1304- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350 		1-09707-183-0 01 1 1009-1303 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350 		1-09707-183-0 01 1 1304-1410 ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350 		1-09707-183-0 01 1 1411- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350 		1-09707-183-0 01 1 1411- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1303 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13-18 L=18 		1-09709-291-0 01 1 1304-1410 ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1304- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1304- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1304- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1304- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1304- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1009-1303 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1304- ● ●
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 01 1 1009-1303 ●
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1009-1303 ●
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1304- ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (A) L=180 		1-09707-162-1 01 1 1009-1303 ●
223 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1304- ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4900MM(49W) (B) ID=11 L=58 		9-09917-135-2 01 1 1009-1303 ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=58 		9-09917-135-2 01 1 1304- ●
421 CLIP; FLOOR HARNESS
ID=18 & 18 		8-94323-068-0 02 1 1009-1303 ●
421 CLIP; FLOOR HARNESS
ID=18 & 18 		8-94323-068-0 02 1 1304- ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350 		1-09707-183-0 01 1 1304-1309 ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 1310- ●
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1) (C) L=350 		1-09707-183-0 02 1 1009-1111 ●
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1) (D) L=250 		5-09707-030-1 04 1 1112-1303 ●
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=250 		5-09707-030-1 04 1 1304-1309 ●
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=250 		5-09707-030-1 04 1 1310- ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1) (B) ID=11 L=41 		1-09700-403-0 01 1 1009-1303 ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=11 L=41 		1-09700-403-0 01 1 1304- ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1) (A) OD=9 H=6 		1-09709-178-0 01 1 1009-1303 ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6 		1-09709-178-0 01 1 1304-1309 ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6 		1-09709-178-0 01 1 1310- ● ●
çizim 137237
16 16 206 16 142 142 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1009-1303 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20 		0-95235-035-0 01 1 1304- ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1304- ●
16 CLIP; HARNESS
(F) ID=11 L=24 		0-95235-045-0 01 1 1304- ● ●
16 CLIP; HARNESS
(T) VINYLCHROLIDE COATING ID=18 H=23 L=28 		1-09700-860-0 01 1 1304- ● ●
16 CLIP; HARNESS
EXC. FUEL TANK 200L RECTANGULAR<NH6> (V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304- ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AU) L=175 		1-09707-176-1 01 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 03 1 1304- ●
16 CLIP; HARNESS
(AV) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304- ●
16 CLIP; HARNESS
(AX) ID=10 & 15 		1-09709-279-1 01 1 1304- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 02 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 04 1 1304- ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 04 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (X) L=350 		1-09707-183-0 01 1 1103-1303 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 05 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (BB) ID=5-12 L=26 		1-09709-289-0 01 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (S) L=250 		1-09707-126-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (S) L=250 		1-09707-126-0 01 1 1304- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 1009-1303 ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (K) OD=9 H=6 		1-09709-178-0 02 1 1304- ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1009-1102 ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1103-1303 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AD) L=250 		5-09707-030-1 02 1 1103-1303 ●
16 CLIP; HARNESS
FUEL TANK 200L RECTANGULAR<NH6> (AW) ID=25 H=30 L=35 		1-09700-875-0 01 1 1304- ●
16 CLIP; HARNESS
(F) ID=11 L=24 		0-95235-045-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (T) SYNTHETIC RUBBER ID=18 H=23 L=28 		1-09701-070-0 02 1 1304- ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1009-1303 ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1304- ● ●
16 CLIP; HARNESS
(T) VINYLCHROLIDE COATING ID=18 H=23 L=28 		1-09700-860-0 01 1 1009-1303 ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AY) ID=19 L=32 		0-95235-866-0 02 1 1304- ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1009-1303 ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (BA) ID=11 H=20 L=25 		1-09700-848-0 02 1 1304- ●
16 CLIP; HARNESS
(L) ID=35 L=33 		1-09700-945-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(L) ID=35 L=33 		1-09700-945-0 01 1 1304- ● ●
16 CLIP; HARNESS
(N) ID=28 H=45 L=30 		1-09700-948-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(N) ID=28 H=45 L=30 		1-09700-948-0 01 1 1304- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304- ● ●
16 CLIP; HARNESS
(P) ID=18 L=40 		1-09701-111-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(P) ID=18 L=40 		1-09701-111-0 01 1 1304- ● ●
16 CLIP; HARNESS
(Q) ID=16 L=50 		1-09701-158-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(Q) ID=16 L=50 		1-09701-158-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1009-1102 ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1303 ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1303 ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1304- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 07 1 1304- ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1009-1303 ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1304- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1304- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1009-1105 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106-1303 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1304- ● ●
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1009-1303 ●
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1304- ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1009-1303 ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1304- ● ●
16 CLIP; HARNESS
(R) ID=18 L=48 		9-09917-429-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(R) ID=18 L=48 		9-09917-429-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1009-1303 ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1304- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1304- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) ID=11 L=16 		0-95235-025-0 02 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 09 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 02 1 1009-1303 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 02 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) L=350 		1-09707-183-0 02 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W) (X) L=350 		1-09707-183-0 02 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=13-18 L=18 		1-09709-291-0 02 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 08 1 1304- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1303 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1303 ●
16 CLIP; HARNESS
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155 		8-97173-307-0 18 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AK) L=40.6 		8-97229-357-0 02 1 1009-1303 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AK) L=40.6 		8-97229-357-0 02 1 1009-1303 ●
16 CLIP; HARNESS
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AK) L=40.6 		8-97229-357-0 02 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AK) L=40.6 		8-97229-357-0 02 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1303 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1303 ●
16 CLIP; HARNESS
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG) 		8-98052-679-0 02 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1304- ● ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1009- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (Y) D=11 H=40 L=20 		8-94246-610-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1009-1303 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1304- ●
16 CLIP; HARNESS
(J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1303 ●
16 CLIP; HARNESS
FUEL TANK 200L AL<THF> (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1303 ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM(47W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (AD) L=250 		5-09707-030-1 01 1 1009-1303 ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) (AD) L=250 		5-09707-030-1 02 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AL) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AP) ID=13 L=28 		0-95235-255-0 01 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AN) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AZ) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AO) ID=14.5 L=28 		1-09701-013-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (AZ) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) (AP) ID=13 L=28 		0-95235-255-0 01 1 1009-1303 ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AY) ID=19 L=32 		0-95235-866-0 01 1 1304- ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20 		0-95235-035-0 01 1 1009-1303 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20 		0-95235-035-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) ID=11 L=16 		0-95235-025-0 02 1 1304- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (AR) ID=16 L=40 		0-95235-576-0 01 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 16 1 1304- ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6 		1-09709-178-0 02 1 1009-1112 ●
16 CLIP; HARNESS
MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6 		1-09709-178-0 02 1 1201-1303 ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1304- ● ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (M) L=36 		8-94224-891-1 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (X) L=350 		1-09707-183-0 01 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1304- ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (D) ID=18-24 L=18 		1-09709-294-0 10 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18 		1-09709-291-0 11 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1309-1309 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1310- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1310- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 01 1 1103-1303 ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 04 1 1304-1311 ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 01 1 1312- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (C) ID=13-18 L=18 		1-09709-291-0 07 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (C) ID=13-18 L=18 		1-09709-291-0 12 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (D) ID=18-24 L=18 		1-09709-294-0 09 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (Z) ID=5-12 L=18 		1-09709-287-0 04 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1102 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1303 ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18 		1-09709-291-0 05 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22 		1-09709-288-0 02 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22 		1-09709-288-0 03 1 1309-1311 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22 		1-09709-288-0 03 1 1312- ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 03 1 1312- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18 		1-09709-294-0 16 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (D) ID=18-24 L=18 		1-09709-294-0 16 1 1304- ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (G) ID=16 L=28 		0-95235-556-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (G) ID=16 L=28 		0-95235-556-0 01 1 1304- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (I) ID=16 L=60 		0-95235-596-0 02 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (I) ID=16 L=60 		0-95235-596-0 02 1 1304- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) EXC. SHIFT PATTERN SINGLE-H<EDY> (AS) ID=11 L=28 		0-95235-055-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (AS) ID=11 L=28 		0-95235-055-0 01 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 05 1 1304- ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) EXC. SHIFT PATTERN SINGLE-H<EDY> (AT) ID=11 L=60 		0-95235-096-0 02 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (AT) ID=11 L=60 		0-95235-096-0 02 1 1304- ● ●
142 CLIP; HARNESS,ENG
(A) L=170.3 		8-97209-720-0 01 1 1009-1303 ●
142 CLIP; HARNESS,ENG
(A) L=170.3 		8-97209-720-0 01 1 1304- ● ●
142 CLIP; HARNESS,ENG
(C) L=145 		8-98116-079-0 01 1 1009-1009 ●
142 CLIP; HARNESS,ENG
(C) L=145 		8-98116-079-0 02 1 1010-1303 ●
142 CLIP; HARNESS,ENG
(C) L=145 		8-98116-079-0 02 1 1304- ● ●
142 CLIP; HARNESS,ENG
ENGINE REAR PTO(SV1) (B) L=251 		8-97619-917-0 01 1 1009-1303 ●
142 CLIP; HARNESS,ENG
(B) L=251 		8-97619-917-0 01 1 1009-1303 ●
142 CLIP; HARNESS,ENG
(B) L=251 		8-97619-917-0 01 1 1304- ● ●
142 CLIP; HARNESS,ENG
ENGINE REAR PTO(SV1) (B) L=251 		8-97619-917-0 01 1 1304- ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 1009-1303 ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 1304- ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 		8-94176-792-0 01 1 1009-1303 ●
206 CLIP; FUEL TANK HARNESS
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) ID=8.3 & 10 		8-94176-792-0 01 1 1304- ●
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 		8-94176-792-0 01 1 1304- ●

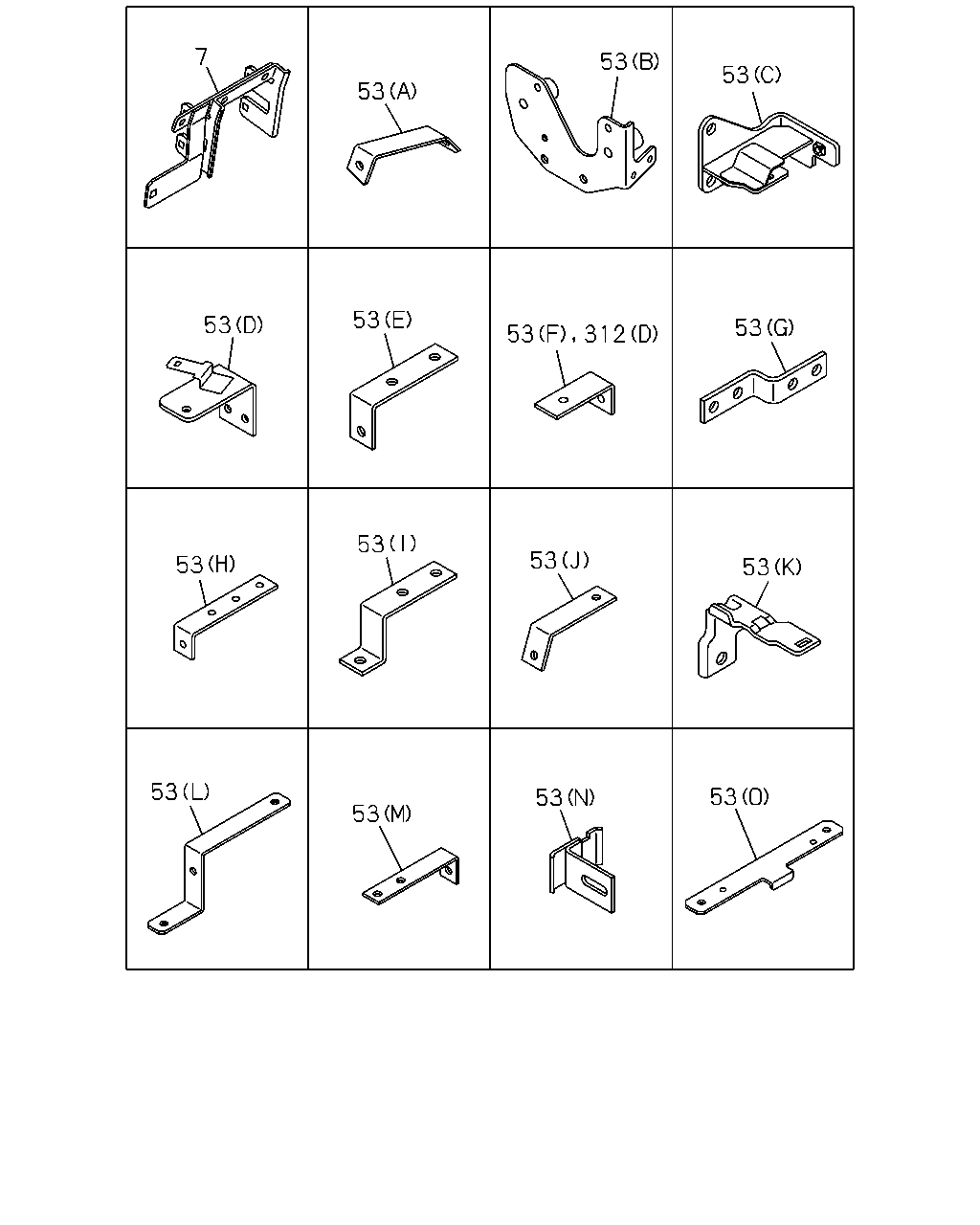

çizim 137302
7 53 53 53 53 53 53 312 53 53 53 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1009-1303 ●
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1304- ● ●
53 BRACKET; HARNESS
WHEEL BASE 6300MM(63W) (M) L=90 		1-47477-755-1 01 1 1009-1303 ●
53 BRACKET; HARNESS
A/T ALLISON 4430(Y5V) (O) 		8-98202-645-0 01 1 1304- ●
53 BRACKET; HARNESS
(E) L=82 B=20 		1-47478-420-0 01 1 1009-1303 ●
53 BRACKET; HARNESS
(E) L=82 B=20 		1-47478-420-0 01 1 1304-1404 ● ●
53 BRACKET; HARNESS
(E) L=82 B=20 		8-98259-390-0 01 1 1405- ● ●
53 BRACKET; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (F) L=65 		1-47479-064-0 01 1 1009-1303 ●
53 BRACKET; HARNESS
(F) L=65 		1-47479-064-1 01 1 1304- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 06 1 1009-1303 ●
53 BRACKET; HARNESS
(G) 		1-82569-278-0 01 1 1009-1303 ●
53 BRACKET; HARNESS
(G) 		1-82569-278-0 01 1 1304- ● ●
53 BRACKET; HARNESS
(H) L=120 H=35 		1-82698-088-0 01 1 1009-1303 ●
53 BRACKET; HARNESS
(H) L=120 H=35 		1-82698-088-0 01 1 1304- ● ●
53 BRACKET; HARNESS
(J) 		1-82698-514-0 01 1 1009-1303 ●
53 BRACKET; HARNESS
(J) 		1-82698-514-0 01 1 1304- ● ●
53 BRACKET; HARNESS
(K) 		8-98052-458-0 01 1 1009-1303 ●
53 BRACKET; HARNESS
(K) 		8-98052-458-0 01 1 1304- ● ●
53 BRACKET; HARNESS
(L) 		8-98078-801-0 01 1 1009-1303 ●
53 BRACKET; HARNESS
(L) 		8-98078-801-0 01 1 1304- ● ●
53 BRACKET; HARNESS
(D) 		8-98102-490-0 01 1 1009-1303 ●
53 BRACKET; HARNESS
(D) 		8-98102-490-0 01 1 1304- ● ●
53 BRACKET; HARNESS
(I) 		8-98124-778-0 01 1 1009-1303 ●
53 BRACKET; HARNESS
(I) 		8-98124-778-0 01 1 1304- ● ●
53 BRACKET; HARNESS
(C) 		8-98127-603-1 01 1 1009-1303 ●
53 BRACKET; HARNESS
(C) 		8-98127-603-1 01 1 1304- ● ●
53 BRACKET; HARNESS
(B) 		8-98154-215-1 01 1 1009-1009 ●
53 BRACKET; HARNESS
(B) 		8-98178-990-0 01 1 1010-1303 ●
53 BRACKET; HARNESS
(B) 		8-98178-990-0 01 1 1304- ● ●
53 BRACKET; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) 		1-47479-537-0 08 1 1009-1303 ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 06 1 1304- ● ●
53 BRACKET; HARNESS
WHEEL BASE 6300MM(63W) (A) 		1-47479-537-0 12 1 1009-1303 ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 08 1 1304- ● ●
53 BRACKET; HARNESS
WHEEL BASE 6300MM(63W) (N) 		1-47479-693-0 01 1 1009-1303 ●
312 BRACKET; CLIP HARNESS
MAL6R M/T(Y2J) (B) 		1-47476-932-0 01 1 1304- ●
312 BRACKET; CLIP HARNESS
A/T ALLISON 4430(Y5V) (C) 		1-82698-479-0 01 1 1304- ●
312 BRACKET; CLIP HARNESS
(D) L=65 		1-47479-064-1 01 1 1304- ●
312 BRACKET; CLIP HARNESS
(A) L=120 		8-97619-440-0 01 1 1009-1303 ●
312 BRACKET; CLIP HARNESS
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (A) L=120 		8-97619-440-0 01 1 1304- ●
312 BRACKET; CLIP HARNESS
(A) L=120 		8-97619-440-0 01 1 1304- ●

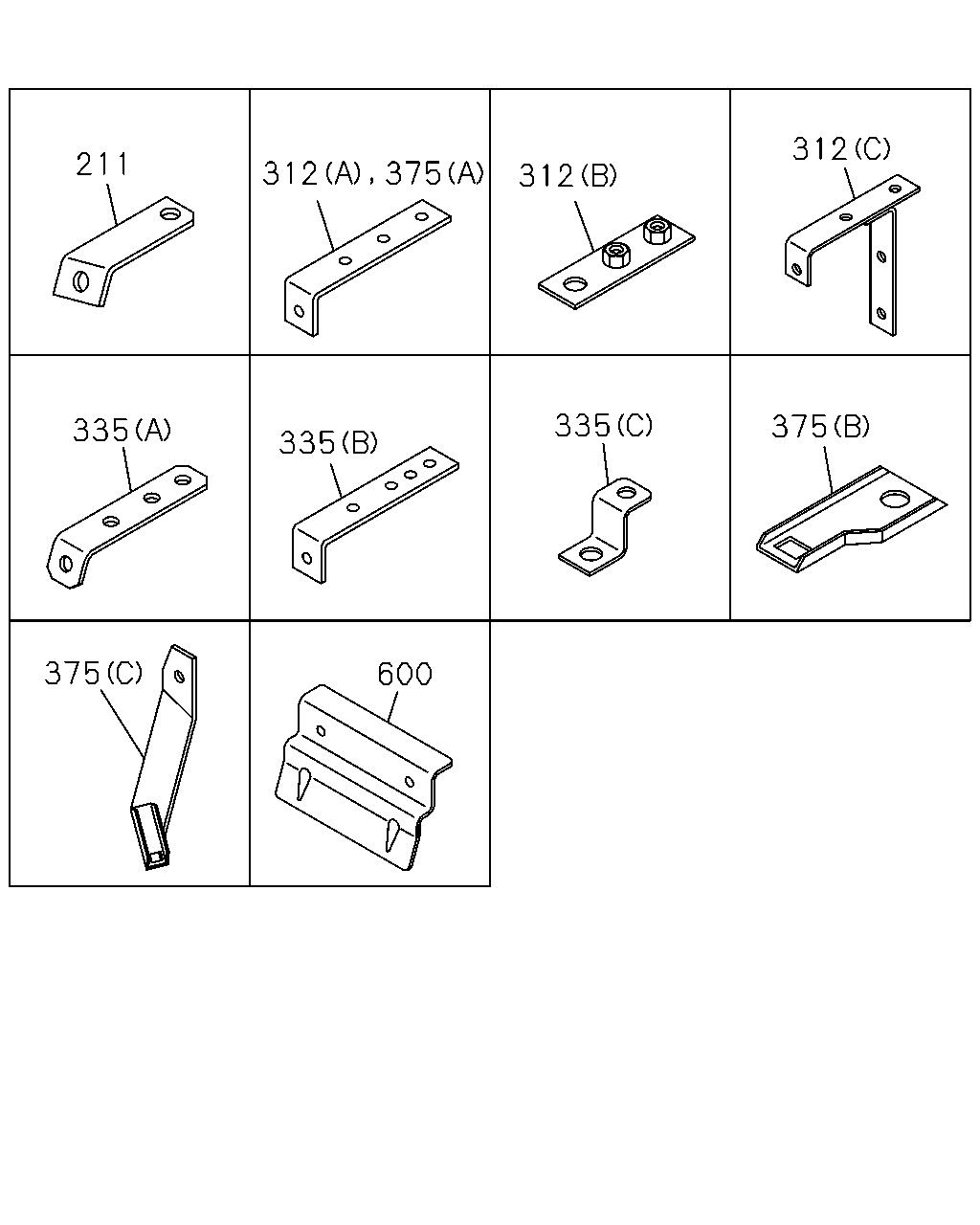

çizim 137694
211 312 375 312 312 375 335 335 335 375 600
BalonParca AdiParca NoAdetTipApplied Date A B
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) 		8-97621-353-1 01 1 1009-1303 ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) 		8-97621-353-1 01 1 1304- ● ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) 		8-97621-352-1 01 1 1009-1303 ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) 		8-97621-352-1 01 1 1304- ● ●
312 BRACKET; CLIP HARNESS
MAL6R M/T(Y2J) (B) 		1-47476-932-0 01 1 1304- ●
312 BRACKET; CLIP HARNESS
A/T ALLISON 4430(Y5V) (C) 		1-82698-479-0 01 1 1304- ●
312 BRACKET; CLIP HARNESS
(D) L=65 		1-47479-064-1 01 1 1304- ●
312 BRACKET; CLIP HARNESS
(A) L=120 		8-97619-440-0 01 1 1009-1303 ●
312 BRACKET; CLIP HARNESS
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (A) L=120 		8-97619-440-0 01 1 1304- ●
312 BRACKET; CLIP HARNESS
(A) L=120 		8-97619-440-0 01 1 1304- ●
335 BRACKET; CONNECTOR
MAL6R M/T(Y2J) (C) 		1-82699-425-0 01 1 1304- ●
335 BRACKET; CONNECTOR
(B) 		1-82698-358-0 01 1 1009-1303 ●
335 BRACKET; CONNECTOR
(B) 		1-82698-358-0 01 1 1304- ● ●
335 BRACKET; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82698-167-0 01 1 1009-1303 ●
335 BRACKET; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82698-167-0 01 1 1304- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(A) L=120 H=35 		1-82698-088-0 01 1 1009-1303 ●
375 BRACKET; AC GEN HARNESS CLIP
(A) L=120 H=35 		1-82698-088-0 01 1 1304- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82698-569-0 01 1 1009-1303 ●
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82698-569-0 01 1 1304- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(C) 		1-82698-583-1 01 1 1009-1303 ●
375 BRACKET; AC GEN HARNESS CLIP
(C) 		8-98229-600-0 01 1 1304- ● ●
600 PROTECTOR; HEAT 8-97608-456-0 01 1 1009-1303 ●
600 PROTECTOR; HEAT 8-97608-456-0 01 1 1304- ● ●
çizim 189518
16 16 16 16 470 16 373 16 16 581 16 16 16 581 213 306 16 16 213 16 16 16 16 16 16 16 16 16 16 16 223 16 235 16 16 380 16 16 16 104 16 16 16 48 81
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1009-1303 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20 		0-95235-035-0 01 1 1304- ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1304- ●
16 CLIP; HARNESS
(F) ID=11 L=24 		0-95235-045-0 01 1 1304- ● ●
16 CLIP; HARNESS
(T) VINYLCHROLIDE COATING ID=18 H=23 L=28 		1-09700-860-0 01 1 1304- ● ●
16 CLIP; HARNESS
EXC. FUEL TANK 200L RECTANGULAR<NH6> (V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304- ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AU) L=175 		1-09707-176-1 01 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 03 1 1304- ●
16 CLIP; HARNESS
(AV) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304- ●
16 CLIP; HARNESS
(AX) ID=10 & 15 		1-09709-279-1 01 1 1304- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 02 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 04 1 1304- ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 04 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (X) L=350 		1-09707-183-0 01 1 1103-1303 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 05 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (BB) ID=5-12 L=26 		1-09709-289-0 01 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (S) L=250 		1-09707-126-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (S) L=250 		1-09707-126-0 01 1 1304- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 1009-1303 ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (K) OD=9 H=6 		1-09709-178-0 02 1 1304- ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1009-1102 ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1103-1303 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AD) L=250 		5-09707-030-1 02 1 1103-1303 ●
16 CLIP; HARNESS
FUEL TANK 200L RECTANGULAR<NH6> (AW) ID=25 H=30 L=35 		1-09700-875-0 01 1 1304- ●
16 CLIP; HARNESS
(F) ID=11 L=24 		0-95235-045-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (T) SYNTHETIC RUBBER ID=18 H=23 L=28 		1-09701-070-0 02 1 1304- ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1009-1303 ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1304- ● ●
16 CLIP; HARNESS
(T) VINYLCHROLIDE COATING ID=18 H=23 L=28 		1-09700-860-0 01 1 1009-1303 ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AY) ID=19 L=32 		0-95235-866-0 02 1 1304- ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1009-1303 ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (BA) ID=11 H=20 L=25 		1-09700-848-0 02 1 1304- ●
16 CLIP; HARNESS
(L) ID=35 L=33 		1-09700-945-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(L) ID=35 L=33 		1-09700-945-0 01 1 1304- ● ●
16 CLIP; HARNESS
(N) ID=28 H=45 L=30 		1-09700-948-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(N) ID=28 H=45 L=30 		1-09700-948-0 01 1 1304- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304- ● ●
16 CLIP; HARNESS
(P) ID=18 L=40 		1-09701-111-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(P) ID=18 L=40 		1-09701-111-0 01 1 1304- ● ●
16 CLIP; HARNESS
(Q) ID=16 L=50 		1-09701-158-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(Q) ID=16 L=50 		1-09701-158-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1009-1102 ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1303 ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1303 ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1304- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 07 1 1304- ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1009-1303 ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1304- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1304- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1009-1105 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106-1303 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1304- ● ●
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1009-1303 ●
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1304- ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1009-1303 ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1304- ● ●
16 CLIP; HARNESS
(R) ID=18 L=48 		9-09917-429-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(R) ID=18 L=48 		9-09917-429-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1009-1303 ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1304- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1304- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) ID=11 L=16 		0-95235-025-0 02 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 09 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 02 1 1009-1303 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 02 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) L=350 		1-09707-183-0 02 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W) (X) L=350 		1-09707-183-0 02 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=13-18 L=18 		1-09709-291-0 02 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 08 1 1304- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1303 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1303 ●
16 CLIP; HARNESS
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155 		8-97173-307-0 18 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AK) L=40.6 		8-97229-357-0 02 1 1009-1303 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AK) L=40.6 		8-97229-357-0 02 1 1009-1303 ●
16 CLIP; HARNESS
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AK) L=40.6 		8-97229-357-0 02 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AK) L=40.6 		8-97229-357-0 02 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1303 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1303 ●
16 CLIP; HARNESS
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG) 		8-98052-679-0 02 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1304- ● ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1009- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (Y) D=11 H=40 L=20 		8-94246-610-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1009-1303 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1304- ●
16 CLIP; HARNESS
(J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1303 ●
16 CLIP; HARNESS
FUEL TANK 200L AL<THF> (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1303 ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM(47W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (AD) L=250 		5-09707-030-1 01 1 1009-1303 ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) (AD) L=250 		5-09707-030-1 02 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AL) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AP) ID=13 L=28 		0-95235-255-0 01 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AN) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AZ) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AO) ID=14.5 L=28 		1-09701-013-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (AZ) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) (AP) ID=13 L=28 		0-95235-255-0 01 1 1009-1303 ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AY) ID=19 L=32 		0-95235-866-0 01 1 1304- ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20 		0-95235-035-0 01 1 1009-1303 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20 		0-95235-035-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) ID=11 L=16 		0-95235-025-0 02 1 1304- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (AR) ID=16 L=40 		0-95235-576-0 01 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 16 1 1304- ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6 		1-09709-178-0 02 1 1009-1112 ●
16 CLIP; HARNESS
MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6 		1-09709-178-0 02 1 1201-1303 ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1304- ● ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (M) L=36 		8-94224-891-1 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (X) L=350 		1-09707-183-0 01 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1304- ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (D) ID=18-24 L=18 		1-09709-294-0 10 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18 		1-09709-291-0 11 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1309-1309 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1310- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1310- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 01 1 1103-1303 ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 04 1 1304-1311 ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 01 1 1312- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (C) ID=13-18 L=18 		1-09709-291-0 07 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (C) ID=13-18 L=18 		1-09709-291-0 12 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (D) ID=18-24 L=18 		1-09709-294-0 09 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (Z) ID=5-12 L=18 		1-09709-287-0 04 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1102 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1303 ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18 		1-09709-291-0 05 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22 		1-09709-288-0 02 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22 		1-09709-288-0 03 1 1309-1311 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22 		1-09709-288-0 03 1 1312- ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 03 1 1312- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18 		1-09709-294-0 16 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (D) ID=18-24 L=18 		1-09709-294-0 16 1 1304- ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (G) ID=16 L=28 		0-95235-556-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (G) ID=16 L=28 		0-95235-556-0 01 1 1304- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (I) ID=16 L=60 		0-95235-596-0 02 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (I) ID=16 L=60 		0-95235-596-0 02 1 1304- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) EXC. SHIFT PATTERN SINGLE-H<EDY> (AS) ID=11 L=28 		0-95235-055-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (AS) ID=11 L=28 		0-95235-055-0 01 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 05 1 1304- ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) EXC. SHIFT PATTERN SINGLE-H<EDY> (AT) ID=11 L=60 		0-95235-096-0 02 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (AT) ID=11 L=60 		0-95235-096-0 02 1 1304- ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1009-1303 ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1304- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1009-1303 ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1304- ● ●
48 CLIP; FRAME HARNESS
HONG KONG EQUIPMENT(PQ1) (E) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (F) ID=13-18 L=18 		1-09709-291-0 01 1 1304-1309 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (F) ID=13-18 L=18 		1-09709-291-0 01 1 1310- ●
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 01 1 1310- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 08 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 6600MM(66W) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 1304- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) ID=18-24 L=18 		1-09709-294-0 01 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (H) ID=13-18 L=22 		1-09709-292-0 02 1 1304- ●
48 CLIP; FRAME HARNESS
(H) ID=13-18 L=22 		1-09709-292-0 02 1 1304- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (D) ID=18-24 L=22 		1-09709-295-0 02 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (H) ID=13-18 L=22 		1-09709-292-0 03 1 1304- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 12 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W) (I) ID=13-18 L=26 		1-09709-293-0 03 1 1304- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (B) ID=18-24 L=18 		1-09709-294-0 03 1 1009-1303 ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1304- ● ●
81 CLIP; HARNESS
FUEL TANK 200L RECTANGULAR<NH6> ID=39 L=33 		8-98009-359-0 01 1 1304- ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1304- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1304- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1304- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1304- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1304- ● ●
213 CLIP; END CROSS HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 1304-1309 ●
213 CLIP; END CROSS HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=20 L=50 		9-09917-430-0 03 1 1310- ●
213 CLIP; END CROSS HARNESS
(A) ID=14 L=44 		9-09917-427-0 03 1 1009-1303 ●
213 CLIP; END CROSS HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) (A) ID=14 L=44 		9-09917-427-0 03 1 1304- ●
213 CLIP; END CROSS HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) ID=14 L=44 		9-09917-427-0 03 1 1304- ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (A) L=180 		1-09707-162-1 01 1 1009-1303 ●
223 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1304- ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4900MM(49W) (B) ID=11 L=58 		9-09917-135-2 01 1 1009-1303 ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=58 		9-09917-135-2 01 1 1304- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MAL6R M/T(Y2J),MJT7U M/T(Y4X) ID=10 H=25 L=20 		1-09700-519-0 01 1 1304- ●
306 CLIP; HARNESS,ELEC GOV
ID=39 H=28 L=32 		1-09701-263-0 03 1 1009-1303 ●
306 CLIP; HARNESS,ELEC GOV
ID=39 H=28 L=32 		1-09701-263-0 03 1 1304- ● ●
373 CLIP; BAND,GEN HARNESS
ID=20 H=23 L=27 		1-09700-861-0 02 1 1009-1303 ●
373 CLIP; BAND,GEN HARNESS
ID=20 H=23 L=27 		1-09700-861-0 02 1 1304- ● ●
380 CLIP; EARTH HARNESS
EXC. FUEL TANK 200L RECTANGULAR<NH6> (B) L=350 		1-09707-183-0 02 1 1304- ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 02 1 1304- ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1009-1303 ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1304- ● ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 03 1 1009-1303 ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 01 1 1304- ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350 		1-09707-183-0 01 1 1304-1309 ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 1310- ●
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1) (C) L=350 		1-09707-183-0 02 1 1009-1111 ●
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1) (D) L=250 		5-09707-030-1 04 1 1112-1303 ●
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=250 		5-09707-030-1 04 1 1304-1309 ●
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=250 		5-09707-030-1 04 1 1310- ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1) (B) ID=11 L=41 		1-09700-403-0 01 1 1009-1303 ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=11 L=41 		1-09700-403-0 01 1 1304- ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1) (A) OD=9 H=6 		1-09709-178-0 01 1 1009-1303 ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6 		1-09709-178-0 01 1 1304-1309 ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6 		1-09709-178-0 01 1 1310- ● ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=41 		1-09700-403-0 01 1 1304- ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=41 		1-09700-403-0 03 1 1304- ●
581 CLIP; HARNESS,REAR SUSP
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=14 L=44 		9-09917-427-0 03 1 1009-1303 ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (A) ID=14 L=44 		9-09917-427-0 03 1 1304- ●
çizim 189519
38 150 139 38 150 466 242 38 150 139 38 127 38 386 38 386 490 38 139 38 86 139 242 313 38 139 313 38 139 358 377 38 242 377 386 38 423 524 219 294 340 515 525 219 294 515
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
FUEL TANK 400L<SDH> (G) M8X35 FLANGE 		0-28050-835-0 01 1 1304-1304 ●
38 BOLT; CLIP,HARNESS
FUEL TANK 400L<SDH> (G) M8X35 FLANGE 		0-28050-835-0 01 1 1305- ●
38 BOLT; CLIP,HARNESS
(G) M8X35 FLANGE 		0-28050-835-0 01 1 1305- ●
38 BOLT; CLIP,HARNESS
(I) M6X10 FLANGE 		0-28050-610-0 01 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
(I) M6X10 FLANGE 		0-28050-610-0 01 1 1304- ● ●
38 BOLT; CLIP,HARNESS
(G) M8X35 FLANGE 		0-28050-835-0 01 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
(G) M8X35 FLANGE 		0-28050-835-0 03 1 1304- ● ●
38 BOLT; CLIP,HARNESS
(G) M8X35 FLANGE 		0-28050-835-0 03 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (L) M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1304-1309 ●
38 BOLT; CLIP,HARNESS
(L) M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1310- ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 07 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
A/T ALLISON 4430(Y5V) (B) M8X20 FLANGE 		0-28650-820-0 04 1 1304- ●
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE 		0-28650-825-0 03 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 03 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 04 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 05 1 1304- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X35 FLANGE 		0-28650-835-0 02 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
FUEL TANK 200L RECTANGULAR<NH6> (C) M8X35 FLANGE 		0-28650-835-0 01 1 1304- ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 1009-1105 ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1106-1303 ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1304- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201 ●
38 BOLT; CLIP,HARNESS
(K) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202-1303 ●
38 BOLT; CLIP,HARNESS
(K) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1304- ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1304- ● ●
38 BOLT; CLIP,HARNESS
MAL6R M/T(Y2J),MJT7U M/T(Y4X) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1304- ●
38 BOLT; CLIP,HARNESS
MJT7U M/T(Y4X) (H) M10X20 FLANGE 		0-28751-020-0 01 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
MAL6R M/T(Y2J),MJT7U M/T(Y4X) (H) M10X20 FLANGE 		0-28751-020-0 01 1 1304- ●
38 BOLT; CLIP,HARNESS
MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X20 FLANGE 		0-28650-820-0 03 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 08 1 1304- ● ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4900MM(49W) (D) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ● ●
38 BOLT; CLIP,HARNESS
FUEL TANK 400L<SDH> (D) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
38 BOLT; CLIP,HARNESS
ZF9S1310 M/T(Y5K) (E) M8X12 FLANGE 		0-28050-812-0 02 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
ZF9S1310 M/T(Y5K) (E) M8X12 FLANGE 		0-28050-812-0 02 1 1304- ● ●
38 BOLT; CLIP,HARNESS
ZF9S1310 M/T(Y5K) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
38 BOLT; CLIP,HARNESS
(C) M8X35 FLANGE 		0-28650-835-0 02 1 1304- ● ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009- ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1009-1303 ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1304- ● ●
139 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 1304- ● ●
139 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 1011-1303 ●
139 BOLT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (E) M8X35 FLANGE 		0-28650-835-0 03 1 1304- ●
139 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1009-1303 ●
139 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1304- ● ●
139 BOLT; BRKT
(D) M10X20 FLANGE 		0-28151-020-0 02 1 1009-1303 ●
139 BOLT; BRKT
(D) M10X20 FLANGE 		0-28151-020-0 02 1 1304- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1303 ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1010 ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1010 ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1011-1303 ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1304- ● ●
139 BOLT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) M8X30 FLANGE 		0-28650-830-0 08 1 1009-1303 ●
139 BOLT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) M8X30 FLANGE 		0-28650-830-0 05 1 1304- ●
139 BOLT; BRKT
WHEEL BASE 6300MM(63W) (C) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1303 ●
139 BOLT; BRKT
A/T ALLISON 4430(Y5V) (F) M10X40 FLANGE 		0-28051-040-0 02 1 1304- ●
139 BOLT; BRKT
WHEEL BASE 6300MM(63W) (A) M8X30 FLANGE 		0-28650-830-0 12 1 1009-1303 ●
139 BOLT; BRKT
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (A) M8X30 FLANGE 		0-28650-830-0 08 1 1304- ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 08 1 1304- ●
150 BOLT; CLIP
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1009-1303 ●
150 BOLT; CLIP
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1304- ● ●
150 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 08 1 1009-1303 ●
150 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 08 1 1304- ● ●
150 BOLT; CLIP
(C) M8X66 FLANGE 		8-98081-507-0 02 1 1009-1303 ●
150 BOLT; CLIP
(C) M8X66 FLANGE 		8-98081-507-0 02 1 1304- ● ●
150 BOLT; CLIP
EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1009-1303 ●
150 BOLT; CLIP
EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1304- ●
150 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1304- ●
219 NUT
MAL6R M/T(Y2J) (B) M10 FLANGE 		0-91180-210-0 01 1 1304- ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 08 1 1304-1304 ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 07 1 1305- ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 09 1 1009-1303 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1304-1309 ● ●
219 NUT
FUEL TANK 200L RECTANGULAR<NH6> (A) M8 FLANGE 		0-91180-108-0 01 1 1304-1309 ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91180-108-0 01 1 1304-1309 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1304-1309 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
219 NUT
FUEL TANK 200L RECTANGULAR<NH6> (A) M8 FLANGE 		0-91180-108-0 01 1 1310- ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91180-108-0 02 1 1304-1309 ● ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91180-108-0 02 1 1310- ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1310- ●
219 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
219 NUT
WHEEL BASE 4900MM(49W) (A) M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
219 NUT
A/T ALLISON 4430(Y5V) (A) M8 FLANGE 		0-91180-108-0 04 1 1304- ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1009-1303 ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1304- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1303 ●
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ● ●
242 BOLT; BRKT,HARNESS
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1009-1303 ●
242 BOLT; BRKT,HARNESS
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1304- ● ●
294 NUT
MAL6R M/T(Y2J) (B) M10 FLANGE 		0-91180-210-0 02 1 1304- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 08 1 1009-1303 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1304-1304 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 09 1 1305- ● ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1304-1304 ● ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91180-108-0 02 1 1304-1304 ● ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91180-108-0 02 1 1305- ● ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1304- ●
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1304- ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 08 1 1009-1303 ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 07 1 1304- ● ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1009-1303 ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1304- ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1009-1303 ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1304- ● ●
377 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1009-1303 ●
377 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1304- ● ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 1009-1303 ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 1304- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1303 ●
386 BOLT; GRAND HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1304- ● ●
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1009-1202 ●
386 BOLT; GRAND HARNESS
(C) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1203-1303 ●
386 BOLT; GRAND HARNESS
(C) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1304- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1009-1303 ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1304- ● ●
466 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 1009-1303 ●
466 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 1304- ● ●
490 BOLT; CLIP,RELAY BOX
FUEL TANK 200L RECTANGULAR<NH6> M8X20 FLANGE 		0-28650-820-0 01 1 1304- ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
515 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) M8 FLANGE 		0-91180-108-0 07 1 1009-1303 ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 07 1 1304- ● ●
515 NUT; BRKT
WHEEL BASE 6300MM(63W) (A) M8 FLANGE 		0-91180-108-0 12 1 1009-1303 ●
515 NUT; BRKT
A/T ALLISON 4430(Y5V) (B) M10 FLANGE 		0-91180-210-0 02 1 1304- ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1009-1303 ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1304- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
çizim 189520
1 224 1 178 178 178 178 178 530 142 369 470 425 380 230 225 208 194 171 104 51 48 16 14 194 470 16 14 51 223 16 194 206 305 16 538
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1009-1303 ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1304- ● ●
1 SLEEVE; RUBBER
ENGINE REAR PTO(SV1) (B) ID=6 L=20 		1-09360-924-0 01 1 1009- ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 05 1 1304- ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1304- ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1009-1303 ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=250 		1-09707-126-0 02 1 1304- ● ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 02 1 1009- ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1009-1303 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20 		0-95235-035-0 01 1 1304- ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1304- ●
16 CLIP; HARNESS
(F) ID=11 L=24 		0-95235-045-0 01 1 1304- ● ●
16 CLIP; HARNESS
(T) VINYLCHROLIDE COATING ID=18 H=23 L=28 		1-09700-860-0 01 1 1304- ● ●
16 CLIP; HARNESS
EXC. FUEL TANK 200L RECTANGULAR<NH6> (V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304- ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AU) L=175 		1-09707-176-1 01 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 03 1 1304- ●
16 CLIP; HARNESS
(AV) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304- ●
16 CLIP; HARNESS
(AX) ID=10 & 15 		1-09709-279-1 01 1 1304- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 02 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 04 1 1304- ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 04 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (X) L=350 		1-09707-183-0 01 1 1103-1303 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 05 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (BB) ID=5-12 L=26 		1-09709-289-0 01 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (S) L=250 		1-09707-126-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (S) L=250 		1-09707-126-0 01 1 1304- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 1009-1303 ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (K) OD=9 H=6 		1-09709-178-0 02 1 1304- ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1009-1102 ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1103-1303 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AD) L=250 		5-09707-030-1 02 1 1103-1303 ●
16 CLIP; HARNESS
FUEL TANK 200L RECTANGULAR<NH6> (AW) ID=25 H=30 L=35 		1-09700-875-0 01 1 1304- ●
16 CLIP; HARNESS
(F) ID=11 L=24 		0-95235-045-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (T) SYNTHETIC RUBBER ID=18 H=23 L=28 		1-09701-070-0 02 1 1304- ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1009-1303 ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1304- ● ●
16 CLIP; HARNESS
(T) VINYLCHROLIDE COATING ID=18 H=23 L=28 		1-09700-860-0 01 1 1009-1303 ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AY) ID=19 L=32 		0-95235-866-0 02 1 1304- ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1009-1303 ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (BA) ID=11 H=20 L=25 		1-09700-848-0 02 1 1304- ●
16 CLIP; HARNESS
(L) ID=35 L=33 		1-09700-945-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(L) ID=35 L=33 		1-09700-945-0 01 1 1304- ● ●
16 CLIP; HARNESS
(N) ID=28 H=45 L=30 		1-09700-948-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(N) ID=28 H=45 L=30 		1-09700-948-0 01 1 1304- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1304- ● ●
16 CLIP; HARNESS
(P) ID=18 L=40 		1-09701-111-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(P) ID=18 L=40 		1-09701-111-0 01 1 1304- ● ●
16 CLIP; HARNESS
(Q) ID=16 L=50 		1-09701-158-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(Q) ID=16 L=50 		1-09701-158-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1009-1102 ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1303 ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1303 ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1304- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 07 1 1304- ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1009-1303 ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1304- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1304- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1009-1105 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106-1303 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1304- ● ●
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1009-1303 ●
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1304- ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1009-1303 ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1304- ● ●
16 CLIP; HARNESS
(R) ID=18 L=48 		9-09917-429-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(R) ID=18 L=48 		9-09917-429-0 01 1 1304- ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1009-1303 ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1304- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1304- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) ID=11 L=16 		0-95235-025-0 02 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 09 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 02 1 1009-1303 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 02 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) L=350 		1-09707-183-0 02 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W) (X) L=350 		1-09707-183-0 02 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=13-18 L=18 		1-09709-291-0 02 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 08 1 1304- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1303 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1303 ●
16 CLIP; HARNESS
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155 		8-97173-307-0 18 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AK) L=40.6 		8-97229-357-0 02 1 1009-1303 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AK) L=40.6 		8-97229-357-0 02 1 1009-1303 ●
16 CLIP; HARNESS
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AK) L=40.6 		8-97229-357-0 02 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AK) L=40.6 		8-97229-357-0 02 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1303 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1303 ●
16 CLIP; HARNESS
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG) 		8-98052-679-0 02 1 1304- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1304- ● ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1009- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (Y) D=11 H=40 L=20 		8-94246-610-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1009-1303 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1304- ●
16 CLIP; HARNESS
(J) ID=12 H=24 L=20 		1-09700-605-0 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1303 ●
16 CLIP; HARNESS
FUEL TANK 200L AL<THF> (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1303 ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 1304-1308 ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM(47W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1309- ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (AD) L=250 		5-09707-030-1 01 1 1009-1303 ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) (AD) L=250 		5-09707-030-1 02 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AL) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AP) ID=13 L=28 		0-95235-255-0 01 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AN) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AZ) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X) (AO) ID=14.5 L=28 		1-09701-013-0 01 1 1009-1303 ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (AZ) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1304- ●
16 CLIP; HARNESS
MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) (AP) ID=13 L=28 		0-95235-255-0 01 1 1009-1303 ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AY) ID=19 L=32 		0-95235-866-0 01 1 1304- ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20 		0-95235-035-0 01 1 1009-1303 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20 		0-95235-035-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) ID=11 L=16 		0-95235-025-0 02 1 1304- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (AR) ID=16 L=40 		0-95235-576-0 01 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 16 1 1304- ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6 		1-09709-178-0 02 1 1009-1112 ●
16 CLIP; HARNESS
MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6 		1-09709-178-0 02 1 1201-1303 ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1304- ● ●
16 CLIP; HARNESS
MAL6R M/T(Y2J) (M) L=36 		8-94224-891-1 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (X) L=350 		1-09707-183-0 01 1 1304- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1304- ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (D) ID=18-24 L=18 		1-09709-294-0 10 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18 		1-09709-291-0 11 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1303 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1309-1309 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1310- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1310- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 01 1 1103-1303 ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 04 1 1304-1311 ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 01 1 1312- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (C) ID=13-18 L=18 		1-09709-291-0 07 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (C) ID=13-18 L=18 		1-09709-291-0 12 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (D) ID=18-24 L=18 		1-09709-294-0 09 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (Z) ID=5-12 L=18 		1-09709-287-0 04 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1102 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1303 ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18 		1-09709-291-0 05 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22 		1-09709-288-0 02 1 1304-1308 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22 		1-09709-288-0 03 1 1309-1311 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22 		1-09709-288-0 03 1 1312- ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 03 1 1312- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18 		1-09709-294-0 16 1 1009-1303 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (D) ID=18-24 L=18 		1-09709-294-0 16 1 1304- ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (G) ID=16 L=28 		0-95235-556-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (G) ID=16 L=28 		0-95235-556-0 01 1 1304- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (I) ID=16 L=60 		0-95235-596-0 02 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (I) ID=16 L=60 		0-95235-596-0 02 1 1304- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) EXC. SHIFT PATTERN SINGLE-H<EDY> (AS) ID=11 L=28 		0-95235-055-0 01 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (AS) ID=11 L=28 		0-95235-055-0 01 1 1304- ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18 		1-09709-287-0 05 1 1304- ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) EXC. SHIFT PATTERN SINGLE-H<EDY> (AT) ID=11 L=60 		0-95235-096-0 02 1 1009-1303 ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (AT) ID=11 L=60 		0-95235-096-0 02 1 1304- ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1009-1303 ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1304- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1009-1303 ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1304- ● ●
48 CLIP; FRAME HARNESS
HONG KONG EQUIPMENT(PQ1) (E) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (F) ID=13-18 L=18 		1-09709-291-0 01 1 1304-1309 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (F) ID=13-18 L=18 		1-09709-291-0 01 1 1310- ●
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 01 1 1310- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 08 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 6600MM(66W) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 1304- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) ID=18-24 L=18 		1-09709-294-0 01 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (H) ID=13-18 L=22 		1-09709-292-0 02 1 1304- ●
48 CLIP; FRAME HARNESS
(H) ID=13-18 L=22 		1-09709-292-0 02 1 1304- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (D) ID=18-24 L=22 		1-09709-295-0 02 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (H) ID=13-18 L=22 		1-09709-292-0 03 1 1304- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 12 1 1009-1303 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W) (I) ID=13-18 L=26 		1-09709-293-0 03 1 1304- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (B) ID=18-24 L=18 		1-09709-294-0 03 1 1009-1303 ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1304- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180 		1-09707-162-1 01 1 1009-1303 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1304- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350 		1-09707-183-0 01 1 1009-1303 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350 		1-09707-183-0 01 1 1304-1410 ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350 		1-09707-183-0 01 1 1411- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350 		1-09707-183-0 01 1 1411- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1303 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13-18 L=18 		1-09709-291-0 01 1 1304-1410 ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1304- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1304- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1304- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1304- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1009-1303 ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1304- ● ●
142 CLIP; HARNESS,ENG
(A) L=170.3 		8-97209-720-0 01 1 1009-1303 ●
142 CLIP; HARNESS,ENG
(A) L=170.3 		8-97209-720-0 01 1 1304- ● ●
142 CLIP; HARNESS,ENG
(C) L=145 		8-98116-079-0 01 1 1009-1009 ●
142 CLIP; HARNESS,ENG
(C) L=145 		8-98116-079-0 02 1 1010-1303 ●
142 CLIP; HARNESS,ENG
(C) L=145 		8-98116-079-0 02 1 1304- ● ●
142 CLIP; HARNESS,ENG
ENGINE REAR PTO(SV1) (B) L=251 		8-97619-917-0 01 1 1009-1303 ●
142 CLIP; HARNESS,ENG
(B) L=251 		8-97619-917-0 01 1 1009-1303 ●
142 CLIP; HARNESS,ENG
(B) L=251 		8-97619-917-0 01 1 1304- ● ●
142 CLIP; HARNESS,ENG
ENGINE REAR PTO(SV1) (B) L=251 		8-97619-917-0 01 1 1304- ●
171 CLIP; STARTER HARNESS
L=350 		1-09707-183-0 03 1 1009-1303 ●
171 CLIP; STARTER HARNESS
L=350 		1-09707-183-0 03 1 1304- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 01 1 1009-1303 ●
178 GROMMET; HARNESS
FUEL TANK 200L RECTANGULAR<NH6> (E) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1304- ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1009-1303 ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1304- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1009-1303 ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1304- ● ●
178 GROMMET; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (D) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1009-1303 ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1304- ● ●
178 GROMMET; HARNESS
WHEEL BASE 6300MM(63W) ANTILOCK BRAKE SYSTEM(BFA) (D) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1009-1303 ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 01 1 1304- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 06 1 1009-1303 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 06 1 1304- ● ●
194 CLIP; BAND
(C) L=140 		5-09707-031-1 02 1 1009-1303 ●
194 CLIP; BAND
(C) L=140 		5-09707-031-1 02 1 1304- ● ●
194 CLIP; BAND
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=300 		1-09707-001-1 02 1 1009-1303 ●
194 CLIP; BAND
(A) L=300 		1-09707-001-1 02 1 1304- ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 1009-1303 ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 1304- ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 		8-94176-792-0 01 1 1009-1303 ●
206 CLIP; FUEL TANK HARNESS
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) ID=8.3 & 10 		8-94176-792-0 01 1 1304- ●
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 		8-94176-792-0 01 1 1304- ●
208 CLIP; HARNESS,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=350 		1-09707-183-0 01 1 1009-1303 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (A) L=180 		1-09707-162-1 01 1 1009-1303 ●
223 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1304- ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4900MM(49W) (B) ID=11 L=58 		9-09917-135-2 01 1 1009-1303 ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=58 		9-09917-135-2 01 1 1304- ●
224 SLEEVE; RUBBER,HARNESS
ID=23 OD=27 L=40 		1-09337-015-0 01 1 1009-1303 ●
224 SLEEVE; RUBBER,HARNESS
ID=23 OD=27 L=40 		1-09337-015-0 01 1 1304- ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) L=350 		1-09707-183-0 01 1 1304- ●
230 CLIP; C/MBR HARNESS
WHEEL BASE 6300MM(63W) L=350 		1-09707-183-0 01 1 1009-1303 ●
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 1009-1303 ●
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 1304- ● ●
369 CLIP; BAND EDS HARNESS
L=500 		1-09707-082-1 01 1 1009-1303 ●
369 CLIP; BAND EDS HARNESS
L=500 		1-09707-082-1 01 1 1304- ● ●
380 CLIP; EARTH HARNESS
EXC. FUEL TANK 200L RECTANGULAR<NH6> (B) L=350 		1-09707-183-0 02 1 1304- ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 02 1 1304- ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1009-1303 ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1304- ● ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 03 1 1009-1303 ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 01 1 1304- ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) L=350 		1-09707-183-0 03 1 1009-1303 ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) L=350 		1-09707-183-0 04 1 1304- ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350 		1-09707-183-0 01 1 1304-1309 ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 1310- ●
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1) (C) L=350 		1-09707-183-0 02 1 1009-1111 ●
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1) (D) L=250 		5-09707-030-1 04 1 1112-1303 ●
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=250 		5-09707-030-1 04 1 1304-1309 ●
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=250 		5-09707-030-1 04 1 1310- ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1) (B) ID=11 L=41 		1-09700-403-0 01 1 1009-1303 ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=11 L=41 		1-09700-403-0 01 1 1304- ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1) (A) OD=9 H=6 		1-09709-178-0 01 1 1009-1303 ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6 		1-09709-178-0 01 1 1304-1309 ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6 		1-09709-178-0 01 1 1310- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1009-1303 ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1304- ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1009-1303 ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
