Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#70414) — 522 parça

2 2 2 2 314 431 431 431 431 535 668 533 536 534 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1)	8-98234-215-3	01	1	1304-	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) EXC. SHIFT PATTERN SINGLE-H<EDY>	8-98234-214-3	01	1	1304-	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3)	8-98234-217-3	01	1	1304-	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3),SHIFT PATTERN SINGLE-H<EDY>	8-98234-216-3	01	1	1304-	●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-077-0	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-077-0	01	1	1105-1203		●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-077-0	01	1	1204-1207		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-077-0	01	1	1204-1207		●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-560-0	01	1	1208-1303		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-560-0	01	1	1208-1303		●
1	HARNESS; CAB MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) EXC. SHIFT PATTERN SINGLE-H<EDY>	8-98234-212-3	01	1	1304-		●
1	HARNESS; CAB MAL6R M/T(Y2J),MJT7U M/T(Y4X) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1)	8-98234-212-3	01	1	1304-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) IN HOUSE PRODUCTION<TKF>	8-98192-068-0	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5)	8-98192-068-0	01	1	1204-1207		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5)	8-98210-551-0	01	1	1208-1303		●
1	HARNESS; CAB MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3),SHIFT PATTERN SINGLE-H<EDY>	8-98211-961-3	01	1	1304-		●
1	HARNESS; CAB MAL6R M/T(Y2J),MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3)	8-98211-961-3	01	1	1304-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-067-0	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-067-0	01	1	1204-1207		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-550-0	01	1	1208-1303		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1)	8-98234-213-3	01	1	1304-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-078-0	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-078-0	01	1	1204-1207		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-561-0	01	1	1208-1303		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3)	8-98211-962-3	01	1	1304-		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5) IN HOUSE PRODUCTION<TKF>	8-98192-069-0	01	1	1105-1203		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98192-069-0	01	1	1204-1207		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98210-552-0	01	1	1208-1303		●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1)	8-98234-218-3	01	1	1304-		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-070-0	01	1	1105-1203		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-070-0	01	1	1204-1207		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-553-0	01	1	1208-1303		●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3)	8-98234-219-3	01	1	1304-		●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98155-304-4	01	1	1009-1104		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98155-304-4	01	1	1009-1104		●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98155-304-4	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98155-304-4	01	1	1105-1203		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98155-296-3	01	1	1009-1104		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5) EXC. IN HOUSE PRODUCTION<TKF>	8-98155-296-3	01	1	1105-1203		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98155-297-3	01	1	1009-1104		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98155-297-3	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5)	8-98155-295-3	01	1	1009-1104		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. IN HOUSE PRODUCTION<TKF>	8-98155-295-3	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98164-920-3	01	1	1009-1104		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98164-920-3	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98155-294-3	01	1	1009-1104		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98155-294-3	01	1	1105-1203		●

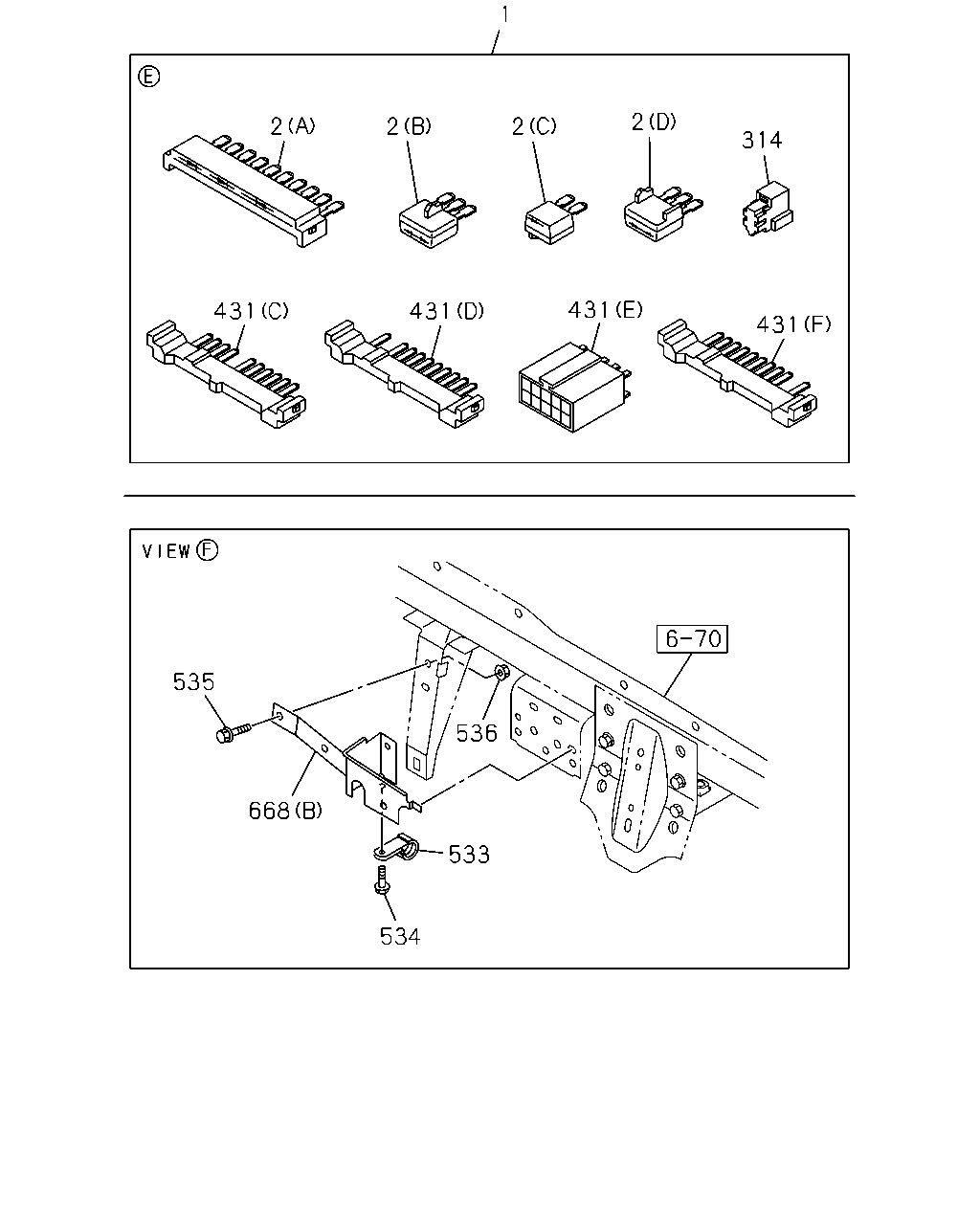

2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	1009-1303		●
2	DIODE; CABLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) BLACK 10P	1-82699-703-0	01	1	1304-	●	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94416-438-1	01	1	1009-1303		●
2	DIODE; CABLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (D) BLACK 3P-1.5A	8-94416-438-1	01	1	1304-	●	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	01	1	1009-1303		●
2	DIODE; CABLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) BLACK 2P-1.5A	8-94422-639-1	02	1	1304-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	01	1	1009-1303		●
2	DIODE; CABLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) BLACK 3P-1.5A	8-94422-640-1	01	1	1304-	●	●
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	1009-1207		●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1009-1207		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1009-1207		●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	08	1	1009-1207		●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1009-1207		●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1009-1303		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (A) WHITE	8-98056-374-0	01	1	1304-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1009-1303		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (B) WHITE	8-98056-375-0	01	1	1304-	●	●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (C) 10P BLUE	1-82699-598-0	04	1	1009-1303		●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (G) 10P GREEN	1-82699-599-0	07	1	1009-1303		●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (D) 10P BROWN	1-82699-601-0	01	1	1009-1303		●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (H) 6P BLACK	8-97616-194-0	02	1	1009-1303		●
533	CLIP ID=31 L=35	1-09700-329-1	01	1	1009-1303		●
533	CLIP ID=31 L=35	1-09700-329-1	01	1	1304-	●	●
534	BOLT M8X20 FLANGE	0-28650-820-0	01	1	1009-1303		●
534	BOLT M8X20 FLANGE	0-28650-820-0	01	1	1304-	●	●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	1009-1302		●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	03	1	1303-1303		●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	1304-1304		●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	1304-	●	●
536	NUT; BRKT FIX M8	8-98041-929-0	01	1	1009-1303		●
536	NUT; BRKT FIX M8	8-98041-929-0	01	1	1304-	●	●
668	BRACKET; HARNESS (A)	8-98095-653-1	01	1	1009-1303		●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1304-	●	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	1009-1303		●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	1304-	●	●

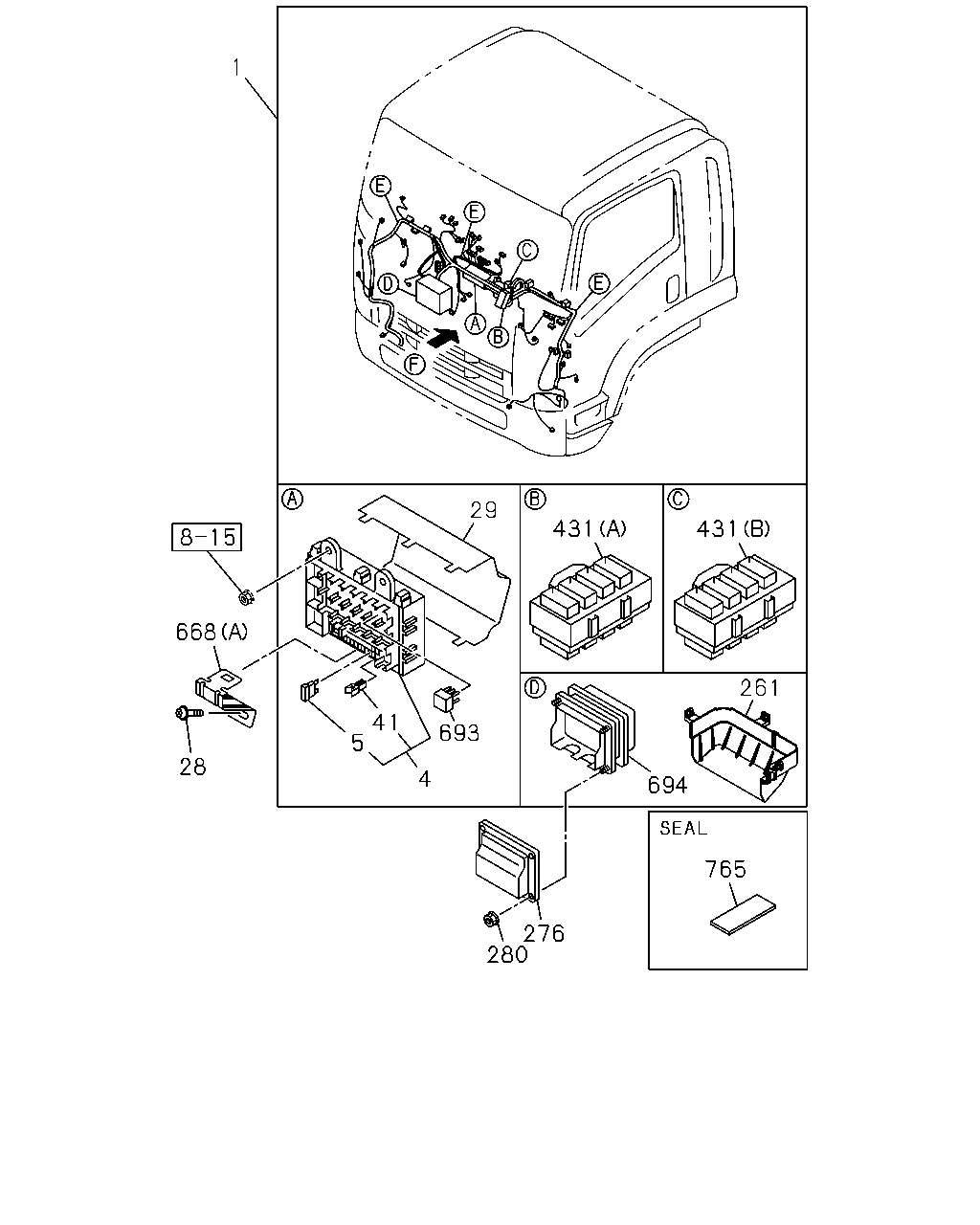

668 28 1 29 693 4 41 5 431 694 765 276 280 261 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1)	8-98234-215-3	01	1	1304-	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) EXC. SHIFT PATTERN SINGLE-H<EDY>	8-98234-214-3	01	1	1304-	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3)	8-98234-217-3	01	1	1304-	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3),SHIFT PATTERN SINGLE-H<EDY>	8-98234-216-3	01	1	1304-	●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-077-0	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-077-0	01	1	1105-1203		●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-077-0	01	1	1204-1207		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-077-0	01	1	1204-1207		●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-560-0	01	1	1208-1303		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-560-0	01	1	1208-1303		●
1	HARNESS; CAB MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) EXC. SHIFT PATTERN SINGLE-H<EDY>	8-98234-212-3	01	1	1304-		●
1	HARNESS; CAB MAL6R M/T(Y2J),MJT7U M/T(Y4X) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1)	8-98234-212-3	01	1	1304-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) IN HOUSE PRODUCTION<TKF>	8-98192-068-0	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5)	8-98192-068-0	01	1	1204-1207		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5)	8-98210-551-0	01	1	1208-1303		●
1	HARNESS; CAB MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3),SHIFT PATTERN SINGLE-H<EDY>	8-98211-961-3	01	1	1304-		●
1	HARNESS; CAB MAL6R M/T(Y2J),MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3)	8-98211-961-3	01	1	1304-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-067-0	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-067-0	01	1	1204-1207		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-550-0	01	1	1208-1303		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1)	8-98234-213-3	01	1	1304-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-078-0	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-078-0	01	1	1204-1207		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-561-0	01	1	1208-1303		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3)	8-98211-962-3	01	1	1304-		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5) IN HOUSE PRODUCTION<TKF>	8-98192-069-0	01	1	1105-1203		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98192-069-0	01	1	1204-1207		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98210-552-0	01	1	1208-1303		●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1)	8-98234-218-3	01	1	1304-		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-070-0	01	1	1105-1203		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-070-0	01	1	1204-1207		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-553-0	01	1	1208-1303		●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3)	8-98234-219-3	01	1	1304-		●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98155-304-4	01	1	1009-1104		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98155-304-4	01	1	1009-1104		●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98155-304-4	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98155-304-4	01	1	1105-1203		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98155-296-3	01	1	1009-1104		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5) EXC. IN HOUSE PRODUCTION<TKF>	8-98155-296-3	01	1	1105-1203		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98155-297-3	01	1	1009-1104		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98155-297-3	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5)	8-98155-295-3	01	1	1009-1104		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. IN HOUSE PRODUCTION<TKF>	8-98155-295-3	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98164-920-3	01	1	1009-1104		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98164-920-3	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98155-294-3	01	1	1009-1104		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98155-294-3	01	1	1105-1203		●

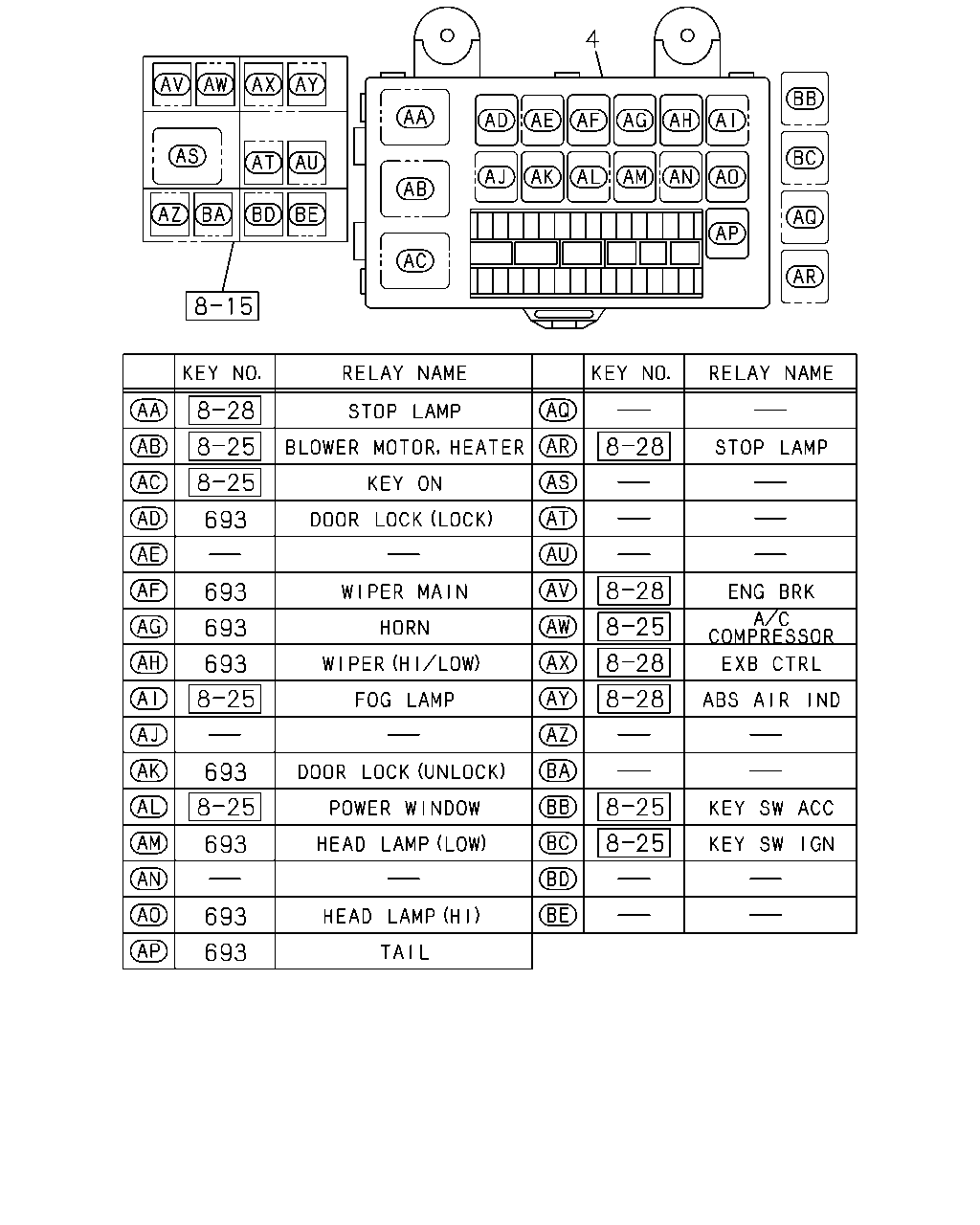

4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1009-1303		●
4	BOX ASM; FUSE,HARNESS ANTILOCK BRAKE SYSTEM(BFA)	8-98065-666-0	01	1	1304-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1009-1303		●
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM(BFA) 10A RED	8-98054-257-0	AR	1	1304-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1009-1303		●
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM(BFA) 15A BLUE	8-98054-258-0	AR	1	1304-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1009-1303		●
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM(BFA) 20A YELLOW	8-98054-259-0	AR	1	1304-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	02	1	1009-1207		●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1208-1303		●
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM(BFA) 25A WHITE	8-98062-982-0	AR	1	1304-	●	●
28	SCREW; FUSE BOX M6X16 FLANGE	0-28650-616-0	01	1	1009-1303		●
28	SCREW; FUSE BOX M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1009-1303		●
29	COVER; FUSE BOX ANTILOCK BRAKE SYSTEM(BFA)	8-98056-968-0	01	1	1304-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1009-1303		●
41	PULLER; FUSE ANTILOCK BRAKE SYSTEM(BFA)	8-98054-260-0	01	1	1304-	●	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1009-1303		●
261	COVER; CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA)	8-98065-986-1	01	1	1304-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1009-1303		●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1304-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1009-1303		●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1304-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1009-1207		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1009-1207		●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	08	1	1009-1207		●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1009-1207		●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1009-1303		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (A) WHITE	8-98056-374-0	01	1	1304-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1009-1303		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (B) WHITE	8-98056-375-0	01	1	1304-	●	●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (C) 10P BLUE	1-82699-598-0	04	1	1009-1303		●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (G) 10P GREEN	1-82699-599-0	07	1	1009-1303		●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (D) 10P BROWN	1-82699-601-0	01	1	1009-1303		●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (H) 6P BLACK	8-97616-194-0	02	1	1009-1303		●
668	BRACKET; HARNESS (A)	8-98095-653-1	01	1	1009-1303		●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1304-	●	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	1009-1303		●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	1304-	●	●

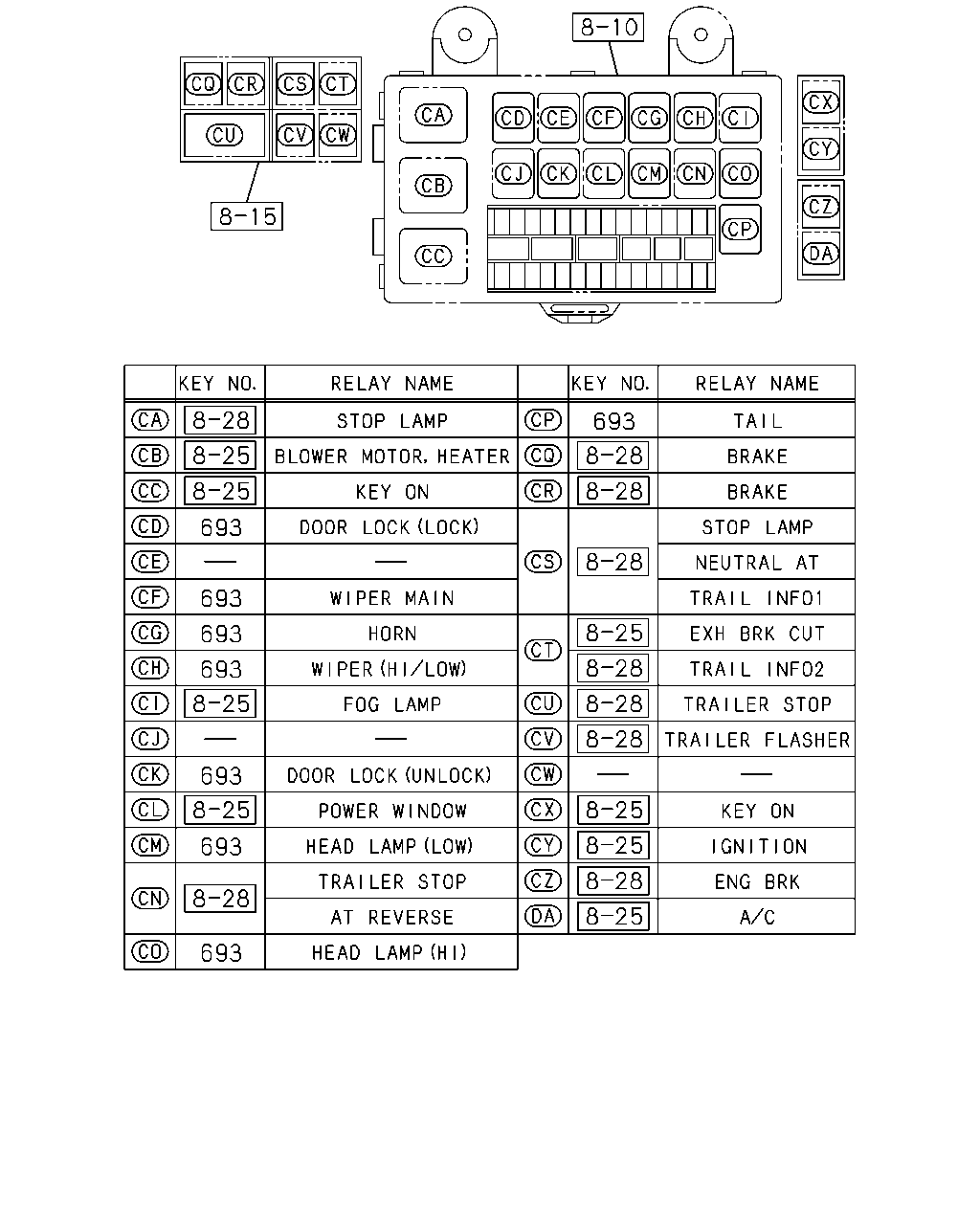

693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1009-1303		●
693	RELAY; FUSE BOX ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	AR	1	1304-	●	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1009-1303		●
694	BOX ASM; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA)	8-98057-771-0	01	1	1304-	●	●
765	TAPE 100X40	1-72498-022-1	01	1	1409-	●	●

6 706 1 6 570 7 1 443 253 1

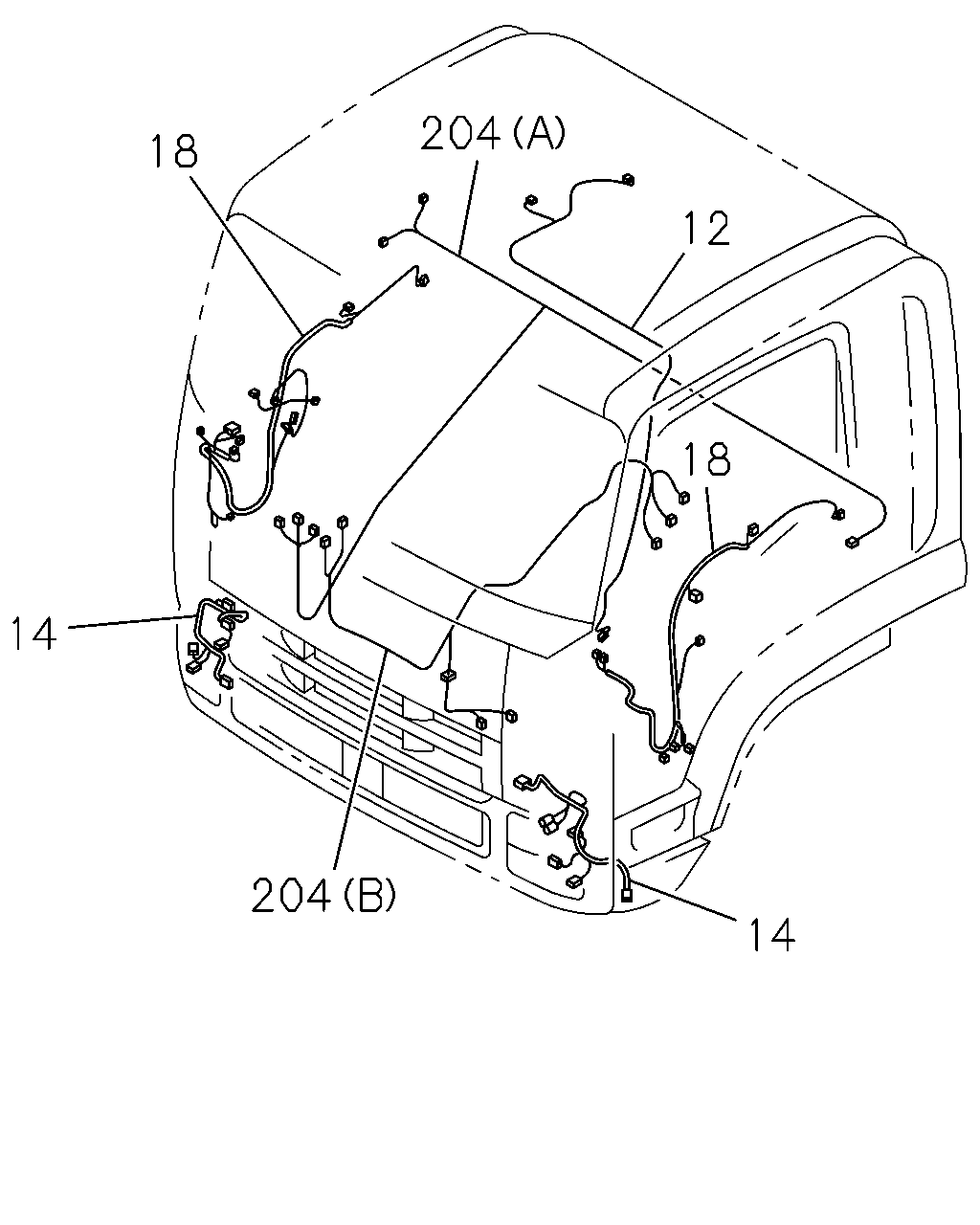

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1)	8-98234-215-3	01	1	1304-	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) EXC. SHIFT PATTERN SINGLE-H<EDY>	8-98234-214-3	01	1	1304-	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3)	8-98234-217-3	01	1	1304-	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3),SHIFT PATTERN SINGLE-H<EDY>	8-98234-216-3	01	1	1304-	●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-077-0	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-077-0	01	1	1105-1203		●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-077-0	01	1	1204-1207		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-077-0	01	1	1204-1207		●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-560-0	01	1	1208-1303		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-560-0	01	1	1208-1303		●
1	HARNESS; CAB MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) EXC. SHIFT PATTERN SINGLE-H<EDY>	8-98234-212-3	01	1	1304-		●
1	HARNESS; CAB MAL6R M/T(Y2J),MJT7U M/T(Y4X) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1)	8-98234-212-3	01	1	1304-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) IN HOUSE PRODUCTION<TKF>	8-98192-068-0	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5)	8-98192-068-0	01	1	1204-1207		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5)	8-98210-551-0	01	1	1208-1303		●
1	HARNESS; CAB MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3),SHIFT PATTERN SINGLE-H<EDY>	8-98211-961-3	01	1	1304-		●
1	HARNESS; CAB MAL6R M/T(Y2J),MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3)	8-98211-961-3	01	1	1304-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-067-0	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-067-0	01	1	1204-1207		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-550-0	01	1	1208-1303		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1)	8-98234-213-3	01	1	1304-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-078-0	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-078-0	01	1	1204-1207		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-561-0	01	1	1208-1303		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3)	8-98211-962-3	01	1	1304-		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5) IN HOUSE PRODUCTION<TKF>	8-98192-069-0	01	1	1105-1203		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98192-069-0	01	1	1204-1207		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98210-552-0	01	1	1208-1303		●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1)	8-98234-218-3	01	1	1304-		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-070-0	01	1	1105-1203		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-070-0	01	1	1204-1207		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-553-0	01	1	1208-1303		●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3)	8-98234-219-3	01	1	1304-		●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98155-304-4	01	1	1009-1104		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98155-304-4	01	1	1009-1104		●
1	HARNESS; CAB MJT7U M/T(Y4X) HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98155-304-4	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98155-304-4	01	1	1105-1203		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5)	8-98155-296-3	01	1	1009-1104		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) NEW ZEALAND EQUIPMENT(PK5) EXC. IN HOUSE PRODUCTION<TKF>	8-98155-296-3	01	1	1105-1203		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98155-297-3	01	1	1009-1104		●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98155-297-3	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5)	8-98155-295-3	01	1	1009-1104		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. IN HOUSE PRODUCTION<TKF>	8-98155-295-3	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98164-920-3	01	1	1009-1104		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98164-920-3	01	1	1105-1203		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98155-294-3	01	1	1009-1104		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> NEW ZEALAND EQUIPMENT(PK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98155-294-3	01	1	1105-1203		●

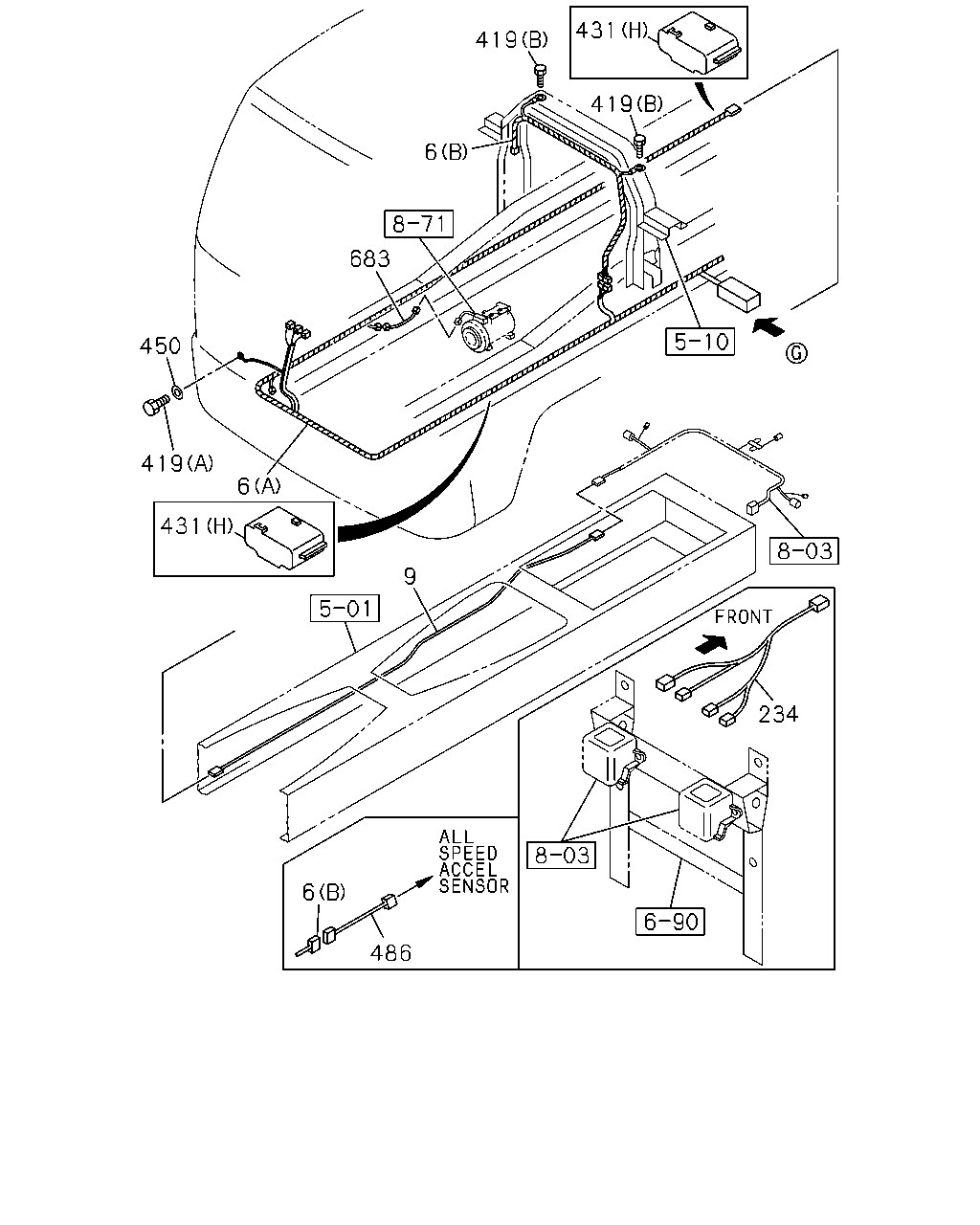

6	HARNESS; FRAME ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (A)	8-98235-454-1	01	1	1304-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 400L<SDH> (A)	8-98235-453-1	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) (A)	8-98237-176-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-191-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-190-1	01	1	1009-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98163-091-2	01	1	1009-1303		●
6	HARNESS; FRAME MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-450-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98163-090-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98217-042-3	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) GENERATOR 24V90A(K44) (A)	8-98163-089-2	01	1	1009-1303		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-451-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) EXC. GENERATOR 24V90A(K44) (A)	8-98156-171-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 400L<SDH> (A)	8-98235-452-1	01	1	1304-		●

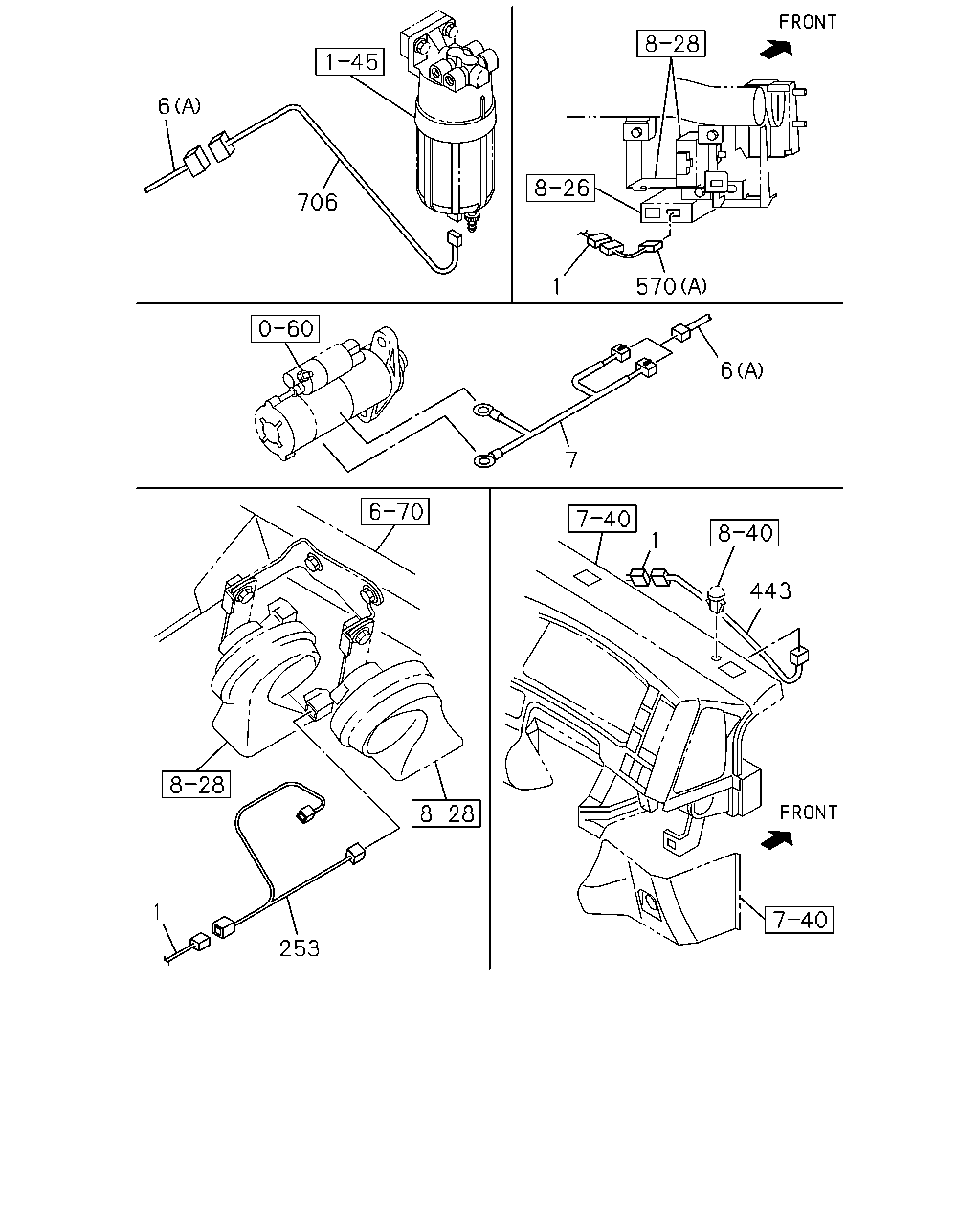

7	LINK ASM; FUSIBLE ENGINE REAR PTO(SV1) EXC. GENERATOR 24V90A(K44)	8-98106-137-0	01	1	1009-1303		●
7	LINK ASM; FUSIBLE ENGINE REAR PTO(SV1)	8-98106-137-0	01	1	1304-		●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44) ENGINE REAR PTO(SV1)	8-98106-138-0	01	1	1009-1303		●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44) EXC. ENGINE REAR PTO(SV1)	8-98103-000-0	01	1	1009-1303		●
7	LINK ASM; FUSIBLE EXC. GENERATOR 24V90A(K44),ENGINE REAR PTO(SV1)	8-98088-132-0	01	1	1009-1303		●
7	LINK ASM; FUSIBLE EXC. ENGINE REAR PTO(SV1)	8-98088-132-0	01	1	1304-		●
7	LINK ASM; FUSIBLE	8-98088-132-0	01	1	1304-	●
253	HARNESS; EXT,HORN ELECTRICAL HORN<WB7>	8-98074-081-1	01	1	1009-1303		●
253	HARNESS; EXT,HORN ELECTRICAL HORN<WB7>	8-98074-081-2	01	1	1304-	●	●
253	HARNESS; EXT,HORN EXC. ELECTRICAL HORN<WB7>	8-98074-080-1	01	1	1009-1303		●
253	HARNESS; EXT,HORN EXC. ELECTRICAL HORN<WB7>	8-98074-080-3	01	1	1304-	●	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1009-1303		●
570	HARNESS; SPEED SENSOR A/T ALLISON 4430(Y5V) (A)	8-98091-562-0	01	1	1304-		●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (A)	8-98058-327-1	01	1	1009-1303		●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (A)	8-98058-327-1	01	1	1304-	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (B)	8-98148-602-0	01	1	1009-		●
706	HARNESS; EXT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF>	8-98187-172-0	01	1	1103-1303		●
706	HARNESS; EXT,SEDIMENTER FUEL TANK 200L RECTANGULAR<NH6>	8-98226-345-2	01	1	1304-		●
706	HARNESS; EXT,SEDIMENTER WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH>	8-98187-174-0	01	1	1103-1303		●
706	HARNESS; EXT,SEDIMENTER WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0>	8-98187-173-0	01	1	1103-1303		●
706	HARNESS; EXT,SEDIMENTER FUEL TANK 400L<SDH>	8-98187-173-1	01	1	1304-		●
706	HARNESS; EXT,SEDIMENTER FUEL TANK 200L AL<THF>	8-98079-754-0	01	1	1009-1102		●
706	HARNESS; EXT,SEDIMENTER FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0>	8-98079-754-0	01	1	1103-1303		●
706	HARNESS; EXT,SEDIMENTER	8-98235-497-2	01	1	1304-	●
706	HARNESS; EXT,SEDIMENTER FUEL TANK 400L<SDH>	8-98087-610-1	01	1	1009-1102		●
706	HARNESS; EXT,SEDIMENTER FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>	8-98087-610-1	01	1	1103-1303		●

231 6 462 95 570 6 463 689 6 231

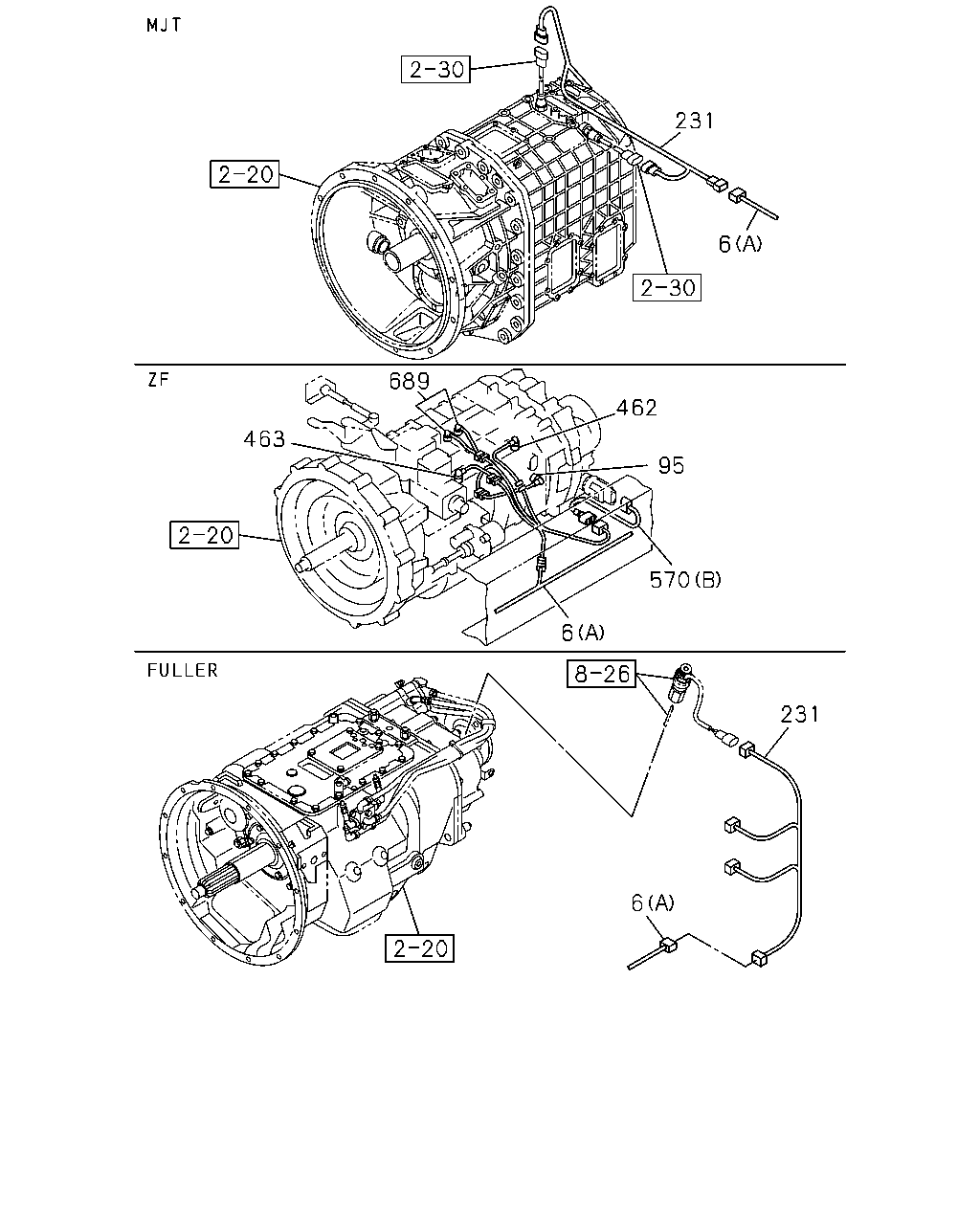

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (A)	8-98235-454-1	01	1	1304-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 400L<SDH> (A)	8-98235-453-1	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) (A)	8-98237-176-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-191-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-190-1	01	1	1009-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98163-091-2	01	1	1009-1303		●
6	HARNESS; FRAME MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-450-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98163-090-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98217-042-3	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) GENERATOR 24V90A(K44) (A)	8-98163-089-2	01	1	1009-1303		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-451-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) EXC. GENERATOR 24V90A(K44) (A)	8-98156-171-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 400L<SDH> (A)	8-98235-452-1	01	1	1304-		●
95	HARNESS; NEUTRAL SW TRANSMISSION-FULLER RTO11908(Y5L)	1-82639-626-0	01	1	1009-1303		●
95	HARNESS; NEUTRAL SW ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> 17INCH CLUTCH(RF3) RED	8-98145-855-0	01	1	1009-1303		●
95	HARNESS; NEUTRAL SW SHIFT PATTERN DOUBLE-H<EDZ> RED	8-98145-855-0	01	1	1304-	●	●
95	HARNESS; NEUTRAL SW ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 17INCH CLUTCH(RF3) RED	8-98145-854-0	01	1	1009-1303		●
95	HARNESS; NEUTRAL SW SHIFT PATTERN SINGLE-H<EDY> RED	8-98145-854-0	01	1	1304-	●	●

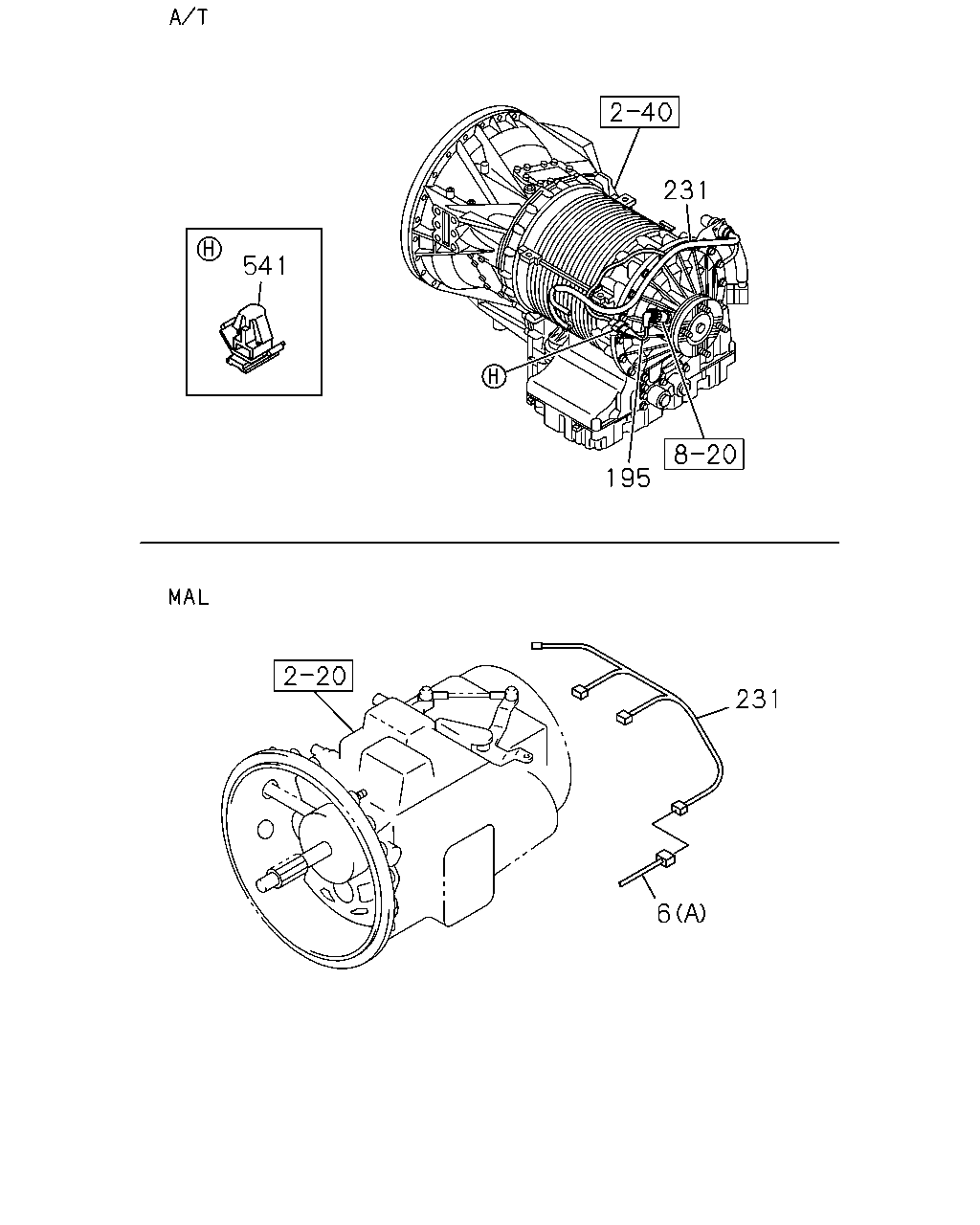

231	HARNESS; TRANS A/T ALLISON 4430(Y5V)	8-98197-147-0	01	1	1312-		●
231	HARNESS; TRANS MJT7U M/T(Y4X)	8-97615-725-1	01	1	1009-		●
231	HARNESS; TRANS TRANSMISSION-FULLER RTO11908(Y5L)	8-98079-751-1	01	1	1009-1303		●
231	HARNESS; TRANS MAL6R M/T(Y2J)	8-98075-628-1	01	1	1304-		●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY>	8-98163-093-0	01	1	1009-1303		●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY>	8-98163-093-0	01	1	1304-	●	●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K) EXC. SHIFT PATTERN SINGLE-H<EDY>	8-98172-096-0	01	1	1009-1303		●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ>	8-98172-096-0	01	1	1304-	●	●
462	HARNESS; SW,RANGE ZF9S1310 M/T(Y5K) BLUE	8-98145-857-0	01	1	1009-		●
463	HARNESS; SW,BACK UP ZF9S1310 M/T(Y5K) BLACK	8-98145-856-0	01	1	1009-		●
570	HARNESS; SPEED SENSOR A/T ALLISON 4430(Y5V) (A)	8-98091-562-0	01	1	1304-		●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (A)	8-98058-327-1	01	1	1009-1303		●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (A)	8-98058-327-1	01	1	1304-	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (B)	8-98148-602-0	01	1	1009-		●
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 17INCH CLUTCH(RF3)	1-82659-229-1	01	1	1009-1101		●
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 17INCH CLUTCH(RF3)	8-98148-603-0	01	1	1102-1303		●
689	HARNESS; PRESSURE & ECU SWITCH SHIFT PATTERN SINGLE-H<EDY>	8-98148-603-0	01	1	1304-	●	●

6 720 431 431 431 267 290 396 53 53 267 290 184 10 388 174 184 27 389

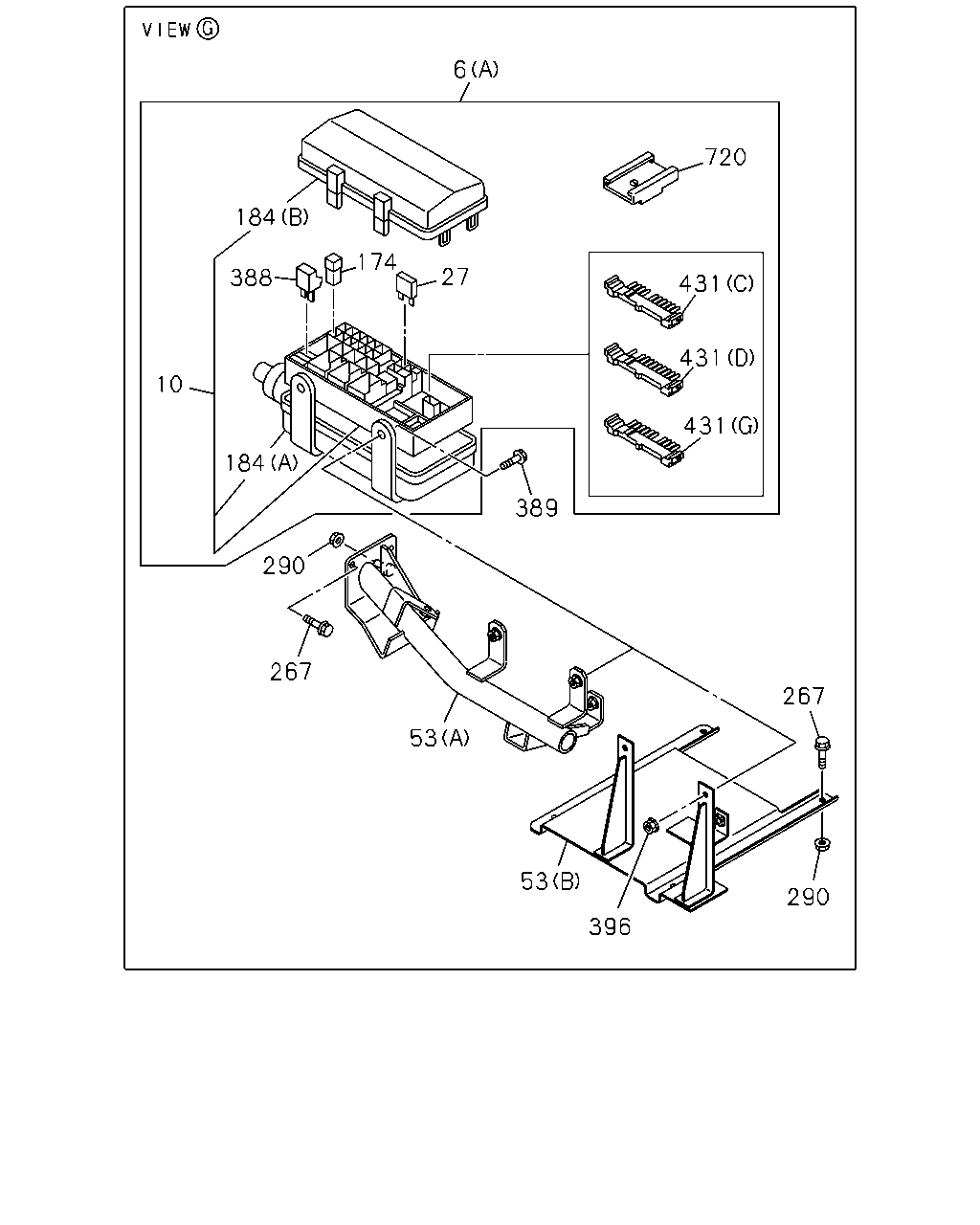

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (A)	8-98235-454-1	01	1	1304-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 400L<SDH> (A)	8-98235-453-1	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) (A)	8-98237-176-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-191-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-190-1	01	1	1009-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98163-091-2	01	1	1009-1303		●
6	HARNESS; FRAME MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-450-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98163-090-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98217-042-3	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) GENERATOR 24V90A(K44) (A)	8-98163-089-2	01	1	1009-1303		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-451-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) EXC. GENERATOR 24V90A(K44) (A)	8-98156-171-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 400L<SDH> (A)	8-98235-452-1	01	1	1304-		●
10	BOX; FUSE,HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W)	8-98030-762-0	01	1	1009-1303		●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1304-	●	●
27	FUSE UNIT A/T ALLISON 4430(Y5V) 15A BLUE	8-98054-258-0	02	1	1304-		●
27	FUSE UNIT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) 10A RED	8-98054-257-0	03	1	1009-1303		●
27	FUSE UNIT 10A RED	8-98054-257-0	03	1	1304-	●	●
27	FUSE UNIT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) 15A BLUE	8-98054-258-0	01	1	1009-1303		●
27	FUSE UNIT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) 15A BLUE	8-98054-258-0	01	1	1304-		●
27	FUSE UNIT 15A BLUE	8-98054-258-0	01	1	1304-	●
53	BRACKET; FUSE BOX EXC. FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98078-800-1	01	1	1304-		●
53	BRACKET; FUSE BOX (A)	8-98078-800-1	01	1	1304-	●
53	BRACKET; FUSE BOX (A)	8-98078-800-1	01	1	1009-1303		●
53	BRACKET; FUSE BOX FUEL TANK 200L RECTANGULAR<NH6> (B)	8-98168-973-2	01	1	1304-		●
174	FUSE; SLOW BLOW MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> 30A PINK	8-98079-191-0	02	1	1304-		●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	1304-	●
174	FUSE; SLOW BLOW WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) 60A YELLOW	8-97219-407-0	01	1	1107-1303		●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1304-	●	●
174	FUSE; SLOW BLOW WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) 30A PINK	8-98079-191-0	02	1	1009-1303		●
174	FUSE; SLOW BLOW MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) FUEL TANK 200L RECTANGULAR<NH6> 30A PINK	8-98079-191-0	01	1	1304-		●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	1304-		●
174	FUSE; SLOW BLOW WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) 40A GREEN	8-98079-192-0	01	1	1009-1303		●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1304-	●	●
174	FUSE; SLOW BLOW WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) 50A RED	8-98079-193-0	03	1	1009-1303		●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1304-	●	●
174	FUSE; SLOW BLOW WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1009-1106		●
174	FUSE; SLOW BLOW WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) 60A YELLOW 60A YELLOW	8-97219-407-0	01	1	1107-1303		●
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW	8-97219-407-0	01	1	1304-	●	●
184	COVER; RELAY & FUSE BOX WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (A)	8-98030-766-0	01	1	1009-1303		●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1304-	●	●
184	COVER; RELAY & FUSE BOX WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (B)	8-98030-767-1	01	1	1009-1303		●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1304-	●	●
267	BOLT; BRKT FUEL TANK 200L RECTANGULAR<NH6> M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
267	BOLT; BRKT EXC. FUEL TANK 200L RECTANGULAR<NH6> M10X30 FLANGE	0-28651-030-0	02	1	1304-		●
267	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1304-	●
267	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1009-1303		●
267	BOLT; BRKT FUEL TANK 200L RECTANGULAR<NH6> M8X25 FLANGE	0-28650-825-0	02	1	1304-		●
290	NUT; BRKT EXC. FUEL TANK 200L RECTANGULAR<NH6> M10 FLANGE	0-91180-210-0	01	1	1304-		●
290	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1304-	●
290	NUT; BRKT M10 FLANGE	0-91180-110-0	01	1	1009-1303		●
290	NUT; BRKT FUEL TANK 200L RECTANGULAR<NH6> M8 FLANGE	0-91180-108-0	04	1	1304-		●
388	DIODE; RELAY BOX A/T ALLISON 4430(Y5V) BLACK 2P-1.5A	8-94422-639-1	02	1	1304-		●
388	DIODE; RELAY BOX WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) BLACK 4P-1.5A	8-94381-730-0	01	1	1009-1303		●
388	DIODE; RELAY BOX BLACK 4P-1.5A	8-94381-730-0	01	1	1304-	●	●
388	DIODE; RELAY BOX WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) BLACK 2P-1.5A	8-94422-639-1	01	1	1009-1303		●
388	DIODE; RELAY BOX MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) BLACK 2P-1.5A	8-94422-639-1	01	1	1304-		●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1304-	●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1009-1303		●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1304-	●	●
396	NUT; COVER,RELAY BOX FUEL TANK 200L RECTANGULAR<NH6> M8 FLANGE	0-91180-108-0	02	1	1304-		●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1009-1207		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1009-1207		●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	08	1	1009-1207		●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1009-1207		●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1009-1303		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (A) WHITE	8-98056-374-0	01	1	1304-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1009-1303		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (B) WHITE	8-98056-375-0	01	1	1304-	●	●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (C) 10P BLUE	1-82699-598-0	04	1	1009-1303		●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (G) 10P GREEN	1-82699-599-0	07	1	1009-1303		●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (D) 10P BROWN	1-82699-601-0	01	1	1009-1303		●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (H) 6P BLACK	8-97616-194-0	02	1	1009-1303		●
720	ATTACHMENT; CONNECTOR WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W)	1-82699-688-0	03	1	1009-1303		●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1304-	●	●

18 204 14 204 14 12 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HARNESS; ROOF FLUORESCENT LAMP<6UC> EXC. LAMPS TWO ROOF MARKER<TEC>	8-98048-931-2	01	1	1009-1303		●
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98048-931-2	01	1	1304-	●	●
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC> FLUORESCENT LAMP<6UC>	8-98079-072-1	01	1	1009-1303		●
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC> EXC. FLUORESCENT LAMP<6UC>	8-98085-333-0	01	1	1009-1303		●
12	HARNESS; ROOF EXC. LAMPS TWO ROOF MARKER<TEC>,FLUORESCENT LAMP<6UC>	8-98041-949-2	01	1	1009-1303		●
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98041-949-2	01	1	1304-	●	●
14	HARNESS; HEADLAMP EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98103-680-1	02	1	1009-1303		●
14	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98103-680-1	02	1	1304-	●	●
14	HARNESS; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98075-629-3	02	1	1009-1303		●
14	HARNESS; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98075-629-3	02	1	1304-	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98084-288-3	01	1	1009-1303		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98084-283-3	01	1	1009-1303		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98108-440-1	01	1	1009-1303		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98108-440-1	01	1	1304-	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98108-439-1	01	1	1009-1303		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98108-439-1	01	1	1304-	●	●
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98076-305-3	01	1	1009-1303		●
18	HARNESS; DOOR DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4>	8-98076-305-3	01	1	1304-	●	●
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98076-304-3	01	1	1009-1303		●
18	HARNESS; DOOR DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4>	8-98076-304-3	01	1	1304-	●	●
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-287-3	01	1	1009-1303		●
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-282-3	01	1	1009-1303		●
204	HARNESS; CABLE,FLOOR ISUZU M/T<X9A>,ZF M/T<X9E> EXC. AIR BAG DRIVER(AJ3) (A)	8-98226-474-0	01	1	1304-		●
204	HARNESS; CABLE,FLOOR A/T<X9D> (B)	8-98213-049-1	01	1	1304-		●
204	HARNESS; CABLE,FLOOR A/T<X9D> EXC. AIR BAG DRIVER(AJ3) (A)	8-98234-722-0	01	1	1304-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) (A)	8-98234-721-0	01	1	1304-	●
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER(AJ3) (A)	8-98234-723-0	01	1	1304-	●
204	HARNESS; CABLE,FLOOR (B)	8-98155-317-2	01	1	1009-1303		●
204	HARNESS; CABLE,FLOOR ISUZU M/T<X9A>,ZF M/T<X9E> (B)	8-98155-317-2	01	1	1304-		●
204	HARNESS; CABLE,FLOOR (B)	8-98155-317-2	01	1	1304-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98117-546-0	01	1	1009-1303		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) A/T<X9D> (A)	8-98234-720-0	01	1	1304-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98155-318-0	01	1	1009-1303		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) ISUZU M/T<X9A>,ZF M/T<X9E> (A)	8-98155-318-0	01	1	1304-		●

419 431 419 6 234 486 6 9 6 419 450 431 683

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (A)	8-98235-454-1	01	1	1304-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 400L<SDH> (A)	8-98235-453-1	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) (A)	8-98237-176-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-191-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-190-1	01	1	1009-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98163-091-2	01	1	1009-1303		●
6	HARNESS; FRAME MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-450-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98163-090-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98217-042-3	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) GENERATOR 24V90A(K44) (A)	8-98163-089-2	01	1	1009-1303		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-451-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) EXC. GENERATOR 24V90A(K44) (A)	8-98156-171-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 400L<SDH> (A)	8-98235-452-1	01	1	1304-		●
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W) ANTILOCK BRAKE SYSTEM(BFA)	8-98235-477-0	01	1	1304-		●
9	HARNESS; FRAME,RR WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA)	8-98235-478-0	01	1	1304-		●
9	HARNESS; FRAME,RR WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98235-480-0	01	1	1304-		●
9	HARNESS; FRAME,RR PTO ZF TRANS RR(BDM) ANTILOCK BRAKE SYSTEM(BFA)	8-98235-485-0	01	1	1304-	●
9	HARNESS; FRAME,RR PTO ZF TRANS RR(BDM) EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98235-486-0	01	1	1304-	●
9	HARNESS; FRAME,RR ANTILOCK BRAKE SYSTEM(BFA) EXC. PTO ZF TRANS RR(BDM)	8-98236-592-0	01	1	1304-	●
9	HARNESS; FRAME,RR EXC. PTO ZF TRANS RR(BDM),ANTILOCK BRAKE SYSTEM(BFA)	8-98236-594-0	01	1	1304-	●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W)	8-98079-746-3	01	1	1009-1303		●
9	HARNESS; FRAME,RR WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA)	8-98217-129-0	01	1	1304-		●
9	HARNESS; FRAME,RR WHEEL BASE 6300MM(63W)	8-98156-175-0	01	1	1009-1303		●
9	HARNESS; FRAME,RR WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98217-130-0	01	1	1304-		●
9	HARNESS; FRAME,RR WHEEL BASE 6600MM(66W)	8-98079-747-2	01	1	1009-1303		●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W) ANTILOCK BRAKE SYSTEM(BFA)	8-98235-476-0	01	1	1304-		●
234	HARNESS; LICENSE LAMP HONG KONG EQUIPMENT(PQ1)	8-98131-066-0	01	1	1009-1303		●
234	HARNESS; LICENSE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98131-066-0	01	1	1304-	●	●
419	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1009-1303		●
419	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1304-	●	●
419	BOLT; CAB EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	1009-1201		●
419	BOLT; CAB EARTH (B) M8X14 W/PL WASHER	8-98164-837-0	03	1	1202-1303		●
419	BOLT; CAB EARTH (B) M8X14 W/PL WASHER	8-98164-837-0	03	1	1304-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1009-1207		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1009-1207		●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	08	1	1009-1207		●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1009-1207		●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1009-1303		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (A) WHITE	8-98056-374-0	01	1	1304-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1009-1303		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (B) WHITE	8-98056-375-0	01	1	1304-	●	●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (C) 10P BLUE	1-82699-598-0	04	1	1009-1303		●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (G) 10P GREEN	1-82699-599-0	07	1	1009-1303		●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (D) 10P BROWN	1-82699-601-0	01	1	1009-1303		●
431	CONNECTOR; JOINT WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (H) 6P BLACK	8-97616-194-0	02	1	1009-1303		●
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	01	1	1009-1303		●
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	01	1	1304-	●	●
486	HARNESS; ALL SPEED ACCEL ENGINE REAR PTO(SV1)	8-98163-095-0	01	1	1009-		●
683	HARNESS; EXT,COOLER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97609-020-1	01	1	1009-1303		●
683	HARNESS; EXT,COOLER AIR CONDITIONER MANUAL CONTROL(C60)	8-97609-020-1	01	1	1304-	●	●

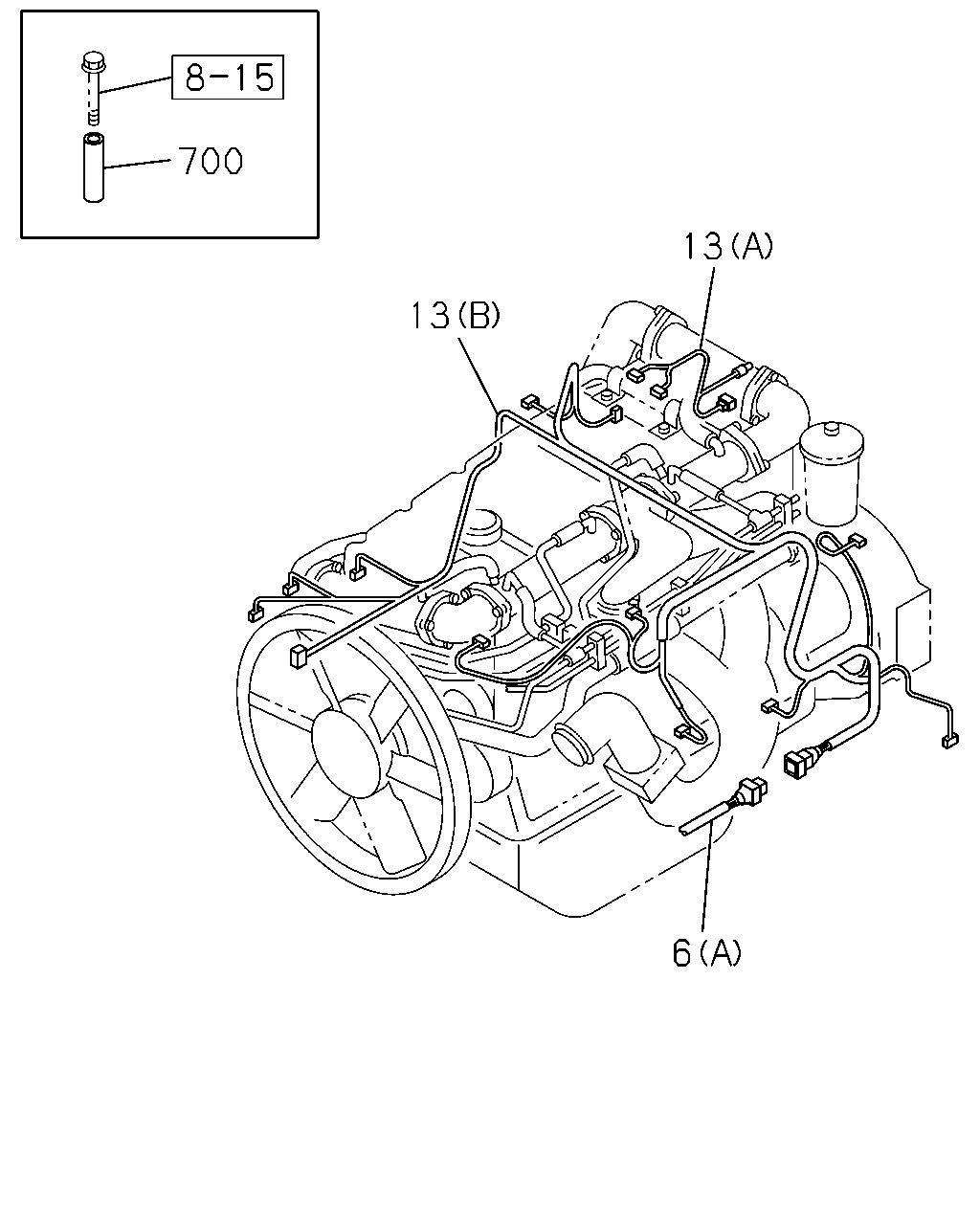

700 13 13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (A)	8-98235-454-1	01	1	1304-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 400L<SDH> (A)	8-98235-453-1	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) (A)	8-98237-176-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-191-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-190-1	01	1	1009-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98163-091-2	01	1	1009-1303		●
6	HARNESS; FRAME MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-450-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98163-090-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98217-042-3	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) GENERATOR 24V90A(K44) (A)	8-98163-089-2	01	1	1009-1303		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-451-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) EXC. GENERATOR 24V90A(K44) (A)	8-98156-171-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 400L<SDH> (A)	8-98235-452-1	01	1	1304-		●
13	HARNESS; ENG (B)	8-97628-333-4	01	1	1009-1204		●
13	HARNESS; ENG (B)	8-98210-223-0	01	1	1205-1303		●
13	HARNESS; ENG (B)	8-98210-223-1	01	1	1304-	●	●
13	HARNESS; ENG ENGINE REAR PTO(SV1) (A)	8-98160-805-0	01	1	1009-		●
13	HARNESS; ENG EXC. ENGINE REAR PTO(SV1) (A)	8-98152-373-1	01	1	1009-1303		●
13	HARNESS; ENG EXC. ENGINE REAR PTO(SV1) (A)	8-98152-373-1	01	1	1304-		●
13	HARNESS; ENG (A)	8-98152-373-1	01	1	1304-	●
700	TUBE; DISTANCE L=51	1-11369-157-0	02	1	1009-1303		●
700	TUBE; DISTANCE L=51	1-11369-157-0	02	1	1304-	●	●

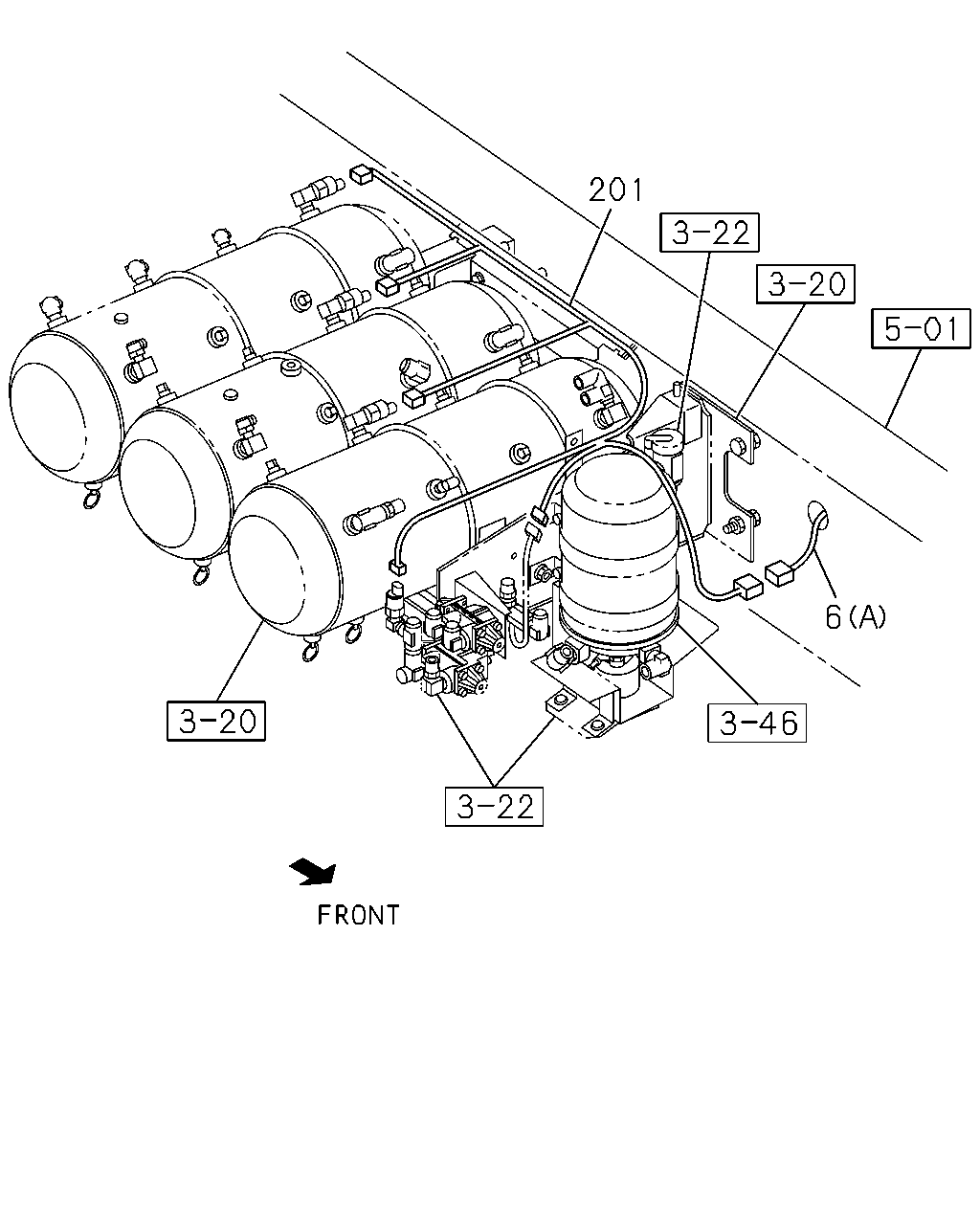

231 195 231 6 541

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (A)	8-98235-454-1	01	1	1304-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 400L<SDH> (A)	8-98235-453-1	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) (A)	8-98237-176-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-191-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-190-1	01	1	1009-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98163-091-2	01	1	1009-1303		●
6	HARNESS; FRAME MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-450-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98163-090-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98217-042-3	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) GENERATOR 24V90A(K44) (A)	8-98163-089-2	01	1	1009-1303		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-451-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) EXC. GENERATOR 24V90A(K44) (A)	8-98156-171-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 400L<SDH> (A)	8-98235-452-1	01	1	1304-		●
195	HARNESS; EXT A/T ALLISON 4430(Y5V)	1-82671-045-1	01	1	1304-		●
231	HARNESS; TRANS A/T ALLISON 4430(Y5V)	8-98197-147-0	01	1	1312-		●
231	HARNESS; TRANS MJT7U M/T(Y4X)	8-97615-725-1	01	1	1009-		●
231	HARNESS; TRANS TRANSMISSION-FULLER RTO11908(Y5L)	8-98079-751-1	01	1	1009-1303		●
231	HARNESS; TRANS MAL6R M/T(Y2J)	8-98075-628-1	01	1	1304-		●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY>	8-98163-093-0	01	1	1009-1303		●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY>	8-98163-093-0	01	1	1304-	●	●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K) EXC. SHIFT PATTERN SINGLE-H<EDY>	8-98172-096-0	01	1	1009-1303		●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ>	8-98172-096-0	01	1	1304-	●	●
541	CLIP A/T ALLISON 4430(Y5V) OD=9 H=6	1-09709-178-0	01	1	1304-		●

4 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1009-1303		●
4	BOX ASM; FUSE,HARNESS ANTILOCK BRAKE SYSTEM(BFA)	8-98065-666-0	01	1	1304-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1009-1303		●
693	RELAY; FUSE BOX ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	AR	1	1304-	●	●

693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1009-1303		●
	693	RELAY; FUSE BOX ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	AR	1	1304-	●	●

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (A)	8-98235-454-1	01	1	1304-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 400L<SDH> (A)	8-98235-453-1	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) (A)	8-98237-176-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-191-1	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98156-190-1	01	1	1009-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98163-091-2	01	1	1009-1303		●
6	HARNESS; FRAME MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-450-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98163-090-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98217-042-3	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) GENERATOR 24V90A(K44) (A)	8-98163-089-2	01	1	1009-1303		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-451-2	01	1	1304-		●
6	HARNESS; FRAME WHEEL BASE 6300MM(63W) EXC. GENERATOR 24V90A(K44) (A)	8-98156-171-2	01	1	1009-1303		●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 400L<SDH> (A)	8-98235-452-1	01	1	1304-		●
201	HARNESS; AIR TANK WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W)	8-98148-958-0	01	1	1304-1307		●
201	HARNESS; AIR TANK WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W)	8-98248-215-0	01	1	1308-		●
201	HARNESS; AIR TANK	8-98079-765-5	01	1	1009-1303		●
201	HARNESS; AIR TANK WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W)	8-98079-765-5	01	1	1304-		●
201	HARNESS; AIR TANK	8-98079-765-5	01	1	1304-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
