◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#70413) — 24 parça

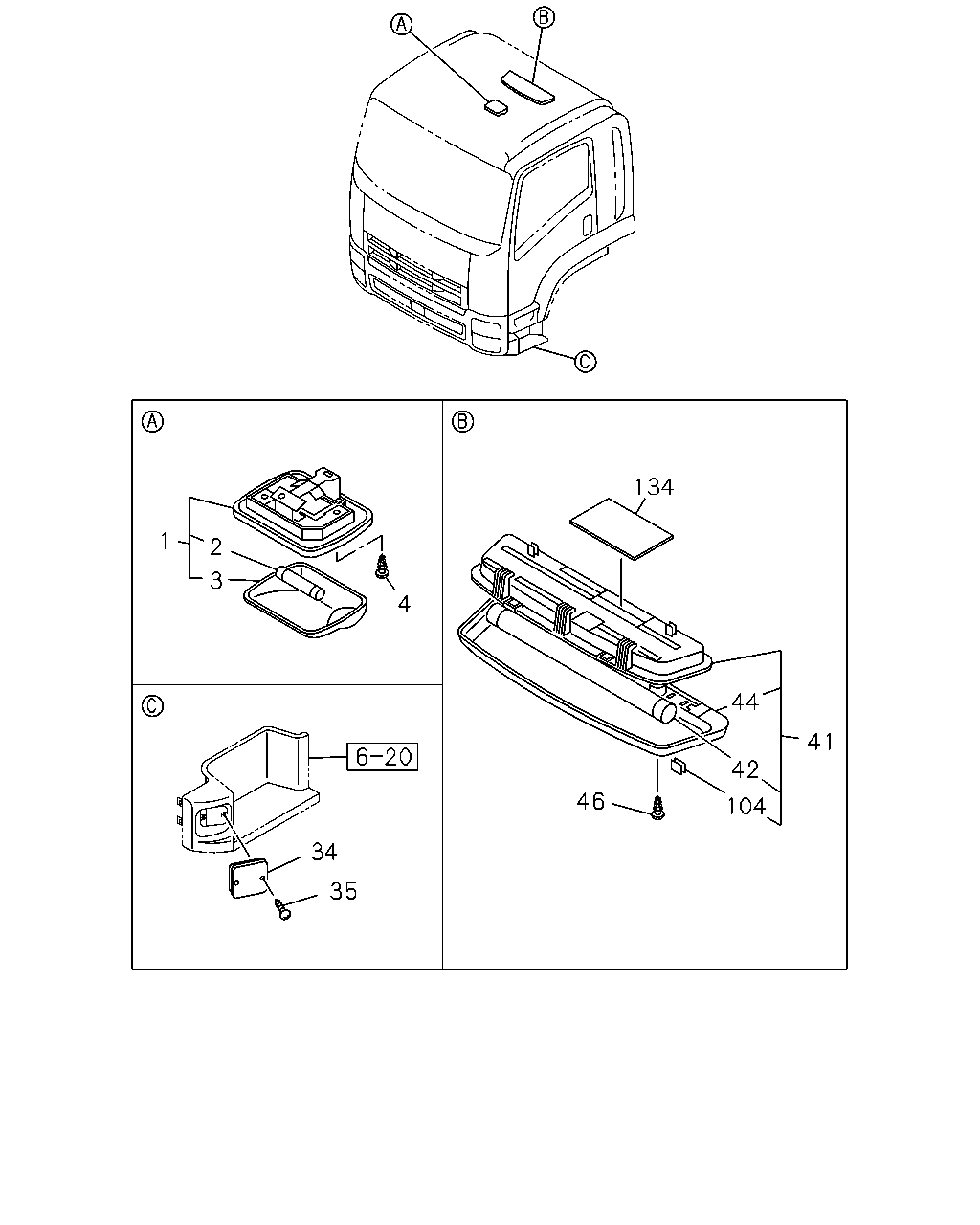

çizim 136450
1 2 3 4 34 35 134 44 41 42 46 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; ROOM 8-98013-421-3 01 1 1009-1303 ●
1 LAMP ASM; ROOM 8-98013-421-3 01 1 1304- ● ●
2 BULB; ROOM LAMP
24V 10W 		5-82194-030-0 01 1 1009-1303 ●
2 BULB; ROOM LAMP
24V 10W 		5-82194-030-0 01 1 1304- ● ●
3 LENS; ROOM LAMP 8-98047-272-0 01 1 1009-1303 ●
3 LENS; ROOM LAMP 8-98047-272-0 01 1 1304- ● ●
4 SCREW; ROOM LAMP
M5X14 W/WASHER 		8-98075-766-0 02 1 1009-1303 ●
4 SCREW; ROOM LAMP
M5X14 W/WASHER 		8-98075-766-0 02 1 1304- ● ●
34 COVER; STEP LAMP 8-98089-568-0 02 1 1009-1303 ●
34 COVER; STEP LAMP 8-98089-568-0 02 1 1304- ● ●
35 SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER 		0-74360-420-0 04 1 1009-1303 ●
35 SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER 		0-74360-420-0 04 1 1304- ● ●
41 LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC> 		8-97387-587-1 01 1 1009-1303 ●
41 LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC> 		8-97387-587-1 01 1 1304- ● ●
42 LAMP; FLUORESCENT
FLUORESCENT LAMP<6UC> FL20SD 		8-98056-311-0 01 1 1009-1303 ●
42 LAMP; FLUORESCENT
FLUORESCENT LAMP<6UC> FL20SD 		8-98056-311-0 01 1 1304- ● ●
44 LENS; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> 		8-98056-315-0 01 1 1009-1303 ●
44 LENS; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> 		8-98056-315-0 01 1 1304- ● ●
46 SCREW; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> M6X12 FLANGE 		0-28060-612-0 02 1 1009-1303 ●
46 SCREW; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> M6X12 FLANGE 		0-28060-612-0 02 1 1304- ● ●
104 CLIP; LAMP
FLUORESCENT LAMP<6UC> 		8-98056-322-0 02 1 1009-1303 ●
104 CLIP; LAMP
FLUORESCENT LAMP<6UC> 		8-98056-322-0 02 1 1304- ● ●
134 SEAL; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> 		8-98076-275-0 01 1 1102-1303 ●
134 SEAL; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> 		8-98076-275-0 01 1 1304- ● ●
