8-03 — LAMP; REAR AND REAR SIDE (#70412) — 89 parça

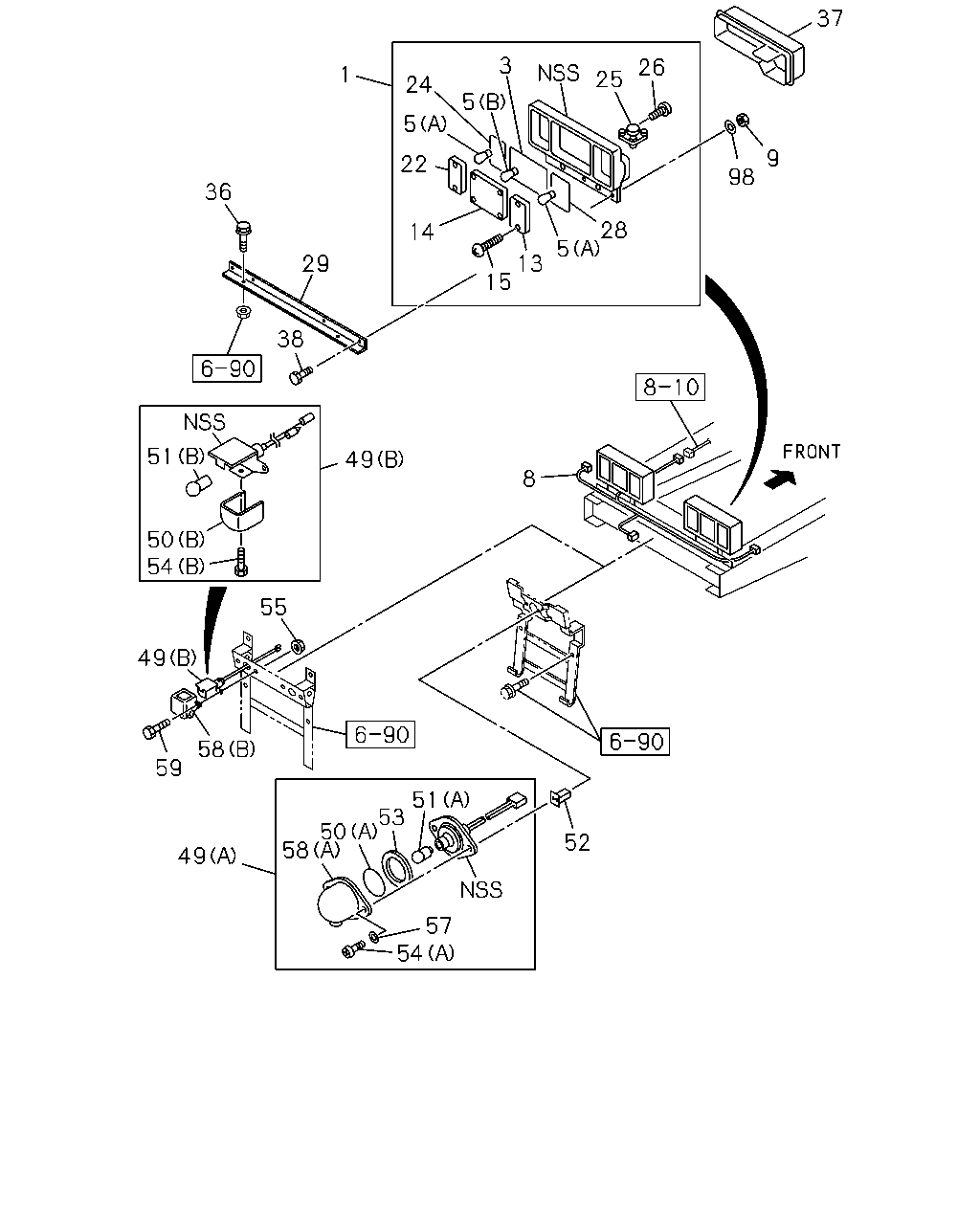

çizim 189517
1 24 5 22 14 15 13 5 28 98 9 26 25 3 5 37 36 29 38 51 50 54 49 55 49 59 58 49 58 50 53 51 54 57 52 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB 8-98034-325-0 01 1 1009-1303 ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		8-98034-325-0 01 1 1304- ● ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		8-98034-328-0 01 1 1009-1303 ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		8-98034-328-0 01 1 1304- ● ●
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> 		8-98034-324-0 01 1 1009-1303 ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 1009-1303 ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 1009-1303 ●
3 GASKET; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> 		8-94257-505-0 02 1 1304- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 1009-1303 ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 1009-1303 ●
5 BULB; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> (A) 24V 21W 		1-82194-108-0 04 1 1304- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 1009-1303 ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 1009-1303 ●
5 BULB; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> (B) 24V 21/5W 		1-82194-109-0 02 1 1304- ● ●
8 HARNESS; RR COMB LAMP
WHEEL BASE 4500MM(45W) 		8-98239-025-0 01 1 1304- ●
8 HARNESS; RR COMB LAMP 8-98057-607-0 01 1 1009-1303 ●
8 HARNESS; RR COMB LAMP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) 		8-98057-607-0 01 1 1304- ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1009-1303 ●
9 NUT; LAMP,RR COMB
REVERSING WARNING BUZZER<YM9> M6 		0-91110-506-0 04 1 1304- ● ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1009-1303 ●
13 LENS; TURN SIGNAL
REVERSING WARNING BUZZER<YM9> 		8-94174-639-0 01 1 1304- ● ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1009-1303 ●
13 LENS; TURN SIGNAL
REVERSING WARNING BUZZER<YM9> 		8-94174-638-0 01 1 1304- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1009-1303 ●
14 LENS; TAIL & STOP,RR COMB LAMP
REVERSING WARNING BUZZER<YM9> 		8-94178-625-0 01 1 1304- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1009-1303 ●
14 LENS; TAIL & STOP,RR COMB LAMP
REVERSING WARNING BUZZER<YM9> 		8-94178-624-0 01 1 1304- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1009-1303 ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1009-1303 ●
15 SCREW; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1304- ● ●
22 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 01 1 1009-1303 ●
22 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 01 1 1009-1303 ●
22 LENS; BACKUP,RR COMB LAMP
REVERSING WARNING BUZZER<YM9> CLEAR 		8-94257-512-1 02 1 1304- ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 1009-1303 ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 1009-1303 ●
24 GASKET; BACK,LAMP
REVERSING WARNING BUZZER<YM9> 		8-94257-506-0 02 1 1304- ● ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 1009-1303 ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 1304- ● ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1009-1303 ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X14 TAPPING 		9-07076-414-0 01 1 1304- ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 1009-1303 ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 1304- ● ●
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 1009-1303 ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 1009-1303 ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 1009-1303 ●
28 GASKET; TURN,LAMP
REVERSING WARNING BUZZER<YM9> 		8-94257-507-0 02 1 1304- ● ●
29 BRACKET; LAMP,RR COMB 1-53178-016-1 01 1 1009-1303 ●
29 BRACKET; LAMP,RR COMB
REVERSING WARNING BUZZER<YM9> 		1-53178-016-1 01 1 1304- ● ●
36 BOLT; BRKT,RR COMB
M10X40 FLANGE 		0-28651-040-0 02 1 1009-1303 ●
36 BOLT; BRKT,RR COMB
REVERSING WARNING BUZZER<YM9> M10X40 FLANGE 		0-28651-040-0 02 1 1304- ● ●
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 1009-1303 ●
37 COVER; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> 		8-94129-274-4 01 1 1304- ● ●
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 1009-1303 ●
37 COVER; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> 		8-94128-858-4 01 1 1304- ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1009-1303 ●
38 BOLT; LAMP,RR COMB
REVERSING WARNING BUZZER<YM9> M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1304- ● ●
49 LAMP; LICENSE PLATE
HONG KONG EQUIPMENT(PQ1) (B) 24V 5W 		8-97105-380-0 02 1 1009-1303 ●
49 LAMP; LICENSE PLATE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 24V 5W 		8-97105-380-0 02 1 1304-1509 ● ●
49 LAMP; LICENSE PLATE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 24V 5W 		8-98329-430-0 02 1 1510- ● ●
49 LAMP; LICENSE PLATE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 24V 10W 		1-82120-024-1 01 1 1009-1303 ●
49 LAMP; LICENSE PLATE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 24V 10W 		1-82120-024-1 01 1 1304- ● ●
50 LENS; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1) (B) 		8-97108-212-0 02 1 1009-1303 ●
50 LENS; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-97108-212-0 02 1 1304- ● ●
50 LENS; LICENSE PLATE LAMP
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-82235-006-0 01 1 1009-1303 ●
50 LENS; LICENSE PLATE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-82235-006-0 01 1 1304- ● ●
51 BULB; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1) (B) 24V 5W 		1-82194-039-0 02 1 1009-1303 ●
51 BULB; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 24V 5W 		1-82194-039-0 02 1 1304- ● ●
51 BULB; LICENSE PLATE LAMP
EXC. HONG KONG EQUIPMENT(PQ1) (A) 24V 10W 		1-82194-037-0 01 1 1009-1303 ●
51 BULB; LICENSE PLATE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 24V 10W 		1-82194-037-0 01 1 1304- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
EXC. HONG KONG EQUIPMENT(PQ1) D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1009-1303 ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1304- ● ●
53 GASKET; LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1) 		1-82126-005-0 01 1 1009-1303 ●
53 GASKET; LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-82126-005-0 01 1 1304- ● ●
54 SCREW; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1) (B) M4X8 		8-94419-312-0 02 1 1009-1303 ●
54 SCREW; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M4X8 		8-94419-312-0 02 1 1304- ● ●
54 SCREW; LICENSE PLATE LAMP
EXC. HONG KONG EQUIPMENT(PQ1) (A) M5X20 		1-82129-007-0 02 1 1009-1303 ●
54 SCREW; LICENSE PLATE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M5X20 		1-82129-007-0 02 1 1304- ● ●
55 NUT; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1) M5 FLANGE 		1-09984-170-0 04 1 1009-1111 ●
57 WASHER; PL,LICENSE PLATE LAMP
EXC. HONG KONG EQUIPMENT(PQ1) 		1-82129-008-0 02 1 1009-1303 ●
57 WASHER; PL,LICENSE PLATE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-82129-008-0 02 1 1304- ● ●
58 COVER; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1) (B) 		8-97076-590-1 02 1 1009-1303 ●
58 COVER; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-97076-590-1 02 1 1304- ● ●
58 COVER; LICENSE PLATE LAMP
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-82129-005-0 01 1 1009-1303 ●
58 COVER; LICENSE PLATE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-82129-005-0 01 1 1304- ● ●
59 SCREW; TAP,LICENSE LAMP BODY
HONG KONG EQUIPMENT(PQ1) M5X20 		9-93490-520-0 02 1 1009-1111 ●
59 SCREW; TAP,LICENSE LAMP BODY
HONG KONG EQUIPMENT(PQ1) M5X20 		9-93490-520-0 04 1 1112-1303 ●
59 SCREW; TAP,LICENSE LAMP BODY
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M5X20 		9-93490-520-0 04 1 1304- ● ●
98 WASHER
ID=6.4 OD=18 		0-91610-706-0 04 1 1009-1303 ●
98 WASHER
REVERSING WARNING BUZZER<YM9> ID=6.4 OD=18 		0-91610-706-0 04 1 1304- ● ●
