◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#70408) — 779 parça

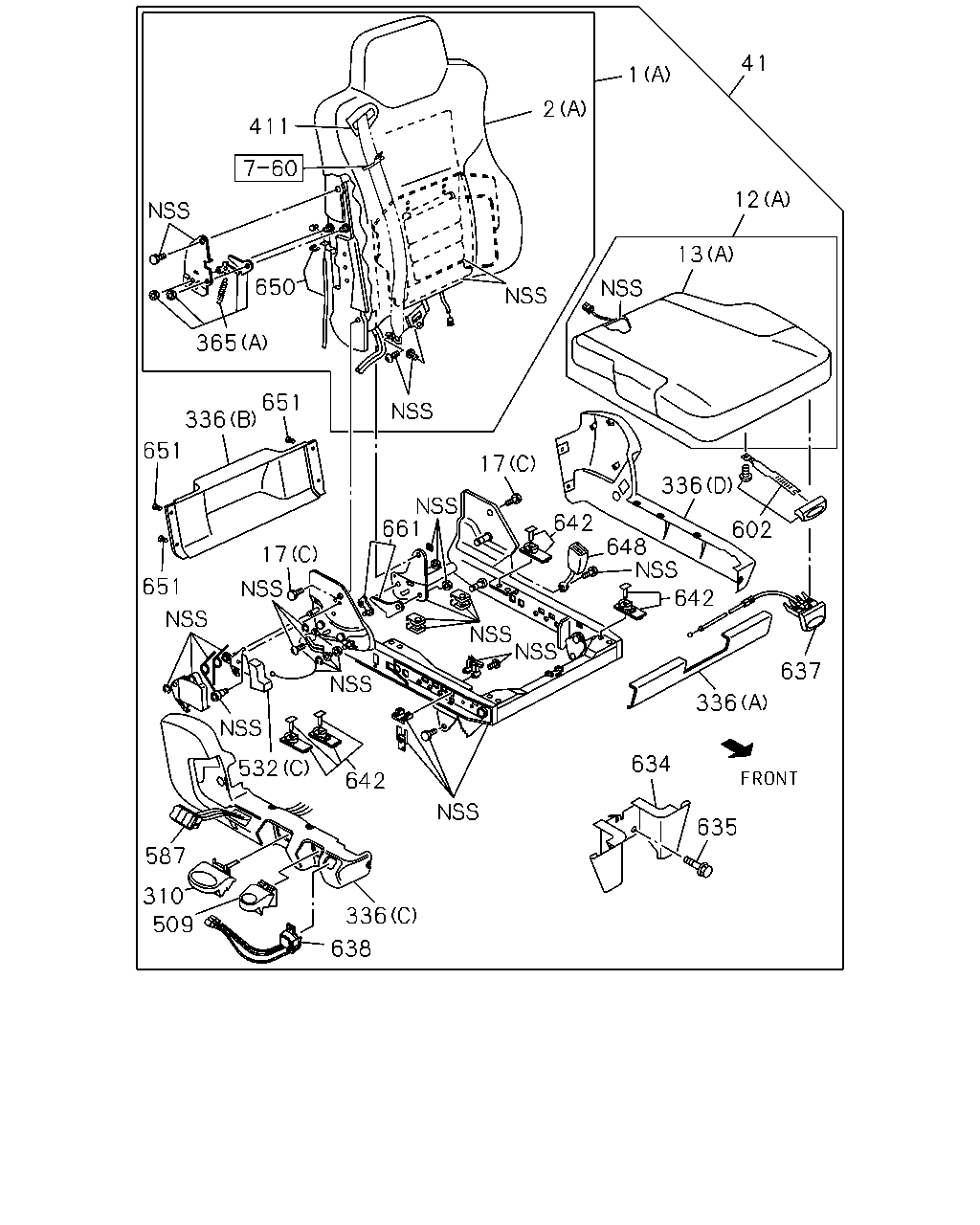

çizim 134316
638 336 509 310 587 642 532 651 17 651 336 651 365 650 411 661 17 642 648 642 637 634 635 602 336 13 12 2 1 41 336
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-964-0 01 1 1009-1303 ●
1 BACK ASM; SEAT
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97416-201-0 01 1 1009-1009 ●
1 BACK ASM; SEAT
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97421-406-0 01 1 1010-1303 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97421-406-1 01 1 1304-1512 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97466-620-0 01 1 1601- ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97409-955-4 01 1 1009-1303 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97409-955-5 01 1 1304-1502 ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97409-955-5 01 1 1503-1509 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97409-955-5 01 1 1510-1512 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97466-618-0 01 1 1601- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-966-0 01 1 1009-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98232-353-0 01 1 1301-1303 ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97416-206-0 01 1 1009-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97421-411-0 01 1 1010-1303 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97421-411-0 01 1 1304- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97411-910-2 01 1 1009-1303 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97411-910-2 01 1 1304-1502 ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97411-910-2 01 1 1503-1509 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97411-910-2 01 1 1510- ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-006-0 01 1 1009-1303 ●
12 CUSHION; SEAT,FRT
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97416-211-1 01 1 1009-1009 ●
12 CUSHION; SEAT,FRT
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97421-397-0 01 1 1010-1303 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97421-397-2 01 1 1304-1512 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97466-610-0 01 1 1601- ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97409-954-1 01 1 1009-1303 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97409-954-2 01 1 1304-1502 ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97409-954-2 01 1 1503-1509 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97409-954-2 01 1 1510-1512 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97466-606-0 01 1 1601- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-007-0 01 1 1009-1303 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97416-215-0 01 1 1009-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97421-401-0 01 1 1010-1303 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97421-401-2 01 1 1304- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97411-909-0 01 1 1009-1303 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97411-909-1 01 1 1304-1502 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97411-909-1 01 1 1503-1509 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97411-909-1 01 1 1510- ● ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98097-974-0 02 1 1009-1303 ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8X20 		8-98092-334-0 02 1 1009-1303 ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8X20 		8-98092-334-0 02 1 1304- ● ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) M10X20 		8-98062-661-0 02 1 1009-1303 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1304-1502 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1503-1509 ● ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) M10X20 		8-98062-661-0 02 1 1503-1509 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1510- ● ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98046-984-2 01 1 1009-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98195-063-0 01 1 1301-1303 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-992-0 01 1 1009-1303 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (D) 		8-98097-978-0 01 1 1009-1303 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98097-984-0 01 1 1009-1303 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-995-0 01 1 1009-1303 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98097-996-0 01 1 1009-1303 ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-972-0 01 1 1009-1303 ●
365 LOCK ASM; SEAT
DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 1009-1104 ●
365 LOCK ASM; SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 1110-1303 ●
365 LOCK ASM; SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 1304- ● ●
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-967-0 01 1 1009-1303 ●
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-988-0 01 1 1009-1303 ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98097-982-0 01 1 1009-1303 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-204-1 01 1 1304-1502 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) 		1-75518-204-1 01 1 1503-1509 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-204-1 01 1 1510- ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-203-0 01 1 1304-1502 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		1-75518-203-0 01 1 1503-1509 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-203-0 01 1 1510- ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-986-0 01 1 1009-1303 ●
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-008-0 01 1 1009-1303 ●
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98088-279-0 01 1 1009-1303 ●
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT(SJA) M6X16 		0-52000-616-0 02 1 1009-1303 ●
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-989-0 01 1 1009-1303 ●
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-994-0 01 1 1009-1303 ●
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98192-932-0 04 1 1009-1303 ●
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-976-0 01 1 1009-1303 ●
650 CABLE
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-973-0 01 1 1009-1212 ●
650 CABLE
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98232-354-0 01 1 1301-1303 ●
651 RIVET
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98194-075-0 04 1 1009-1303 ●
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-980-0 01 1 1009-1303 ●

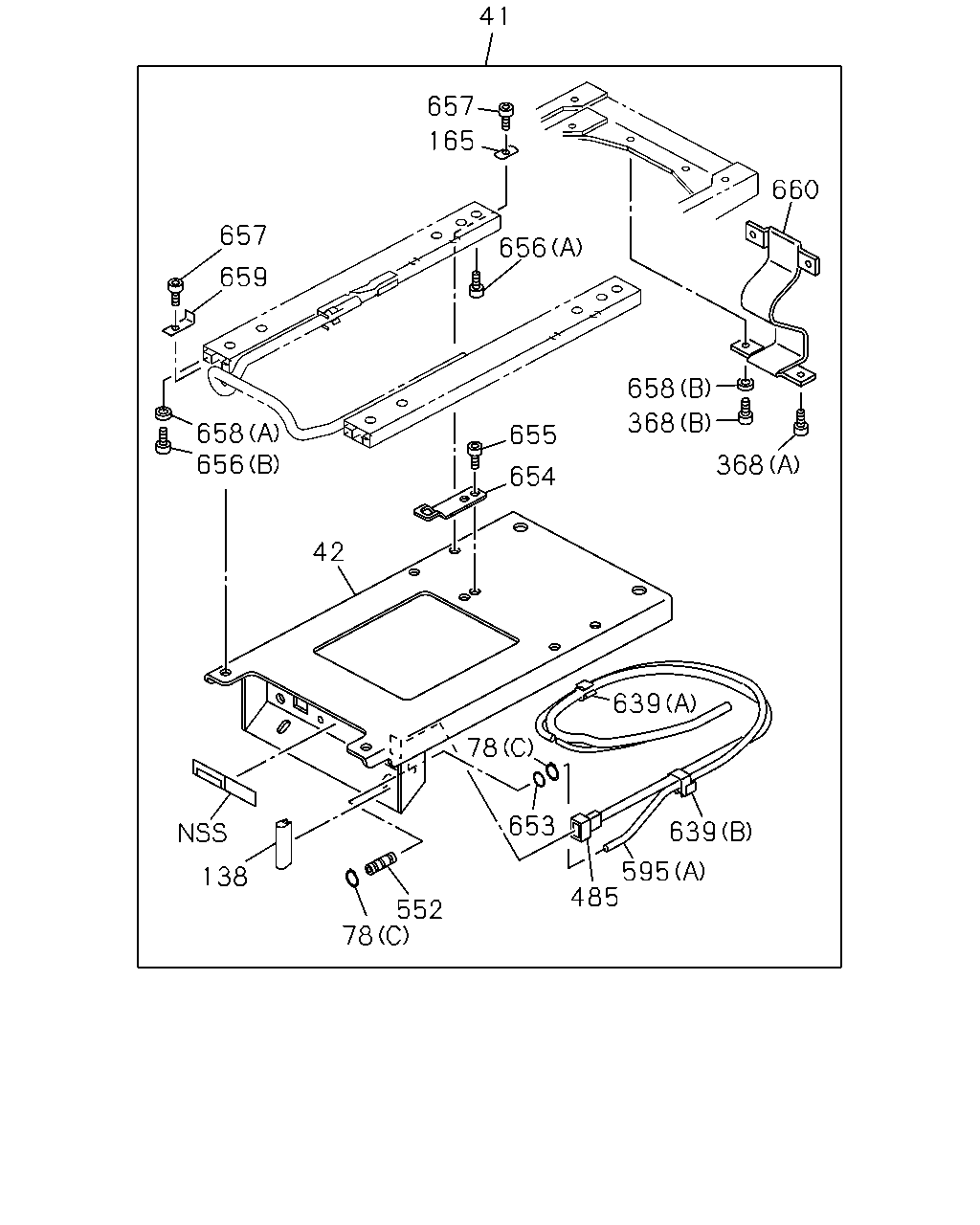

çizim 135014
41 657 658 659 656 657 656 165 660 368 368 658 42 655 654 138 78 552 78 653 485 595 639 639
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98046-984-2 01 1 1009-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98195-063-0 01 1 1301-1303 ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-346-0 01 1 1009-1303 ●
42 STAND; DRIVER SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		1-75558-604-1 01 1 1009-1303 ●
42 STAND; DRIVER SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		1-75558-604-2 01 1 1304- ● ●
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98101-900-0 02 1 1009-1303 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) ID=8 		9-09185-408-0 01 1 1304-1502 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) ID=8 		9-09185-408-0 01 1 1503-1509 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) ID=8 		9-09185-408-0 01 1 1510- ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) ID=15 		9-09185-415-0 01 1 1304-1502 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) ID=15 		9-09185-415-0 01 1 1503-1509 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) ID=15 		9-09185-415-0 01 1 1510- ● ●
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-351-0 01 1 1009-1303 ●
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75590-086-0 04 1 1009-1303 ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98106-353-0 03 1 1009-1303 ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98106-358-0 01 1 1009-1303 ●
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-360-0 01 1 1009-1303 ●
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98101-902-0 01 1 1009-1303 ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98106-348-0 01 1 1009-1303 ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98067-762-0 01 1 1009-1303 ●
595 TUBE; NYLON
AIR SUSP DRIVER SEAT(A56) (B) 		8-98067-762-0 01 1 1304- ● ●
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98106-349-0 01 1 1009-1303 ●
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98106-350-0 01 1 1009-1303 ●
653 GASKET
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98101-901-0 01 1 1009-1303 ●
654 HOOK; STOPPER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-352-0 01 1 1009-1303 ●
655 BOLT; HOOK
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-353-0 02 1 1009-1303 ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		1-75590-085-0 04 1 1009-1303 ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98106-354-0 02 1 1009-1303 ●
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75590-085-0 06 1 1009-1303 ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98106-355-0 02 1 1009-1303 ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98106-359-0 01 1 1009-1303 ●
659 STOPPER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-356-0 02 1 1009-1303 ●
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-357-0 01 1 1009-1303 ●

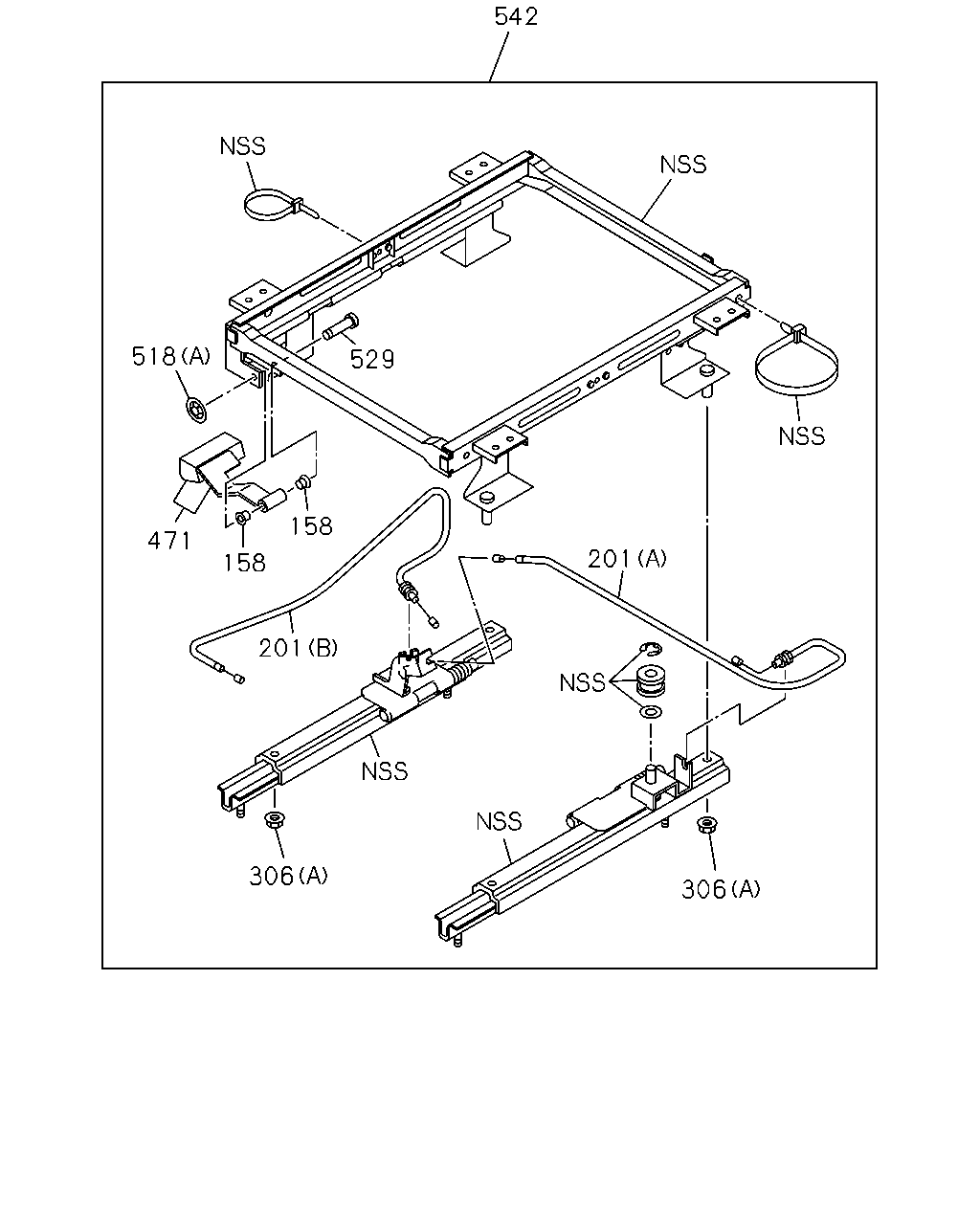

çizim 135037
542 529 518 471 158 201 158 306 306 201
BalonParca AdiParca NoAdetTipApplied Date A B
158 BUSHING; LINK ARM
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-209-0 02 1 1009-1303 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-209-0 02 1 1304-1502 ● ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75518-209-0 02 1 1503-1509 ● ●
158 BUSHING; LINK ARM
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-209-0 02 1 1503-1509 ● ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-209-0 02 1 1510- ● ●
201 CABLE; ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) L=667 		1-75518-288-0 01 1 1009-1303 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) L=667 		1-75518-288-0 01 1 1304-1502 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) L=667 		1-75518-288-0 01 1 1503-1509 ● ●
201 CABLE; ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) L=667 		1-75518-288-0 01 1 1503-1509 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) L=667 		1-75518-288-0 01 1 1510- ● ●
201 CABLE; ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) L=605 		1-75518-289-1 01 1 1009-1303 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) L=605 		1-75518-289-1 01 1 1304-1502 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) L=605 		1-75518-289-1 01 1 1503-1509 ● ●
201 CABLE; ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) L=605 		1-75518-289-1 01 1 1503-1509 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) L=605 		1-75518-289-1 01 1 1510- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1009-1303 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1304- ● ●
306 NUT; SEAT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE 		1-75538-207-0 08 1 1009-1303 ●
306 NUT; SEAT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE 		1-75538-207-0 08 1 1304- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1304-1502 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1509 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ● ●
471 LEVER; SEAT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98107-869-0 01 1 1009-1303 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98107-869-0 01 1 1304-1502 ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		8-98107-869-0 01 1 1503-1509 ● ●
471 LEVER; SEAT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98107-869-0 01 1 1503-1509 ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98107-869-0 01 1 1510- ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-263-0 01 1 1009-1303 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-263-0 01 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		1-75518-263-0 01 1 1503-1509 ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-263-0 01 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-263-0 01 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8 		1-75518-264-0 04 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C) M8 		1-75518-264-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8 		1-75518-264-0 04 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE 		1-75538-207-0 04 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (E) M8 FLANGE 		1-75538-207-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE 		1-75538-207-0 04 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE 		8-94152-886-0 04 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M8 FLANGE 		8-94152-886-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE 		8-94152-886-0 04 1 1510- ● ●
529 PIN; LINK
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-262-0 01 1 1009-1303 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-262-0 01 1 1304-1502 ● ●
529 PIN; LINK
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75518-262-0 01 1 1503-1509 ● ●
529 PIN; LINK
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-262-0 01 1 1503-1509 ● ●
529 PIN; LINK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-262-0 01 1 1510- ● ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98093-310-0 01 1 1009-1303 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98093-310-0 01 1 1304-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98291-653-0 01 1 1503- ● ●
çizim 135217
1 2 126 348 74 518 69 62 290 67 327 633 13 12 100 17 19 24 228 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-964-0 01 1 1009-1303 ●
1 BACK ASM; SEAT
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97416-201-0 01 1 1009-1009 ●
1 BACK ASM; SEAT
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97421-406-0 01 1 1010-1303 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97421-406-1 01 1 1304-1512 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97466-620-0 01 1 1601- ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97409-955-4 01 1 1009-1303 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97409-955-5 01 1 1304-1502 ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97409-955-5 01 1 1503-1509 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97409-955-5 01 1 1510-1512 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97466-618-0 01 1 1601- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-966-0 01 1 1009-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98232-353-0 01 1 1301-1303 ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97416-206-0 01 1 1009-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97421-411-0 01 1 1010-1303 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97421-411-0 01 1 1304- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97411-910-2 01 1 1009-1303 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97411-910-2 01 1 1304-1502 ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97411-910-2 01 1 1503-1509 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97411-910-2 01 1 1510- ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-006-0 01 1 1009-1303 ●
12 CUSHION; SEAT,FRT
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97416-211-1 01 1 1009-1009 ●
12 CUSHION; SEAT,FRT
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97421-397-0 01 1 1010-1303 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97421-397-2 01 1 1304-1512 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97466-610-0 01 1 1601- ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97409-954-1 01 1 1009-1303 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97409-954-2 01 1 1304-1502 ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97409-954-2 01 1 1503-1509 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97409-954-2 01 1 1510-1512 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97466-606-0 01 1 1601- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-007-0 01 1 1009-1303 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97416-215-0 01 1 1009-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97421-401-0 01 1 1010-1303 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97421-401-2 01 1 1304- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97411-909-0 01 1 1009-1303 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97411-909-1 01 1 1304-1502 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97411-909-1 01 1 1503-1509 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97411-909-1 01 1 1510- ● ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98097-974-0 02 1 1009-1303 ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8X20 		8-98092-334-0 02 1 1009-1303 ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8X20 		8-98092-334-0 02 1 1304- ● ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) M10X20 		8-98062-661-0 02 1 1009-1303 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1304-1502 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1503-1509 ● ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) M10X20 		8-98062-661-0 02 1 1503-1509 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1510- ● ●
18 COVER; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) GRAY 		8-97409-332-0 01 1 1009-1303 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY 		8-97409-332-0 01 1 1304-1502 ● ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY 		8-97409-332-0 01 1 1503-1509 ● ●
18 COVER; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) GRAY 		8-97409-332-0 01 1 1503-1509 ● ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY 		8-97409-332-0 01 1 1510- ● ●
19 SCREW; COVER
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M5 		8-98062-663-0 01 1 1009-1303 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M5 		8-98062-663-0 01 1 1304-1502 ● ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M5 		8-98062-663-0 01 1 1503-1509 ● ●
19 SCREW; COVER
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M5 		8-98062-663-0 01 1 1503-1509 ● ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M5 		8-98062-663-0 01 1 1510- ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) GRAY 		8-97409-333-0 01 1 1009-1303 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY 		8-97409-333-0 01 1 1304-1502 ● ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY 		8-97409-333-0 01 1 1503-1509 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) GRAY 		8-97409-333-0 01 1 1503-1509 ● ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY 		8-97409-333-0 01 1 1510- ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-183-8 01 1 1304-1403 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98261-448-0 01 1 1404-1502 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		8-98261-448-0 01 1 1503-1509 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98261-448-0 01 1 1510- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1009-1303 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1304- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1009-1303 ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1304- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98003-678-0 01 1 1304-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		8-98291-640-0 01 1 1503-1509 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98291-640-0 01 1 1510- ● ●
100 COVER; HINGE
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98203-070-0 01 1 1110-1303 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98203-070-0 01 1 1304-1502 ● ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		8-98203-070-0 01 1 1503-1509 ● ●
100 COVER; HINGE
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98203-070-0 01 1 1503-1509 ● ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98203-070-0 01 1 1510-1512 ● ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98286-009-0 01 1 1601- ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1009-1104 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1110-1303 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1304- ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) 		8-98063-218-0 01 1 1009-1303 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		8-98063-218-0 01 1 1304-1502 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		8-98063-218-0 01 1 1503-1509 ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) 		8-98063-218-0 01 1 1503-1509 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		8-98063-218-0 01 1 1510-1512 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		8-98286-007-0 01 1 1601- ● ●
228 SCREW; KNOB
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M4 		8-98062-662-0 01 1 1009-1303 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M4 		8-98062-662-0 01 1 1304-1502 ● ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M4 		8-98062-662-0 01 1 1503-1509 ● ●
228 SCREW; KNOB
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M4 		8-98062-662-0 01 1 1503-1509 ● ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M4 		8-98062-662-0 01 1 1510- ● ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) M8 FLANGE 		1-75538-207-0 04 1 1304-1502 ● ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M8 FLANGE 		1-75538-207-0 04 1 1503-1509 ● ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) M8 FLANGE 		1-75538-207-0 04 1 1510- ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-004-0 01 1 1009-1303 ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT(A56) ID=459 		1-09987-273-0 01 1 1304- ● ●
348 BOLT; HINGE,SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98286-008-0 01 1 1601- ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-263-0 01 1 1009-1303 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-263-0 01 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		1-75518-263-0 01 1 1503-1509 ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-263-0 01 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-263-0 01 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8 		1-75518-264-0 04 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C) M8 		1-75518-264-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8 		1-75518-264-0 04 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE 		1-75538-207-0 04 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (E) M8 FLANGE 		1-75538-207-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE 		1-75538-207-0 04 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE 		8-94152-886-0 04 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M8 FLANGE 		8-94152-886-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE 		8-94152-886-0 04 1 1510- ● ●
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY 		8-97409-956-0 01 1 1304-1502 ● ●
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY 		8-97409-956-0 01 1 1503-1509 ● ●
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY 		8-97409-956-0 01 1 1510- ● ●

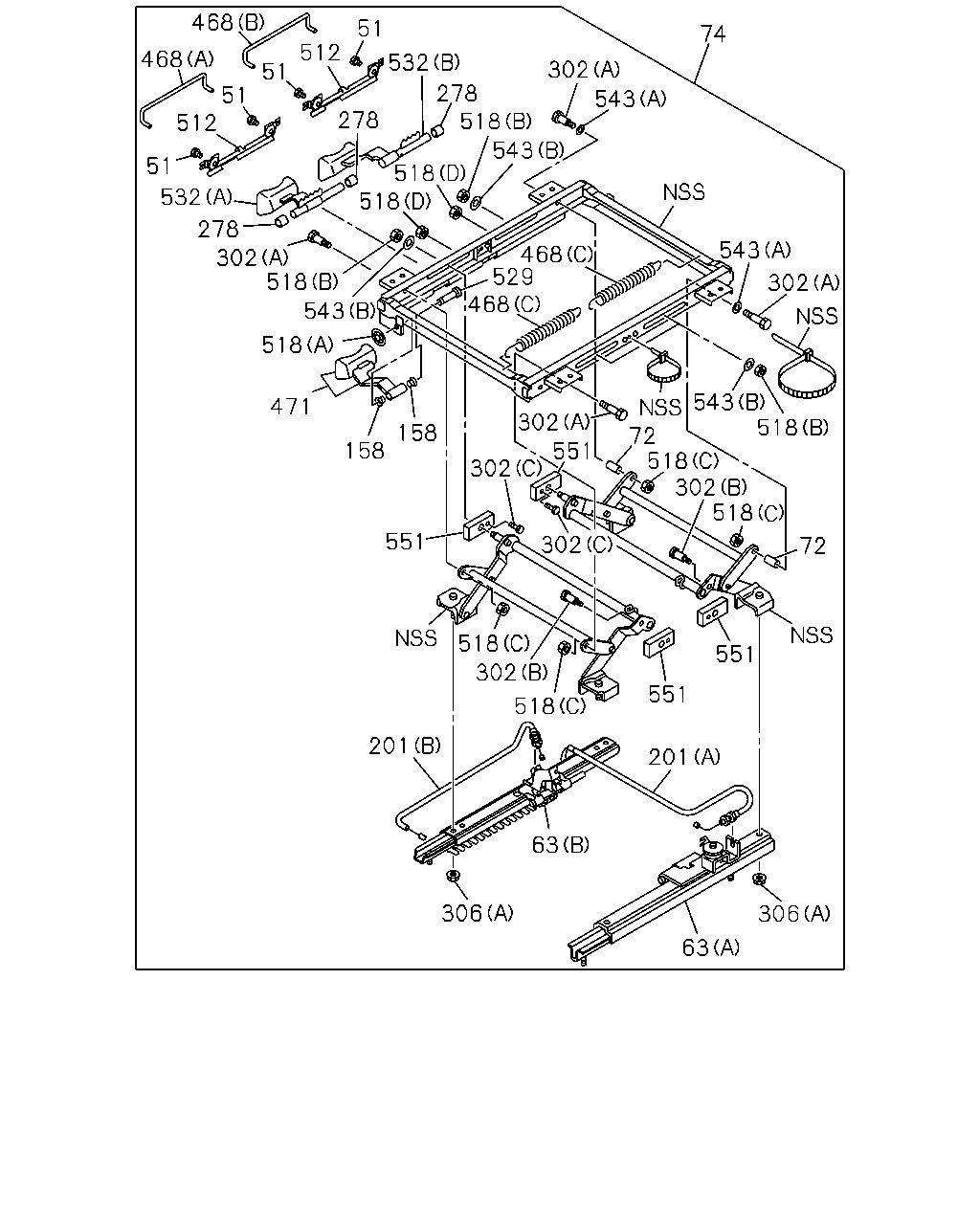

çizim 135219
468 468 512 51 278 51 51 512 51 278 278 532 532 302 518 471 158 158 551 518 518 543 201 306 63 518 302 518 551 201 63 306 551 72 518 302 518 72 551 302 302 302 543 302 543 468 529 468 543 518 302 518 543 74 518
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-325-1 04 1 1304-1502 ● ●
51 SCREW; COVER
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75518-325-1 04 1 1503-1509 ● ●
51 SCREW; COVER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-325-1 04 1 1510- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98098-005-0 01 1 1009-1303 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-199-1 01 1 1304-1502 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		1-75518-199-1 01 1 1503-1509 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-199-1 01 1 1510- ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-323-0 01 1 1304-1502 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) 		1-75518-323-0 01 1 1503-1509 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-323-0 01 1 1510- ● ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-334-1 02 1 1304-1502 ● ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		8-98291-668-0 02 1 1503-1509 ● ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98291-668-0 02 1 1510- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98003-678-0 01 1 1304-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		8-98291-640-0 01 1 1503-1509 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98291-640-0 01 1 1510- ● ●
158 BUSHING; LINK ARM
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-209-0 02 1 1009-1303 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-209-0 02 1 1304-1502 ● ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75518-209-0 02 1 1503-1509 ● ●
158 BUSHING; LINK ARM
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-209-0 02 1 1503-1509 ● ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-209-0 02 1 1510- ● ●
201 CABLE; ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) L=667 		1-75518-288-0 01 1 1009-1303 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) L=667 		1-75518-288-0 01 1 1304-1502 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) L=667 		1-75518-288-0 01 1 1503-1509 ● ●
201 CABLE; ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) L=667 		1-75518-288-0 01 1 1503-1509 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) L=667 		1-75518-288-0 01 1 1510- ● ●
201 CABLE; ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) L=605 		1-75518-289-1 01 1 1009-1303 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) L=605 		1-75518-289-1 01 1 1304-1502 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) L=605 		1-75518-289-1 01 1 1503-1509 ● ●
201 CABLE; ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) L=605 		1-75518-289-1 01 1 1503-1509 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) L=605 		1-75518-289-1 01 1 1510- ● ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-244-0 03 1 1304-1502 ● ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75518-244-0 03 1 1503-1509 ● ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-244-0 03 1 1510- ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-266-2 02 1 1304-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) 		1-75518-266-2 02 1 1503-1509 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-266-2 02 1 1510- ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-270-1 04 1 1304-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		8-98291-667-0 04 1 1503-1509 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		8-98291-667-0 04 1 1510- ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) 		1-75518-336-1 02 1 1304-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C) 		1-75518-336-1 02 1 1503-1509 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) 		1-75518-336-1 02 1 1510- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1009-1303 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1304- ● ●
306 NUT; SEAT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE 		1-75538-207-0 08 1 1009-1303 ●
306 NUT; SEAT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE 		1-75538-207-0 08 1 1304- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1304-1502 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1509 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-206-0 01 1 1304-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		1-75518-206-0 01 1 1503-1509 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-206-0 01 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-207-0 01 1 1304-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) 		1-75518-207-0 01 1 1503-1509 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-207-0 01 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) 		1-75518-208-0 02 1 1304-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C) 		1-75518-208-0 02 1 1503-1509 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) 		1-75518-208-0 02 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) 		1-75538-132-0 01 1 1304-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) 		1-75538-132-0 01 1 1503-1509 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) 		1-75538-132-0 01 1 1510- ● ●
471 LEVER; SEAT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98107-869-0 01 1 1009-1303 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98107-869-0 01 1 1304-1502 ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		8-98107-869-0 01 1 1503-1509 ● ●
471 LEVER; SEAT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98107-869-0 01 1 1503-1509 ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98107-869-0 01 1 1510- ● ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-243-1 02 1 1304-1502 ● ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75518-243-1 02 1 1503-1509 ● ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-243-1 02 1 1510- ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-263-0 01 1 1009-1303 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-263-0 01 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		1-75518-263-0 01 1 1503-1509 ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-263-0 01 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-263-0 01 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8 		1-75518-264-0 04 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C) M8 		1-75518-264-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8 		1-75518-264-0 04 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE 		1-75538-207-0 04 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (E) M8 FLANGE 		1-75538-207-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE 		1-75538-207-0 04 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE 		8-94152-886-0 04 1 1304-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M8 FLANGE 		8-94152-886-0 04 1 1503-1509 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE 		8-94152-886-0 04 1 1510- ● ●
529 PIN; LINK
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-262-0 01 1 1009-1303 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-262-0 01 1 1304-1502 ● ●
529 PIN; LINK
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75518-262-0 01 1 1503-1509 ● ●
529 PIN; LINK
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-262-0 01 1 1503-1509 ● ●
529 PIN; LINK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-262-0 01 1 1510- ● ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98097-982-0 01 1 1009-1303 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-204-1 01 1 1304-1502 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) 		1-75518-204-1 01 1 1503-1509 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-204-1 01 1 1510- ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-203-0 01 1 1304-1502 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		1-75518-203-0 01 1 1503-1509 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-203-0 01 1 1510- ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-335-0 02 1 1304-1502 ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-1509 ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) ID=13 OD=19 		8-98291-669-0 02 1 1510- ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) ID=8.4 		9-09160-508-0 04 1 1304-1502 ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) ID=8.4 		9-09160-508-0 04 1 1503-1509 ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) ID=8.4 		9-09160-508-0 04 1 1510- ● ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-265-0 04 1 1304-1502 ● ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75518-265-0 04 1 1503-1509 ● ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75518-265-0 04 1 1510- ● ●

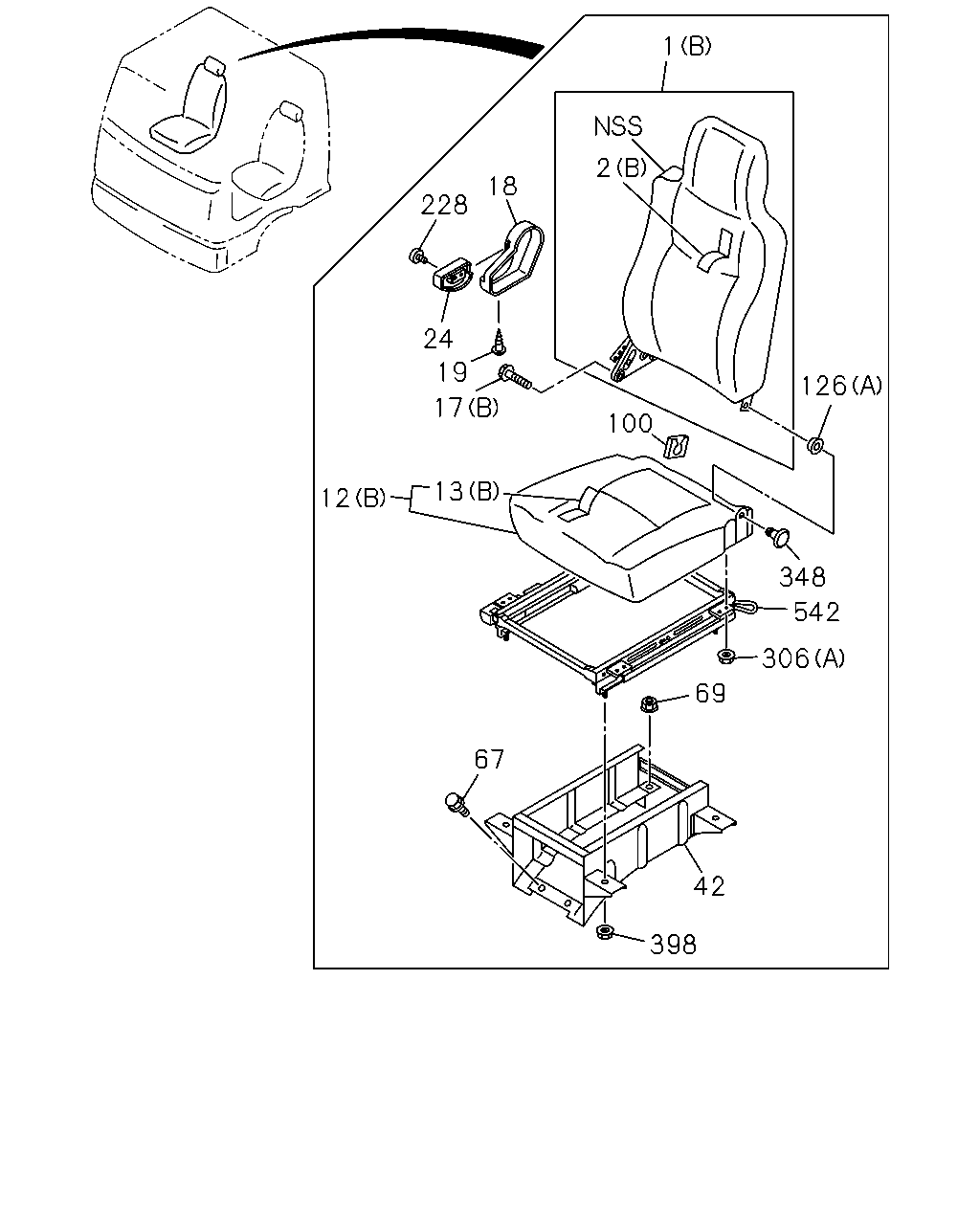

çizim 135248
1 2 18 228 24 19 17 100 126 348 542 306 69 13 12 67 398 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-964-0 01 1 1009-1303 ●
1 BACK ASM; SEAT
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97416-201-0 01 1 1009-1009 ●
1 BACK ASM; SEAT
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97421-406-0 01 1 1010-1303 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97421-406-1 01 1 1304-1512 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97466-620-0 01 1 1601- ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97409-955-4 01 1 1009-1303 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97409-955-5 01 1 1304-1502 ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97409-955-5 01 1 1503-1509 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97409-955-5 01 1 1510-1512 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97466-618-0 01 1 1601- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-966-0 01 1 1009-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98232-353-0 01 1 1301-1303 ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97416-206-0 01 1 1009-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97421-411-0 01 1 1010-1303 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97421-411-0 01 1 1304- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97411-910-2 01 1 1009-1303 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97411-910-2 01 1 1304-1502 ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97411-910-2 01 1 1503-1509 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97411-910-2 01 1 1510- ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-006-0 01 1 1009-1303 ●
12 CUSHION; SEAT,FRT
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97416-211-1 01 1 1009-1009 ●
12 CUSHION; SEAT,FRT
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97421-397-0 01 1 1010-1303 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97421-397-2 01 1 1304-1512 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97466-610-0 01 1 1601- ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97409-954-1 01 1 1009-1303 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97409-954-2 01 1 1304-1502 ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97409-954-2 01 1 1503-1509 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97409-954-2 01 1 1510-1512 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97466-606-0 01 1 1601- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-007-0 01 1 1009-1303 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97416-215-0 01 1 1009-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97421-401-0 01 1 1010-1303 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) (B) DARK GRAY 		8-97421-401-2 01 1 1304- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97411-909-0 01 1 1009-1303 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97411-909-1 01 1 1304-1502 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY 		8-97411-909-1 01 1 1503-1509 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) (B) DARK GRAY 		8-97411-909-1 01 1 1510- ● ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98097-974-0 02 1 1009-1303 ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8X20 		8-98092-334-0 02 1 1009-1303 ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8X20 		8-98092-334-0 02 1 1304- ● ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) M10X20 		8-98062-661-0 02 1 1009-1303 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1304-1502 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1503-1509 ● ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) M10X20 		8-98062-661-0 02 1 1503-1509 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1510- ● ●
18 COVER; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) GRAY 		8-97409-332-0 01 1 1009-1303 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY 		8-97409-332-0 01 1 1304-1502 ● ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY 		8-97409-332-0 01 1 1503-1509 ● ●
18 COVER; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) GRAY 		8-97409-332-0 01 1 1503-1509 ● ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY 		8-97409-332-0 01 1 1510- ● ●
19 SCREW; COVER
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M5 		8-98062-663-0 01 1 1009-1303 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M5 		8-98062-663-0 01 1 1304-1502 ● ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M5 		8-98062-663-0 01 1 1503-1509 ● ●
19 SCREW; COVER
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M5 		8-98062-663-0 01 1 1503-1509 ● ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M5 		8-98062-663-0 01 1 1510- ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) GRAY 		8-97409-333-0 01 1 1009-1303 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY 		8-97409-333-0 01 1 1304-1502 ● ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY 		8-97409-333-0 01 1 1503-1509 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) GRAY 		8-97409-333-0 01 1 1503-1509 ● ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY 		8-97409-333-0 01 1 1510- ● ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-346-0 01 1 1009-1303 ●
42 STAND; DRIVER SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		1-75558-604-1 01 1 1009-1303 ●
42 STAND; DRIVER SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		1-75558-604-2 01 1 1304- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1009-1303 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1304- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1009-1303 ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1304- ● ●
100 COVER; HINGE
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98203-070-0 01 1 1110-1303 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98203-070-0 01 1 1304-1502 ● ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		8-98203-070-0 01 1 1503-1509 ● ●
100 COVER; HINGE
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98203-070-0 01 1 1503-1509 ● ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98203-070-0 01 1 1510-1512 ● ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98286-009-0 01 1 1601- ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1009-1104 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1110-1303 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1304- ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) 		8-98063-218-0 01 1 1009-1303 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		8-98063-218-0 01 1 1304-1502 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		8-98063-218-0 01 1 1503-1509 ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) 		8-98063-218-0 01 1 1503-1509 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		8-98063-218-0 01 1 1510-1512 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		8-98286-007-0 01 1 1601- ● ●
228 SCREW; KNOB
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M4 		8-98062-662-0 01 1 1009-1303 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M4 		8-98062-662-0 01 1 1304-1502 ● ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M4 		8-98062-662-0 01 1 1503-1509 ● ●
228 SCREW; KNOB
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M4 		8-98062-662-0 01 1 1503-1509 ● ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M4 		8-98062-662-0 01 1 1510- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1009-1303 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1304- ● ●
306 NUT; SEAT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE 		1-75538-207-0 08 1 1009-1303 ●
306 NUT; SEAT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE 		1-75538-207-0 08 1 1304- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1304-1502 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1509 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ● ●
348 BOLT; HINGE,SEAT
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98286-008-0 01 1 1601- ● ●
398 NUT; STAND
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 04 1 1009-1303 ●
398 NUT; STAND
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 04 1 1304- ● ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98093-310-0 01 1 1009-1303 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98093-310-0 01 1 1304-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) 		8-98291-653-0 01 1 1503- ● ●
çizim 189514
78 62 81 80 85 88 79 85 79 66 66 77 76 79 322 86 85 78 79 468 467 513 85 87 339 470 86
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-183-8 01 1 1304-1403 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98261-448-0 01 1 1404-1502 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		8-98261-448-0 01 1 1503-1509 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98261-448-0 01 1 1510- ● ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-145-0 02 1 1304-1502 ● ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75538-145-0 02 1 1503-1509 ● ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-145-0 02 1 1510- ● ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-999-0 01 1 1009-1303 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-139-0 01 1 1304-1502 ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75538-139-0 01 1 1503-1509 ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-139-0 01 1 1510- ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-138-2 01 1 1304-1502 ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75538-138-2 01 1 1503-1509 ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-138-2 01 1 1510- ● ●
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98101-900-0 02 1 1009-1303 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) ID=8 		9-09185-408-0 01 1 1304-1502 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) ID=8 		9-09185-408-0 01 1 1503-1509 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) ID=8 		9-09185-408-0 01 1 1510- ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) ID=15 		9-09185-415-0 01 1 1304-1502 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) ID=15 		9-09185-415-0 01 1 1503-1509 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) ID=15 		9-09185-415-0 01 1 1510- ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-159-0 04 1 1304-1403 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98261-489-0 04 1 1404-1502 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		8-98261-489-0 04 1 1503-1509 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98261-489-0 04 1 1510- ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-09987-123-0 01 1 1304-1502 ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-09987-123-0 01 1 1503-1509 ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-09987-123-0 01 1 1510- ● ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-000-0 01 1 1009-1303 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-151-2 01 1 1304-1312 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98242-816-0 01 1 1401-1502 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		8-98242-816-0 01 1 1503-1509 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98242-816-0 01 1 1510- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) 		1-09980-577-1 01 1 1304-1502 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C) 		1-09980-577-1 01 1 1503-1509 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) 		1-09980-577-1 01 1 1510- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M6X12 		1-75538-208-1 02 1 1304-1502 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M6X12 		1-75538-208-1 02 1 1503-1509 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M6X12 		1-75538-208-1 02 1 1510- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1304-1312 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-1502 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1503-1509 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1510- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-1502 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1503-1509 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1510- ● ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1304-1502 ● ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1503-1509 ● ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1510- ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) ID=8.2 		0-91510-508-0 01 1 1304-1502 ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) ID=8.2 		0-91510-508-0 01 1 1503-1509 ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) ID=8.2 		0-91510-508-0 01 1 1510- ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) M10 		1-75537-273-1 01 1 1304-1502 ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M10 		1-75537-273-1 01 1 1503-1509 ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) M10 		1-75537-273-1 01 1 1510- ● ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-001-0 01 1 1009-1303 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-186-3 01 1 1304-1502 ● ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75538-186-3 01 1 1503-1509 ● ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-186-3 01 1 1510- ● ●
339 UNION; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98014-971-0 01 1 1009-1303 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT(A56) (B) 		8-98014-971-0 01 1 1304- ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75538-131-3 01 1 1304-1502 ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		1-75538-131-3 01 1 1503-1509 ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75538-131-3 01 1 1510- ● ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-134-0 01 1 1304-1502 ● ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75538-134-0 01 1 1503-1509 ● ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-134-0 01 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-206-0 01 1 1304-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		1-75518-206-0 01 1 1503-1509 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-206-0 01 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-207-0 01 1 1304-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) 		1-75518-207-0 01 1 1503-1509 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-207-0 01 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) 		1-75518-208-0 02 1 1304-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C) 		1-75518-208-0 02 1 1503-1509 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) 		1-75518-208-0 02 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) 		1-75538-132-0 01 1 1304-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) 		1-75538-132-0 01 1 1503-1509 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) 		1-75538-132-0 01 1 1510- ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-137-0 01 1 1304-1502 ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75538-137-0 01 1 1503-1509 ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-137-0 01 1 1510- ● ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-133-0 01 1 1304-1502 ● ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75538-133-0 01 1 1503-1509 ● ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-133-0 01 1 1510- ● ●
çizim 189516
67 41 67 325 327 63 322 81 652 76 69
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98046-984-2 01 1 1009-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98195-063-0 01 1 1301-1303 ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98098-005-0 01 1 1009-1303 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-199-1 01 1 1304-1502 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		1-75518-199-1 01 1 1503-1509 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75518-199-1 01 1 1510- ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-323-0 01 1 1304-1502 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) 		1-75518-323-0 01 1 1503-1509 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		1-75518-323-0 01 1 1510- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1009-1303 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1304- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1009-1303 ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1304- ● ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-999-0 01 1 1009-1303 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-139-0 01 1 1304-1502 ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75538-139-0 01 1 1503-1509 ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-139-0 01 1 1510- ● ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-000-0 01 1 1009-1303 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-151-2 01 1 1304-1312 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98242-816-0 01 1 1401-1502 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		8-98242-816-0 01 1 1503-1509 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98242-816-0 01 1 1510- ● ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-001-0 01 1 1009-1303 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-186-3 01 1 1304-1502 ● ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) 		1-75538-186-3 01 1 1503-1509 ● ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) 		1-75538-186-3 01 1 1510- ● ●
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-003-0 01 1 1009-1303 ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-004-0 01 1 1009-1303 ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT(A56) ID=459 		1-09987-273-0 01 1 1304- ● ●
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-002-0 01 1 1009-1303 ●
çizim 344200
113 114 122 99 630 627 627 306 17 123 116 115 46
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98097-974-0 02 1 1009-1303 ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8X20 		8-98092-334-0 02 1 1009-1303 ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8X20 		8-98092-334-0 02 1 1304- ● ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) M10X20 		8-98062-661-0 02 1 1009-1303 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1304-1502 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1503-1509 ● ●
17 BOLT; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) M10X20 		8-98062-661-0 02 1 1503-1509 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20 		8-98062-661-0 02 1 1510- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1009-1303 ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1304- ● ●
99 BUSHING; SEAT BACK
VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98063-219-0 01 1 1009-1009 ●
99 BUSHING; SEAT BACK
VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98112-751-0 01 1 1010-1303 ●
99 BUSHING; SEAT BACK
VINYL SEAT(A83),DELUXE SEAT(PQ8) 		8-98112-751-0 01 1 1304- ● ●
113 BACK ASM; SEAT
DELUXE SEAT(PQ8) DARK GRAY 		8-97416-221-0 01 1 1009-1009 ●
113 BACK ASM; SEAT
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-422-0 01 1 1010-1303 ●
113 BACK ASM; SEAT
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-422-0 01 1 1304- ● ●
113 BACK ASM; SEAT
VINYL SEAT(A83) DARK GRAY 		8-97409-966-1 01 1 1009-1303 ●
113 BACK ASM; SEAT
VINYL SEAT(A83) DARK GRAY 		8-97409-966-1 01 1 1304- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DELUXE SEAT(PQ8) DARK GRAY 		8-97416-223-0 01 1 1009-1009 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-424-0 01 1 1010-1303 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-424-0 01 1 1304- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) DARK GRAY 		8-97411-916-0 01 1 1009-1303 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) DARK GRAY 		8-97411-916-0 01 1 1304- ● ●
115 CUSHION ASM; PASSENGER SEAT
DELUXE SEAT(PQ8) DARK GRAY 		8-97416-225-0 01 1 1009-1009 ●
115 CUSHION ASM; PASSENGER SEAT
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-418-0 01 1 1010-1303 ●
115 CUSHION ASM; PASSENGER SEAT
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-418-2 01 1 1304- ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) DARK GRAY 		8-97409-965-0 01 1 1009-1303 ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) DARK GRAY 		8-97409-965-1 01 1 1304- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DELUXE SEAT(PQ8) DARK GRAY 		8-97416-227-0 01 1 1009-1009 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-420-0 01 1 1010-1303 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DELUXE SEAT(PQ8) DARK GRAY 		8-97421-420-1 01 1 1304- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) DARK GRAY 		8-97411-915-0 01 1 1009-1303 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) DARK GRAY 		8-97411-915-0 01 1 1304- ● ●
122 COVER; ADJ,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY 		8-97409-967-0 01 1 1009-1303 ●
122 COVER; ADJ,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY 		8-97409-967-0 01 1 1304- ● ●
123 SCREW; COVER,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) M5 		8-98070-026-0 01 1 1009-1303 ●
123 SCREW; COVER,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) M5 		8-98070-026-0 01 1 1304- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1009-1303 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1304- ● ●
306 NUT; SEAT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE 		1-75538-207-0 08 1 1009-1303 ●
306 NUT; SEAT ADJ
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE 		1-75538-207-0 08 1 1304- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1304-1502 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1509 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ● ●
627 WASHER; FRT SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		8-98063-223-0 01 1 1009-1303 ●
627 WASHER; FRT SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		8-98063-223-0 01 1 1304- ● ●
627 WASHER; FRT SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		8-98063-224-0 01 1 1009-1303 ●
627 WASHER; FRT SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) 		8-98063-224-0 01 1 1304- ● ●
630 NUT; CAP
VINYL SEAT(A83),DELUXE SEAT(PQ8) M8 		8-98063-225-0 01 1 1009-1303 ●
630 NUT; CAP
VINYL SEAT(A83),DELUXE SEAT(PQ8) M8 		8-98063-225-0 01 1 1304- ● ●
çizim 344211
403 182 179 403 188 188 175 360 506 176 16 126 359
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) 		1-75418-062-1 01 1 1009-1104 ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75418-062-1 01 1 1105-1109 ●
16 ADJUSTER ASM; RECLINING
DELUXE SEAT(PQ8) CENTER SEAT(SA1) 		1-75418-062-1 01 1 1105-1109 ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) 		1-75418-062-1 01 1 1110-1303 ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) 		1-75418-062-1 01 1 1304- ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1009-1104 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1110-1303 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1304- ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) 		8-98063-218-0 01 1 1009-1303 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		8-98063-218-0 01 1 1304-1502 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		8-98063-218-0 01 1 1503-1509 ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) 		8-98063-218-0 01 1 1503-1509 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		8-98063-218-0 01 1 1510-1512 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		8-98286-007-0 01 1 1601- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY 		8-97416-233-0 01 1 1009-1009 ●
175 BACK ASM; PASSENGER CENTER SEAT
DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY 		8-97421-434-1 01 1 1010-1303 ●
175 BACK ASM; PASSENGER CENTER SEAT
DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY 		8-97421-434-1 01 1 1304- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY 		8-97409-975-1 01 1 1009-1303 ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY 		8-97409-975-1 01 1 1304- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY 		8-97416-234-0 01 1 1009-1009 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY 		8-97421-435-1 01 1 1010-1303 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY 		8-97421-435-1 01 1 1304- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY 		8-97409-976-1 01 1 1009-1303 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY 		8-97409-976-1 01 1 1304- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY 		8-97416-237-0 01 1 1009-1009 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY 		8-97421-432-0 01 1 1010-1303 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY 		8-97421-432-1 01 1 1304- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY 		8-97409-974-0 01 1 1009-1303 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY 		8-97409-974-1 01 1 1304- ● ●
182 CUSHION ASM; CENTER SEAT
DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY 		8-97416-235-0 01 1 1009-1009 ●
182 CUSHION ASM; CENTER SEAT
DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY 		8-97421-430-2 01 1 1010-1303 ●
182 CUSHION ASM; CENTER SEAT
DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY 		8-97421-430-3 01 1 1304- ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY 		8-97409-973-2 01 1 1009-1303 ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY 		8-97409-973-3 01 1 1304- ● ●
188 BOLT; BACK TO CUSHION
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 1009-1104 ●
188 BOLT; BACK TO CUSHION
VINYL SEAT(A83) CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109 ●
188 BOLT; BACK TO CUSHION
DELUXE SEAT(PQ8) CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109 ●
188 BOLT; BACK TO CUSHION
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 1110-1303 ●
188 BOLT; BACK TO CUSHION
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 1304- ● ●
359 BOX; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1009-1303 ●
359 BOX; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1304- ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1009-1009 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-1104 ●
360 SCREW; PARCEL
VINYL SEAT(A83) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
DELUXE SEAT(PQ8) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1110-1303 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1304- ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (D) M5X20 		9-09829-324-1 02 1 1009-1009 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1009-1104 ●
360 SCREW; PARCEL
VINYL SEAT(A83) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1110-1303 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1304- ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1009-1110 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1111-1303 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1304- ● ●
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 1009-1303 ●
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 1304- ● ●
506 CAP; PARCEL BOX
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) GRAY 		8-97409-980-1 02 1 1009-1303 ●
506 CAP; PARCEL BOX
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) GRAY 		8-97409-980-1 02 1 1304- ● ●
çizim 344212
359 533 365 537 360 360 534 360 534 538 536 359 360 536 537 360 360 535 536
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1009-1303 ●
359 BOX; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1304- ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1009-1009 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-1104 ●
360 SCREW; PARCEL
VINYL SEAT(A83) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
DELUXE SEAT(PQ8) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1110-1303 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1304- ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (D) M5X20 		9-09829-324-1 02 1 1009-1009 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1009-1104 ●
360 SCREW; PARCEL
VINYL SEAT(A83) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1110-1303 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1304- ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1009-1110 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1111-1303 ●
360 SCREW; PARCEL
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1304- ● ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-972-0 01 1 1009-1303 ●
365 LOCK ASM; SEAT
DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 1009-1104 ●
365 LOCK ASM; SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 1110-1303 ●
365 LOCK ASM; SEAT
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 1304- ● ●
533 LID; PARCEL BOX
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) GRAY 		8-97417-263-0 01 1 1009-1303 ●
533 LID; PARCEL BOX
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) GRAY 		8-97417-263-0 01 1 1304- ● ●
534 STRIKER; PARCEL BOX
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (A) 		1-72538-181-0 01 1 1009-1009 ●
534 STRIKER; PARCEL BOX
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1010-1104 ●
534 STRIKER; PARCEL BOX
VINYL SEAT(A83) CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1105-1109 ●
534 STRIKER; PARCEL BOX
DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1105-1109 ●
534 STRIKER; PARCEL BOX
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1110-1303 ●
534 STRIKER; PARCEL BOX
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1304- ● ●
535 HINGE; PARCEL BOX
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) 		1-72447-391-1 01 1 1009-1104 ●
535 HINGE; PARCEL BOX
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-72447-391-1 01 1 1105-1109 ●
535 HINGE; PARCEL BOX
DELUXE SEAT(PQ8) CENTER SEAT(SA1) 		1-72447-391-1 01 1 1105-1109 ●
535 HINGE; PARCEL BOX
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) 		1-72447-391-1 01 1 1110-1303 ●
535 HINGE; PARCEL BOX
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) 		1-72447-391-1 01 1 1304- ● ●
536 RUBBER; CUSHION
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (A) 		5-09983-002-1 02 1 1009-1009 ●
536 RUBBER; CUSHION
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1010-1104 ●
536 RUBBER; CUSHION
VINYL SEAT(A83) CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1105-1109 ●
536 RUBBER; CUSHION
DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1105-1109 ●
536 RUBBER; CUSHION
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1110-1303 ●
536 RUBBER; CUSHION
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1304- ● ●
537 BRACKET; RUBBER
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) 		1-72548-057-1 02 1 1009-1009 ●
538 GROMMET; SCREW
VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) 		1-09983-165-0 02 1 1009-1009 ●
çizim 344213
595 339 632 400 400 641 401 581
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98014-971-0 01 1 1009-1303 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT(A56) (B) 		8-98014-971-0 01 1 1304- ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75538-131-3 01 1 1304-1502 ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) 		1-75538-131-3 01 1 1503-1509 ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) 		1-75538-131-3 01 1 1510- ● ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98098-996-0 02 1 1009-1303 ●
401 NUT; SUPPORT
DRIVER ISRINGHAUSEN SEAT(SJA) M10 FLANGE 		0-91180-110-0 02 1 1009-1303 ●
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97589-692-3 01 1 1009-1303 ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98106-348-0 01 1 1009-1303 ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98067-762-0 01 1 1009-1303 ●
595 TUBE; NYLON
AIR SUSP DRIVER SEAT(A56) (B) 		8-98067-762-0 01 1 1304- ● ●
632 GROMMET
RIGID SEAT WO/ARM REST(TAZ) OD=24 		8-94119-796-0 01 1 1009-1303 ●
632 GROMMET
RIGID SEAT WO/ARM REST(TAZ) OD=24 		8-94119-796-0 01 1 1304- ● ●
641 WASHER; SUPPORT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98099-007-0 02 1 1009-1303 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
