◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#70407) — 40 parça

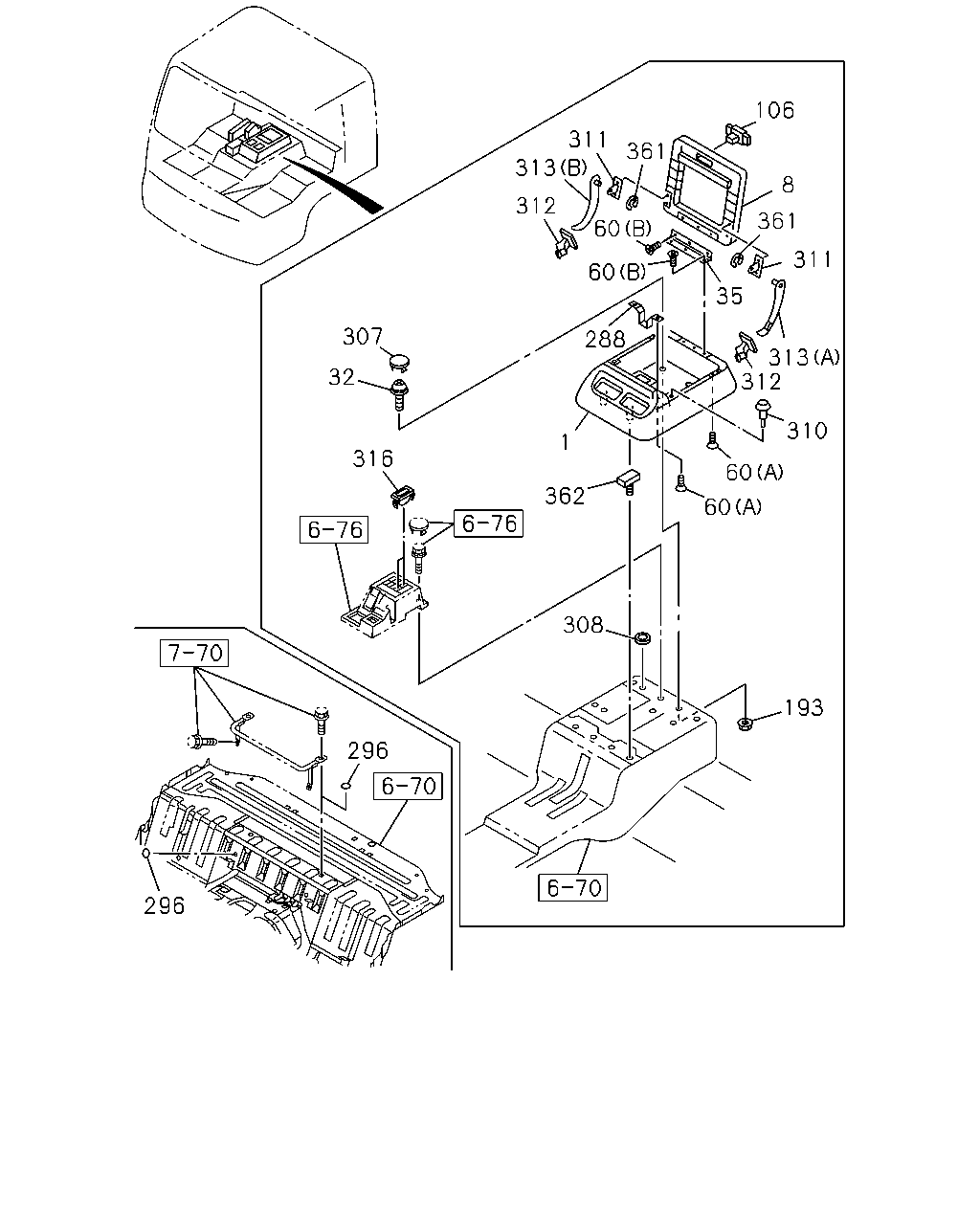

çizim 134057
106 311 313 361 8 361 311 313 312 310 60 60 193 362 308 316 32 307 296 296 35 288 1 60 60 312
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOX; PARCEL
CENTER SEAT DELETE(SP9) GRAY 		8-97408-710-0 01 1 1009-1303 ●
1 BOX; PARCEL
CENTER SEAT DELETE(SP9) GRAY 		8-97408-710-0 01 1 1304- ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) GRAY 		8-97408-712-0 01 1 1009-1303 ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) GRAY 		8-97408-712-0 01 1 1304- ● ●
32 SCREW; PARCEL BOX
CENTER SEAT DELETE(SP9) M6X16 		0-38050-616-0 02 1 1009-1303 ●
32 SCREW; PARCEL BOX
CENTER SEAT DELETE(SP9) M6X16 		0-38050-616-0 02 1 1304- ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 1009-1303 ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 1304- ● ●
60 SCREW; BOX
CENTER SEAT DELETE(SP9) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 1009-1303 ●
60 SCREW; BOX
CENTER SEAT DELETE(SP9) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 1304- ● ●
60 SCREW; BOX
CENTER SEAT DELETE(SP9) (B) M5X14 		8-94279-325-0 04 1 1009-1303 ●
60 SCREW; BOX
CENTER SEAT DELETE(SP9) (B) M5X14 		8-94279-325-0 04 1 1304- ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72538-312-0 01 1 1009-1303 ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72538-312-0 01 1 1304- ● ●
193 NUT; PARCEL BOX
CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
193 NUT; PARCEL BOX
CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-190-0 01 1 1009-1303 ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-190-0 01 1 1304- ● ●
296 SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK 		1-76798-019-0 04 1 1009-1303 ●
296 SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK 		1-76798-019-0 04 1 1304- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) GRAY 		8-97407-951-0 02 1 1009-1303 ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) GRAY 		8-97407-951-0 02 1 1304- ● ●
308 GROMMET
OD=35 		8-94122-971-0 01 1 1009-1303 ●
308 GROMMET
OD=35 		8-94122-971-0 01 1 1304- ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1009-1303 ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1304- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 02 1 1009-1303 ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 02 1 1304- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 02 1 1009-1303 ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 02 1 1304- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 1009-1303 ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 1304- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 01 1 1009-1303 ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 01 1 1304- ● ●
316 BOX; COIN 8-94482-280-2 02 1 1009-1303 ●
316 BOX; COIN 8-94482-280-2 02 1 1304- ● ●
361 RING; SNAP
CENTER SEAT DELETE(SP9) ID=5 		9-09185-405-0 02 1 1009-1303 ●
361 RING; SNAP
CENTER SEAT DELETE(SP9) ID=5 		9-09185-405-0 02 1 1304- ● ●
362 STUD; CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72538-308-0 02 1 1009-1303 ●
362 STUD; CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72538-308-0 02 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
