7-43 — SUN VISOR AND ASSIST GRIP (#70406) — 157 parça

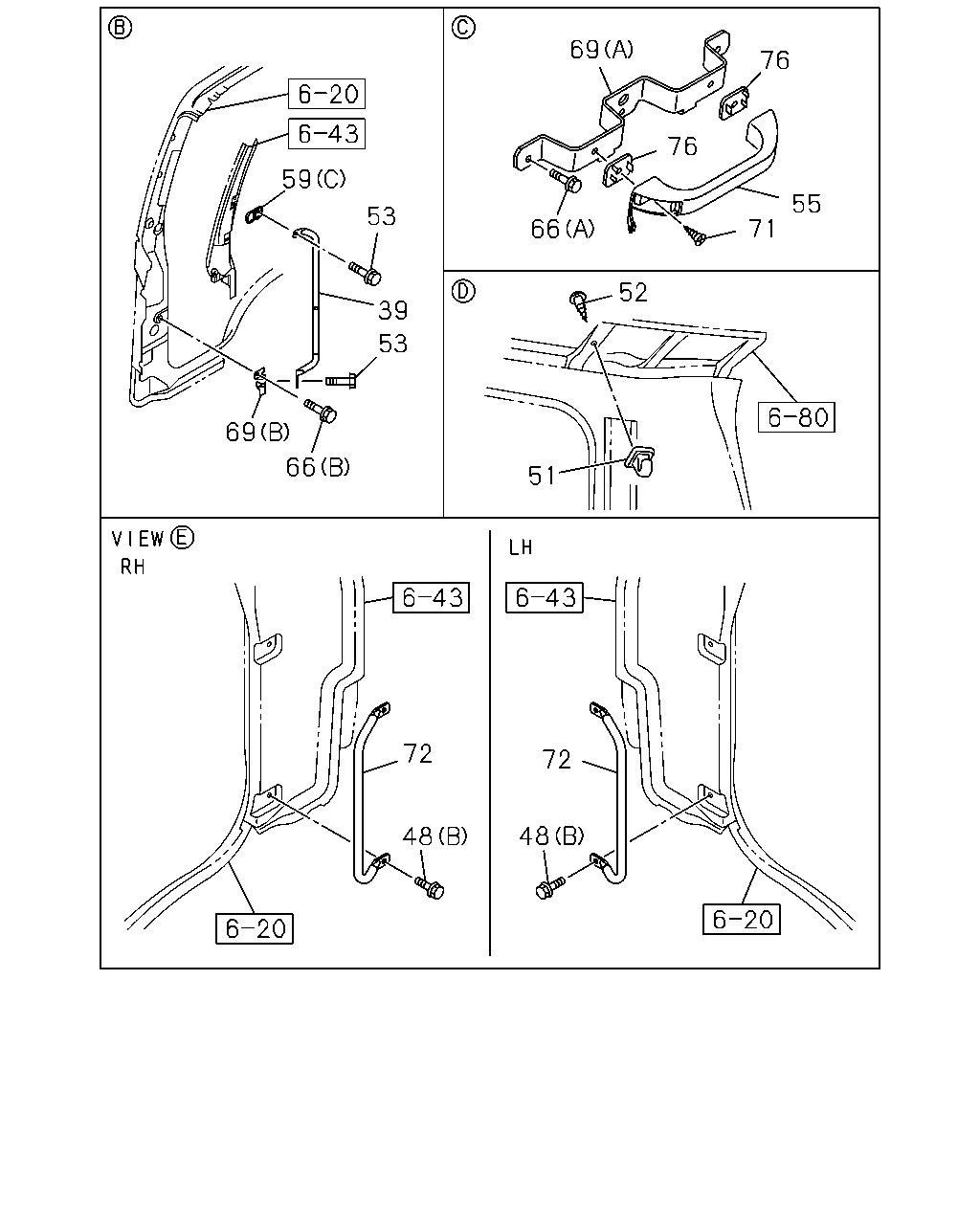

69 76 76 66 55 71 52 51 59 39 69 53 53 66 72 48 72 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	HANDLE; ASSIST,A-POST HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97412-924-1	01	1	1009-1303	●
39	HANDLE; ASSIST,A-POST HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97412-924-1	01	1	1304-	●	●
39	HANDLE; ASSIST,A-POST HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97412-923-1	01	1	1009-1303	●
39	HANDLE; ASSIST,A-POST HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97412-923-1	01	1	1304-	●	●
39	HANDLE; ASSIST,A-POST EXC. HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97407-943-2	01	1	1009-1303	●
39	HANDLE; ASSIST,A-POST SINGAPORE EQUIPMENT(WQ3) DARK GRAY	8-97407-943-2	01	1	1304-	●	●
39	HANDLE; ASSIST,A-POST EXC. HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97407-942-2	01	1	1009-1303	●
39	HANDLE; ASSIST,A-POST SINGAPORE EQUIPMENT(WQ3) DARK GRAY	8-97407-942-2	01	1	1304-	●	●
48	BOLT; ASSIST GRIP (B) M8X16 FLANGE	0-28060-816-0	04	1	1009-1303	●
48	BOLT; ASSIST GRIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X16 FLANGE	0-28060-816-0	04	1	1304-	●	●
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	1009-1303	●
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	1304-	●	●
51	HOOK; COAT HANGER DARK GRAY	8-97409-845-0	02	1	1009-1303	●
51	HOOK; COAT HANGER DARK GRAY	8-97409-845-0	02	1	1304-	●	●
52	SCREW; HOOK M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	1009-1303	●
52	SCREW; HOOK M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	1304-	●	●
53	SCREW; ASSIST HANDLE M8X20 FLANGE	0-28650-820-0	04	1	1009-1303	●
53	SCREW; ASSIST HANDLE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE	0-28650-820-0	04	1	1304-	●	●
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY	8-97405-285-2	01	1	1009-1303	●
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY	8-97405-285-2	01	1	1304-	●	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1009-1303	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1304-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1009-1303	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1304-	●	●
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	02	1	1009-1303	●
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	02	1	1304-	●	●
66	BOLT; ASSIST GRIP BRKT (B) M8X20 FLANGE	0-28650-820-0	04	1	1009-1108	●
66	BOLT; ASSIST GRIP BRKT (B) M8X16 FLANGE	0-28050-816-0	04	1	1109-1303	●
66	BOLT; ASSIST GRIP BRKT (B) M8X16 FLANGE	0-28050-816-0	04	1	1304-	●	●
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE	8-97108-669-0	06	1	1009-1303	●
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE	8-97108-669-0	06	1	1304-	●	●
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	02	1	1009-1303	●
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	02	1	1304-	●	●
69	BRACKET; ASSIST GRIP (B)	8-98057-972-2	01	1	1009-1303	●
69	BRACKET; ASSIST GRIP (B)	8-98057-972-2	01	1	1304-	●	●
69	BRACKET; ASSIST GRIP (B)	8-98057-971-2	01	1	1009-1303	●
69	BRACKET; ASSIST GRIP (B)	8-98057-971-2	01	1	1304-	●	●
71	SCREW M6X28	8-98004-344-0	02	1	1009-1303	●
71	SCREW M6X28	8-98004-344-0	02	1	1304-	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK HONG KONG EQUIPMENT(PQ1)	8-98084-137-1	01	1	1009-1303	●
72	GRIP; ASSIST,CAB ENTRY,BACK HONG KONG EQUIPMENT(PQ1)	8-98084-137-1	01	1	1304-	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK PTO CONTROL<SV6> SINGAPORE EQUIPMENT(WQ3)	8-98084-137-1	01	1	1304-	●
72	GRIP; ASSIST,CAB ENTRY,BACK HONG KONG EQUIPMENT(PQ1)	8-98084-136-1	01	1	1009-1303	●
72	GRIP; ASSIST,CAB ENTRY,BACK HONG KONG EQUIPMENT(PQ1)	8-98084-136-1	01	1	1304-	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK PTO CONTROL<SV6> SINGAPORE EQUIPMENT(WQ3)	8-98084-136-1	01	1	1304-	●
72	GRIP; ASSIST,CAB ENTRY,BACK EXC. HONG KONG EQUIPMENT(PQ1)	8-97386-939-0	02	1	1009-1303	●
72	GRIP; ASSIST,CAB ENTRY,BACK SINGAPORE EQUIPMENT(WQ3) EXC. PTO CONTROL<SV6>	8-97386-939-0	02	1	1304-1510	●
72	GRIP; ASSIST,CAB ENTRY,BACK SINGAPORE EQUIPMENT(WQ3)	8-97386-939-0	02	1	1304-1510		●
72	GRIP; ASSIST,CAB ENTRY,BACK SINGAPORE EQUIPMENT(WQ3) EXC. PTO CONTROL<SV6>	8-98315-144-0	02	1	1511-	●
72	GRIP; ASSIST,CAB ENTRY,BACK SINGAPORE EQUIPMENT(WQ3)	8-98315-144-0	02	1	1511-		●
76	SPACER; ASSIST GRIP DARK GRAY	8-97405-286-0	02	1	1009-1303	●
76	SPACER; ASSIST GRIP DARK GRAY	8-97405-286-0	02	1	1304-	●	●

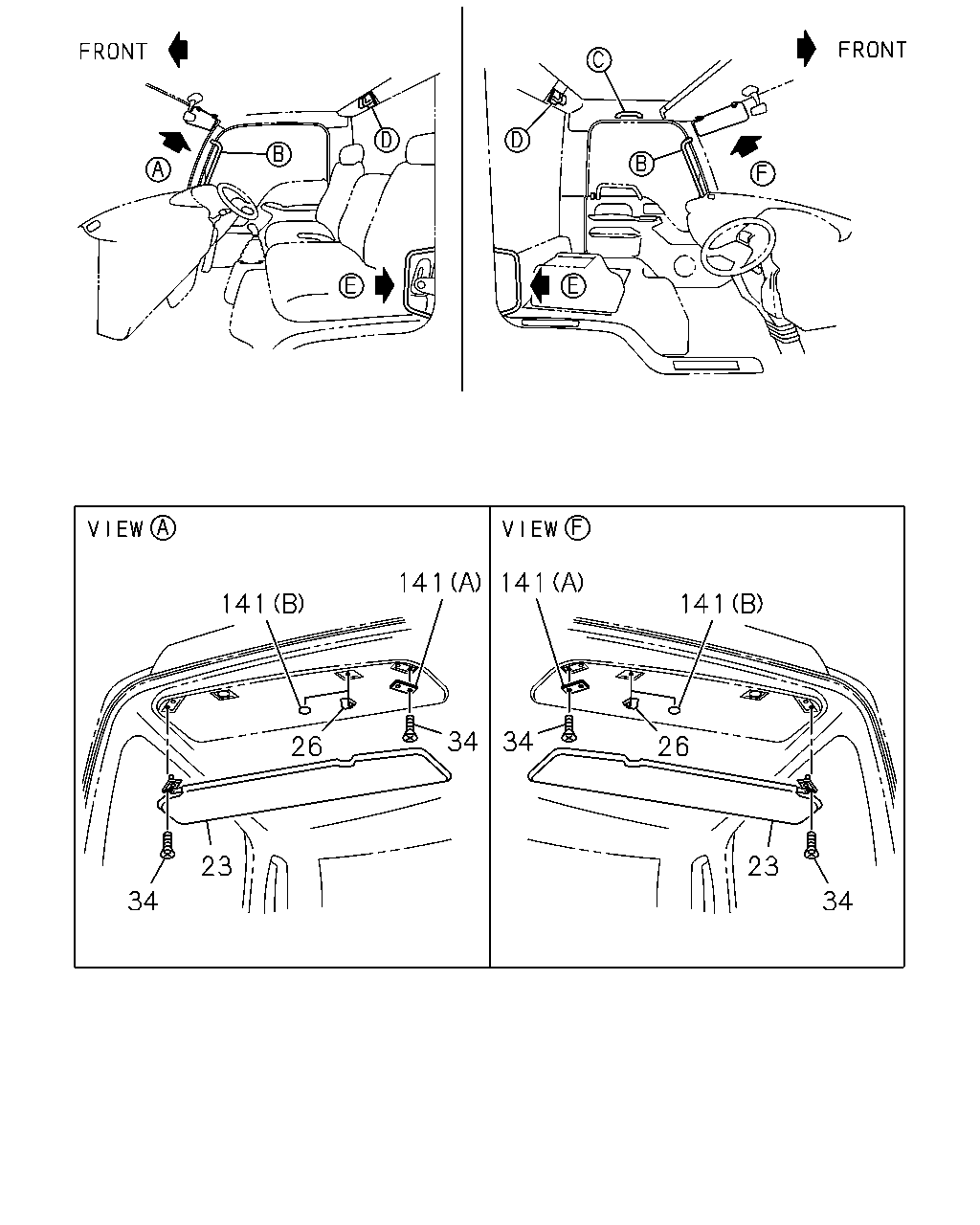

141 141 26 34 23 34 26 34 141 23 34 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	SUN VISOR DARK GRAY	8-97407-373-2	01	1	1009-1303	●
23	SUN VISOR DARK GRAY	8-97407-373-2	01	1	1304-	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20> DARK GRAY	8-97405-170-3	01	1	1009-1303	●
23	SUN VISOR SUN VISOR PASSENGER<D20> DARK GRAY	8-97405-170-3	01	1	1304-	●	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20> DARK GRAY	8-97405-171-0	02	1	1009-1303	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20> DARK GRAY	8-97405-171-0	02	1	1304-	●	●
26	HOLDER; SUN VISOR EXC. SUN VISOR PASSENGER<D20> DARK GRAY	8-97405-171-0	01	1	1009-1303	●
26	HOLDER; SUN VISOR EXC. SUN VISOR PASSENGER<D20> DARK GRAY	8-97405-171-0	01	1	1304-	●	●
34	SCREW; SUN VISOR M6X26	8-98033-674-0	02	1	1009-1303	●
34	SCREW; SUN VISOR EXC. SUN VISOR PASSENGER<D20> M6X26	8-98033-674-0	02	1	1009-1303	●
34	SCREW; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26	8-98033-674-0	02	1	1009-1303	●
34	SCREW; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> M6X26	8-98033-674-0	02	1	1009-1303	●
34	SCREW; SUN VISOR M6X26	8-98033-674-0	02	1	1304-	●	●
34	SCREW; SUN VISOR EXC. SUN VISOR PASSENGER<D20> M6X26	8-98033-674-0	02	1	1304-	●	●
34	SCREW; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26	8-98033-674-0	02	1	1304-	●	●
34	SCREW; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> M6X26	8-98033-674-0	02	1	1304-	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X26	8-98033-674-0	04	1	1009-1303	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X26	8-98033-674-0	04	1	1304-	●	●
141	COVER; SUN VISOR (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1009-1303	●
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1009-1303	●
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1009-1303	●
141	COVER; SUN VISOR (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1304-	●	●
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1304-	●	●
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1304-	●	●
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1009-1303	●
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1009-1303	●
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1009-1303	●
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1304-1401	●	●
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1304-1401	●	●
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1304-1401	●	●
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	02	1	1402-	●	●
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	02	1	1402-	●	●
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1402-	●	●

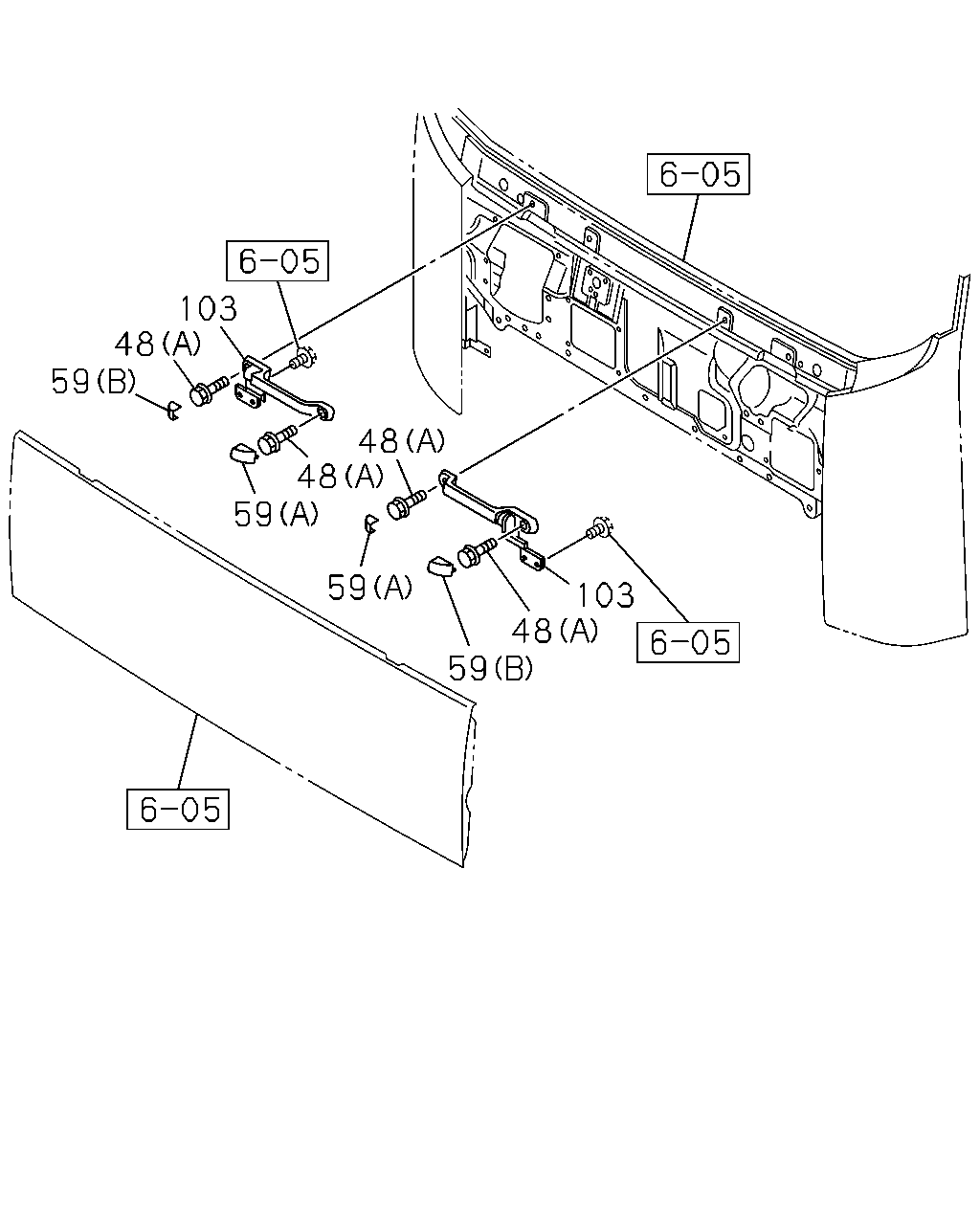

103 48 59 59 48 48 59 59 48 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (B) M8X16 FLANGE	0-28060-816-0	04	1	1009-1303	●
48	BOLT; ASSIST GRIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X16 FLANGE	0-28060-816-0	04	1	1304-	●	●
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	1009-1303	●
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	1304-	●	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1009-1303	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1304-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1009-1303	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1304-	●	●
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	02	1	1009-1303	●
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	02	1	1304-	●	●
103	GRIP; ASSIST,FRT PNL	8-98036-565-1	01	1	1009-1303	●
103	GRIP; ASSIST,FRT PNL	8-98036-565-1	01	1	1304-	●	●
103	GRIP; ASSIST,FRT PNL	8-98036-566-1	01	1	1009-1303	●
103	GRIP; ASSIST,FRT PNL	8-98036-566-1	01	1	1304-	●	●

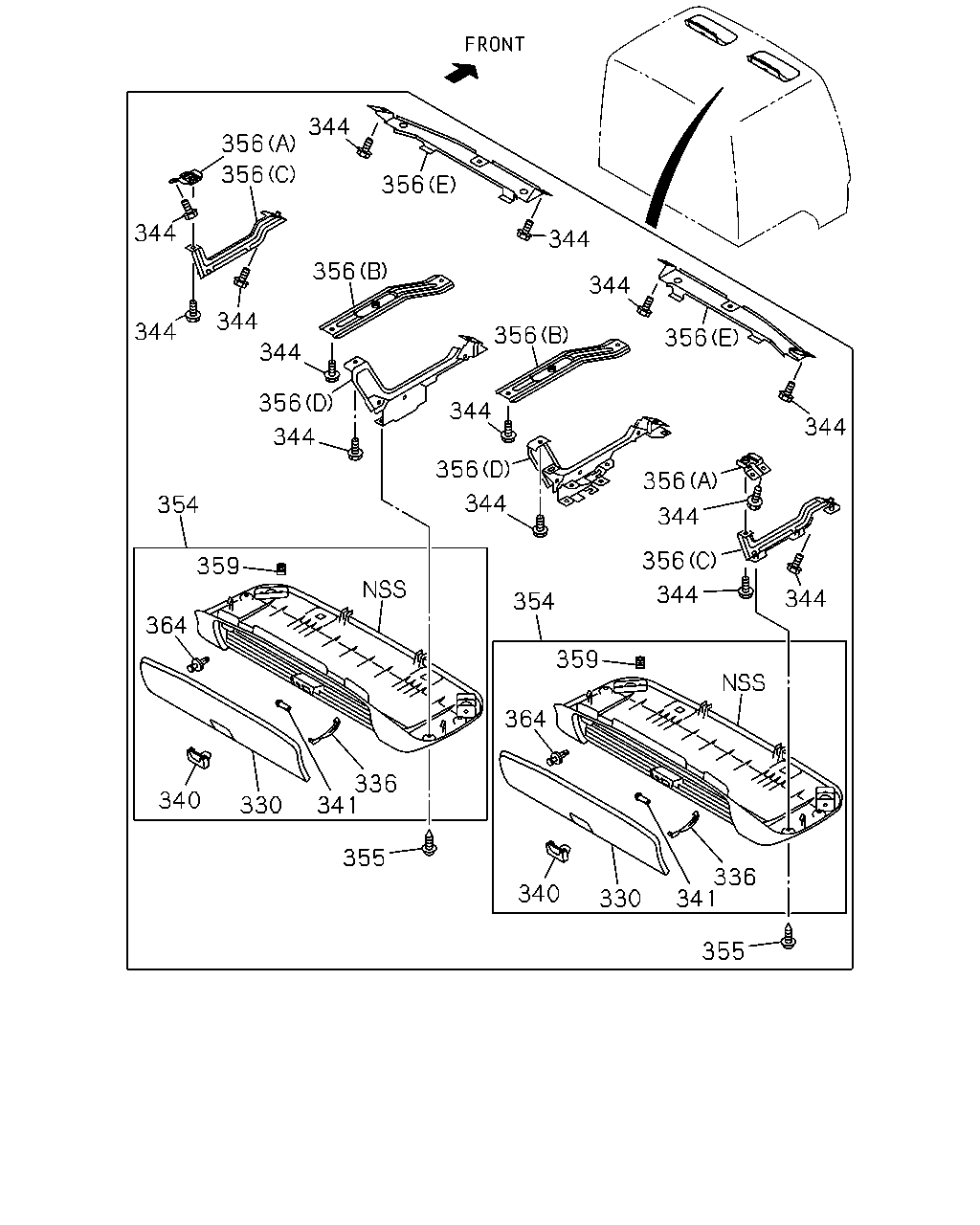

344 356 344 344 356 344 356 356 344 344 344 356 344 356 344 356 344 356 344 356 344 356 344 344 354 359 364 340 330 341 336 355 354 359 364 340 330 341 336 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
330	LID; HEADER SHELF DARK GRAY	8-97407-834-1	02	1	1009-1303	●
330	LID; HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97407-834-1	02	1	1009-1303	●
330	LID; HEADER SHELF DARK GRAY	8-97407-834-1	01	1	1304-	●	●
330	LID; HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97407-834-1	01	1	1304-	●	●
336	STAY; LID	1-72448-379-3	02	1	1009-1303	●
336	STAY; LID HEADER CONSOLE DRIVER & PASSENGER<EDG>	1-72448-379-3	02	1	1009-1303	●
336	STAY; LID	1-72448-379-3	02	1	1304-	●	●
336	STAY; LID HEADER CONSOLE DRIVER & PASSENGER<EDG>	1-72448-379-3	02	1	1304-	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	1009-1303	●
340	LOCK; HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG>	1-72448-376-0	01	1	1009-1303	●
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	1304-	●	●
340	LOCK; HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG>	1-72448-376-0	01	1	1304-	●	●
341	HINGE; LID,HEADER SHELF	8-98025-428-2	02	1	1009-1303	●
341	HINGE; LID,HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG>	8-98025-428-2	02	1	1009-1303	●
341	HINGE; LID,HEADER SHELF	8-98025-428-2	02	1	1304-	●	●
341	HINGE; LID,HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG>	8-98025-428-2	02	1	1304-	●	●
344	BOLT; BRKT,FRT M6X12 FLANGE	8-97108-669-0	12	1	1009-1303	●
344	BOLT; BRKT,FRT M6X12 FLANGE	8-97108-669-0	12	1	1304-	●	●
344	BOLT; BRKT,FRT HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE	8-97108-669-0	08	1	1009-1303	●
344	BOLT; BRKT,FRT HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE	8-97108-669-0	08	1	1304-	●	●
354	TRAY; HEADER ROOF DARK GRAY	8-97407-386-5	01	1	1009-1303	●
354	TRAY; HEADER ROOF HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97407-386-5	01	1	1009-1303	●
354	TRAY; HEADER ROOF DARK GRAY	8-97407-386-5	01	1	1304-1401	●	●
354	TRAY; HEADER ROOF HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97407-386-5	01	1	1304-1401	●	●
354	TRAY; HEADER ROOF DARK GRAY	8-97428-821-0	01	1	1402-	●	●
354	TRAY; HEADER ROOF HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97428-821-0	01	1	1402-	●	●
355	SCREW; TRAY M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1009-1303	●
355	SCREW; TRAY HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1009-1303	●
355	SCREW; TRAY M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1304-	●	●
355	SCREW; TRAY HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1304-	●	●
356	BRACKET; ROOF OUTER (A)	8-97386-874-1	01	1	1009-1303	●
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-97386-874-1	01	1	1009-1303	●
356	BRACKET; ROOF OUTER (A)	8-97386-874-1	01	1	1304-	●	●
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-97386-874-1	01	1	1304-	●	●
356	BRACKET; ROOF OUTER (B)	8-98010-059-0	01	1	1009-1303	●
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98010-059-0	01	1	1009-1303	●
356	BRACKET; ROOF OUTER (B)	8-98010-059-0	01	1	1304-	●	●
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98010-059-0	01	1	1304-	●	●
356	BRACKET; ROOF OUTER (C)	8-98014-088-3	01	1	1009-1303	●
356	BRACKET; ROOF OUTER (C)	8-98014-088-3	01	1	1304-	●	●
356	BRACKET; ROOF OUTER (D)	8-98023-257-2	01	1	1009-1303	●
356	BRACKET; ROOF OUTER (D)	8-98023-257-2	01	1	1304-	●	●
356	BRACKET; ROOF OUTER (E)	8-98042-015-3	01	1	1009-1303	●
356	BRACKET; ROOF OUTER (E)	8-98042-015-3	01	1	1304-	●	●
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (C)	8-98016-871-3	01	1	1009-1303	●
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (C)	8-98016-871-3	01	1	1304-	●	●
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (D)	8-98042-009-2	01	1	1009-1303	●
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (D)	8-98042-009-2	01	1	1304-	●	●
356	BRACKET; ROOF OUTER (E)	8-98042-016-3	01	1	1009-1303	●
356	BRACKET; ROOF OUTER (E)	8-98042-016-3	01	1	1304-	●	●
359	HOLDER; HEADER TRAY	8-98041-754-0	04	1	1009-1303	●
359	HOLDER; HEADER TRAY HEADER CONSOLE DRIVER & PASSENGER<EDG>	8-98041-754-0	04	1	1009-1303	●
359	HOLDER; HEADER TRAY	8-98041-754-0	04	1	1304-	●	●
359	HOLDER; HEADER TRAY HEADER CONSOLE DRIVER & PASSENGER<EDG>	8-98041-754-0	04	1	1304-	●	●
364	STOPPER; LID	8-98010-867-1	03	1	1009-1303	●
364	STOPPER; LID HEADER CONSOLE DRIVER & PASSENGER<EDG>	8-98010-867-1	03	1	1009-1303	●
364	STOPPER; LID	8-98010-867-1	03	1	1304-	●	●
364	STOPPER; LID HEADER CONSOLE DRIVER & PASSENGER<EDG>	8-98010-867-1	03	1	1304-	●	●
