◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#70403) — 18 parça

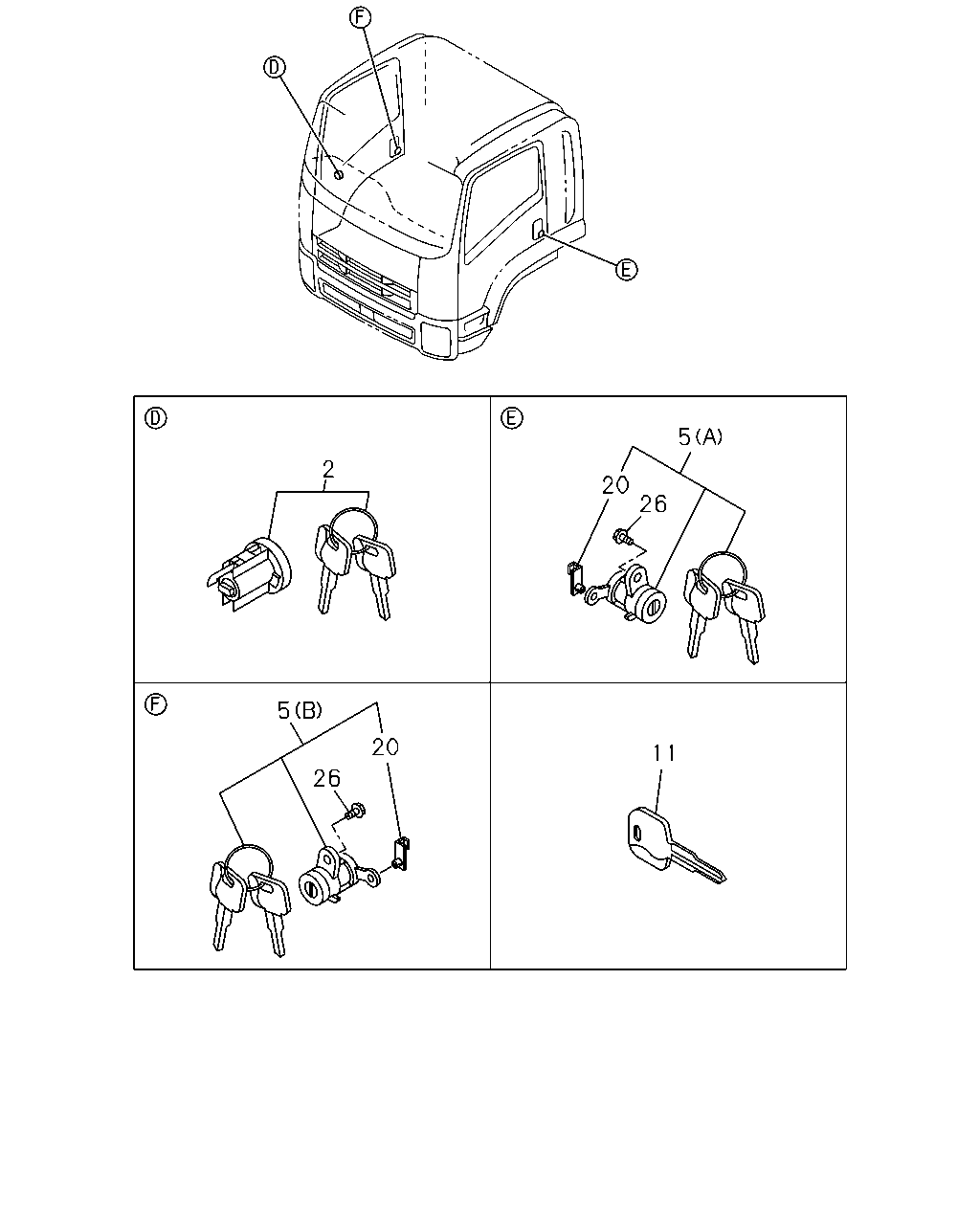

çizim 133031
2 20 5 26 5 26 20 11
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK 8-98055-148-0 01 1 1009-1203 ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1204-1303 ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1304- ● ●
5 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1009-1303 ●
5 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1304- ● ●
5 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1009-1303 ●
5 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1304- ● ●
11 KEY; BLANK 8-98055-170-0 AR 1 1009-1303 ●
11 KEY; BLANK 8-98055-170-0 AR 1 1304- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1009-1303 ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1304- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1009-1303 ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1304- ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1009-1303 ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1304- ● ●
çizim 189506
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK 8-98056-003-0 01 1 1009-1203 ●
1 CYLINDER SET; CAR LOCK 8-98201-161-0 01 1 1204-1303 ●
1 CYLINDER SET; CAR LOCK 8-98201-161-0 01 1 1304- ● ●
