◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#70402) — 730 parça

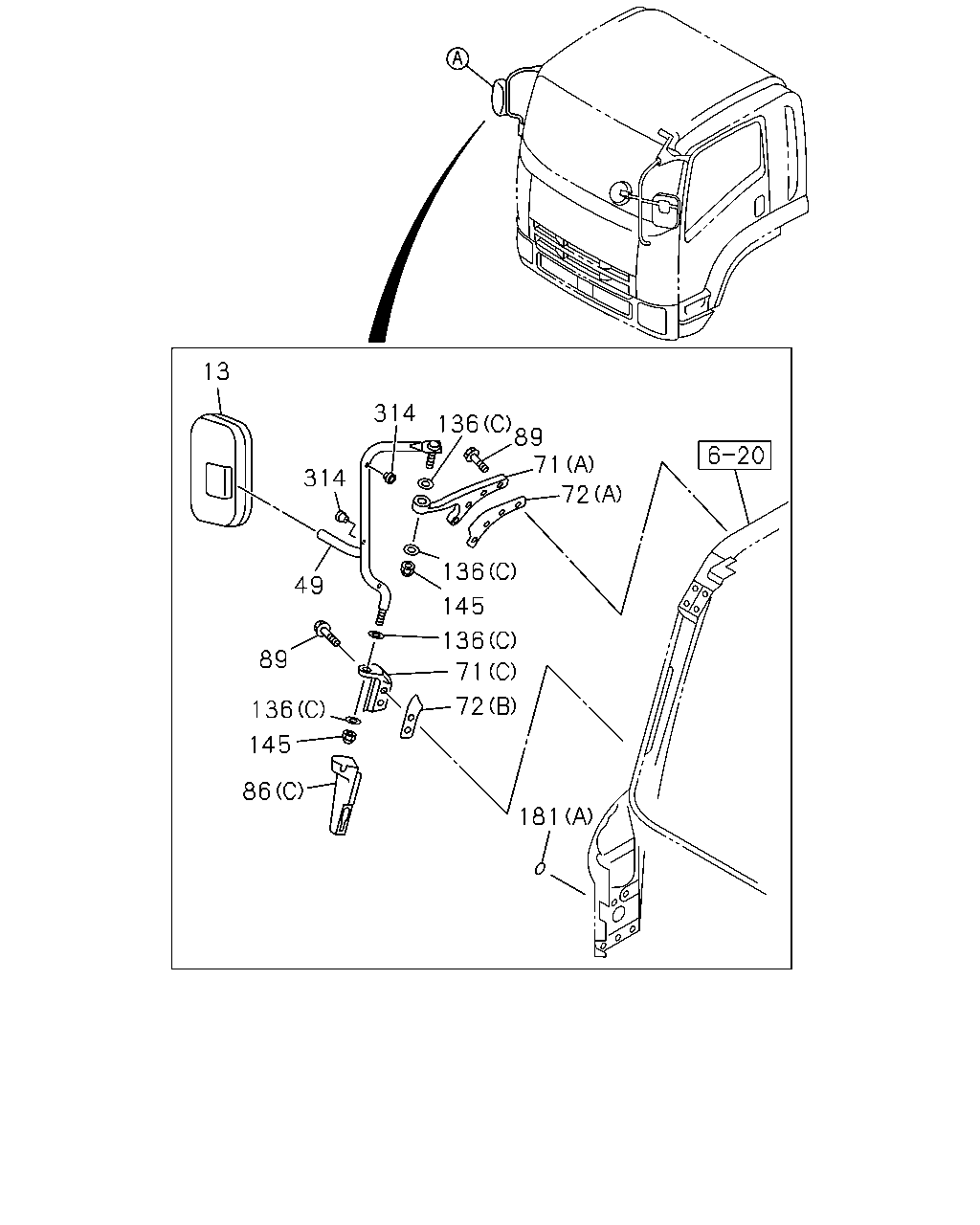

çizim 132694
13 314 49 89 136 145 86 314 136 89 71 72 136 145 136 71 72 181
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98028-332-0 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98028-332-0 01 1 1304-1510 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98324-748-0 01 1 1511- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98104-068-0 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98104-068-0 01 1 1304-1510 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98324-749-0 01 1 1511- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98043-176-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98043-060-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-992-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-992-1 01 1 1310- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-991-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-991-1 01 1 1310- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98085-113-1 01 1 1009-1303 ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98085-113-1 01 1 1304-1402 ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98257-749-0 01 1 1403- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98091-477-0 01 1 1009-1303 ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98091-477-0 01 1 1304-1502 ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98305-582-0 01 1 1503- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-781-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-199-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-780-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-198-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98060-218-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-195-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-195-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-777-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-194-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-194-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		1-71707-224-0 04 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		1-71707-224-0 04 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-022-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-022-1 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-544-2 01 1 1009-1109 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98201-957-0 01 1 1110-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98201-957-0 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-021-0 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-021-0 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-543-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-543-1 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		1-71798-484-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		1-71798-484-1 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-794-2 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-794-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-240-0 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-240-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J) 		8-98092-492-3 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J) 		8-98092-492-3 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-793-2 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-793-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (H) 		8-98039-277-2 02 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-535-0 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-535-0 01 1 1304- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-537-1 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-537-1 01 1 1304- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-351-0 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-351-0 01 1 1304- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-353-1 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-353-1 01 1 1304- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		8-98031-797-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		8-98031-797-0 01 1 1310- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-245-1 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-245-1 01 1 1310- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98064-776-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98064-776-0 01 1 1310- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-796-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-796-0 01 1 1310- ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98101-865-0 01 1 1009-1303 ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98101-864-0 01 1 1009-1303 ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-605-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-605-0 01 1 1310- ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-604-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-604-0 01 1 1310- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK 		1-71737-652-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK 		1-71737-652-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-545-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-545-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-546-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-546-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-541-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-541-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 1310- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 1310- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER 		8-98067-249-2 10 1 1009-1303 ●
89 SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER 		8-98067-249-2 10 1 1304- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23 		8-97310-216-1 08 1 1009-1303 ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23 		8-97310-216-1 08 1 1310- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 		1-09985-180-0 01 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 		1-09985-180-0 01 1 1304- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1304- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1304- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1310- ● ●
145 NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 03 1 1009-1303 ●
145 NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 03 1 1304- ● ●
145 NUT; CAP,SUB STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT 		8-98059-914-0 10 1 1009-1303 ●
145 NUT; CAP,SUB STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT 		8-98059-914-0 10 1 1310- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1009-1303 ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1304- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1009-1303 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1304- ● ●
314 BUFFER; STOPPER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-94314-317-0 02 1 1009-1303 ●
314 BUFFER; STOPPER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-94314-317-0 02 1 1304- ● ●
çizim 132973
13 53 53 26 25 14 29 86 21 30 87 32 135 29 30 32 134 87 86 21 135 132 71
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98028-332-0 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98028-332-0 01 1 1304-1510 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98324-748-0 01 1 1511- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98104-068-0 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98104-068-0 01 1 1304-1510 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98324-749-0 01 1 1511- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98043-176-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98043-060-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-992-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-992-1 01 1 1310- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-991-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-991-1 01 1 1310- ● ●
14 MIRROR ASM; OUTSIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98045-690-0 01 1 1009-1303 ●
14 MIRROR ASM; OUTSIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98045-690-0 01 1 1304-1510 ● ●
14 MIRROR ASM; OUTSIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98324-761-0 01 1 1511- ● ●
14 MIRROR ASM; OUTSIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98108-511-0 01 1 1009-1303 ●
14 MIRROR ASM; OUTSIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98108-511-0 01 1 1304-1510 ● ●
14 MIRROR ASM; OUTSIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98324-760-0 01 1 1511- ● ●
21 NUT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5 		1-09984-124-0 04 1 1009-1303 ●
21 NUT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5 		1-09984-124-0 04 1 1304- ● ●
21 NUT; MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 02 1 1009-1303 ●
21 NUT; MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 02 1 1310- ● ●
25 SCREW; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6X40 		1-71707-223-0 04 1 1009-1303 ●
25 SCREW; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6X40 		1-71707-223-0 04 1 1304- ● ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71707-222-0 01 1 1009-1303 ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71707-222-0 01 1 1304- ● ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71707-221-0 01 1 1009-1303 ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71707-221-0 01 1 1304- ● ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-806-0 01 1 1009-1303 ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-806-0 01 1 1310- ● ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-805-0 01 1 1009-1303 ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-805-0 01 1 1310- ● ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71798-421-1 01 1 1009-1303 ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71798-421-1 01 1 1304- ● ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-422-0 01 1 1009-1303 ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-422-0 01 1 1304- ● ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-591-1 01 1 1009-1303 ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-591-1 01 1 1304- ● ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71798-592-1 01 1 1009-1303 ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71798-592-1 01 1 1304- ● ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98043-061-0 02 1 1009-1303 ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98043-061-0 02 1 1310- ● ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98043-065-0 01 1 1009-1303 ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98043-065-0 01 1 1310- ● ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98055-994-0 01 1 1009-1303 ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98055-994-0 01 1 1310-1504 ● ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5X40 W/PL WASHER 		1-71737-797-0 04 1 1009-1303 ●
32 SCREW; UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5X40 W/PL WASHER 		1-71737-797-0 04 1 1304- ● ●
32 SCREW; UNDER MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1009-1303 ●
32 SCREW; UNDER MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1310- ● ●
53 PIVOT; SIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2 		1-71736-489-2 02 1 1009-1303 ●
53 PIVOT; SIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2 		1-71736-489-2 04 1 1304- ● ●
53 PIVOT; SIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1 		1-71737-633-2 04 1 1009-1303 ●
53 PIVOT; SIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1 		1-71737-633-2 04 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		1-71707-224-0 04 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		1-71707-224-0 04 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-022-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-022-1 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-544-2 01 1 1009-1109 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98201-957-0 01 1 1110-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98201-957-0 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-021-0 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-021-0 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-543-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-543-1 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		1-71798-484-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		1-71798-484-1 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-794-2 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-794-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-240-0 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-240-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J) 		8-98092-492-3 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J) 		8-98092-492-3 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-793-2 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-793-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (H) 		8-98039-277-2 02 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK 		1-71737-652-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK 		1-71737-652-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-545-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-545-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-546-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-546-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-541-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-541-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 1310- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 1310- ● ●
87 SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71737-646-2 02 1 1009-1303 ●
87 SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71737-646-2 02 1 1304- ● ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98063-786-0 02 1 1009-1303 ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98063-786-0 02 1 1310- ● ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98063-789-0 01 1 1009-1303 ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98063-789-0 01 1 1310- ● ●
132 RING; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71737-935-0 01 1 1009-1303 ●
132 RING; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71737-935-0 01 1 1304- ● ●
134 CLIP; MIRROR LENS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71737-936-0 01 1 1009-1303 ●
134 CLIP; MIRROR LENS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71737-936-0 01 1 1304- ● ●
135 LENS; MIRROR,SIDE UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71737-929-0 01 1 1009-1303 ●
135 LENS; MIRROR,SIDE UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71737-929-0 01 1 1304- ● ●
135 LENS; MIRROR,SIDE UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-838-0 01 1 1009-1303 ●
135 LENS; MIRROR,SIDE UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-838-0 01 1 1304- ● ●

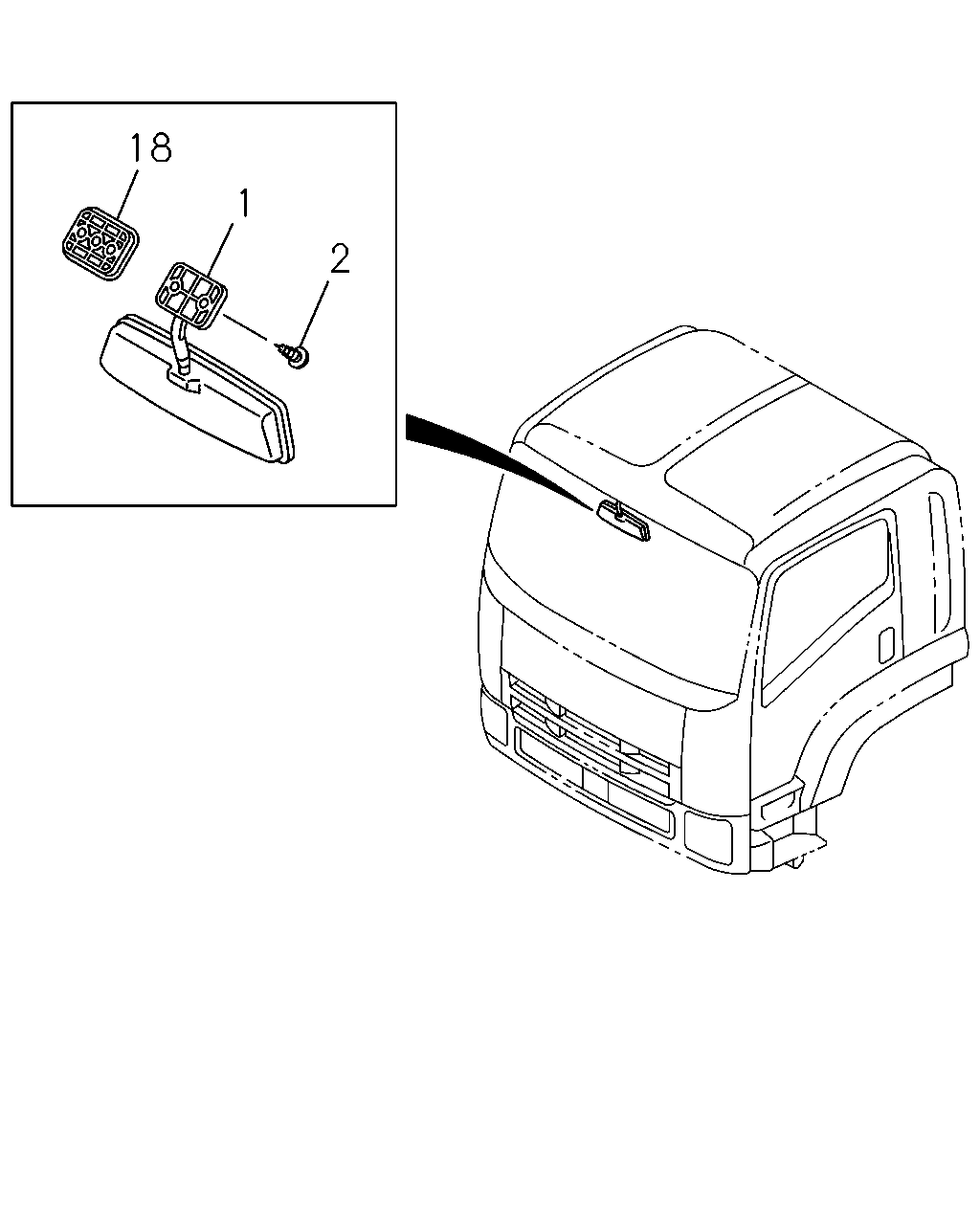

çizim 133066
18 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1009-1303 ●
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1304- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1009-1303 ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1304- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1009-1303 ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1304- ● ●

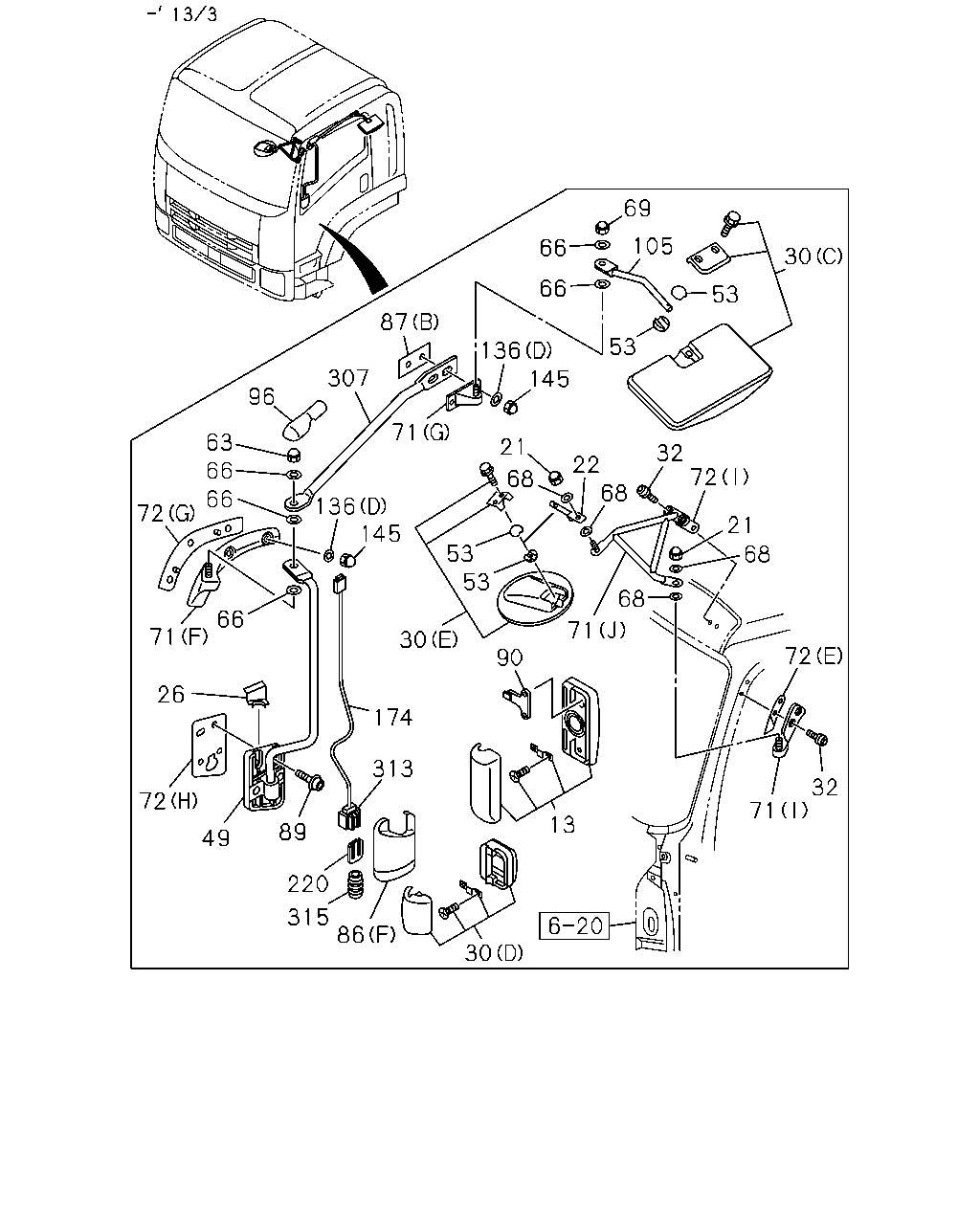

çizim 133111
87 307 96 63 66 66 72 66 71 26 72 49 89 220 315 86 30 13 71 32 72 90 313 174 30 53 53 71 68 68 21 72 32 68 22 21 68 145 136 71 145 136 53 53 30 105 69 66 66
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98028-332-0 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98028-332-0 01 1 1304-1510 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98324-748-0 01 1 1511- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98104-068-0 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98104-068-0 01 1 1304-1510 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98324-749-0 01 1 1511- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98043-176-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98043-060-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-992-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-992-1 01 1 1310- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-991-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-991-1 01 1 1310- ● ●
21 NUT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5 		1-09984-124-0 04 1 1009-1303 ●
21 NUT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5 		1-09984-124-0 04 1 1304- ● ●
21 NUT; MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 02 1 1009-1303 ●
21 NUT; MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 02 1 1310- ● ●
22 STAY; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98092-493-0 01 1 1009-1303 ●
22 STAY; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98092-493-0 01 1 1310- ● ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71707-222-0 01 1 1009-1303 ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71707-222-0 01 1 1304- ● ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71707-221-0 01 1 1009-1303 ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71707-221-0 01 1 1304- ● ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-806-0 01 1 1009-1303 ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-806-0 01 1 1310- ● ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-805-0 01 1 1009-1303 ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-805-0 01 1 1310- ● ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-591-1 01 1 1009-1303 ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-591-1 01 1 1304- ● ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71798-592-1 01 1 1009-1303 ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71798-592-1 01 1 1304- ● ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98043-061-0 02 1 1009-1303 ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98043-061-0 02 1 1310- ● ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98043-065-0 01 1 1009-1303 ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98043-065-0 01 1 1310- ● ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98055-994-0 01 1 1009-1303 ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98055-994-0 01 1 1310-1504 ● ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5X40 W/PL WASHER 		1-71737-797-0 04 1 1009-1303 ●
32 SCREW; UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5X40 W/PL WASHER 		1-71737-797-0 04 1 1304- ● ●
32 SCREW; UNDER MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1009-1303 ●
32 SCREW; UNDER MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1310- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98085-113-1 01 1 1009-1303 ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98085-113-1 01 1 1304-1402 ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98257-749-0 01 1 1403- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98091-477-0 01 1 1009-1303 ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98091-477-0 01 1 1304-1502 ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98305-582-0 01 1 1503- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-781-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-199-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-780-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-198-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98060-218-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-195-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-195-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-777-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-194-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-194-0 01 1 1310- ● ●
53 PIVOT; SIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2 		1-71736-489-2 02 1 1009-1303 ●
53 PIVOT; SIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2 		1-71736-489-2 04 1 1304- ● ●
53 PIVOT; SIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1 		1-71737-633-2 04 1 1009-1303 ●
53 PIVOT; SIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1 		1-71737-633-2 04 1 1310- ● ●
63 NUT; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE 		8-98174-339-0 01 1 1009-1303 ●
63 NUT; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE 		8-98174-339-0 01 1 1304- ● ●
63 NUT; STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 02 1 1009-1303 ●
63 NUT; STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 02 1 1310- ● ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER ID=15 OD=30 T=2.6 		0-91610-614-0 01 1 1009-1303 ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER ID=15 OD=30 T=2.6 		0-91610-614-0 01 1 1304- ● ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER 		8-98174-337-0 01 1 1009-1109 ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER ID=14.5 OD=27 T=1.5 		8-98201-756-0 01 1 1110-1303 ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER ID=14.5 OD=27 T=1.5 		8-98201-756-0 01 1 1304- ● ●
66 WASHER; PL
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1009-1303 ●
66 WASHER; PL
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1009-1303 ●
66 WASHER; PL
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 1310- ● ●
68 WASHER; STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009-1303 ●
68 WASHER; STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1310- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1009-1303 ●
69 NUT; CAP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 01 1 1304-1309 ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		1-71707-224-0 04 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		1-71707-224-0 04 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-022-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-022-1 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-544-2 01 1 1009-1109 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98201-957-0 01 1 1110-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98201-957-0 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-021-0 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-021-0 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-543-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-543-1 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		1-71798-484-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		1-71798-484-1 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-794-2 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-794-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-240-0 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-240-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J) 		8-98092-492-3 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J) 		8-98092-492-3 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-793-2 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-793-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (H) 		8-98039-277-2 02 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-535-0 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-535-0 01 1 1304- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-537-1 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-537-1 01 1 1304- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-351-0 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-351-0 01 1 1304- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-353-1 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-353-1 01 1 1304- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		8-98031-797-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		8-98031-797-0 01 1 1310- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-245-1 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-245-1 01 1 1310- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98064-776-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98064-776-0 01 1 1310- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-796-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-796-0 01 1 1310- ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98101-865-0 01 1 1009-1303 ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98101-864-0 01 1 1009-1303 ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-605-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-605-0 01 1 1310- ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-604-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-604-0 01 1 1310- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK 		1-71737-652-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK 		1-71737-652-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-545-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-545-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-546-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-546-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-541-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-541-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 1310- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 1310- ● ●
87 SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71737-646-2 02 1 1009-1303 ●
87 SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71737-646-2 02 1 1304- ● ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98063-786-0 02 1 1009-1303 ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98063-786-0 02 1 1310- ● ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98063-789-0 01 1 1009-1303 ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98063-789-0 01 1 1310- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER 		8-98067-249-2 10 1 1009-1303 ●
89 SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER 		8-98067-249-2 10 1 1304- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23 		8-97310-216-1 08 1 1009-1303 ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23 		8-97310-216-1 08 1 1310- ● ●
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98129-822-0 02 1 1009-1303 ●
96 CAP; MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98080-173-0 02 1 1009-1303 ●
96 CAP; MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98080-173-0 02 1 1310- ● ●
105 STAY; SUB UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98041-571-2 01 1 1009-1303 ●
105 STAY; SUB UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98041-571-2 01 1 1304-1402 ● ●
105 STAY; SUB UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98257-761-0 01 1 1403- ● ●
105 STAY; SUB UNDER MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98080-109-2 01 1 1009-1303 ●
105 STAY; SUB UNDER MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98080-109-2 01 1 1310- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 		1-09985-180-0 01 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 		1-09985-180-0 01 1 1304- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1304- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1304- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1310- ● ●
145 NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 03 1 1009-1303 ●
145 NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 03 1 1304- ● ●
145 NUT; CAP,SUB STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT 		8-98059-914-0 10 1 1009-1303 ●
145 NUT; CAP,SUB STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT 		8-98059-914-0 10 1 1310- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98125-653-0 02 1 1009-1303 ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-94447-536-0 02 1 1009-1303 ●
307 STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98063-785-2 01 1 1009-1303 ●
307 STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98063-785-2 01 1 1310- ● ●
307 STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98063-784-2 01 1 1009-1303 ●
307 STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98063-784-2 01 1 1310- ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-94447-532-0 02 1 1009-1303 ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-82691-026-0 02 1 1009-1303 ●

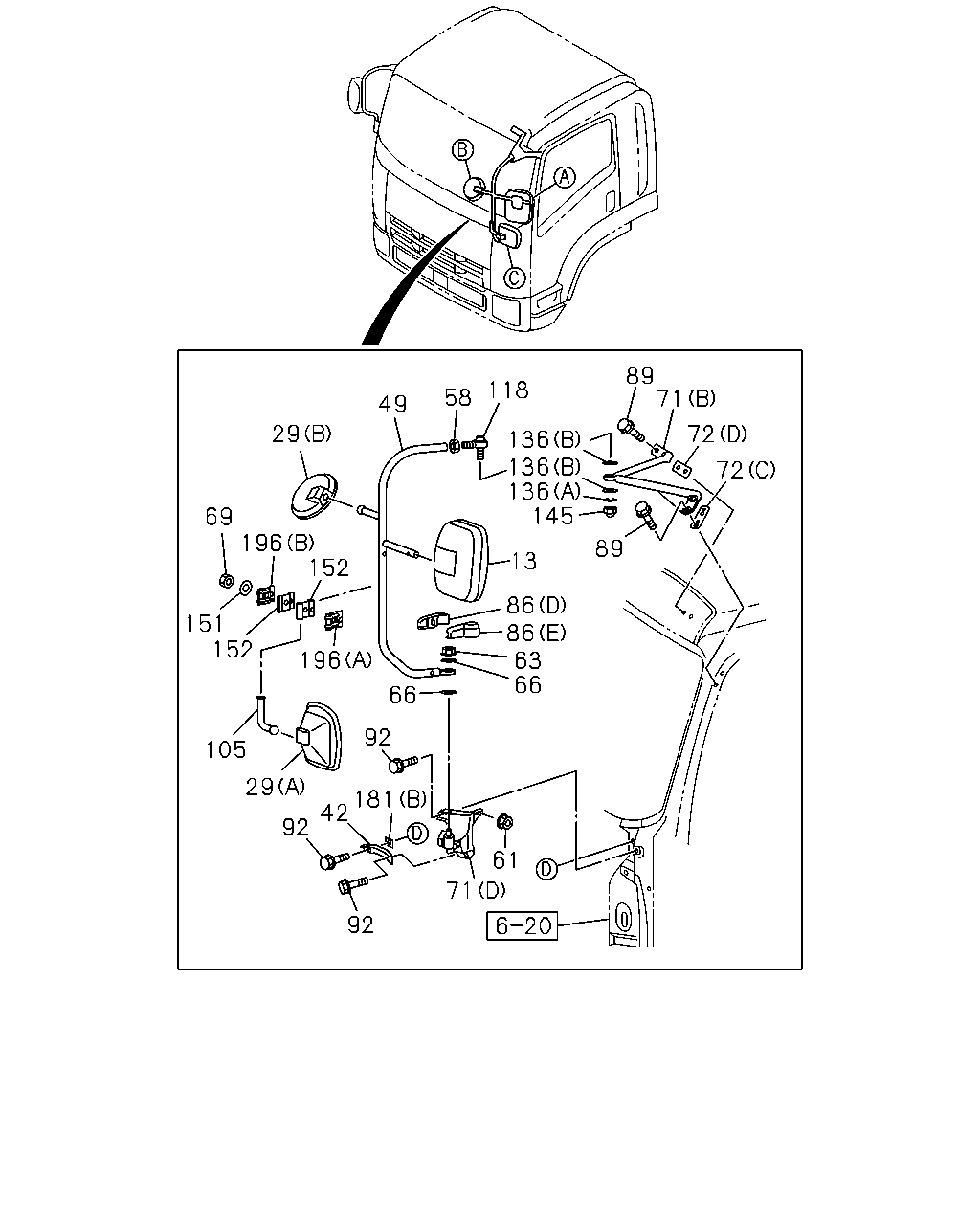

çizim 189505
61 71 92 92 42 181 92 29 105 66 196 152 151 152 196 69 66 63 86 86 13 89 72 72 71 89 145 136 136 136 118 58 49 29
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98028-332-0 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98028-332-0 01 1 1304-1510 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98324-748-0 01 1 1511- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98104-068-0 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98104-068-0 01 1 1304-1510 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98324-749-0 01 1 1511- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98043-176-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98043-060-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-992-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-992-1 01 1 1310- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-991-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-991-1 01 1 1310- ● ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71798-421-1 01 1 1009-1303 ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71798-421-1 01 1 1304- ● ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-422-0 01 1 1009-1303 ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-422-0 01 1 1304- ● ●
42 ATTACHMENT; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98070-643-0 01 1 1009-1303 ●
42 ATTACHMENT; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98070-643-0 01 1 1304- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98085-113-1 01 1 1009-1303 ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98085-113-1 01 1 1304-1402 ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98257-749-0 01 1 1403- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98091-477-0 01 1 1009-1303 ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98091-477-0 01 1 1304-1502 ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98305-582-0 01 1 1503- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-781-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-199-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-780-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-198-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98060-218-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-195-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-195-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-777-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-194-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-194-0 01 1 1310- ● ●
58 NUT; MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M12 		8-98061-883-0 01 1 1009-1303 ●
58 NUT; MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M12 		8-98061-883-0 01 1 1304- ● ●
61 NUT; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
61 NUT; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
63 NUT; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE 		8-98174-339-0 01 1 1009-1303 ●
63 NUT; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE 		8-98174-339-0 01 1 1304- ● ●
63 NUT; STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 02 1 1009-1303 ●
63 NUT; STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 02 1 1310- ● ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER ID=15 OD=30 T=2.6 		0-91610-614-0 01 1 1009-1303 ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER ID=15 OD=30 T=2.6 		0-91610-614-0 01 1 1304- ● ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER 		8-98174-337-0 01 1 1009-1109 ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER ID=14.5 OD=27 T=1.5 		8-98201-756-0 01 1 1110-1303 ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER ID=14.5 OD=27 T=1.5 		8-98201-756-0 01 1 1304- ● ●
66 WASHER; PL
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1009-1303 ●
66 WASHER; PL
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1009-1303 ●
66 WASHER; PL
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 1310- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1009-1303 ●
69 NUT; CAP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 01 1 1304-1309 ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		1-71707-224-0 04 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		1-71707-224-0 04 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-022-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-022-1 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-544-2 01 1 1009-1109 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98201-957-0 01 1 1110-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98201-957-0 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-021-0 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-021-0 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-543-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-543-1 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		1-71798-484-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		1-71798-484-1 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-794-2 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-794-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-240-0 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-240-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J) 		8-98092-492-3 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J) 		8-98092-492-3 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-793-2 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-793-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (H) 		8-98039-277-2 02 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-535-0 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-535-0 01 1 1304- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-537-1 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-537-1 01 1 1304- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-351-0 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-351-0 01 1 1304- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-353-1 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-353-1 01 1 1304- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		8-98031-797-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		8-98031-797-0 01 1 1310- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-245-1 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-245-1 01 1 1310- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98064-776-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98064-776-0 01 1 1310- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-796-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-796-0 01 1 1310- ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98101-865-0 01 1 1009-1303 ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98101-864-0 01 1 1009-1303 ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-605-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-605-0 01 1 1310- ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-604-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-604-0 01 1 1310- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK 		1-71737-652-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK 		1-71737-652-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-545-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-545-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-546-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-546-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-541-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-541-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 1310- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 1310- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER 		8-98067-249-2 10 1 1009-1303 ●
89 SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER 		8-98067-249-2 10 1 1304- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23 		8-97310-216-1 08 1 1009-1303 ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23 		8-97310-216-1 08 1 1310- ● ●
92 BOLT; STAY BRKT,MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE 		8-98076-109-0 04 1 1009-1303 ●
92 BOLT; STAY BRKT,MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE 		8-98076-109-0 04 1 1304- ● ●
92 BOLT; STAY BRKT,MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE 		8-98076-109-0 01 1 1009-1303 ●
92 BOLT; STAY BRKT,MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE 		8-98076-109-0 01 1 1310- ● ●
105 STAY; SUB UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98041-571-2 01 1 1009-1303 ●
105 STAY; SUB UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98041-571-2 01 1 1304-1402 ● ●
105 STAY; SUB UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98257-761-0 01 1 1403- ● ●
105 STAY; SUB UNDER MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98080-109-2 01 1 1009-1303 ●
105 STAY; SUB UNDER MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98080-109-2 01 1 1310- ● ●
118 JOINT ASM; BALL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71798-356-2 01 1 1009-1303 ●
118 JOINT ASM; BALL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71798-356-2 01 1 1304- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 		1-09985-180-0 01 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 		1-09985-180-0 01 1 1304- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1304- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1304- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1310- ● ●
145 NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 03 1 1009-1303 ●
145 NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 03 1 1304- ● ●
145 NUT; CAP,SUB STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT 		8-98059-914-0 10 1 1009-1303 ●
145 NUT; CAP,SUB STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT 		8-98059-914-0 10 1 1310- ● ●
151 WASHER; PL,MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 T=2.0 		1-09985-183-0 01 1 1009-1303 ●
151 WASHER; PL,MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 T=2.0 		1-09985-183-0 01 1 1304- ● ●
152 SHEET; MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71798-445-1 02 1 1009-1303 ●
152 SHEET; MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71798-445-1 02 1 1304- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1009-1303 ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1304- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1009-1303 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1304- ● ●
196 HOLDER; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71798-442-2 01 1 1009-1303 ●
196 HOLDER; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71798-442-2 01 1 1304- ● ●
196 HOLDER; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-444-2 01 1 1009-1303 ●
196 HOLDER; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-444-2 01 1 1304- ● ●
çizim 189508
87 87 145 136 307 96 63 66 66 136 145 13 174 90 30 313 86 66 72 71 26 72 89 220 315 49
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98028-332-0 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98028-332-0 01 1 1304-1510 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98324-748-0 01 1 1511- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98104-068-0 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98104-068-0 01 1 1304-1510 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98324-749-0 01 1 1511- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98043-176-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98043-060-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-992-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-992-1 01 1 1310- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-991-1 01 1 1009-1303 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-991-1 01 1 1310- ● ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71707-222-0 01 1 1009-1303 ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71707-222-0 01 1 1304- ● ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71707-221-0 01 1 1009-1303 ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-71707-221-0 01 1 1304- ● ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-806-0 01 1 1009-1303 ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-806-0 01 1 1310- ● ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-805-0 01 1 1009-1303 ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-805-0 01 1 1310- ● ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-591-1 01 1 1009-1303 ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-591-1 01 1 1304- ● ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71798-592-1 01 1 1009-1303 ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71798-592-1 01 1 1304- ● ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98043-061-0 02 1 1009-1303 ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98043-061-0 02 1 1310- ● ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98043-065-0 01 1 1009-1303 ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98043-065-0 01 1 1310- ● ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98055-994-0 01 1 1009-1303 ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98055-994-0 01 1 1310-1504 ● ●
30 MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98309-725-0 01 1 1505- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98085-113-1 01 1 1009-1303 ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98085-113-1 01 1 1304-1402 ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98257-749-0 01 1 1403- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98091-477-0 01 1 1009-1303 ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98091-477-0 01 1 1304-1502 ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98305-582-0 01 1 1503- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-781-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-199-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-780-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-198-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98060-218-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-195-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-195-0 01 1 1310- ● ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-777-1 01 1 1009-1202 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-194-0 01 1 1203-1303 ●
49 STAY; MIRROR SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98166-194-0 01 1 1310- ● ●
63 NUT; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE 		8-98174-339-0 01 1 1009-1303 ●
63 NUT; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE 		8-98174-339-0 01 1 1304- ● ●
63 NUT; STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 02 1 1009-1303 ●
63 NUT; STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 02 1 1310- ● ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER ID=15 OD=30 T=2.6 		0-91610-614-0 01 1 1009-1303 ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER ID=15 OD=30 T=2.6 		0-91610-614-0 01 1 1304- ● ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER 		8-98174-337-0 01 1 1009-1109 ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER ID=14.5 OD=27 T=1.5 		8-98201-756-0 01 1 1110-1303 ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER ID=14.5 OD=27 T=1.5 		8-98201-756-0 01 1 1304- ● ●
66 WASHER; PL
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1009-1303 ●
66 WASHER; PL
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1009-1303 ●
66 WASHER; PL
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		1-71707-224-0 04 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		1-71707-224-0 04 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-022-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-022-1 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-544-2 01 1 1009-1109 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98201-957-0 01 1 1110-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98201-957-0 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-021-0 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-021-0 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-543-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-543-1 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		1-71798-484-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		1-71798-484-1 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-794-2 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-794-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-240-0 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-240-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J) 		8-98092-492-3 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J) 		8-98092-492-3 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-793-2 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-793-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (H) 		8-98039-277-2 02 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-535-0 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-535-0 01 1 1304- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-537-1 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-537-1 01 1 1304- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-351-0 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-351-0 01 1 1304- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-353-1 01 1 1009-1303 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-353-1 01 1 1304- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		8-98031-797-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		8-98031-797-0 01 1 1310- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-245-1 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-245-1 01 1 1310- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98064-776-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98064-776-0 01 1 1310- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-796-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-796-0 01 1 1310- ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98101-865-0 01 1 1009-1303 ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98101-864-0 01 1 1009-1303 ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-605-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-605-0 01 1 1310- ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-604-0 01 1 1009-1303 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98116-604-0 01 1 1310- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK 		1-71737-652-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK 		1-71737-652-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-545-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-545-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-546-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-546-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-541-1 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-541-1 01 1 1304- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 1310- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 1009-1303 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 1310- ● ●
87 SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71737-646-2 02 1 1009-1303 ●
87 SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71737-646-2 02 1 1304- ● ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98063-786-0 02 1 1009-1303 ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98063-786-0 02 1 1310- ● ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98063-789-0 01 1 1009-1303 ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98063-789-0 01 1 1310- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER 		8-98067-249-2 10 1 1009-1303 ●
89 SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER 		8-98067-249-2 10 1 1304- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23 		8-97310-216-1 08 1 1009-1303 ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23 		8-97310-216-1 08 1 1310- ● ●
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98129-822-0 02 1 1009-1303 ●
96 CAP; MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98080-173-0 02 1 1009-1303 ●
96 CAP; MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98080-173-0 02 1 1310- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 		1-09985-180-0 01 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 		1-09985-180-0 01 1 1304- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1304- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1304- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1009-1303 ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1310- ● ●
145 NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 03 1 1009-1303 ●
145 NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT 		1-09984-134-0 03 1 1304- ● ●
145 NUT; CAP,SUB STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT 		8-98059-914-0 10 1 1009-1303 ●
145 NUT; CAP,SUB STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT 		8-98059-914-0 10 1 1310- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98125-653-0 02 1 1009-1303 ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-94447-536-0 02 1 1009-1303 ●
307 STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98063-785-2 01 1 1009-1303 ●
307 STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98063-785-2 01 1 1310- ● ●
307 STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98063-784-2 01 1 1009-1303 ●
307 STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98063-784-2 01 1 1310- ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-94447-532-0 02 1 1009-1303 ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		1-82691-026-0 02 1 1009-1303 ●
çizim 344221
18 1 2 181 71 181 92 185
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1009-1303 ●
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1304- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1009-1303 ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1304- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1009-1303 ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		1-71707-224-0 04 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) 		1-71707-224-0 04 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-022-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-022-1 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-544-2 01 1 1009-1109 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98201-957-0 01 1 1110-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98201-957-0 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-021-0 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-021-0 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-543-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-543-1 01 1 1304- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		1-71798-484-1 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G) 		1-71798-484-1 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-794-2 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-794-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-240-0 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I) 		8-98060-240-0 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J) 		8-98092-492-3 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J) 		8-98092-492-3 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-793-2 01 1 1009-1303 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-793-2 01 1 1310- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (H) 		8-98039-277-2 02 1 1009-1303 ●
92 BOLT; STAY BRKT,MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE 		8-98076-109-0 04 1 1009-1303 ●
92 BOLT; STAY BRKT,MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE 		8-98076-109-0 04 1 1304- ● ●
92 BOLT; STAY BRKT,MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE 		8-98076-109-0 01 1 1009-1303 ●
92 BOLT; STAY BRKT,MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE 		8-98076-109-0 01 1 1310- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1009-1303 ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1304- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1009-1303 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1304- ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> M8X16 FLANGE 		0-28050-816-0 02 1 1009-1303 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
