◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#70401) — 43 parça

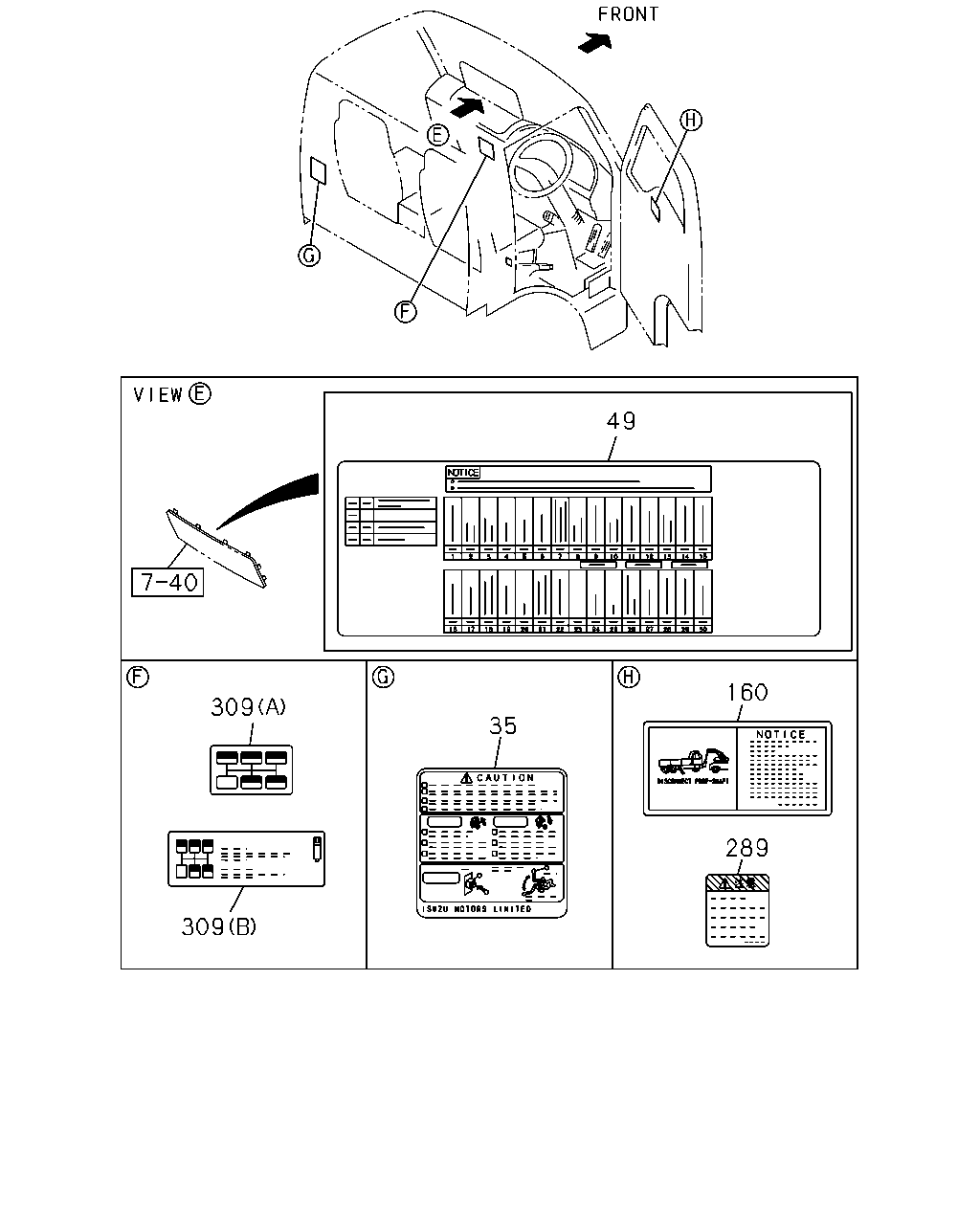

çizim 133090
49 309 309 35 160 289
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB
CAUTIONS CHINESE<SL7> 		8-98171-036-0 01 1 1009-1303 ●
35 PLATE; CAUTION,CAB
CAUTIONS CHINESE<SL7> 		8-98171-036-0 01 1 1304- ● ●
35 PLATE; CAUTION,CAB
CAUTIONS ENGLISH<RR8> 		8-98017-667-1 01 1 1009-1303 ●
35 PLATE; CAUTION,CAB
CAUTIONS ENGLISH<RR8> 		8-98017-667-1 01 1 1304- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		8-98155-328-0 01 1 1009-1303 ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		8-98155-328-0 01 1 1304- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		8-98076-221-0 01 1 1009-1303 ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		8-98076-221-0 01 1 1304- ● ●
160 PLATE; CAUTION,TOWING
ZF9S1310 M/T(Y5K) CAUTIONS CHINESE<SL7> 		8-98155-058-0 01 1 1009-1303 ●
160 PLATE; CAUTION,TOWING
ZF9S1310 M/T(Y5K) CAUTIONS CHINESE<SL7> 		8-98155-058-0 01 1 1304- ● ●
160 PLATE; CAUTION,TOWING
ZF9S1310 M/T(Y5K) CAUTIONS ENGLISH<RR8> 		1-85888-737-1 01 1 1009-1303 ●
160 PLATE; CAUTION,TOWING
ZF9S1310 M/T(Y5K) CAUTIONS ENGLISH<RR8> 		1-85888-737-1 01 1 1304- ● ●
289 PLATE; CAUTION,DRIVING
HONG KONG EQUIPMENT(PQ1) CAUTIONS CHINESE<SL7> 		1-85883-223-1 01 1 1009-1303 ●
289 PLATE; CAUTION,DRIVING
CAUTIONS CHINESE<SL7> 		1-85883-223-1 01 1 1304- ● ●
309 LABEL; M/T SHIFT
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-85881-640-0 01 1 1009-1303 ●
309 LABEL; M/T SHIFT
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-98086-310-1 01 1 1009-1303 ●

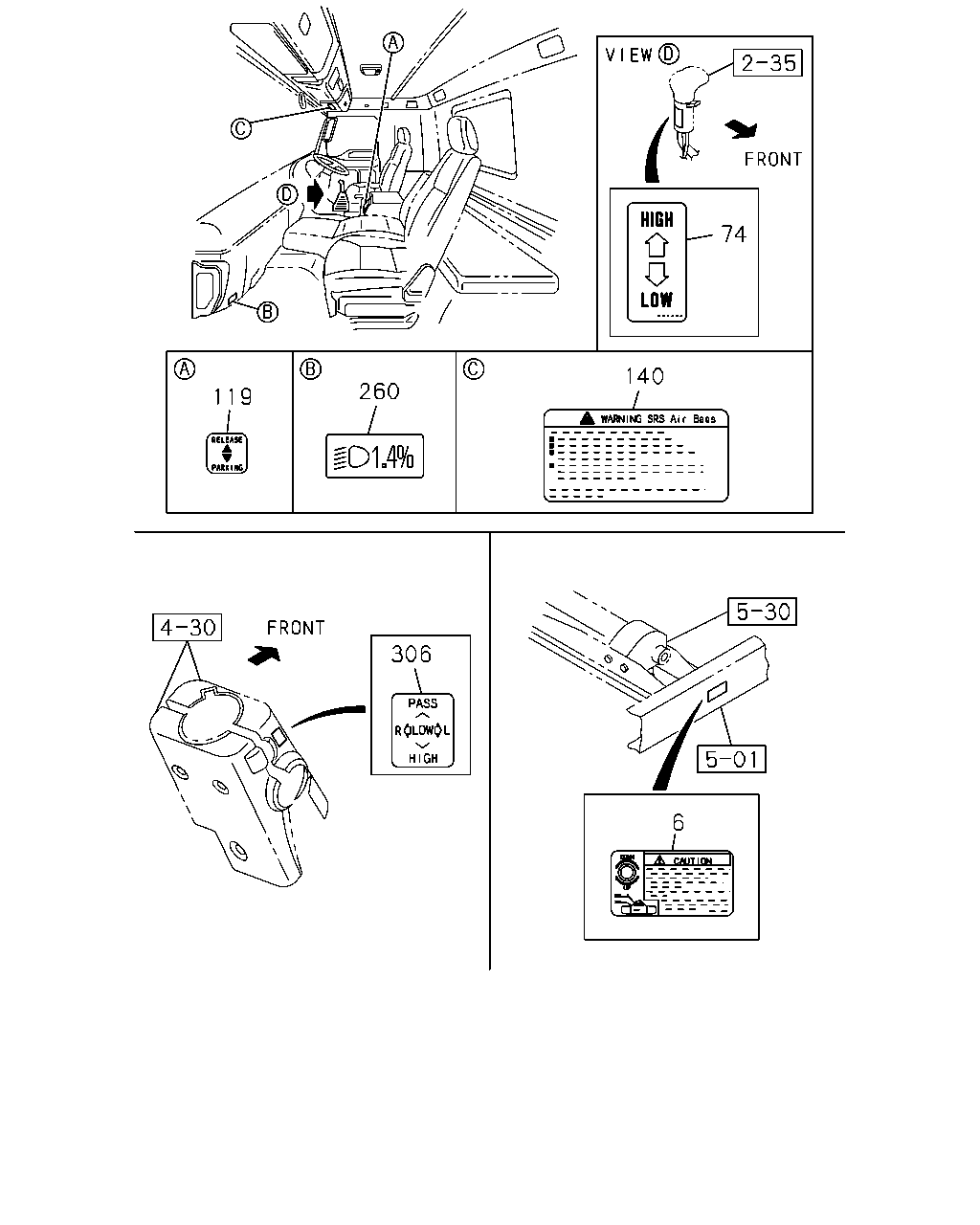

çizim 133233
74 140 260 119 6 306
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> 		8-98082-438-0 01 1 1009- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8> 		8-98082-437-0 01 1 1009- ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1310 M/T(Y5K) TRANSMISSION CONTROL CABLE TYPE(C1A) SHIFT PATTERN SINGLE-H<EDY> CAUTIONS CHINESE<SL7> 		8-98120-457-0 01 1 1304- ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> CAUTIONS CHINESE<SL7> 		8-98120-457-0 01 1 1304- ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98118-493-0 01 1 1009-1303 ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1310 M/T(Y5K) TRANSMISSION CONTROL CABLE TYPE(C1A) SHIFT PATTERN SINGLE-H<EDY> EXC. CAUTIONS CHINESE<SL7> 		8-98118-493-0 01 1 1304- ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. CAUTIONS CHINESE<SL7> 		8-98118-493-0 01 1 1304- ●
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS CHINESE<SL7> 		1-85881-874-0 01 1 1009-1303 ●
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS CHINESE<SL7> 		1-85881-874-0 01 1 1304- ● ●
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS ENGLISH<RR8> 		1-85881-759-0 01 1 1009-1303 ●
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS ENGLISH<RR8> 		1-85881-759-0 01 1 1304- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3) CAUTIONS CHINESE<SL7> 		8-98158-430-0 01 1 1009-1303 ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3) CAUTIONS CHINESE<SL7> 		8-98158-430-0 01 1 1304- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3) CAUTIONS ENGLISH<RR8> 		8-98139-964-0 01 1 1009-1303 ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3) CAUTIONS ENGLISH<RR8> 		8-98139-964-0 01 1 1304- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1009-1303 ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1304- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1009-1303 ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1304- ● ●

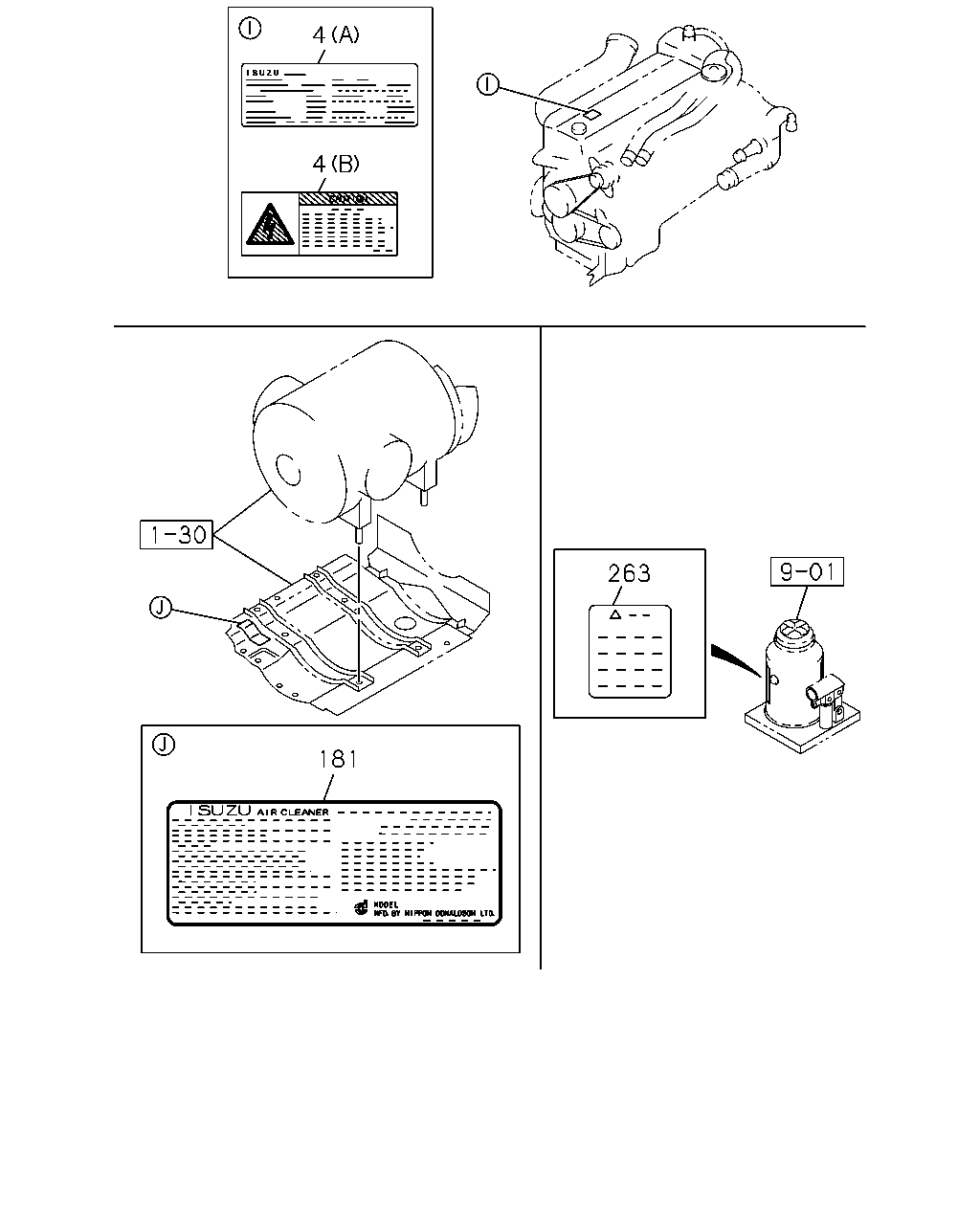

çizim 189504
4 4 263 181
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 1009-1303 ●
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 1304- ● ●
4 LABEL; ENG MAINTENANCE
(A) 		8-98164-931-1 01 1 1009-1303 ●
4 LABEL; ENG MAINTENANCE
(A) 		8-98164-931-1 01 1 1304- ● ●
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 1009-1303 ●
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 1304- ● ●
263 PLATE; CAUTION,JACK
INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 		1-85881-878-0 01 1 1009-1303 ●
263 PLATE; CAUTION,JACK
TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 		1-85881-878-0 01 1 1304- ● ●
