6-47 — MUD GUARD AND INSULATOR (#7040) — 93 parça

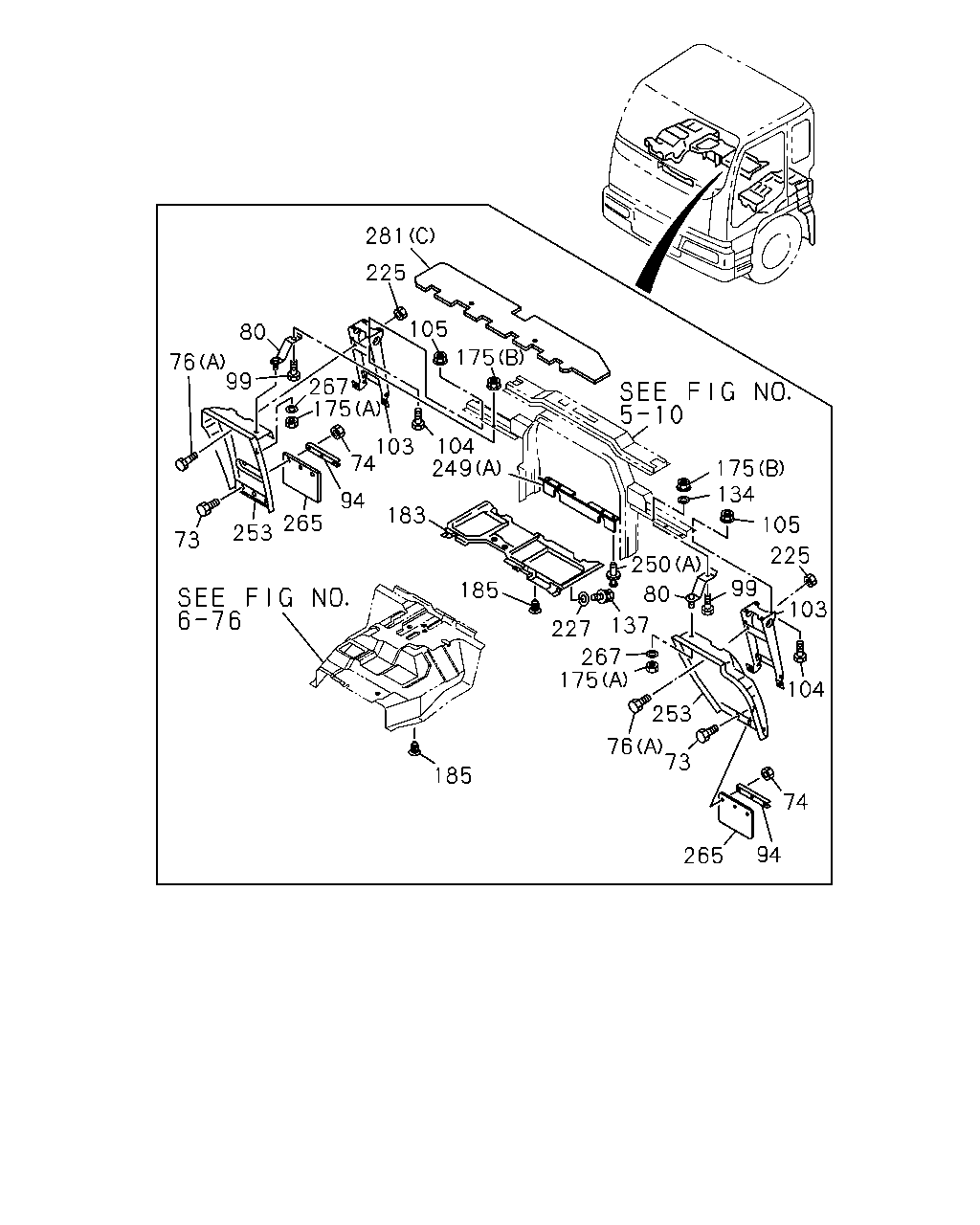

çizim 8641
94 74 265 73 76 253 104 103 99 225 105 134 175 250 80 137 267 227 175 185 185 183 94 265 253 73 76 99 80 267 175 74 103 104 249 175 105 225 281
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 9908-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 9908-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9908-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9908-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 9908-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 9908-
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 9908-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 9908-
103 BRACKET ASM; RR MUD FLAP 1-79931-088-4 02 1 9908-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 07 1 9908-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 07 1 9908-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 9908-
137 BOLT
M8X20 W/LK&PL WASHER 		8-94279-208-0 01 1 9908-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 9908-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 9908-
183 INSULATOR; HEAT,BED PAN 1-71907-526-2 01 1 9908-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 28 1 9908-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0210-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 9908-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 9908-
249 RUBBER; SHUTTER
(A) 		1-79937-924-1 01 1 9908-
249 RUBBER; SHUTTER
(B) 		1-79937-902-2 01 1 9908-
249 RUBBER; SHUTTER
(C) 		1-79937-975-0 01 1 9908-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 12 1 9908-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 9908-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 9908-
253 GUARD; MUD 1-79931-066-7 01 1 9908-
253 GUARD; MUD 1-79931-064-7 01 1 9908-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 9908-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 9908-
281 INSULATOR; NOISE
(D) 		1-79937-957-1 01 1 9908-
281 INSULATOR; NOISE
(A) 		1-71907-166-0 01 1 9908-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 9908-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-3 01 1 9908-

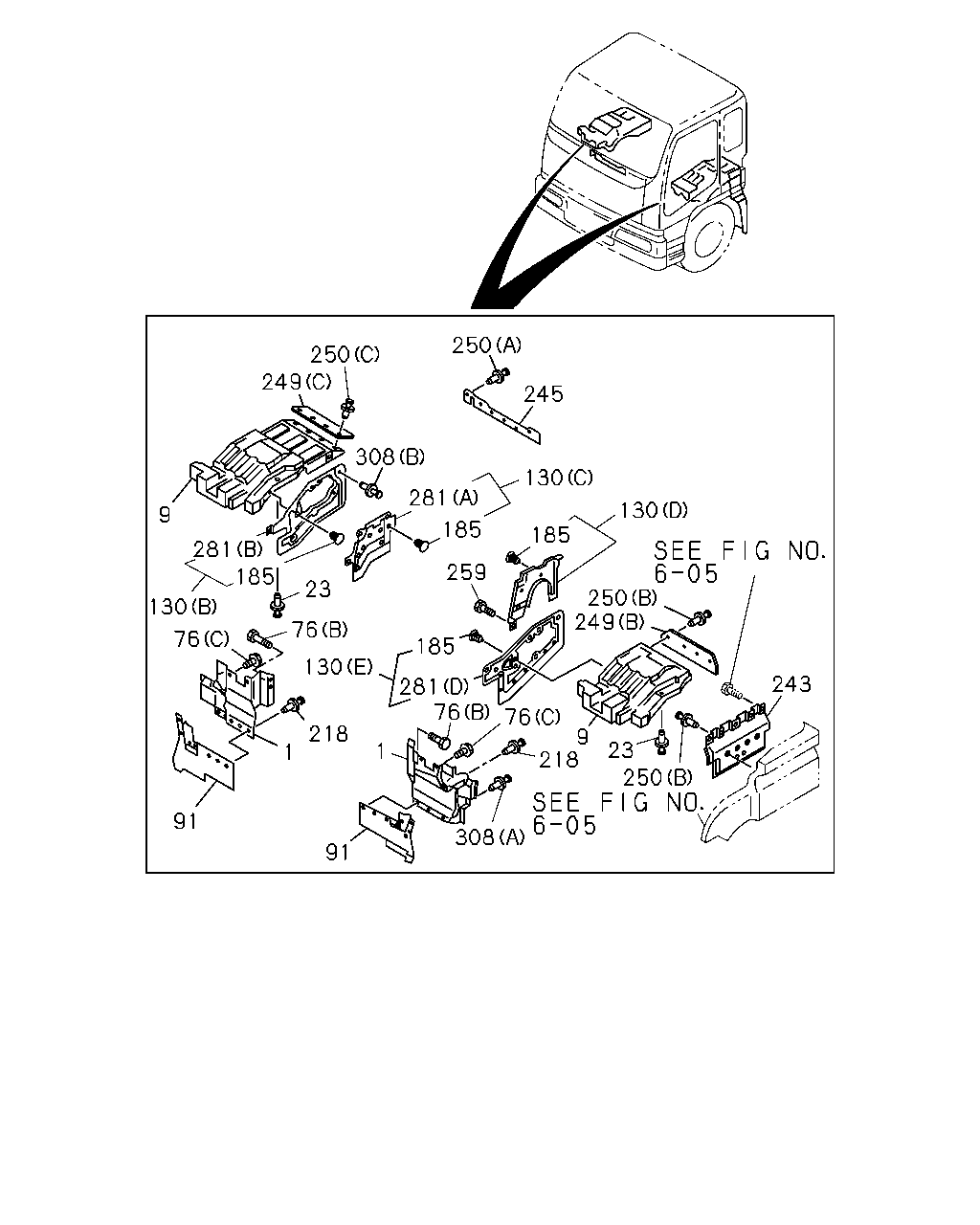

çizim 8643
250 23 9 218 76 76 281 1 91 308 218 1 91 130 76 76 130 185 23 281 9 259 185 185 130 130 245 250 250 249 308 281 185 250 249 243
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-4 01 1 9908-
1 GUARD; MUD,FRT 1-79937-894-5 01 1 9908-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-893-3 01 1 9908-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-892-3 01 1 9908-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 9908-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9908-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9908-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 9908-
91 COVER; MUD,FRT 1-79931-200-1 01 1 9908-
91 COVER; MUD,FRT 1-79931-199-1 01 1 9908-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-203-2 01 1 9908-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-920-2 01 1 9908-
130 PANEL; SHUTTER NOISE
(E) 		1-79937-953-3 01 1 9908-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-210-1 01 1 9908-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-917-2 01 1 9908-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-3 01 1 9908-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 28 1 9908-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0210-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 9908-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-1 01 1 9908-
245 RUBBER; SHUTTER,RAD 1-79937-949-0 01 1 9908-
249 RUBBER; SHUTTER
(A) 		1-79937-924-1 01 1 9908-
249 RUBBER; SHUTTER
(B) 		1-79937-902-2 01 1 9908-
249 RUBBER; SHUTTER
(C) 		1-79937-975-0 01 1 9908-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 12 1 9908-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 9908-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 9908-
259 BOLT; NOISE PANEL
M8X20 W/LK&PL WASHER 		8-94279-208-0 10 1 9908-
281 INSULATOR; NOISE
(D) 		1-79937-957-1 01 1 9908-
281 INSULATOR; NOISE
(A) 		1-71907-166-0 01 1 9908-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 9908-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-3 01 1 9908-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 9908-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 9908-

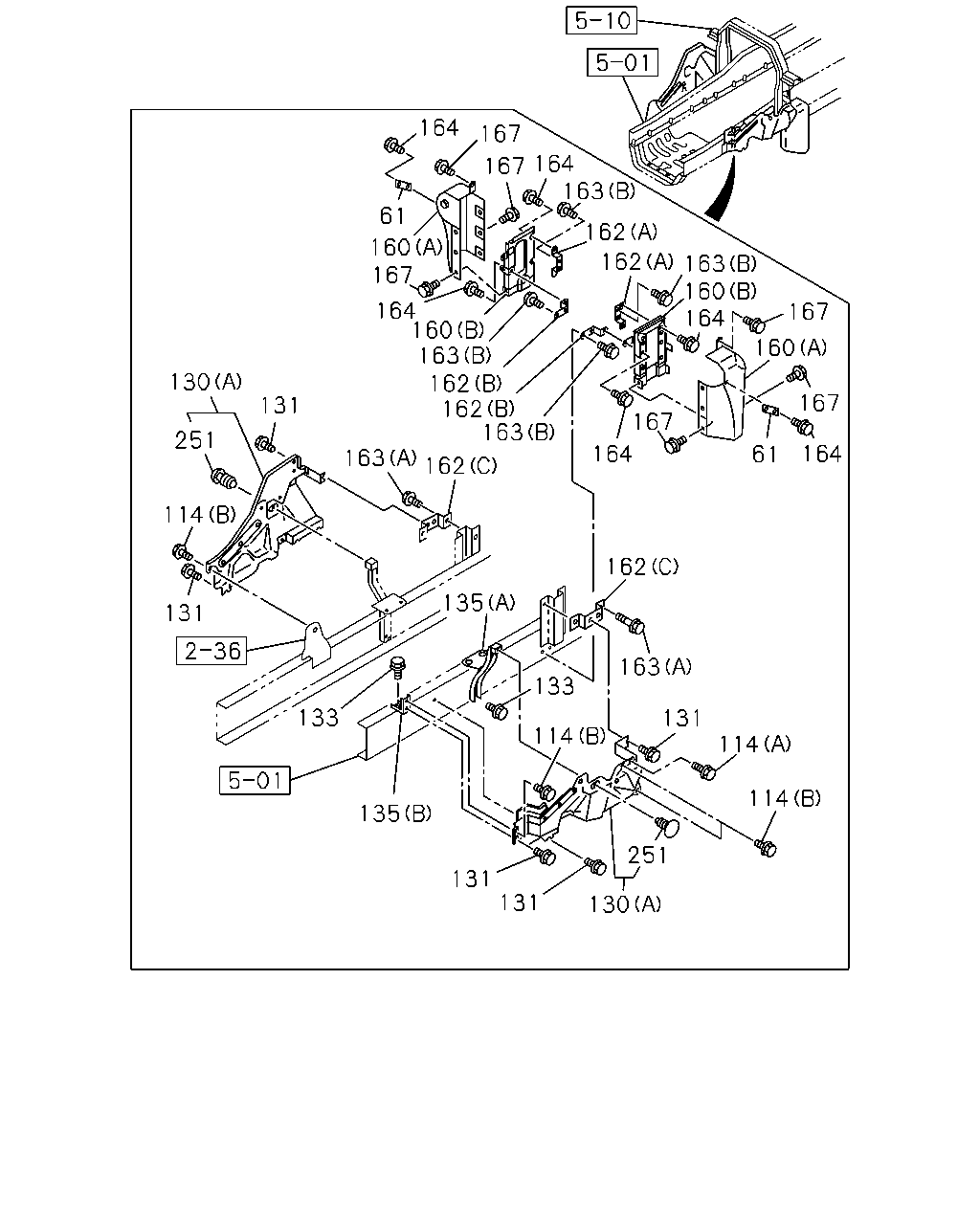

çizim 8644
164 167 164 163 167 61 162 160 167 162 163 160 164 164 160 163 162 162 163 167 160 167 130 131 167 251 164 164 61 163 162 114 162 135 131 163 133 133 131 114 114 114 135 251 131 131 130
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 02 1 9908-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9908-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9908-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-203-2 01 1 9908-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-920-2 01 1 9908-
130 PANEL; SHUTTER NOISE
(E) 		1-79937-953-3 01 1 9908-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-210-1 01 1 9908-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-917-2 01 1 9908-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-3 01 1 9908-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9908-
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 04 1 9908-
135 BRACKET; SIDE PANEL
(B) 		1-53441-507-0 01 1 9908-
135 BRACKET; SIDE PANEL
(A) 		1-53441-508-0 01 1 9908-
160 COVER ASM; EXH
(A) 		1-79931-063-1 01 1 9908-
160 COVER ASM; EXH
(B) 		1-79931-111-0 01 1 9908-
160 COVER ASM; EXH
(A) 		1-79931-061-1 01 1 9908-
160 COVER ASM; EXH
(B) 		1-79931-256-1 01 1 9908-
162 BRACKET
(C) 		1-53441-520-0 02 1 9908-
162 BRACKET
(A) 		1-53441-521-2 02 1 9908-
162 BRACKET
(B) 		1-53441-522-0 02 1 9908-
163 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9908-
163 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 06 1 9908-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28680-820-0 10 1 9908-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 12 1 9908-
251 CLIP; NOISE INSULATOR 8-94279-048-0 10 1 9908-
