◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#70399) — 20 parça

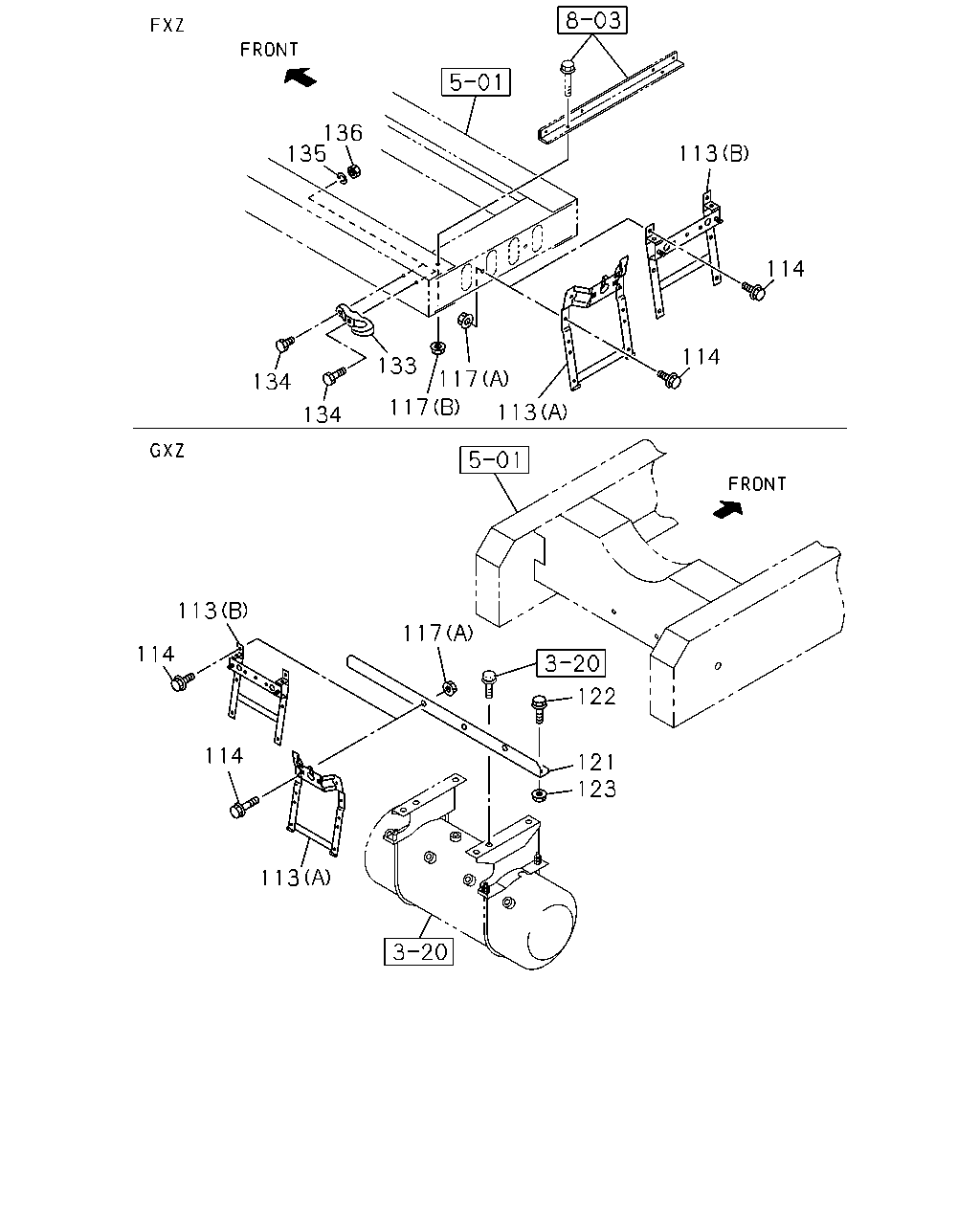

çizim 132489
136 135 134 134 133 117 117 113 114 114 113 113 114 114 117 113 123 121 122
BalonParca AdiParca NoAdetTipApplied Date A B
113 BRACKET; LICENSE PLATE
HONG KONG EQUIPMENT(PQ1) (B) 		8-98144-961-0 01 1 1009-1111 ●
113 BRACKET; LICENSE PLATE
HONG KONG EQUIPMENT(PQ1) (B) 		8-98163-444-1 01 1 1112-1303 ●
113 BRACKET; LICENSE PLATE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98163-444-1 01 1 1304- ● ●
113 BRACKET; LICENSE PLATE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		8-98090-218-1 01 1 1009-1303 ●
113 BRACKET; LICENSE PLATE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		8-98052-734-1 01 1 1304- ● ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
117 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1009-1303 ●
117 NUT; BRKT
REVERSING WARNING BUZZER<YM9> (B) M10 FLANGE 		0-91180-210-0 02 1 1304- ● ●
121 STAY; RR LICENSE PLATE BRKT 8-98234-691-0 01 1 1304-1308 ●
121 STAY; RR LICENSE PLATE BRKT 8-98251-099-0 01 1 1309- ●
122 BOLT; STAY TO FRAME
M12X35 FLANGE 		0-28651-235-0 02 1 1304- ●
123 NUT; STAY
M12 FLANGE 		0-91180-212-0 01 1 1304- ●
133 HOOK 1-57181-027-1 01 1 1009- ●
134 BOLT; HOOK
M16X60 		0-10861-660-0 01 1 1009- ●
134 BOLT; HOOK
M16X50 		0-20851-650-0 01 1 1009- ●
135 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1009- ●
136 NUT; HOOK
M16 		0-91110-516-0 02 1 1009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
