◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#70394) — 33 parça

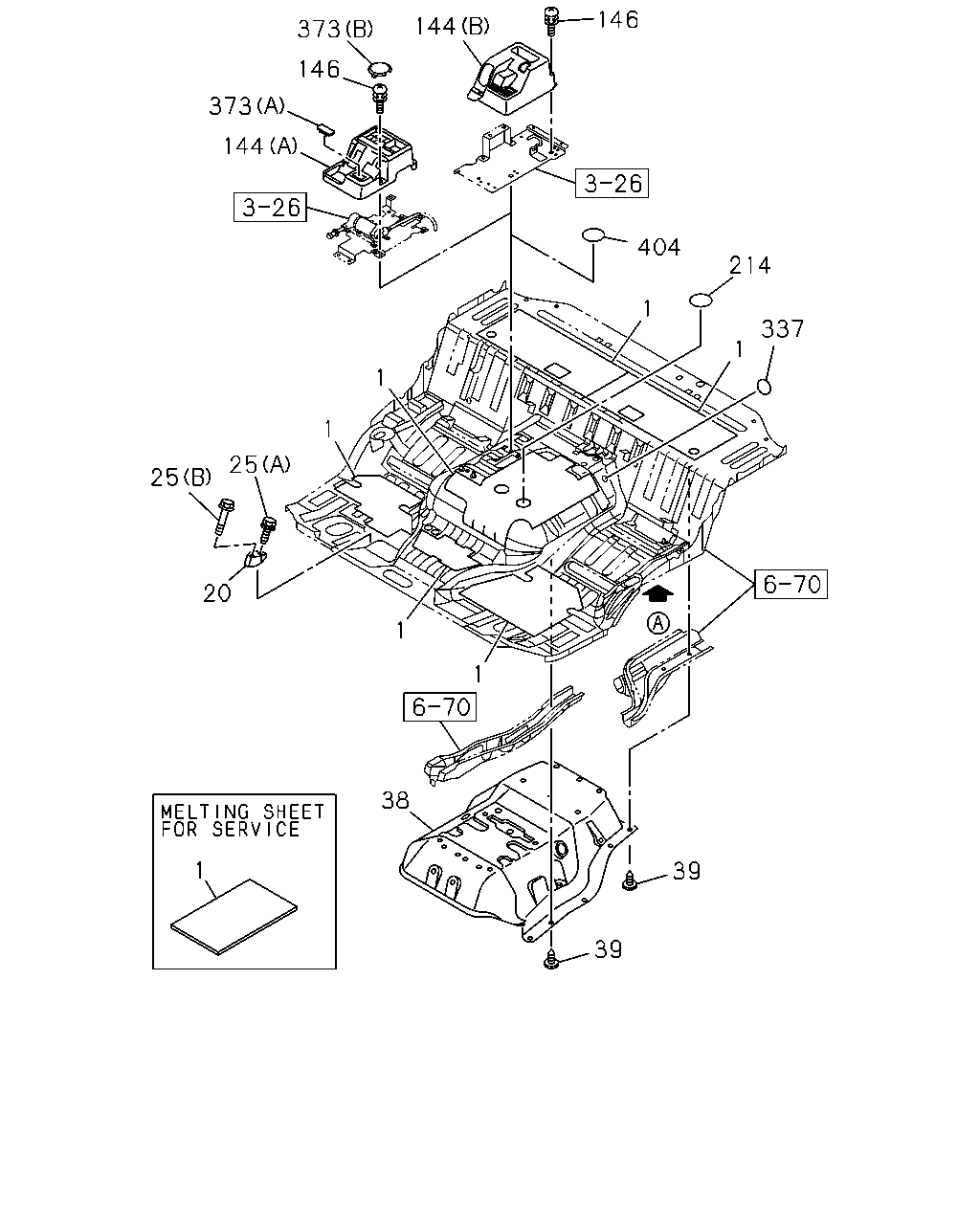

çizim 132462
373 144 146 144 146 404 337 214 38 1 1 373 1 1 1 1 20 25 25 39 39 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 1009-1303 ●
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 1304- ● ●
20 REST; FOOT 8-98058-150-0 01 1 1009-1303 ●
20 REST; FOOT 8-98058-150-0 01 1 1304- ● ●
25 SCREW; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1009-1303 ●
25 SCREW; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1304- ● ●
25 SCREW; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 1009-1303 ●
25 SCREW; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 1304- ● ●
38 INSULATOR; ENG COVER 8-98052-607-1 01 1 1009-1303 ●
38 INSULATOR; ENG COVER 8-98052-607-1 01 1 1304-1401 ● ●
38 INSULATOR; ENG COVER
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98251-886-0 01 1 1402-1405 ● ●
38 INSULATOR; ENG COVER 8-98251-886-0 01 1 1406- ● ●
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 26 1 1009-1303 ●
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 26 1 1304-1401 ● ●
39 CLIP; INSULATOR,COVER
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=6.2 L=11.4 		8-97808-623-0 26 1 1402-1405 ● ●
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 26 1 1406- ● ●
144 COVER; HAND BRK VLV
(A) GRAY 		8-97407-974-0 01 1 1304- ●
144 COVER; HAND BRK VLV
(B) GRAY 		8-97409-900-0 01 1 1304- ●
144 COVER; HAND BRK VLV
(A) GRAY 		8-97414-752-0 01 1 1009-1303 ●
146 BOLT; COVER BRKT
M6X16 		0-38050-616-0 03 1 1304- ●
146 BOLT; COVER BRKT
M6X16 		0-38050-616-0 04 1 1009- ●
214 SEAL; HOLE COVER
OD=25 BLACK 		1-76798-019-0 02 1 1009-1303 ●
214 SEAL; HOLE COVER
OD=25 BLACK 		1-76798-019-0 02 1 1304- ● ●
337 SEAL; CLIP HOLE
OD=25 BLACK 		1-76798-019-0 06 1 1009-1303 ●
337 SEAL; CLIP HOLE
OD=25 BLACK 		1-76798-019-0 06 1 1304-1509 ● ●
337 SEAL; CLIP HOLE
OD=25 BLACK 		1-76798-019-0 08 1 1510- ● ●
373 COVER; HOLE
(B) GRAY 		8-97407-951-0 04 1 1009- ●
373 COVER; HOLE
(A) GRAY 		8-97409-339-0 01 1 1009- ●
404 SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 02 1 1009-1303 ●
404 SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 02 1 1304- ● ●
çizim 344010
370 370 370
BalonParca AdiParca NoAdetTipApplied Date A B
370 SEAL; LOCATION HOLE
OD=30 T=1.0 		8-98051-161-0 08 1 1009-1211 ●
370 SEAL; LOCATION HOLE
OD=30 T=0.8 		8-98230-420-0 08 1 1212-1303 ●
370 SEAL; LOCATION HOLE
OD=30 T=0.8 		8-98230-420-0 08 1 1304- ● ●
