◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#70393) — 42 parça

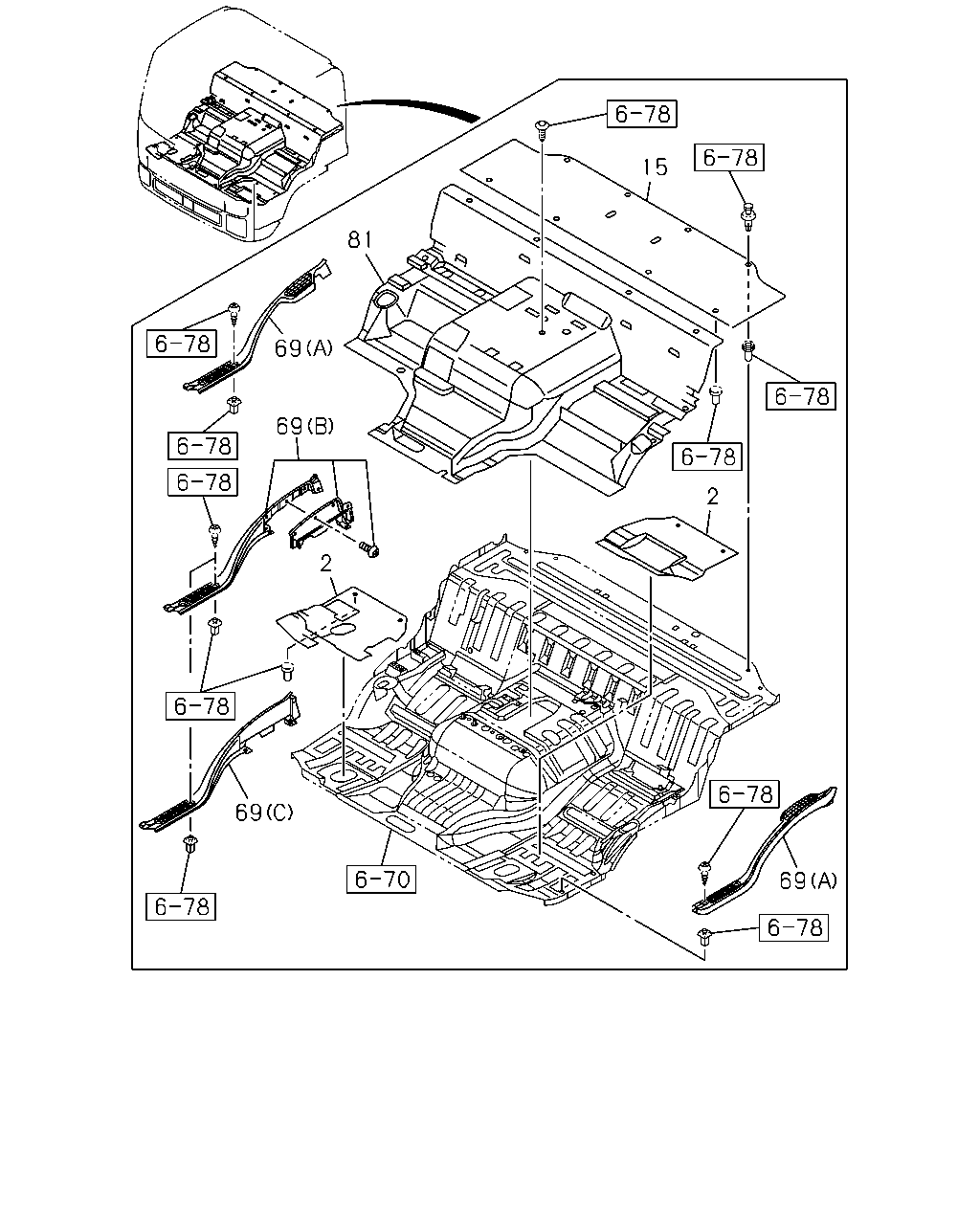

çizim 131980
15 2 81 69 69 2 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
DELUXE CARPET<BF2> DARK GRAY 		8-97421-810-0 01 1 1009-1303 ●
2 MAT; FLOOR
DELUXE CARPET<BF2> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DARK GRAY 		8-97421-810-0 01 1 1304- ● ●
2 MAT; FLOOR
DELUXE CARPET<BF2> HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97421-809-0 01 1 1009-1303 ●
2 MAT; FLOOR
DELUXE CARPET<BF2> HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97421-809-0 01 1 1304- ● ●
2 MAT; FLOOR
DELUXE CARPET<BF2> EXC. HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97421-808-0 01 1 1009-1303 ●
2 MAT; FLOOR
DELUXE CARPET<BF2> SINGAPORE EQUIPMENT(WQ3) DARK GRAY 		8-97421-808-0 01 1 1304- ● ●
2 MAT; FLOOR
VINYL CARPET<B30> GRAY 		8-97413-133-1 01 1 1009-1303 ●
2 MAT; FLOOR
VINYL CARPET<B30> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) GRAY 		8-97413-133-1 01 1 1304- ● ●
2 MAT; FLOOR
VINYL CARPET<B30> HONG KONG EQUIPMENT(PQ1) GRAY 		8-97418-753-1 01 1 1009-1303 ●
2 MAT; FLOOR
VINYL CARPET<B30> HONG KONG EQUIPMENT(PQ1) GRAY 		8-97418-753-1 01 1 1304- ● ●
2 MAT; FLOOR
VINYL CARPET<B30> EXC. HONG KONG EQUIPMENT(PQ1) GRAY 		8-97413-132-2 01 1 1009-1303 ●
2 MAT; FLOOR
VINYL CARPET<B30> SINGAPORE EQUIPMENT(WQ3) GRAY 		8-97413-132-2 01 1 1304- ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 1304- ● ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1009-1303 ●
15 MAT; FLOOR REAR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1304- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> SINGAPORE EQUIPMENT(WQ3) EXC. PTO CONTROL<SV6> (C) GRAY 		8-97465-138-0 01 1 1504- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> SINGAPORE EQUIPMENT(WQ3) EXC. PTO CONTROL<SV6> (B) GRAY 		8-97407-414-3 01 1 1304-1503 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
PTO CONTROL<SV6> SINGAPORE EQUIPMENT(WQ3) EXC. DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97407-414-3 01 1 1304-1503 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
PTO CONTROL<SV6> SINGAPORE EQUIPMENT(WQ3) EXC. DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97407-414-3 01 1 1504- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(PQ1) ENGINE REAR PTO(SV1) (B) GRAY 		8-97412-928-0 01 1 1012-1303 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(PQ1) DUMP CONTROL LEVER<RC4> EXC. PTO CONTROL<SV6> (B) GRAY 		8-97412-928-1 01 1 1304- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(PQ1) PTO CONTROL<SV6> EXC. DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97412-928-1 01 1 1304- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(PQ1) (A) GRAY 		8-97412-927-0 01 1 1009-1303 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(PQ1) (A) GRAY 		8-97412-927-0 01 1 1304- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(PQ1) (A) GRAY 		8-97412-926-0 01 1 1009-1011 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(PQ1) EXC. ENGINE REAR PTO(SV1) (A) GRAY 		8-97412-926-0 01 1 1012-1303 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(PQ1) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL<SV6> (A) GRAY 		8-97412-926-0 01 1 1304- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(PQ1) (A) GRAY 		8-97412-926-0 01 1 1304- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. HONG KONG EQUIPMENT(PQ1) (A) GRAY 		8-97407-413-1 01 1 1009-1303 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
SINGAPORE EQUIPMENT(WQ3) (A) GRAY 		8-97407-413-1 01 1 1304- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. HONG KONG EQUIPMENT(PQ1) (A) GRAY 		8-97407-412-1 01 1 1009-1303 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
SINGAPORE EQUIPMENT(WQ3) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL<SV6> (A) GRAY 		8-97407-412-1 01 1 1304- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
SINGAPORE EQUIPMENT(WQ3) (A) GRAY 		8-97407-412-1 01 1 1304- ●
81 MAT; FLOOR,CENTER
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL CARPET<B30> A/T<X9D> 		8-97425-502-0 01 1 1304- ●
81 MAT; FLOOR,CENTER
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE CARPET<BF2> 		8-97425-500-0 01 1 1304- ●
81 MAT; FLOOR,CENTER
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL CARPET<B30> GRAY 		8-97413-082-5 01 1 1304- ●
81 MAT; FLOOR,CENTER
DELUXE CARPET<BF2> DARK GRAY 		8-97421-806-0 01 1 1009-1303 ●
81 MAT; FLOOR,CENTER
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE CARPET<BF2> ISUZU M/T<X9A>,ZF M/T<X9E> DARK GRAY 		8-97424-930-0 01 1 1304- ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> DRIVER ISRINGHAUSEN SEAT(SJA) GRAY 		8-97413-083-6 01 1 1009-1303 ●
81 MAT; FLOOR,CENTER
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE CARPET<BF2> A/T<X9D> 		8-97425-501-0 01 1 1304- ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) GRAY 		8-97413-081-6 01 1 1009-1303 ●
81 MAT; FLOOR,CENTER
AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL CARPET<B30> ISUZU M/T<X9A>,ZF M/T<X9E> GRAY 		8-97413-081-6 01 1 1304- ●
