6-70 — FLOOR PANEL (#70392) — 130 parça

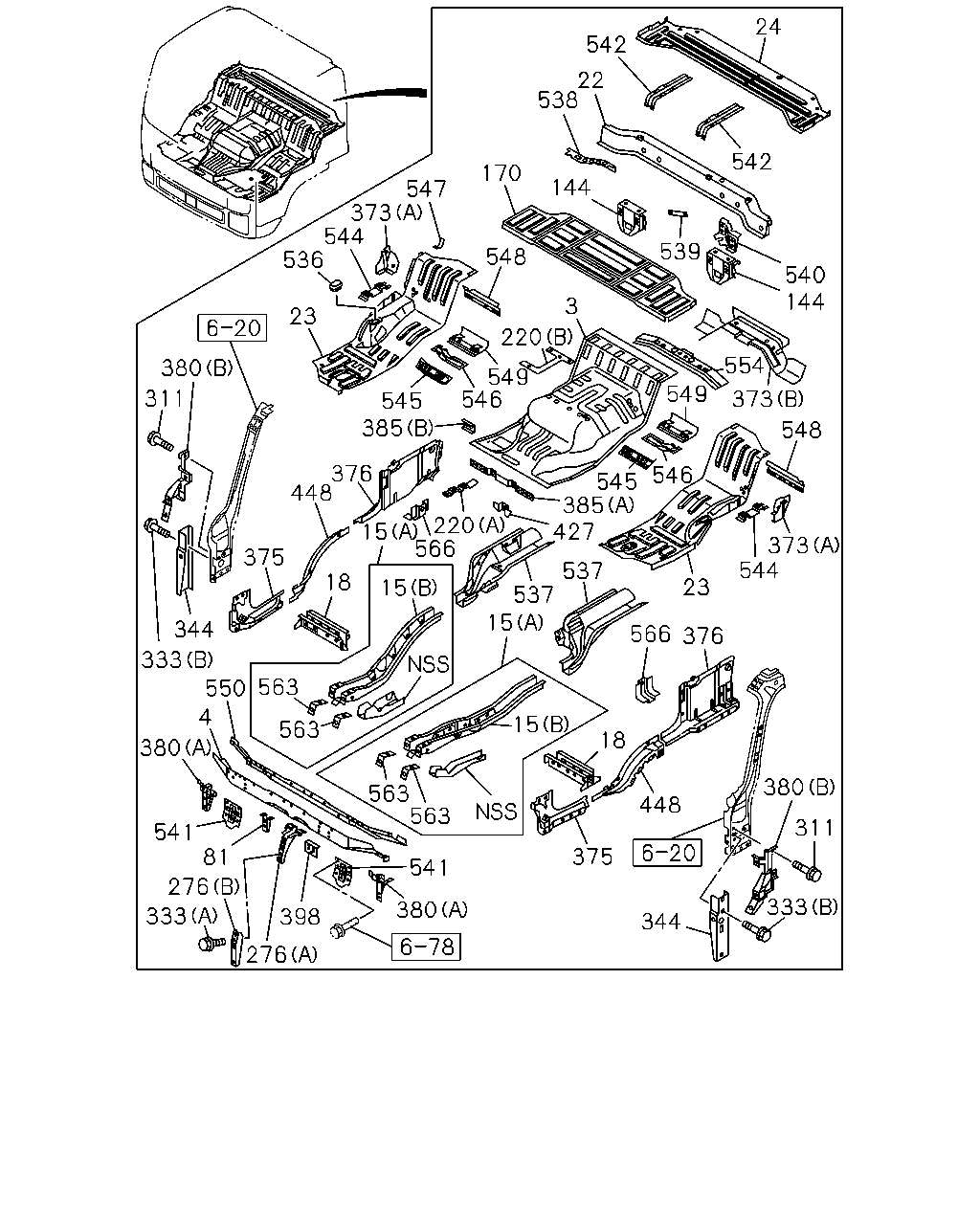

çizim 189509
24 542 22 538 170 547 373 544 536 548 3 539 540 144 554 549 373 548 373 544 23 546 545 385 427 537 537 566 376 18 15 563 563 375 448 380 311 333 344 541 380 398 276 333 81 276 541 4 380 550 563 563 15 15 18 15 220 566 448 375 344 333 376 385 545 546 549 220 144 542 23 380 311
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98053-070-7 01 1 1009-1303 ●
3 HOOD ASM; ENG
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98046-585-7 01 1 1009-1303 ●
3 HOOD ASM; ENG 8-98046-585-8 01 1 1304- ● ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 1009-1303 ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 1304- ● ●
15 FRAME; UNDER
(B) 		8-98055-440-3 01 1 1304- ● ●
15 FRAME; UNDER
(B) 		8-98055-441-3 01 1 1304- ● ●
15 FRAME; UNDER
(A) 		8-98055-645-2 01 1 1009-1303 ●
15 FRAME; UNDER
(A) 		8-98055-645-2 01 1 1304- ● ●
15 FRAME; UNDER
(A) 		8-98055-646-2 01 1 1009-1303 ●
15 FRAME; UNDER
(A) 		8-98055-646-2 01 1 1304- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 1009-1303 ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 1304- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-1 01 1 1009-1303 ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-2 01 1 1304- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1009-1303 ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1304- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1009-1303 ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1304- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1009-1303 ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1304- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1009-1303 ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1304- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1009-1303 ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1304- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1009-1303 ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1304- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1009-1303 ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1304- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1009-1303 ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1304- ● ●
220 PATCH
(B) 		8-97589-627-2 01 1 1009-1303 ●
220 PATCH
(B) 		8-97589-627-2 01 1 1304- ● ●
220 PATCH
(A) 		8-98053-088-0 01 1 1009-1303 ●
220 PATCH
(A) 		8-98053-088-0 01 1 1304- ● ●
276 BRACKET; RAD GRILLE
(B) 		8-98059-816-2 01 1 1009-1303 ●
276 BRACKET; RAD GRILLE
(B) 		8-98059-816-2 01 1 1304- ● ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 1009-1303 ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 1304- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1009-1303 ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1304- ● ●
333 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1009-1303 ●
333 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1304- ● ●
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-1303 ●
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1304- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-821-1 01 1 1009-1303 ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-821-1 01 1 1304- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-819-1 01 1 1009-1303 ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-819-1 01 1 1304- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1009-1303 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1304- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1009-1303 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1304- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98046-586-2 01 1 1009-1303 ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98046-586-2 01 1 1304- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1009-1303 ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1304- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1009-1303 ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1304- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1009-1303 ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1304-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-4 01 1 1009-1303 ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1304- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1009-1303 ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1304- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1009-1303 ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1304- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-825-1 01 1 1009-1303 ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-825-1 01 1 1304- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-824-1 01 1 1009-1303 ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-824-1 01 1 1304- ● ●
385 BRACKET
(A) 		8-97588-840-4 01 1 1009-1303 ●
385 BRACKET
(A) 		8-97588-840-4 01 1 1304- ● ●
385 BRACKET
(B) 		8-98053-825-1 01 1 1009-1303 ●
385 BRACKET
(B) 		8-98053-825-1 01 1 1304- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1009-1303 ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1304- ● ●
427 BRACKET; CABLE 8-98053-090-2 01 1 1009-1303 ●
427 BRACKET; CABLE 8-98053-090-2 01 1 1304- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1009-1303 ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1304- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1009-1303 ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1304- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1009-1303 ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1304- ● ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 1009-1303 ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 1304- ● ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 1009-1303 ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 1304- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1009-1303 ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1304- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1009-1303 ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1304- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1009-1303 ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1304- ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1009-1303 ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1304- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1009-1303 ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1304- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1009-1303 ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1304- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1009-1303 ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1304- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1009-1303 ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1304- ● ●
545 BRACKET; SEAT FRT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98050-186-0 01 1 1009-1303 ●
545 BRACKET; SEAT FRT
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97584-361-1 01 1 1009-1303 ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1304- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1009-1303 ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1304- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1009-1303 ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1304- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1009-1303 ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1304- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1009-1303 ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1304- ● ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1009-1303 ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1304- ● ●
549 BRACKET; SEAT RR
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98050-187-1 01 1 1009-1303 ●
549 BRACKET; SEAT RR
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97589-557-4 01 1 1009-1303 ●
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1304- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1009-1303 ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1304- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 1009-1303 ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 1304- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1009-1303 ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1304- ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1009-1303 ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1304- ● ●
