6-47 — MUD GUARD AND INSULATOR (#70389) — 166 parça

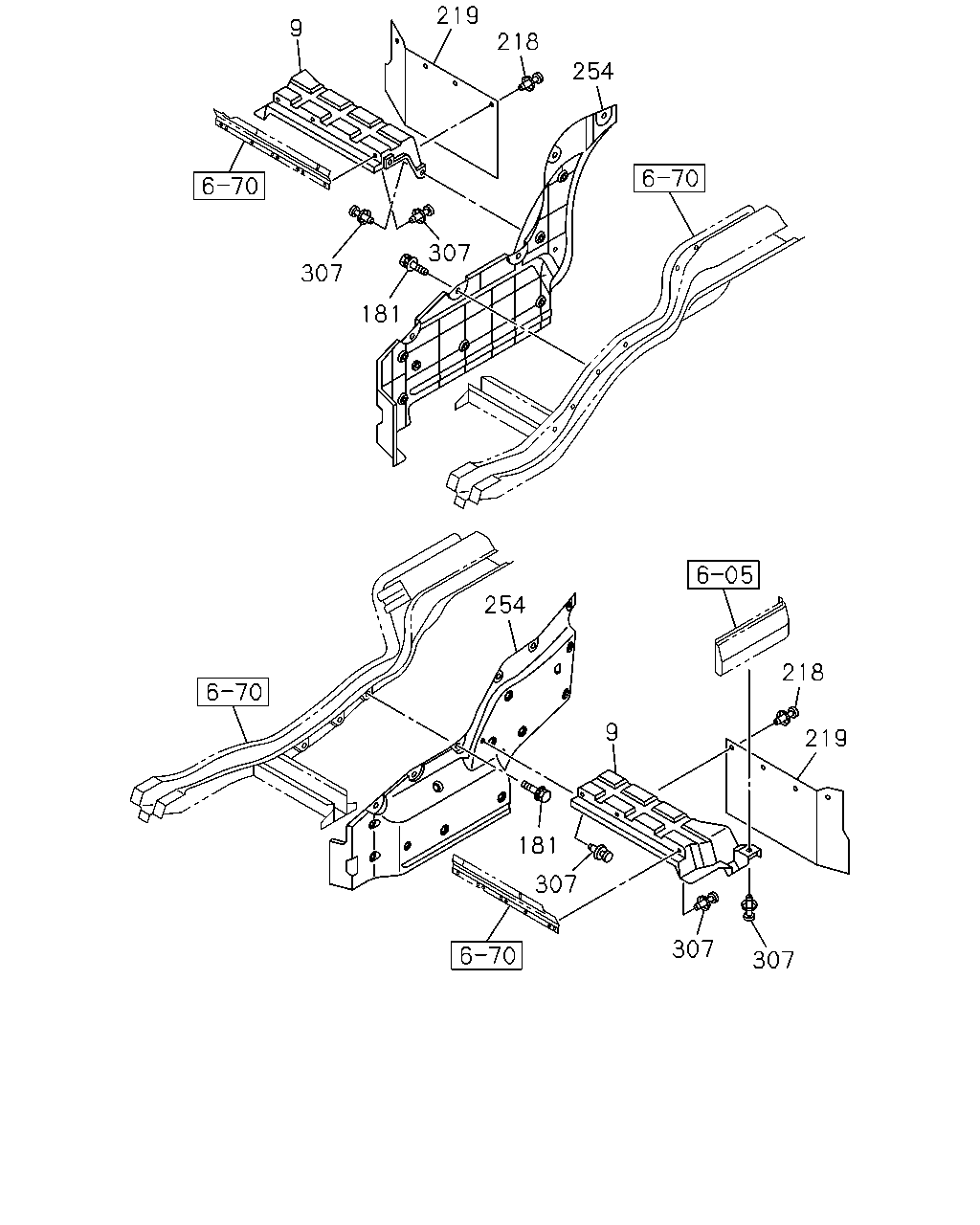

çizim 131330
9 219 218 254 307 181 307 254 218 219 307 307 307 181 9
BalonParca AdiParca NoAdetTipApplied Date A B
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-133-1 01 1 1009-1303 ●
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-133-1 01 1 1304- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-132-1 01 1 1009-1303 ●
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-132-1 01 1 1304- ● ●
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 1009-1303 ●
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 1304- ● ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1009-1303 ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1304- ● ●
219 FLAP; MUD GUARD 8-97617-139-0 02 1 1009-1303 ●
219 FLAP; MUD GUARD 8-97617-139-0 02 1 1304- ● ●
254 COVER; MUD,VALANCE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) FUEL TANK 200L RECTANGULAR<NH6> 		8-98169-313-0 01 1 1304-1309 ●
254 COVER; MUD,VALANCE
FUEL TANK 200L RECTANGULAR<NH6> 		8-98169-313-0 01 1 1310- ●
254 COVER; MUD,VALANCE 8-97617-144-0 01 1 1009-1303 ●
254 COVER; MUD,VALANCE
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> 		8-97617-144-0 01 1 1304-1309 ●
254 COVER; MUD,VALANCE 8-97617-144-0 01 1 1304-1309 ●
254 COVER; MUD,VALANCE
FUEL TANK 400L<SDH> 		8-97617-144-0 01 1 1310- ●
254 COVER; MUD,VALANCE 8-97617-144-0 01 1 1310- ●
254 COVER; MUD,VALANCE 8-97617-143-1 01 1 1009-1303 ●
254 COVER; MUD,VALANCE 8-97617-143-1 01 1 1304- ● ●
307 RETAINER
D8X13.5 		1-09987-248-1 12 1 1009-1303 ●
307 RETAINER
D8X13.5 		1-09987-248-1 12 1 1304- ● ●

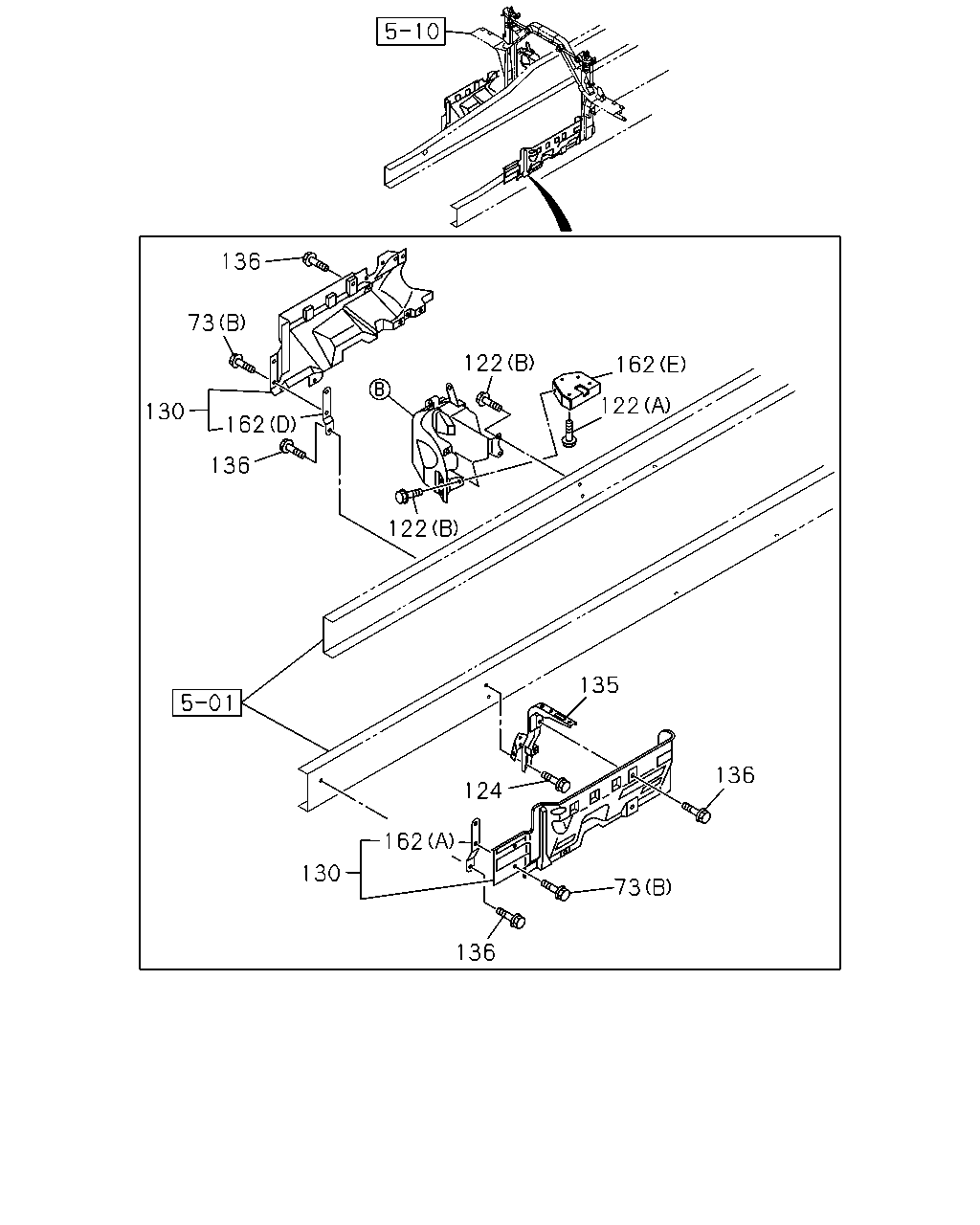

çizim 131366
136 73 130 162 136 122 162 122 122 130 162 136 124 73 136 135
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1009-1303 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1304- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1009-1303 ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1009-1303 ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1304- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1304- ● ●
122 BOLT
(A) M10X40 FLANGE 		0-28051-040-0 02 1 1009-1303 ●
122 BOLT
(A) M10X40 FLANGE 		0-28051-040-0 02 1 1304- ● ●
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1009-1303 ●
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1304- ● ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
124 BOLT; BRKT
M12X25 FLANGE 		0-28051-225-0 02 1 1009-1303 ●
124 BOLT; BRKT
M12X25 FLANGE 		0-28051-225-0 02 1 1304- ● ●
130 PANEL; SHUTTER NOISE 8-98088-647-0 01 1 1009-1303 ●
130 PANEL; SHUTTER NOISE 8-98088-648-3 01 1 1304- ● ●
130 PANEL; SHUTTER NOISE 8-98088-648-3 01 1 1009-1303 ●
130 PANEL; SHUTTER NOISE 8-98088-647-0 01 1 1304- ● ●
135 BRACKET; SIDE PANEL
FUEL TANK 200L RECTANGULAR<NH6> 		8-98170-443-1 01 1 1304- ●
135 BRACKET; SIDE PANEL 8-98122-549-1 01 1 1009-1303 ●
135 BRACKET; SIDE PANEL
EXC. FUEL TANK 200L RECTANGULAR<NH6> 		8-98122-549-1 01 1 1304- ●
135 BRACKET; SIDE PANEL 8-98122-549-1 01 1 1304- ●
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 12 1 1009-1303 ●
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 12 1 1304- ● ●
162 BRACKET
(E) 		8-98059-845-1 01 1 1009-1303 ●
162 BRACKET
(C) 		8-98055-609-2 01 1 1304- ● ●
162 BRACKET
(A) 		8-98055-601-0 01 1 1009-1303 ●
162 BRACKET
(B) 		8-98055-608-0 01 1 1304- ● ●
162 BRACKET
(B) 		8-98055-608-0 01 1 1009-1303 ●
162 BRACKET
(A) 		8-98055-601-0 01 1 1304- ● ●
162 BRACKET
(C) 		8-98055-609-2 01 1 1009-1303 ●
162 BRACKET
(E) 		8-98059-845-1 01 1 1304- ● ●
162 BRACKET
(D) 		8-98092-305-0 01 1 1009-1303 ●
162 BRACKET
(D) 		8-98092-305-0 01 1 1304- ● ●
çizim 131564
167 122 163 160 162 162 163 122
BalonParca AdiParca NoAdetTipApplied Date A B
122 BOLT
(A) M10X40 FLANGE 		0-28051-040-0 02 1 1009-1303 ●
122 BOLT
(A) M10X40 FLANGE 		0-28051-040-0 02 1 1304- ● ●
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1009-1303 ●
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1304- ● ●
160 COVER ASM; EXH 8-98090-111-1 01 1 1009-1303 ●
160 COVER ASM; EXH 8-98090-111-1 01 1 1304- ● ●
162 BRACKET
(E) 		8-98059-845-1 01 1 1009-1303 ●
162 BRACKET
(C) 		8-98055-609-2 01 1 1304- ● ●
162 BRACKET
(A) 		8-98055-601-0 01 1 1009-1303 ●
162 BRACKET
(B) 		8-98055-608-0 01 1 1304- ● ●
162 BRACKET
(B) 		8-98055-608-0 01 1 1009-1303 ●
162 BRACKET
(A) 		8-98055-601-0 01 1 1304- ● ●
162 BRACKET
(C) 		8-98055-609-2 01 1 1009-1303 ●
162 BRACKET
(E) 		8-98059-845-1 01 1 1304- ● ●
162 BRACKET
(D) 		8-98092-305-0 01 1 1009-1303 ●
162 BRACKET
(D) 		8-98092-305-0 01 1 1304- ● ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1009-1303 ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1304- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ●

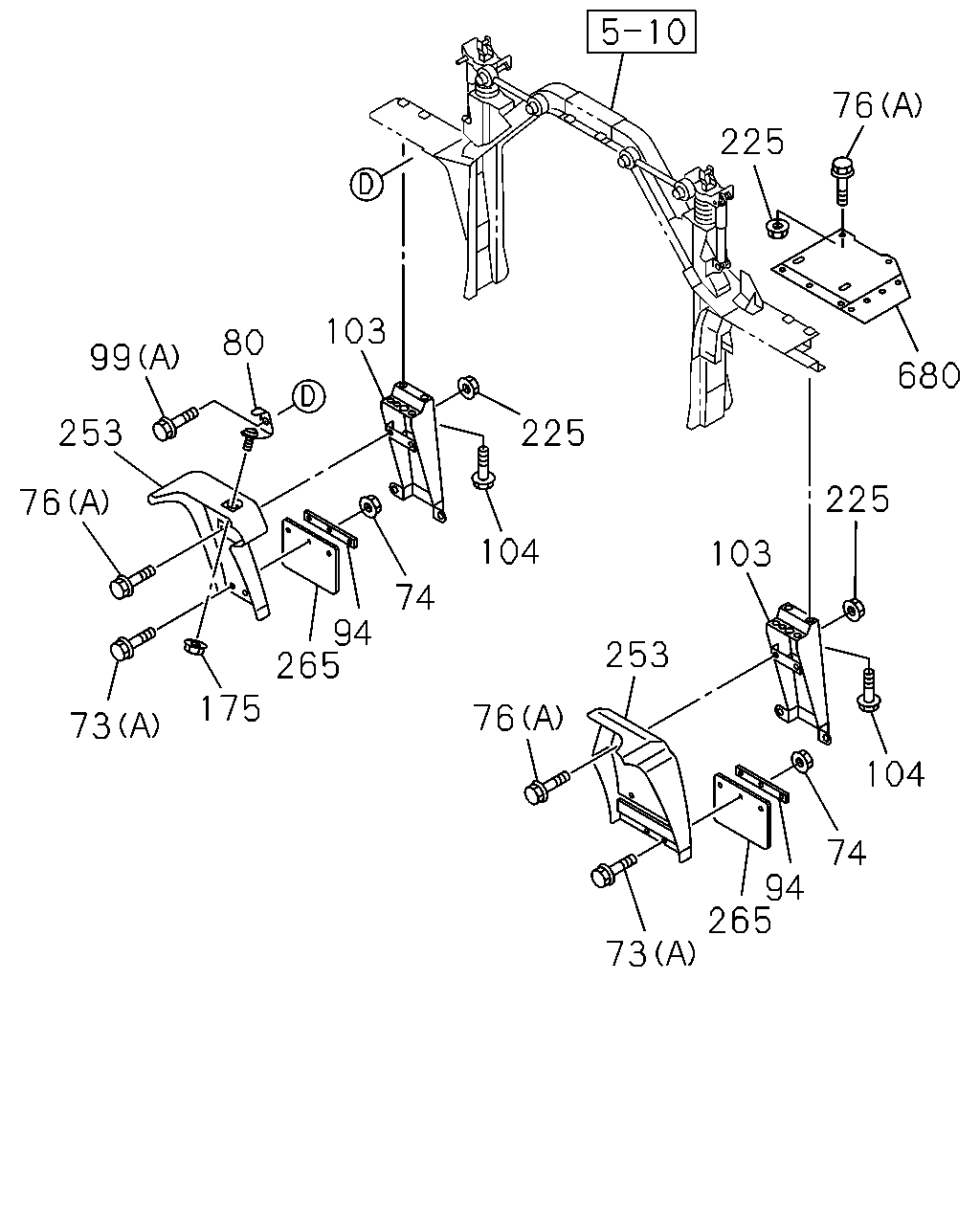

çizim 131596
76 253 99 80 103 225 76 680 104 74 94 265 73 76 253 103 225 225 104 74 94 265 175 73
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1009-1303 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1304- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1009-1303 ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1009-1303 ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1304- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1304- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1009-1303 ●
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1304- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1012-1303 ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1304- ● ●
76 BOLT; MUD GUARD
FUEL TANK 200L RECTANGULAR<NH6> (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1304- ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 1009-1011 ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1012-1303 ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1304- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1009-1303 ●
76 BOLT; MUD GUARD
EXC. FUEL TANK 200L RECTANGULAR<NH6> (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1304- ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1304- ●
80 BRACKET; MUD GUARD STAY 8-98057-793-0 01 1 1009-1303 ●
80 BRACKET; MUD GUARD STAY 8-98057-793-0 01 1 1304- ● ●
94 RETAINER; FLAP RUBBER 1-79931-091-2 01 1 1009-1303 ●
94 RETAINER; FLAP RUBBER 1-79931-091-2 01 1 1304- ● ●
94 RETAINER; FLAP RUBBER 8-98038-675-0 01 1 1009-1303 ●
94 RETAINER; FLAP RUBBER 8-98038-675-0 01 1 1304- ● ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE 		0-28650-616-0 08 1 1009-1303 ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1304- ● ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1009-1303 ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE 		0-28650-616-0 08 1 1304- ● ●
103 BRACKET ASM; RR MUD FLAP 8-98055-593-1 02 1 1009-1303 ●
103 BRACKET ASM; RR MUD FLAP 8-98055-593-1 02 1 1304- ● ●
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1009-1303 ●
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1304- ● ●
175 NUT; STAY FIX
M8 W/DISHED WASHER 		8-97329-625-0 01 1 1009-1303 ●
175 NUT; STAY FIX
M8 W/DISHED WASHER 		8-97329-625-0 01 1 1304- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1012-1303 ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 04 1 1304- ● ●
225 NUT; MUD GUARD
FUEL TANK 200L RECTANGULAR<NH6> M8 FLANGE 		0-91180-108-0 04 1 1304- ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 12 1 1009-1011 ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 04 1 1012-1303 ●
225 NUT; MUD GUARD
EXC. FUEL TANK 200L RECTANGULAR<NH6> M8 FLANGE 		0-91180-108-0 08 1 1304- ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1304- ●
253 GUARD; MUD 8-98057-779-1 01 1 1009-1303 ●
253 GUARD; MUD 8-98057-779-1 01 1 1304- ● ●
253 GUARD; MUD 8-98057-778-1 01 1 1009-1303 ●
253 GUARD; MUD 8-98057-778-1 01 1 1304- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1009-1303 ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1304- ● ●
265 RUBBER; FLAP,REAR 8-98106-956-0 01 1 1009-1303 ●
265 RUBBER; FLAP,REAR 8-98106-956-0 01 1 1304- ● ●
680 GUARD; MUD,UPPER 8-98060-251-0 01 1 1009-1303 ●
680 GUARD; MUD,UPPER 8-98060-251-0 01 1 1304- ● ●

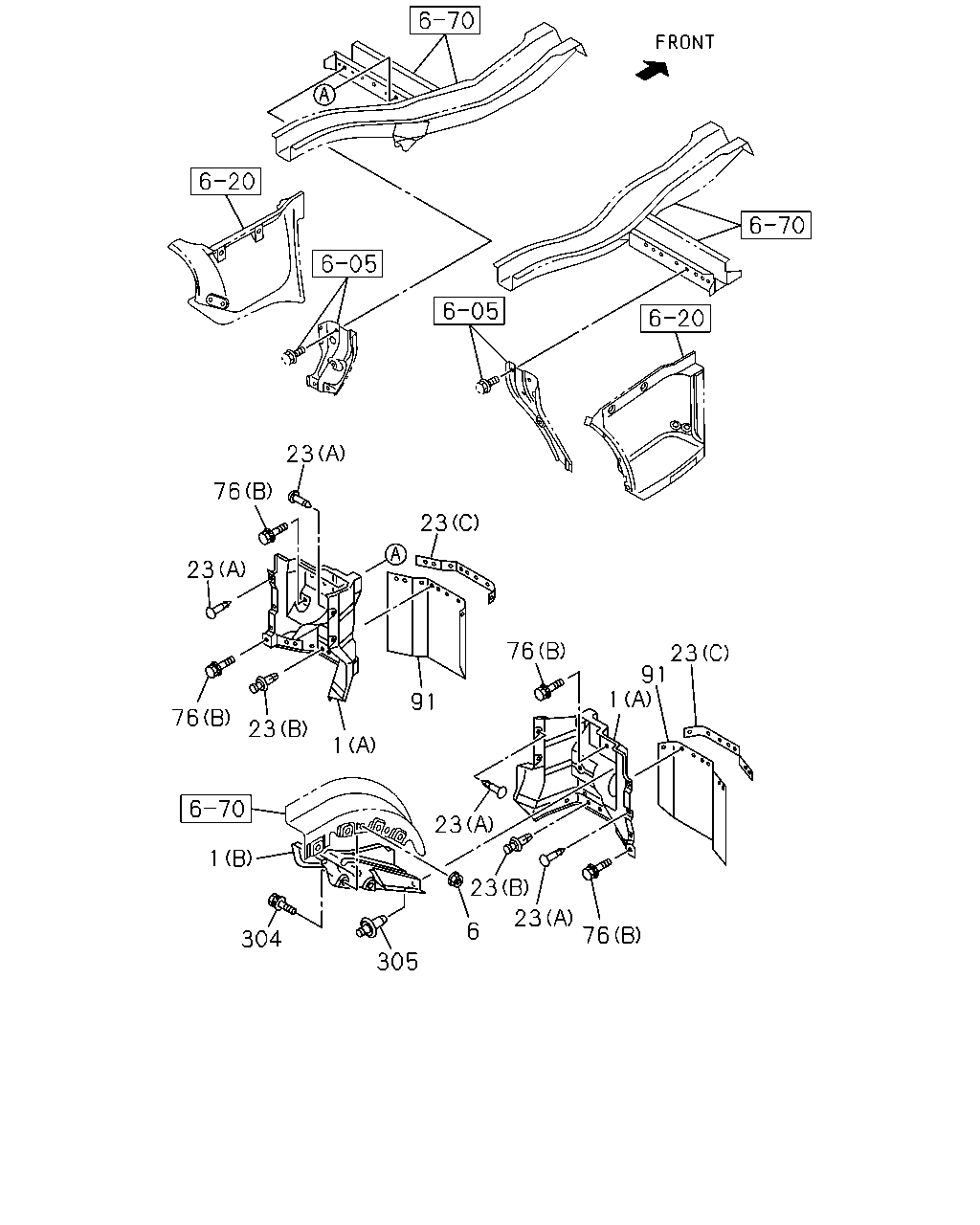

çizim 131677
23 76 23 76 23 1 91 23 1 304 305 6 23 23 23 76 76 1 91 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT
HONG KONG EQUIPMENT(PQ1) ENGINE REAR PTO(SV1) (B) 		8-98076-271-0 01 1 1012-1303 ●
1 GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> EXC. PTO CONTROL<SV6> (B) 		8-98076-271-0 01 1 1304- ●
1 GUARD; MUD,FRT
PTO CONTROL<SV6> EXC. DUMP CONTROL LEVER<RC4> (B) 		8-98076-271-0 01 1 1304- ●
1 GUARD; MUD,FRT
(A) 		8-97617-152-0 01 1 1009-1303 ●
1 GUARD; MUD,FRT
(A) 		8-97617-152-0 01 1 1304- ● ●
1 GUARD; MUD,FRT
(A) 		8-97617-151-0 01 1 1009-1303 ●
1 GUARD; MUD,FRT
(A) 		8-97617-151-0 01 1 1304- ● ●
6 NUT; SPLASH GUARD
HONG KONG EQUIPMENT(PQ1) ENGINE REAR PTO(SV1) M6 FLANGE 		8-94197-199-0 02 1 1012-1303 ●
6 NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> EXC. PTO CONTROL<SV6> M6 FLANGE 		8-94197-199-0 02 1 1304- ●
6 NUT; SPLASH GUARD
PTO CONTROL<SV6> EXC. DUMP CONTROL LEVER<RC4> M6 FLANGE 		8-94197-199-0 02 1 1304- ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 10 1 1009-1303 ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 10 1 1304- ● ●
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 08 1 1009-1303 ●
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 08 1 1304- ● ●
23 FASTENER; MUD COVER
(C) 		8-98060-235-0 02 1 1009-1303 ●
23 FASTENER; MUD COVER
(C) 		8-98060-235-0 02 1 1304- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1012-1303 ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1304- ● ●
76 BOLT; MUD GUARD
FUEL TANK 200L RECTANGULAR<NH6> (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1304- ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 1009-1011 ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1012-1303 ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1304- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1009-1303 ●
76 BOLT; MUD GUARD
EXC. FUEL TANK 200L RECTANGULAR<NH6> (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1304- ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1304- ●
91 COVER; MUD,FRT 8-97617-155-0 02 1 1009-1303 ●
91 COVER; MUD,FRT 8-97617-155-0 02 1 1304- ● ●
304 BOLT; SPLASH GUARD
HONG KONG EQUIPMENT(PQ1) ENGINE REAR PTO(SV1) M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 1012-1303 ●
304 BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> EXC. PTO CONTROL<SV6> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 1304- ●
304 BOLT; SPLASH GUARD
PTO CONTROL<SV6> EXC. DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 1304- ●
305 FASTENER; SPLASH GUARD
HONG KONG EQUIPMENT(PQ1) ENGINE REAR PTO(SV1) D8X13.5 		1-09987-248-1 02 1 1012-1303 ●
305 FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> EXC. PTO CONTROL<SV6> D8X13.5 		1-09987-248-1 02 1 1304- ●
305 FASTENER; SPLASH GUARD
PTO CONTROL<SV6> EXC. DUMP CONTROL LEVER<RC4> D8X13.5 		1-09987-248-1 02 1 1304- ●

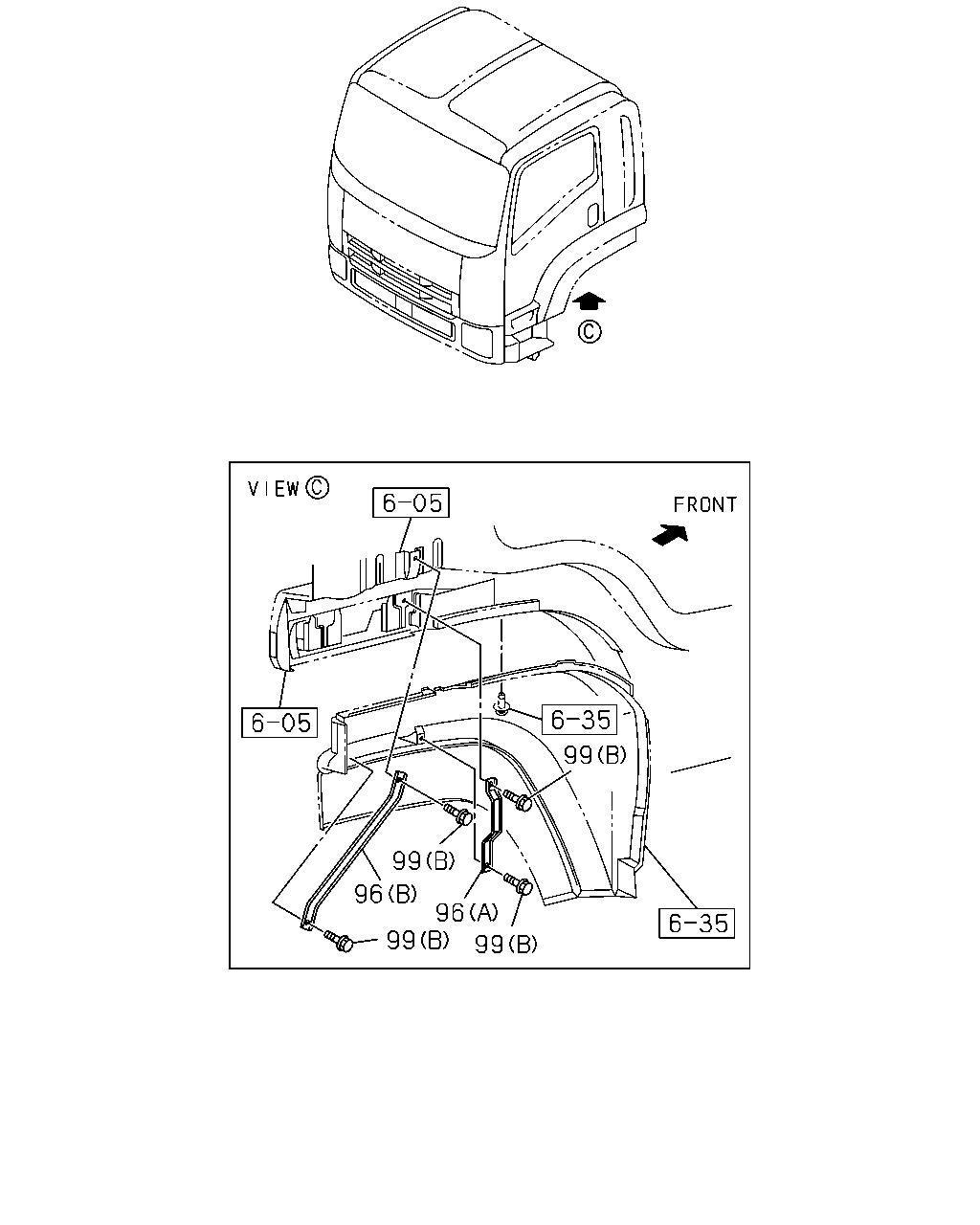

çizim 189500
99 96 99 96 99 99
BalonParca AdiParca NoAdetTipApplied Date A B
96 STAY; MUD GUARD
(A) 		8-98057-075-0 02 1 1009-1303 ●
96 STAY; MUD GUARD
(A) 		8-98057-075-0 02 1 1304- ● ●
96 STAY; MUD GUARD
(B) 		8-98082-316-0 02 1 1009-1303 ●
96 STAY; MUD GUARD
(B) 		8-98082-316-0 02 1 1304- ● ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE 		0-28650-616-0 08 1 1009-1303 ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1304- ● ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1009-1303 ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE 		0-28650-616-0 08 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
