6-31 — FRONT DOOR GLASS AND REGULATOR (#70385) — 142 parça

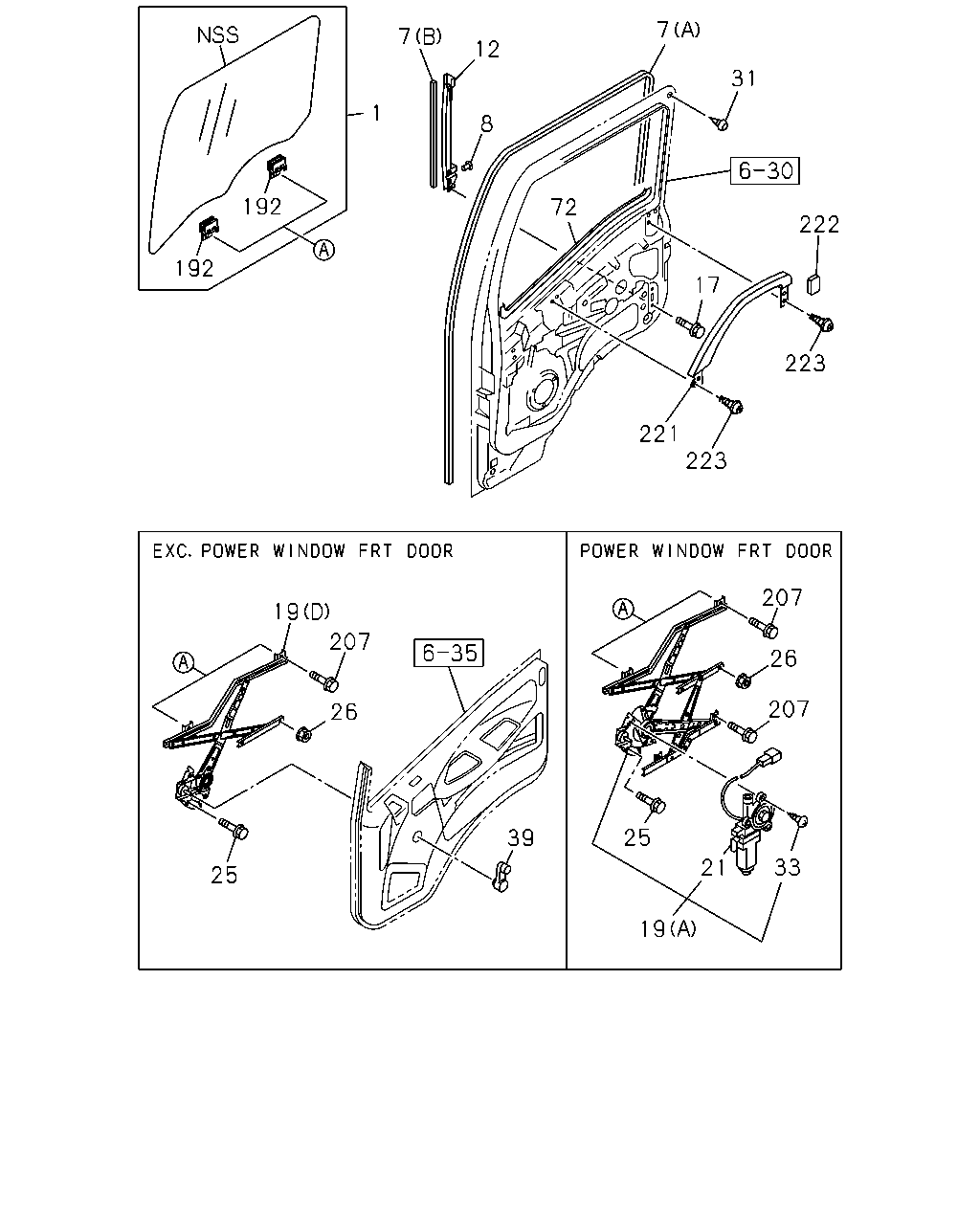

7 12 8 31 7 72 222 223 17 221 223 227 192 192 1 19 207 26 25 39 207 26 207 25 21 33 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR	8-98029-190-1	01	1	1009-1204	●
1	GLASS; FRT DOOR	8-98211-765-0	01	1	1205-1303	●
1	GLASS; FRT DOOR	8-98211-765-0	01	1	1304-	●	●
1	GLASS; FRT DOOR	8-98029-189-1	01	1	1009-1204	●
1	GLASS; FRT DOOR	8-98211-764-0	01	1	1205-1303	●
1	GLASS; FRT DOOR	8-98211-764-0	01	1	1304-	●	●
7	GLASS RUN; FRT DOOR (B)	8-98031-742-2	02	1	1009-1303	●
7	GLASS RUN; FRT DOOR (B)	8-98031-742-2	02	1	1304-1411	●	●
7	GLASS RUN; FRT DOOR (B)	8-98260-310-0	02	1	1412-	●	●
7	GLASS RUN; FRT DOOR (A)	8-98029-196-3	01	1	1009-1303	●
7	GLASS RUN; FRT DOOR (A)	8-98029-196-3	01	1	1304-1411	●	●
7	GLASS RUN; FRT DOOR (A)	8-98260-309-0	01	1	1412-	●	●
7	GLASS RUN; FRT DOOR (A)	8-98029-195-3	01	1	1009-1303	●
7	GLASS RUN; FRT DOOR (A)	8-98029-195-3	01	1	1304-1411	●	●
7	GLASS RUN; FRT DOOR (A)	8-98260-308-0	01	1	1412-	●	●
8	CLIP; GLASS GUIDE	8-98048-796-0	02	1	1009-1303	●
8	CLIP; GLASS GUIDE	8-98048-796-0	02	1	1304-	●	●
12	CHANNEL; GLASS RUN,FRT	8-98024-839-3	01	1	1009-1105	●
12	CHANNEL; GLASS RUN,FRT	8-98188-419-0	01	1	1106-1303	●
12	CHANNEL; GLASS RUN,FRT	8-98188-419-0	01	1	1304-1411	●	●
12	CHANNEL; GLASS RUN,FRT	8-98260-319-0	01	1	1412-	●	●
12	CHANNEL; GLASS RUN,FRT	8-98024-838-3	01	1	1009-1105	●
12	CHANNEL; GLASS RUN,FRT	8-98188-418-0	01	1	1106-1303	●
12	CHANNEL; GLASS RUN,FRT	8-98188-418-0	01	1	1304-1411	●	●
12	CHANNEL; GLASS RUN,FRT	8-98260-318-0	01	1	1412-	●	●
17	SCREW; RR CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	1009-1303	●
17	SCREW; RR CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	1304-	●	●
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW FRT DOOR<A32> (B)	8-98029-237-3	01	1	1009-1303	●
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW FRT DOOR<A32> (B)	8-98029-237-3	01	1	1304-	●	●
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW FRT DOOR<A32> (A)	8-98029-236-3	01	1	1009-1303	●
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW FRT DOOR<A32> (A)	8-98029-236-3	01	1	1304-	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> (C)	8-98029-234-3	01	1	1009-1303	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> (C)	8-98029-234-3	01	1	1304-	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> (D)	8-98029-233-3	01	1	1009-1303	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> (D)	8-98029-233-3	01	1	1304-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-98058-430-0	01	1	1009-1303	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-98058-430-0	01	1	1304-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-98058-429-0	01	1	1009-1303	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-98058-429-0	01	1	1304-	●	●
25	BOLT; WINDOW REG M6X10 FLANGE	0-28050-610-0	08	1	1009-1303	●
25	BOLT; WINDOW REG M6X10 FLANGE	0-28050-610-0	08	1	1304-	●	●
26	NUT; FLANGE,WINDOW REG M6 FLANGE	0-91180-106-0	04	1	1009-1303	●
26	NUT; FLANGE,WINDOW REG M6 FLANGE	0-91180-106-0	04	1	1304-	●	●
31	STOPPER; RUBBER,DOOR INNER	8-94358-581-0	04	1	1009-1303	●
31	STOPPER; RUBBER,DOOR INNER	8-94358-581-0	04	1	1304-	●	●
33	SCREW; REG MOTOR POWER WINDOW FRT DOOR<A32>	8-98058-431-0	06	1	1009-1303	●
33	SCREW; REG MOTOR POWER WINDOW FRT DOOR<A32>	8-98058-431-0	06	1	1304-	●	●
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> GRAY	8-97405-313-3	02	1	1009-1303	●
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> GRAY	8-97405-313-3	02	1	1304-	●	●
72	SEAL; WAIST,FRT DOOR	8-98029-193-1	01	1	1009-1303	●
72	SEAL; WAIST,FRT DOOR	8-98029-193-1	01	1	1304-	●	●
72	SEAL; WAIST,FRT DOOR	8-98029-192-1	01	1	1009-1303	●
72	SEAL; WAIST,FRT DOOR	8-98029-192-1	01	1	1304-	●	●
192	HOLDER; DOOR GLASS	8-98041-907-0	04	1	1009-1204	●
192	HOLDER; DOOR GLASS	8-98211-762-0	04	1	1205-1303	●
192	HOLDER; DOOR GLASS	8-98211-762-0	04	1	1304-	●	●
207	SCREW; DOOR GLASS BOLT M6X10 FLANGE	0-28050-610-0	04	1	1009-1303	●
207	SCREW; DOOR GLASS BOLT M6X10 FLANGE	0-28050-610-0	04	1	1304-	●	●
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97405-317-2	01	1	1009-1303	●
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97405-317-2	01	1	1304-	●	●
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97405-316-2	01	1	1009-1303	●
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97405-316-2	01	1	1304-	●	●
222	CAP; GUARD BAR GRAY	8-97405-319-0	01	1	1009-1303	●
222	CAP; GUARD BAR GRAY	8-97405-319-0	01	1	1304-	●	●
222	CAP; GUARD BAR GRAY	8-97405-318-0	01	1	1009-1303	●
222	CAP; GUARD BAR GRAY	8-97405-318-0	01	1	1304-	●	●
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	0-38050-625-0	08	1	1009-1108	●
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	8-98177-721-0	08	1	1109-1212	●
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	0-38050-625-0	08	1	1301-1303	●
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	0-38050-625-0	08	1	1304-	●	●
227	RUBBER; SHUTTER EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY	8-97405-321-0	01	1	1009-1303	●
227	RUBBER; SHUTTER EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY	8-97405-321-0	01	1	1304-	●	●

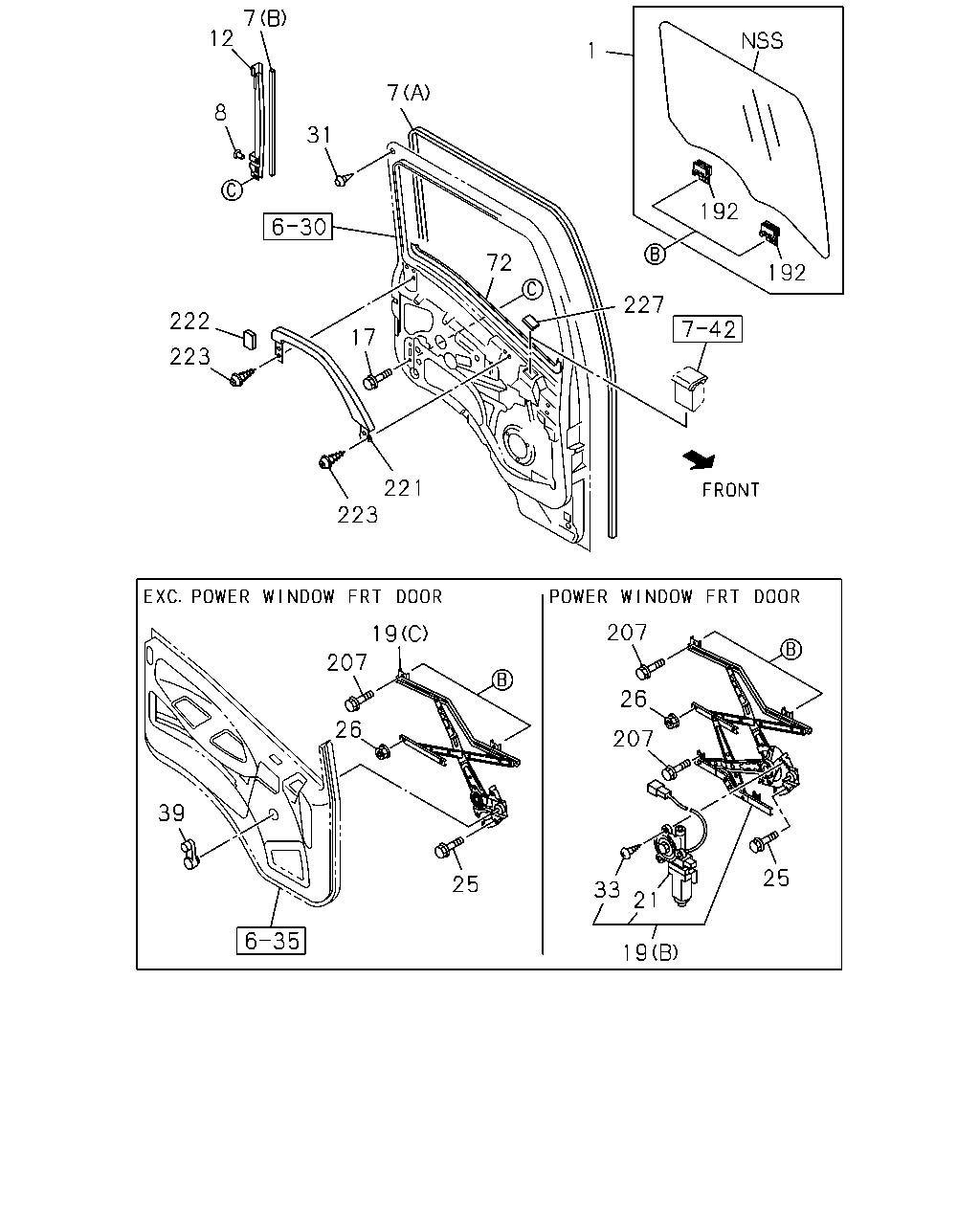

1 192 192 12 7 8 7 72 17 221 223 223 222 31 19 207 26 25 39 19 21 33 25 207 26 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR	8-98029-190-1	01	1	1009-1204	●
1	GLASS; FRT DOOR	8-98211-765-0	01	1	1205-1303	●
1	GLASS; FRT DOOR	8-98211-765-0	01	1	1304-	●	●
1	GLASS; FRT DOOR	8-98029-189-1	01	1	1009-1204	●
1	GLASS; FRT DOOR	8-98211-764-0	01	1	1205-1303	●
1	GLASS; FRT DOOR	8-98211-764-0	01	1	1304-	●	●
7	GLASS RUN; FRT DOOR (B)	8-98031-742-2	02	1	1009-1303	●
7	GLASS RUN; FRT DOOR (B)	8-98031-742-2	02	1	1304-1411	●	●
7	GLASS RUN; FRT DOOR (B)	8-98260-310-0	02	1	1412-	●	●
7	GLASS RUN; FRT DOOR (A)	8-98029-196-3	01	1	1009-1303	●
7	GLASS RUN; FRT DOOR (A)	8-98029-196-3	01	1	1304-1411	●	●
7	GLASS RUN; FRT DOOR (A)	8-98260-309-0	01	1	1412-	●	●
7	GLASS RUN; FRT DOOR (A)	8-98029-195-3	01	1	1009-1303	●
7	GLASS RUN; FRT DOOR (A)	8-98029-195-3	01	1	1304-1411	●	●
7	GLASS RUN; FRT DOOR (A)	8-98260-308-0	01	1	1412-	●	●
8	CLIP; GLASS GUIDE	8-98048-796-0	02	1	1009-1303	●
8	CLIP; GLASS GUIDE	8-98048-796-0	02	1	1304-	●	●
12	CHANNEL; GLASS RUN,FRT	8-98024-839-3	01	1	1009-1105	●
12	CHANNEL; GLASS RUN,FRT	8-98188-419-0	01	1	1106-1303	●
12	CHANNEL; GLASS RUN,FRT	8-98188-419-0	01	1	1304-1411	●	●
12	CHANNEL; GLASS RUN,FRT	8-98260-319-0	01	1	1412-	●	●
12	CHANNEL; GLASS RUN,FRT	8-98024-838-3	01	1	1009-1105	●
12	CHANNEL; GLASS RUN,FRT	8-98188-418-0	01	1	1106-1303	●
12	CHANNEL; GLASS RUN,FRT	8-98188-418-0	01	1	1304-1411	●	●
12	CHANNEL; GLASS RUN,FRT	8-98260-318-0	01	1	1412-	●	●
17	SCREW; RR CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	1009-1303	●
17	SCREW; RR CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	1304-	●	●
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW FRT DOOR<A32> (B)	8-98029-237-3	01	1	1009-1303	●
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW FRT DOOR<A32> (B)	8-98029-237-3	01	1	1304-	●	●
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW FRT DOOR<A32> (A)	8-98029-236-3	01	1	1009-1303	●
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW FRT DOOR<A32> (A)	8-98029-236-3	01	1	1304-	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> (C)	8-98029-234-3	01	1	1009-1303	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> (C)	8-98029-234-3	01	1	1304-	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> (D)	8-98029-233-3	01	1	1009-1303	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> (D)	8-98029-233-3	01	1	1304-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-98058-430-0	01	1	1009-1303	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-98058-430-0	01	1	1304-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-98058-429-0	01	1	1009-1303	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-98058-429-0	01	1	1304-	●	●
25	BOLT; WINDOW REG M6X10 FLANGE	0-28050-610-0	08	1	1009-1303	●
25	BOLT; WINDOW REG M6X10 FLANGE	0-28050-610-0	08	1	1304-	●	●
26	NUT; FLANGE,WINDOW REG M6 FLANGE	0-91180-106-0	04	1	1009-1303	●
26	NUT; FLANGE,WINDOW REG M6 FLANGE	0-91180-106-0	04	1	1304-	●	●
31	STOPPER; RUBBER,DOOR INNER	8-94358-581-0	04	1	1009-1303	●
31	STOPPER; RUBBER,DOOR INNER	8-94358-581-0	04	1	1304-	●	●
33	SCREW; REG MOTOR POWER WINDOW FRT DOOR<A32>	8-98058-431-0	06	1	1009-1303	●
33	SCREW; REG MOTOR POWER WINDOW FRT DOOR<A32>	8-98058-431-0	06	1	1304-	●	●
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> GRAY	8-97405-313-3	02	1	1009-1303	●
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> GRAY	8-97405-313-3	02	1	1304-	●	●
72	SEAL; WAIST,FRT DOOR	8-98029-193-1	01	1	1009-1303	●
72	SEAL; WAIST,FRT DOOR	8-98029-193-1	01	1	1304-	●	●
72	SEAL; WAIST,FRT DOOR	8-98029-192-1	01	1	1009-1303	●
72	SEAL; WAIST,FRT DOOR	8-98029-192-1	01	1	1304-	●	●
192	HOLDER; DOOR GLASS	8-98041-907-0	04	1	1009-1204	●
192	HOLDER; DOOR GLASS	8-98211-762-0	04	1	1205-1303	●
192	HOLDER; DOOR GLASS	8-98211-762-0	04	1	1304-	●	●
207	SCREW; DOOR GLASS BOLT M6X10 FLANGE	0-28050-610-0	04	1	1009-1303	●
207	SCREW; DOOR GLASS BOLT M6X10 FLANGE	0-28050-610-0	04	1	1304-	●	●
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97405-317-2	01	1	1009-1303	●
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97405-317-2	01	1	1304-	●	●
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97405-316-2	01	1	1009-1303	●
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97405-316-2	01	1	1304-	●	●
222	CAP; GUARD BAR GRAY	8-97405-319-0	01	1	1009-1303	●
222	CAP; GUARD BAR GRAY	8-97405-319-0	01	1	1304-	●	●
222	CAP; GUARD BAR GRAY	8-97405-318-0	01	1	1009-1303	●
222	CAP; GUARD BAR GRAY	8-97405-318-0	01	1	1304-	●	●
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	0-38050-625-0	08	1	1009-1108	●
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	8-98177-721-0	08	1	1109-1212	●
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	0-38050-625-0	08	1	1301-1303	●
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	0-38050-625-0	08	1	1304-	●	●
