◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#70384) — 46 parça

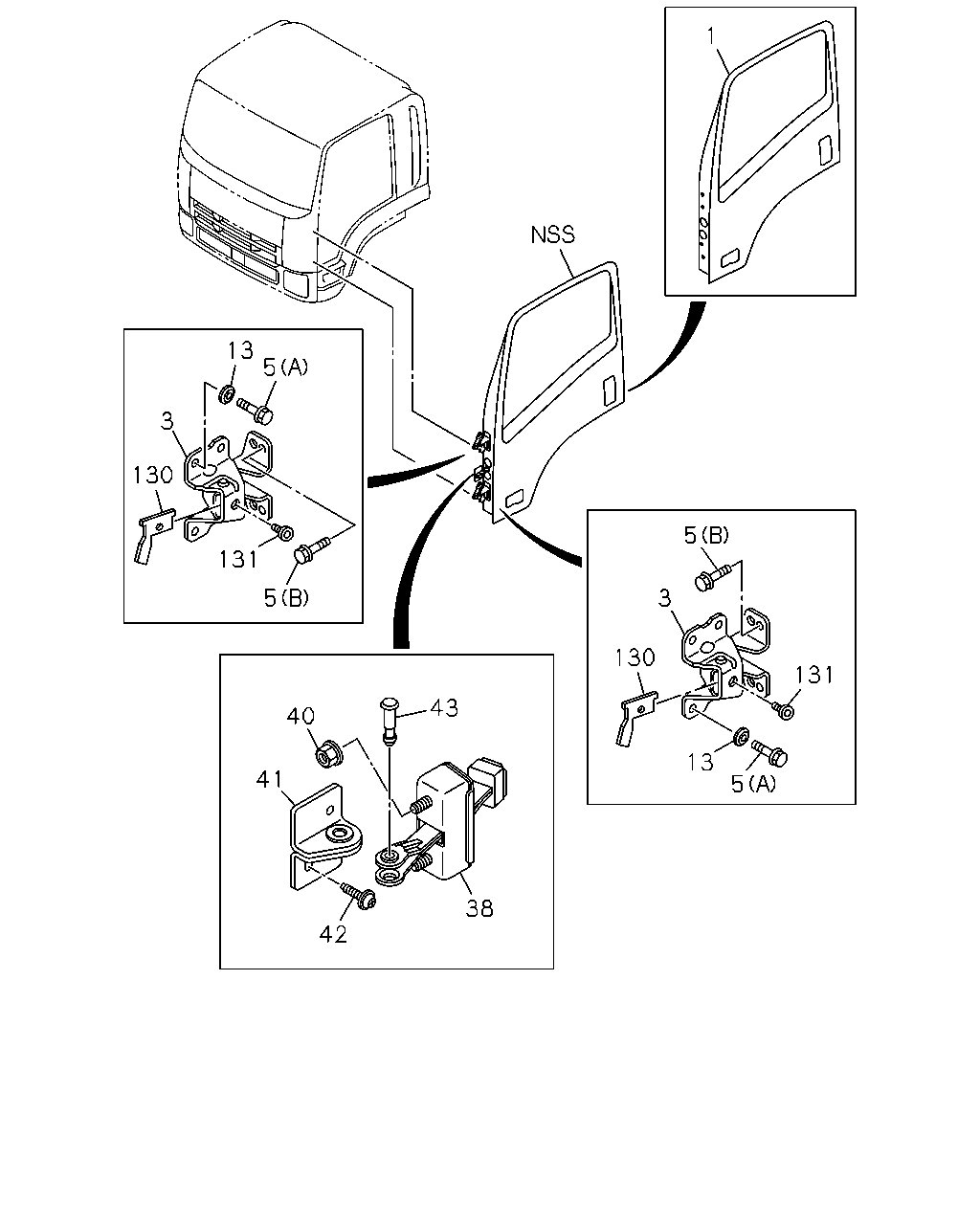

çizim 130980
13 5 3 130 131 5 40 41 43 38 42 130 3 5 131 5 13 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98171-223-0 01 1 1310-1411 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98260-597-0 01 1 1412- ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98171-231-0 01 1 1310-1411 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98260-598-0 01 1 1412- ● ●
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-822-0 01 1 1009-1012 ●
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98171-232-0 01 1 1101-1303 ●
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98171-232-0 01 1 1304-1411 ● ●
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98260-600-0 01 1 1412- ● ●
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-821-0 01 1 1009-1012 ●
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98171-224-0 01 1 1101-1303 ●
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98171-224-0 01 1 1304-1411 ● ●
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98260-599-0 01 1 1412- ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98060-798-1 01 1 1009-1012 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98171-231-0 01 1 1101-1303 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98060-797-1 01 1 1009-1012 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98171-223-0 01 1 1101-1303 ●
3 HINGE; DOOR FRT 8-98038-293-0 04 1 1009-1104 ●
3 HINGE; DOOR FRT 8-98191-302-0 04 1 1105-1303 ●
3 HINGE; DOOR FRT 8-98191-302-0 04 1 1304- ● ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 1304- ● ●
5 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 1009-1303 ●
5 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 1304- ● ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 1009-1303 ●
13 WASHER; HINGE
ID=8.1 W/SEAL 		8-97890-584-1 04 1 1009-1303 ●
13 WASHER; HINGE
ID=8.1 W/SEAL 		8-97890-584-1 04 1 1304- ● ●
38 CHECKER ASM; DOOR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-730-6 02 1 1310-1508 ● ●
38 CHECKER ASM; DOOR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98296-602-0 02 1 1509- ● ●
38 CHECKER ASM; DOOR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98029-417-5 02 1 1009-1203 ●
38 CHECKER ASM; DOOR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98208-189-1 02 1 1204-1303 ●
38 CHECKER ASM; DOOR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98208-189-1 02 1 1304-1508 ● ●
38 CHECKER ASM; DOOR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98296-601-0 02 1 1509- ● ●
38 CHECKER ASM; DOOR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-730-6 02 1 1009-1303 ●
40 NUT; CHECKER
M8 FLANGE 		8-98029-441-0 04 1 1009-1012 ●
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1101-1303 ●
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1304-1508 ● ●
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-98302-918-0 04 1 1509- ● ●
41 BRACKET; CHECKER 8-98029-290-3 02 1 1009-1303 ●
41 BRACKET; CHECKER 8-98029-290-3 02 1 1304- ● ●
42 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 1009-1303 ●
42 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 1304- ● ●
43 PIN 8-98037-152-2 02 1 1009-1303 ●
43 PIN 8-98037-152-2 02 1 1304- ● ●
130 STOPPER; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98038-299-1 04 1 1009-1303 ●
130 STOPPER; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98038-299-1 04 1 1304- ● ●
131 BOLT; DOOR STOPPER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10X11 		8-98039-593-1 04 1 1009-1303 ●
131 BOLT; DOOR STOPPER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10X11 		8-98039-593-1 04 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
