6-20 — SIDE PANEL AND STEP (#70383) — 252 parça

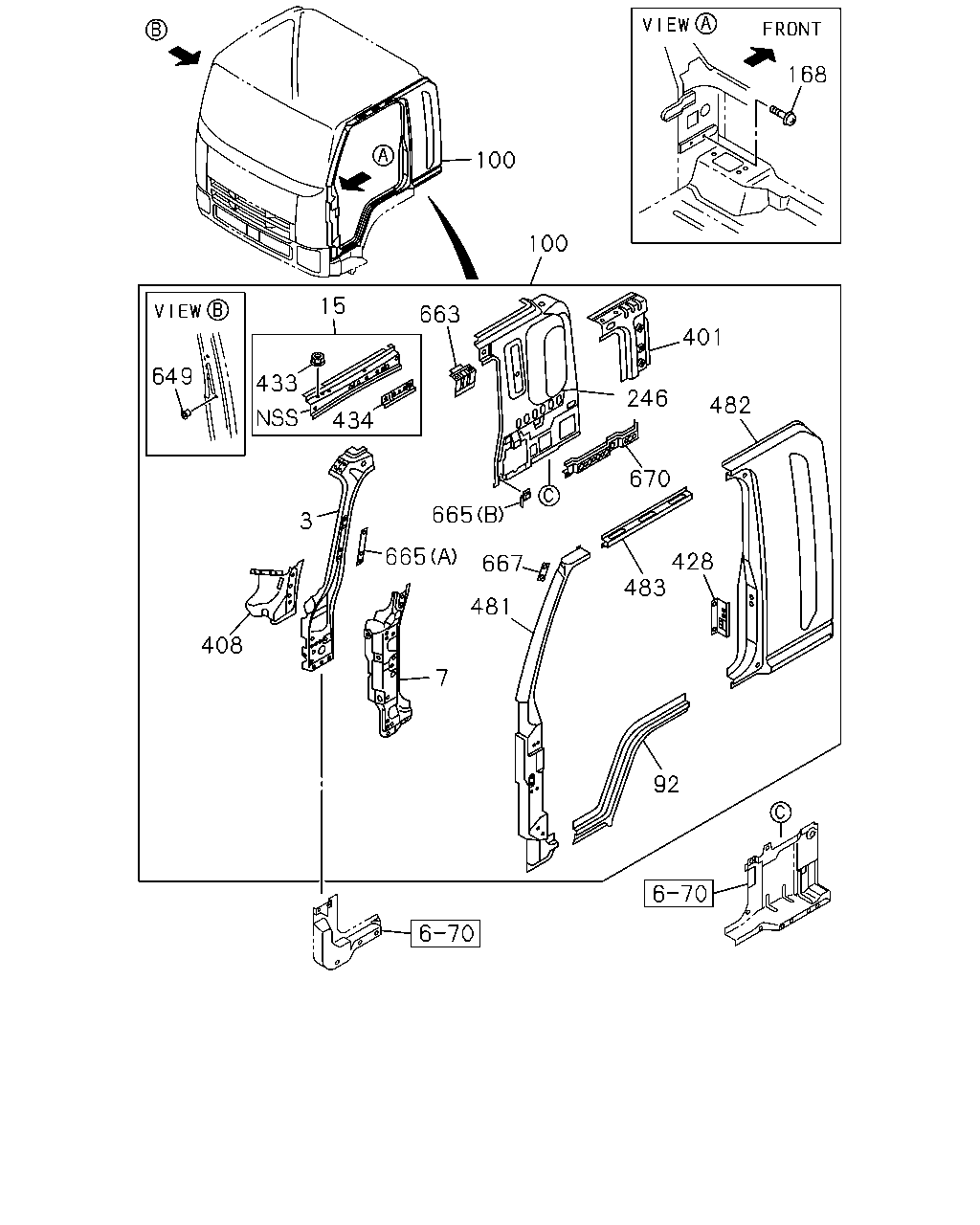

100 92 483 482 670 428 401 246 665 667 481 7 665 3 408 649 433 15 663 100 168 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	1009-1303	●
3	PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	1304-	●	●
3	PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	1009-1303	●
3	PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	1304-	●	●
7	REINFORCEMENT; HINGE	8-97585-244-3	01	1	1009-1303	●
7	REINFORCEMENT; HINGE	8-97585-244-4	01	1	1304-	●	●
7	REINFORCEMENT; HINGE	8-97585-240-2	01	1	1009-1303	●
7	REINFORCEMENT; HINGE	8-97585-240-3	01	1	1304-	●	●
15	PANEL; CANT RAIL SIDE	8-97585-293-2	01	1	1009-1303	●
15	PANEL; CANT RAIL SIDE	8-97585-293-2	01	1	1304-	●	●
15	PANEL; CANT RAIL SIDE	8-97585-292-2	01	1	1009-1303	●
15	PANEL; CANT RAIL SIDE	8-97585-292-2	01	1	1304-	●	●
92	PANEL; SIDE SILL,CAB	8-98055-462-1	01	1	1009-1303	●
92	PANEL; SIDE SILL,CAB	8-98055-462-1	01	1	1304-	●	●
92	PANEL; SIDE SILL,CAB	8-98055-461-1	01	1	1009-1303	●
92	PANEL; SIDE SILL,CAB	8-98055-461-1	01	1	1304-	●	●
100	PANEL ASM; BODY SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98122-095-1	01	1	1309-	●	●
100	PANEL ASM; BODY SIDE LAMPS TWO ROOF MARKER<TEC>	8-97586-079-7	01	1	1009-1303	●
100	PANEL ASM; BODY SIDE LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98122-093-1	01	1	1009-1303	●
100	PANEL ASM; BODY SIDE EXC. LAMPS TWO ROOF MARKER<TEC>	8-97586-073-9	01	1	1009-1303	●
100	PANEL ASM; BODY SIDE	8-97586-073-9	01	1	1304-	●	●
100	PANEL ASM; BODY SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC>	8-98166-302-0	01	1	1009-1303	●
100	PANEL ASM; BODY SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC>	8-98166-303-0	01	1	1009-1303	●
100	PANEL ASM; BODY SIDE	8-98166-303-0	01	1	1304-	●	●
100	PANEL ASM; BODY SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC>	8-98122-095-1	01	1	1009-1303	●
168	BOLT; BODY SIDE PANEL T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	1009-1303	●
168	BOLT; BODY SIDE PANEL T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	1304-	●	●
246	PANEL; RR PILLAR,INNER	8-97586-158-5	01	1	1009-1303	●
246	PANEL; RR PILLAR,INNER	8-97586-158-5	01	1	1304-	●	●
246	PANEL; RR PILLAR,INNER	8-97586-156-5	01	1	1009-1303	●
246	PANEL; RR PILLAR,INNER	8-97586-156-5	01	1	1304-	●	●
401	PATCH; CLOSING,FRT PILLAR	8-97586-161-2	01	1	1009-1303	●
401	PATCH; CLOSING,FRT PILLAR	8-97586-161-2	01	1	1304-	●	●
401	PATCH; CLOSING,FRT PILLAR	8-97586-160-2	01	1	1009-1303	●
401	PATCH; CLOSING,FRT PILLAR	8-97586-160-2	01	1	1304-	●	●
408	GUSSET; PILLAR	8-97586-194-2	01	1	1009-1303	●
408	GUSSET; PILLAR	8-97586-194-2	01	1	1304-	●	●
408	GUSSET; PILLAR	8-97586-193-3	01	1	1009-1303	●
408	GUSSET; PILLAR	8-97586-193-3	01	1	1304-	●	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-261-4	01	1	1009-1303	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-261-4	01	1	1304-	●	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-260-4	01	1	1009-1303	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-260-4	01	1	1304-	●	●
433	NUT; HEADER SHELF M6	9-09114-086-0	04	1	1009-1303	●
433	NUT; HEADER SHELF M6	9-09114-086-0	04	1	1304-1308	●	●
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	1309-	●	●
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	1309-	●	●
434	PATCH; ASSIST GRIP	8-98039-020-0	01	1	1009-1303	●
434	PATCH; ASSIST GRIP	8-98039-020-0	01	1	1304-	●	●
434	PATCH; ASSIST GRIP	8-98039-019-0	01	1	1009-1303	●
434	PATCH; ASSIST GRIP	8-98039-019-0	01	1	1304-	●	●
481	PANEL; SIDE FRT PILLAR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-470-0	01	1	1309-	●	●
481	PANEL; SIDE FRT PILLAR LAMPS TWO ROOF MARKER<TEC>	8-98092-915-0	01	1	1009-1303	●
481	PANEL; SIDE FRT PILLAR LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98093-579-0	01	1	1009-1303	●
481	PANEL; SIDE FRT PILLAR EXC. LAMPS TWO ROOF MARKER<TEC>	8-98055-453-0	01	1	1009-1303	●
481	PANEL; SIDE FRT PILLAR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-453-0	01	1	1304-1308	●	●
481	PANEL; SIDE FRT PILLAR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	8-98055-453-0	01	1	1309-	●	●
481	PANEL; SIDE FRT PILLAR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC>	8-98093-580-0	01	1	1009-1303	●
481	PANEL; SIDE FRT PILLAR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC>	8-98055-471-0	01	1	1009-1303	●
481	PANEL; SIDE FRT PILLAR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-471-0	01	1	1304-	●	●
481	PANEL; SIDE FRT PILLAR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC>	8-98055-470-0	01	1	1009-1303	●
482	PANEL; SIDE RR PILLAR	8-98055-469-0	01	1	1009-1303	●
482	PANEL; SIDE RR PILLAR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98055-469-0	01	1	1304-	●	●
482	PANEL; SIDE RR PILLAR	8-98055-468-0	01	1	1009-1303	●
482	PANEL; SIDE RR PILLAR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98055-468-0	01	1	1304-	●	●
483	PANEL; SIDE CANTRAIL	8-98055-460-0	01	1	1009-1303	●
483	PANEL; SIDE CANTRAIL	8-98055-460-0	01	1	1304-	●	●
483	PANEL; SIDE CANTRAIL	8-98055-458-0	01	1	1009-1303	●
483	PANEL; SIDE CANTRAIL	8-98055-458-0	01	1	1304-	●	●
649	NUT; POP M5 POP NUT	8-97249-574-0	02	1	1009-1303	●
649	NUT; POP M5 POP NUT	8-97249-574-0	02	1	1304-	●	●
663	BRACKET; AIR	8-97585-208-2	01	1	1009-1303	●
663	BRACKET; AIR	8-97585-208-2	01	1	1304-	●	●
663	BRACKET; AIR	8-97585-207-2	01	1	1009-1303	●
663	BRACKET; AIR	8-97585-207-2	01	1	1304-	●	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	02	1	1009-1303	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	02	1	1304-1308	●	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	01	1	1309-	●	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	01	1	1309-	●	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	02	1	1009-1303	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	02	1	1304-1308	●	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	01	1	1309-	●	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	01	1	1309-	●	●
667	BRACKET; MIRROR	8-98109-948-0	01	1	1309-	●	●
667	BRACKET; MIRROR	8-98109-948-0	01	1	1009-1303	●
667	BRACKET; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98109-948-0	02	1	1009-1303	●
667	BRACKET; MIRROR	8-98109-948-0	03	1	1304-1308	●	●
667	BRACKET; MIRROR	8-98109-948-0	02	1	1309-	●	●
670	STIFFENER; PANEL,SIDE	8-98015-044-1	02	1	1009-1303	●
670	STIFFENER; PANEL,SIDE	8-98015-044-1	02	1	1304-1308	●	●
670	STIFFENER; PANEL,SIDE	8-98015-044-1	01	1	1309-	●	●
670	STIFFENER; PANEL,SIDE	8-98015-044-1	01	1	1309-	●	●

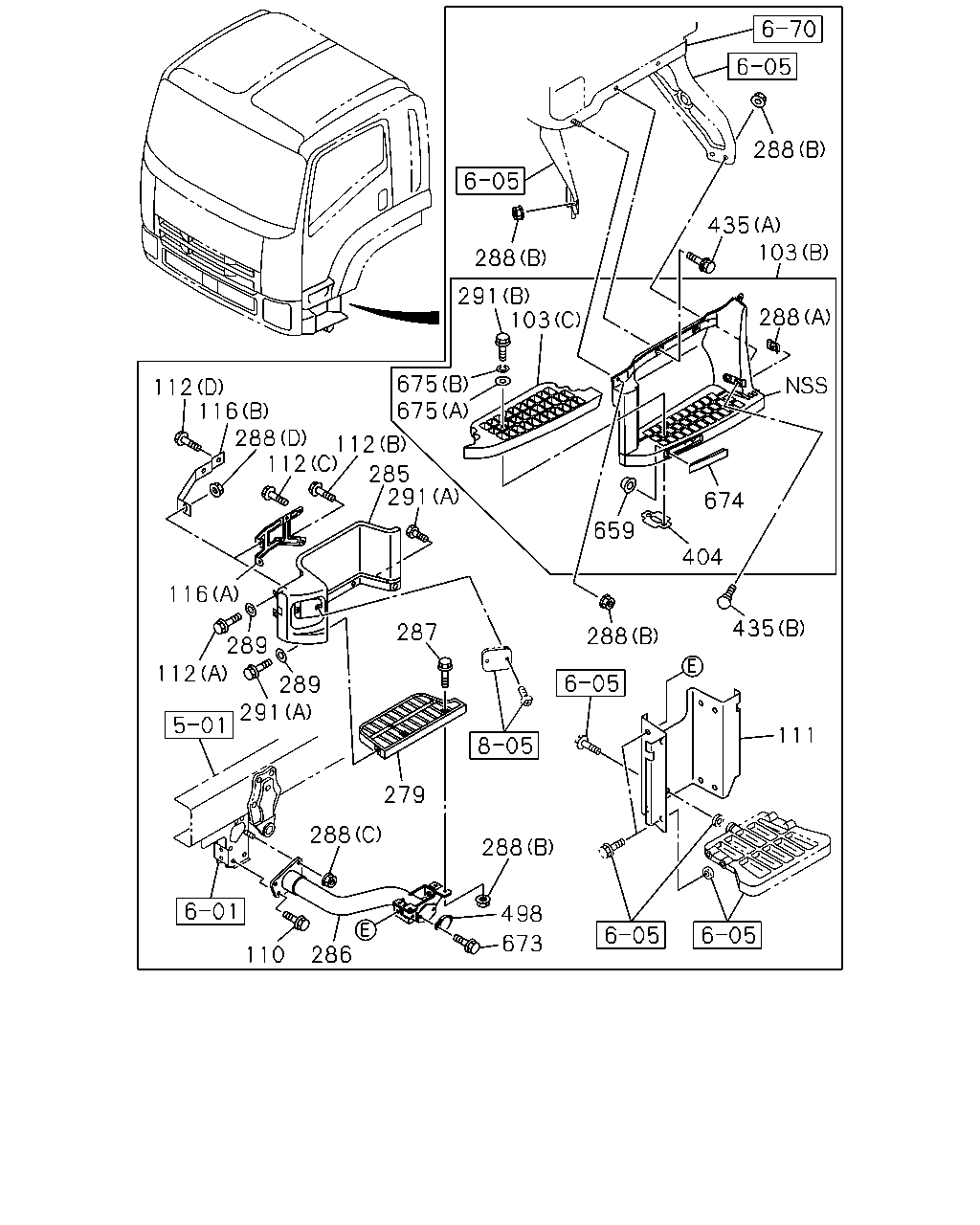

288 435 288 103 288 674 659 288 435 285 112 112 288 112 291 287 116 116 112 289 291 288 110 286 673 288 498 279 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	8-98080-625-2	01	1	1009-1303	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	8-98080-625-2	01	1	1304-	●	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (C)	8-98080-631-0	01	1	1009-1303	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (C)	8-98080-631-0	01	1	1304-	●	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	8-98080-624-2	01	1	1009-1303	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	8-98080-624-2	01	1	1304-	●	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (C)	8-98080-630-0	01	1	1009-1303	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (C)	8-98080-630-0	01	1	1304-	●	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-98069-977-2	01	1	1009-1303	●
103	PLATE; STEP SINGAPORE EQUIPMENT(WQ3) (A)	8-98069-977-2	01	1	1304-	●	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-98069-976-2	01	1	1009-1303	●
103	PLATE; STEP SINGAPORE EQUIPMENT(WQ3) (A)	8-98069-976-2	01	1	1304-	●	●
110	BOLT; 1ST STEP PLATE M12X40 FLANGE	0-28651-240-0	06	1	1009-1303	●
110	BOLT; 1ST STEP PLATE M12X40 FLANGE	0-28651-240-0	06	1	1304-	●	●
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	04	1	1009-1112	●
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	02	1	1201-1303	●
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	02	1	1304-	●	●
112	BOLT; 1ST STEP (B) M6X25 FLANGE	0-28050-625-0	02	1	1009-1112	●
112	BOLT; 1ST STEP (D) M8X12 FLANGE	0-28050-812-0	04	1	1201-1303	●
112	BOLT; 1ST STEP (D) M8X12 FLANGE	0-28050-812-0	04	1	1304-	●	●
112	BOLT; 1ST STEP (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1112	●
112	BOLT; 1ST STEP (B) M6X20 FLANGE	0-28050-620-0	02	1	1201-1303	●
112	BOLT; 1ST STEP (B) M6X20 FLANGE	0-28050-620-0	02	1	1304-	●	●
116	STAY; 1ST STEP,FRT (A)	8-98062-133-1	01	1	1009-1112	●
116	STAY; 1ST STEP,FRT (B)	8-98196-756-0	02	1	1201-1303	●
116	STAY; 1ST STEP,FRT (B)	8-98196-756-0	02	1	1304-	●	●
116	STAY; 1ST STEP,FRT (A)	8-98062-134-1	01	1	1009-1112	●
279	BOARD; STEP 1ST	1-53414-181-0	01	1	1009-1303	●
279	BOARD; STEP 1ST	1-53414-181-0	01	1	1304-	●	●
279	BOARD; STEP 1ST	1-53414-180-0	01	1	1009-1303	●
279	BOARD; STEP 1ST	1-53414-180-0	01	1	1304-	●	●
285	PLATE; STEP,1ST STEP	8-98017-535-3	01	1	1009-1303	●
285	PLATE; STEP,1ST STEP	8-98017-535-3	01	1	1304-	●	●
285	PLATE; STEP,1ST STEP	8-98017-536-3	01	1	1009-1303	●
285	PLATE; STEP,1ST STEP	8-98017-536-3	01	1	1304-	●	●
286	STEP ASM; 1ST HONG KONG EQUIPMENT(PQ1)	8-98146-176-2	01	1	1009-1303	●
286	STEP ASM; 1ST HONG KONG EQUIPMENT(PQ1)	8-98146-176-2	01	1	1304-	●	●
286	STEP ASM; 1ST HONG KONG EQUIPMENT(PQ1)	8-98146-175-2	01	1	1009-1303	●
286	STEP ASM; 1ST HONG KONG EQUIPMENT(PQ1)	8-98146-175-2	01	1	1304-	●	●
286	STEP ASM; 1ST EXC. HONG KONG EQUIPMENT(PQ1)	8-98055-271-1	01	1	1009-1303	●
286	STEP ASM; 1ST EXC. HONG KONG EQUIPMENT(PQ1)	8-98055-271-1	01	1	1304-	●	●
286	STEP ASM; 1ST EXC. HONG KONG EQUIPMENT(PQ1)	8-98055-270-1	01	1	1009-1303	●
286	STEP ASM; 1ST EXC. HONG KONG EQUIPMENT(PQ1)	8-98055-270-1	01	1	1304-	●	●
287	BOLT; BOARD STEP M8X40 FLANGE	0-28650-840-0	08	1	1009-1107	●
287	BOLT; BOARD STEP M8X35 FLANGE	0-28650-835-0	08	1	1108-1303	●
287	BOLT; BOARD STEP M8X35 FLANGE	0-28650-835-0	08	1	1304-	●	●
288	NUT; STEP (D) M6 FLANGE	0-91180-106-0	02	1	1201-1303	●
288	NUT; STEP (D) M6 FLANGE	0-91180-106-0	02	1	1304-	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	08	1	1009-1303	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1304-	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1009-1303	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	08	1	1304-	●	●
288	NUT; STEP (C) M12 FLANGE	0-91180-212-0	02	1	1009-1303	●
288	NUT; STEP (C) M12 FLANGE	0-91180-212-0	02	1	1304-	●	●
288	NUT; STEP (A) M8	8-98040-792-0	02	1	1009-1303	●
288	NUT; STEP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8	8-98040-792-0	02	1	1304-	●	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	10	1	1009-1303	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	10	1	1304-	●	●
291	BOLT; STEP PLATE HONG KONG EQUIPMENT(PQ1) (B)	8-98165-009-0	08	1	1009-1303	●
291	BOLT; STEP PLATE HONG KONG EQUIPMENT(PQ1) (B)	8-98165-009-0	08	1	1304-	●	●
291	BOLT; STEP PLATE (A) M6X12 FLANGE	0-28050-612-0	06	1	1009-1303	●
291	BOLT; STEP PLATE (A) M6X12 FLANGE	0-28050-612-0	06	1	1304-	●	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1009-1303	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1304-	●	●
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	1009-1303	●
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	1304-	●	●
498	REFLECTOR	1-82290-011-1	02	1	1009-1303	●
498	REFLECTOR	1-82290-011-1	02	1	1304-	●	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	1009-1303	●
659	CLIP; SPRING NUT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-97811-510-0	04	1	1304-	●	●
673	BOLT; REFLECTOR M5X16 W/LK&PL WASHER	8-94198-538-0	04	1	1009-1303	●
673	BOLT; REFLECTOR M5X16 W/LK&PL WASHER	8-94198-538-0	04	1	1304-	●	●
674	COVER; REFLECTOR	8-98092-734-0	01	1	1009-1303	●
674	COVER; REFLECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98092-734-0	01	1	1304-	●	●
674	COVER; REFLECTOR	8-98092-733-0	01	1	1009-1303	●
674	COVER; REFLECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98092-733-0	01	1	1304-	●	●

288 288 435 288 103 674 404 435 288 111 287 291 285 112 112 675 659 675 291 112 288 116 116 289 289 291 112 279 288 498 673 286 288 103 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	8-98080-625-2	01	1	1009-1303	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	8-98080-625-2	01	1	1304-	●	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (C)	8-98080-631-0	01	1	1009-1303	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (C)	8-98080-631-0	01	1	1304-	●	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	8-98080-624-2	01	1	1009-1303	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	8-98080-624-2	01	1	1304-	●	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (C)	8-98080-630-0	01	1	1009-1303	●
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (C)	8-98080-630-0	01	1	1304-	●	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-98069-977-2	01	1	1009-1303	●
103	PLATE; STEP SINGAPORE EQUIPMENT(WQ3) (A)	8-98069-977-2	01	1	1304-	●	●
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-98069-976-2	01	1	1009-1303	●
103	PLATE; STEP SINGAPORE EQUIPMENT(WQ3) (A)	8-98069-976-2	01	1	1304-	●	●
110	BOLT; 1ST STEP PLATE M12X40 FLANGE	0-28651-240-0	06	1	1009-1303	●
110	BOLT; 1ST STEP PLATE M12X40 FLANGE	0-28651-240-0	06	1	1304-	●	●
111	COVER; 1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98155-124-1	02	1	1009-1303	●
111	COVER; 1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98155-124-1	02	1	1304-	●	●
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	04	1	1009-1112	●
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	02	1	1201-1303	●
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	02	1	1304-	●	●
112	BOLT; 1ST STEP (B) M6X25 FLANGE	0-28050-625-0	02	1	1009-1112	●
112	BOLT; 1ST STEP (D) M8X12 FLANGE	0-28050-812-0	04	1	1201-1303	●
112	BOLT; 1ST STEP (D) M8X12 FLANGE	0-28050-812-0	04	1	1304-	●	●
112	BOLT; 1ST STEP (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1112	●
112	BOLT; 1ST STEP (B) M6X20 FLANGE	0-28050-620-0	02	1	1201-1303	●
112	BOLT; 1ST STEP (B) M6X20 FLANGE	0-28050-620-0	02	1	1304-	●	●
116	STAY; 1ST STEP,FRT (A)	8-98062-133-1	01	1	1009-1112	●
116	STAY; 1ST STEP,FRT (B)	8-98196-756-0	02	1	1201-1303	●
116	STAY; 1ST STEP,FRT (B)	8-98196-756-0	02	1	1304-	●	●
116	STAY; 1ST STEP,FRT (A)	8-98062-134-1	01	1	1009-1112	●
279	BOARD; STEP 1ST	1-53414-181-0	01	1	1009-1303	●
279	BOARD; STEP 1ST	1-53414-181-0	01	1	1304-	●	●
279	BOARD; STEP 1ST	1-53414-180-0	01	1	1009-1303	●
279	BOARD; STEP 1ST	1-53414-180-0	01	1	1304-	●	●
285	PLATE; STEP,1ST STEP	8-98017-535-3	01	1	1009-1303	●
285	PLATE; STEP,1ST STEP	8-98017-535-3	01	1	1304-	●	●
285	PLATE; STEP,1ST STEP	8-98017-536-3	01	1	1009-1303	●
285	PLATE; STEP,1ST STEP	8-98017-536-3	01	1	1304-	●	●
286	STEP ASM; 1ST HONG KONG EQUIPMENT(PQ1)	8-98146-176-2	01	1	1009-1303	●
286	STEP ASM; 1ST HONG KONG EQUIPMENT(PQ1)	8-98146-176-2	01	1	1304-	●	●
286	STEP ASM; 1ST HONG KONG EQUIPMENT(PQ1)	8-98146-175-2	01	1	1009-1303	●
286	STEP ASM; 1ST HONG KONG EQUIPMENT(PQ1)	8-98146-175-2	01	1	1304-	●	●
286	STEP ASM; 1ST EXC. HONG KONG EQUIPMENT(PQ1)	8-98055-271-1	01	1	1009-1303	●
286	STEP ASM; 1ST EXC. HONG KONG EQUIPMENT(PQ1)	8-98055-271-1	01	1	1304-	●	●
286	STEP ASM; 1ST EXC. HONG KONG EQUIPMENT(PQ1)	8-98055-270-1	01	1	1009-1303	●
286	STEP ASM; 1ST EXC. HONG KONG EQUIPMENT(PQ1)	8-98055-270-1	01	1	1304-	●	●
287	BOLT; BOARD STEP M8X40 FLANGE	0-28650-840-0	08	1	1009-1107	●
287	BOLT; BOARD STEP M8X35 FLANGE	0-28650-835-0	08	1	1108-1303	●
287	BOLT; BOARD STEP M8X35 FLANGE	0-28650-835-0	08	1	1304-	●	●
288	NUT; STEP (D) M6 FLANGE	0-91180-106-0	02	1	1201-1303	●
288	NUT; STEP (D) M6 FLANGE	0-91180-106-0	02	1	1304-	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	08	1	1009-1303	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1304-	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1009-1303	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	08	1	1304-	●	●
288	NUT; STEP (C) M12 FLANGE	0-91180-212-0	02	1	1009-1303	●
288	NUT; STEP (C) M12 FLANGE	0-91180-212-0	02	1	1304-	●	●
288	NUT; STEP (A) M8	8-98040-792-0	02	1	1009-1303	●
288	NUT; STEP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8	8-98040-792-0	02	1	1304-	●	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	10	1	1009-1303	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	10	1	1304-	●	●
291	BOLT; STEP PLATE HONG KONG EQUIPMENT(PQ1) (B)	8-98165-009-0	08	1	1009-1303	●
291	BOLT; STEP PLATE HONG KONG EQUIPMENT(PQ1) (B)	8-98165-009-0	08	1	1304-	●	●
291	BOLT; STEP PLATE (A) M6X12 FLANGE	0-28050-612-0	06	1	1009-1303	●
291	BOLT; STEP PLATE (A) M6X12 FLANGE	0-28050-612-0	06	1	1304-	●	●
404	BRACKET HONG KONG EQUIPMENT(PQ1)	8-98080-646-1	04	1	1009-1303	●
404	BRACKET HONG KONG EQUIPMENT(PQ1)	8-98080-646-1	04	1	1304-	●	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1009-1303	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1304-	●	●
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	1009-1303	●
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	1304-	●	●
498	REFLECTOR	1-82290-011-1	02	1	1009-1303	●
498	REFLECTOR	1-82290-011-1	02	1	1304-	●	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	1009-1303	●
659	CLIP; SPRING NUT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-97811-510-0	04	1	1304-	●	●
673	BOLT; REFLECTOR M5X16 W/LK&PL WASHER	8-94198-538-0	04	1	1009-1303	●
673	BOLT; REFLECTOR M5X16 W/LK&PL WASHER	8-94198-538-0	04	1	1304-	●	●
674	COVER; REFLECTOR	8-98092-734-0	01	1	1009-1303	●
674	COVER; REFLECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98092-734-0	01	1	1304-	●	●
674	COVER; REFLECTOR	8-98092-733-0	01	1	1009-1303	●
674	COVER; REFLECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98092-733-0	01	1	1304-	●	●
675	WASHER; STEP PLATE HONG KONG EQUIPMENT(PQ1) (A)	8-98112-672-1	08	1	1009-1303	●
675	WASHER; STEP PLATE HONG KONG EQUIPMENT(PQ1) (A)	8-98112-672-1	08	1	1304-	●	●
675	WASHER; STEP PLATE HONG KONG EQUIPMENT(PQ1) (B)	8-98112-673-1	08	1	1009-1303	●
675	WASHER; STEP PLATE HONG KONG EQUIPMENT(PQ1) (B)	8-98112-673-1	08	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
