Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11294 - EXZ RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

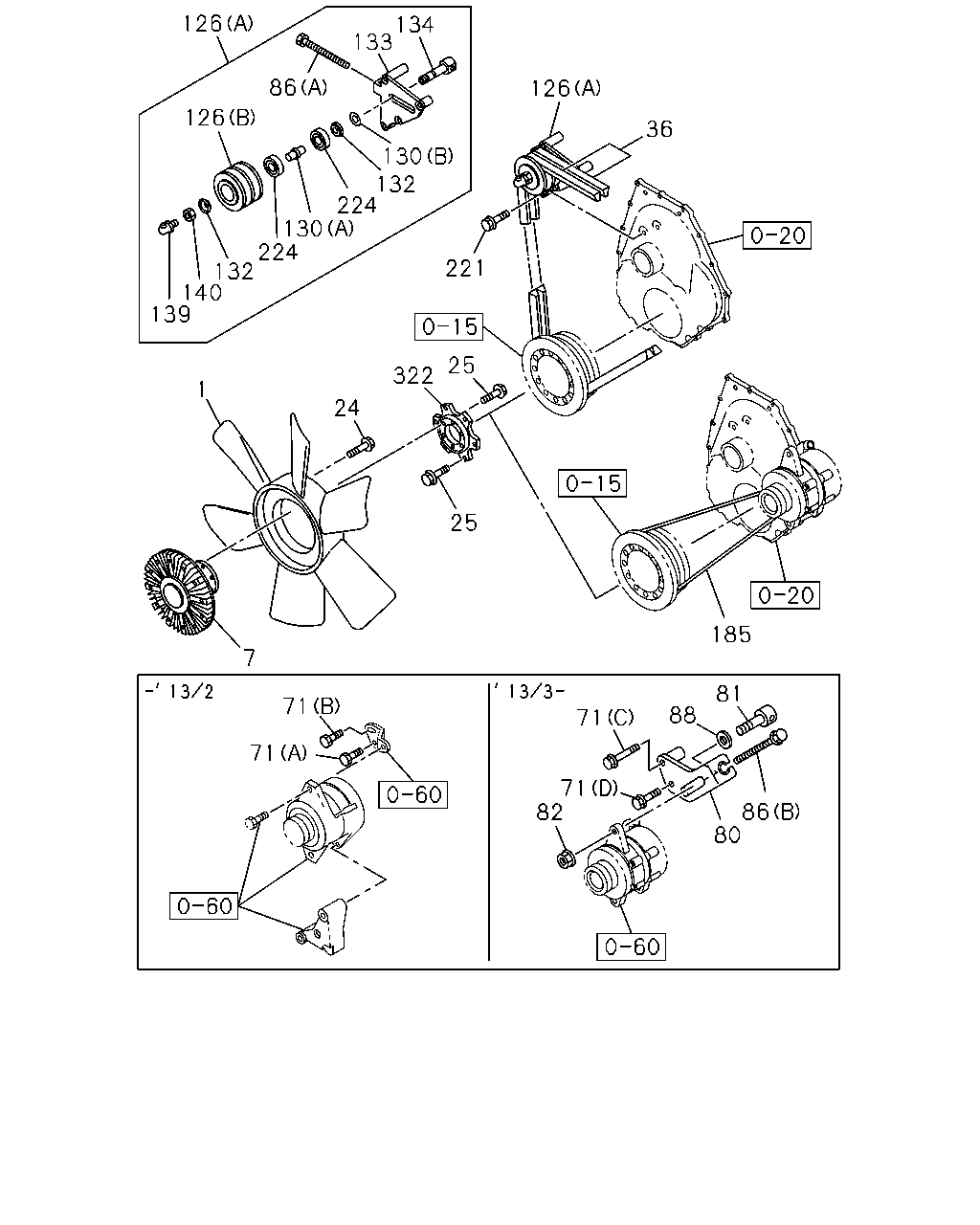

0-33 — FAN AND FAN BELT
(#70379) — 32 parça
80
86
81
88
71
71
82
71
71
7
1
24
25
185
322
25
221
126
36
134
133
86
126
126
130
132
224
130
224
132
140
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
OD=700
1-13660-286-1
01
1
1009-1510
1
FAN; COOLING
OD=700
8-98296-792-0
01
1
1511-
7
COUPLING; FAN
8-98119-742-0
01
1
1009-
24
BOLT; FAN
M10X16 FLANGE
0-28161-016-0
06
1
1009-
25
BOLT; ADAPTER
M10X30 FLANGE
0-28161-030-0
12
1
1009-
36
BELT; COOLING FAN
1 SET=2 PIECE(1136714651) MITSUBOSHI
1-13671-463-1
01
1
1009-1302
36
BELT; COOLING FAN
BEST VALUE PARTS
1-87610-098-0
01
1
1009-1302
71
BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE
0-28151-025-0
01
1
1009-1302
71
BOLT; ADJ PLATE,GEN
(C) M10X140 FLANGE
0-28156-014-0
01
1
1303-
71
BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE
0-28156-011-0
01
1
1009-1302
71
BOLT; ADJ PLATE,GEN
(D) M10X55 FLANGE
8-97365-449-0
01
1
1303-
80
PLATE; ADJ
8-97639-550-0
01
1
1303-
81
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
1303-
82
NUT; ADJ PLATE
M12 FLANGE
0-91180-112-0
01
1
1303-
86
BOLT; ADJ
(A) M10X135
1-09009-113-1
01
1
1009-1302
86
BOLT; ADJ
(B) M10X90
1-09009-151-0
01
1
1303-
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
0-91614-712-0
01
1
1303-
126
PULLEY; IDLE
(A)
1-13660-352-2
01
1
1009-1302
126
PULLEY; IDLE
(B)
1-13663-067-0
01
1
1009-1302
130
SPACER; IDLE PULLEY BRG
(A)
1-13666-007-0
01
1
1009-1302
130
SPACER; IDLE PULLEY BRG
(B)
1-13666-032-0
01
1
1009-1302
132
COVER; DUST
1-13664-009-2
02
1
1009-1302
133
BRACKET; IDLE PULLEY
1-13669-197-2
01
1
1009-1302
134
SPINDLE; IDLE PULLEY
1-13665-060-1
01
1
1009-1302
139
NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW
0-90301-610-0
01
1
1009-1302
140
NUT; IDLE PULLEY
M18
0-91111-518-0
01
1
1009-1302
185
BELT; GEN DRIVE
8-97639-551-0
01
1
1303-
221
BOLT; IDLE PULLEY
M10X40 FLANGE
0-28151-040-0
01
1
1104-
221
BOLT; IDLE PULLEY
M10X50 FLANGE
0-28151-050-0
02
1
1104-
221
BOLT; IDLE PULLEY
M10X80 FLANGE
0-28151-080-0
04
1
1009-1302
224
BEARING; IDLE PULLEY
8-97633-017-0
02
1
1009-1302
322
ADAPTER; COUPLING
8-97606-264-0
01
1
1009-
