0-32 — WATER PIPING; ENGINE (#70378) — 215 parça

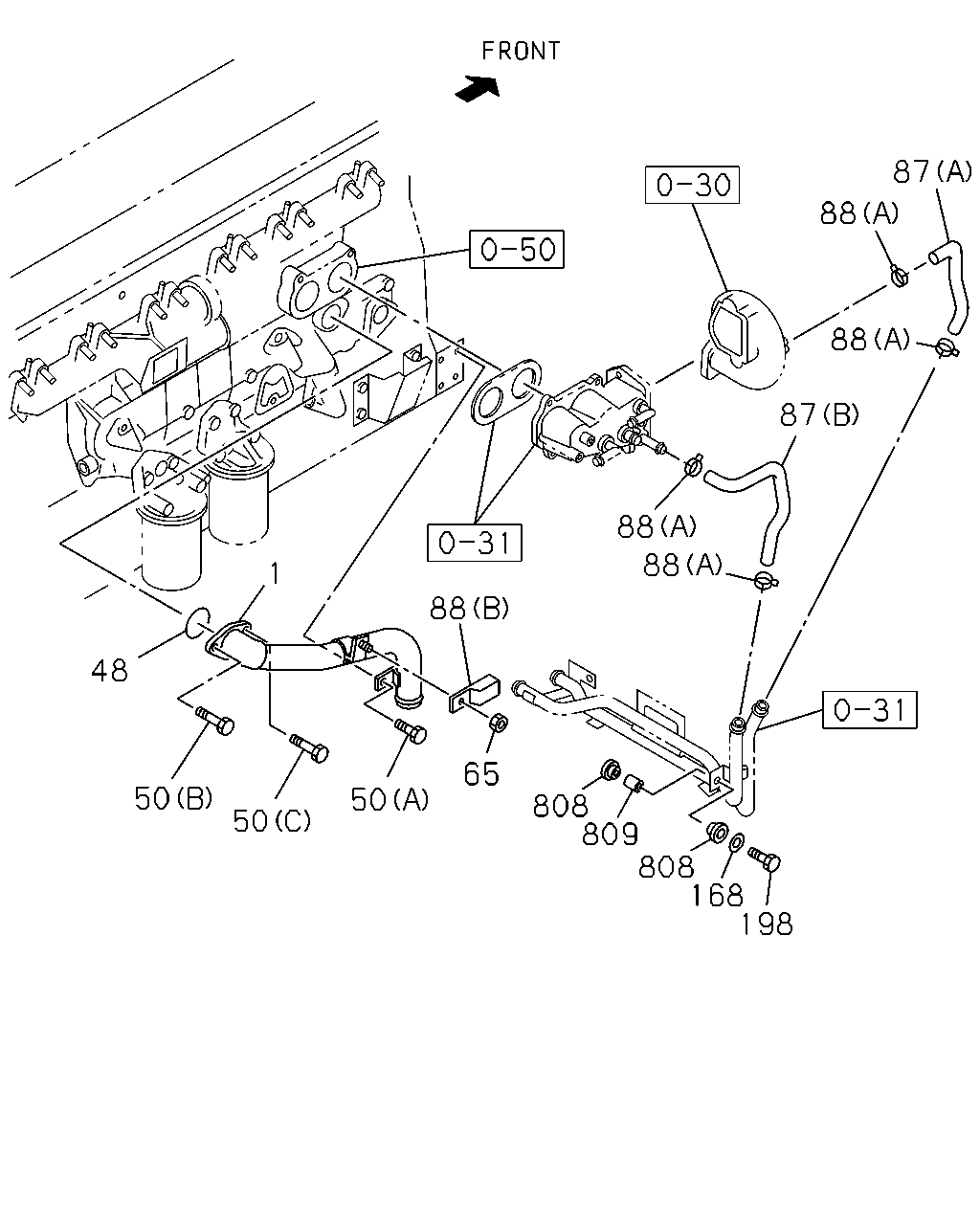

çizim 44532
87 88 88 87 88 88 88 808 809 808 168 198 50 50 50 48 65 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; WATER PUMP,INL 8-97606-255-2 01 1 1009-
48 GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 1009-
50 BOLT; WATER PIPE INL
(C) M10X90 FLANGE 		0-28051-090-0 01 1 1009-1306
50 BOLT; WATER PIPE INL
(C) M10X90 FLANGE 		0-28151-090-0 01 1 1307-
50 BOLT; WATER PIPE INL
(B) M10X30 FLANGE 		0-28151-030-0 01 1 1009-
50 BOLT; WATER PIPE INL
(A) M14X25 FLANGE 		0-28951-425-0 01 1 1009-
65 NUT
M10 FLANGE 		0-91180-110-0 01 1 1009-
87 HOSE; RUBBER,HTR
(B) 		1-83565-572-0 01 1 1009-
87 HOSE; RUBBER,HTR
(A) 		1-83565-577-0 01 1 1009-
88 CLIP; HOSE,HTR
(A) ID=20 		1-09707-084-1 04 1 1009-
88 CLIP; HOSE,HTR
(B) 		9-09915-663-0 01 1 1009-1206
88 CLIP; HOSE,HTR
(B) 		8-98166-024-0 01 1 1207-
168 WASHER; PL,PIPE
ID=10.5 OD=26 		0-91614-710-0 02 1 1009-
198 BOLT; PIPE
M10X45 FLANGE 		0-28051-045-0 02 1 1009-
808 RUBBER; MTG 1-09337-017-0 04 1 1009-
809 TUBE; DIST
ID=11.8 L=27 		1-21559-149-0 02 1 1009-

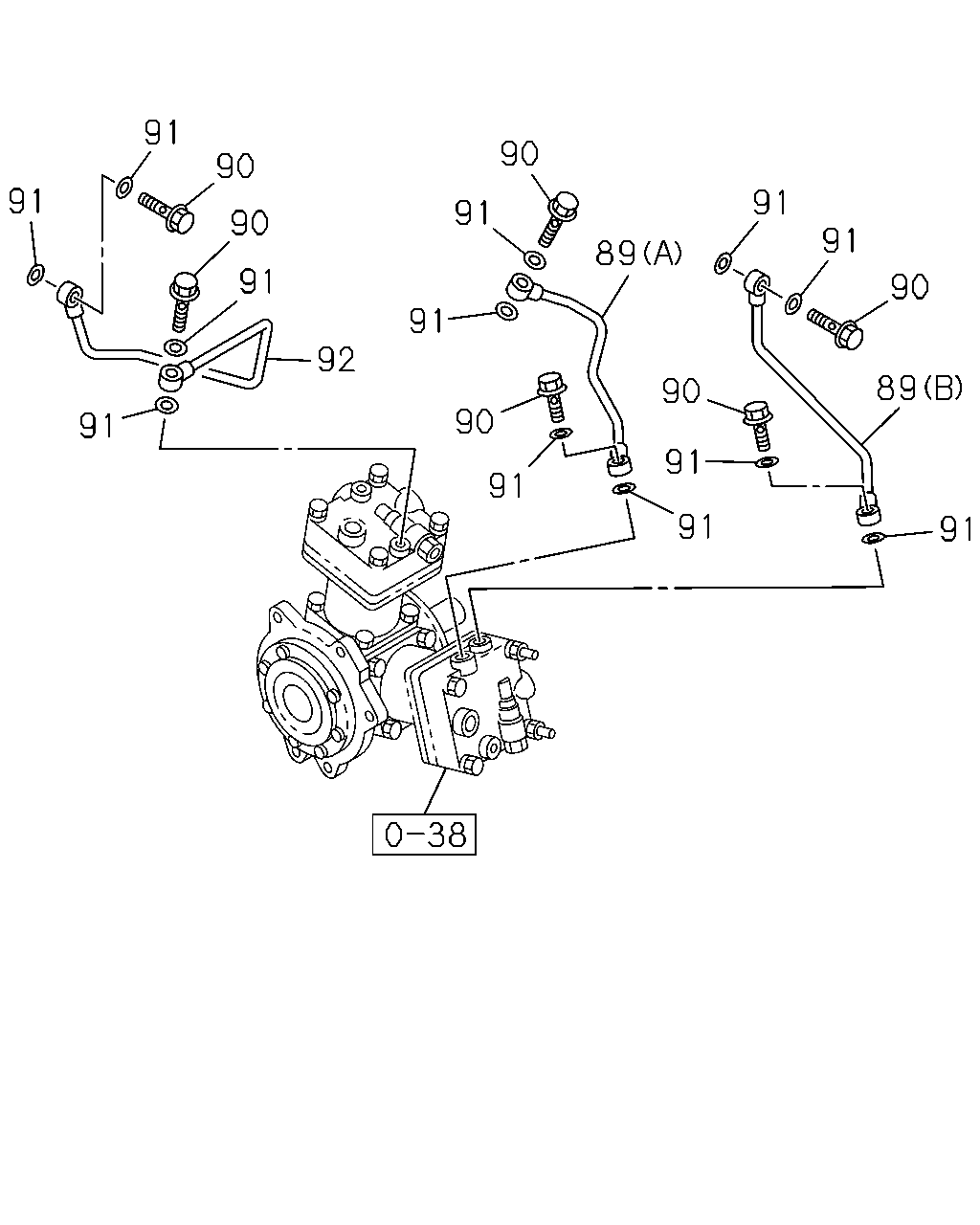

çizim 57495
91 91 90 90 91 92 91 90 91 91 91 91 90 89 89 90 91 91 90 91 91
BalonParca AdiParca NoAdetTipApplied Date
89 PIPE; WATER,AIR CMPR,IN
(B) 		1-13722-007-0 01 1 1009-
89 PIPE; WATER,AIR CMPR,IN
(A) 		1-13722-008-0 01 1 1009-
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 06 1 1009-
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 12 1 1009-
92 PIPE; WATER,AIR CMPR,OUT 1-13722-009-0 01 1 1009-

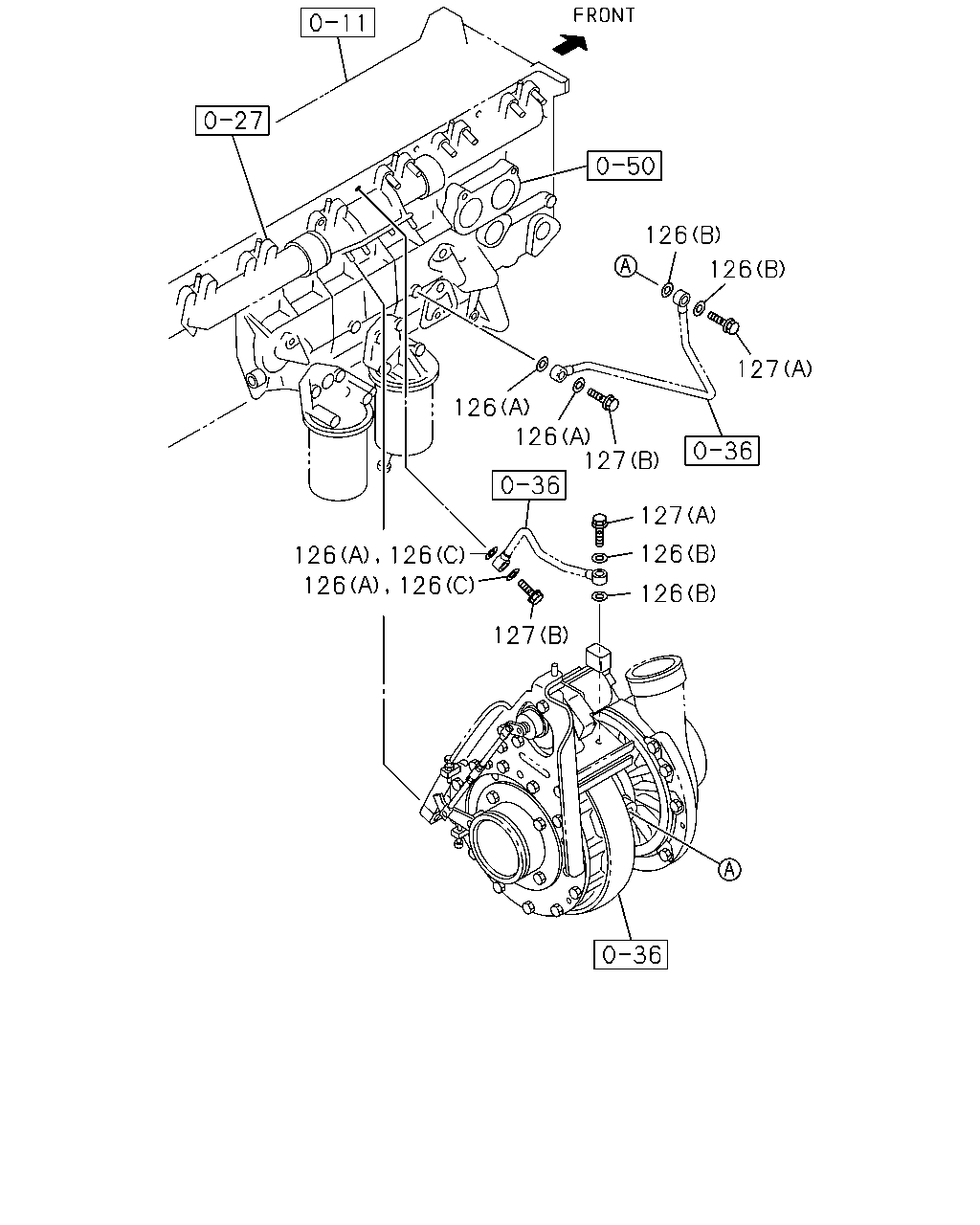

çizim 60701
126 126 127 126 126 127 127 126 126 127 126 126 126 126
BalonParca AdiParca NoAdetTipApplied Date
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1009-1312
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 04 1 1009-
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 04 1 1009-
127 BOLT; EYE
(A) M16X30 FLANGE 		1-09675-095-1 02 1 1009-
127 BOLT; EYE
(B) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1009-

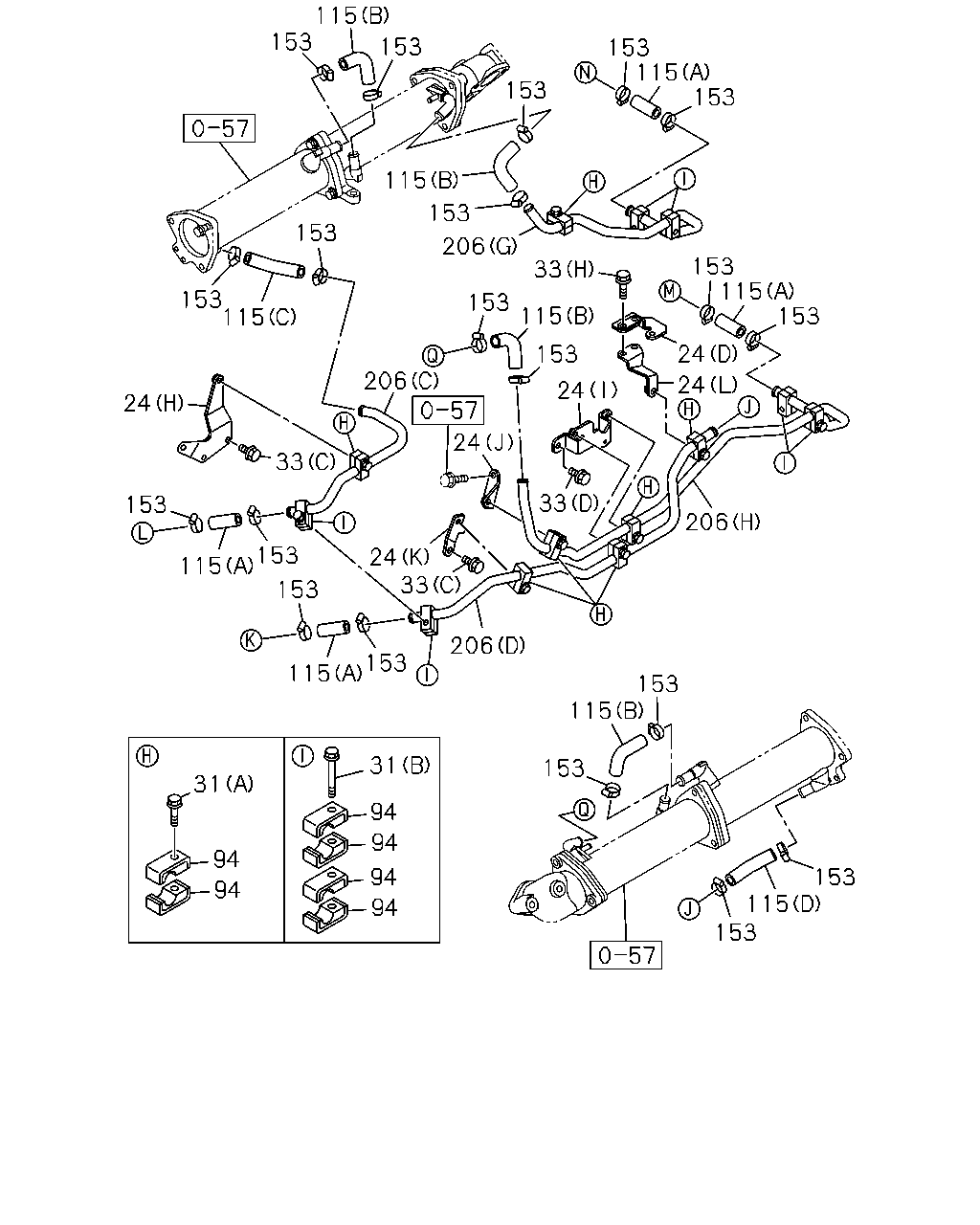

çizim 61026
115 153 153 153 153 153 115 153 153 115 24 24 206 206 24 33 115 153 153 115 153 24 153 153 115 33 206 153 206 115 33 153 115 3 24 33 153 115 153 153 115 153 31 31 94 94 94 94 94 94 153 24
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(A) 		8-97609-581-1 01 1 1009-
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 1009-
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 1009-
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 1009-
24 BRACKET; WATER PIPE
(F) 		8-97613-005-1 01 1 1009-
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 1009-
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 1009-
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 1009-
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 1009-
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 1009-
24 BRACKET; WATER PIPE
(D) 		8-97628-207-0 01 1 1009-
24 BRACKET; WATER PIPE
(L) 		8-97628-300-0 01 1 1009-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 12 1 1009-1507
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 1009-
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
33 BOLT; BRKT
(H) M8X25 FLANGE 		0-28050-825-0 02 1 1009-
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 1009-
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 1009-
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 1009-
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 1009-
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1009-
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 1009-
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 1009-
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 1009-
115 HOSE; RUBBER
(B) 		8-97604-063-0 04 1 1009-
115 HOSE; RUBBER
(C) 		8-97628-219-0 01 1 1009-
115 HOSE; RUBBER
(D) 		8-97628-220-0 01 1 1009-
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 1009-
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(B) 		8-97623-511-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(C) 		8-97628-203-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(D) 		8-97628-204-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(G) 		8-97628-205-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(H) 		8-97628-206-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(A) 		8-97629-442-0 01 1 1009-

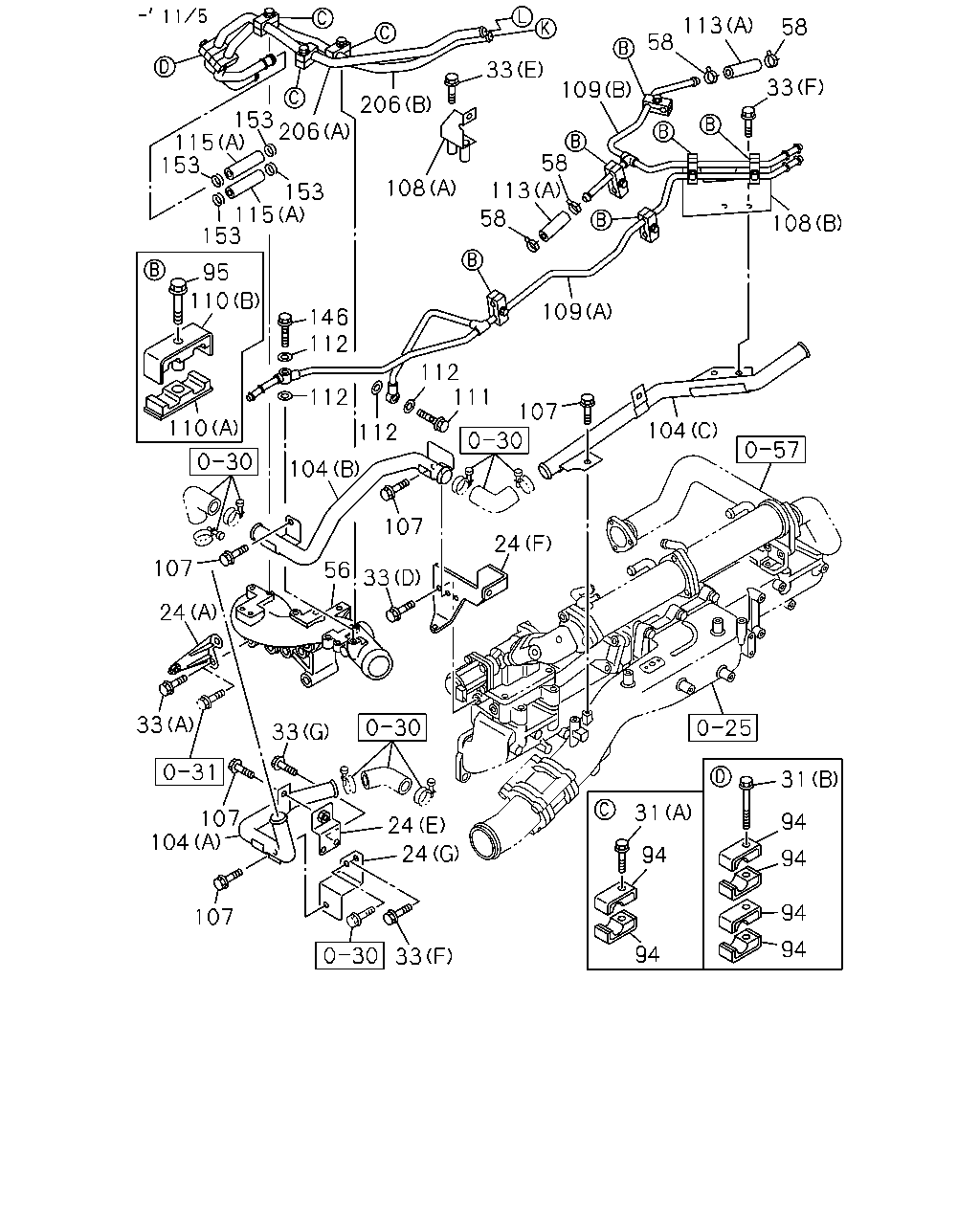

çizim 188843
153 206 33 109 58 113 108 33 58 206 115 153 153 115 153 95 110 146 112 108 113 58 58 109 112 104 110 107 24 56 33 107 24 111 107 104 33 33 107 104 107 24 24 31 31 94 94 94 94 94 94 112 112 33
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(A) 		8-97609-581-1 01 1 1009-
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 1009-
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 1009-
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 1009-
24 BRACKET; WATER PIPE
(F) 		8-97613-005-1 01 1 1009-
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 1009-
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 1009-
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 1009-
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 1009-
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 1009-
24 BRACKET; WATER PIPE
(D) 		8-97628-207-0 01 1 1009-
24 BRACKET; WATER PIPE
(L) 		8-97628-300-0 01 1 1009-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 12 1 1009-1507
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 1009-
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
33 BOLT; BRKT
(H) M8X25 FLANGE 		0-28050-825-0 02 1 1009-
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 1009-
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 1009-
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 1009-
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 1009-
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1009-
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 1009-
56 PIPE; WATER OUTLET 8-98038-588-0 01 1 1009-
58 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 04 1 1009-1105
58 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 08 1 1106-
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 1009-
95 BOLT; CLIP
M6X35 FLANGE 		0-28050-635-0 06 1 1009-
104 PIPE; WATER CHARGE
(B) 		8-97613-001-1 01 1 1009-
104 PIPE; WATER CHARGE
(C) 		8-97613-002-1 01 1 1009-1105
104 PIPE; WATER CHARGE
(D) 		8-98191-341-0 01 1 1106-
104 PIPE; WATER CHARGE
(A) 		8-97617-188-0 01 1 1009-
107 BOLT; WATER PIPE
M10X20 FLANGE 		0-28151-020-0 05 1 1009-
108 BRACKET; WATER CHARGE
(A) 		8-97613-672-0 01 1 1009-
108 BRACKET; WATER CHARGE
(B) 		8-97615-508-2 01 1 1009-
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(A) 		8-97623-510-0 01 1 1009-1105
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(D) 		8-98191-343-0 01 1 1106-
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(B) 		8-97628-172-0 01 1 1009-1105
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(C) 		8-98191-497-0 01 1 1106-
110 CLIP; AIR PIPE
(A) ID=9 & 9 L=25 		1-09701-180-0 06 1 1009-
110 CLIP; AIR PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 06 1 1009-
111 BOLT; EYE,LEAK,THERMOSTAT HSG
M14X27 EYE-BOLT 		1-09675-193-0 01 1 1009-
112 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 04 1 1009-
113 HOSE; RUBBER,AIR LEAK
(B) 		8-98191-351-0 02 1 1106-
113 HOSE; RUBBER,AIR LEAK
(A) L=100 SERVICED BY L=3000 		0-03559-300-0 02 1 1009-
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 1009-
115 HOSE; RUBBER
(B) 		8-97604-063-0 04 1 1009-
115 HOSE; RUBBER
(C) 		8-97628-219-0 01 1 1009-
115 HOSE; RUBBER
(D) 		8-97628-220-0 01 1 1009-
146 BOLT; EYE
M14X27 EYE-BOLT 		1-09675-193-0 01 1 1009-
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 1009-
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(B) 		8-97623-511-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(C) 		8-97628-203-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(D) 		8-97628-204-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(G) 		8-97628-205-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(H) 		8-97628-206-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(A) 		8-97629-442-0 01 1 1009-

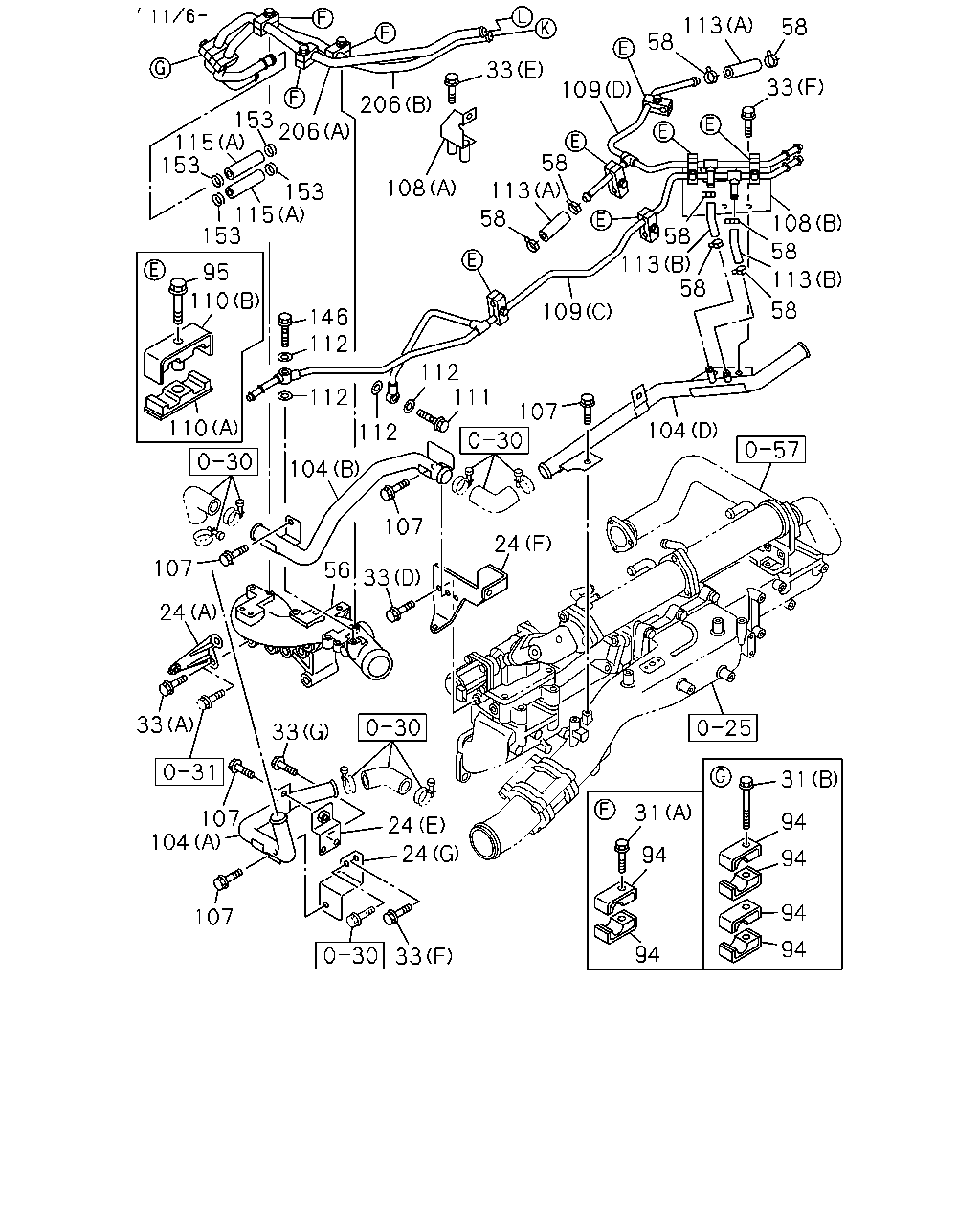

çizim 188844
33 206 206 153 115 153 153 153 115 146 95 110 110 107 104 112 112 112 111 109 58 108 113 109 58 113 58 33 108 113 113 104 58 58 58 58 107 24 107 33 56 24 33 104 107 24 24 33 31 94 94 31 94 94 94 94 58 107 33 112
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(A) 		8-97609-581-1 01 1 1009-
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 1009-
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 1009-
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 1009-
24 BRACKET; WATER PIPE
(F) 		8-97613-005-1 01 1 1009-
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 1009-
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 1009-
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 1009-
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 1009-
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 1009-
24 BRACKET; WATER PIPE
(D) 		8-97628-207-0 01 1 1009-
24 BRACKET; WATER PIPE
(L) 		8-97628-300-0 01 1 1009-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 12 1 1009-1507
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 1009-
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
33 BOLT; BRKT
(H) M8X25 FLANGE 		0-28050-825-0 02 1 1009-
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 1009-
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 1009-
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 1009-
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 1009-
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1009-
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 1009-
56 PIPE; WATER OUTLET 8-98038-588-0 01 1 1009-
58 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 04 1 1009-1105
58 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 08 1 1106-
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 1009-
95 BOLT; CLIP
M6X35 FLANGE 		0-28050-635-0 06 1 1009-
104 PIPE; WATER CHARGE
(B) 		8-97613-001-1 01 1 1009-
104 PIPE; WATER CHARGE
(C) 		8-97613-002-1 01 1 1009-1105
104 PIPE; WATER CHARGE
(D) 		8-98191-341-0 01 1 1106-
104 PIPE; WATER CHARGE
(A) 		8-97617-188-0 01 1 1009-
107 BOLT; WATER PIPE
M10X20 FLANGE 		0-28151-020-0 05 1 1009-
108 BRACKET; WATER CHARGE
(A) 		8-97613-672-0 01 1 1009-
108 BRACKET; WATER CHARGE
(B) 		8-97615-508-2 01 1 1009-
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(A) 		8-97623-510-0 01 1 1009-1105
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(D) 		8-98191-343-0 01 1 1106-
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(B) 		8-97628-172-0 01 1 1009-1105
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(C) 		8-98191-497-0 01 1 1106-
110 CLIP; AIR PIPE
(A) ID=9 & 9 L=25 		1-09701-180-0 06 1 1009-
110 CLIP; AIR PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 06 1 1009-
111 BOLT; EYE,LEAK,THERMOSTAT HSG
M14X27 EYE-BOLT 		1-09675-193-0 01 1 1009-
112 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 04 1 1009-
113 HOSE; RUBBER,AIR LEAK
(B) 		8-98191-351-0 02 1 1106-
113 HOSE; RUBBER,AIR LEAK
(A) L=100 SERVICED BY L=3000 		0-03559-300-0 02 1 1009-
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 1009-
115 HOSE; RUBBER
(B) 		8-97604-063-0 04 1 1009-
115 HOSE; RUBBER
(C) 		8-97628-219-0 01 1 1009-
115 HOSE; RUBBER
(D) 		8-97628-220-0 01 1 1009-
146 BOLT; EYE
M14X27 EYE-BOLT 		1-09675-193-0 01 1 1009-
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 1009-
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(B) 		8-97623-511-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(C) 		8-97628-203-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(D) 		8-97628-204-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(G) 		8-97628-205-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(H) 		8-97628-206-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(A) 		8-97629-442-0 01 1 1009-

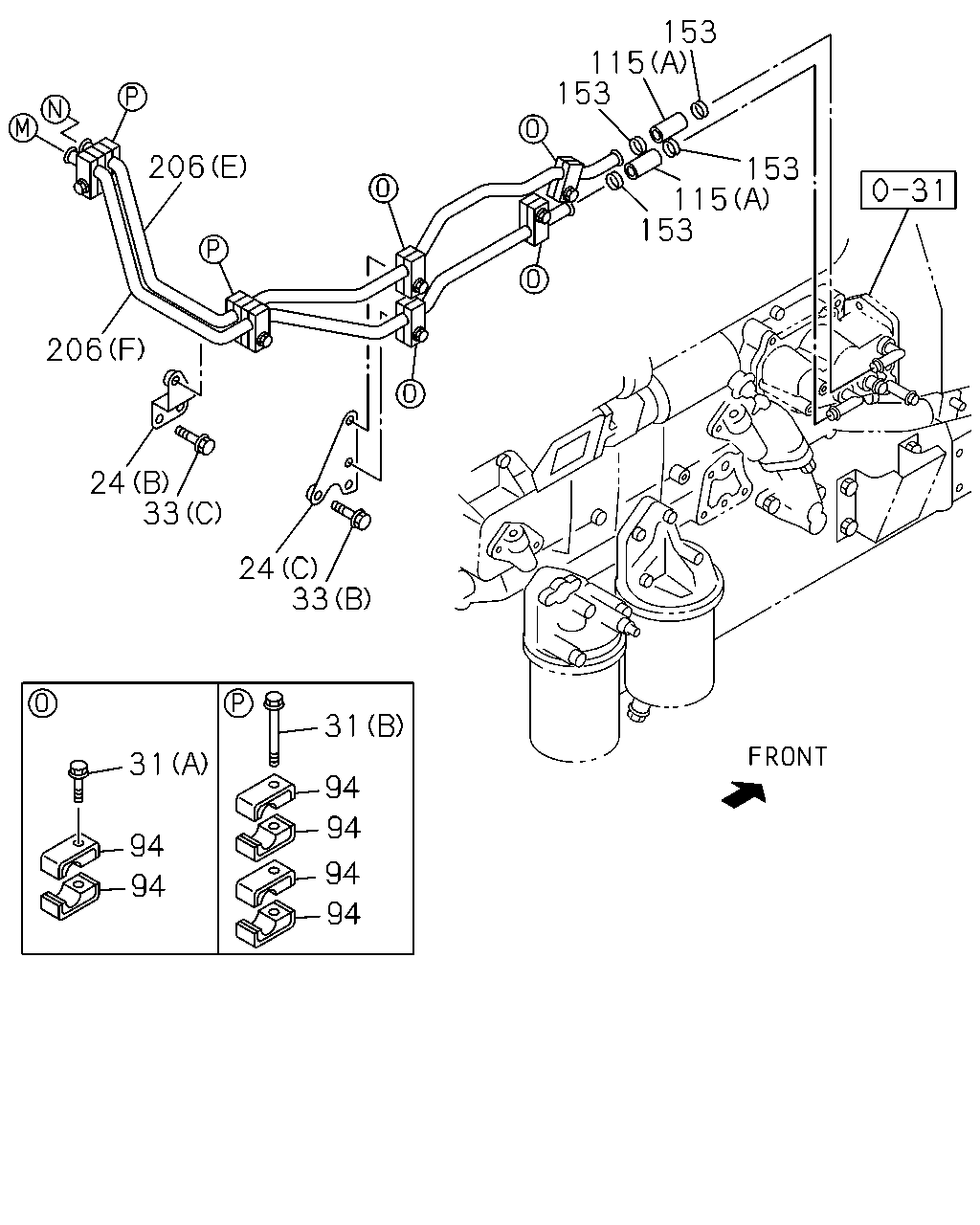

çizim 336050
31 94 31 94 94 94 94 94 24 33 33 24 206 206 153 153 115 153 115 153
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(A) 		8-97609-581-1 01 1 1009-
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 1009-
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 1009-
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 1009-
24 BRACKET; WATER PIPE
(F) 		8-97613-005-1 01 1 1009-
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 1009-
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 1009-
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 1009-
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 1009-
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 1009-
24 BRACKET; WATER PIPE
(D) 		8-97628-207-0 01 1 1009-
24 BRACKET; WATER PIPE
(L) 		8-97628-300-0 01 1 1009-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 12 1 1009-1507
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 1009-
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
33 BOLT; BRKT
(H) M8X25 FLANGE 		0-28050-825-0 02 1 1009-
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 1009-
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 1009-
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 1009-
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 1009-
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1009-
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 1009-
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 1009-
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 1009-
115 HOSE; RUBBER
(B) 		8-97604-063-0 04 1 1009-
115 HOSE; RUBBER
(C) 		8-97628-219-0 01 1 1009-
115 HOSE; RUBBER
(D) 		8-97628-220-0 01 1 1009-
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 1009-
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(B) 		8-97623-511-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(C) 		8-97628-203-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(D) 		8-97628-204-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(G) 		8-97628-205-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(H) 		8-97628-206-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(A) 		8-97629-442-0 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
