Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11294 - EXZ RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

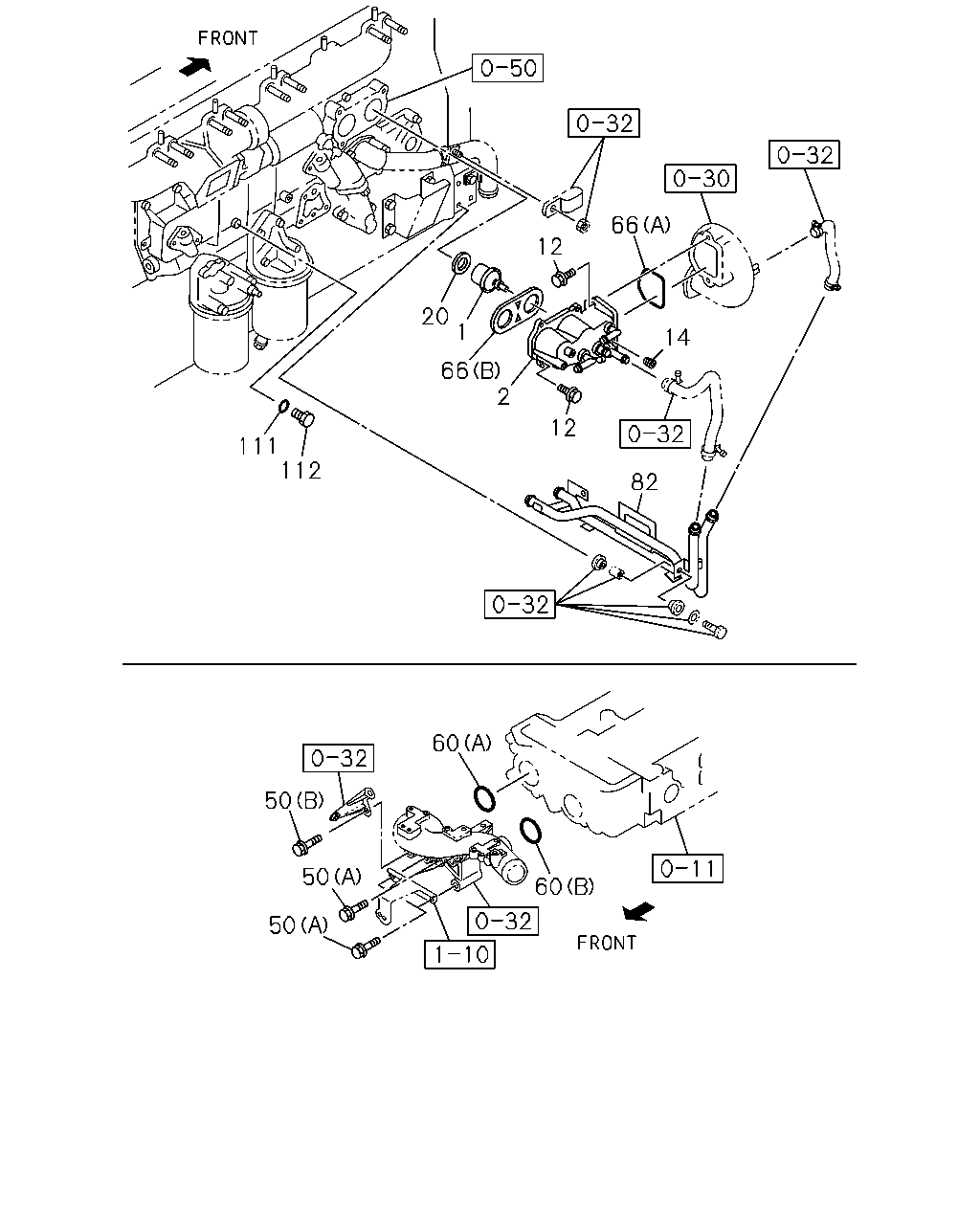

0-31 — THERMOSTAT AND HOUSING
(#70377) — 18 parça
111
20
112
66
12
66
14
2
82
12
60
50
50
50
60
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
82 CELSIUS
8-98271-161-0
02
1
1009-1509
1
THERMOSTAT
82 CELSIUS
8-98319-254-0
02
1
1510-
2
HOUSING; THERMOSTAT
8-98054-424-1
01
1
1009-1208
2
HOUSING; THERMOSTAT
8-98217-268-0
01
1
1209-
12
BOLT; HSG
M10X25 FLANGE
0-28151-025-0
05
1
1009-
14
PLUG; SW
PT3/8
8-94475-259-0
01
1
1009-
20
RING; SEAL
ID=59 OD=66.1
1-13779-011-0
02
1
1009-
50
BOLT; OUTLET PIPE
(A) M10X90 FLANGE
0-28151-090-0
04
1
1009-
50
BOLT; OUTLET PIPE
(B) M10X55 FLANGE
8-97365-449-0
02
1
1009-
60
GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6
1-09623-452-0
01
1
1009-
60
GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6
1-09623-505-0
01
1
1009-
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6
1-09623-247-0
01
1
1009-1111
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-98205-844-0
01
1
1112-
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
1-13743-036-1
01
1
1009-
82
PIPE; WATER,HTR
8-97612-229-0
01
1
1009-
111
GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=25
1-09630-141-0
01
1
1009-
112
PLUG
M14X9
8-98042-944-0
01
1
1009-1009
112
PLUG
M14X14
9-09862-156-0
01
1
1010-
