Isuzu WW
▶
TRUCKS
▶
EXD
▶
11293 - EXD RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

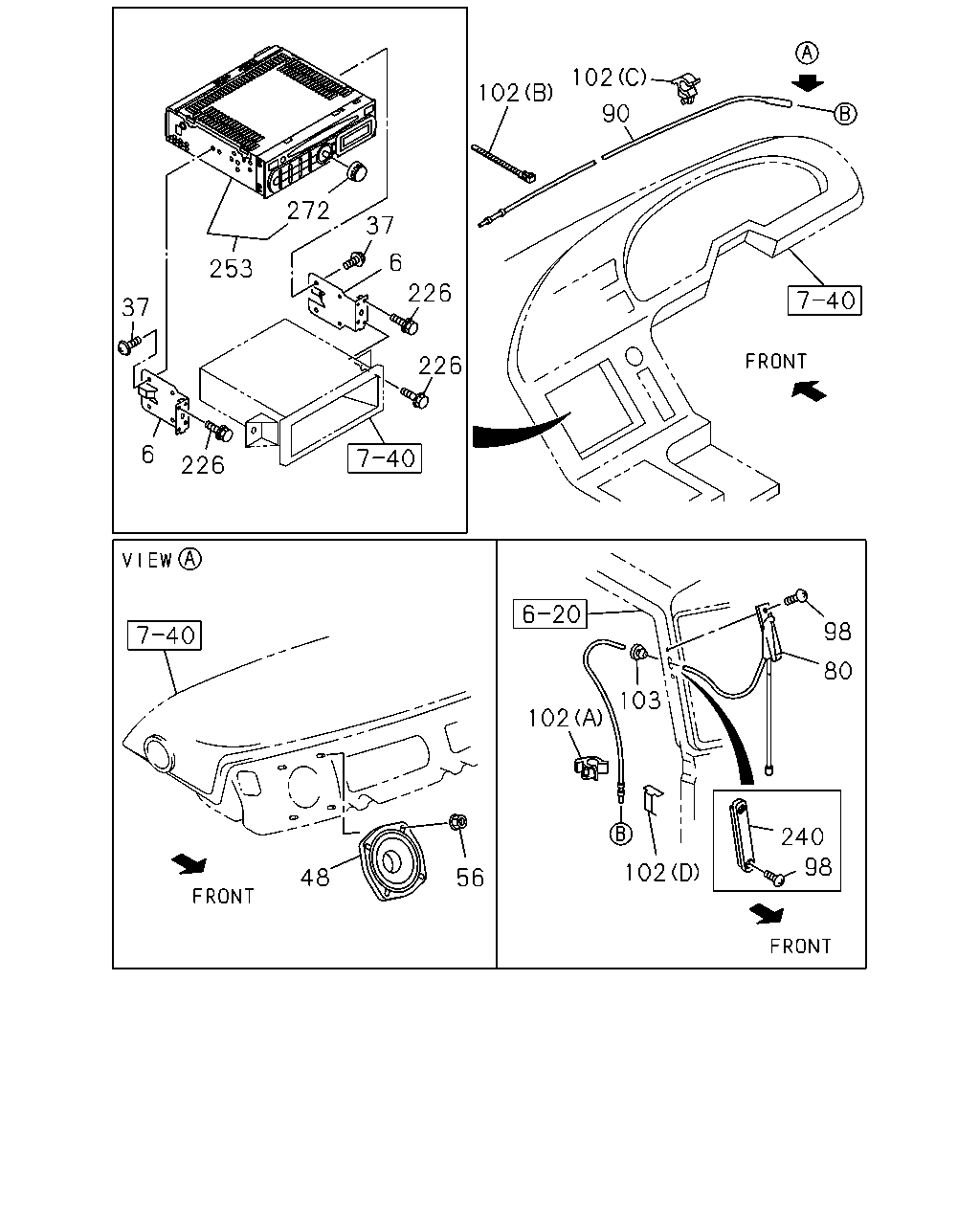

8-90 — RADIO AND TV
(#70361) — 17 parça
102
102
90
37
272
253
37
6
226
6
226
226
48
56
102
103
98
80
102
240
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
BRACKET; RADIO TO PANEL
1-65671-822-1
02
1
1009-
37
SCREW; CASSETTE & RADIO
RADIO AM/FM STEREO CD(UT3) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1009-
48
SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>
8-98140-326-1
02
1
1009-
56
NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE
1-09984-170-0
04
1
1009-
80
ANTENNA
ANTENNA RADIO<U73>
1-84115-055-2
01
1
1009-1203
80
ANTENNA
ANTENNA RADIO<U73>
8-98210-874-1
01
1
1204-
90
CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73>
1-84113-011-2
01
1
1009-
98
SCREW; TAP,ANTENNA
M5X11
1-09981-536-1
02
1
1009-
102
CLIP; CABLE
ANTENNA RADIO<U73> (D) L=20 SET=10 PIECE
1-09987-246-2
01
1
1410-
102
CLIP; CABLE
ANTENNA RADIO<U73> (A) ID=4.8
1-73907-618-0
05
1
1009-
102
CLIP; CABLE
ANTENNA RADIO<U73> (C) ID=4.8
8-94128-483-0
03
1
1009-
102
CLIP; CABLE
ANTENNA RADIO<U73> EXC. RADIO AM/FM STEREO CD(UT3) (B) L=140
5-09707-031-1
01
1
1009-
103
GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73>
8-97027-381-0
01
1
1009-
226
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
1009-
240
COVER; ANTENNA
EXC. ANTENNA RADIO<U73>
1-79996-296-0
01
1
1009-
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3)
8-98105-038-0
01
1
1009-
272
KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD(UT3) CLARION
8-98048-329-0
01
1
1009-
