Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#70344) — 386 parça

530 1 1 1 1 178 178 178 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=29 OD=39 L=40	1-09337-013-0	02	1	1009-
1	SLEEVE; RUBBER (D) ID=38.1 L=25	1-09337-052-0	01	1	1009-
1	SLEEVE; RUBBER (B) ID=18 OD=22 L=25	8-94412-773-0	01	1	1009-
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=38.1 L=50	5-09360-835-0	01	1	1009-
178	GROMMET; HARNESS (A) ID=24 OD=30 T=22	1-09332-104-0	01	1	1009-
178	GROMMET; HARNESS (E) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1009-
178	GROMMET; HARNESS (B) ID=32 OD=40 T=18	1-09891-003-0	02	1	1009-
178	GROMMET; HARNESS (B) ID=32 OD=40 T=18	1-09891-003-0	03	1	1009-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1009-
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=28 OD=35 T=17	9-09956-256-2	04	1	1009-
178	GROMMET; HARNESS INSPECTION LAMP<T95> (D) ID=19 OD=23 T=18	9-09956-130-1	01	1	1009-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1009-
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	1009-

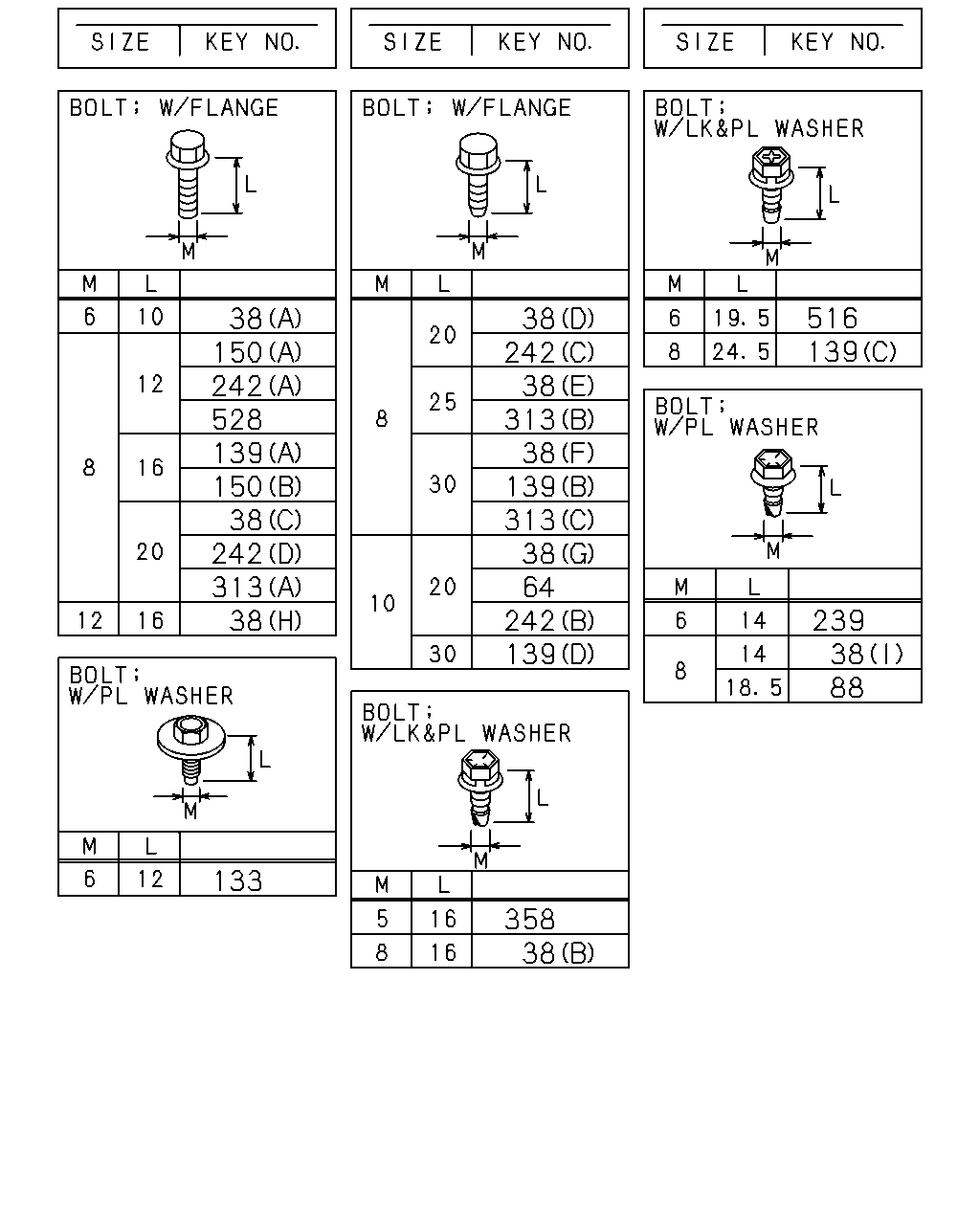

516 139 38 150 242 528 139 150 38 242 313 38 38 242 38 313 38 139 313 38 64 242 139 239 38 88 133 358 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	1009-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	05	1	1009-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	09	1	1009-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	03	1	1009-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	03	1	1009-
38	BOLT; CLIP,HARNESS (F) M8X30 FLANGE	0-28650-830-0	01	1	1009-
38	BOLT; CLIP,HARNESS (G) M10X20 FLANGE	0-28751-020-0	01	1	1009-
38	BOLT; CLIP,HARNESS (H) M12X16 FLANGE	1-09044-079-0	01	1	1009-1105
38	BOLT; CLIP,HARNESS (H) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (B) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	1009-1201
38	BOLT; CLIP,HARNESS (I) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (D) M8X20 FLANGE	0-28650-820-0	02	1	1009-
64	SCREW; CLIP M10X20 FLANGE	0-28751-020-0	02	1	1009-
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1009-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1009-
139	BOLT; BRKT (D) M10X30 FLANGE	0-28151-030-0	01	1	1112-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	03	1	1009-1111
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	1009-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE	0-28650-830-0	02	1	1009-
150	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	05	1	1009-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	07	1	1009-
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1009-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	1009-
242	BOLT; BRKT,HARNESS (D) M8X20 FLANGE	0-28050-820-0	04	1	1009-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	05	1	1009-
242	BOLT; BRKT,HARNESS (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	03	1	1009-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	06	1	1009-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1009-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-
528	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	01	1	1009-

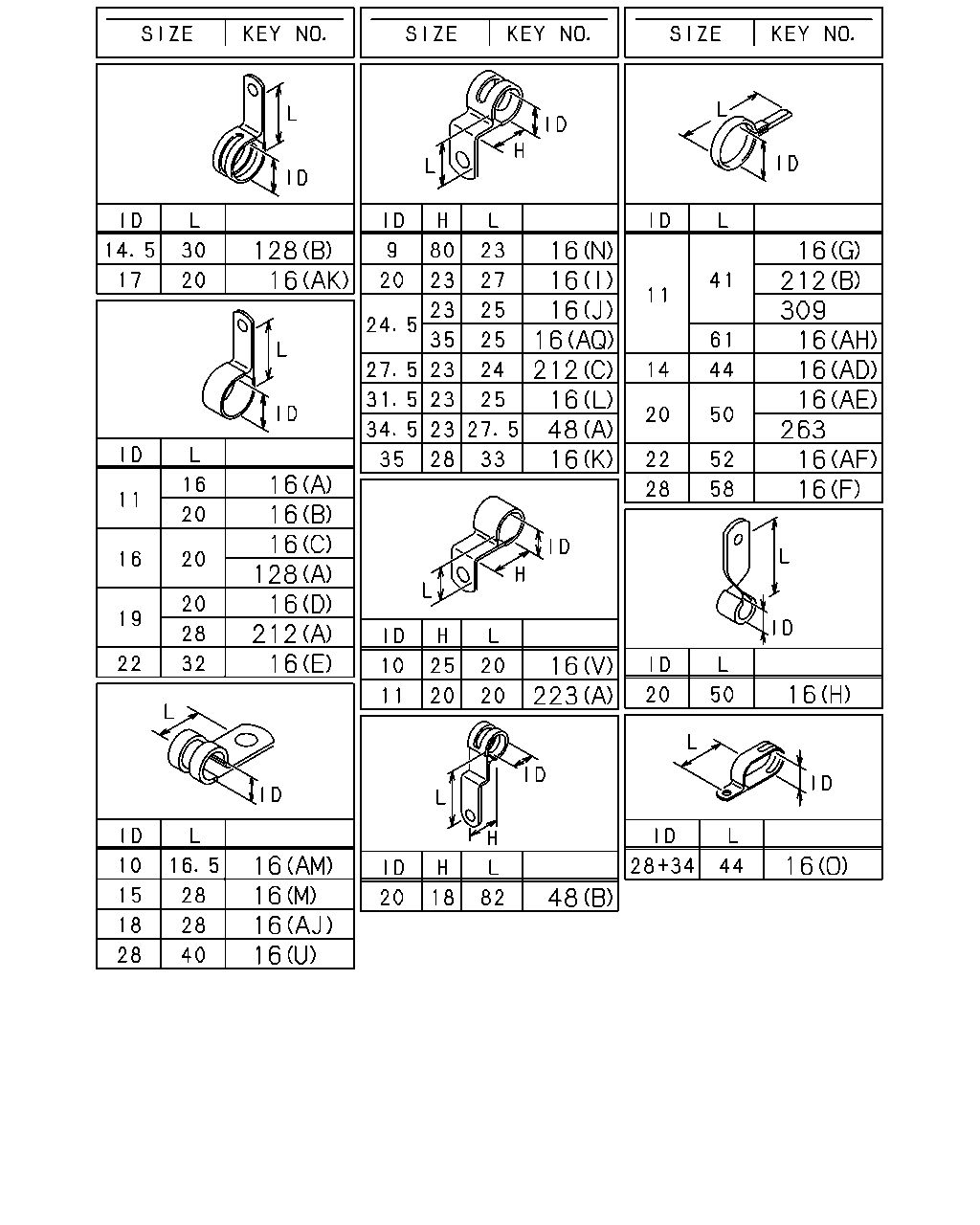

16 81 51 104 212 206 305 16 369 81 111 102 142 171 194 380 470 16 51 142 194 208 16 16 142 16 470 194 48 33 16 14 212 194 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1009-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1009-1010
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	03	1	1009-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (Q) L=350	1-09707-183-0	01	1	1103-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (X) L=250	5-09707-030-1	02	1	1103-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS (B) ID=11 L=20	0-95235-035-0	02	1	1009-
16	CLIP; HARNESS (C) ID=16 L=20	0-95235-535-0	02	1	1009-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	01	1	1009-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1009-
16	CLIP; HARNESS (F) ID=28 L=58	1-09700-400-0	07	1	1009-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	02	1	1009-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	13	1	1009-1010
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	14	1	1011-
16	CLIP; HARNESS (AH) ID=11 L=61	1-09700-484-0	02	1	1009-
16	CLIP; HARNESS (V) ID=10 H=25 L=20	1-09700-519-0	01	1	1009-
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	02	1	1009-
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS EXC. BRAKE SYSTEM RETARDER<RE2> (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS (K) SYNTHETIC RUBBER ID=35 H=45 L=33	1-09700-947-0	01	1	1009-
16	CLIP; HARNESS (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1009-
16	CLIP; HARNESS (N) ID=9 H=80 L=23	1-09701-061-0	02	1	1009-
16	CLIP; HARNESS (AJ) ID=18 L=28	1-09701-067-0	03	1	1009-
16	CLIP; HARNESS (M) ID=15 L=28	1-09701-216-0	01	1	1009-
16	CLIP; HARNESS (U) ID=28 L=40	1-09701-261-0	01	1	1009-
16	CLIP; HARNESS (O) ID=28+34 L=44	1-09701-311-0	01	1	1009-
16	CLIP; HARNESS (P) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS INSPECTION LAMP<T95> (P) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS (Q) L=350	1-09707-183-0	03	1	1009-
16	CLIP; HARNESS (Q) L=350	1-09707-183-0	05	1	1009-
16	CLIP; HARNESS (R) W/SPONGE RUBBER	1-09709-150-0	01	1	1009-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	02	1	1009-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	07	1	1009-
16	CLIP; HARNESS (T) OD=9 H=13.5	1-09709-180-0	01	1	1009-
16	CLIP; HARNESS (AG) ID=5-12 L=18	1-09709-287-0	02	1	1009-
16	CLIP; HARNESS (AI) ID=5-12 L=22	1-09709-288-0	01	1	1009-
16	CLIP; HARNESS (AL) ID=13-18 L=22	1-09709-292-0	02	1	1009-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1102
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1103-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	04	1	1009-1102
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1103-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	10	1	1009-1205
16	CLIP; HARNESS (X) L=250	8-98216-430-0	10	1	1206-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	08	1	1009-
16	CLIP; HARNESS (Y) L=140	5-09707-031-1	01	1	1009-1409
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AR) L=175	1-09707-176-1	01	1	1410-
16	CLIP; HARNESS (Z) ID=21 L=47.5	8-94178-108-0	03	1	1009-
16	CLIP; HARNESS (AN) L=36	8-94224-891-1	01	1	1009-
16	CLIP; HARNESS (AN) L=36	8-94224-891-1	01	1	1009-
16	CLIP; HARNESS (AB) ID=14-20	8-97061-603-0	03	1	1009-
16	CLIP; HARNESS (AA) ID=18 L=44	8-97367-985-1	02	1	1009-
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	02	1	1009-1409
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	03	1	1410-
16	CLIP; HARNESS (AK) ID=17 L=20	8-97619-251-0	01	1	1009-
16	CLIP; HARNESS (AO) L=251	8-97619-917-0	01	1	1009-
16	CLIP; HARNESS (AM) ID=10 L=16.5	8-98082-034-0	02	1	1009-
16	CLIP; HARNESS (AD) ID=14 L=44	9-09917-427-0	01	1	1009-
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	08	1	1009-1409
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	04	1	1410-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	01	1	1009-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	03	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16	0-95235-025-0	02	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AP) L=382	1-09707-196-0	03	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=250	5-09707-030-1	03	1	1009-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER<RE2> (K) RUBBER ID=35 H=45 L=33	8-97615-568-0	03	1	1009-
16	CLIP; HARNESS EXC. BRAKE SYSTEM RETARDER<RE2> (AQ) ID=24.5 H=35 L=25	1-09700-990-0	02	1	1009-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (H) ID=20 L=50	1-09700-679-1	01	1	1009-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (I) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
16	CLIP; HARNESS INSPECTION LAMP<T95> (G) ID=11 L=41	1-09700-403-0	01	1	1009-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) OD=9 H=6	1-09709-178-0	01	1	1009-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	01	1	1009-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (X) L=250	5-09707-030-1	01	1	1009-
33	CLIP; HARNESS,VLV (B) L=350	1-09707-183-0	02	1	1009-
33	CLIP; HARNESS,VLV (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-
48	CLIP; FRAME HARNESS (A) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1009-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1009-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	06	1	1009-1102
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	12	1	1103-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	07	1	1009-1102
48	CLIP; FRAME HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (C) L=350	1-09707-183-0	01	1	1103-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1009-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	1009-
81	CLIP; HARNESS FRONT SPOILER<VP1> (A) L=140	5-09707-031-1	04	1	1009-
81	CLIP; HARNESS EXC. FRONT SPOILER<VP1> (B) L=250	5-09707-030-1	02	1	1009-
81	CLIP; HARNESS EXC. FRONT SPOILER<VP1> (A) L=140	5-09707-031-1	08	1	1009-
102	CLIP; BAND L=250	5-09707-030-1	01	1	1009-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1009-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) L=140	5-09707-031-1	04	1	1009-
111	CLIP; STOP LAMP SW HARNESS L=250	5-09707-030-1	01	1	1009-
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	01	1	1009-1207
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG (B) L=250	5-09707-030-1	02	1	1009-1205
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	02	1	1206-
142	CLIP; HARNESS,ENG (C) L=251	8-97619-917-0	01	1	1009-
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	05	1	1009-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1009-
194	CLIP; BAND (B) L=180	1-09707-162-1	03	1	1009-
194	CLIP; BAND (C) L=350	1-09707-183-0	05	1	1009-1202
194	CLIP; BAND (C) L=350	1-09707-183-0	06	1	1203-
194	CLIP; BAND (D) L=250	5-09707-030-1	01	1	1009-
194	CLIP; BAND (D) L=250	5-09707-030-1	06	1	1009-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1009-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> L=180	1-09707-162-1	01	1	1009-
212	CLIP; HORN HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	1009-
212	CLIP; HORN HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1009-
212	CLIP; HORN HARNESS (C) ID=27.5 H=23 L=24	1-09700-863-0	03	1	1009-
212	CLIP; HORN HARNESS (D) L=300	1-09707-001-1	01	1	1009-
212	CLIP; HORN HARNESS (E) L=140	5-09707-031-1	01	1	1009-
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	1009-
369	CLIP; BAND EDS HARNESS L=140	5-09707-031-1	01	1	1410-
380	CLIP; EARTH HARNESS L=250	5-09707-030-1	01	1	1009-
470	CLIP; HARNESS,LICENSE LAMP (A) L=350	1-09707-183-0	01	1	1009-
470	CLIP; HARNESS,LICENSE LAMP (B) L=250	5-09707-030-1	02	1	1009-1111
470	CLIP; HARNESS,LICENSE LAMP (B) L=250	5-09707-030-1	04	1	1112-

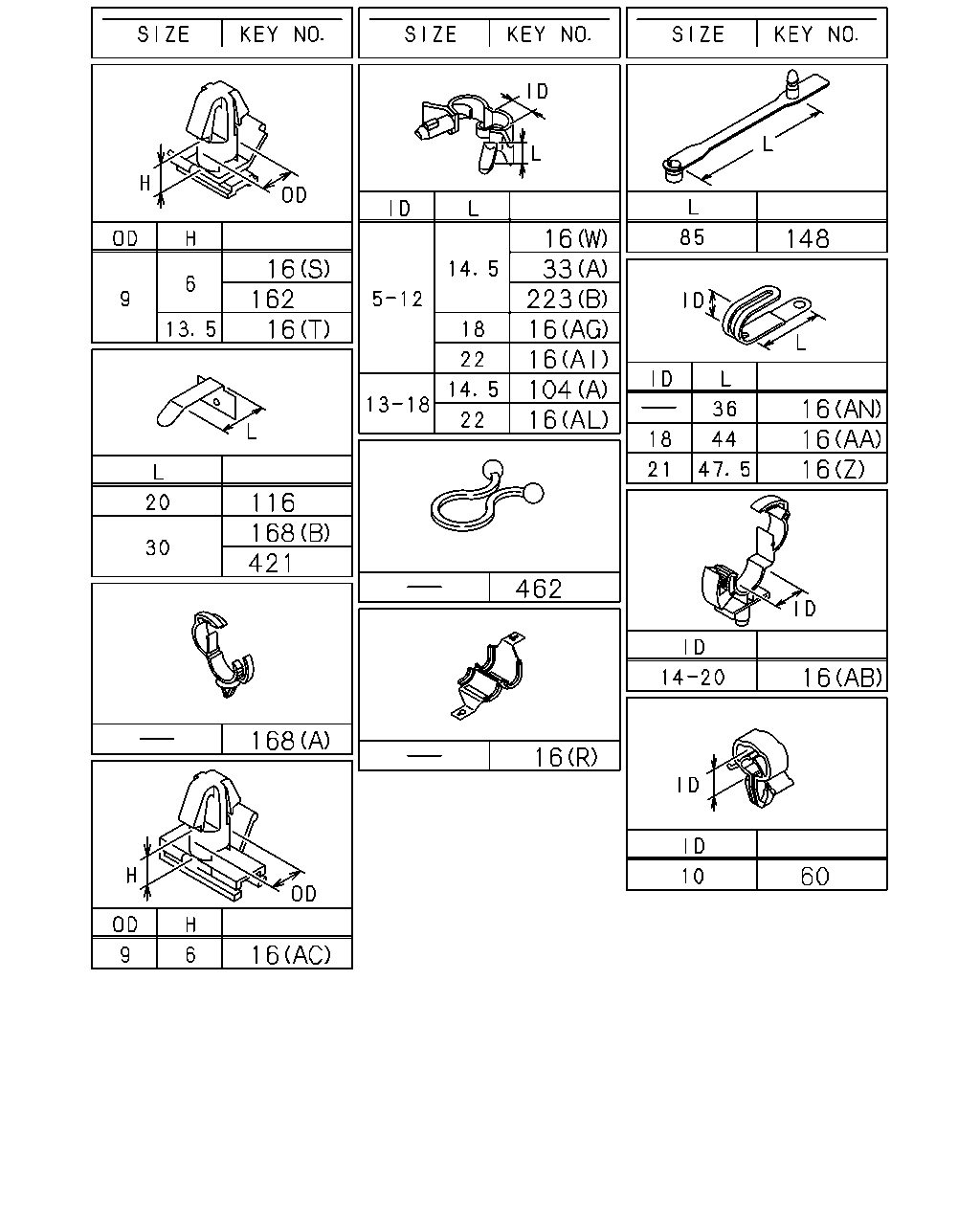

16 33 223 16 16 104 16 148 16 162 16 16 16 16 116 168 421 462 16 168 16 60 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (Q) L=350	1-09707-183-0	01	1	1103-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (X) L=250	5-09707-030-1	02	1	1103-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS (B) ID=11 L=20	0-95235-035-0	02	1	1009-
16	CLIP; HARNESS (C) ID=16 L=20	0-95235-535-0	02	1	1009-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	01	1	1009-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1009-
16	CLIP; HARNESS (F) ID=28 L=58	1-09700-400-0	07	1	1009-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	02	1	1009-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	13	1	1009-1010
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	14	1	1011-
16	CLIP; HARNESS (AH) ID=11 L=61	1-09700-484-0	02	1	1009-
16	CLIP; HARNESS (V) ID=10 H=25 L=20	1-09700-519-0	01	1	1009-
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	02	1	1009-
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS EXC. BRAKE SYSTEM RETARDER<RE2> (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS (K) SYNTHETIC RUBBER ID=35 H=45 L=33	1-09700-947-0	01	1	1009-
16	CLIP; HARNESS (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1009-
16	CLIP; HARNESS (N) ID=9 H=80 L=23	1-09701-061-0	02	1	1009-
16	CLIP; HARNESS (AJ) ID=18 L=28	1-09701-067-0	03	1	1009-
16	CLIP; HARNESS (M) ID=15 L=28	1-09701-216-0	01	1	1009-
16	CLIP; HARNESS (U) ID=28 L=40	1-09701-261-0	01	1	1009-
16	CLIP; HARNESS (O) ID=28+34 L=44	1-09701-311-0	01	1	1009-
16	CLIP; HARNESS (P) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS INSPECTION LAMP<T95> (P) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS (Q) L=350	1-09707-183-0	03	1	1009-
16	CLIP; HARNESS (Q) L=350	1-09707-183-0	05	1	1009-
16	CLIP; HARNESS (R) W/SPONGE RUBBER	1-09709-150-0	01	1	1009-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	02	1	1009-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	07	1	1009-
16	CLIP; HARNESS (T) OD=9 H=13.5	1-09709-180-0	01	1	1009-
16	CLIP; HARNESS (AG) ID=5-12 L=18	1-09709-287-0	02	1	1009-
16	CLIP; HARNESS (AI) ID=5-12 L=22	1-09709-288-0	01	1	1009-
16	CLIP; HARNESS (AL) ID=13-18 L=22	1-09709-292-0	02	1	1009-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1102
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1103-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	04	1	1009-1102
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1103-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	10	1	1009-1205
16	CLIP; HARNESS (X) L=250	8-98216-430-0	10	1	1206-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	08	1	1009-
16	CLIP; HARNESS (Y) L=140	5-09707-031-1	01	1	1009-1409
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AR) L=175	1-09707-176-1	01	1	1410-
16	CLIP; HARNESS (Z) ID=21 L=47.5	8-94178-108-0	03	1	1009-
16	CLIP; HARNESS (AN) L=36	8-94224-891-1	01	1	1009-
16	CLIP; HARNESS (AN) L=36	8-94224-891-1	01	1	1009-
16	CLIP; HARNESS (AB) ID=14-20	8-97061-603-0	03	1	1009-
16	CLIP; HARNESS (AA) ID=18 L=44	8-97367-985-1	02	1	1009-
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	02	1	1009-1409
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	03	1	1410-
16	CLIP; HARNESS (AK) ID=17 L=20	8-97619-251-0	01	1	1009-
16	CLIP; HARNESS (AO) L=251	8-97619-917-0	01	1	1009-
16	CLIP; HARNESS (AM) ID=10 L=16.5	8-98082-034-0	02	1	1009-
16	CLIP; HARNESS (AD) ID=14 L=44	9-09917-427-0	01	1	1009-
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	08	1	1009-1409
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	04	1	1410-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	01	1	1009-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	03	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16	0-95235-025-0	02	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AP) L=382	1-09707-196-0	03	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=250	5-09707-030-1	03	1	1009-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER<RE2> (K) RUBBER ID=35 H=45 L=33	8-97615-568-0	03	1	1009-
16	CLIP; HARNESS EXC. BRAKE SYSTEM RETARDER<RE2> (AQ) ID=24.5 H=35 L=25	1-09700-990-0	02	1	1009-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (H) ID=20 L=50	1-09700-679-1	01	1	1009-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (I) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
16	CLIP; HARNESS INSPECTION LAMP<T95> (G) ID=11 L=41	1-09700-403-0	01	1	1009-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) OD=9 H=6	1-09709-178-0	01	1	1009-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	01	1	1009-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (X) L=250	5-09707-030-1	01	1	1009-
33	CLIP; HARNESS,VLV (B) L=350	1-09707-183-0	02	1	1009-
33	CLIP; HARNESS,VLV (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-
60	CLIP; CONSOLE HARNESS,SW PTO ID=10	8-94450-392-0	01	1	1009-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1009-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) L=140	5-09707-031-1	04	1	1009-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1009-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	1009-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1009-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	06	1	1009-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	1009-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	04	1	1009-
421	CLIP; FLOOR HARNESS L=30 SET=10 PIECE	1-09987-265-0	05	1	1009-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20	1-09709-068-0	02	1	1009-

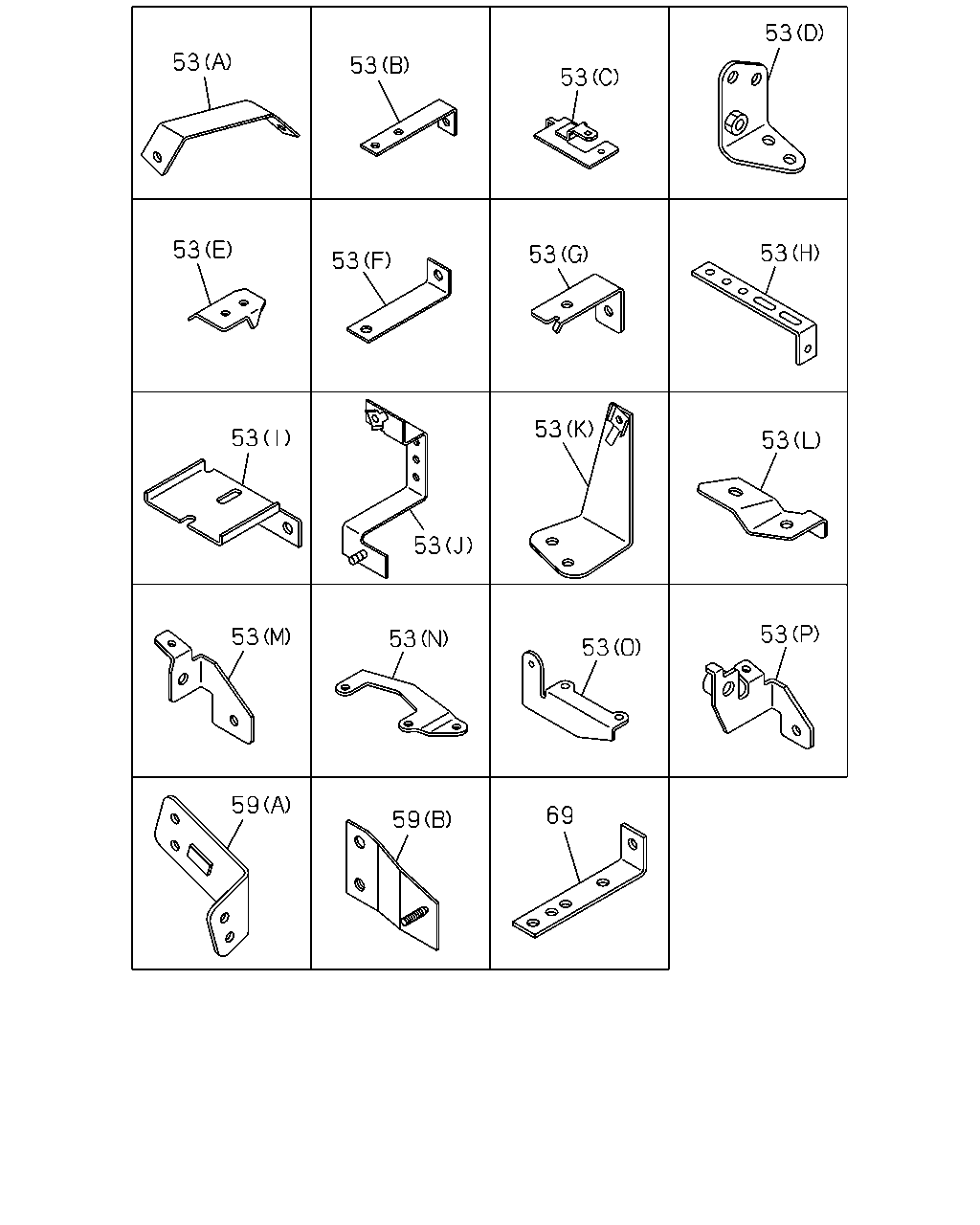

53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 59 69 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (A)	1-47479-537-0	10	1	1009-
53	BRACKET; HARNESS (H) L=160 H=30	1-47479-759-0	01	1	1009-
53	BRACKET; HARNESS (C)	1-82698-495-2	01	1	1009-
53	BRACKET; HARNESS (F) L=95	1-82699-085-0	01	1	1009-
53	BRACKET; HARNESS (D)	8-97610-339-1	01	1	1009-
53	BRACKET; HARNESS (E)	8-97625-412-0	02	1	1009-
53	BRACKET; HARNESS (G)	8-97625-794-0	01	1	1009-
53	BRACKET; HARNESS (L)	8-97630-437-0	01	1	1009-
53	BRACKET; HARNESS (I)	8-98032-696-0	01	1	1009-
53	BRACKET; HARNESS (J)	8-98050-989-0	01	1	1009-
53	BRACKET; HARNESS (K)	8-98052-592-0	01	1	1009-
53	BRACKET; HARNESS (M)	8-98123-473-1	01	1	1009-1111
53	BRACKET; HARNESS (P)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS (N)	8-98123-474-0	01	1	1009-
53	BRACKET; HARNESS (O)	8-98123-475-0	01	1	1009-
53	BRACKET; HARNESS (B)	8-98124-778-0	01	1	1009-
59	BRACKET; FRAME HARNESS (A)	1-82698-531-0	01	1	1009-
59	BRACKET; FRAME HARNESS (B)	8-98061-135-1	01	1	1009-
69	BRACKET; CLIP	1-82698-358-0	01	1	1009-

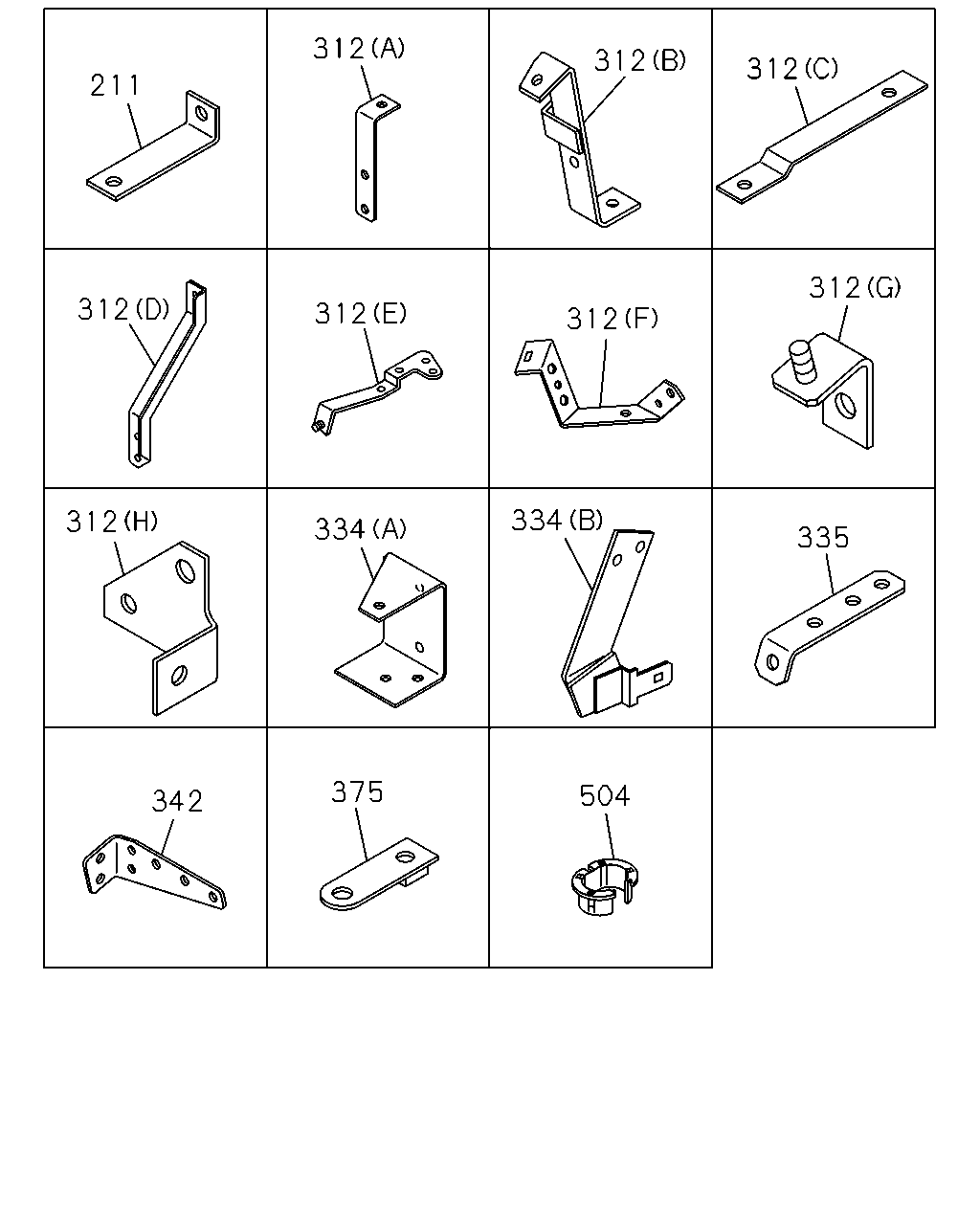

312 312 312 211 312 312 312 312 334 312 334 335 375 504 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) L=95	1-82699-085-0	02	1	1009-
312	BRACKET; CLIP HARNESS (F)	1-82698-556-0	01	1	1009-
312	BRACKET; CLIP HARNESS (H)	1-82698-570-0	01	1	1009-
312	BRACKET; CLIP HARNESS (G)	1-82698-586-0	01	1	1009-
312	BRACKET; CLIP HARNESS (C)	8-98035-927-1	01	1	1009-
312	BRACKET; CLIP HARNESS (D)	8-98052-591-0	01	1	1009-
312	BRACKET; CLIP HARNESS (A) L=82 B=20	1-47478-420-0	01	1	1009-1404
312	BRACKET; CLIP HARNESS (A) L=82 B=20	8-98259-390-0	01	1	1405-
312	BRACKET; CLIP HARNESS (B) L=195.5	1-82698-502-0	01	1	1009-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-82698-443-0	01	1	1009-
334	BRACKET (A)	1-53457-153-2	01	1	1009-
334	BRACKET (B)	1-82698-650-0	01	1	1009-
335	BRACKET; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA)	1-82698-167-0	01	1	1009-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	1009-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1009-
504	PROTECTOR; HARNESS MIR O/S RR VIEW HEATED<DNN>	1-82698-391-0	02	1	1009-

127 119 524 219 294 515 552 423 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
119	SCREW; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER	8-94447-551-0	02	1	1009-
127	SCREW; FACIA HARNESS CLIP M3X10	9-93490-310-0	04	1	1009-
219	NUT M8 FLANGE	0-91180-108-0	05	1	1009-
219	NUT M8 FLANGE	0-91180-108-0	15	1	1009-
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1009-
294	NUT POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	04	1	1103-
294	NUT EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	05	1	1103-
294	NUT M8 FLANGE	0-91180-108-0	08	1	1009-1102
294	NUT M8 FLANGE	0-91180-108-0	03	1	1103-
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	1009-
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	1009-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	1009-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	1009-
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	1009-

128 16 16 16 16 16 212 16 48 16 16 212 309 16 16 16 263 16 16 16 16 16 128 16 212 16 16 223 16 16 16 16 16 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (Q) L=350	1-09707-183-0	01	1	1103-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (X) L=250	5-09707-030-1	02	1	1103-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS (B) ID=11 L=20	0-95235-035-0	02	1	1009-
16	CLIP; HARNESS (C) ID=16 L=20	0-95235-535-0	02	1	1009-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	01	1	1009-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1009-
16	CLIP; HARNESS (F) ID=28 L=58	1-09700-400-0	07	1	1009-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	02	1	1009-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	13	1	1009-1010
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	14	1	1011-
16	CLIP; HARNESS (AH) ID=11 L=61	1-09700-484-0	02	1	1009-
16	CLIP; HARNESS (V) ID=10 H=25 L=20	1-09700-519-0	01	1	1009-
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	02	1	1009-
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS EXC. BRAKE SYSTEM RETARDER<RE2> (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
16	CLIP; HARNESS (K) SYNTHETIC RUBBER ID=35 H=45 L=33	1-09700-947-0	01	1	1009-
16	CLIP; HARNESS (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1009-
16	CLIP; HARNESS (N) ID=9 H=80 L=23	1-09701-061-0	02	1	1009-
16	CLIP; HARNESS (AJ) ID=18 L=28	1-09701-067-0	03	1	1009-
16	CLIP; HARNESS (M) ID=15 L=28	1-09701-216-0	01	1	1009-
16	CLIP; HARNESS (U) ID=28 L=40	1-09701-261-0	01	1	1009-
16	CLIP; HARNESS (O) ID=28+34 L=44	1-09701-311-0	01	1	1009-
16	CLIP; HARNESS (P) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS INSPECTION LAMP<T95> (P) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS (Q) L=350	1-09707-183-0	03	1	1009-
16	CLIP; HARNESS (Q) L=350	1-09707-183-0	05	1	1009-
16	CLIP; HARNESS (R) W/SPONGE RUBBER	1-09709-150-0	01	1	1009-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	02	1	1009-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	07	1	1009-
16	CLIP; HARNESS (T) OD=9 H=13.5	1-09709-180-0	01	1	1009-
16	CLIP; HARNESS (AG) ID=5-12 L=18	1-09709-287-0	02	1	1009-
16	CLIP; HARNESS (AI) ID=5-12 L=22	1-09709-288-0	01	1	1009-
16	CLIP; HARNESS (AL) ID=13-18 L=22	1-09709-292-0	02	1	1009-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1102
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1103-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	04	1	1009-1102
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1103-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	10	1	1009-1205
16	CLIP; HARNESS (X) L=250	8-98216-430-0	10	1	1206-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	08	1	1009-
16	CLIP; HARNESS (Y) L=140	5-09707-031-1	01	1	1009-1409
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AR) L=175	1-09707-176-1	01	1	1410-
16	CLIP; HARNESS (Z) ID=21 L=47.5	8-94178-108-0	03	1	1009-
16	CLIP; HARNESS (AN) L=36	8-94224-891-1	01	1	1009-
16	CLIP; HARNESS (AN) L=36	8-94224-891-1	01	1	1009-
16	CLIP; HARNESS (AB) ID=14-20	8-97061-603-0	03	1	1009-
16	CLIP; HARNESS (AA) ID=18 L=44	8-97367-985-1	02	1	1009-
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	02	1	1009-1409
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	03	1	1410-
16	CLIP; HARNESS (AK) ID=17 L=20	8-97619-251-0	01	1	1009-
16	CLIP; HARNESS (AO) L=251	8-97619-917-0	01	1	1009-
16	CLIP; HARNESS (AM) ID=10 L=16.5	8-98082-034-0	02	1	1009-
16	CLIP; HARNESS (AD) ID=14 L=44	9-09917-427-0	01	1	1009-
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	08	1	1009-1409
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	04	1	1410-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	01	1	1009-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	03	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16	0-95235-025-0	02	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AP) L=382	1-09707-196-0	03	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=250	5-09707-030-1	03	1	1009-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER<RE2> (K) RUBBER ID=35 H=45 L=33	8-97615-568-0	03	1	1009-
16	CLIP; HARNESS EXC. BRAKE SYSTEM RETARDER<RE2> (AQ) ID=24.5 H=35 L=25	1-09700-990-0	02	1	1009-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (H) ID=20 L=50	1-09700-679-1	01	1	1009-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (I) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
16	CLIP; HARNESS INSPECTION LAMP<T95> (G) ID=11 L=41	1-09700-403-0	01	1	1009-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) OD=9 H=6	1-09709-178-0	01	1	1009-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	01	1	1009-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (X) L=250	5-09707-030-1	01	1	1009-
48	CLIP; FRAME HARNESS (A) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1009-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1009-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	06	1	1009-1102
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	12	1	1103-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	07	1	1009-1102
48	CLIP; FRAME HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (C) L=350	1-09707-183-0	01	1	1103-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1009-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1009-
212	CLIP; HORN HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	1009-
212	CLIP; HORN HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1009-
212	CLIP; HORN HARNESS (C) ID=27.5 H=23 L=24	1-09700-863-0	03	1	1009-
212	CLIP; HORN HARNESS (D) L=300	1-09707-001-1	01	1	1009-
212	CLIP; HORN HARNESS (E) L=140	5-09707-031-1	01	1	1009-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	04	1	1009-
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	1009-
309	CLIP; HARNESS,HAND BRAKE CABLE ID=11 L=41	1-09700-403-0	02	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
