7-50 — FRONT SEAT (#70337) — 175 parça

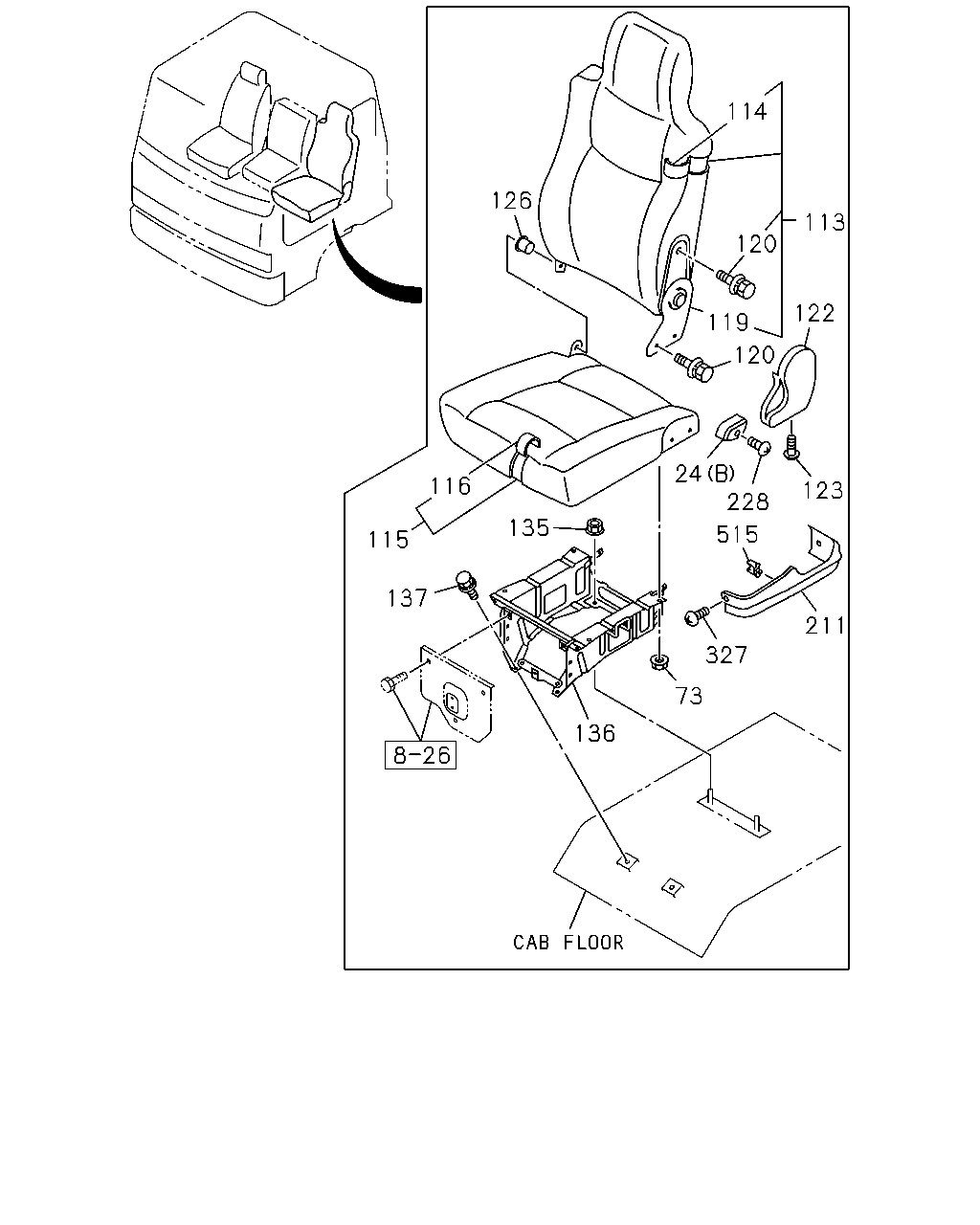

çizim 135119
114 126 113 120 122 119 120 24 228 116 123 135 515 115 137 211 327 73 136
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 1009-
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 1009-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 1009-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-759-0 01 1 1009-1009
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-280-0 01 1 1010-
113 BACK ASM; SEAT
VINYL SEAT(A83) 		1-75207-652-2 01 1 1009-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-189-0 01 1 1009-1009
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-295-0 01 1 1010-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) 		1-75127-171-1 01 1 1009-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-771-0 01 1 1009-1009
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-131-0 01 1 1010-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) 		1-75207-300-0 01 1 1009-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-188-0 01 1 1009-1009
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-270-0 01 1 1010-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-124-0 01 1 1009-
119 ADJ; SEAT RECLINING,ASSIST SIDE
FABRIC SEAT W/RECLINING(SFQ) 		1-75417-597-0 01 1 1009-
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) M8X20 		8-97255-906-0 04 1 1009-
120 BOLT; RECLINING ADJ
VINYL SEAT(A83) M8X20 		8-97255-906-0 02 1 1009-
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) 		1-75417-598-0 01 1 1009-
122 COVER; ADJ,RECLINING
VINYL SEAT(A83) DARK GRAY 		8-97859-018-0 01 1 1009-
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) M6X12 		9-03490-612-0 01 1 1009-
123 SCREW; COVER,RECLINING
VINYL SEAT(A83) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 1009-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 1009-
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 1009-
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75558-522-8 01 1 1009-1305
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98242-290-0 01 1 1306-
136 STAND; PASSENGER SEAT
VINYL SEAT(A83) 		1-75558-602-3 01 1 1009-1305
136 STAND; PASSENGER SEAT
VINYL SEAT(A83) 		8-98242-299-0 01 1 1306-
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 1009-
211 COVER; FRT SEAT
VINYL SEAT(A83) 		1-72538-274-0 01 1 1009-
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 1009-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1009-
327 CLIP; COVER 1-09987-273-0 02 1 1009-
327 CLIP; COVER
VINYL SEAT(A83) 		1-09987-273-0 02 1 1009-
515 CLIP; PIPE
VINYL SEAT(A83) BLACK 		8-94227-248-1 01 1 1009-

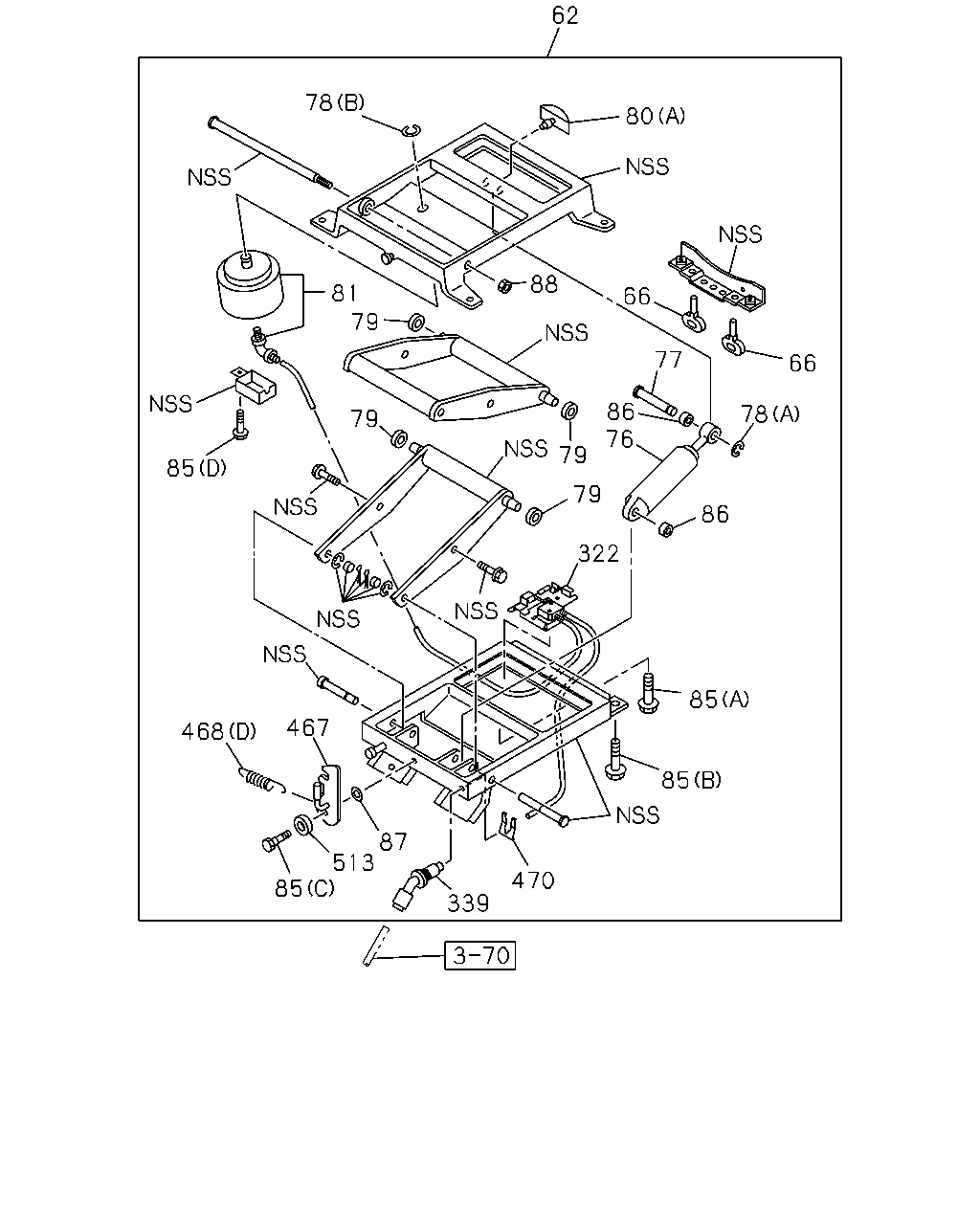

çizim 135144
62 78 81 79 88 80 66 66 78 77 79 76 86 79 322 79 86 85 467 468 85 87 339 85 85 470 513
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 1009-1403
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404-
66 RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 1009-
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 1009-
77 PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 1009-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 1009-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 		9-09185-415-0 01 1 1009-
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 1009-1403
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-489-0 04 1 1404-
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1009-
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 1009-
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-2 01 1 1009-1312
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98242-816-0 01 1 1401-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-1 01 1 1009-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 		1-75538-208-1 02 1 1009-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1009-1312
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-
86 BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1009-
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		0-91510-508-0 01 1 1009-
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		1-75537-273-1 01 1 1009-
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-186-3 01 1 1009-
339 UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-3 01 1 1009-
467 LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 1009-
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 1009-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1009-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1009-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1009-
470 CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 1009-
513 SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 1009-
çizim 135195
506 360 175 176 16 188 189 359 188 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) 		1-75418-062-1 01 1 1009-
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-762-0 01 1 1009-1011
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-329-1 01 1 1012-
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75026-856-3 01 1 1009-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-191-0 01 1 1009-1011
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-332-0 01 1 1012-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75116-710-1 01 1 1009-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-190-0 01 1 1009-1011
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-326-0 01 1 1012-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75116-696-1 01 1 1009-
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-761-0 01 1 1009-1011
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-318-2 01 1 1012-
182 CUSHION ASM; CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75026-845-4 01 1 1009-
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 1009-
189 BUSHING; HINGE,CENTER SEAT BACK
CENTER SEAT(SA1) 		8-97854-900-0 01 1 1009-
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1009-
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1009-1104
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1009-
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1009-
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 1009-
506 CAP; PARCEL BOX
CENTER SEAT(SA1) 		1-09983-180-3 02 1 1009-

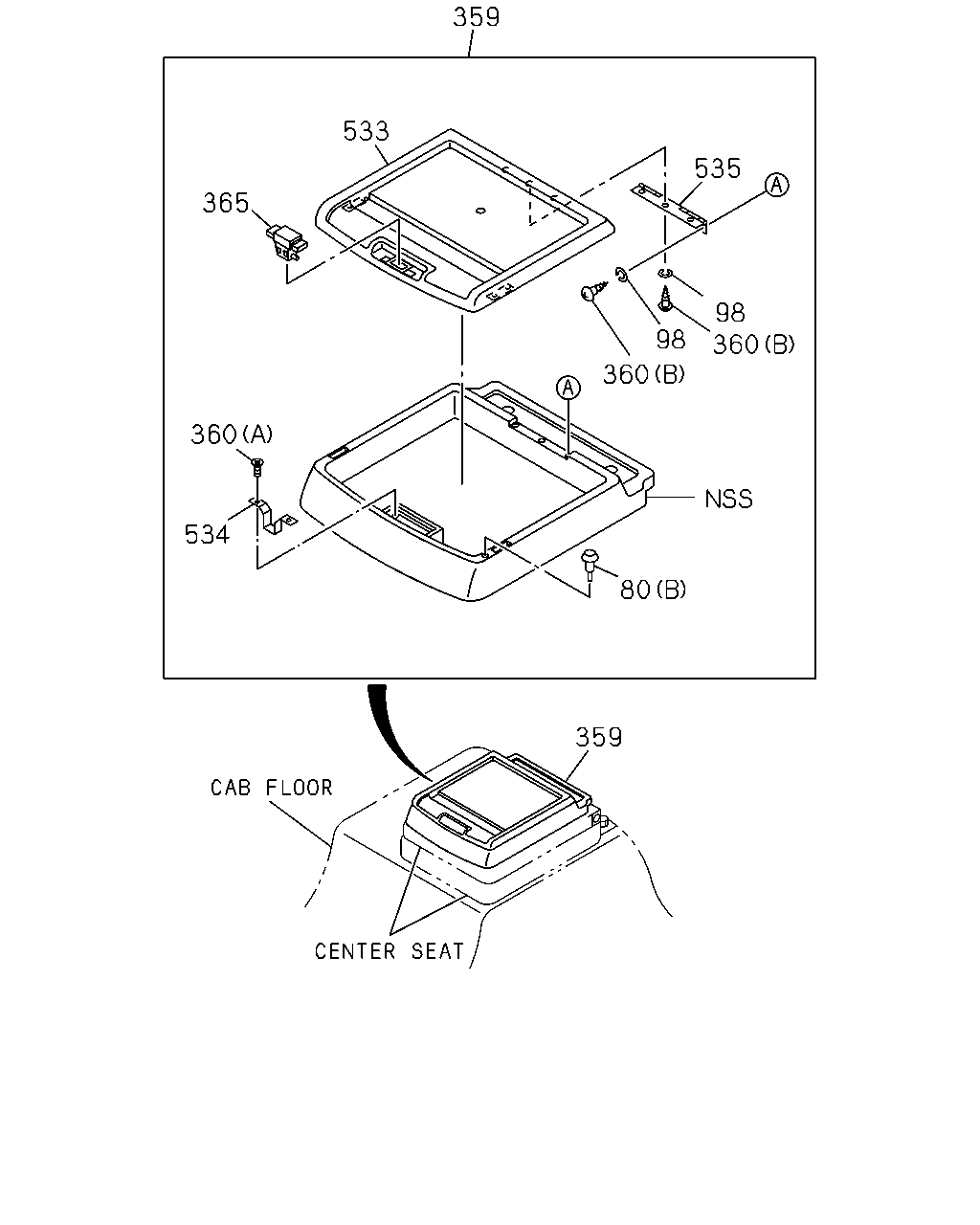

çizim 135199
359 533 535 365 98 360 98 360 360 534 80 359
BalonParca AdiParca NoAdetTipApplied Date
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1009-
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 1009-
98 WASHER; HINGE
CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 1009-
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1009-
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1009-1104
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1009-
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1009-
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-180-0 01 1 1009-
533 LID; PARCEL BOX
CENTER SEAT(SA1) 		8-98145-118-0 01 1 1009-
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) 		1-72538-190-0 01 1 1009-
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) 		1-72447-391-1 01 1 1009-

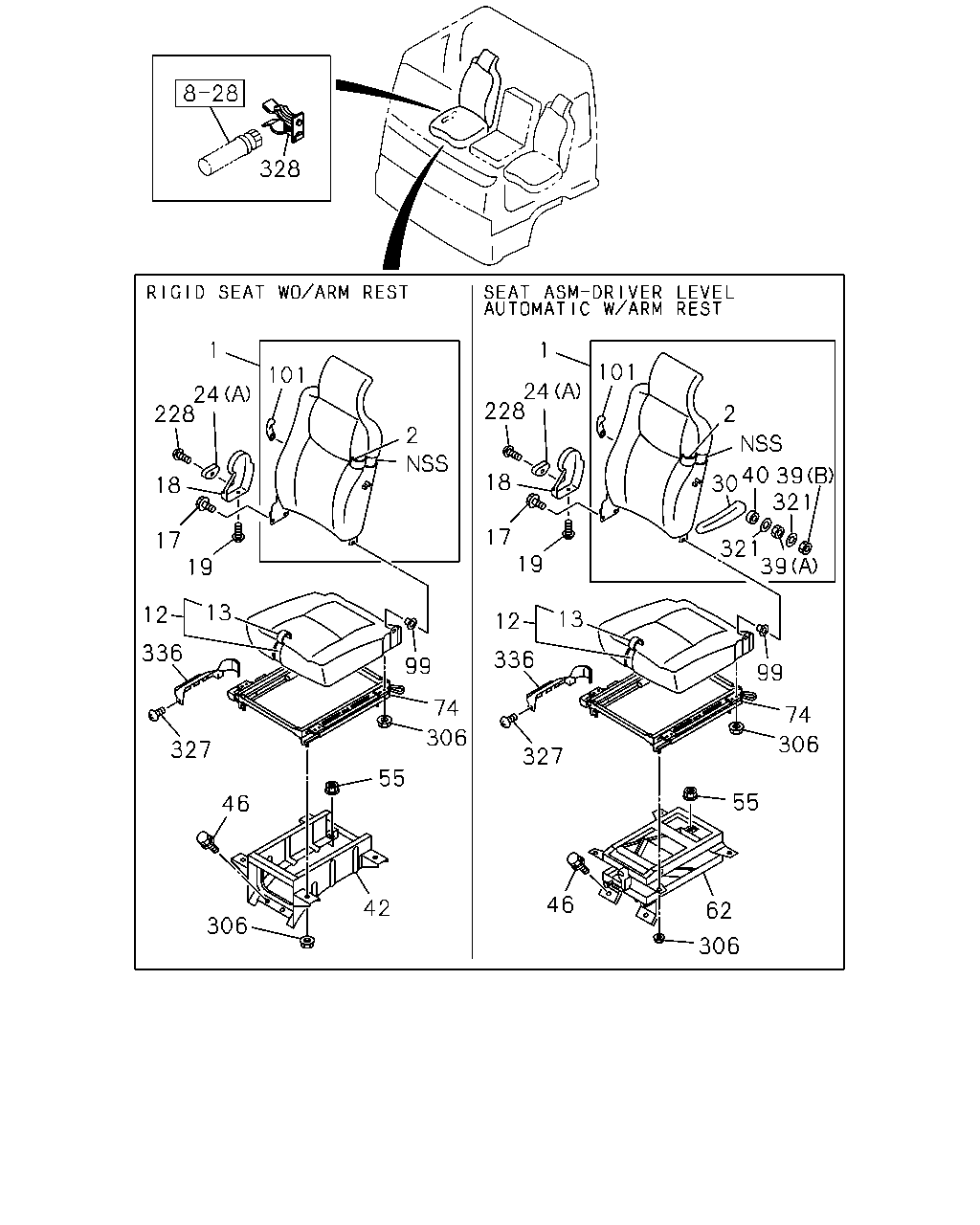

çizim 188824
328 1 1 101 101 24 228 24 228 2 2 30 321 321 39 18 18 17 19 17 19 13 12 13 12 336 336 99 99 74 74 306 306 327 327 55 55 46 46 42 62 306 306 40 39
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-639-0 01 1 1009-1009
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-072-0 01 1 1010-
1 BACK ASM; SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		8-98135-635-0 01 1 1009-
1 BACK ASM; SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-630-0 01 1 1009-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-187-0 01 1 1009-1009
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-089-0 01 1 1010-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75127-165-1 01 1 1009-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-146-2 01 1 1009-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-770-0 01 1 1009-1009
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-048-0 01 1 1010-
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) 		1-75207-603-2 01 1 1009-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-186-0 01 1 1009-1009
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-081-0 01 1 1010-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-102-1 01 1 1009-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 1009-
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 1009-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 1009-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 1009-
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 1009-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-185-0 01 1 1009-1009
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-091-0 01 1 1010-
30 REST ASM; ARM,FRT SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-015-1 01 1 1009-
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 01 1 1009-
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 1009-
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 1009-
42 STAND; DRIVER SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75558-604-2 01 1 1009-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1009-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 1009-
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 1009-1403
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-3 01 1 1009-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-644-0 01 1 1503-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 1009-
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 1009-
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 1009-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1009-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 1009-
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 1009-
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 1009-
327 CLIP; COVER 1-09987-273-0 02 1 1009-
327 CLIP; COVER
VINYL SEAT(A83) 		1-09987-273-0 02 1 1009-
328 CLIP; HANDY WARNING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-72537-239-0 01 1 1009-
336 COVER; DRIVER SEAT 1-75518-303-0 01 1 1009-
çizim 188827
74 468 51 512 468 51 532 278 518 543 302 51 512 278 543 51 518 518 532 278 302 518 543 543 468 529 468 302 518 471 551 518 302 543 518 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 302 72 518
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER 1-75518-325-1 04 1 1009-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-199-1 01 1 1009-
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 1009-
72 SPACER; SEAT ADJ 1-75518-334-1 02 1 1009-1502
72 SPACER; SEAT ADJ 8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-3 01 1 1009-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-644-0 01 1 1503-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1009-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1009-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1009-
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 1009-
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-2 02 1 1009-
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-1 04 1 1009-1502
302 BOLT; ADJ,HEIGHT CONT
(A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-336-1 02 1 1009-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 1009-
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 1009-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1009-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1009-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1009-
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1009-
512 COVER; LEVER 1-75518-243-1 02 1 1009-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1009-
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 1009-
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 1009-
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 1009-
529 PIN; LINK 1-75518-262-0 01 1 1009-
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 1009-
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 1009-
543 WASHER; HEIGHT ADJUSTER
(A) 		1-75518-335-0 02 1 1009-1502
543 WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 		9-09160-508-0 04 1 1009-
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
