7-43 — SUN VISOR AND ASSIST GRIP (#70335) — 84 parça

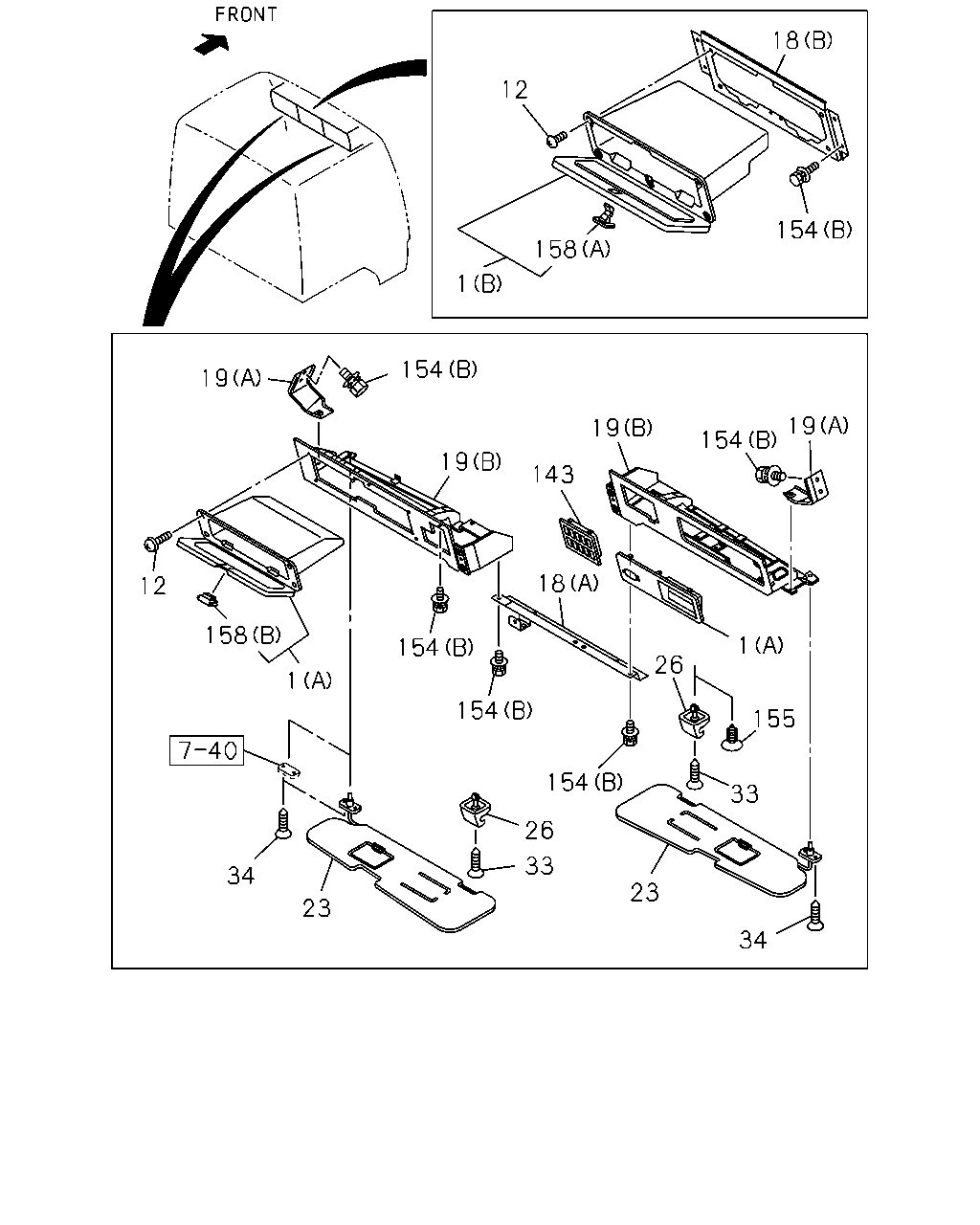

18 12 154 158 1 154 19 19 19 154 19 143 18 12 158 1 154 26 1 154 155 154 33 26 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	1009-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	1009-
1	BOARD; HEADER SHELF TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> (A)	1-72447-760-4	01	1	1009-
1	BOARD; HEADER SHELF EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> (A)	1-72447-876-4	01	1	1009-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	1009-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1009-
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	1009-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	1009-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	1009-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	1009-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	1009-
23	SUN VISOR	1-73138-156-1	01	1	1009-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	1009-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1009-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	1009-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1009-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1009-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	1009-
143	BEZEL	1-72447-768-2	01	1	1009-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1009-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1009-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1009-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	1009-
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	1009-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	1009-

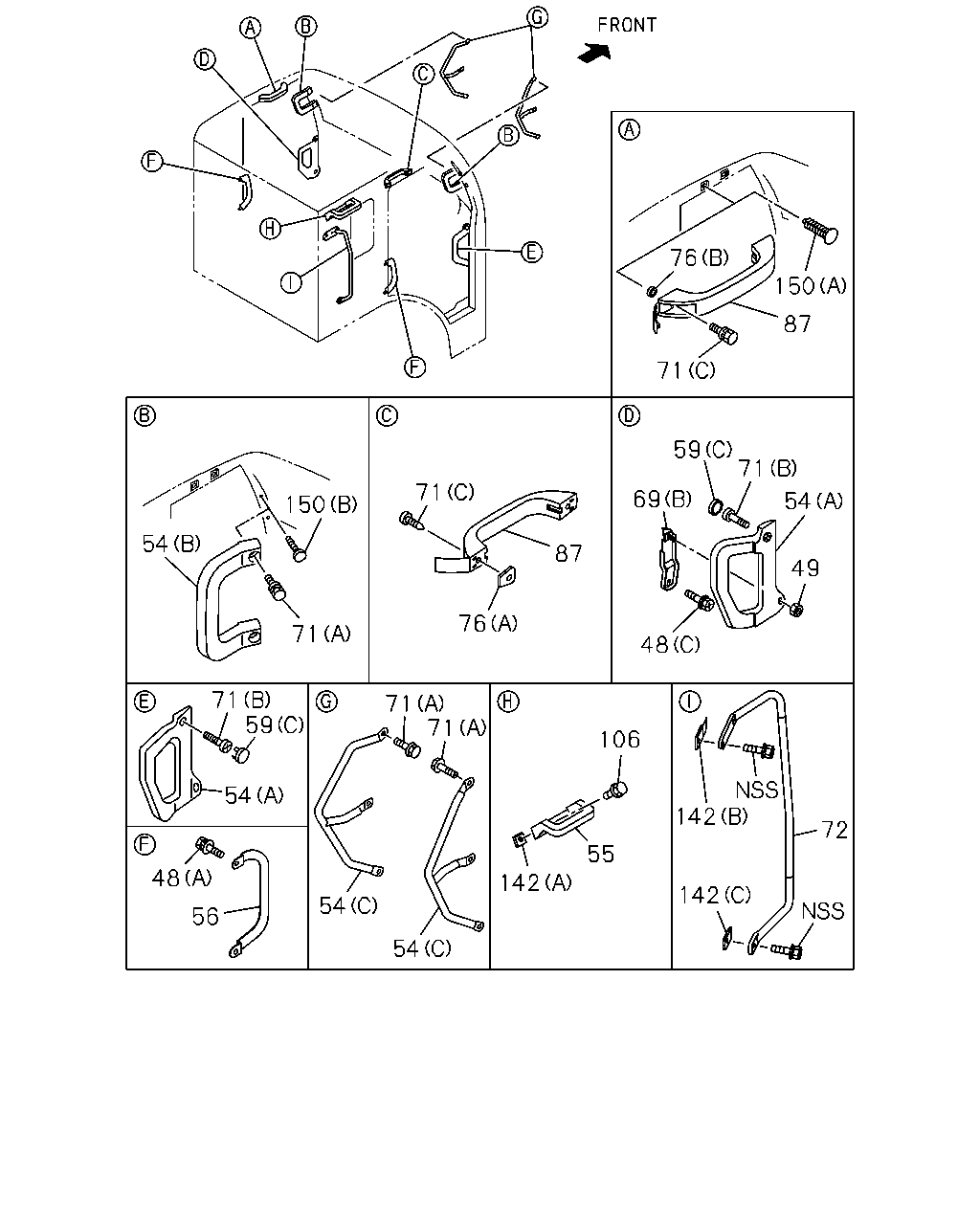

76 150 87 71 59 71 71 69 54 150 54 87 49 76 71 48 71 59 71 71 106 142 54 72 55 48 142 142 54 56 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1009-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1009-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1009-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1009-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1009-
49	NUT; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) M6 FLANGE	0-91180-106-0	01	1	1009-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-73618-185-1	02	1	1009-
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK>,HONG KONG EQUIPMENT(PQ1) (B)	1-73618-185-1	01	1	1009-
54	GRIP; ASSIST,QUARTER SIDE HONG KONG EQUIPMENT(PQ1) (C)	8-98139-071-2	01	1	1009-
54	GRIP; ASSIST,QUARTER SIDE HONG KONG EQUIPMENT(PQ1) (C)	8-98153-870-1	01	1	1009-
54	GRIP; ASSIST,QUARTER SIDE EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-73617-564-1	01	1	1009-
54	GRIP; ASSIST,QUARTER SIDE EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-73617-563-1	01	1	1009-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	1009-
56	GRIP; ASSIST,SIDE SILL HONG KONG EQUIPMENT(PQ1)	8-98139-073-1	01	1	1009-
56	GRIP; ASSIST,SIDE SILL HONG KONG EQUIPMENT(PQ1)	8-98139-072-1	01	1	1009-
56	GRIP; ASSIST,SIDE SILL EXC. HONG KONG EQUIPMENT(PQ1)	8-98081-700-0	02	1	1009-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1009-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1009-
59	COVER; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-73617-565-0	02	1	1009-
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	1009-
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	1009-
69	BRACKET; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-73618-178-2	01	1	1009-
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	1009-
71	SCREW ASSIST GRIP A POST<NBK> EXC. HONG KONG EQUIPMENT(PQ1) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	1009-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	1009-
71	SCREW EXC. ASSIST GRIP A POST<NBK>,HONG KONG EQUIPMENT(PQ1) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	1009-
71	SCREW HONG KONG EQUIPMENT(PQ1) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	05	1	1009-
71	SCREW EXC. HONG KONG EQUIPMENT(PQ1) (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	1009-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-608-1	01	1	1009-
76	SPACER; ASSIST GRIP (A)	1-73618-180-0	02	1	1009-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5	8-94230-464-1	02	1	1009-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	1009-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	1009-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1009-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71907-604-0	01	1	1009-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	1009-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	1009-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	1009-
150	CLIP; ASSIST GRIP HOLE HONG KONG EQUIPMENT(PQ1) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1009-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK>,HONG KONG EQUIPMENT(PQ1) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1009-

64 64 64 62 64 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1009-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1009-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1009-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1009-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1009-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1009-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1009-
59	COVER; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-73617-565-0	02	1	1009-
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	1009-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	1009-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	1009-
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	1009-
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	1009-
69	BRACKET; ASSIST GRIP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-73618-178-2	01	1	1009-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	1009-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	1009-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1009-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1009-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1009-
