◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11293 - EXD RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#70332) — 135 parça
çizim 132619
2 1
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM 1-73117-033-1 01 1 1009-
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 1009-

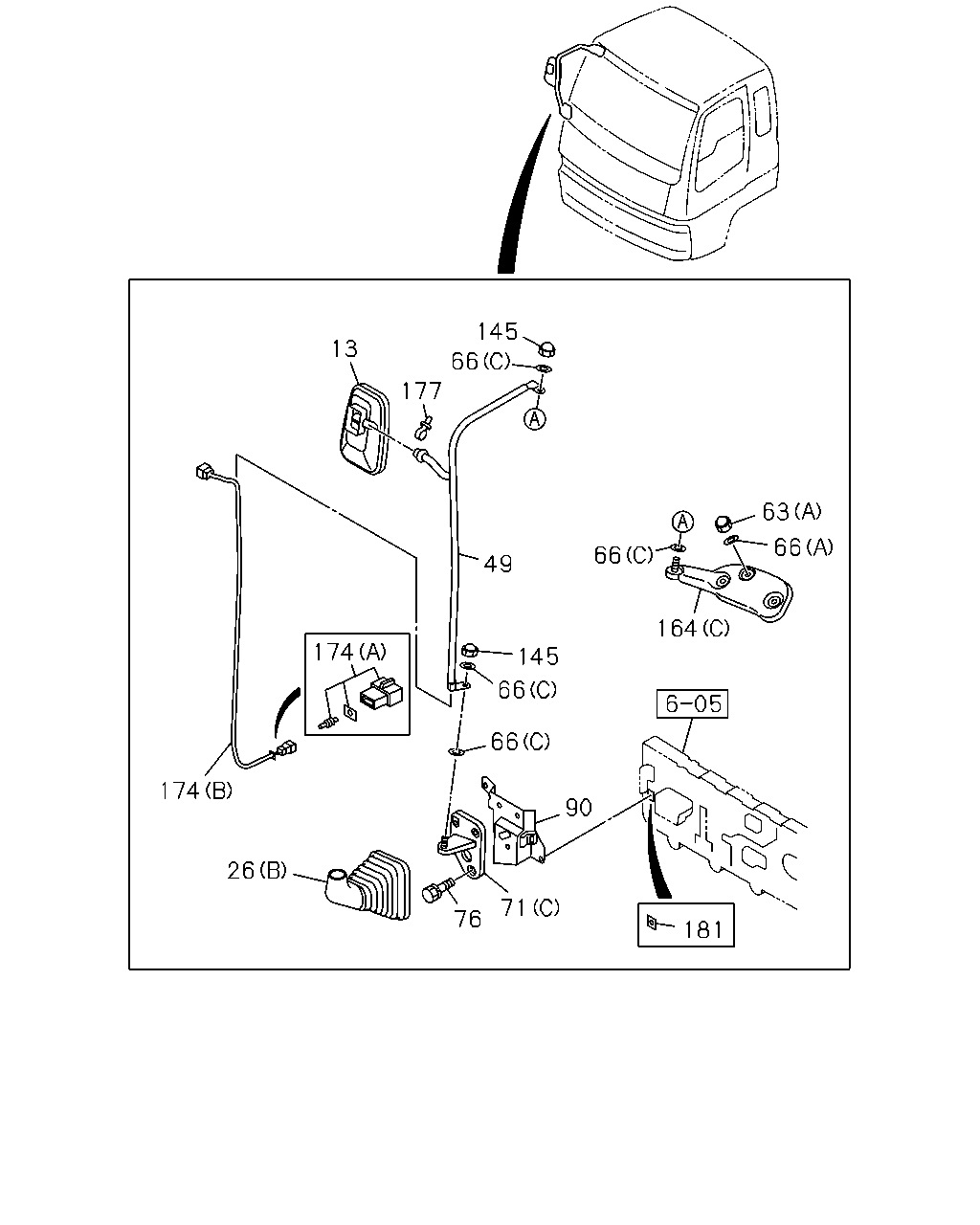

çizim 132967
145 13 66 177 63 66 66 49 164 174 145 66 66 174 90 26 71 76 181
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-182-0 01 1 1009-1510
13 MIRROR ASM; OUTSIDE RR VIEW 8-98324-747-0 01 1 1511-
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-181-0 01 1 1009-1504
13 MIRROR ASM; OUTSIDE RR VIEW 8-98288-715-1 01 1 1505-1510
13 MIRROR ASM; OUTSIDE RR VIEW 8-98324-746-0 01 1 1511-
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-222-0 01 1 1009-
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-316-2 01 1 1009-
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-221-0 01 1 1009-
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-695-0 01 1 1009-
49 STAY; MIRROR SIDE 1-71707-177-1 01 1 1009-
49 STAY; MIRROR SIDE 1-71707-175-1 01 1 1009-
63 NUT; STAY
(A) M8 		1-09984-187-0 06 1 1009-
63 NUT; STAY
(D) M14 		0-91110-514-0 01 1 1009-
63 NUT; STAY
MIR STAY O/S W/REMOTE<TBA> (B) M8 		1-71798-603-1 02 1 1009-
63 NUT; STAY
MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT 		1-71798-859-0 01 1 1009-
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 1009-
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1009-
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009-
66 WASHER; PL
MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1009-
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1009-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1009-
76 BOLT; STAY BRKT
M8X40 W/LK&PL WASHER 		0-50640-840-0 06 1 1009-
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 1009-
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 1009-
145 NUT; CAP,SUB STAY
M10 		1-09984-183-0 02 1 1009-
164 STAY; ROOF
(B) 		1-71798-299-4 01 1 1009-
164 STAY; ROOF
(C) 		1-71707-090-0 01 1 1009-
164 STAY; ROOF
MIR STAY O/S W/REMOTE<TBA> (A) 		1-71798-602-1 01 1 1009-
174 HARNESS; MIRROR
MIR O/S RR VIEW HEATED<DNN> (A) 		1-82662-365-1 02 1 1009-
174 HARNESS; MIRROR
MIR O/S RR VIEW HEATED<DNN> (B) 		8-97610-653-0 01 1 1009-
174 HARNESS; MIRROR
MIR O/S RR VIEW HEATED<DNN> (B) 		8-97610-652-0 01 1 1009-
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1009-
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 1009-

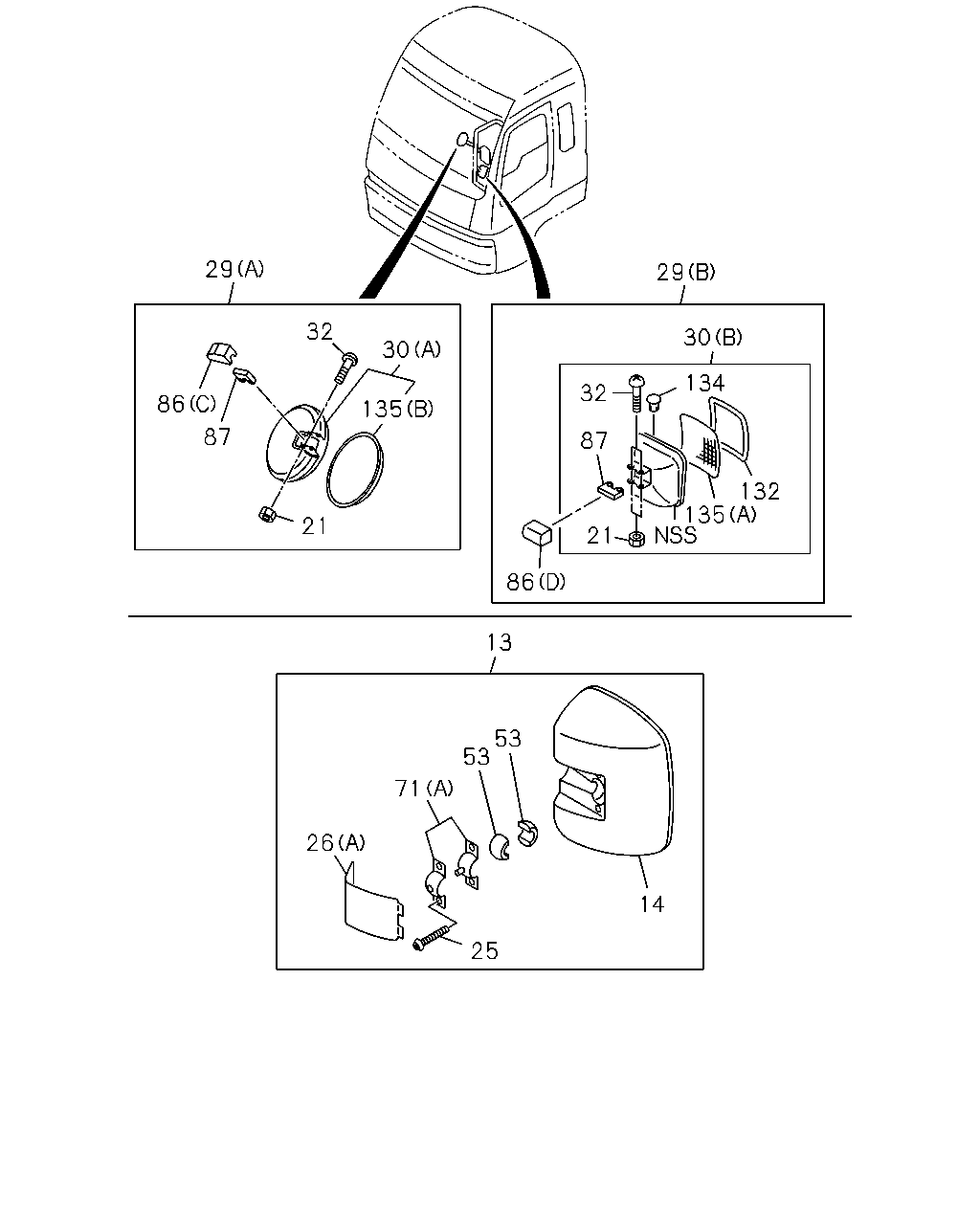

çizim 132975
29 29 32 30 30 134 32 86 135 87 87 132 135 21 21 86 13 53 53 71 26 14 25
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-182-0 01 1 1009-1510
13 MIRROR ASM; OUTSIDE RR VIEW 8-98324-747-0 01 1 1511-
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-181-0 01 1 1009-1504
13 MIRROR ASM; OUTSIDE RR VIEW 8-98288-715-1 01 1 1505-1510
13 MIRROR ASM; OUTSIDE RR VIEW 8-98324-746-0 01 1 1511-
14 MIRROR ASM; OUTSIDE 1-71707-231-0 01 1 1009-1510
14 MIRROR ASM; OUTSIDE 8-98324-759-0 01 1 1511-
14 MIRROR ASM; OUTSIDE 1-71707-230-0 01 1 1009-1504
14 MIRROR ASM; OUTSIDE 8-98288-714-0 01 1 1505-1510
14 MIRROR ASM; OUTSIDE 8-98324-757-0 01 1 1511-
21 NUT; MIRROR
M5 		1-09984-124-0 04 1 1009-
25 SCREW; OUTSIDE MIRROR
M6X40 		1-71707-223-0 04 1 1009-
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-222-0 01 1 1009-
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-316-2 01 1 1009-
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-221-0 01 1 1009-
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-695-0 01 1 1009-
29 MIRROR ASM; UNDER
(A) 		1-71797-137-1 01 1 1009-
29 MIRROR ASM; UNDER
(B) 		1-71798-421-1 01 1 1009-
30 MIRROR; UNDER
(A) 		1-71797-853-1 01 1 1009-
30 MIRROR; UNDER
(B) 		1-71798-592-1 01 1 1009-
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 04 1 1009-
53 PIVOT; SIDE MIRROR
ID=22.2 		1-71736-489-2 04 1 1009-
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1009-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1009-
86 COVER; STAY,OUTSIDE MIRROR
(C) BLACK 		1-71737-649-1 01 1 1009-
86 COVER; STAY,OUTSIDE MIRROR
(D) BLACK 		1-71737-652-1 01 1 1009-
86 COVER; STAY,OUTSIDE MIRROR
(A) 		1-71798-732-0 01 1 1009-
86 COVER; STAY,OUTSIDE MIRROR
(B) 		1-71798-733-0 01 1 1009-
87 SPACER 1-71737-646-2 02 1 1009-
132 RING; MIRROR 1-71737-935-0 01 1 1009-
134 CLIP; MIRROR LENS 1-71737-936-0 01 1 1009-
135 LENS; MIRROR,SIDE UNDER
(B) 		1-71707-130-0 01 1 1009-
135 LENS; MIRROR,SIDE UNDER
(A) 		1-71737-929-0 01 1 1009-

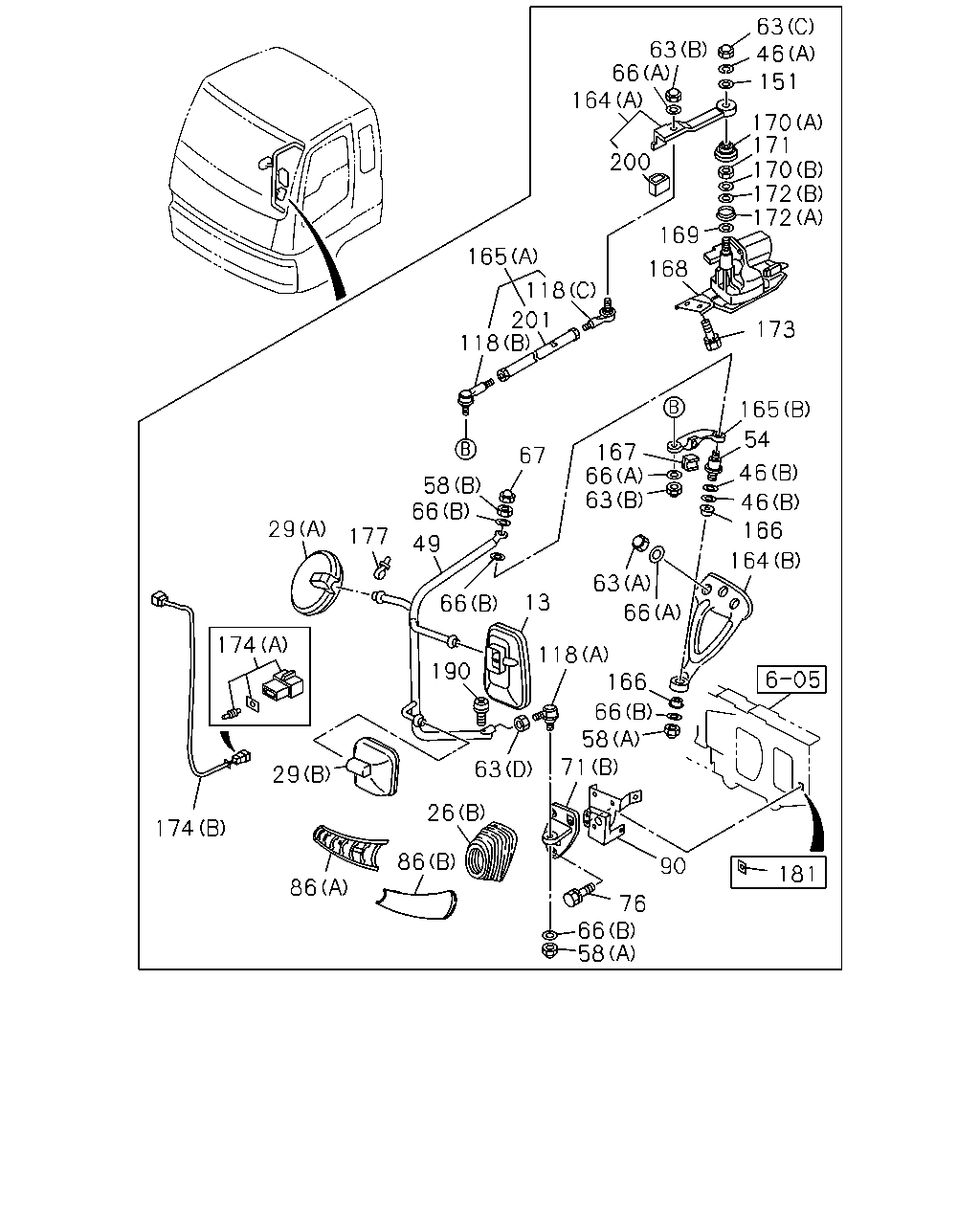

çizim 188823
63 46 151 63 66 164 170 171 170 172 172 200 169 165 168 118 201 118 173 165 54 167 66 63 67 46 58 66 46 166 29 177 49 164 63 13 66 66 174 118 166 190 66 58 71 63 29 26 174 86 90 181 86 76 66 58
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-182-0 01 1 1009-1510
13 MIRROR ASM; OUTSIDE RR VIEW 8-98324-747-0 01 1 1511-
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-181-0 01 1 1009-1504
13 MIRROR ASM; OUTSIDE RR VIEW 8-98288-715-1 01 1 1505-1510
13 MIRROR ASM; OUTSIDE RR VIEW 8-98324-746-0 01 1 1511-
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-222-0 01 1 1009-
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-316-2 01 1 1009-
26 COVER; OUTSIDE MIRROR
(A) 		1-71707-221-0 01 1 1009-
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-695-0 01 1 1009-
29 MIRROR ASM; UNDER
(A) 		1-71797-137-1 01 1 1009-
29 MIRROR ASM; UNDER
(B) 		1-71798-421-1 01 1 1009-
46 WASHER; LK,STAY
(B) ID=16.7 OD=22.5 WAVE WASHER 		9-61166-107-0 02 1 1009-
46 WASHER; LK,STAY
MIR STAY O/S W/REMOTE<TBA> (A) ID=10 		1-09985-345-0 01 1 1009-
49 STAY; MIRROR SIDE 1-71707-177-1 01 1 1009-
49 STAY; MIRROR SIDE 1-71707-175-1 01 1 1009-
54 BOLT; STAY 1-09980-618-0 01 1 1009-
58 NUT; MIRROR STAY
(A) M12 		1-09984-178-1 02 1 1009-
58 NUT; MIRROR STAY
(B) M12 		1-09984-184-1 01 1 1009-
63 NUT; STAY
(A) M8 		1-09984-187-0 06 1 1009-
63 NUT; STAY
(D) M14 		0-91110-514-0 01 1 1009-
63 NUT; STAY
MIR STAY O/S W/REMOTE<TBA> (B) M8 		1-71798-603-1 02 1 1009-
63 NUT; STAY
MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT 		1-71798-859-0 01 1 1009-
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 1009-
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1009-
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009-
66 WASHER; PL
MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1009-
67 NUT; STAY
M12 		1-09984-178-1 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-224-0 02 1 1009-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-809-2 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-309-4 01 1 1009-
76 BOLT; STAY BRKT
M8X40 W/LK&PL WASHER 		0-50640-840-0 06 1 1009-
86 COVER; STAY,OUTSIDE MIRROR
(C) BLACK 		1-71737-649-1 01 1 1009-
86 COVER; STAY,OUTSIDE MIRROR
(D) BLACK 		1-71737-652-1 01 1 1009-
86 COVER; STAY,OUTSIDE MIRROR
(A) 		1-71798-732-0 01 1 1009-
86 COVER; STAY,OUTSIDE MIRROR
(B) 		1-71798-733-0 01 1 1009-
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 1009-
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 1009-
118 JOINT ASM; BALL
(A) 		1-71797-805-1 01 1 1009-
118 JOINT ASM; BALL
MIR STAY O/S W/REMOTE<TBA> (C) RH THREAD 		1-71798-819-2 01 1 1009-
118 JOINT ASM; BALL
MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD 		1-71798-820-2 01 1 1009-
151 WASHER; PL,MIRROR
MIR STAY O/S W/REMOTE<TBA> ID=10.5 OD=26 T=2.6 		1-09985-204-0 01 1 1009-
164 STAY; ROOF
(B) 		1-71798-299-4 01 1 1009-
164 STAY; ROOF
(C) 		1-71707-090-0 01 1 1009-
164 STAY; ROOF
MIR STAY O/S W/REMOTE<TBA> (A) 		1-71798-602-1 01 1 1009-
165 LINK; POWER MIRROR
MIR STAY O/S W/REMOTE<TBA> (B) 		1-71798-600-1 01 1 1009-
165 LINK; POWER MIRROR
MIR STAY O/S W/REMOTE<TBA> (A) 		1-71798-782-2 01 1 1009-
166 BUSHING; STAY 1-09983-179-0 02 1 1009-
167 RUBBER; STOPPER
MIR STAY O/S W/REMOTE<TBA> 		1-71798-308-0 01 1 1009-
168 POWER UNIT; MIRROR STAY
MIR STAY O/S W/REMOTE<TBA> 		1-86855-031-0 01 1 1009-1311
168 POWER UNIT; MIRROR STAY
MIR STAY O/S W/REMOTE<TBA> 		8-98251-163-0 01 1 1312-
169 WASHER; PL,POWER UNIT
MIR STAY O/S W/REMOTE<TBA> ID=26.2 OD=44 T=2 		1-86855-011-1 01 1 1009-
170 CAP; POWER UNIT
MIR STAY O/S W/REMOTE<TBA> (A) 		1-86855-012-0 01 1 1009-
170 CAP; POWER UNIT
MIR STAY O/S W/REMOTE<TBA> (B) 		1-86855-014-1 01 1 1009-
171 NUT; POWER UNIT
MIR STAY O/S W/REMOTE<TBA> M26 		1-86855-013-1 01 1 1009-
172 SEAL; RUBBER,POWER UNIT
MIR STAY O/S W/REMOTE<TBA> (A) 		1-79928-003-1 01 1 1009-
172 SEAL; RUBBER,POWER UNIT
MIR STAY O/S W/REMOTE<TBA> (B) 		1-86855-015-0 01 1 1009-
173 BOLT; POWER UNIT
MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1009-
174 HARNESS; MIRROR
MIR O/S RR VIEW HEATED<DNN> (A) 		1-82662-365-1 02 1 1009-
174 HARNESS; MIRROR
MIR O/S RR VIEW HEATED<DNN> (B) 		8-97610-653-0 01 1 1009-
174 HARNESS; MIRROR
MIR O/S RR VIEW HEATED<DNN> (B) 		8-97610-652-0 01 1 1009-
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1009-
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 1009-
190 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 1009-
200 STOPPER; STAY
MIR STAY O/S W/REMOTE<TBA> 		1-71798-597-0 01 1 1009-
201 ROD; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-71798-821-0 01 1 1009-
