Isuzu WW
▶
TRUCKS
▶
EXD
▶
11293 - EXD RHD EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-10 - CAUTION PLATE AND LABEL
▶

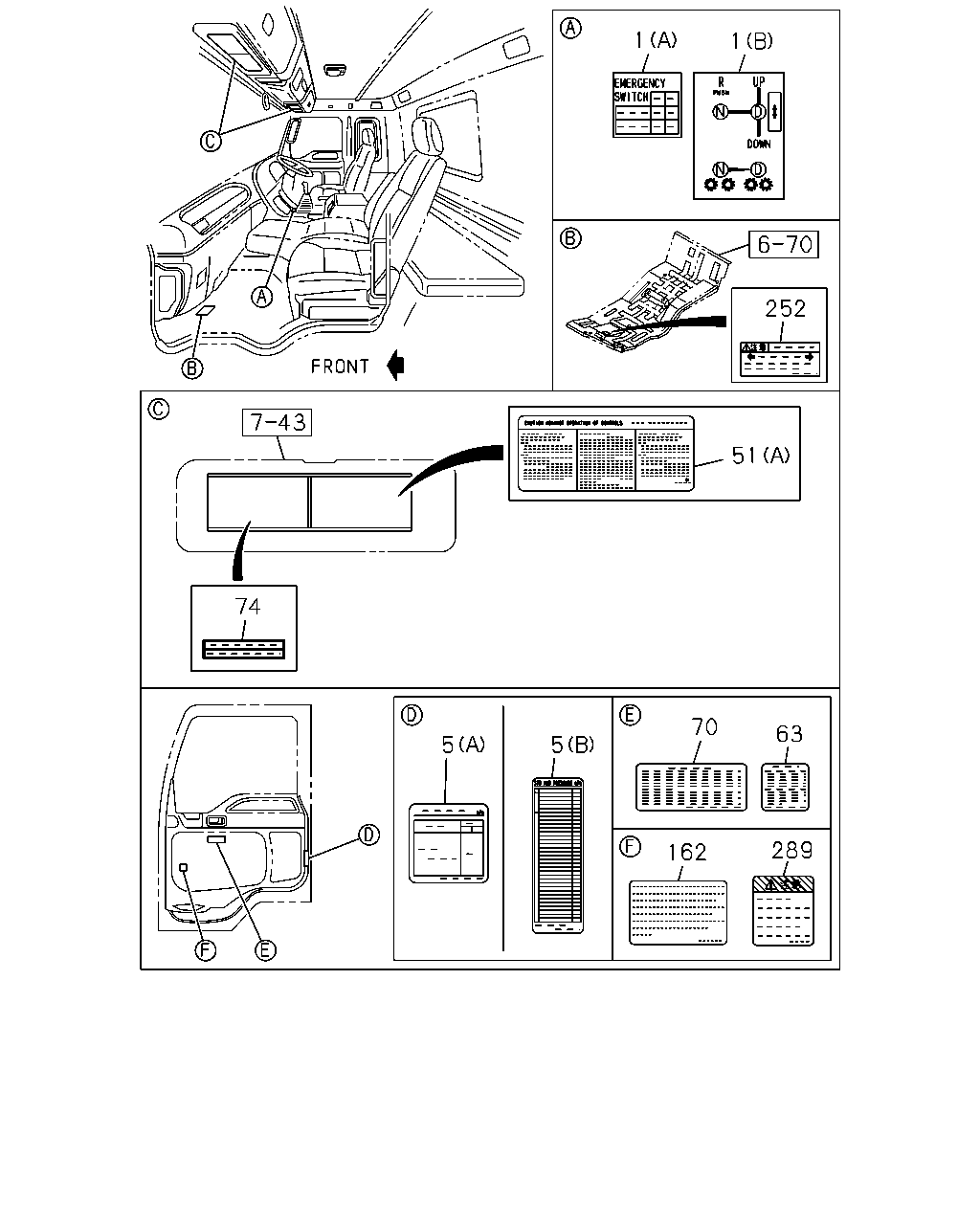

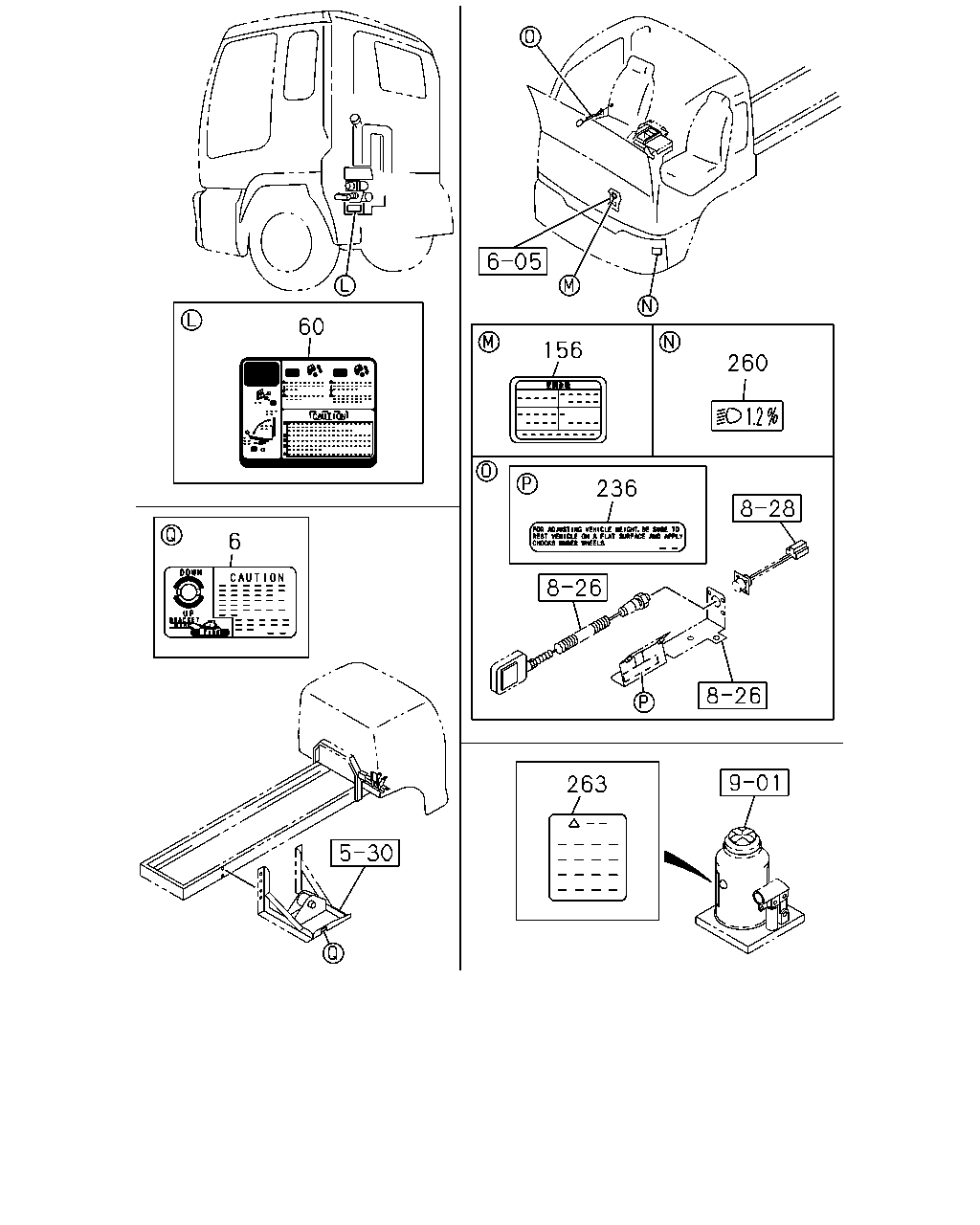

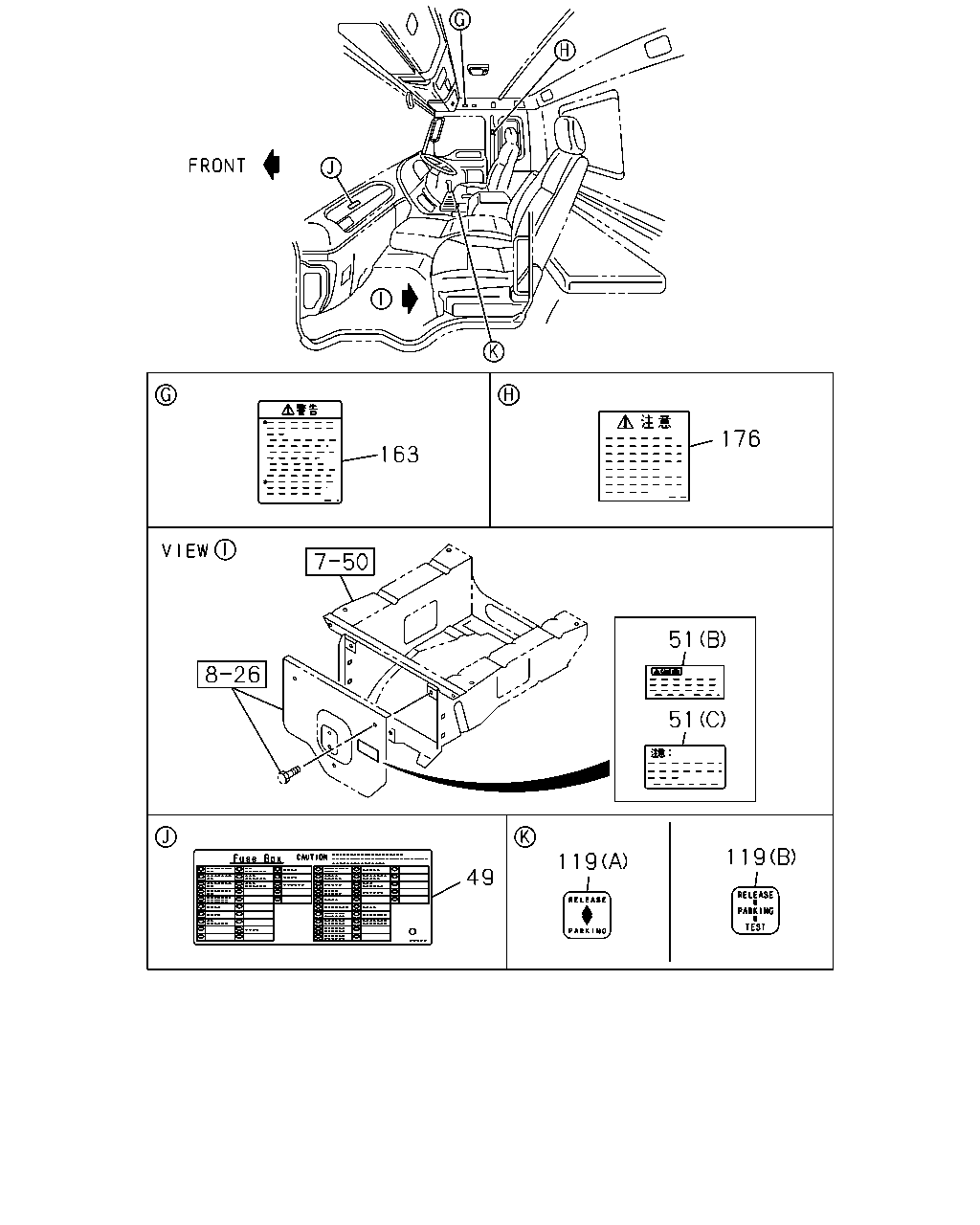

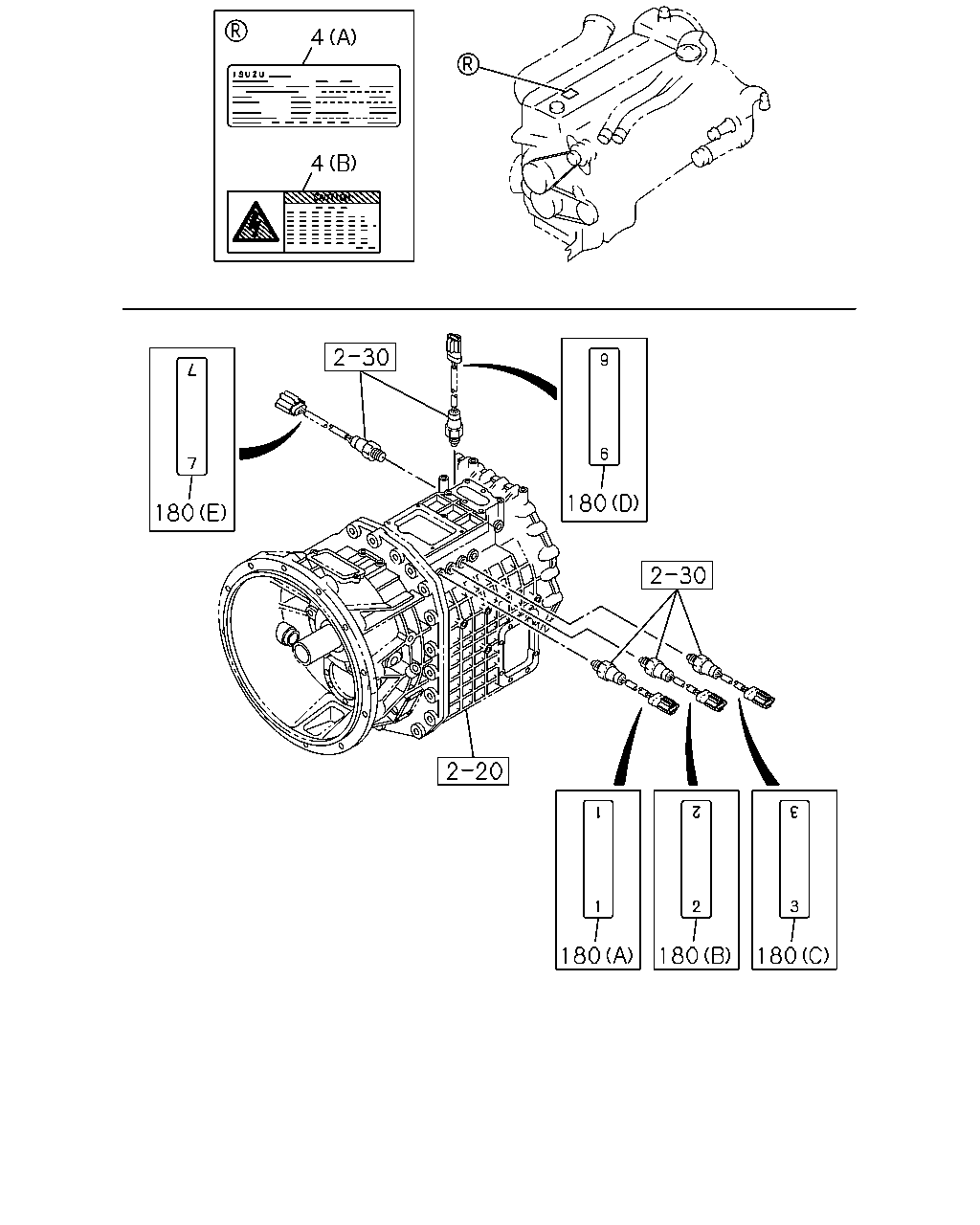

7-10 — CAUTION PLATE AND LABEL
(#70331) — 47 parça
◀
[710A] NO.3 (8 parça)
[710A] NO.5 (3 parça)
[710A] NO.2 (11 parça)
[710A] NO.1 (18 parça)
[710A] NO.4 (7 parça)
▶
60
156
260
236
6
263
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7>
8-98082-438-0
01
1
1009-
6
PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8>
8-98082-437-0
01
1
1009-
60
PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7>
1-85883-242-0
01
1
1009-
60
PLATE; CAUTION,CAB TILT
CAUTIONS ENGLISH<RR8>
1-85883-234-0
01
1
1009-
156
PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS CHINESE<SL7>
8-98055-383-0
01
1
1009-
236
PLATE; CAUTION,AIR SUS
1-85881-823-0
01
1
1009-
260
PLATE; CAUTION,HEAD LAMP LEVELING
1-85878-416-1
01
1
1009-
263
PLATE; CAUTION,JACK
TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>
1-85881-878-0
01
1
1009-
181
175
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
175
LABEL; STRG,AIR BAG
CAUTIONS CHINESE<SL7> AIR BAG(TFQ)
1-85878-107-0
02
1
1009-
175
LABEL; STRG,AIR BAG
CAUTIONS ENGLISH<RR8> AIR BAG(TFQ)
1-85878-116-0
02
1
1009-
181
PLATE; CAUTION,AIR CLEANER
1-85886-796-1
01
1
1009-
176
163
51
51
119
119
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
49
PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7>
8-97631-089-1
01
1
1009-
49
PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8>
8-97631-090-1
01
1
1009-
51
PLATE; CAUTION,WARNING
(A)
1-85880-777-0
01
1
1009-
51
PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (C)
8-97616-500-0
01
1
1009-
51
PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8> (B)
1-85878-544-0
01
1
1009-
119
PLATE; CAUTION,HAND BRK LEVER
BRAKE REGULATION HONG KONG<TCZ> (A)
1-85881-759-0
01
1
1009-
119
PLATE; CAUTION,HAND BRK LEVER
EXC. BRAKE REGULATION HONG KONG<TCZ> (B)
1-85881-791-0
01
1
1009-
163
PLATE; NAME,AIR BAG
CAUTIONS CHINESE<SL7> AIR BAG(TFQ)
1-85878-109-0
01
1
1009-
163
PLATE; NAME,AIR BAG
CAUTIONS ENGLISH<RR8> AIR BAG(TFQ)
1-85878-485-0
01
1
1009-
176
LABEL; SEAT BELT
CAUTIONS CHINESE<SL7> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)
1-85878-108-0
01
1
1009-
176
LABEL; SEAT BELT
CAUTIONS ENGLISH<RR8> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)
1-85878-486-0
01
1
1009-
1
1
252
51
74
70
63
5
5
289
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PLATE; CAUTION,SHIFT PATTERN
(B)
1-85881-842-0
01
1
1009-
1
PLATE; CAUTION,SHIFT PATTERN
(A)
1-85881-879-1
01
1
1009-
5
LABEL; TIRE AIR PRESSURE
CAUTIONS CHINESE<SL7> (A)
1-85881-887-0
01
1
1009-
5
LABEL; TIRE AIR PRESSURE
EXC. CAUTIONS CHINESE<SL7> (B)
1-85880-778-0
01
1
1009-
51
PLATE; CAUTION,WARNING
(A)
1-85880-777-0
01
1
1009-
51
PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (C)
8-97616-500-0
01
1
1009-
51
PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8> (B)
1-85878-544-0
01
1
1009-
63
PLATE; CAUTION,SEAT AIR
CAUTIONS CHINESE<SL7>
8-97613-272-0
01
1
1009-
63
PLATE; CAUTION,SEAT AIR
CAUTIONS ENGLISH<RR8>
1-85881-861-0
01
1
1009-
70
PLATE; CAUTION,ACT
CAUTIONS CHINESE<SL7>
1-85878-547-0
01
1
1009-
70
PLATE; CAUTION,ACT
CAUTIONS ENGLISH<RR8>
1-85878-484-0
01
1
1009-
74
PLATE; CAUTION,CHANGE LEV
CAUTIONS CHINESE<SL7>
1-85881-928-0
01
1
1009-
74
PLATE; CAUTION,CHANGE LEV
CAUTIONS ENGLISH<RR8>
1-85881-869-0
01
1
1009-
162
PLATE; CAUTION,FUEL
CAUTIONS CHINESE<SL7>
1-85875-457-0
01
1
1009-
162
PLATE; CAUTION,FUEL
CAUTIONS ENGLISH<RR8>
8-97623-712-0
01
1
1009-
252
PLATE; CAUTION,HARNESS
CAUTIONS CHINESE<SL7>
1-85878-515-0
01
1
1009-
252
PLATE; CAUTION,HARNESS
CAUTIONS ENGLISH<RR8>
1-85878-488-1
01
1
1009-
289
PLATE; CAUTION,DRIVING
HONG KONG EQUIPMENT(PQ1) CAUTIONS CHINESE<SL7>
1-85883-223-1
01
1
1009-
4
4
180
180
180
180
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
LABEL; ENG MAINTENANCE
(A)
1-85875-350-2
01
1
1009-
4
LABEL; ENG MAINTENANCE
(B)
8-94391-524-0
01
1
1009-
180
PLATE; CAUTION,SWITCH
(A)
1-85881-871-0
01
1
1009-
180
PLATE; CAUTION,SWITCH
(B)
1-85881-872-0
01
1
1009-
180
PLATE; CAUTION,SWITCH
(C)
1-85881-873-0
01
1
1009-
180
PLATE; CAUTION,SWITCH
(D)
1-85881-880-0
01
1
1009-
180
PLATE; CAUTION,SWITCH
(E)
1-85881-881-0
01
1
1009-
