Isuzu WW
▶
TRUCKS
▶
EXD
▶
11293 - EXD RHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶
6-76 — FLOOR EQUIPMENT AND SEALING
(#70323) — 21 parça
◀

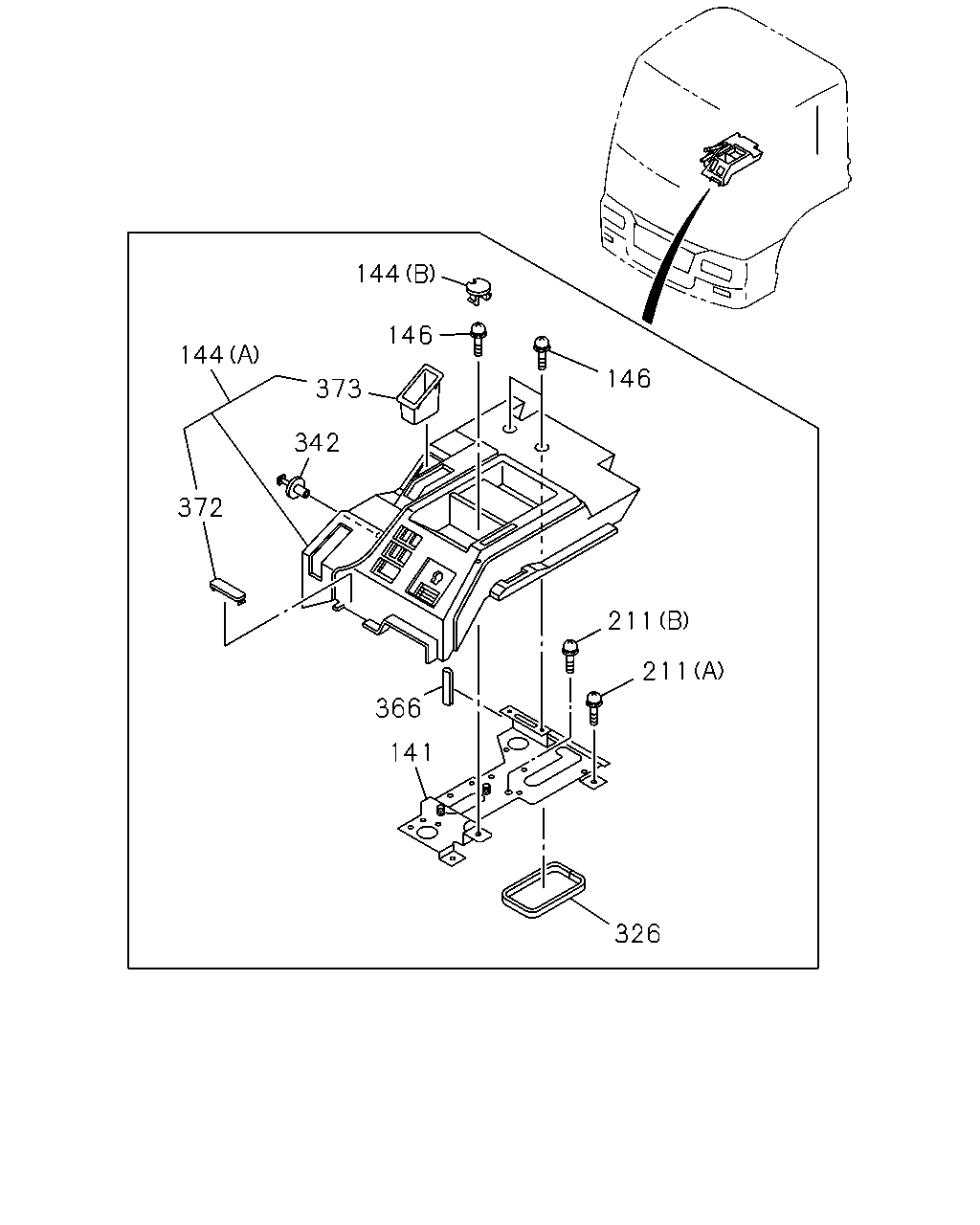

[676A] HAND BRAKE VALVE COVER (11 parça)

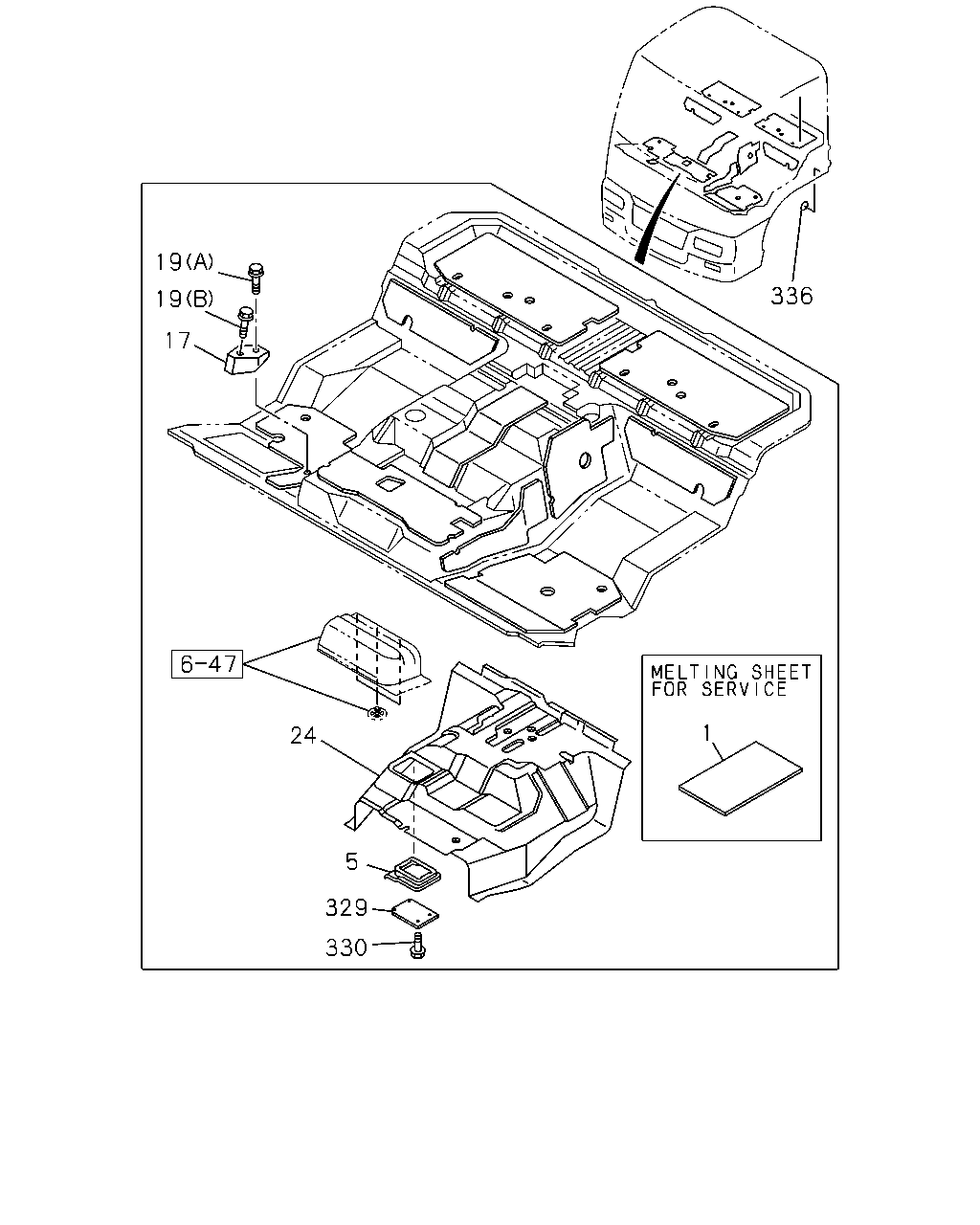

[676A] MELTING SHEET,COVER AND INSULATOR (10 parça)
▶
144
146
144
146
373
342
372
211
211
366
141
326
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
141
HOLDER
1-79907-076-2
01
1
1009-
144
COVER; HAND BRK VLV
(A)
1-72417-348-1
01
1
1009-
144
COVER; HAND BRK VLV
(B)
1-72537-106-0
01
1
1009-
146
BOLT; COVER BRKT
M6X24 W/LK&PL WASHER
8-94279-404-0
03
1
1009-
211
BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1009-
211
BOLT; COVER
(B) M8X30 W/LK&PL WASHER
8-94279-210-0
01
1
1009-
326
SEAL; COVER
1-79997-978-1
01
1
1009-
342
FASTENER
D8X13.5
1-09987-248-1
01
1
1009-
366
FINISHER; COVER
L=50
8-94270-377-1
01
1
1009-
372
COVER; CONSOLE
1-72537-124-0
01
1
1009-
373
COVER; HOLE
1-72537-194-0
01
1
1009-
19
336
19
17
1
24
329
330
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0
1-61970-039-0
AR
1
1009-
5
COVER; CHANGE LEVER
1-33619-163-0
01
1
1009-
17
REST; FOOT,DRIVER
1-73907-176-1
01
1
1009-
19
BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
1009-
19
BOLT; FOOT REST
(B) M6X47
8-94407-876-1
01
1
1009-
24
INSULATOR; HEAT,FRT
1-71907-712-2
01
1
1009-1011
24
INSULATOR; HEAT,FRT
1-71907-711-2
01
1
1012-
329
BRACKET; PANEL
1-33619-465-0
01
1
1009-
330
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
04
1
1009-
336
SEAL; FLOOR SIDE
OD=25 BLACK
1-76798-019-0
02
1
1009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
