Isuzu WW
▶
TRUCKS
▶
EXD
▶
11293 - EXD RHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶
6-75 — MAT AND CARPET
(#70322) — 34 parça
◀

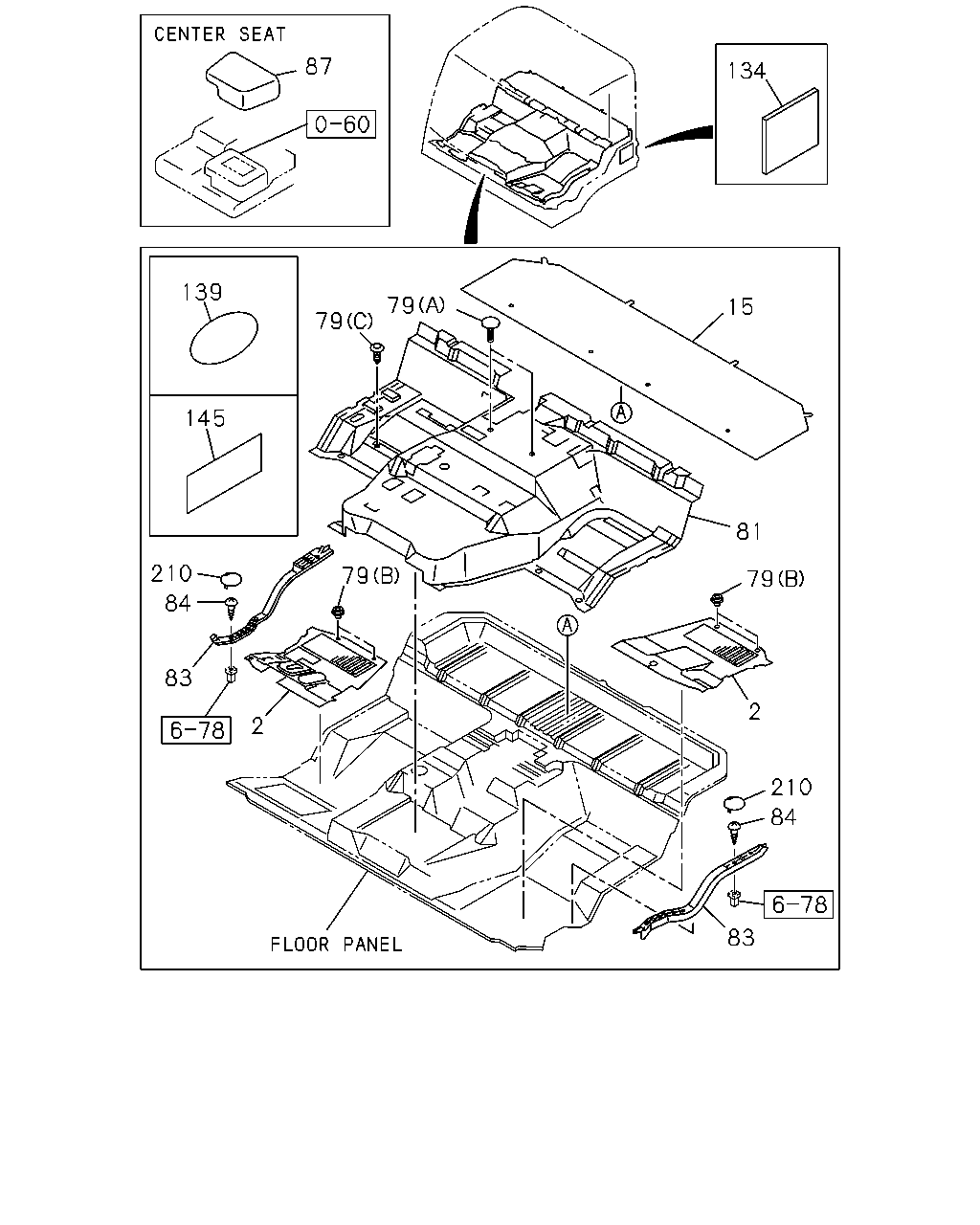

[675A] EXC.DELUXE CARPET (17 parça)
[675A] DELUXE CARPET (17 parça)
▶
87
134
139
79
15
79
145
81
79
210
79
84
83
2
2
210
84
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MAT; FLOOR
EXC. DELUXE CARPET<BF2>
1-73237-784-1
01
1
1009-
2
MAT; FLOOR
EXC. DELUXE CARPET<BF2>
1-73237-786-1
01
1
1009-
15
MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40>
1-73237-783-1
01
1
1009-
79
HOOK; MALE
(A) D6X23 BLACK
1-09987-114-0
02
1
1009-
79
HOOK; MALE
(B) BLACK
8-94279-089-0
08
1
1009-
79
HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11
1-76378-155-0
01
1
1009-
81
MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>
1-73237-923-1
01
1
1009-
83
PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1)
8-98125-806-3
01
1
1009-
83
PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1)
8-98125-805-3
01
1
1009-
83
PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1)
1-76798-046-0
01
1
1009-
83
PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1)
1-76798-045-0
01
1
1009-
84
SCREW; PLATE TO FLOOR
M5X16
8-94279-312-0
08
1
1009-
87
MAT; FLOOR
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9)
1-73237-779-1
01
1
1009-
134
SILENCER; RR FLOOR,SIDE
1-73367-016-2
01
1
1009-
139
SEAL; FLOOR
OD=25 BLACK
1-76798-019-0
04
1
1009-
145
SEAL; FLOOR PANEL
100X40
1-72498-022-1
01
1
1009-
210
COVER; KICKING PLATE
1-76337-461-0
09
1
1009-
134
32
139
79
32
145
32
210
79
79
84
83
1
1
210
84
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CARPET; FLOOR,FRT
DELUXE CARPET<BF2>
1-73237-863-2
01
1
1009-
1
CARPET; FLOOR,FRT
DELUXE CARPET<BF2>
1-73237-864-2
01
1
1009-
32
CARPET; FLOOR
DELUXE CARPET<BF2> (A)
1-73237-921-2
01
1
1009-
32
CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (C)
1-73237-835-1
01
1
1009-
32
CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B)
1-73237-867-2
01
1
1009-
79
HOOK; MALE
(A) D6X23 BLACK
1-09987-114-0
02
1
1009-
79
HOOK; MALE
(B) BLACK
8-94279-089-0
08
1
1009-
79
HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11
1-76378-155-0
01
1
1009-
83
PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1)
8-98125-806-3
01
1
1009-
83
PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1)
8-98125-805-3
01
1
1009-
83
PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1)
1-76798-046-0
01
1
1009-
83
PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1)
1-76798-045-0
01
1
1009-
84
SCREW; PLATE TO FLOOR
M5X16
8-94279-312-0
08
1
1009-
134
SILENCER; RR FLOOR,SIDE
1-73367-016-2
01
1
1009-
139
SEAL; FLOOR
OD=25 BLACK
1-76798-019-0
04
1
1009-
145
SEAL; FLOOR PANEL
100X40
1-72498-022-1
01
1
1009-
210
COVER; KICKING PLATE
1-76337-461-0
09
1
1009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
