◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11293 - EXD RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#70318) — 175 parça
çizim 131249
130 281 185 249 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1009-

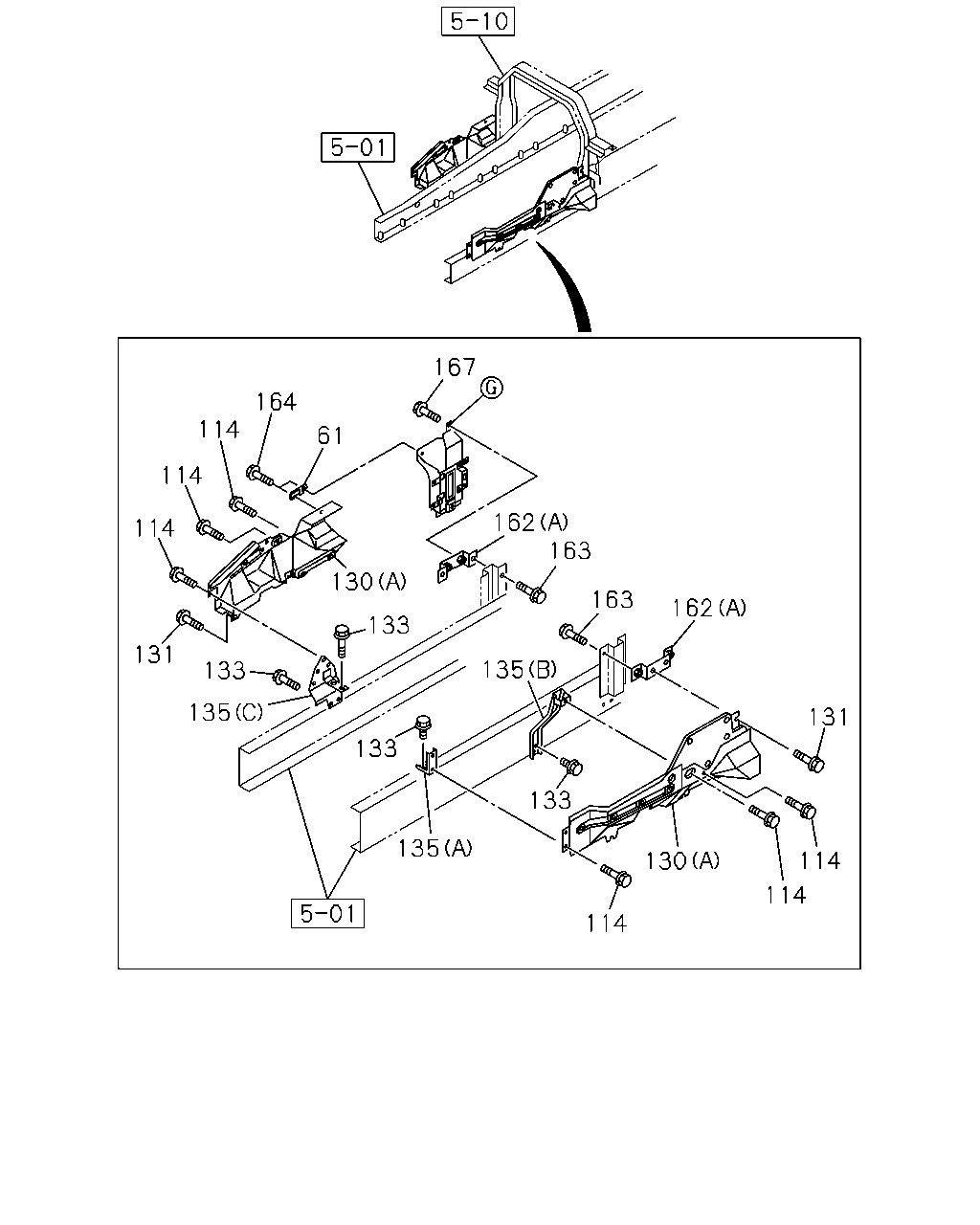

çizim 131293
167 164 114 61 114 162 163 114 130 163 162 133 131 135 133 135 131 133 133 135 130 114 114 114
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 8-98039-501-1 01 1 1009-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 05 1 1009-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1009-
131 BOLT; PANEL
M8X16 FLANGE 		0-28050-816-0 01 1 1009-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 1009-
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 1009-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 1009-
135 BRACKET; SIDE PANEL
(B) 		8-98127-905-0 01 1 1009-
135 BRACKET; SIDE PANEL
(C) 		8-98039-211-2 01 1 1009-
162 BRACKET
(A) 		1-53441-520-0 02 1 1009-
162 BRACKET
(B) 		1-71907-815-0 01 1 1009-
162 BRACKET
(D) 		8-98113-210-2 01 1 1009-
162 BRACKET
(E) 		1-53441-521-2 01 1 1009-
162 BRACKET
(C) 		1-53441-522-0 01 1 1009-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1009-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 1009-

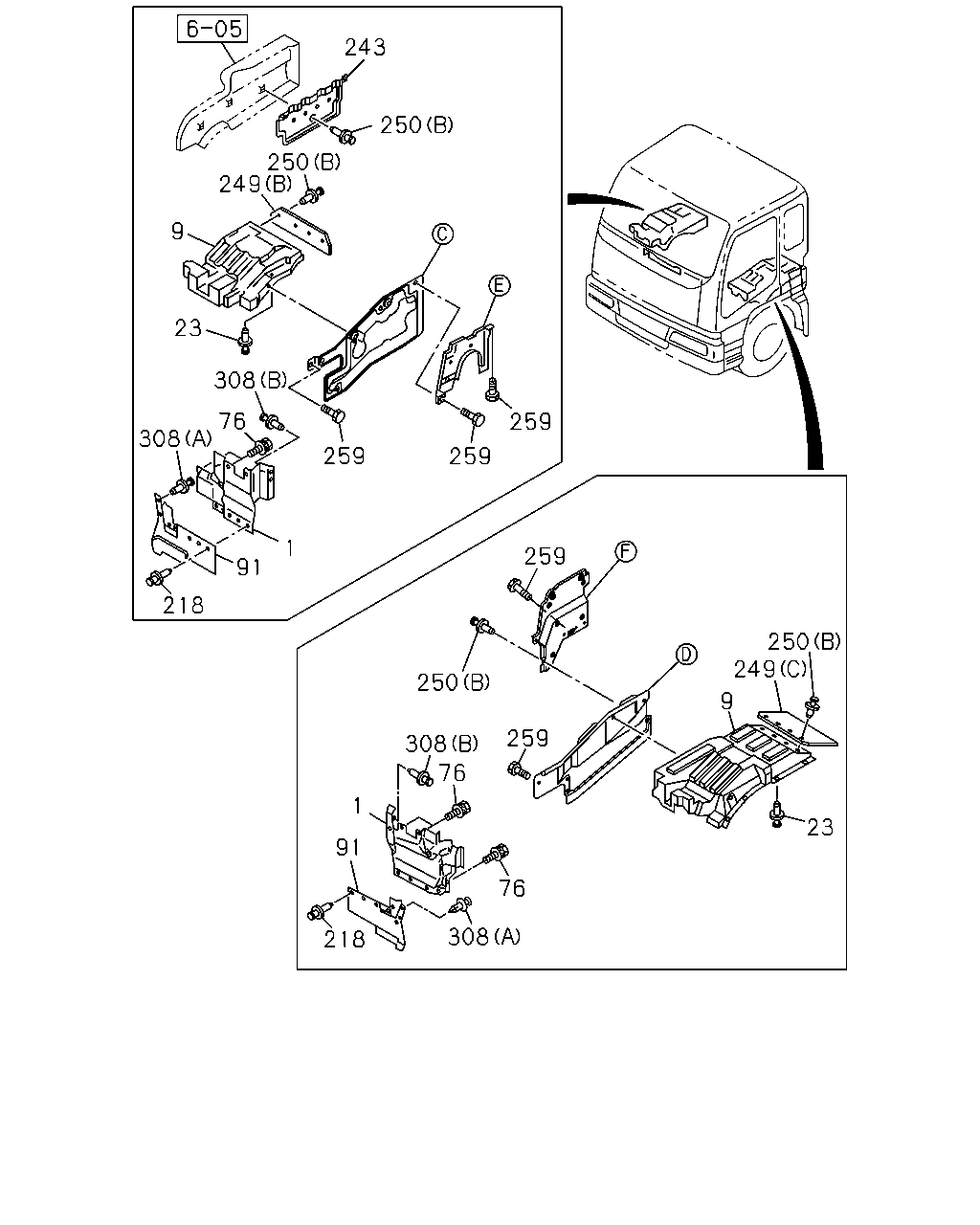

çizim 131516
243 250 250 249 9 23 308 76 259 308 259 259 1 259 91 218 250 249 250 9 259 308 76 1 23 91 76 308 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1009-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1009-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1009-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1009-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1009-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1009-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1009-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1009-
91 COVER; MUD,FRT 1-79931-204-1 01 1 1009-
91 COVER; MUD,FRT 1-79931-203-1 01 1 1009-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1009-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1009-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 11 1 1009-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 1009-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 1009-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1009-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1009-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1009-
çizim 131566
130 251 74 130 73 251 251 122 168 167 122 167 162 160 122 162 160 122
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1009-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1009-
74 NUT
M8 FLANGE 		0-91180-108-0 07 1 1009-
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1009-
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-
160 COVER ASM; EXH
(A) 		1-79931-408-4 01 1 1009-1207
160 COVER ASM; EXH
(A) 		1-79931-411-2 01 1 1208-
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 1009-
162 BRACKET
(A) 		1-53441-520-0 02 1 1009-
162 BRACKET
(B) 		1-71907-815-0 01 1 1009-
162 BRACKET
(D) 		8-98113-210-2 01 1 1009-
162 BRACKET
(E) 		1-53441-521-2 01 1 1009-
162 BRACKET
(C) 		1-53441-522-0 01 1 1009-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 1009-
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 1009-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 1009-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1009-
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-

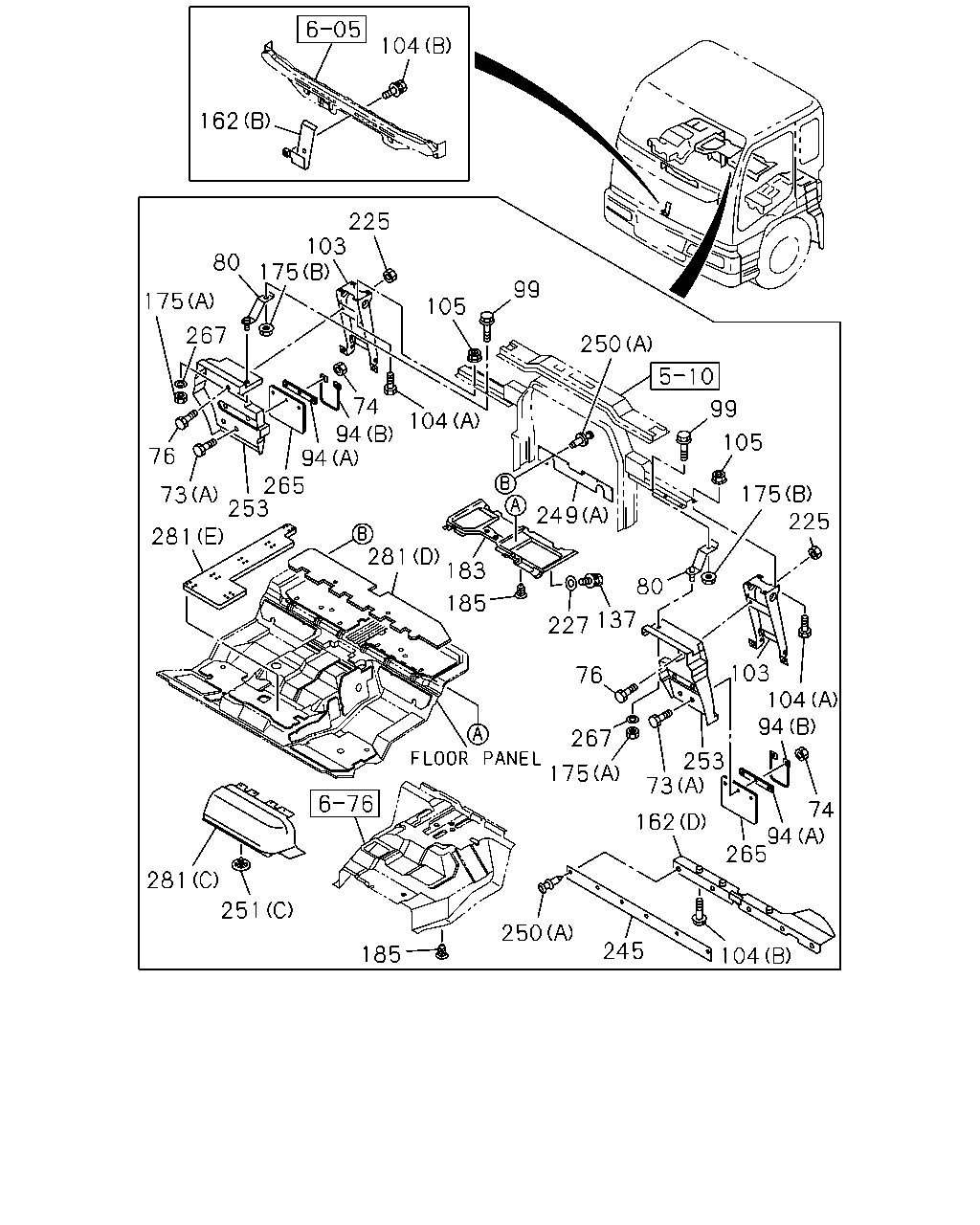

çizim 188819
104 162 225 103 175 80 99 175 105 267 250 74 94 94 265 253 99 104 105 76 175 225 73 249 281 183 281 80 185 137 227 103 104 94 76 175 267 253 73 74 94 265 162 281 251 250 245 185 104
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1009-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1009-
74 NUT
M8 FLANGE 		0-91180-108-0 07 1 1009-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1009-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1009-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1009-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1009-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 1009-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 1009-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1009-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 1009-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-445-0 01 1 1009-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-893-0 01 1 1503-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1009-
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 04 1 1009-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1009-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1009-
162 BRACKET
(A) 		1-53441-520-0 02 1 1009-
162 BRACKET
(B) 		1-71907-815-0 01 1 1009-
162 BRACKET
(D) 		8-98113-210-2 01 1 1009-
162 BRACKET
(E) 		1-53441-521-2 01 1 1009-
162 BRACKET
(C) 		1-53441-522-0 01 1 1009-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1009-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1009-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 1009-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1009-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1009-
245 RUBBER; SHUTTER,RAD 8-98113-211-0 01 1 1009-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 11 1 1009-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 1009-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 1009-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 1009-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1009-
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-
253 GUARD; MUD 8-98134-766-1 01 1 1009-
253 GUARD; MUD 8-98134-759-0 01 1 1009-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 1009-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1009-
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1009-
çizim 188821
130 185 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
