6-20 — SIDE PANEL AND STEP (#70311) — 228 parça

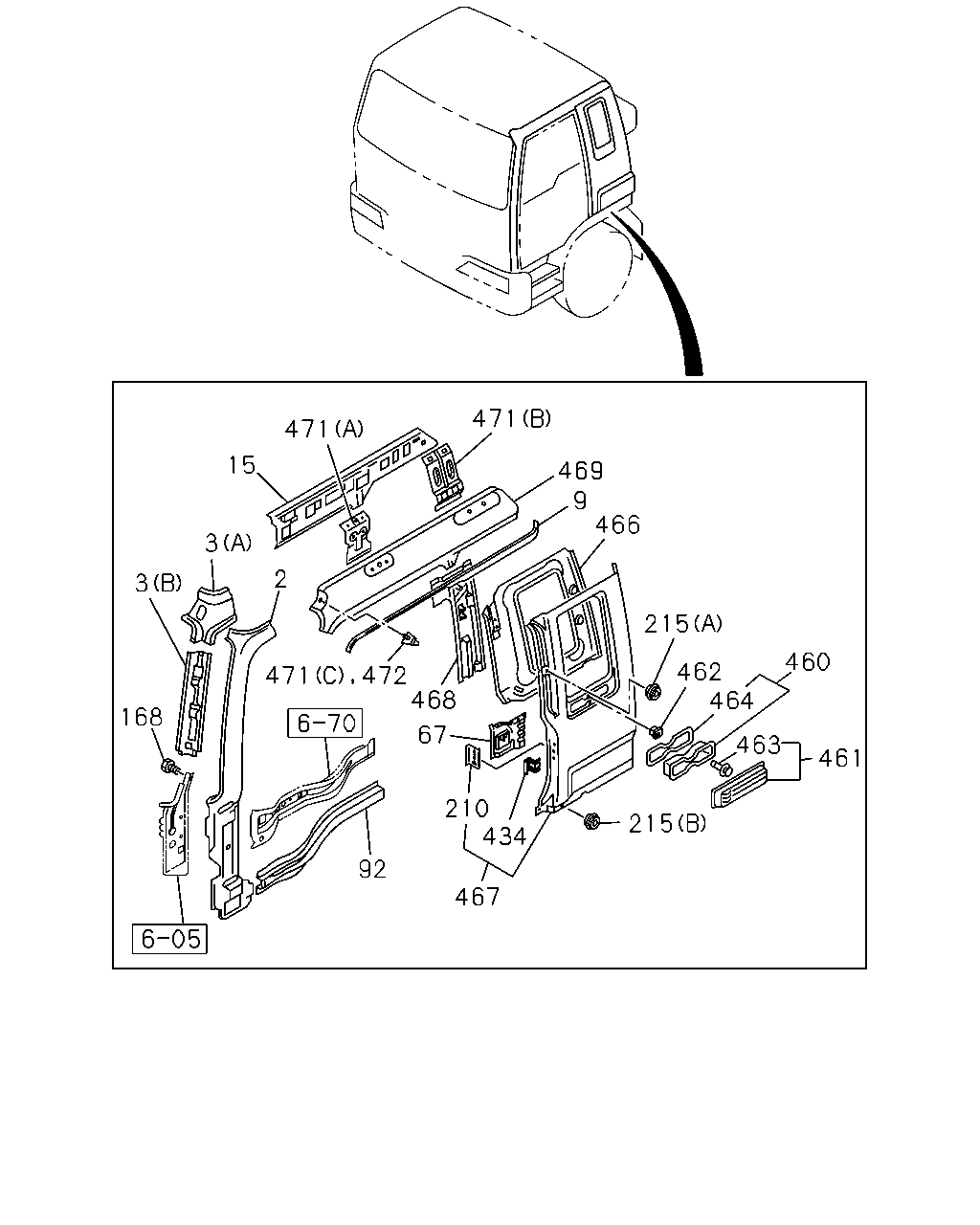

çizim 126809
471 471 15 469 9 466 3 2 3 215 460 462 464 468 168 67 463 461 210 434 215 92 467 471 472
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-156-4 01 1 1009-
2 PILLAR; FRT 1-61281-155-4 01 1 1009-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 1009-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 1009-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 1009-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 1009-
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 1009-
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 1009-
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 1009-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 1009-
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 1009-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 1009-
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 1009-
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 1009-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 1009-
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 1009-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 1009-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 1009-
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 1009-
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 1009-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 1009-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 1009-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 1009-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 1009-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 1009-
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 1009-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 1009-
467 PANEL; OUTER,BACK CORNER 1-61281-204-4 01 1 1009-
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 1009-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 1009-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 1009-
469 ROOF; SIDE 1-61281-199-8 01 1 1009-
469 ROOF; SIDE 1-61281-198-8 01 1 1009-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 02 1 1009-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-201-3 01 1 1009-
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 1009-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 1009-
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 1009-

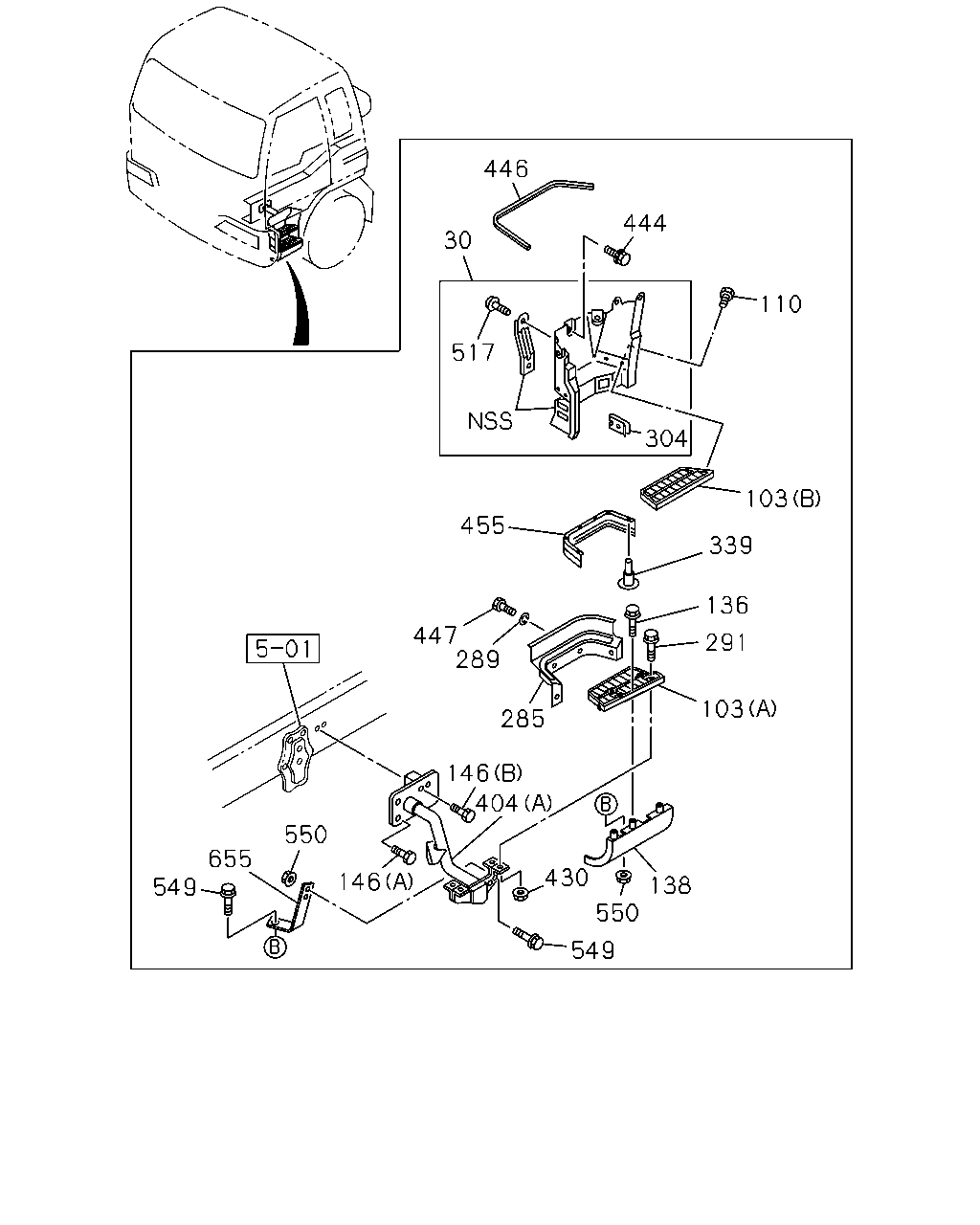

çizim 130573
446 444 30 110 517 304 103 455 339 136 447 289 291 285 103 146 404 550 655 430 146 138 549 550 549
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-810-4 01 1 1009-
30 CLOSING; SIDE STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-809-4 01 1 1009-
30 CLOSING; SIDE STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98156-848-0 01 1 1009-
30 CLOSING; SIDE STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98156-847-0 01 1 1009-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1009-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1009-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-249-1 02 1 1009-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-174-1 02 1 1009-
103 PLATE; STEP
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-249-1 01 1 1009-
103 PLATE; STEP
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-174-1 01 1 1009-
110 BOLT; 1ST STEP PLATE
EXC. HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 1009-
136 BOLT; OVER FENDER
FRONT SPOILER<VP1> M5X22 		8-97029-303-1 06 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE 		1-86792-078-0 01 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE 		1-86792-079-0 01 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE 		1-79931-447-1 01 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE 		1-79931-448-1 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> 		1-79931-265-0 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> 		1-79931-266-0 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> 		1-79931-263-0 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> 		1-79931-264-0 01 1 1009-
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 1009-
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 1009-
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 1009-
285 PLATE; STEP,1ST STEP
HONG KONG EQUIPMENT(PQ1) 		8-98160-091-0 01 1 1009-
285 PLATE; STEP,1ST STEP
HONG KONG EQUIPMENT(PQ1) 		8-98160-094-0 01 1 1009-
285 PLATE; STEP,1ST STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97619-528-0 01 1 1009-
285 PLATE; STEP,1ST STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97619-529-0 01 1 1009-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1009-
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 1009-
304 NUT; SPIRE
EXC. HONG KONG EQUIPMENT(PQ1) M6 		1-09984-182-0 04 1 1009-
339 FASTENER; SIDE
HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8 		1-09987-194-0 10 1 1009-
339 FASTENER; SIDE
EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8 		1-09987-194-0 12 1 1009-
404 BRACKET
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-53414-287-2 01 1 1009-
404 BRACKET
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-53414-288-2 01 1 1009-
404 BRACKET
HONG KONG EQUIPMENT(PQ1) (A) 		1-53414-158-4 01 1 1009-
404 BRACKET
HONG KONG EQUIPMENT(PQ1) (B) 		1-53414-255-3 01 1 1009-
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1009-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1009-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1009-
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1009-
455 PROTECTOR; STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-807-2 01 1 1009-
455 PROTECTOR; STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-808-2 01 1 1009-
455 PROTECTOR; STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		1-71907-837-1 01 1 1009-
455 PROTECTOR; STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		1-71907-838-1 01 1 1009-
517 SCREW; TAP
EXC. HONG KONG EQUIPMENT(PQ1) M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 1009-
549 BOLT; STAY
EXC. HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE 		0-28650-620-0 04 1 1009-
549 BOLT; STAY
EXC. HONG KONG EQUIPMENT(PQ1) M5X16 W/LK&PL WASHER 		8-94198-538-0 02 1 1009-
550 NUT; STAY
EXC. HONG KONG EQUIPMENT(PQ1) M6 FLANGE 		0-91180-206-0 04 1 1009-
550 NUT; STAY
EXC. HONG KONG EQUIPMENT(PQ1) M5 FLANGE 		1-09984-170-0 02 1 1009-
655 STAY; MUD GUARD
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97608-965-1 01 1 1009-
655 STAY; MUD GUARD
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97608-966-1 01 1 1009-

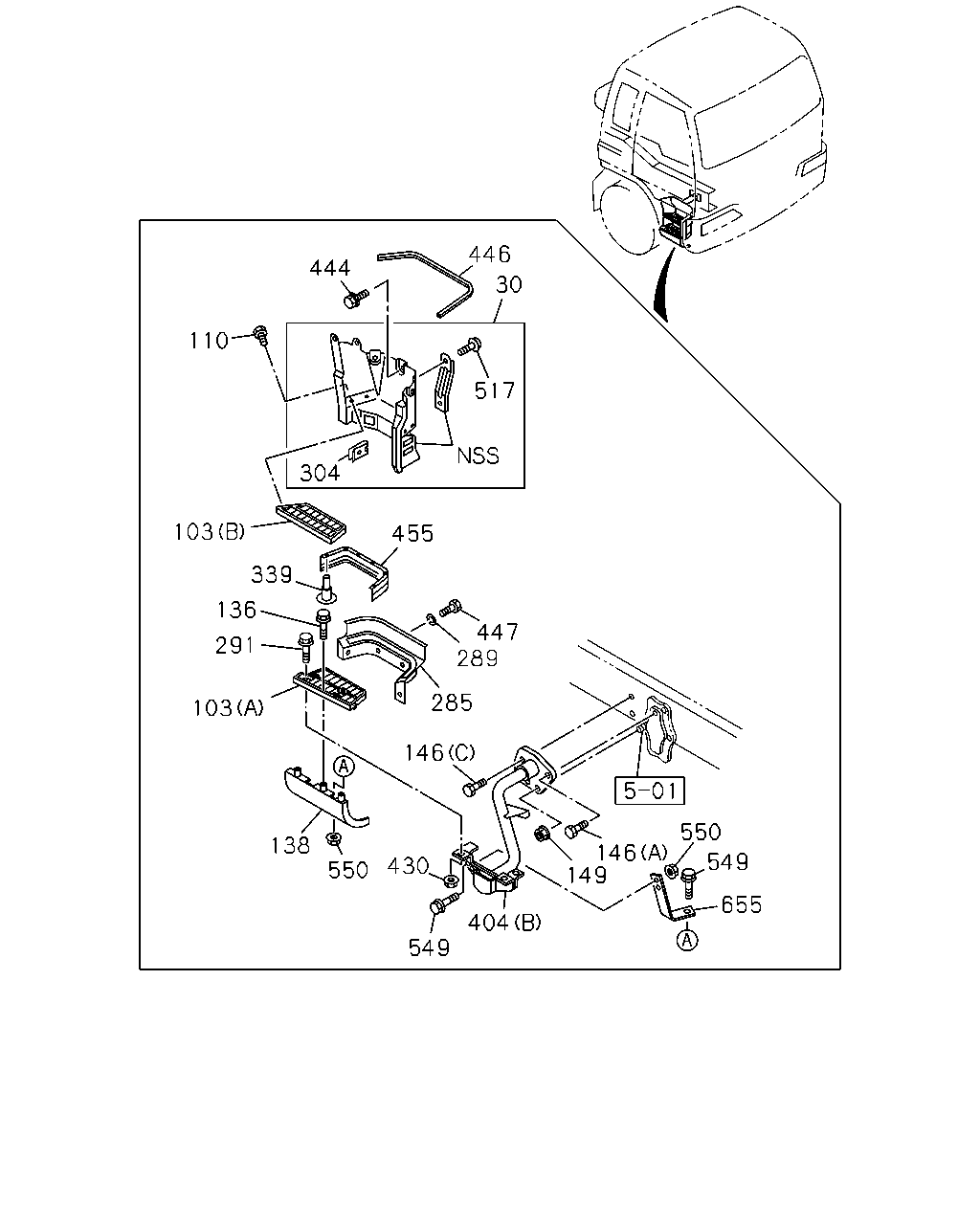

çizim 130601
446 444 30 110 517 304 103 455 339 136 447 289 291 285 103 146 550 138 146 149 549 430 550 655 404 549
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-810-4 01 1 1009-
30 CLOSING; SIDE STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-809-4 01 1 1009-
30 CLOSING; SIDE STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98156-848-0 01 1 1009-
30 CLOSING; SIDE STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98156-847-0 01 1 1009-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1009-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1009-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-249-1 02 1 1009-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-174-1 02 1 1009-
103 PLATE; STEP
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-249-1 01 1 1009-
103 PLATE; STEP
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-174-1 01 1 1009-
110 BOLT; 1ST STEP PLATE
EXC. HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 1009-
136 BOLT; OVER FENDER
FRONT SPOILER<VP1> M5X22 		8-97029-303-1 06 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE 		1-86792-078-0 01 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE 		1-86792-079-0 01 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE 		1-79931-447-1 01 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE 		1-79931-448-1 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> 		1-79931-265-0 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> 		1-79931-266-0 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> 		1-79931-263-0 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> 		1-79931-264-0 01 1 1009-
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 1009-
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 1009-
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 1009-
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 01 1 1009-
285 PLATE; STEP,1ST STEP
HONG KONG EQUIPMENT(PQ1) 		8-98160-091-0 01 1 1009-
285 PLATE; STEP,1ST STEP
HONG KONG EQUIPMENT(PQ1) 		8-98160-094-0 01 1 1009-
285 PLATE; STEP,1ST STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97619-528-0 01 1 1009-
285 PLATE; STEP,1ST STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97619-529-0 01 1 1009-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1009-
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 1009-
304 NUT; SPIRE
EXC. HONG KONG EQUIPMENT(PQ1) M6 		1-09984-182-0 04 1 1009-
339 FASTENER; SIDE
HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8 		1-09987-194-0 10 1 1009-
339 FASTENER; SIDE
EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8 		1-09987-194-0 12 1 1009-
404 BRACKET
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-53414-287-2 01 1 1009-
404 BRACKET
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-53414-288-2 01 1 1009-
404 BRACKET
HONG KONG EQUIPMENT(PQ1) (A) 		1-53414-158-4 01 1 1009-
404 BRACKET
HONG KONG EQUIPMENT(PQ1) (B) 		1-53414-255-3 01 1 1009-
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1009-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1009-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1009-
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1009-
455 PROTECTOR; STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-807-2 01 1 1009-
455 PROTECTOR; STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-808-2 01 1 1009-
455 PROTECTOR; STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		1-71907-837-1 01 1 1009-
455 PROTECTOR; STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		1-71907-838-1 01 1 1009-
517 SCREW; TAP
EXC. HONG KONG EQUIPMENT(PQ1) M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 1009-
549 BOLT; STAY
EXC. HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE 		0-28650-620-0 04 1 1009-
549 BOLT; STAY
EXC. HONG KONG EQUIPMENT(PQ1) M5X16 W/LK&PL WASHER 		8-94198-538-0 02 1 1009-
550 NUT; STAY
EXC. HONG KONG EQUIPMENT(PQ1) M6 FLANGE 		0-91180-206-0 04 1 1009-
550 NUT; STAY
EXC. HONG KONG EQUIPMENT(PQ1) M5 FLANGE 		1-09984-170-0 02 1 1009-
655 STAY; MUD GUARD
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97608-965-1 01 1 1009-
655 STAY; MUD GUARD
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97608-966-1 01 1 1009-

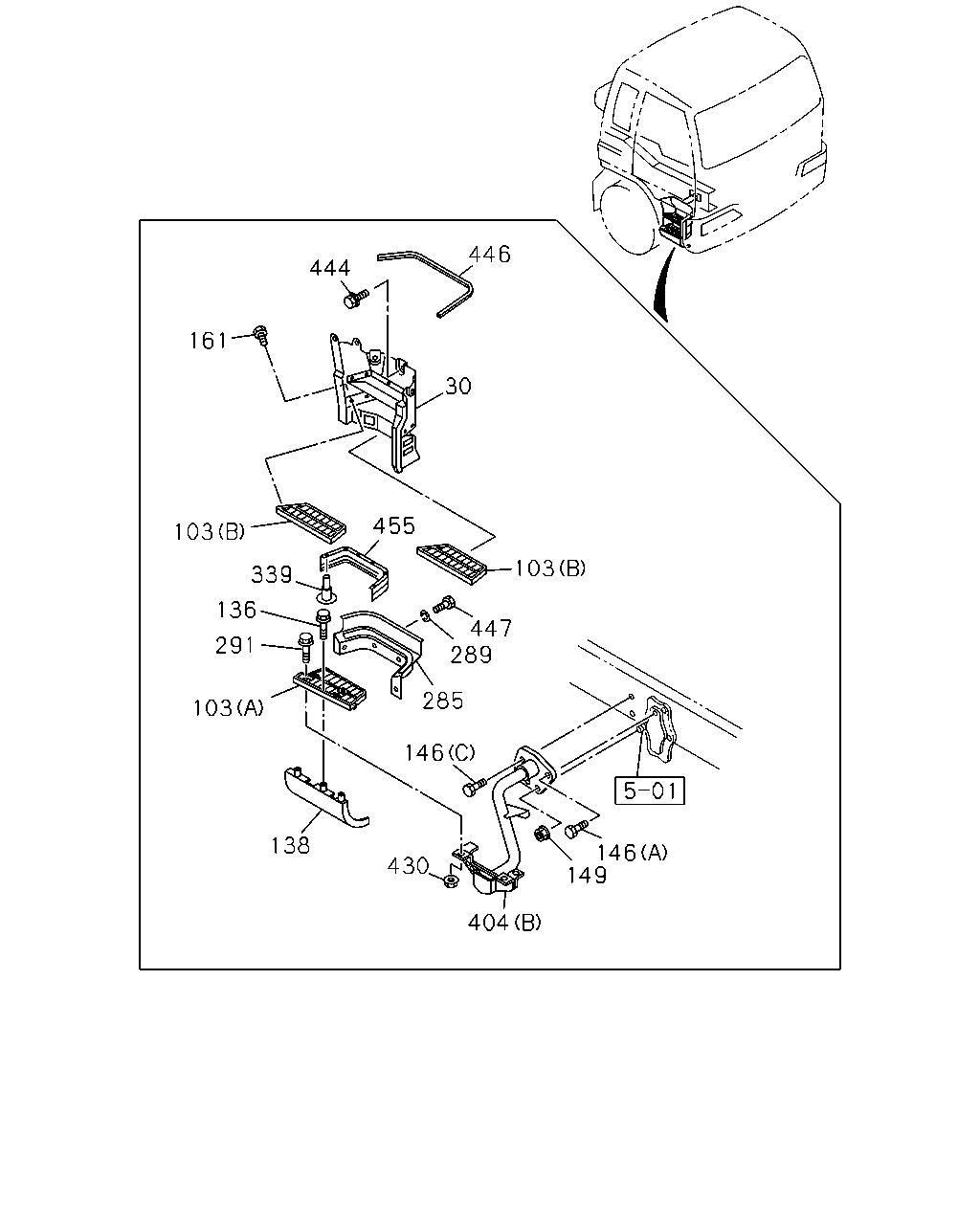

çizim 130906
446 444 161 30 455 103 103 339 136 447 289 291 285 103 146 138 146 149 430 404
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-810-4 01 1 1009-
30 CLOSING; SIDE STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-809-4 01 1 1009-
30 CLOSING; SIDE STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98156-848-0 01 1 1009-
30 CLOSING; SIDE STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98156-847-0 01 1 1009-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1009-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1009-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-249-1 02 1 1009-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-174-1 02 1 1009-
103 PLATE; STEP
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-249-1 01 1 1009-
103 PLATE; STEP
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-174-1 01 1 1009-
136 BOLT; OVER FENDER
FRONT SPOILER<VP1> M5X22 		8-97029-303-1 06 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE 		1-86792-078-0 01 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE 		1-86792-079-0 01 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE 		1-79931-447-1 01 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE 		1-79931-448-1 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> 		1-79931-265-0 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> 		1-79931-266-0 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> 		1-79931-263-0 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> 		1-79931-264-0 01 1 1009-
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 1009-
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 1009-
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 1009-
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 01 1 1009-
161 BOLT; FIX
HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 16 1 1009-
285 PLATE; STEP,1ST STEP
HONG KONG EQUIPMENT(PQ1) 		8-98160-091-0 01 1 1009-
285 PLATE; STEP,1ST STEP
HONG KONG EQUIPMENT(PQ1) 		8-98160-094-0 01 1 1009-
285 PLATE; STEP,1ST STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97619-528-0 01 1 1009-
285 PLATE; STEP,1ST STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97619-529-0 01 1 1009-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1009-
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 1009-
339 FASTENER; SIDE
HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8 		1-09987-194-0 10 1 1009-
339 FASTENER; SIDE
EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8 		1-09987-194-0 12 1 1009-
404 BRACKET
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-53414-287-2 01 1 1009-
404 BRACKET
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-53414-288-2 01 1 1009-
404 BRACKET
HONG KONG EQUIPMENT(PQ1) (A) 		1-53414-158-4 01 1 1009-
404 BRACKET
HONG KONG EQUIPMENT(PQ1) (B) 		1-53414-255-3 01 1 1009-
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1009-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1009-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1009-
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1009-
455 PROTECTOR; STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-807-2 01 1 1009-
455 PROTECTOR; STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-808-2 01 1 1009-
455 PROTECTOR; STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		1-71907-837-1 01 1 1009-
455 PROTECTOR; STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		1-71907-838-1 01 1 1009-

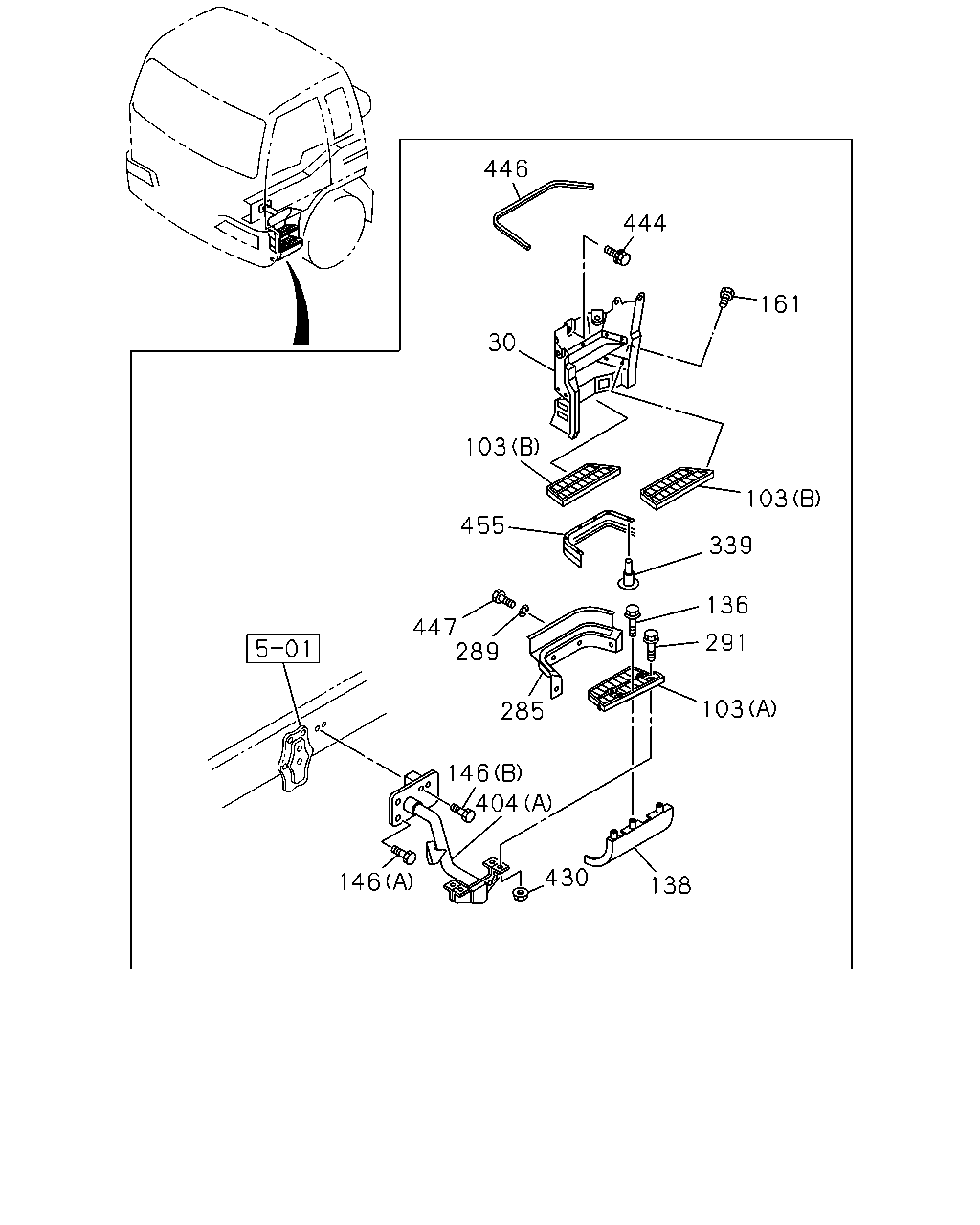

çizim 131078
446 444 161 30 103 103 455 339 136 447 289 291 285 103 146 404 430 146 138
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-810-4 01 1 1009-
30 CLOSING; SIDE STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-809-4 01 1 1009-
30 CLOSING; SIDE STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98156-848-0 01 1 1009-
30 CLOSING; SIDE STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98156-847-0 01 1 1009-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1009-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1009-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-249-1 02 1 1009-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-174-1 02 1 1009-
103 PLATE; STEP
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-249-1 01 1 1009-
103 PLATE; STEP
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-174-1 01 1 1009-
136 BOLT; OVER FENDER
FRONT SPOILER<VP1> M5X22 		8-97029-303-1 06 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE 		1-86792-078-0 01 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> EXC. HONG KONG EQUIPMENT(PQ1) CHROMIUM PLATE 		1-86792-079-0 01 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE 		1-79931-447-1 01 1 1009-
138 FENDER; OVER
FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1),BUMPER-CHROME, FRONT<V46> WHITE 		1-79931-448-1 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> 		1-79931-265-0 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> 		1-79931-266-0 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> 		1-79931-263-0 01 1 1009-
138 FENDER; OVER
HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> 		1-79931-264-0 01 1 1009-
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 1009-
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 1009-
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 1009-
161 BOLT; FIX
HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 16 1 1009-
285 PLATE; STEP,1ST STEP
HONG KONG EQUIPMENT(PQ1) 		8-98160-091-0 01 1 1009-
285 PLATE; STEP,1ST STEP
HONG KONG EQUIPMENT(PQ1) 		8-98160-094-0 01 1 1009-
285 PLATE; STEP,1ST STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97619-528-0 01 1 1009-
285 PLATE; STEP,1ST STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97619-529-0 01 1 1009-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1009-
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 1009-
339 FASTENER; SIDE
HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8 		1-09987-194-0 10 1 1009-
339 FASTENER; SIDE
EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8 		1-09987-194-0 12 1 1009-
404 BRACKET
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-53414-287-2 01 1 1009-
404 BRACKET
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-53414-288-2 01 1 1009-
404 BRACKET
HONG KONG EQUIPMENT(PQ1) (A) 		1-53414-158-4 01 1 1009-
404 BRACKET
HONG KONG EQUIPMENT(PQ1) (B) 		1-53414-255-3 01 1 1009-
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1009-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1009-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1009-
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1009-
455 PROTECTOR; STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-807-2 01 1 1009-
455 PROTECTOR; STEP
HONG KONG EQUIPMENT(PQ1) 		8-98125-808-2 01 1 1009-
455 PROTECTOR; STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		1-71907-837-1 01 1 1009-
455 PROTECTOR; STEP
EXC. HONG KONG EQUIPMENT(PQ1) 		1-71907-838-1 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
