4-71 — AIR SUSPENSION PIPING (#70298) — 12 parça

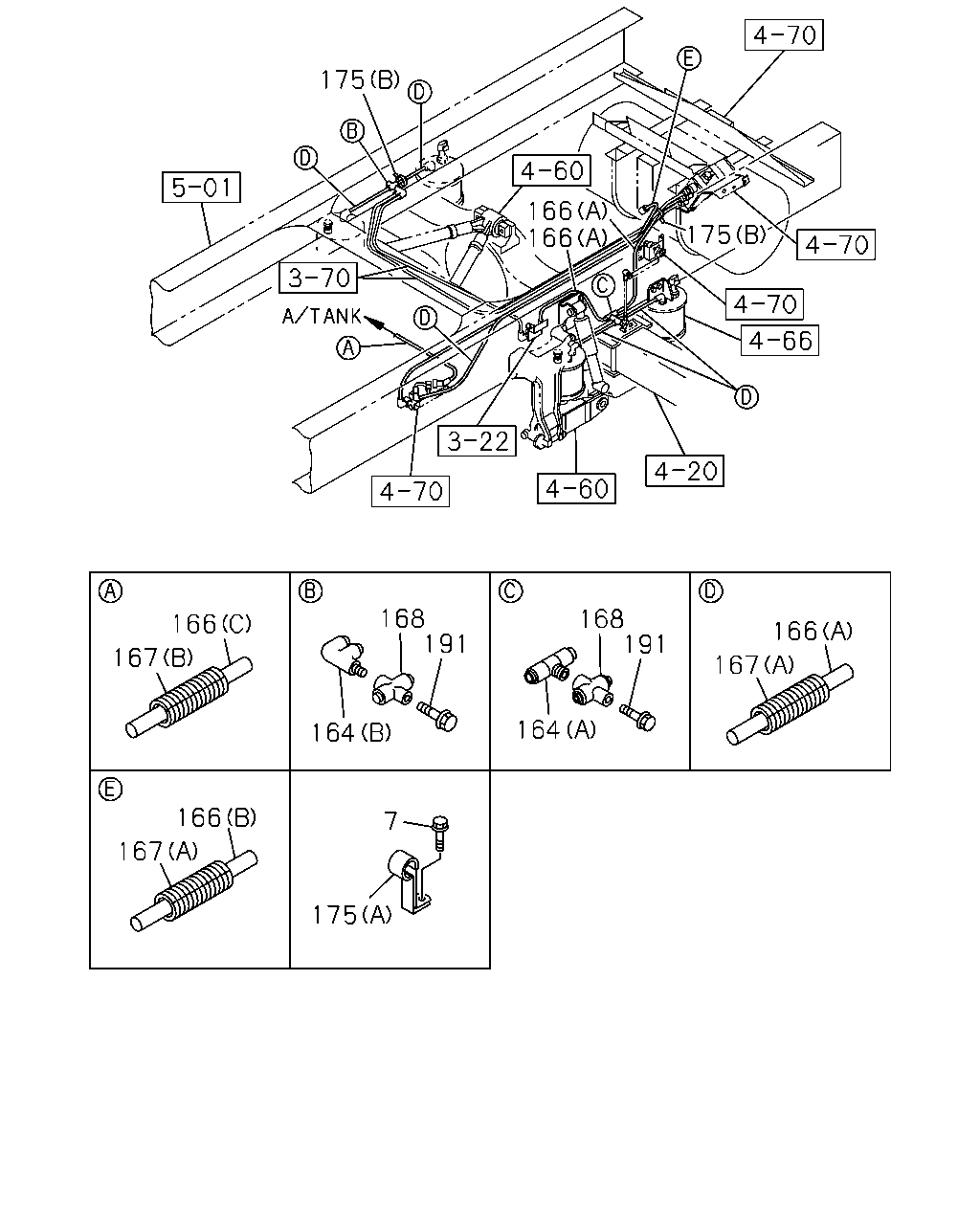

çizim 125634
175 166 166 175 168 191 168 191 166 166 167 167 164 164 166 7 167 175
BalonParca AdiParca NoAdetTipApplied Date
7 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
164 CONNECTOR
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1009-
164 CONNECTOR
(B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1009-
166 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
166 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
166 TUBE; NYLON
(C) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
167 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1009-
167 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1009-
168 UNION; 3WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 02 1 1009-
175 CLIP
(A) ID=18 L=25 H=50 		1-09701-096-0 01 1 1009-
175 CLIP
(B) L=350 		1-09707-183-0 02 1 1009-
191 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
