Isuzu WW
▶
TRUCKS
▶
EXD
▶
11293 - EXD RHD EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#70292) — 32 parça
◀

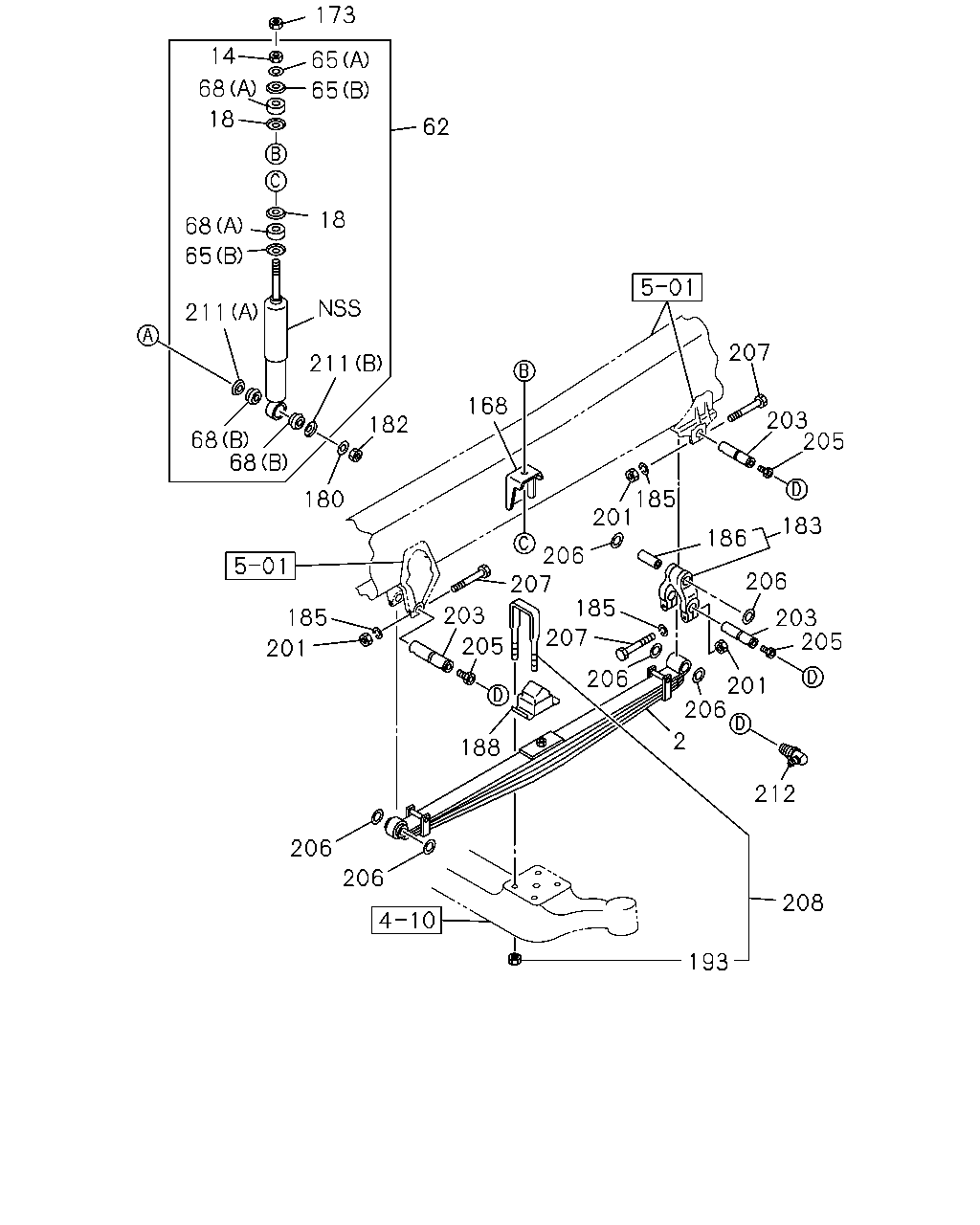

[450A] LEAF SPRING AND SHOCK ABSORBER (28 parça)

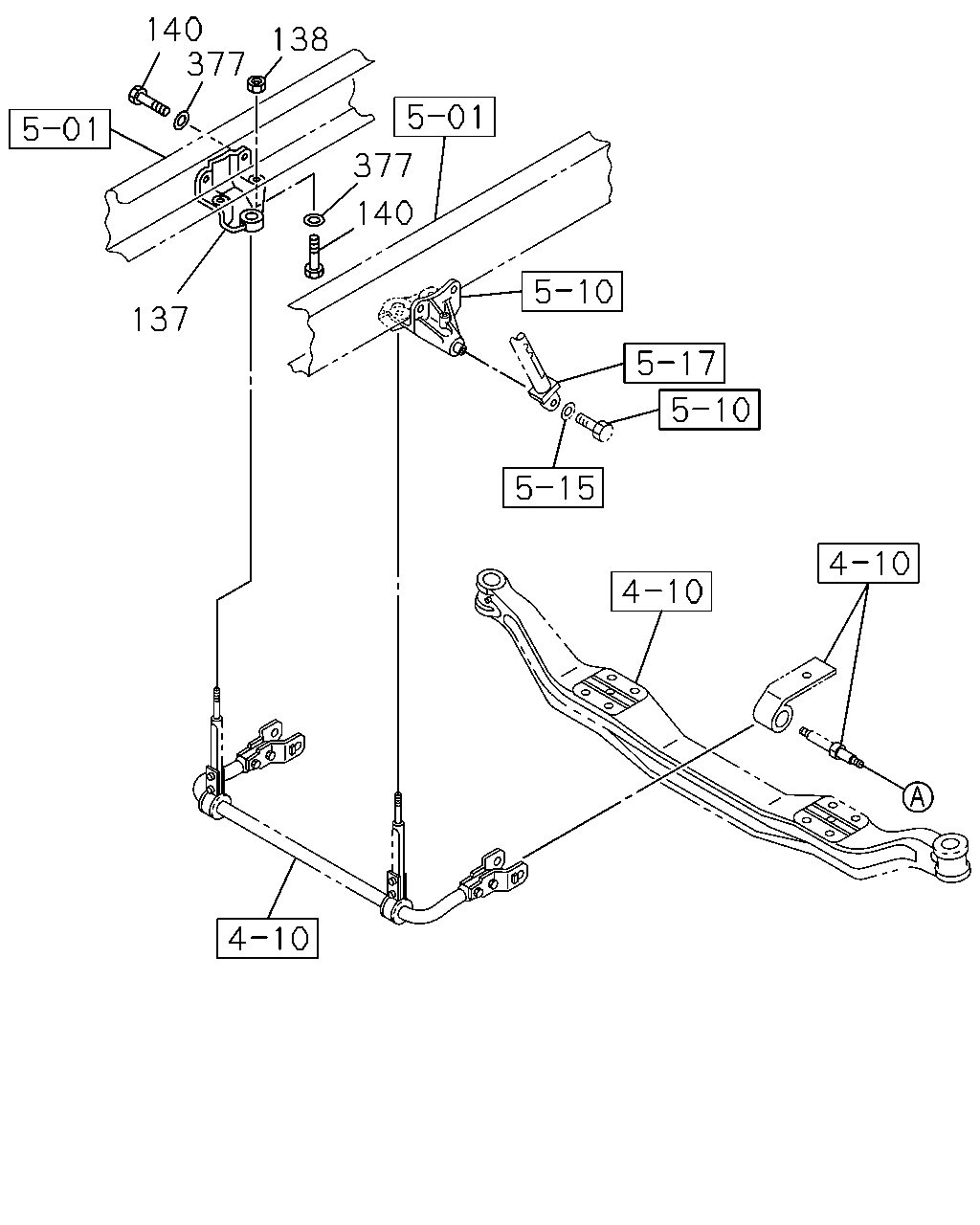

[450A] STABILIZER BRACKET FIXING (4 parça)
▶
173
14
65
68
65
18
62
18
68
65
211
207
211
168
203
205
182
68
68
185
201
180
183
186
206
207
206
185
203
185
203
205
207
205
201
206
201
206
2
188
212
206
206
208
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-97617-982-0
02
1
1009-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
1009-
18
WASHER; CENTERING,S/ABS
ID=24
1-51631-067-0
04
1
1009-
62
ABSORBER ASM; SHOCK,FRT
1-51630-830-0
02
1
1009-
65
WASHER; S/ABS
(A) ID=16.5
1-09503-266-0
02
1
1009-
65
WASHER; S/ABS
(B) ID=16.5
1-51631-068-0
04
1
1009-
68
BUSHING; S/ABS
(A) ID=16 T=25
1-51631-069-0
04
1
1009-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
1009-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
1009-
173
NUT; S/ABS
M14
0-91111-514-0
02
1
1009-
180
WASHER; PL,PIN
ID=21
0-91610-520-0
02
1
1009-
182
NUT; S/ABS LWR
M20
0-91110-520-0
02
1
1009-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1009-
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
1009-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1009-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-097-1
02
1
1009-
193
NUT; U BOLT
M22
0-91112-822-0
08
1
1009-1206
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1207-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1009-
203
PIN; SPR TO SHACKLE
1-51161-031-0
06
1
1009-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1009-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
1009-
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
1009-
208
U-BOLT SET; FRT SPRING
L=210
1-87870-380-1
04
1
1009-1206
208
U-BOLT SET; FRT SPRING
L=210
1-87870-498-0
04
1
1207-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
1009-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
1009-
212
NIPPLE; GREASE,ELBOW
PT1/8 ELBOW
0-90301-610-0
06
1
1009-
140
377
138
377
140
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
137
BRACKET; STAB BAR TO FRAME
1-51781-111-0
01
1
1009-
138
NUT; BRKT
M14
0-91110-514-0
02
1
1009-
140
BOLT; BRKT
M14X50
0-20951-450-0
04
1
1009-
377
WASHER; LK,BRKT
ID=15
8-98010-627-1
04
1
1009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
