Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10820 - CXZ LHD CHINA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

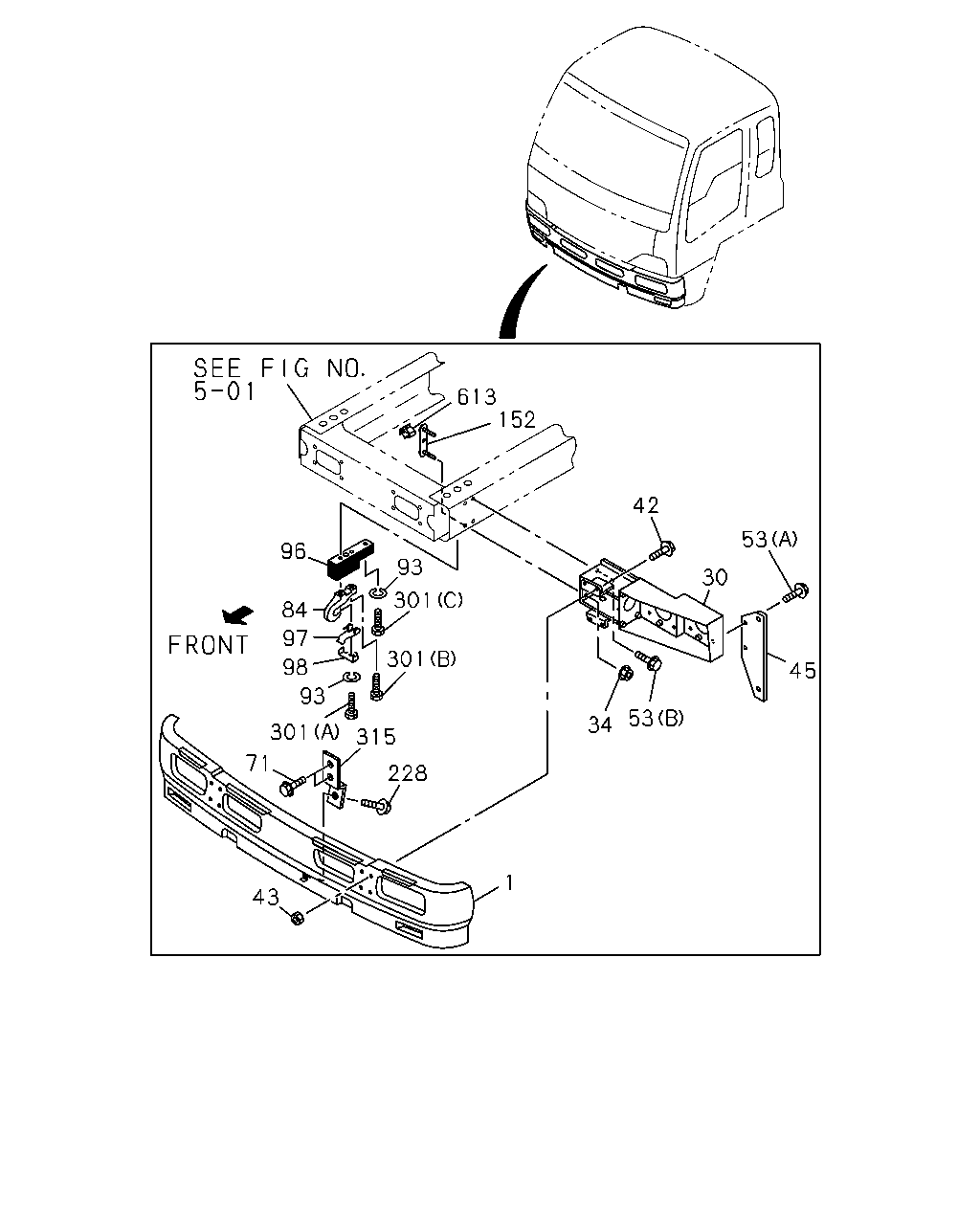

6-01 — FRONT BUMPER
(#7029) — 22 parça
613
152
42
30
53
45
53
34
93
301
301
315
228
1
96
84
97
98
93
301
71
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
1-71210-949-1
01
1
9908-
30
BRACKET; FRT BUMPER
1-71230-438-0
01
1
9908-
30
BRACKET; FRT BUMPER
1-71230-439-0
01
1
9908-
34
NUT; BRKT,BUMPER
M14 FLANGE
0-91150-114-0
04
1
9908-
42
BOLT; BUMPER
M10X20 FLANGE
0-28081-020-0
06
1
9908-
43
NUT; BRKT TO BUMPER
M10 CAP NUT
1-09650-480-0
08
1
9908-
45
BRACKET; BRKT TO BUMPER
1-71230-366-0
02
1
9908-
53
BOLT; BRKT TO FRAME
(B) M14X35
0-28081-435-0
04
1
9908-
53
BOLT; BRKT TO FRAME
(A) M10X20 FLANGE
0-28681-020-0
08
1
9908-
71
BOLT; BRKT TO FRAME
M10X20 FLANGE
0-28081-020-0
02
1
9908-
84
HOOK
1-57181-027-1
01
1
9908-
93
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
03
1
9908-
96
PLATE; DIST,HOOK
1-57189-203-1
01
1
9908-
97
SPRING; FRT HOOK
9-53519-003-0
01
1
9908-
98
STOPPER; SPR,FRT HOOK
9-53519-006-0
01
1
9908-
152
PLATE; FRT BUMPER
1-53497-546-1
02
1
9908-
228
BOLT; BRKT
M10X20 FLANGE
0-28081-020-0
01
1
9908-
301
BOLT; HOOK TO FRAME
(A) M16X158
1-09040-077-0
01
1
9908-
301
BOLT; HOOK TO FRAME
(B) M16X147
5-51361-003-3
01
1
9908-
301
BOLT; HOOK TO FRAME
(C) M16X80
9-91061-680-0
01
1
9908-
315
STAY; BUMPER
1-71230-390-0
01
1
9908-
613
CLIP
OD=9 H=17.5
1-09709-181-0
02
1
9908-
