4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#70288) — 90 parça

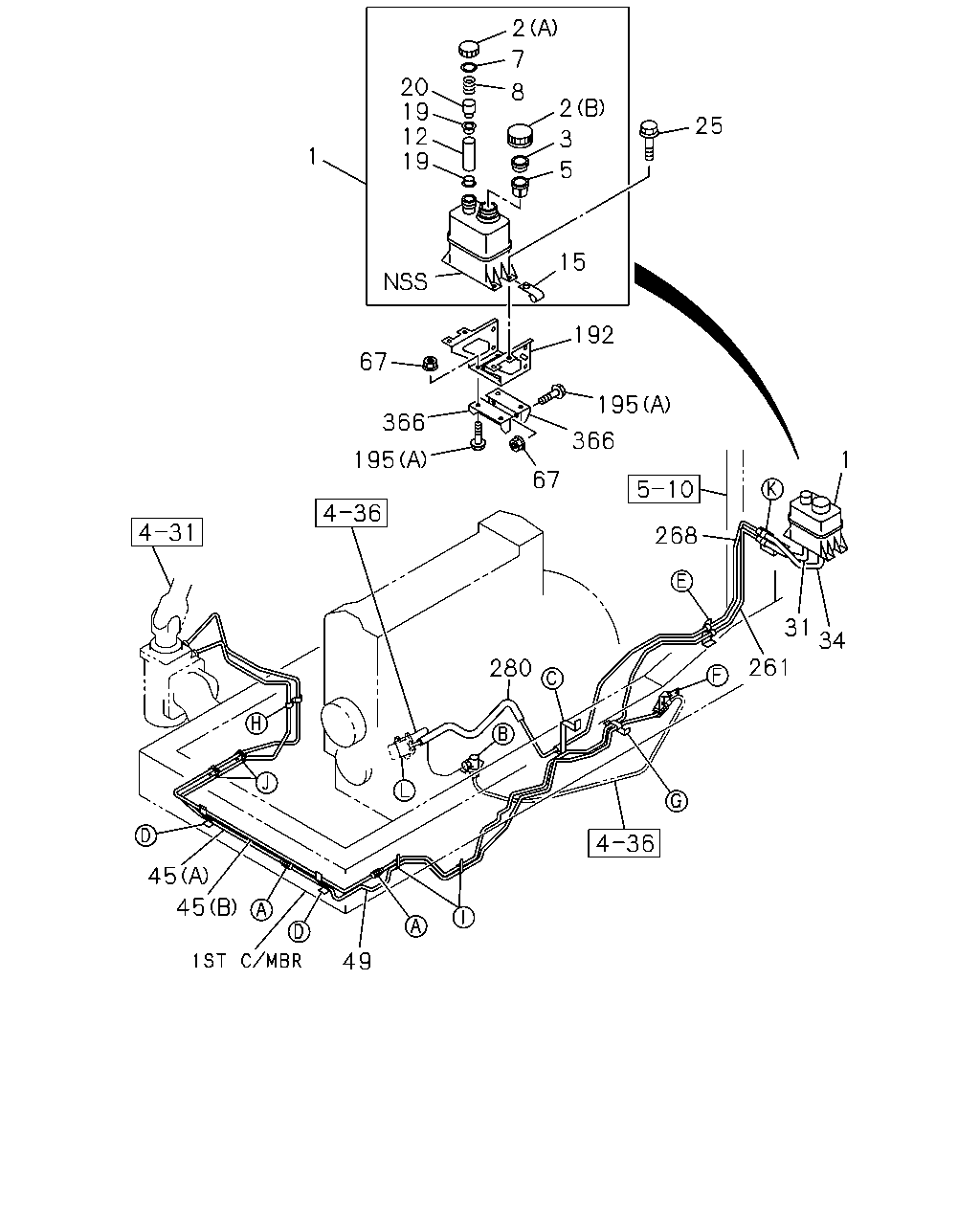

çizim 123961
2 20 19 12 19 15 5 3 2 8 7 1 25 67 366 195 67 366 195 192 45 45 49 280 261 34 31 1 268
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-235-1 01 1 1009-
2 CAP; OIL TANK,P/S
(A) WO/GAUGE 		1-21241-003-6 01 1 1009-
2 CAP; OIL TANK,P/S
(B) W/GAUGE 		1-21241-006-4 01 1 1009-
3 GASKET; OIL TANK,P/S 1-21249-006-2 01 1 1009-
5 STRAINER; OIL TANK,P/S 1-21235-006-1 01 1 1009-
7 RING; GASKET,OIL TANK,P/S 1-21249-005-0 01 1 1009-
8 SPRING; OIL TANK,P/S 1-09580-599-0 01 1 1009-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-004-1 01 1 1009-
15 PLATE; FILTER,OIL TANK 1-21249-016-0 04 1 1009-
19 SEAT; OIL TANK 1-21262-001-0 02 1 1009-
20 HOLDER; FILTER,OIL TANK,P/S 1-21239-001-2 01 1 1009-
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1009-
31 HOSE; P/S OIL TANK,INL 8-98034-999-0 01 1 1009-
34 HOSE; P/S OIL TANK,OUTLET 8-98127-737-0 01 1 1009-
45 PIPE; OIL,P/S UNIT TO UNION
(A) 		8-98139-031-0 01 1 1009-1309
45 PIPE; OIL,P/S UNIT TO UNION
(A) 		8-98257-707-0 01 1 1310-
45 PIPE; OIL,P/S UNIT TO UNION
(B) 		8-98139-032-0 01 1 1009-1309
45 PIPE; OIL,P/S UNIT TO UNION
(B) 		8-98257-708-0 01 1 1310-1310
45 PIPE; OIL,P/S UNIT TO UNION
(B) 		8-98259-181-0 01 1 1310-
49 PIPE; OIL,FLEX HOSE TO UNION
L=1358 		8-98155-326-0 01 1 1009-
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1009-
192 BRACKET; P/S OIL TANK 1-21489-200-1 01 1 1009-
195 BOLT; BRKT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1009-
195 BOLT; BRKT
(D) M10X35 FLANGE 		0-28151-035-0 01 1 1009-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 1009-
195 BOLT; BRKT
(B) M10X20 FLANGE 		0-28651-020-0 02 1 1009-
261 PIPE; OIL,UNION TO HOSE 8-98155-327-0 01 1 1009-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98142-365-0 01 1 1009-
280 HOSE; P/S OIL PUMP,INL 1-21117-301-0 01 1 1009-
366 SPACER; BRKT TO MEMBER 1-21489-196-1 02 1 1009-

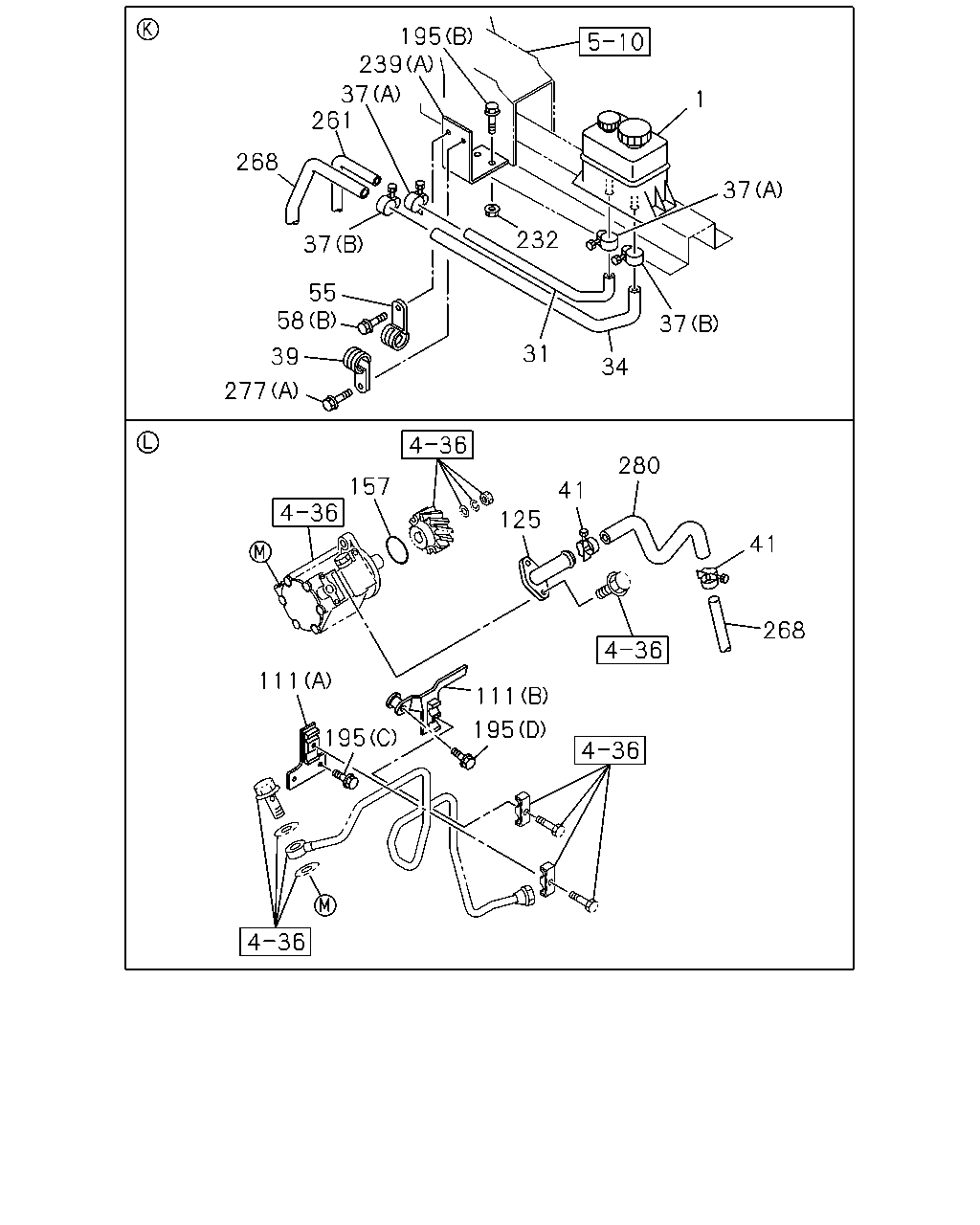

çizim 123967
195 239 37 261 68 1 37 37 34 31 37 55 58 39 277 232 157 125 280 41 268 111 41 195 111 195
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-235-1 01 1 1009-
31 HOSE; P/S OIL TANK,INL 8-98034-999-0 01 1 1009-
34 HOSE; P/S OIL TANK,OUTLET 8-98127-737-0 01 1 1009-
37 CLIP; HOSE,P/S
(B) ID=38 		9-09915-041-1 02 1 1009-
37 CLIP; HOSE,P/S
(A) ID=28 		9-09915-672-1 02 1 1009-
39 CLIP; FLEX HOSE
ID=37 L=35 		1-09701-109-0 01 1 1009-
41 CLIP; HOSE,P/S
ID=38 		9-09915-041-1 02 1 1009-
55 CLIP; P/S RUBBER HOSE
ID=28 L=32 		1-09701-107-1 01 1 1009-
58 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 05 1 1009-
58 BOLT; CLIP
(A) M10X20 FLANGE 		0-28651-020-0 01 1 1009-
111 BRACKET; OIL PIPE
(A) 		1-13345-186-0 01 1 1009-
111 BRACKET; OIL PIPE
(B) 		1-13345-187-0 01 1 1009-
125 CONNECTOR; P/S PUMP 1-13313-532-0 01 1 1009-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6 		1-09623-421-0 01 1 1009-
195 BOLT; BRKT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1009-
195 BOLT; BRKT
(D) M10X35 FLANGE 		0-28151-035-0 01 1 1009-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 1009-
195 BOLT; BRKT
(B) M10X20 FLANGE 		0-28651-020-0 02 1 1009-
232 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1009-
239 BRACKET; FLEX HOSE
(A) 		1-21464-780-0 01 1 1009-
239 BRACKET; FLEX HOSE
(B) 		8-97618-278-1 01 1 1009-
261 PIPE; OIL,UNION TO HOSE 8-98155-327-0 01 1 1009-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98142-365-0 01 1 1009-
277 BOLT; HOSE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1009-
277 BOLT; HOSE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1009-
280 HOSE; P/S OIL PUMP,INL 1-21117-301-0 01 1 1009-

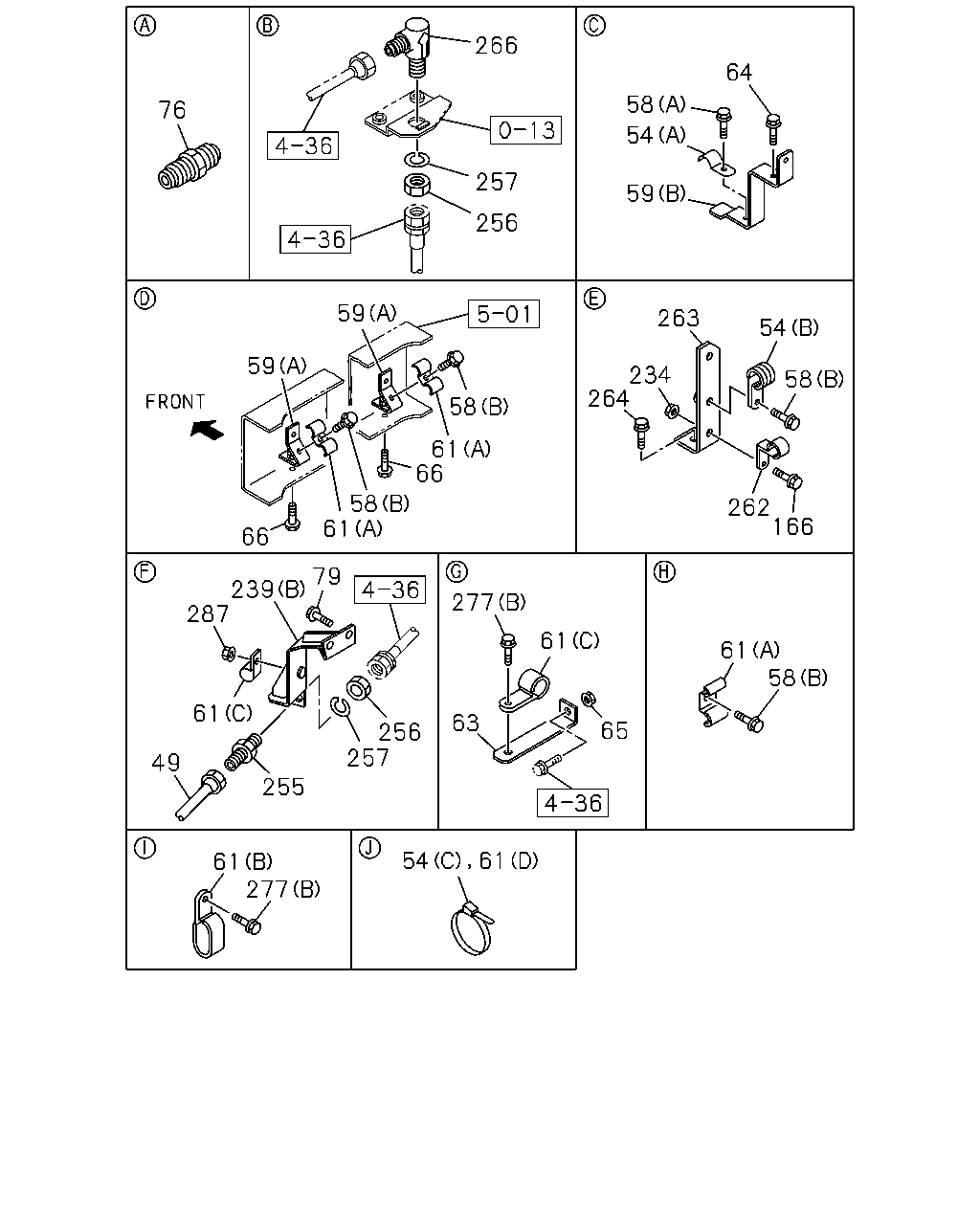

çizim 188791
76 266 257 256 58 54 59 64 263 54 58 262 166 264 234 61 58 61 65 277 63 61 54 256 257 255 61 49 287 239 79 66 61 58 66 61 58 59 59 61 277
BalonParca AdiParca NoAdetTipApplied Date
49 PIPE; OIL,FLEX HOSE TO UNION
L=1358 		8-98155-326-0 01 1 1009-
54 CLIP; OIL PIPE
(C) L=350 		1-09707-183-0 01 1 1310-
54 CLIP; OIL PIPE
(A) ID=23.6 L=35 		1-09700-634-0 01 1 1009-
54 CLIP; OIL PIPE
(B) ID=26 L=27 		1-09701-006-0 01 1 1009-
58 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 05 1 1009-
58 BOLT; CLIP
(A) M10X20 FLANGE 		0-28651-020-0 01 1 1009-
59 BRACKET; CLIP,OIL PIPE
(B) 		1-47471-183-0 01 1 1009-
59 BRACKET; CLIP,OIL PIPE
(A) 		1-47479-521-0 02 1 1009-
61 CLIP; OIL PIPE
(D) L=350 		1-09707-183-0 01 1 1310-
61 CLIP; OIL PIPE
(C) ID=16 L=20 		0-95235-535-0 02 1 1009-
61 CLIP; OIL PIPE
(B) ID=16X2 L=20 		0-95325-535-0 02 1 1009-
61 CLIP; OIL PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 03 1 1009-
63 BRACKET; CLIP,P/S
L=112 		1-47475-694-1 01 1 1009-
64 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28050-830-0 01 1 1009-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
76 UNION; OIL PIPE
M22 L=51 		0-92123-015-0 02 1 1009-
79 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
166 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
234 NUT; PIPE CLIP,P/S
M8 FLANGE 		0-91180-108-0 01 1 1009-
239 BRACKET; FLEX HOSE
(A) 		1-21464-780-0 01 1 1009-
239 BRACKET; FLEX HOSE
(B) 		8-97618-278-1 01 1 1009-
255 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-2 01 1 1009-
256 NUT; UNION
M22 		0-91111-522-0 01 1 1009-
256 NUT; UNION
M22 		0-91111-522-0 01 1 1009-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1009-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1009-
262 CLIP; P/S PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 1009-
263 BRACKET; P/S PIPE 1-47471-191-1 01 1 1009-
264 BOLT; PIPE BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009-
266 UNION; OIL PIPE,P/S
M20 & M22 ELBOW 		1-09654-154-1 01 1 1009-
277 BOLT; HOSE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1009-
277 BOLT; HOSE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1009-
287 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1009-
