3-41 — REAR BRAKE POWER CHAMBER
(#70269) — 17 parça
◀

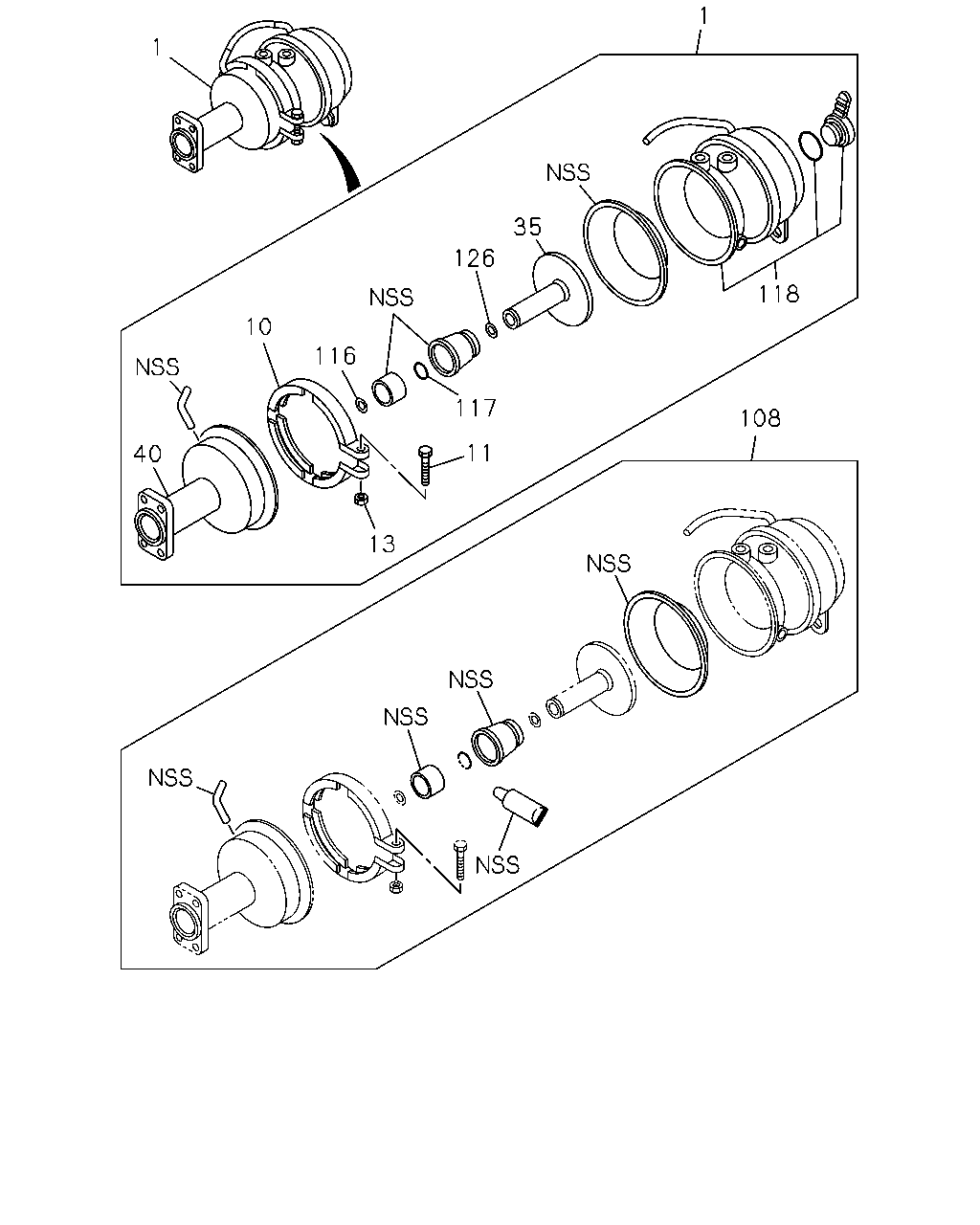

[341A] COMPONENT,REPAIR KIT (14 parça)

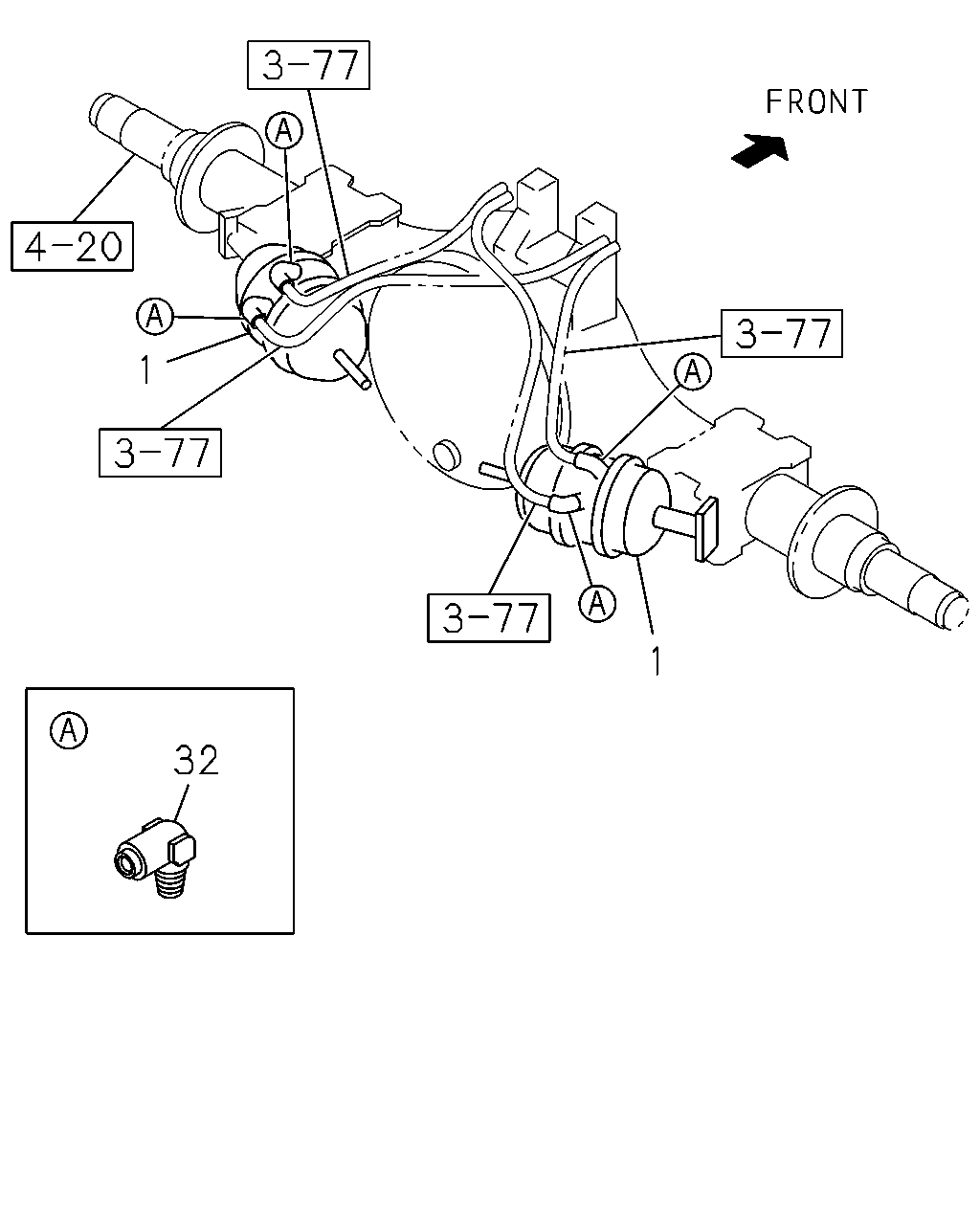

[341A] CONNECTOR;NYLON TUBE (3 parça)
▶
1
1
35
126
118
10
116
117
108
11
40
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-87412-099-0
01
1
1009-
1
CHAMBER ASM; SPRING
1-87412-100-0
01
1
1009-
10
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1009-
11
BOLT; CLAMP RING
1-48269-257-0
02
1
1009-
13
NUT; CLAMP RING
1-48269-147-0
02
1
1009-
35
PLATE; ROD END,SPR CHAMBER
8-98146-974-0
02
1
1009-
40
COVER ASM; LWR,SPR CHAMBER
1-48251-175-1
01
1
1009-
40
COVER ASM; LWR,SPR CHAMBER
1-48251-176-1
01
1
1009-
108
REPAIR KIT; SPR CHAMBER
8-98146-980-0
02
1
1009-
116
GUIDE; SPR CHAMBER
8-98146-963-0
02
1
1009-
117
RING; SPR CHAMBER
8-98146-966-0
02
1
1009-
118
CHAMBER; PIGGY BACK
1-87412-113-0
01
1
1009-
118
CHAMBER; PIGGY BACK
1-87412-114-0
01
1
1009-
126
SHIM
8-98146-965-0
AR
1
1009-
1
1
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-87412-099-0
01
1
1009-
1
CHAMBER ASM; SPRING
1-87412-100-0
01
1
1009-
32
CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1009-
