Isuzu WW
▶
TRUCKS
▶
EXD
▶
11293 - EXD RHD EURO5
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#70265) — 57 parça
◀

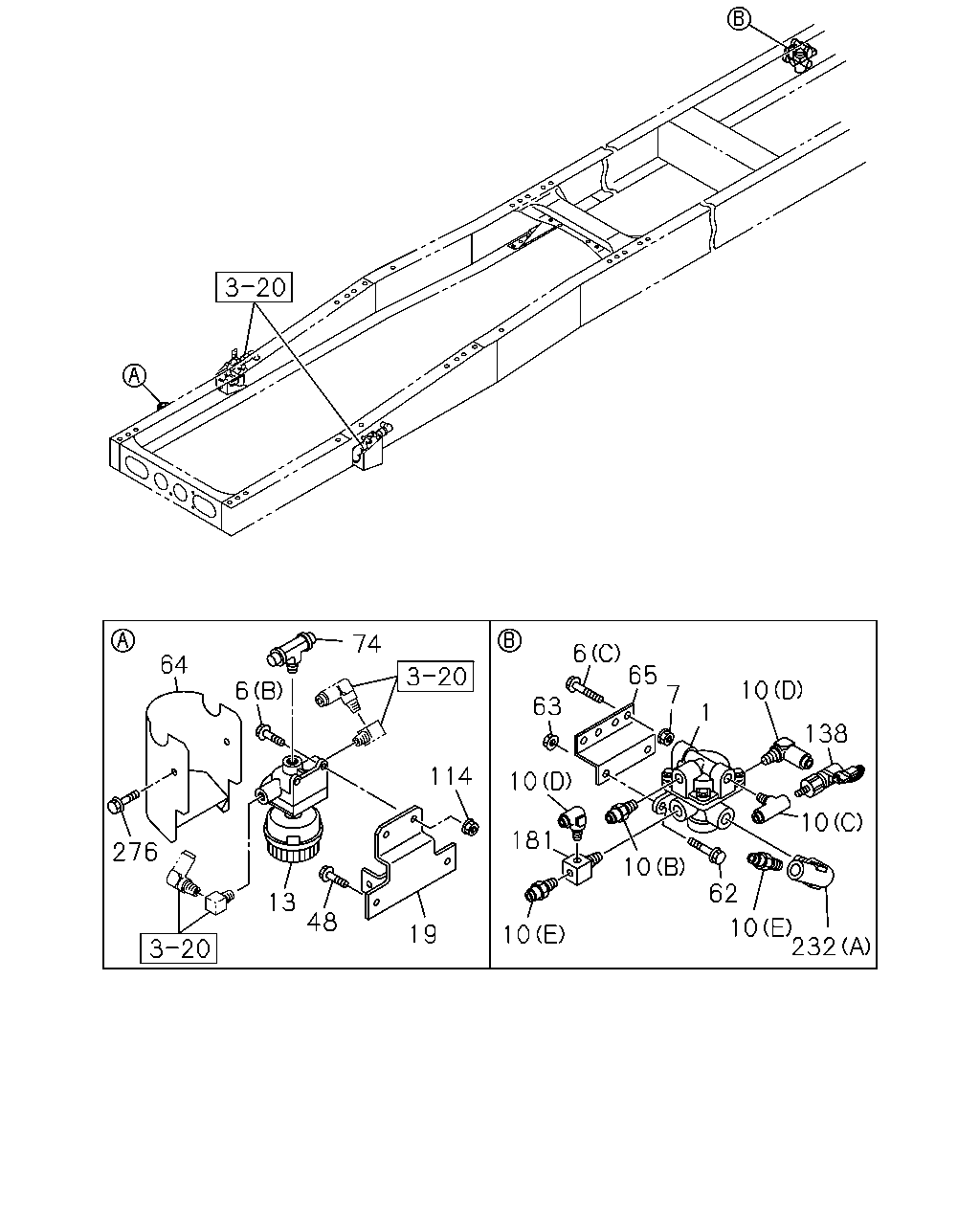

[322A] FIXING NO.1 (24 parça)

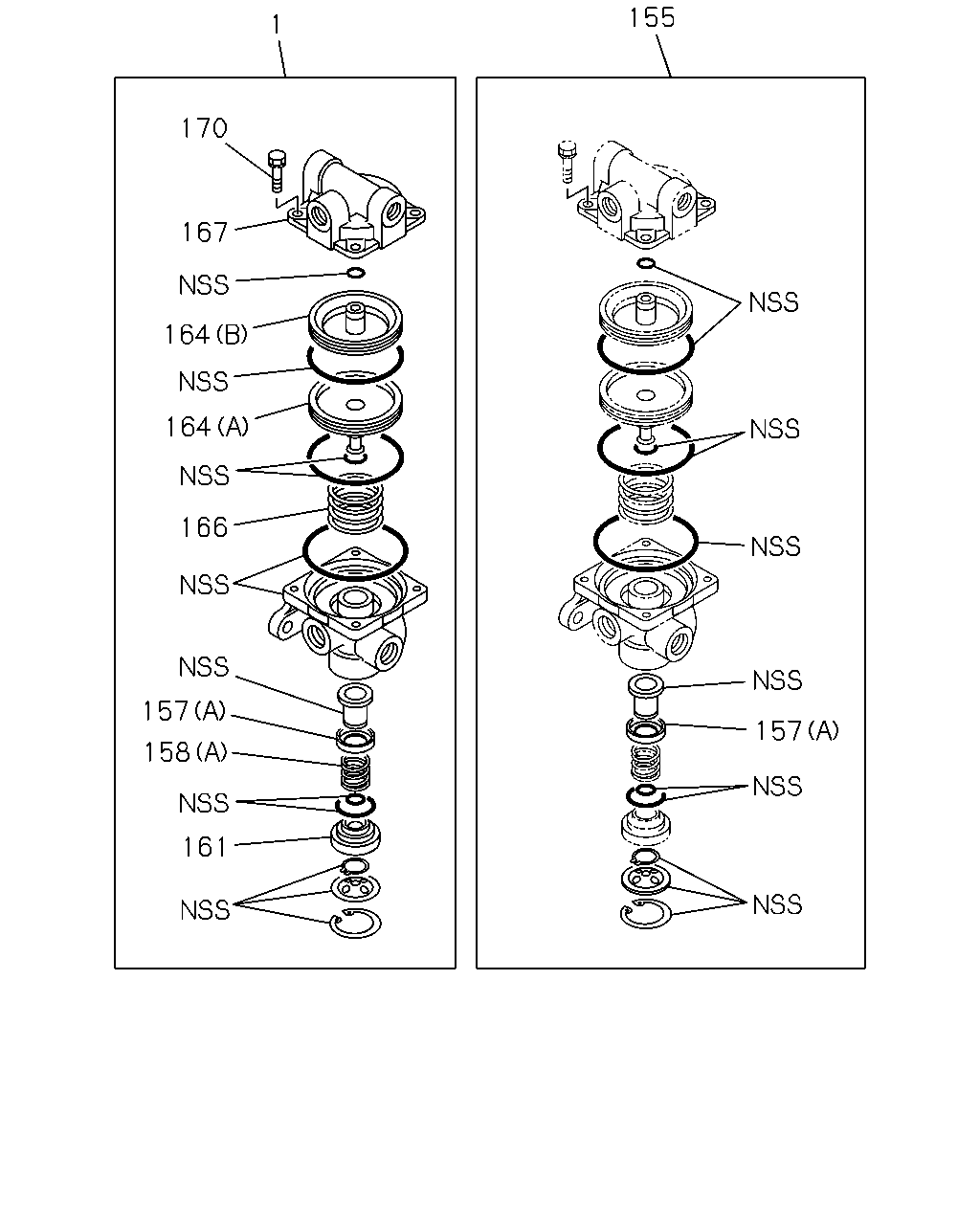

[322A] COMPONENT;RELAY VALVE (12 parça)

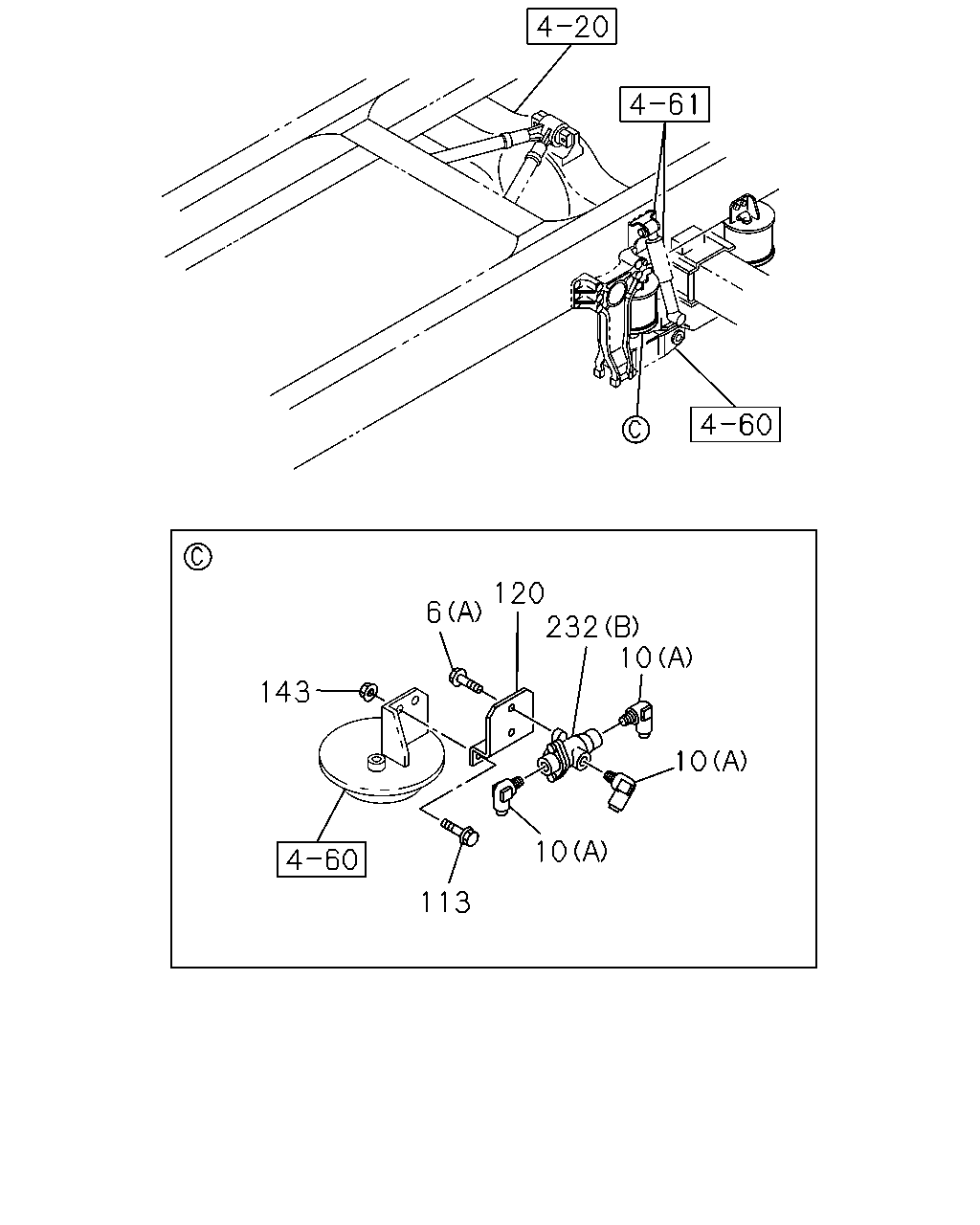

[322A] FIXING NO.2 (13 parça)
[322A] COMPONENT;QUICK RELEASE VALVE (8 parça)
▶
74
6
65
7
64
10
6
63
1
138
114
10
10
181
276
10
62
13
48
10
232
19
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; RELAY RWD RR
1-48240-041-1
01
1
1009-
6
BOLT; VLV
(A) M8X14 FLANGE
0-28080-814-0
02
1
1009-
6
BOLT; VLV
(B) M8X25 FLANGE
0-28650-825-0
02
1
1009-
6
BOLT; VLV
(C) M10X35 FLANGE
0-28651-035-0
02
1
1009-
7
NUT; RELAY VLV
M10 FLANGE
0-91180-110-0
02
1
1009-
10
CONNECTOR
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
03
1
1009-
10
CONNECTOR
(D) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1009-
10
CONNECTOR
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1009-
10
CONNECTOR
(E) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1009-
10
CONNECTOR
(C) DIN8 & RC1/4 & R3/8 3WAY
8-97620-116-0
01
1
1009-
13
VALVE ASM; QUICK RELEASE
1-48410-726-1
01
1
1009-
19
BRACKET; QUICK RELEASE VLV
1-47471-014-0
01
1
1009-
48
BOLT; QUICK RELEASE VLV
M8X30 FLANGE
0-28650-830-0
02
1
1009-
62
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
02
1
1009-
63
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
02
1
1009-
64
PROTECTOR; QUICK RELEASE VALVE
8-98043-421-0
01
1
1009-
65
BRACKET; RELAY VLV RR
1-47478-233-0
01
1
1009-
74
CONNECTOR; 3WAY
DIN8 & DIN12 & R3/8 3WAY
1-09660-821-0
01
1
1009-
114
NUT; VLV
M8 FLANGE
0-91180-108-0
02
1
1009-
138
SWITCH; RELAY VALVE
STAMP 2.0
8-98010-856-2
01
1
1009-
181
ADAPTER; PRESSURE SW
PT3/8 3WAY
1-09661-300-0
01
1
1009-
232
VALVE; CHECK
(A)
1-48320-031-1
01
1
1009-
232
VALVE; CHECK
(B)
1-48410-531-1
01
1
1009-
276
BOLT; PROTECTOR
M8X20 FLANGE
0-28650-820-0
02
1
1009-
155
1
170
167
164
164
166
157
157
158
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; RELAY RWD RR
1-48240-041-1
01
1
1009-
155
REPAIR KIT; RELAY VALVE
1-85576-035-0
01
1
1009-
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
1009-
157
RETAINER; VALVE
(B)
1-48419-020-0
01
1
1009-
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
1009-
158
SPRING; VALVE
(B)
9-48419-003-0
01
1
1009-
161
GUIDE; VALVE
1-48129-014-0
01
1
1009-
164
PISTON; RELAY VALVE
(A)
1-48219-032-0
01
1
1009-
164
PISTON; RELAY VALVE
(B)
1-48219-047-0
01
1
1009-
166
SPRING; PISTON
1-48219-048-0
01
1
1009-
167
COVER; VALVE
1-48219-050-1
01
1
1009-
170
SCREW; COVER TO BODY
1-48219-041-0
04
1
1009-
120
232
10
6
143
10
10
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
BOLT; VLV
(A) M8X14 FLANGE
0-28080-814-0
02
1
1009-
6
BOLT; VLV
(B) M8X25 FLANGE
0-28650-825-0
02
1
1009-
6
BOLT; VLV
(C) M10X35 FLANGE
0-28651-035-0
02
1
1009-
10
CONNECTOR
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
03
1
1009-
10
CONNECTOR
(D) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1009-
10
CONNECTOR
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1009-
10
CONNECTOR
(E) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1009-
10
CONNECTOR
(C) DIN8 & RC1/4 & R3/8 3WAY
8-97620-116-0
01
1
1009-
113
BOLT; VLV
M8X30 FLANGE
0-28650-830-0
02
1
1009-
120
BRACKET; VLV
8-97614-381-0
01
1
1009-
143
NUT; VLV
M8 FLANGE
0-91180-108-0
02
1
1009-
232
VALVE; CHECK
(A)
1-48320-031-1
01
1
1009-
232
VALVE; CHECK
(B)
1-48410-531-1
01
1
1009-
13
157
216
158
262
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
VALVE ASM; QUICK RELEASE
1-48410-726-1
01
1
1009-
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
1009-
157
RETAINER; VALVE
(B)
1-48419-020-0
01
1
1009-
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
1009-
158
SPRING; VALVE
(B)
9-48419-003-0
01
1
1009-
216
REPAIR KIT; QUICK RELEASE VLV
1-85576-235-0
01
1
1009-1109
216
REPAIR KIT; QUICK RELEASE VLV
1-85576-484-0
01
1
1110-
262
SILENCER; RELAY VALVE
1-48219-149-0
01
1
1009-
